◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10819 - CXZ RHD SINGAPORE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#8358) — 304 parça
çizim 6815
14 16 51 81 171 206 225 228 14 16 81 111 212 341 369 48 373 16 48 51 81 208 470 16 48 81 263 212 16 16 48 194 14 237 14 524 423 515 340 294 219 294 219 128 16 128 16 16 225 305 448 205 194 16 171
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=500 		1-09707-082-1 01 1 9906-0205
14 CLIP; BAND,HARNESS
(D) L=700 		1-09707-190-0 01 1 0206-
14 CLIP; BAND,HARNESS
DUMP TRUCK<RA1> (B) L=250 		5-09707-030-1 02 1 9906-9906
14 CLIP; BAND,HARNESS
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) L=250 		5-09707-030-1 02 1 9907-
14 CLIP; BAND,HARNESS
DUMP TRUCK<RA1> (A) L=140 		5-09707-031-1 04 1 9906-9906
14 CLIP; BAND,HARNESS
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) L=140 		5-09707-031-1 04 1 9907-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 08 1 9906-9906
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 9907-9907
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 07 1 9908-9908
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 9909-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 9906-
16 CLIP; HARNESS
(P) ID=15 L=35 		1-09700-507-0 01 1 9906-
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9906-
16 CLIP; HARNESS
(B) ID=21 L=24 		1-09701-201-0 02 1 9906-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 9906-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 04 1 9906-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 9906-
16 CLIP; HARNESS
(S) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9906-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 08 1 9906-9906
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9907-9907
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 9908-9908
16 CLIP; HARNESS
MJD7 M/T<X9J> (F) OD=9 H=6 		1-09709-178-0 01 1 9909-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 9909-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 03 1 9906-9906
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9907-9907
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 03 1 9908-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 9906-9906
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9907-
16 CLIP; HARNESS
(E) L=36 		8-94224-891-1 01 1 9906-
16 CLIP; HARNESS
(N) ID=11 L=20 		9-09525-035-0 01 1 9906-
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 9906-
16 CLIP; HARNESS
(M) ID=16 L=40 		9-09525-576-0 01 1 9906-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 10 1 9906-9906
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 07 1 9907-9907
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 06 1 9908-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 09 1 9906-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 9907-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 9907-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9907-9907
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9907-9907
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 9908-9908
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 9907-
16 CLIP; HARNESS
(G) OD=9 H=9.5 		1-09709-179-0 01 1 9908-
16 CLIP; HARNESS
EXC. MJD7 M/T<X9J> (F) OD=9 H=6 		1-09709-178-0 02 1 9908-
48 CLIP; FRAME HARNESS
(E) ID=11 L=41 		1-09700-403-0 02 1 9906-
48 CLIP; FRAME HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 06 1 9906-9907
48 CLIP; FRAME HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 13 1 9908-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-0 09 1 9906-9906
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 04 1 9907-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 15 1 9906-9906
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 9907-9907
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 16 1 9908-
48 CLIP; FRAME HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 9906-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 05 1 9907-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 9907-9907
51 CLIP; COOLER CMPR
(A) ID=11 L=41 		1-09700-403-0 01 1 9906-
51 CLIP; COOLER CMPR
(B) L=140 		5-09707-031-1 01 1 9906-
81 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9906-
81 CLIP; HARNESS
(E) ID=6-10 & 6-10 		1-09709-192-1 01 1 9906-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 9906-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 9906-
81 CLIP; HARNESS
(C) ID=20 L=50 		9-09917-430-0 06 1 9906-
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 9906-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9906-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9906-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
171 CLIP; STARTER HARNESS
(B) L=180 		1-09707-162-1 01 1 9906-
171 CLIP; STARTER HARNESS
(B) L=175 		1-09707-176-1 01 1 9906-
171 CLIP; STARTER HARNESS
(A) L=140 		5-09707-031-1 05 1 9906-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 03 1 9906-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 02 1 9906-
205 CLIP; BACK LAMP HARNESS
(B) L=180 		1-09707-162-1 01 1 9906-
205 CLIP; BACK LAMP HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 02 1 9906-9907
205 CLIP; BACK LAMP HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 9908-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 9906-
208 CLIP; HARNESS,MAG VLV
ID=11 L=41 		1-09700-403-0 01 1 9906-
212 CLIP; HORN HARNESS
(A) L=250 		5-09707-030-1 02 1 9906-
212 CLIP; HORN HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 9906-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 08 1 9906-9906
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 9907-9907
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 9907-9907
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 9908-9908
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 9909-
219 NUT
(B) M10 FLANGE 		0-91150-210-0 02 1 9906-9906
219 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 9907-9907
219 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 9907-9907
219 NUT
(B) M10 FLANGE 		0-91150-210-0 02 1 9908-9908
219 NUT
MJD7 M/T<X9J> (B) M10 FLANGE 		0-91150-210-0 01 1 9909-
219 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 9909-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 14 1 9908-
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 06 1 9906-
225 CLIP; AIR TANK HARNESS
(A) L=140 		5-09707-031-1 01 1 9906-
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-1 05 1 9906-
237 CLIP; BAND,ACL
L=600 		1-09707-107-1 01 1 9906-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 9906-9907
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 01 1 9908-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 07 1 9906-9906
294 NUT
(A) M8 FLANGE 		0-91150-108-0 06 1 9907-9907
294 NUT
EXC. MJD7 M/T<X9J> (B) M10 FLANGE 		0-91150-210-0 01 1 9908-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 9907-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9906-
305 CLIP; ENG HARNESS
DUMP TRUCK<RA1> (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 9906-9906
305 CLIP; ENG HARNESS
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 9907-
305 CLIP; ENG HARNESS
DUMP TRUCK<RA1> (C) L=36 		8-94224-891-1 02 1 9906-9906
305 CLIP; ENG HARNESS
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (C) L=36 		8-94224-891-1 02 1 9907-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 9906-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 02 1 9906-
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 01 1 9906-
373 CLIP; BAND,GEN HARNESS
(A) ID=26 L=27 		1-09701-006-0 02 1 9906-
373 CLIP; BAND,GEN HARNESS
(B) ID=25 L=50 		1-09701-019-0 01 1 9906-
373 CLIP; BAND,GEN HARNESS
(C) ID=22 L=52 		9-09917-431-0 01 1 9906-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 9906-
448 CLIP; AIR SUSP HARNESS
(A) L=180 		1-09707-162-1 03 1 9906-
448 CLIP; AIR SUSP HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 9906-
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 9906-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 9906-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9906-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9906-
çizim 42290
16 162 16 205 168 16 178 178 178 530 178 530 178 283 448 470
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 08 1 9906-9906
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 9907-9907
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 07 1 9908-9908
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 9909-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 9906-
16 CLIP; HARNESS
(P) ID=15 L=35 		1-09700-507-0 01 1 9906-
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9906-
16 CLIP; HARNESS
(B) ID=21 L=24 		1-09701-201-0 02 1 9906-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 9906-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 04 1 9906-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 9906-
16 CLIP; HARNESS
(S) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9906-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 08 1 9906-9906
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9907-9907
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 9908-9908
16 CLIP; HARNESS
MJD7 M/T<X9J> (F) OD=9 H=6 		1-09709-178-0 01 1 9909-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 9909-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 03 1 9906-9906
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9907-9907
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 03 1 9908-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 9906-9906
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9907-
16 CLIP; HARNESS
(E) L=36 		8-94224-891-1 01 1 9906-
16 CLIP; HARNESS
(N) ID=11 L=20 		9-09525-035-0 01 1 9906-
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 9906-
16 CLIP; HARNESS
(M) ID=16 L=40 		9-09525-576-0 01 1 9906-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 10 1 9906-9906
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 07 1 9907-9907
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 06 1 9908-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 09 1 9906-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 9907-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 9907-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9907-9907
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9907-9907
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 9908-9908
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 9907-
16 CLIP; HARNESS
(G) OD=9 H=9.5 		1-09709-179-0 01 1 9908-
16 CLIP; HARNESS
EXC. MJD7 M/T<X9J> (F) OD=9 H=6 		1-09709-178-0 02 1 9908-
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9906-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 06 1 9906-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 9906-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 02 1 9906-9907
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 03 1 9908-
178 GROMMET; HARNESS
(C) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 9906-9907
178 GROMMET; HARNESS
(D) 		1-82699-891-0 01 1 9906-
178 GROMMET; HARNESS
(E) ID=24 OD=30 T=17 		9-09956-092-1 01 1 9906-
205 CLIP; BACK LAMP HARNESS
(B) L=180 		1-09707-162-1 01 1 9906-
205 CLIP; BACK LAMP HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 02 1 9906-9907
205 CLIP; BACK LAMP HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 9908-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9906-
448 CLIP; AIR SUSP HARNESS
(A) L=180 		1-09707-162-1 03 1 9906-
448 CLIP; AIR SUSP HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 9906-
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 9906-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 9906-
530 SEAL; HARNESS
(B) 180X40 		1-72498-019-0 02 1 9906-0101
530 SEAL; HARNESS
(B) 180X40 		1-72498-019-0 07 1 0102-
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-0 01 1 9906-

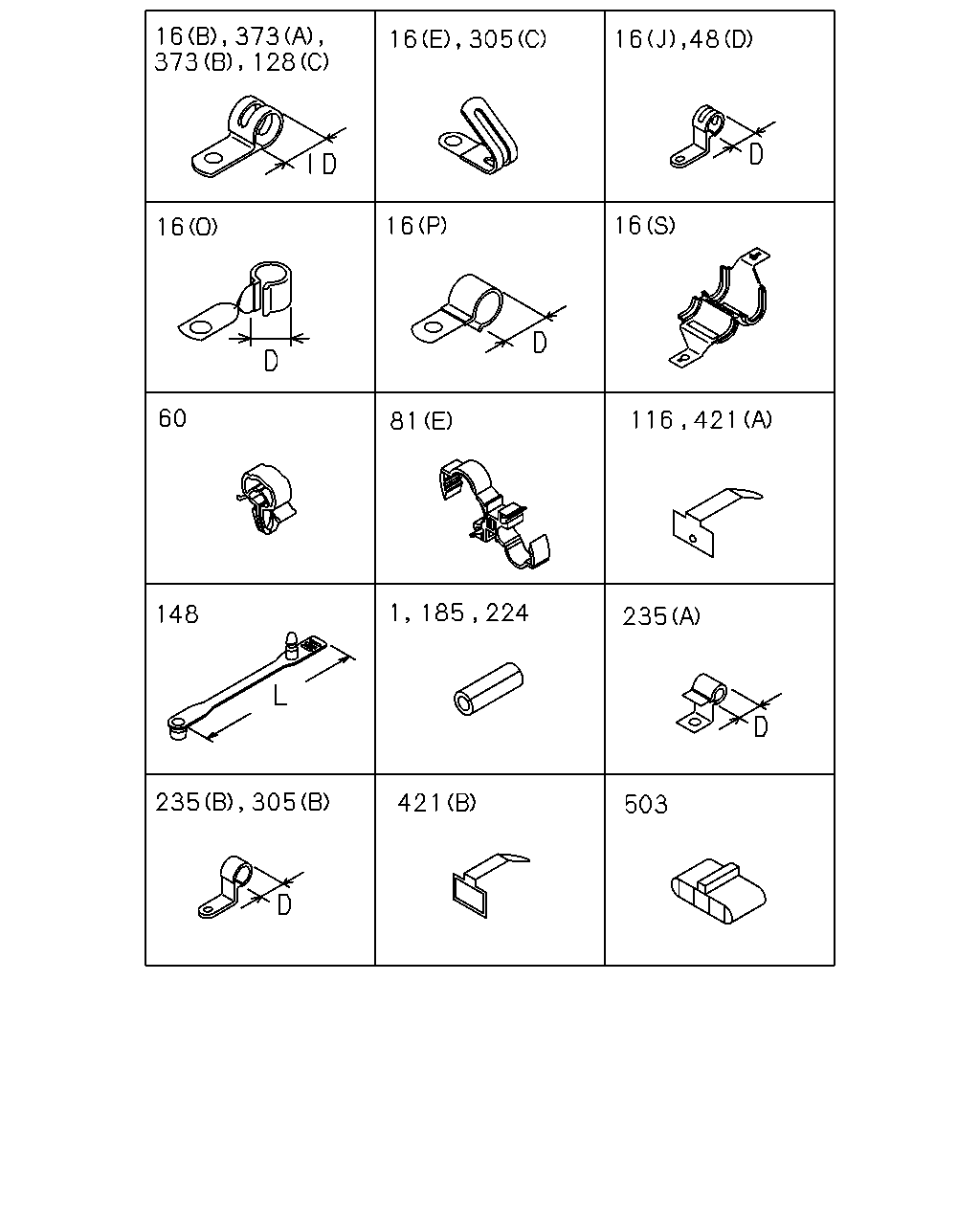

çizim 43340
373 128 16 48 16 305 16 16 60 116 421 81 185 224 1 148 235 235 305 421 503 16 373
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0010-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 08 1 9906-9906
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 9907-9907
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 07 1 9908-9908
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 9909-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 9906-
16 CLIP; HARNESS
(P) ID=15 L=35 		1-09700-507-0 01 1 9906-
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9906-
16 CLIP; HARNESS
(B) ID=21 L=24 		1-09701-201-0 02 1 9906-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 9906-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 04 1 9906-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 9906-
16 CLIP; HARNESS
(S) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9906-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 08 1 9906-9906
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9907-9907
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 9908-9908
16 CLIP; HARNESS
MJD7 M/T<X9J> (F) OD=9 H=6 		1-09709-178-0 01 1 9909-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 9909-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 03 1 9906-9906
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9907-9907
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 03 1 9908-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 9906-9906
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9907-
16 CLIP; HARNESS
(E) L=36 		8-94224-891-1 01 1 9906-
16 CLIP; HARNESS
(N) ID=11 L=20 		9-09525-035-0 01 1 9906-
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 9906-
16 CLIP; HARNESS
(M) ID=16 L=40 		9-09525-576-0 01 1 9906-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 10 1 9906-9906
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 07 1 9907-9907
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 06 1 9908-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 09 1 9906-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 9907-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 9907-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9907-9907
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9907-9907
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 9908-9908
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 9907-
16 CLIP; HARNESS
(G) OD=9 H=9.5 		1-09709-179-0 01 1 9908-
16 CLIP; HARNESS
EXC. MJD7 M/T<X9J> (F) OD=9 H=6 		1-09709-178-0 02 1 9908-
48 CLIP; FRAME HARNESS
(E) ID=11 L=41 		1-09700-403-0 02 1 9906-
48 CLIP; FRAME HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 06 1 9906-9907
48 CLIP; FRAME HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 13 1 9908-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-0 09 1 9906-9906
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 04 1 9907-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 15 1 9906-9906
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 9907-9907
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 16 1 9908-
48 CLIP; FRAME HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 9906-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 05 1 9907-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 9907-9907
60 CLIP; CONSOLE HARNESS,SW PTO
ID=10 		8-94450-392-0 01 1 9906-0305
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP TRUCK<RA1> ID=10 		8-94450-392-0 01 1 0306-
81 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9906-
81 CLIP; HARNESS
(E) ID=6-10 & 6-10 		1-09709-192-1 01 1 9906-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 9906-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 9906-
81 CLIP; HARNESS
(C) ID=20 L=50 		9-09917-430-0 06 1 9906-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 04 1 9906-0009
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0010-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9906-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9906-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 9906-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0005-
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 01 1 9906-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=6 H=25 L=21 		1-09700-432-0 01 1 9906-9907
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=13 H=29 L=30 		1-09700-001-0 01 1 9908-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9906-
305 CLIP; ENG HARNESS
DUMP TRUCK<RA1> (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 9906-9906
305 CLIP; ENG HARNESS
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 9907-
305 CLIP; ENG HARNESS
DUMP TRUCK<RA1> (C) L=36 		8-94224-891-1 02 1 9906-9906
305 CLIP; ENG HARNESS
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (C) L=36 		8-94224-891-1 02 1 9907-
373 CLIP; BAND,GEN HARNESS
(A) ID=26 L=27 		1-09701-006-0 02 1 9906-
373 CLIP; BAND,GEN HARNESS
(B) ID=25 L=50 		1-09701-019-0 01 1 9906-
373 CLIP; BAND,GEN HARNESS
(C) ID=22 L=52 		9-09917-431-0 01 1 9906-
421 CLIP; FLOOR HARNESS
(A) L=20 		1-09987-246-2 06 1 9906-0101
421 CLIP; FLOOR HARNESS
(A) L=20 		1-09987-246-2 01 1 0102-
421 CLIP; FLOOR HARNESS
(B) L=30 		1-09987-265-0 06 1 9906-0101
503 CONNECTOR 1-82690-666-0 01 1 9906-
çizim 43453
53 53 53 334 312 312 342 335 375 375
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(A) 		1-82699-592-2 01 1 9906-
53 BRACKET; HARNESS
(B) 		1-82699-826-0 01 1 9906-
53 BRACKET; HARNESS
(C) 		1-82699-916-0 01 1 9906-
312 BRACKET; CLIP HARNESS
(A) L=120 H=35 		1-82699-970-0 01 1 9906-
312 BRACKET; CLIP HARNESS
DUMP TRUCK<RA1> (B) 		1-82699-348-0 01 1 9906-9906
312 BRACKET; CLIP HARNESS
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) 		1-82699-348-0 01 1 9907-
334 BRACKET 1-53458-362-0 01 1 9906-
335 BRACKET; CONNECTOR
EXC. MJD7 M/T<X9J> 		1-82699-425-0 01 1 9908-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 9906-
375 BRACKET; AC GEN HARNESS CLIP
(A) 		1-47476-393-0 01 1 9906-
375 BRACKET; AC GEN HARNESS CLIP
(B) 		1-82699-199-0 01 1 9906-
çizim 43678
119 304 255 38 38 242 38 38 88 239 38 38 64 242 516 133 242 38 313 242 133 133
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M5X8 		0-20800-508-0 01 1 9906-
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE 		0-28680-616-0 02 1 9906-
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28680-820-0 07 1 9906-9906
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28680-820-0 06 1 9907-9907
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28680-820-0 05 1 9908-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 06 1 9906-9906
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28680-820-0 01 1 9907-
38 BOLT; CLIP,HARNESS
(E) M12X16 FLANGE 		1-09044-079-0 01 1 9906-
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9906-
38 BOLT; CLIP,HARNESS
(F) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9906-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 03 1 9907-9907
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 03 1 9907-9907
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 13 1 9908-
64 SCREW; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9906-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9906-
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 9906-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9906-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9906-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28080-820-0 06 1 9906-9910
242 BOLT; BRKT,HARNESS
(D) M8X18 FLANGE 		0-28080-818-0 06 1 9911-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 04 1 9906-9906
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 02 1 9907-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 02 1 9907-
242 BOLT; BRKT,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9906-
242 BOLT; BRKT,HARNESS
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9906-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 9906-
304 BOLT; ENG HARNESS CLIP
DUMP TRUCK<RA1> M10X16 W/LK WASHER 		1-09033-012-0 06 1 9906-9906
304 BOLT; ENG HARNESS CLIP
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> M10X16 W/LK WASHER 		1-09033-012-0 06 1 9907-
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9906-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
