8-10 — WIRING HARNESS AND FUSE
(#8357) — 50 parça
◀
[810A] CAB AND FRAME SIDE;NO.1 (12 parça)
[810A] OTHER PARTS (3 parça)
[810A] INST PANEL SIDE (17 parça)
[810A] CAB AND FRAME SIDE;NO.2 (14 parça)
[810A] MISSION SIDE AND CAB TILT SIDE (4 parça)
▶

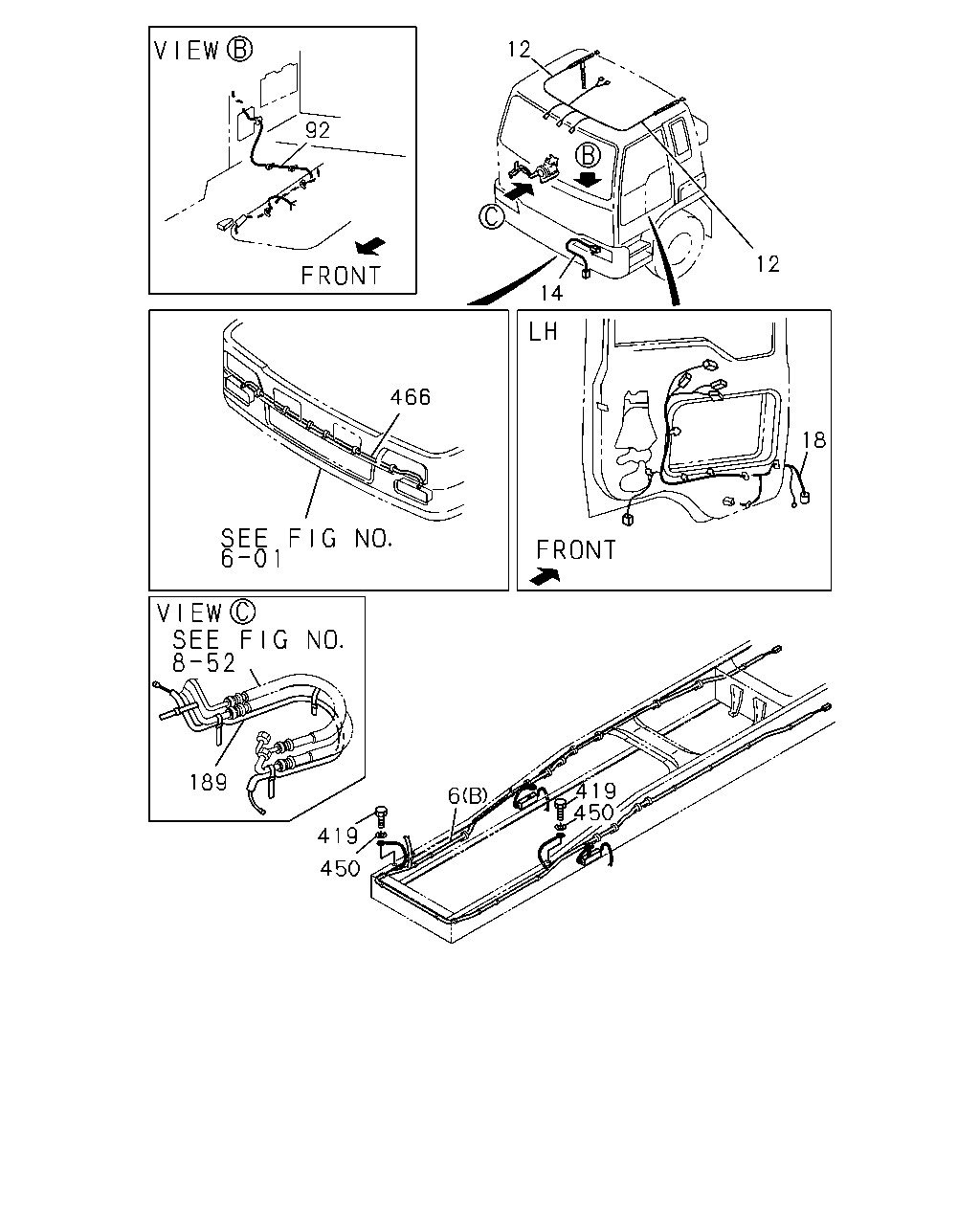

12
12
14
466
18
189
6
419
450
419
450
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
(A)
1-82671-893-1
01
1
9906-
6
HARNESS; FRAME
(B)
1-82672-425-1
01
1
9906-
12
HARNESS; ROOF
1-82628-100-1
01
1
9906-
14
HARNESS; HEADLAMP
1-82625-150-2
02
1
9906-
18
HARNESS; DOOR
1-82628-673-0
01
1
9906-
18
HARNESS; DOOR
1-82628-588-0
01
1
9906-
92
HARNESS; FLOOR
1-82629-055-0
01
1
9906-9909
92
HARNESS; FLOOR
1-82629-329-0
01
1
9910-
189
HARNESS; EXT
L=890
1-82636-373-0
01
1
9906-
419
BOLT; CAB EARTH
M8X16 W/LK&PL WASHER
8-97087-055-0
02
1
9906-
450
WASHER; PL,CAB EARTH
ID=8.4
1-09503-264-0
02
1
9906-
466
HARNESS; BUMPER
1-82639-281-0
01
1
9906-

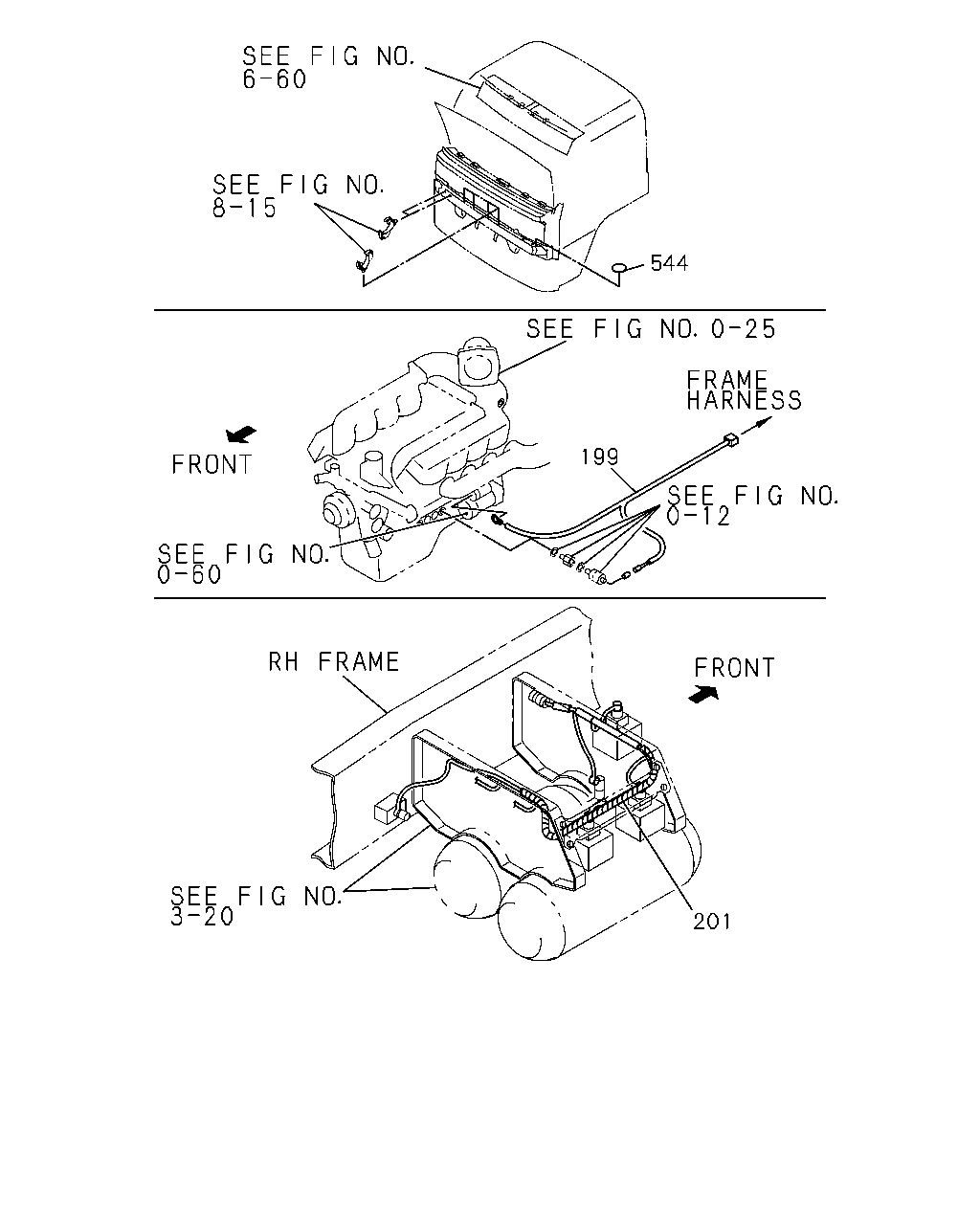

544
199
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
199
HARNESS; STARTER
1-82640-743-1
01
1
9906-
201
HARNESS; AIR TANK
1-82639-888-1
01
1
9906-
544
SEAL; FRT MTG RAIL
OD=25 BLACK
1-76798-019-0
01
1
9906-

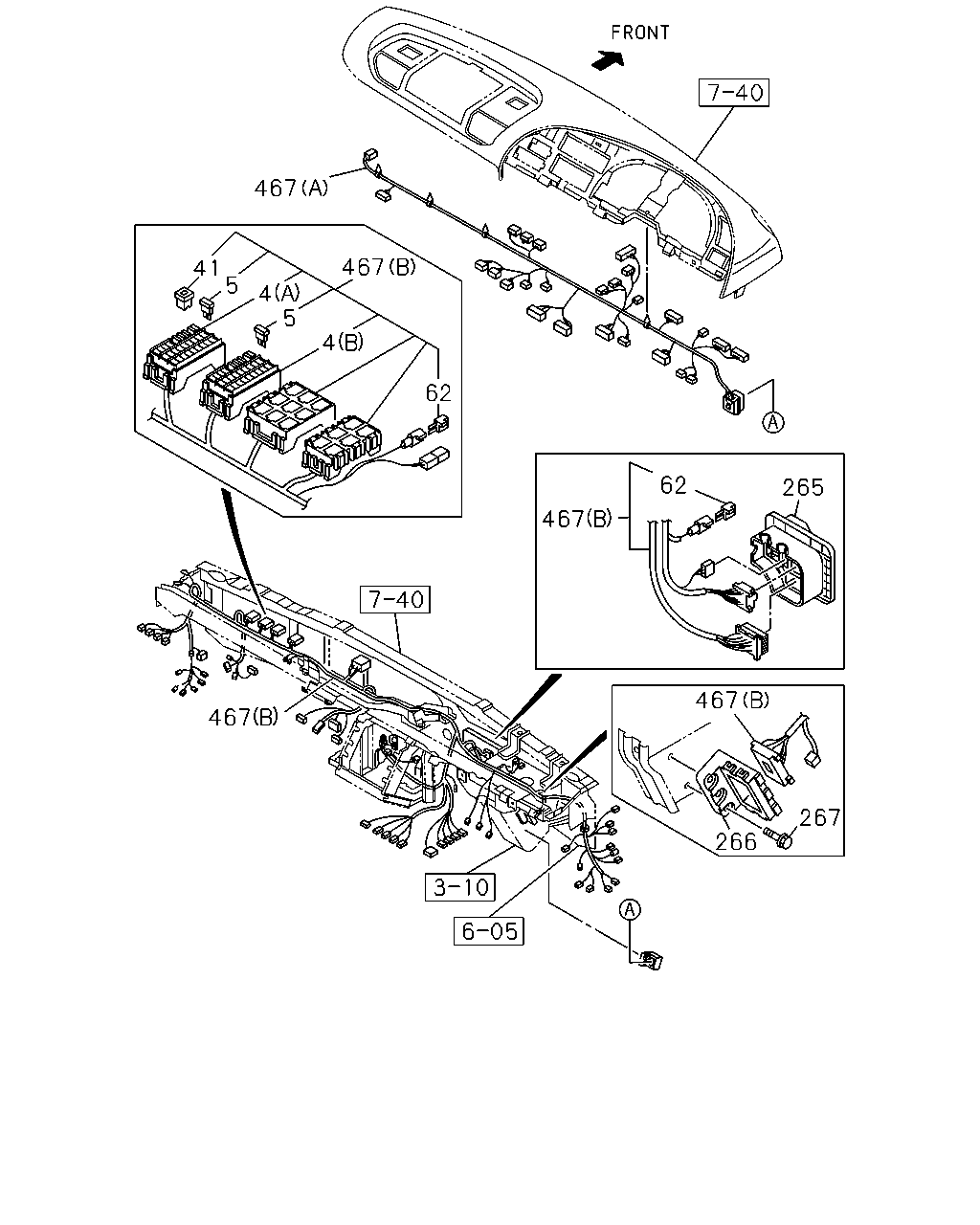

467
467
41
5
4
5
4
62
62
265
467
467
467
267
266
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
(A) 7.5AX17
1-82510-393-0
01
1
9906-
4
BOX ASM; FUSE,HARNESS
(B) 15AX21
1-82510-396-0
01
1
9906-
5
FUSE; FACIA HARNESS
15A BLUE
5-82516-003-0
21
1
9906-
5
FUSE; FACIA HARNESS
7.5A BROWN
8-94159-007-0
17
1
9906-
41
PULLER; FUSE
L=25.3 B=11.5
8-94121-482-0
01
1
9906-
62
DIODE; HARNESS
BLACK 10P
1-82699-703-0
02
1
9906-
62
DIODE; HARNESS
BLACK 2P-1.5A
8-94422-639-1
01
1
9906-9909
62
DIODE; HARNESS
BLACK 3P-1.5A
8-94416-438-1
01
1
0102-
62
DIODE; HARNESS
BLACK 2P-1.5A
8-94422-639-1
01
1
0102-
265
BOX; CONN,FRT PNL
1-82699-581-3
01
1
9906-
266
BRACKET; CONN BOX
1-82699-580-0
01
1
9906-
267
BOLT; BRKT
M6X16 W/PL WASHER
1-09981-438-0
02
1
9906-
467
HARNESS; FACIA
(B)
1-82628-072-1
01
1
9906-9909
467
HARNESS; FACIA
(B)
1-82629-318-0
01
1
9910-0101
467
HARNESS; FACIA
(B)
1-82660-268-0
01
1
0102-
467
HARNESS; FACIA
(A)
1-82628-111-3
01
1
9906-9909
467
HARNESS; FACIA
(A)
1-82629-327-0
01
1
9910-

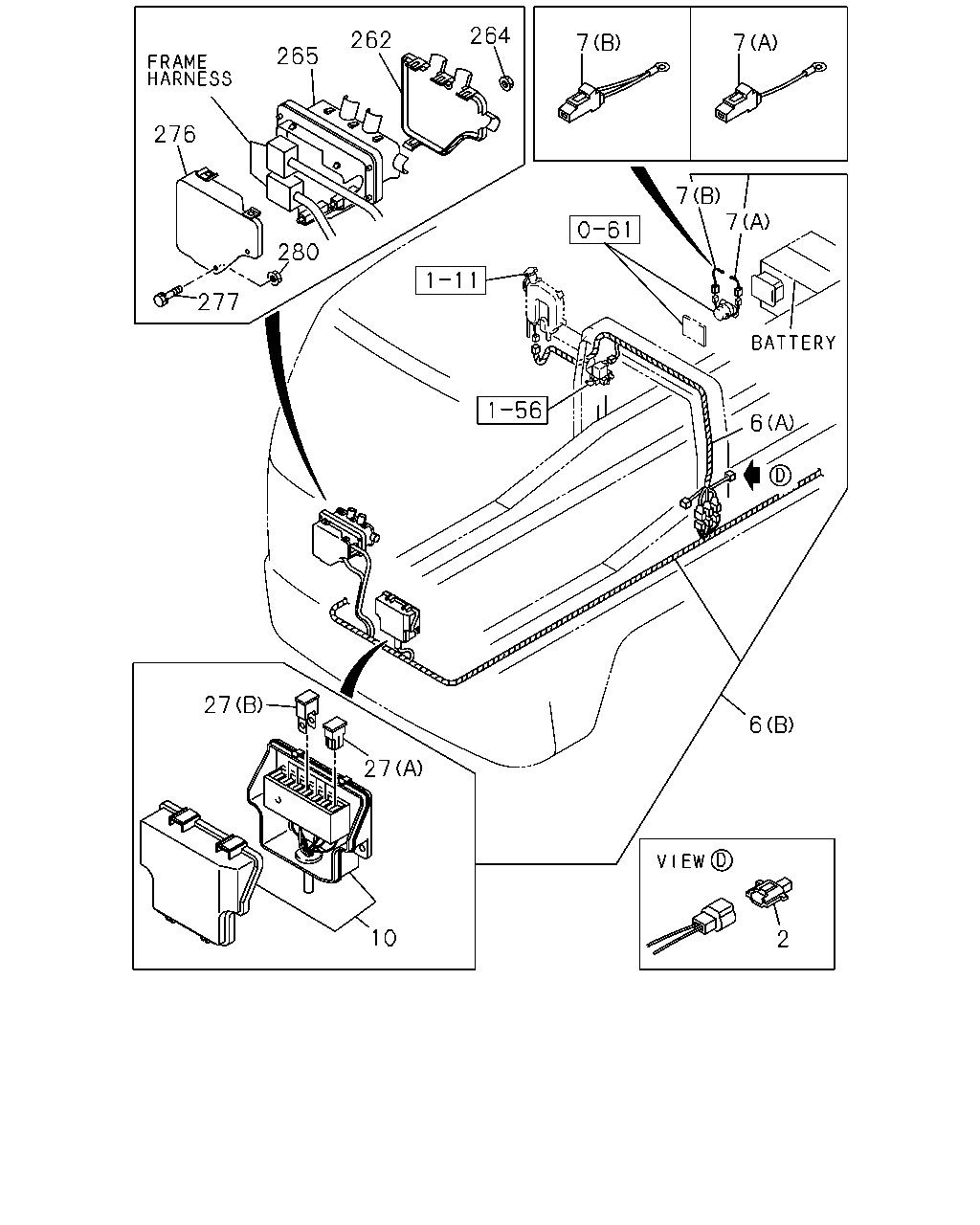

264
262
7
7
265
276
7
7
280
277
6
27
6
27
10
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DIODE; CABLE HARNESS
GRAY 2P-1.3A
1-81514-015-0
01
1
9906-
6
HARNESS; FRAME
(A)
1-82671-893-1
01
1
9906-
6
HARNESS; FRAME
(B)
1-82672-425-1
01
1
9906-
7
LINK ASM; FUSIBLE
(B)
1-82659-085-0
01
1
9906-
7
LINK ASM; FUSIBLE
(A) 60A BLUE
1-82659-119-0
01
1
9906-
10
BOX; FUSE,HARNESS
1-82510-466-0
01
1
9906-
27
FUSE UNIT
(A) 40A GREEN
8-94468-662-0
05
1
9906-
27
FUSE UNIT
(B) 80A BLACK
8-94468-671-0
01
1
9906-
262
COVER; CONNECTOR BOX,FRT PNL
1-82699-582-1
01
1
9906-
264
NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
9906-
265
BOX; CONN,FRT PNL
1-82699-581-3
01
1
9906-
276
COVER; BOX,FRAME HARNESS
1-82699-585-2
01
1
9906-
277
BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER
1-09030-027-0
02
1
9906-
280
NUT; BOX ASM FIX
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
9906-

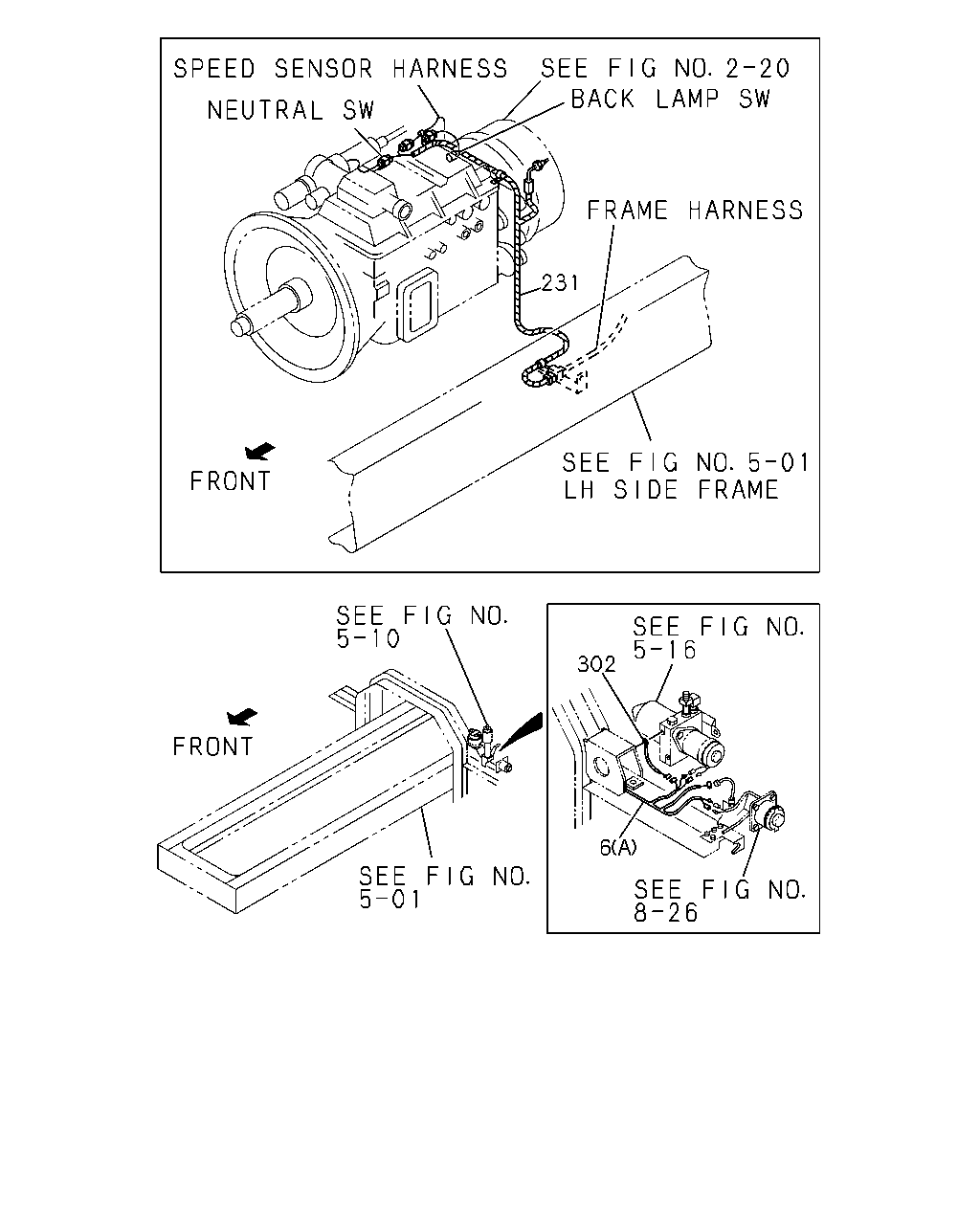

302
6
231
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
(A)
1-82671-893-1
01
1
9906-
6
HARNESS; FRAME
(B)
1-82672-425-1
01
1
9906-
231
HARNESS; TRANS
1-82671-661-1
01
1
9906-
302
HARNESS; POWER CAB TILT
1-82639-273-0
01
1
9906-
