Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10819 - CXZ RHD SINGAPORE
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

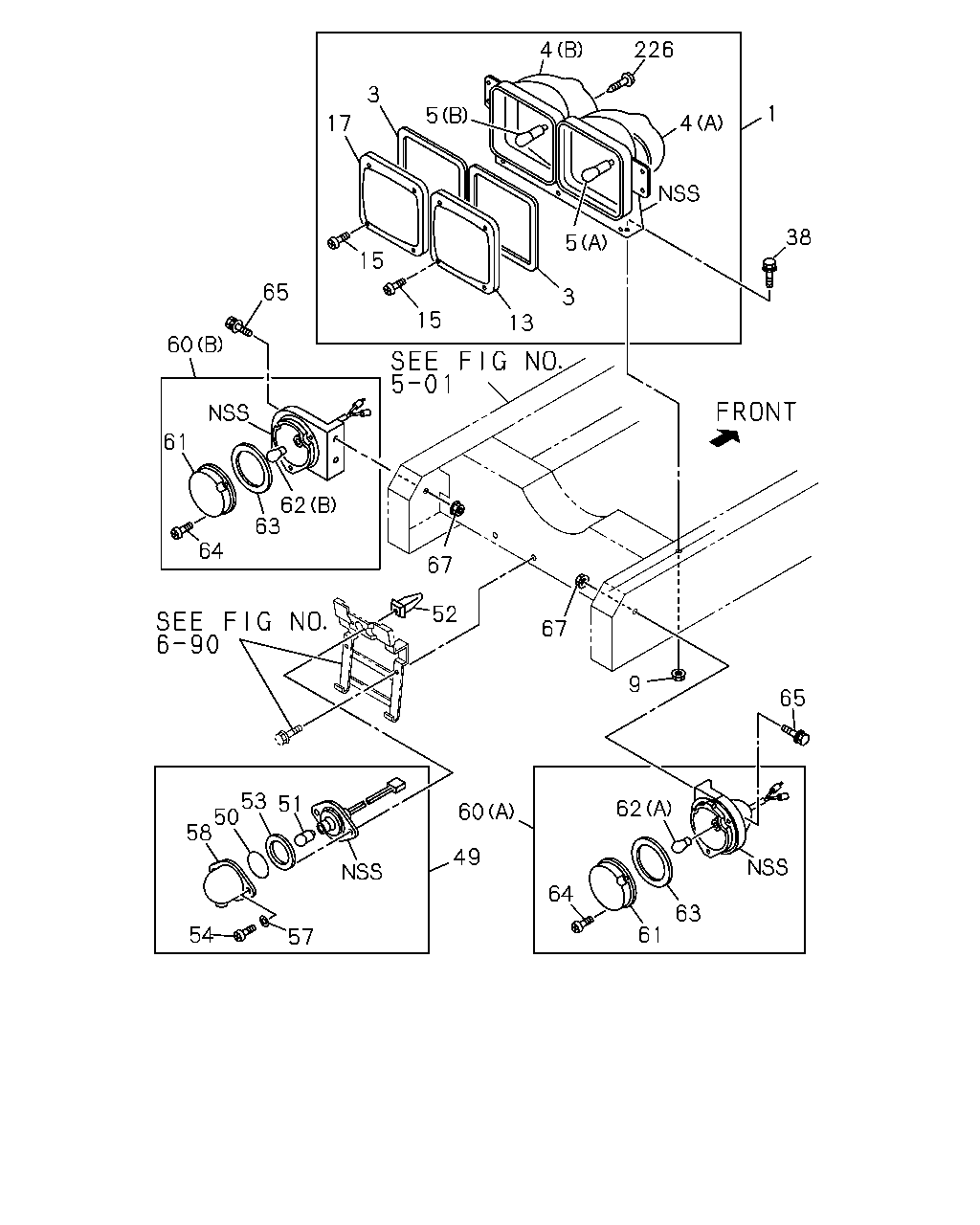

8-03 — LAMP; REAR AND REAR SIDE
(#8355) — 30 parça
61
64
62
63
65
9
67
67
60
49
52
51
53
50
58
54
57
64
63
62
61
60
65
15
15
13
3
5
4
1
38
226
4
3
17
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
1-82230-160-2
01
1
9906-
1
LAMP ASM; RR COMB
1-82230-159-2
01
1
9906-
3
GASKET; RR COMB LAMP
1-82236-003-0
04
1
9906-
4
COVER; RR,RR COMB LAMP
(A)
1-82239-033-0
02
1
9906-
4
COVER; RR,RR COMB LAMP
(B)
1-82239-034-0
02
1
9906-
5
BULB; RR COMB LAMP
(A) 24V 21W
1-82194-036-0
02
1
9906-
5
BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-038-0
02
1
9906-
9
NUT; LAMP,RR COMB
M8 FLANGE
0-91150-108-0
02
1
9906-
13
LENS; TURN SIGNAL
1-82235-016-0
02
1
9906-
15
SCREW; RR COMB LAMP
1-82239-019-0
16
1
9906-
17
LENS; STOP,RR COMB LAMP
1-82235-002-0
02
1
9906-
38
BOLT; LAMP,RR COMB
M8X35 W/LK&PL WASHER
1-09030-073-0
02
1
9906-
49
LAMP; LICENSE PLATE
1-82120-024-0
01
1
9906-
50
LENS; LICENSE PLATE LAMP
1-82235-006-0
01
1
9906-
51
BULB; LICENSE PLATE LAMP
24V 10W
1-82194-037-0
01
1
9906-
52
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK
8-94275-946-0
02
1
9906-
53
GASKET; LICENSE LAMP
1-82126-005-0
01
1
9906-
54
SCREW; LICENSE PLATE LAMP
1-82129-007-0
02
1
9906-
57
WASHER; PL,LICENSE PLATE LAMP
1-82129-008-0
02
1
9906-
58
COVER; LICENSE PLATE LAMP
1-82129-005-0
01
1
9906-
60
LAMP; BACKUP
(A)
1-82130-016-1
01
1
9906-
60
LAMP; BACKUP
(B)
1-82130-023-1
01
1
9906-
61
LENS; BACKUP LAMP
1-82135-003-0
02
1
9906-
62
BULB; BACKUP LAMP
(B) 24V 21W
1-82194-036-0
01
1
9906-
62
BULB; BACKUP LAMP
(A) 24V 25W
9-82691-347-0
01
1
9906-
63
GASKET; BACKUP LAMP
1-82136-002-0
02
1
9906-
64
SCREW; BACKUP LAMP
1-82139-002-0
06
1
9906-
65
BOLT; LAMP,BACKUP
M10X35 W/LK&PL WASHER
0-50141-035-0
04
1
9906-
67
NUT; FLANGE
M10 FLANGE
0-91150-210-0
04
1
9906-
226
SCREW; PROTECTOR
1-82239-032-0
08
1
9906-
