Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10819 - CXZ RHD SINGAPORE
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#8351) — 158 parça
◀
[750A] COMPONENT;SEAT ADJUSTER (39 parça)
[750A] DRIVER (35 parça)
[750A] CENTER (18 parça)
[750A] PARCEL BOX (12 parça)
[750A] PASSENGER (27 parça)

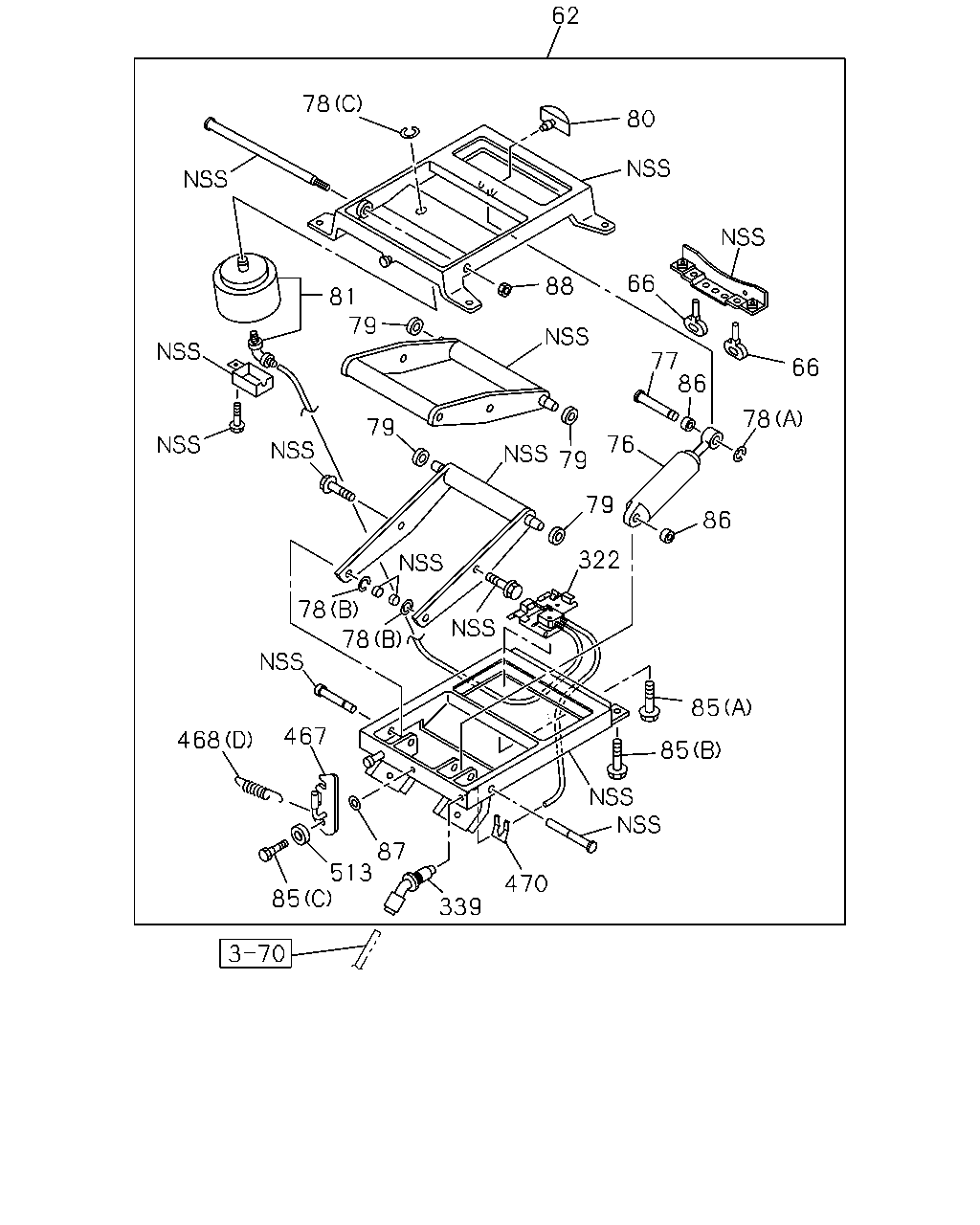

[750A] COMPONENT;SEAT SUSPENSION DAMPER (27 parça)
▶
468
74
51
512
468
51
302
543
532
278
51
512
543
518
543
278
518
518
51
532
278
302
518
543
543
468
529
468
543
302
518
543
518
471
551
518
302
158
158
302
551
302
72
518
551
302
551
518
201
201
63
306
306
63
302
72
518
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
51
SCREW; COVER
M6X12 W/LK WASHER
9-03910-612-0
04
1
9906-0003
51
SCREW; COVER
1-75518-325-0
04
1
0004-
63
ADJUSTER; SEAT SLIDE
(A)
1-75518-199-1
01
1
9906-
63
ADJUSTER; SEAT SLIDE
(B)
1-75518-294-0
01
1
9906-9912
63
ADJUSTER; SEAT SLIDE
(B)
1-75518-323-0
01
1
0001-
72
SPACER; SEAT ADJ
1-75518-269-0
02
1
9906-0102
72
SPACER; SEAT ADJ
1-75518-334-0
02
1
0103-
74
ADJUSTER; FRT SEAT,HEIGHT CONT
1-75518-299-0
01
1
9906-9912
74
ADJUSTER; FRT SEAT,HEIGHT CONT
1-75518-317-1
01
1
0001-0102
74
ADJUSTER; FRT SEAT,HEIGHT CONT
1-75518-330-0
01
1
0103-
158
BUSHING; LINK ARM
1-75518-209-0
02
1
9906-
201
CABLE; ADJ
(A) L=667
1-75518-288-0
01
1
9906-
201
CABLE; ADJ
(B) L=605
1-75518-289-1
01
1
9906-
278
COLLAR; FRT SEAT
1-75518-244-0
03
1
9906-
302
BOLT; ADJ,HEIGHT CONT
(C)
1-75518-266-1
02
1
9906-
302
BOLT; ADJ,HEIGHT CONT
(A)
1-75518-270-0
04
1
9906-
302
BOLT; ADJ,HEIGHT CONT
(B)
1-75518-271-1
02
1
9906-0102
302
BOLT; ADJ,HEIGHT CONT
(B)
1-75518-336-0
02
1
0103-
306
NUT; SEAT ADJ
M8 FLANGE
8-94279-518-0
04
1
9906-9912
306
NUT; SEAT ADJ
M8 FLANGE
8-94279-518-0
06
1
0001-0003
306
NUT; SEAT ADJ
M8 FLANGE
1-75538-207-0
06
1
0004-
468
SPRING; RETURN
(A)
1-75518-206-0
01
1
9906-
468
SPRING; RETURN
(B)
1-75518-207-0
01
1
9906-
468
SPRING; RETURN
(C)
1-75518-208-0
02
1
9906-
468
SPRING; RETURN
(D)
1-75538-132-0
01
1
9906-
471
LEVER; SEAT ADJ
1-75518-291-0
01
1
9906-
512
COVER; LEVER
1-75518-243-1
02
1
9906-
518
NUT; TILT ADJ
(A)
1-75518-263-0
01
1
9906-
518
NUT; TILT ADJ
(B)
1-75518-264-0
04
1
9906-
518
NUT; TILT ADJ
(D)
5-09984-020-0
02
1
9906-
518
NUT; TILT ADJ
(C) M8 FLANGE
8-94152-886-0
04
1
9906-
529
PIN; LINK
1-75518-262-0
01
1
9906-
532
LEVER ASM; TILT
(A)
1-75518-203-0
01
1
9906-
532
LEVER ASM; TILT
(B)
1-75518-204-1
01
1
9906-
543
WASHER; HEIGHT ADJUSTER
(B) ID=6.4
9-09160-506-0
04
1
9906-
543
WASHER; HEIGHT ADJUSTER
(A) ID=10.5
9-09164-510-0
02
1
9906-0102
543
WASHER; HEIGHT ADJUSTER
(C)
1-75518-335-0
02
1
0103-
543
WASHER; HEIGHT ADJUSTER
(A)
1-75518-337-0
02
1
0103-
551
SLIDER; HEIGHT ADJ
1-75518-265-0
04
1
9906-
1
101
228
2
40
321
39
24
18
17
19
30
13
99
12
336
74
327
73
62
55
46
73
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BACK ASM; SEAT
1-75027-563-2
01
1
9906-0003
1
BACK ASM; SEAT
1-75207-267-0
01
1
0004-0105
1
BACK ASM; SEAT
1-75207-445-1
01
1
0106-
2
COVER; TRIM,FRT SEAT,BACK
1-75117-870-1
01
1
9906-0003
2
COVER; TRIM,FRT SEAT,BACK
1-75127-038-0
01
1
0004-
12
CUSHION; SEAT,FRT
1-75027-560-1
01
1
9906-0003
12
CUSHION; SEAT,FRT
1-75207-150-1
01
1
0004-
13
COVER; TRIM,FRT SEAT,CUSHION
1-75117-867-0
01
1
9906-0003
13
COVER; TRIM,FRT SEAT,CUSHION
1-75127-098-0
01
1
0004-
17
BOLT; RECLINING
M8X18
8-94279-109-1
02
1
9906-0003
17
BOLT; RECLINING
M8X20
8-97255-906-0
02
1
0004-
18
COVER; RECLINING
1-75418-050-0
01
1
9906-
19
SCREW; COVER
M5X16 TAPPING W/PL WASHER
0-74310-516-0
01
1
9906-
24
KNOB; RECLINING,FRT,SEAT
1-75418-059-0
01
1
9906-
30
REST ASM; ARM,FRT SEAT
1-75117-906-0
01
1
9906-0003
30
REST ASM; ARM,FRT SEAT
1-75127-010-0
01
1
0004-
39
NUT; ARM REST
(B)
8-94279-521-0
01
1
9906-0003
39
NUT; ARM REST
(B) M8
1-75147-657-0
01
1
0004-
39
NUT; ARM REST
(A) M10
9-09110-410-0
01
1
0004-
40
SPACER; ARM REST
8-94285-921-0
02
1
9906-
46
BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER
8-94279-211-0
02
1
9906-
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE
1-09984-153-0
02
1
9906-
62
DAMPER ASM; SEAT SUSP
1-75537-262-4
01
1
9906-
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
8-94279-518-0
12
1
9906-0003
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
1-75538-207-0
12
1
0004-
74
ADJUSTER; FRT SEAT,HEIGHT CONT
1-75518-299-0
01
1
9906-9912
74
ADJUSTER; FRT SEAT,HEIGHT CONT
1-75518-317-1
01
1
0001-0102
74
ADJUSTER; FRT SEAT,HEIGHT CONT
1-75518-330-0
01
1
0103-
99
BUSHING; SEAT BACK
8-97854-087-0
01
1
9906-
101
LEVER ASM; LUMBAR
5-75190-138-0
01
1
9906-
228
SCREW; KNOB
M4X6
8-97042-273-0
01
1
9906-
321
WASHER; PL,ARM REST
ID=8.4 OD=22
9-09164-708-0
01
1
9906-
321
WASHER; PL,ARM REST
ID=10.5 OD=22
9-09160-610-0
01
1
0004-
327
CLIP; COVER
1-09987-249-0
04
1
9906-
336
COVER; DRIVER SEAT
1-75518-066-3
01
1
9906-
506
360
175
176
16
188
189
359
188
403
179
182
403
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
ADJUSTER ASM; RECLINING
1-75418-062-0
01
1
9906-
175
BACK ASM; PASSENGER CENTER SEAT
1-75027-598-1
01
1
9906-0003
175
BACK ASM; PASSENGER CENTER SEAT
1-75207-255-0
01
1
0004-
176
COVER; TRIM,PASSENGER SEAT CENTER,BACK
1-75117-884-0
01
1
9906-0003
176
COVER; TRIM,PASSENGER SEAT CENTER,BACK
1-75127-075-0
01
1
0004-
179
COVER; TRIM,PASSENGER SEAT CENTER,CUSH
1-75117-899-0
01
1
9906-0003
179
COVER; TRIM,PASSENGER SEAT CENTER,CUSH
1-75127-066-1
01
1
0004-
182
CUSHION ASM; CENTER SEAT
1-75027-608-0
01
1
9906-0003
182
CUSHION ASM; CENTER SEAT
1-75207-245-1
01
1
0004-
188
BOLT; BACK TO CUSHION
M10X16 FLANGE
1-75198-053-0
04
1
9906-
189
BUSHING; HINGE,CENTER SEAT BACK
8-97854-900-0
01
1
9906-
359
BOX; PARCEL
1-72538-157-3
01
1
9906-
360
SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD
0-70080-310-0
04
1
9906-
360
SCREW; PARCEL
(B)
0-70080-416-0
06
1
9906-
360
SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER
0-74310-516-0
06
1
9906-
360
SCREW; PARCEL
(D)
1-09983-165-0
02
1
9906-
403
NUT; CENTER SEAT
M8 FLANGE
8-94279-518-0
04
1
9906-
506
CAP; PARCEL BOX
1-09983-164-1
04
1
9906-

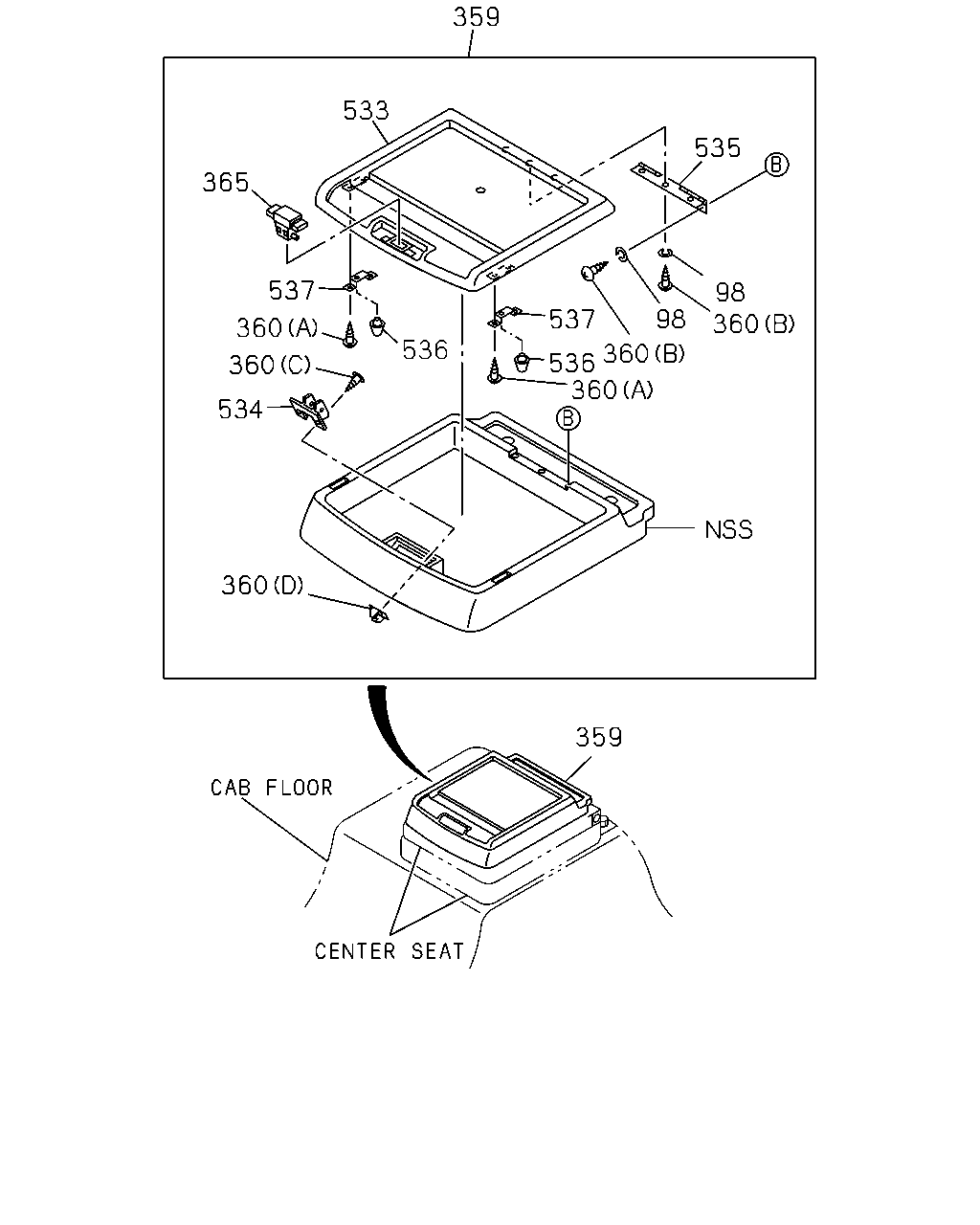

359
533
535
365
537
98
360
98
537
360
536
360
536
360
360
534
360
359
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK
9-09152-704-0
06
1
9906-
359
BOX; PARCEL
1-72538-157-3
01
1
9906-
360
SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD
0-70080-310-0
04
1
9906-
360
SCREW; PARCEL
(B)
0-70080-416-0
06
1
9906-
360
SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER
0-74310-516-0
06
1
9906-
360
SCREW; PARCEL
(D)
1-09983-165-0
02
1
9906-
365
LOCK ASM; SEAT
1-72538-180-0
01
1
9906-
533
LID; PARCEL BOX
1-72538-194-2
01
1
9906-
534
STRIKER; PARCEL BOX
1-72538-181-0
01
1
9906-
535
HINGE; PARCEL BOX
1-72447-391-1
01
1
9906-
536
RUBBER; CUSHION
5-09983-002-1
02
1
9906-
537
BRACKET; RUBBER
1-72548-057-1
02
1
9906-

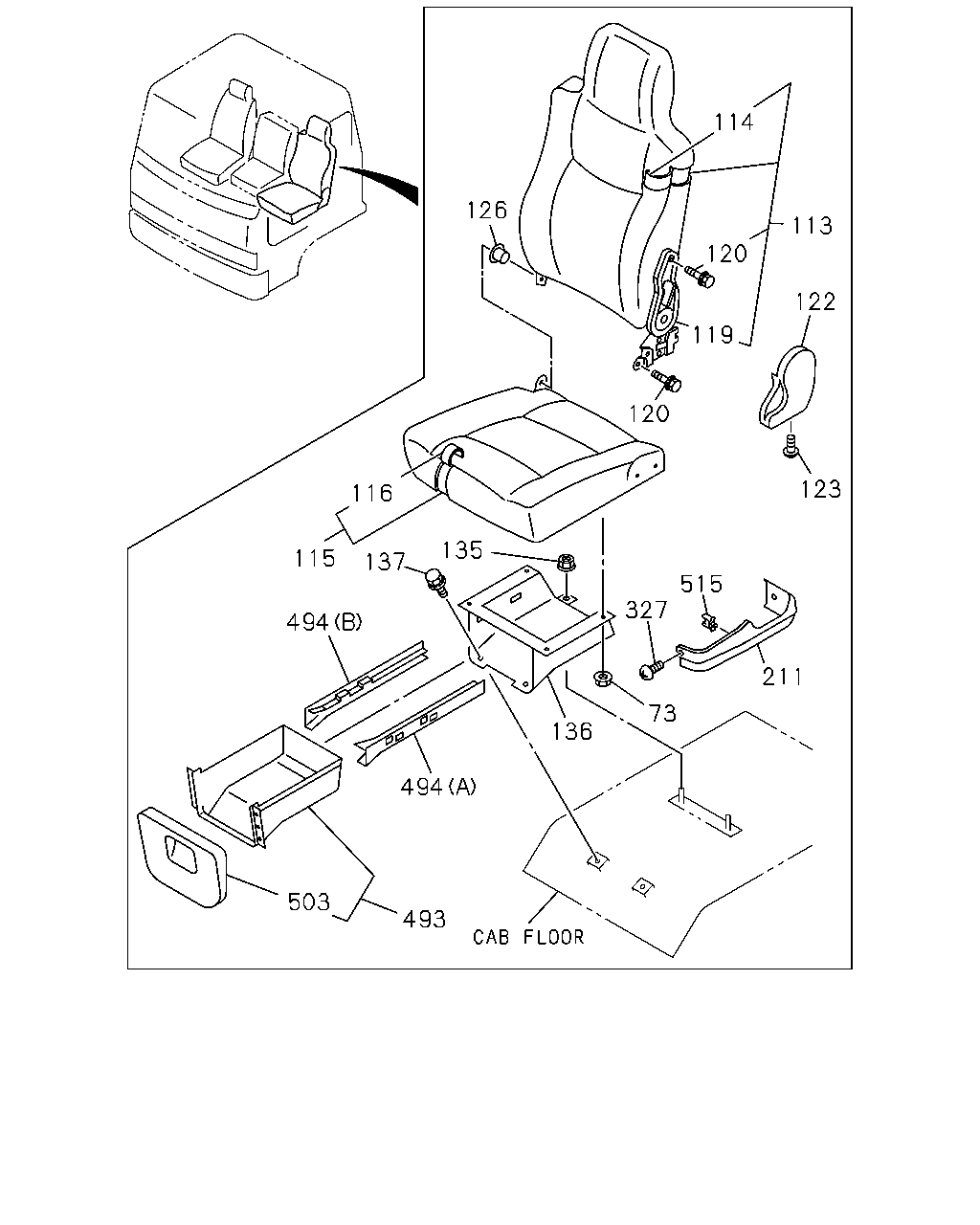

114
126
113
120
122
119
120
123
116
135
115
137
515
327
494
211
73
136
494
503
493
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
8-94279-518-0
12
1
9906-0003
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
1-75538-207-0
12
1
0004-
113
BACK ASM; SEAT
1-75027-586-2
01
1
9906-0003
113
BACK ASM; SEAT
1-75207-223-0
01
1
0004-0105
113
BACK ASM; SEAT
1-75207-544-0
01
1
0106-
114
COVER; TRIM,PASSENGER SEAT,BACK
1-75117-878-1
01
1
9906-0003
114
COVER; TRIM,PASSENGER SEAT,BACK
1-75127-057-0
01
1
0004-
115
CUSHION ASM; PASSENGER SEAT
1-75027-580-0
01
1
9906-0003
115
CUSHION ASM; PASSENGER SEAT
1-75207-205-1
01
1
0004-
116
COVER; TRIM,PASSENGER SEAT,CUSHION
1-75117-873-0
01
1
9906-0003
116
COVER; TRIM,PASSENGER SEAT,CUSHION
1-75127-021-0
01
1
0004-
119
ADJ; SEAT RECLINING,ASSIST SIDE
1-75417-597-0
01
1
9906-
120
BOLT; RECLINING ADJ
M8X18
8-94279-109-1
04
1
9906-0003
120
BOLT; RECLINING ADJ
M8X20
8-97255-906-0
04
1
0004-
122
COVER; ADJ,RECLINING
1-75417-596-0
01
1
9906-
123
SCREW; COVER,RECLINING
M6X12
9-03490-612-0
01
1
9906-
126
BUSHING; HINGE,RECLINING
8-97854-087-0
01
1
9906-
135
NUT; SEAT STAND
M10 FLANGE
1-09984-153-0
02
1
9906-
136
STAND; PASSENGER SEAT
1-75558-474-9
01
1
9906-
137
BOLT; STAND
M10X20 W/LK&PL WASHER
8-94279-211-0
02
1
9906-
211
COVER; FRT SEAT
1-72537-151-0
01
1
9906-
327
CLIP; COVER
1-09987-249-0
04
1
9906-
493
BOX; SEAT STAND
1-72537-130-1
01
1
9906-0202
494
RAIL; GUIDE
(A)
1-72537-149-0
01
1
9906-0202
494
RAIL; GUIDE
(B)
1-72537-150-0
01
1
9906-0202
503
COVER; BOX
1-72537-136-0
01
1
9906-0202
515
CLIP; PIPE
BLACK
8-94227-248-1
01
1
9906-
62
78
80
66
88
81
79
77
86
66
78
79
76
79
79
86
322
78
78
85
467
468
85
87
513
85
470
339
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
DAMPER ASM; SEAT SUSP
1-75537-262-4
01
1
9906-
66
RUBBER; LWR STOPPER
1-75538-145-0
02
1
9906-
76
DAMPER; AIR SUSP
1-75537-230-2
01
1
9906-
77
PIN; DAMPER
1-75538-138-2
01
1
9906-
78
RING; SNAP
(A) ID=8
9-09185-408-0
01
1
9906-
78
RING; SNAP
(B) ID=10
9-09185-410-0
02
1
9906-
78
RING; SNAP
(C) ID=15
9-09185-415-0
01
1
9906-
79
ROLLER ASM; AIR SUSP
1-75538-159-0
04
1
9906-
80
RUBBER; STOPPER
1-09987-123-0
01
1
9906-
81
SPRING; AIR
1-75538-151-1
01
1
9906-
85
BOLT; AIR SUSP
(A) M6X12 W/LK WASHER
0-50040-612-0
02
1
9906-0003
85
BOLT; AIR SUSP
(A)
1-75538-208-0
02
1
0004-
85
BOLT; AIR SUSP
(B) M8X20 W/LK&PL WASHER
0-50140-820-0
03
1
9906-0003
85
BOLT; AIR SUSP
(B) M8X22 W/LK&PL WASHER
1-75538-209-0
03
1
0004-
85
BOLT; AIR SUSP
(C)
1-09980-577-0
01
1
9906-
86
BUSHING; GUIDE
OD=6.2 LIGHT GRAY
1-09983-173-1
02
1
9906-
87
WASHER; AIR SUSP
ID=8.2
9-09150-508-0
01
1
9906-
88
NUT; AIR SUSP
1-75537-273-1
01
1
9906-
322
VALVE; AIR SPRING
1-75538-186-2
01
1
9906-
339
UNION; DRIVER SEAT
1-75538-131-1
01
1
9906-
467
LEVER; LOCK
1-75538-134-0
01
1
9906-
468
SPRING; RETURN
(A)
1-75518-206-0
01
1
9906-
468
SPRING; RETURN
(B)
1-75518-207-0
01
1
9906-
468
SPRING; RETURN
(C)
1-75518-208-0
02
1
9906-
468
SPRING; RETURN
(D)
1-75538-132-0
01
1
9906-
470
CLIP; HOSE
1-75538-137-0
01
1
9906-
513
SPACER; LEVER
1-75538-133-0
01
1
9906-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
