Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10819 - CXZ RHD SINGAPORE
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶
7-45 — CONSOLE BOX
(#8350) — 23 parça
◀

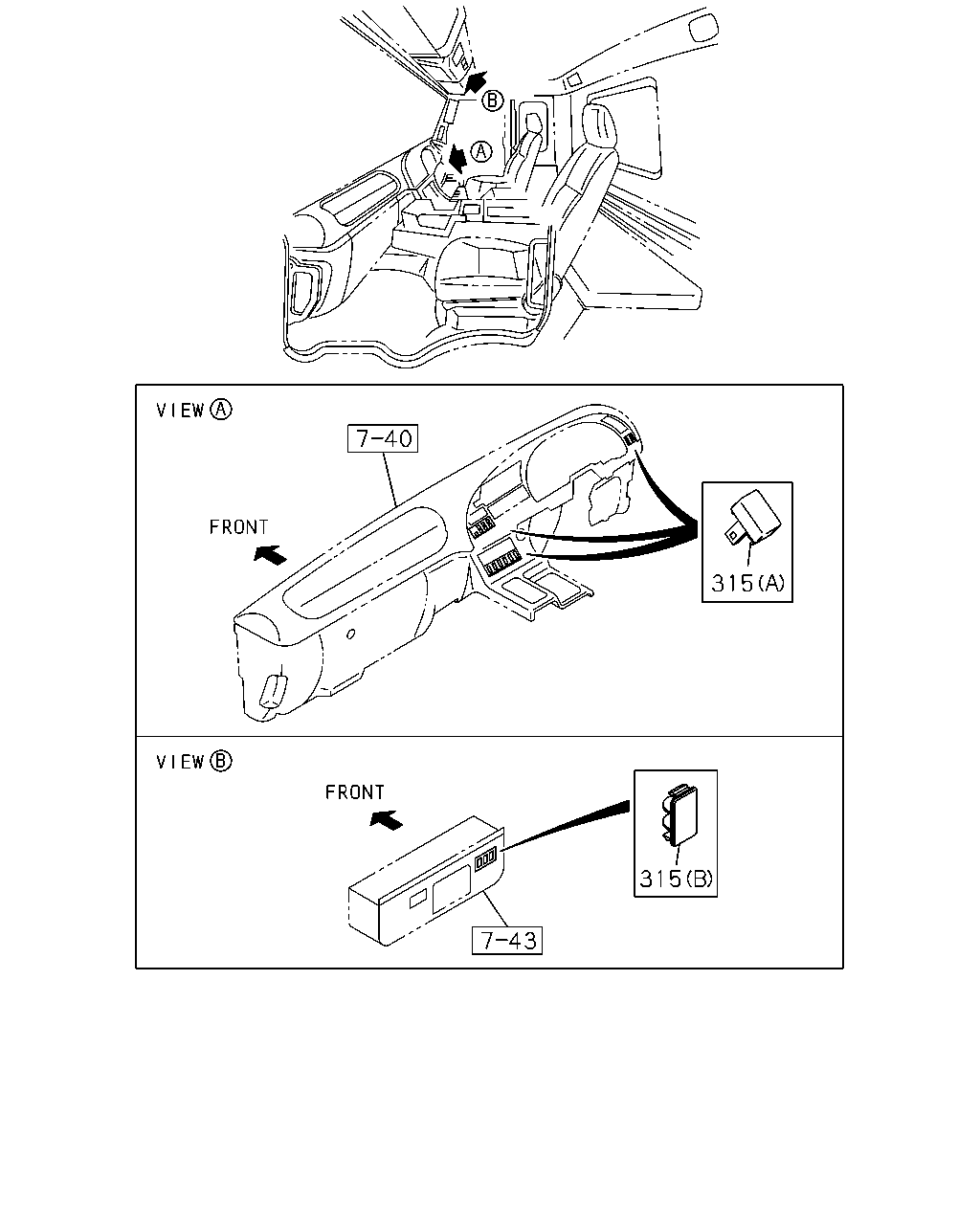

[745A] SW HOLE COVER (2 parça)

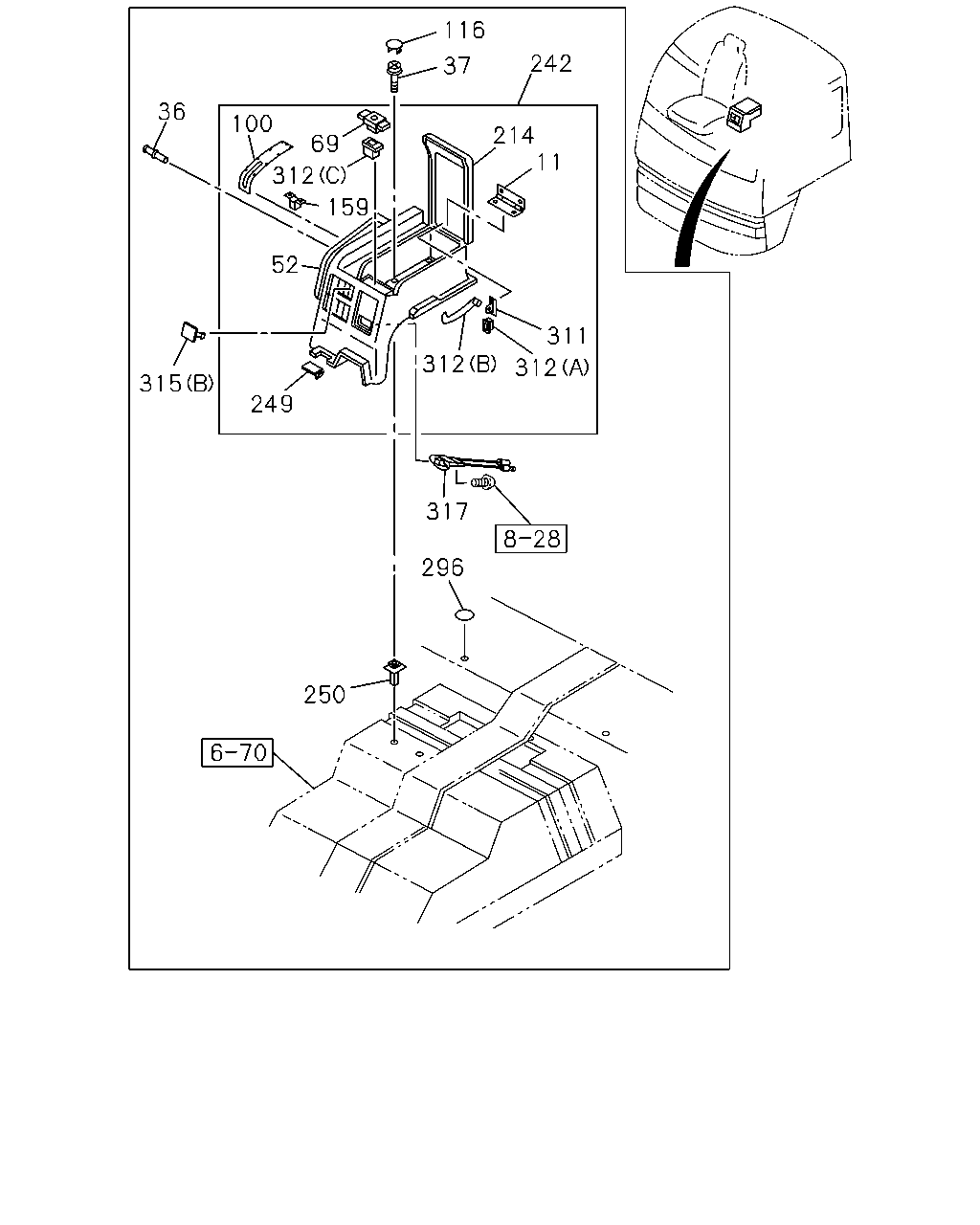

[745A] CENTER CONSOLE (21 parça)
▶
315
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
315
COVER; HOLE,SW
(A)
1-82359-069-2
17
1
9906-
315
COVER; HOLE,SW
(B)
8-97043-732-1
04
1
9906-
116
242
37
36
100
214
11
69
312
159
52
311
312
312
315
249
317
296
250
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
HINGE; CONSOLE LID
1-72537-070-2
01
1
9906-
36
FASTENER; CENTER CONSOLE
D8X13.5
1-09987-248-1
02
1
9906-
37
SCREW; CONSOLE
M5X16 W/PL WASHER TAPPING
8-94279-123-0
03
1
9906-
52
CONSOLE; FRT
1-72537-067-5
01
1
9906-
69
LOCK ASM; CONSOLE
1-72538-180-0
01
1
9906-
100
RUBBER; CONSOLE,FRT
1-72538-161-3
01
1
9906-
116
COVER; HOLE,CONSOLE,RR
1-72537-106-0
02
1
9906-
159
STRIKER; CONSOLE
1-72538-190-0
01
1
9906-
214
LID; CONSOLE
1-72537-069-1
01
1
9906-
242
TRAY ASM; CTR CONSOLE
1-72537-065-4
01
1
9906-
249
COVER
1-72537-124-0
01
1
9906-
250
GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
03
1
9906-
296
SEAL
OD=25 BLACK
1-76798-019-0
02
1
9906-0303
296
SEAL
OD=25 BLACK
1-76798-019-0
01
1
0304-
311
HOLDER; CONSOLE
1-72538-188-2
01
1
9906-
312
STOPPER; CONSOLE
(B)
1-72538-184-3
01
1
9906-
312
STOPPER; CONSOLE
(A)
1-72538-186-1
01
1
9906-
312
STOPPER; CONSOLE
(C)
1-72538-187-0
02
1
9906-
315
COVER; HOLE,SW
(A)
1-82359-069-2
17
1
9906-
315
COVER; HOLE,SW
(B)
8-97043-732-1
04
1
9906-
317
CONSENT
1-82523-020-2
01
1
9906-
