Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10819 - CXZ RHD SINGAPORE
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#8349) — 68 parça
◀

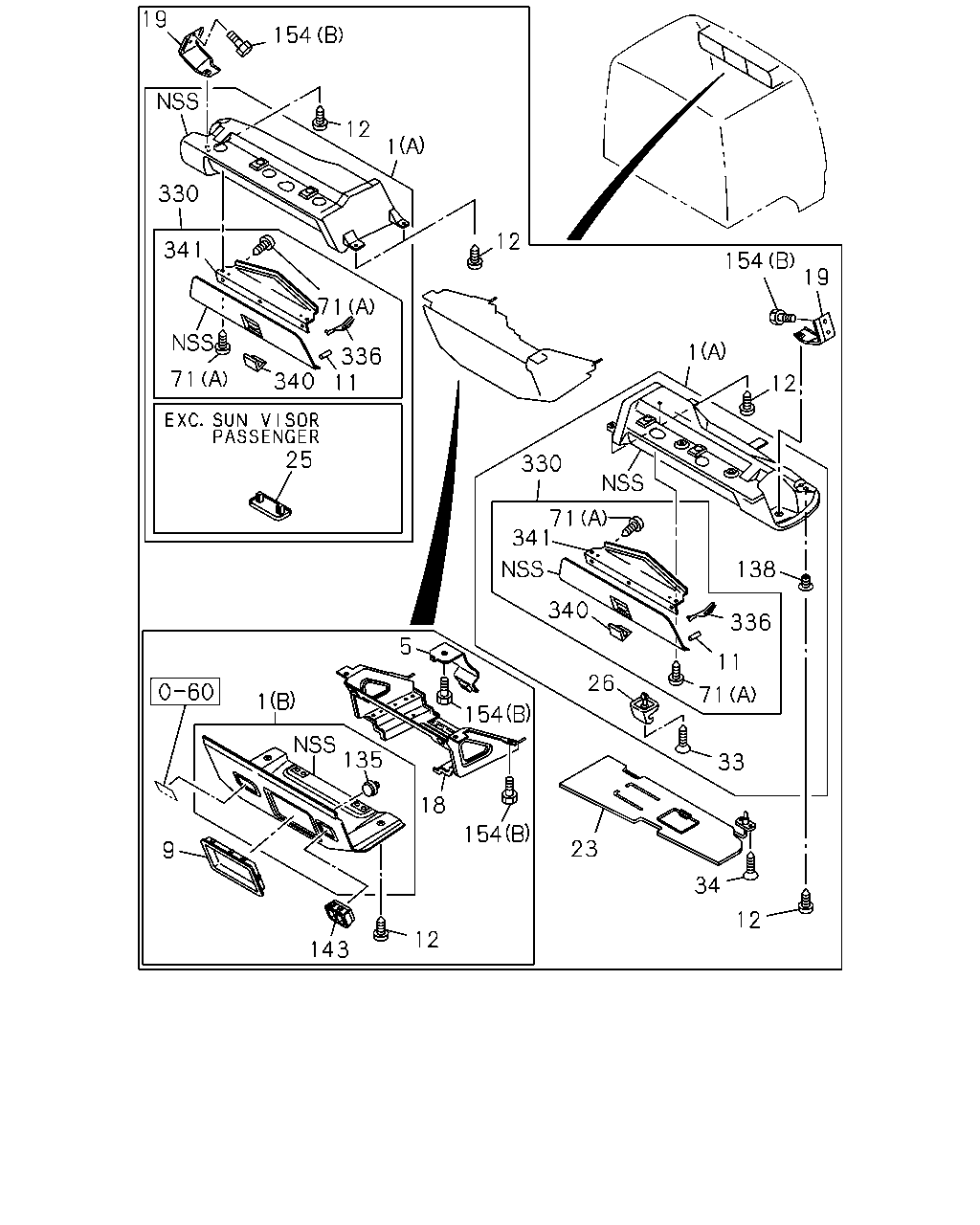

[743A] HEADER SHELF (28 parça)

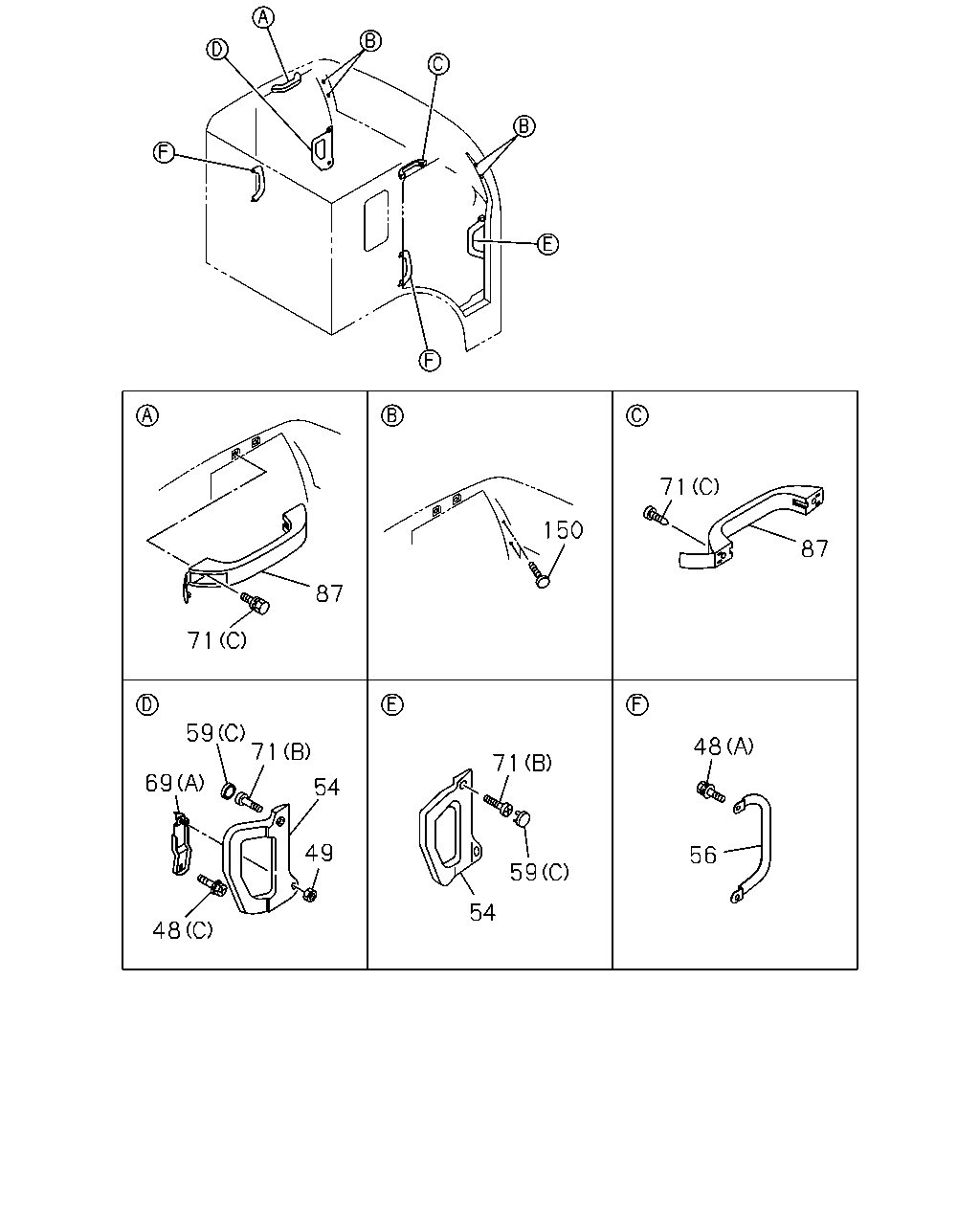

[743A] ASSIST GRIP;CAB INSIDE (21 parça)
[743A] ASSIST GRIP;CAB OUTSIDE (19 parça)
▶
19
154
12
1
330
12
341
154
19
71
1
336
11
71
340
12
25
330
71
341
138
340
336
5
11
26
71
1
154
135
33
18
154
23
9
34
12
12
143
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOARD; HEADER SHELF
(B)
1-72447-657-2
01
1
9906-
1
BOARD; HEADER SHELF
(A)
1-72447-718-0
01
1
9906-
1
BOARD; HEADER SHELF
(A)
1-72448-596-2
01
1
9906-
5
BRACKET; HEADER SHELF FRAME
1-72447-677-2
01
1
9906-
9
COVER; HOLE,HEADER SHELF CENTER
1-72447-663-2
01
1
9906-
11
CAP; HEADER SHELF
8-94270-538-0
04
1
9906-
12
SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER
8-94279-404-0
12
1
9906-
18
SUPPORT; HEADER SHELF CENTER
1-72447-737-0
01
1
9906-
19
SUPPORT ASM; HEADER SHELF
1-72448-324-1
01
1
9906-
19
SUPPORT ASM; HEADER SHELF
1-72448-323-1
01
1
9906-
23
SUN VISOR
1-73138-148-1
01
1
9906-
25
COVER; HOLE,SUN VISOR
1-73318-614-0
01
1
9906-
26
HOLDER; SUN VISOR
1-73138-142-0
01
1
9906-
33
SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD
0-70580-416-0
01
1
9906-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
02
1
9906-
71
SCREW
(B) M6X20 W/LK&PL WASHER
1-09981-073-0
03
1
9906-
71
SCREW
(C) M6X35 W/PL WASHER
1-09981-422-0
04
1
9906-
71
SCREW
(A) M5X14
8-94279-325-0
03
1
9906-
71
SCREW
(A) M5X14 W/PL WASHER
5-09981-050-0
03
1
9906-
135
CLIP; HEADER SHELF
OD=7.9 BLACK
8-94279-974-1
04
1
9906-
138
NUT; BRKT,HEADER SHELF
1-09984-166-0
02
1
9906-
143
BEZEL
1-72448-411-0
01
1
9906-
154
BOLT; SUPPORT
(A) M8X15 W/PL WASHER
1-79198-003-2
08
1
9906-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
10
1
9906-
330
LID; HEADER SHELF
1-72448-360-3
02
1
9906-
336
STAY; LID
1-72448-379-3
04
1
9906-
340
LOCK; HEADER SHELF
1-72448-376-0
02
1
9906-
341
HINGE; LID,HEADER SHELF
1-72448-403-1
02
1
9906-
71
150
87
87
71
59
71
48
71
69
54
49
56
59
54
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
9906-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
9906-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
9906-
48
BOLT; ASSIST GRIP
(C) M8X20 W/LK&PL WASHER
8-94279-208-0
01
1
9906-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
9906-
49
NUT; ASSIST GRIP
M6 FLANGE
0-91150-106-0
01
1
9906-
54
GRIP; ASSIST,QUARTER SIDE
1-73617-067-0
01
1
9906-
54
GRIP; ASSIST,QUARTER SIDE
1-73617-066-0
01
1
9906-
56
GRIP; ASSIST,SIDE SILL
1-73617-062-5
02
1
9906-
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
9906-
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
9906-
59
COVER; ASSIST GRIP
(C)
1-73617-069-0
02
1
9906-
69
BRACKET; ASSIST GRIP
(A)
1-73618-178-2
01
1
9906-
69
BRACKET; ASSIST GRIP
(B)
1-65570-243-0
01
1
0010-
69
BRACKET; ASSIST GRIP
(B)
1-65570-242-0
01
1
0010-
71
SCREW
(B) M6X20 W/LK&PL WASHER
1-09981-073-0
03
1
9906-
71
SCREW
(C) M6X35 W/PL WASHER
1-09981-422-0
04
1
9906-
71
SCREW
(A) M5X14
8-94279-325-0
03
1
9906-
71
SCREW
(A) M5X14 W/PL WASHER
5-09981-050-0
03
1
9906-
87
GRIP; ASSIST,CANT RAIL SIDE
1-73618-170-0
02
1
9906-
150
CLIP; ASSIST GRIP HOLE
OD=6 L=17 DARK GRAY
1-73996-128-1
04
1
9906-
64
64
64
62
64
48
48
48
48
62
154
66
103
48
59
66
48
48
59
103
48
59
48
48
59
68
69
68
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
9906-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
9906-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
9906-
48
BOLT; ASSIST GRIP
(C) M8X20 W/LK&PL WASHER
8-94279-208-0
01
1
9906-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
9906-
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
9906-
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
9906-
59
COVER; ASSIST GRIP
(C)
1-73617-069-0
02
1
9906-
62
GRIP; ASSIST,ROOF PANEL
1-71907-492-0
02
1
9906-
64
SHEET; ASSIST GRIP
25X25
8-94272-533-0
04
1
9906-
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
9906-
68
BRACKET; ASSIST GRIP,FRT PANEL
1-65580-203-0
02
1
9906-0009
69
BRACKET; ASSIST GRIP
(A)
1-73618-178-2
01
1
9906-
69
BRACKET; ASSIST GRIP
(B)
1-65570-243-0
01
1
0010-
69
BRACKET; ASSIST GRIP
(B)
1-65570-242-0
01
1
0010-
103
GRIP; ASSIST,FRT PNL
1-71998-940-3
01
1
9906-
103
GRIP; ASSIST,FRT PNL
1-71998-939-3
01
1
9906-
154
BOLT; SUPPORT
(A) M8X15 W/PL WASHER
1-79198-003-2
08
1
9906-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
10
1
9906-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
