◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10819 - CXZ RHD SINGAPORE ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#8347) — 86 parça

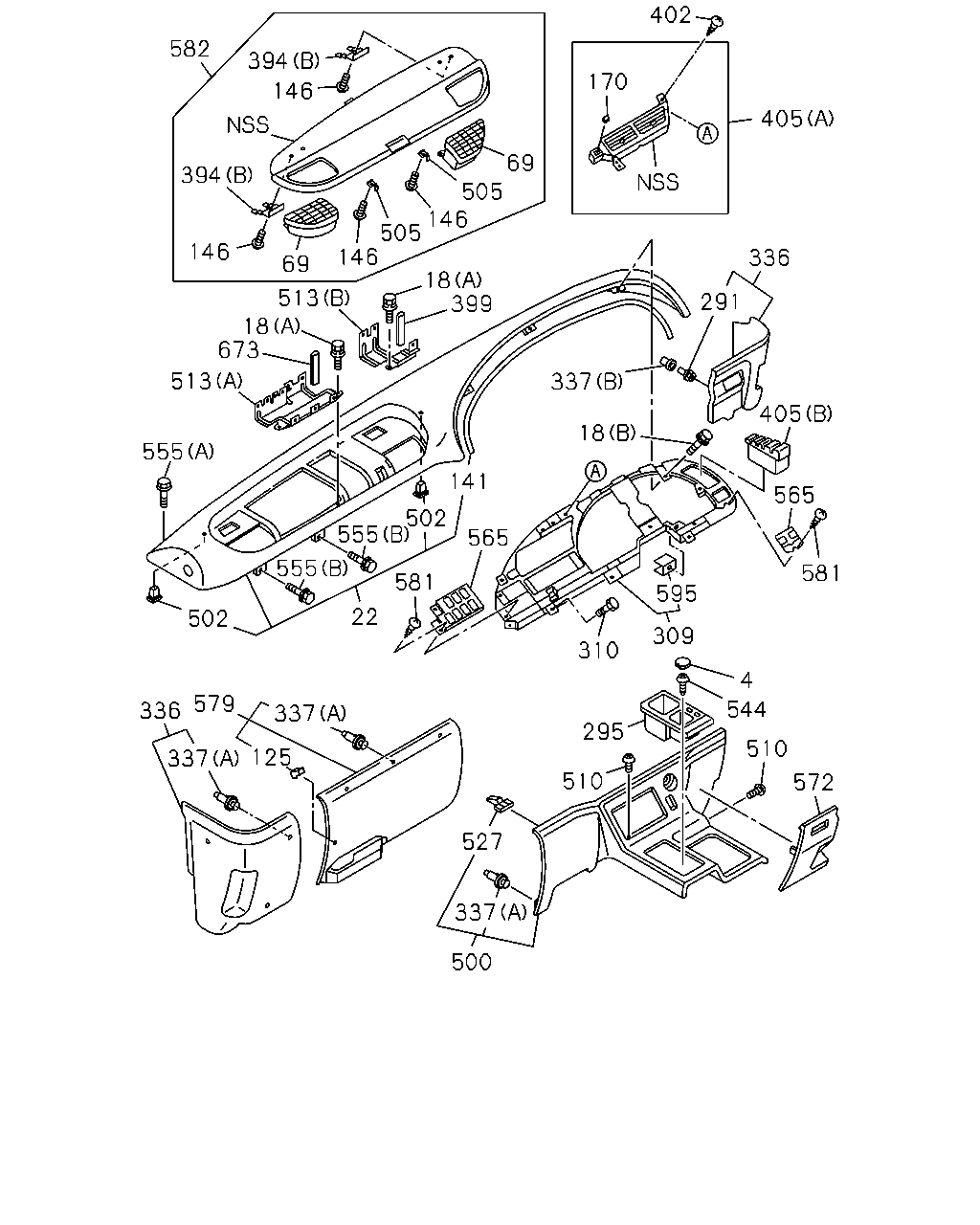

çizim 6806
402 582 394 170 146 405 69 394 505 146 505 146 146 336 69 18 399 513 18 673 291 513 337 405 18 555 141 565 502 555 565 555 581 581 595 22 502 309 310 4 579 544 336 337 295 510 125 337 510 572 527 337 500
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 9906-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 9906-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9906-
22 PAD; INST 1-72317-344-1 01 1 9906-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9906-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9906-
125 CLIP; INST PANEL 8-97217-066-0 11 1 9906-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9906-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9906-
170 COVER; HOLE 1-76367-068-0 01 1 9906-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 9906-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 9906-
309 PANEL; SW,INST 1-72418-009-6 01 1 9906-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9906-
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 9906-
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 9906-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 9906-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 9906-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9906-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9906-
399 FINISHER; HARNESS
L=30 		8-94273-221-0 01 1 0006-0009
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 0010-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9906-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-1 01 1 9906-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 9906-
500 CLUSTER; INST CENTER 1-72437-545-8 01 1 9906-9906
500 CLUSTER; INST CENTER 1-72437-590-1 01 1 9906-
502 GROMMET; SCREW,CENTER,CLUSTER 8-94279-084-2 04 1 9906-
505 LOCK; LID 1-72558-024-2 02 1 9906-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 9906-
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 9906-
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 9906-0205
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0206-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9906-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 9906-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9906-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9906-
565 BEZEL; SW PANEL 1-72418-010-1 01 1 9906-
565 BEZEL; SW PANEL 1-72418-011-2 01 1 9906-
572 COVER; INSPECTION 1-72437-633-0 01 1 9906-
579 COVER; INST PNL 1-72437-542-3 01 1 9906-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9906-
582 LID; FUSE & RELAY 1-72547-115-8 01 1 9906-
595 NUT; HOOK 1-72418-013-0 11 1 9906-
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006-0009
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010-

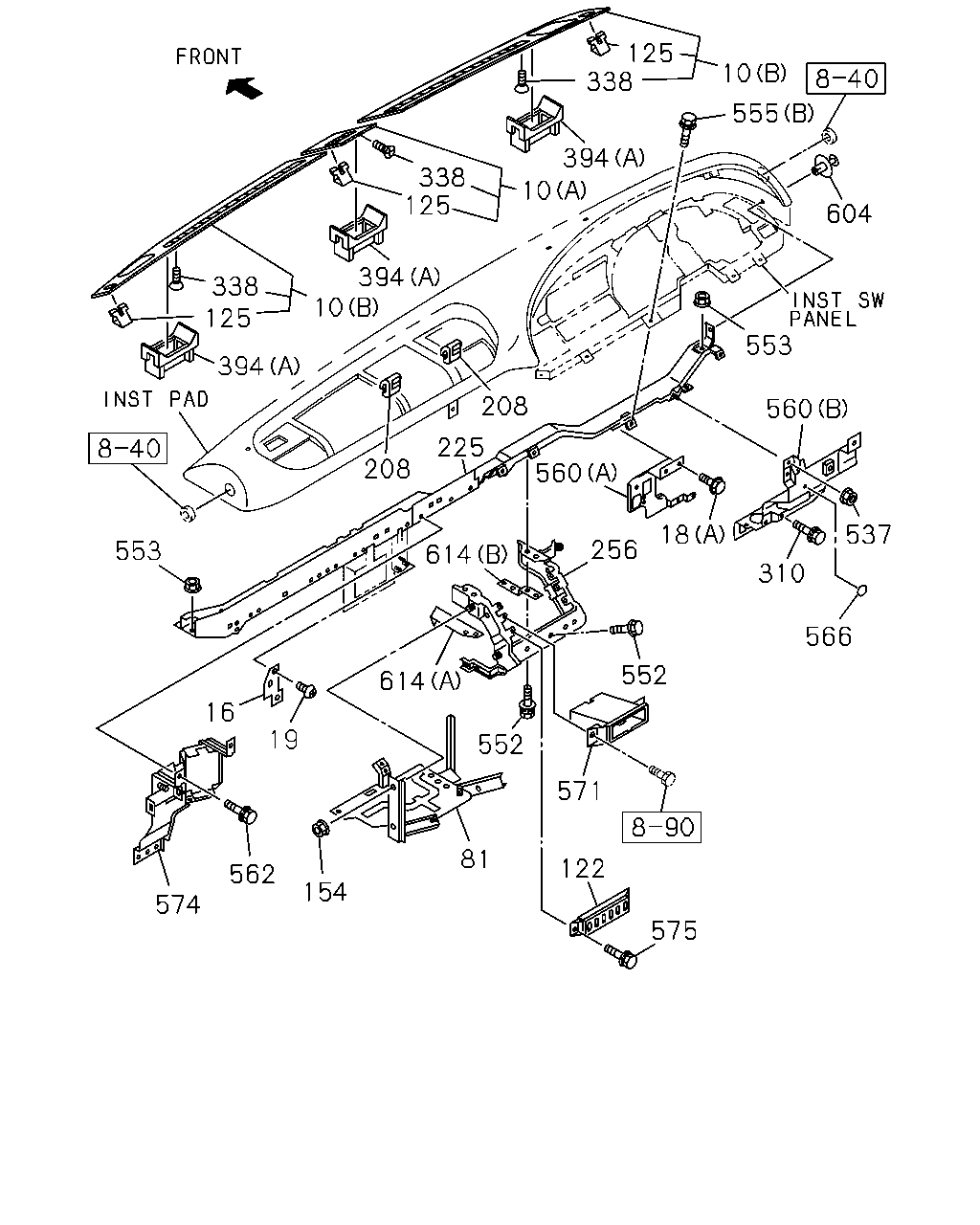

çizim 6808
125 338 10 555 394 338 125 10 604 394 10 338 125 553 394 208 560 225 560 208 18 537 256 553 614 310 566 552 614 16 19 552 571 81 122 562 154 574 575
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; GARNISH
(A) 		1-72437-540-5 01 1 9906-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-4 01 1 9906-
10 PANEL ASM; GARNISH
(B) 		1-72437-600-4 01 1 9906-
16 BRACKET; INST PNL 1-73908-023-2 01 1 9906-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 9906-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9906-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 9906-
81 BRACKET; ELEC CONT UNIT 1-73907-276-9 01 1 9906-0003
81 BRACKET; ELEC CONT UNIT 1-73907-655-4 01 1 0004-
122 PANEL; CENTER CLUSTER 1-65671-550-4 01 1 9906-
125 CLIP; INST PANEL 8-97217-066-0 11 1 9906-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 9906-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9906-
225 FRAME; FACIA 1-65671-725-6 01 1 9906-
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 9906-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9906-
338 SCREW; COVER
M5X14 		8-94279-325-0 12 1 9906-0208
338 SCREW; COVER
M5X14 		8-94148-576-1 12 1 0209-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9906-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9906-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9906-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9906-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9906-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9906-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9906-
560 BRACKET
(A) 		1-65680-976-2 01 1 9906-
560 BRACKET
(B) 		1-65671-717-8 01 1 9906-0302
560 BRACKET
(B) 		1-65671-786-0 01 1 0303-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9906-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9906-
571 BEZEL; POCKET 1-72438-151-1 02 1 9906-
574 PANEL; RELAY BOX 1-73907-365-6 01 1 9906-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9906-
604 CLIP; INST PAD 1-09983-123-0 01 1 9906-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 9906-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 9906-
çizim 44598
18 296 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 9906-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9906-
296 SEAL; INST CENTER BEZEL 8-97856-616-0 01 1 9906-
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 9906-
