◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10819 - CXZ RHD SINGAPORE ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#8344) — 19 parça

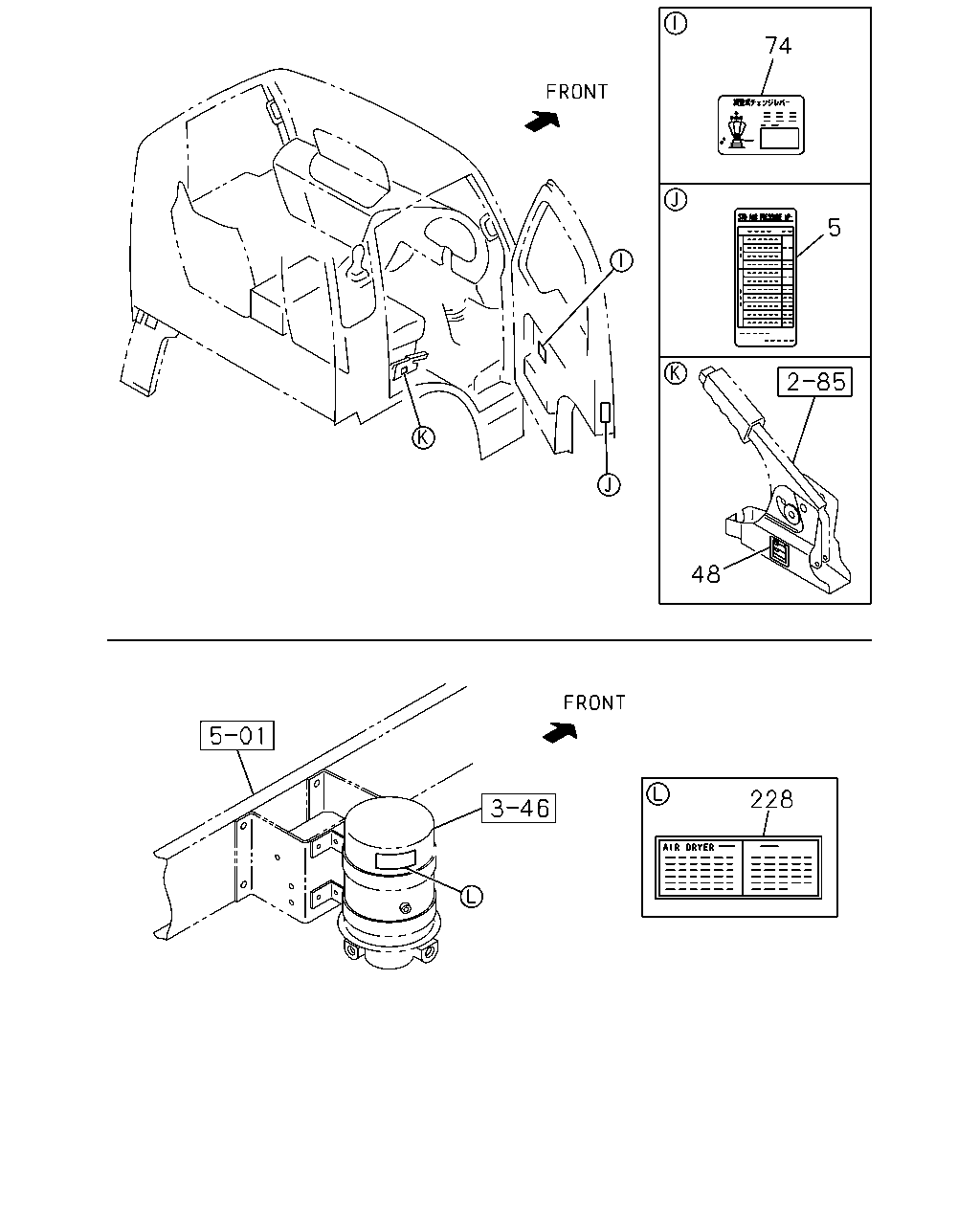

çizim 7354
74 5 48 228
BalonParca AdiParca NoAdetTipApplied Date
5 LABEL; TIRE AIR PRESSURE 1-85880-724-2 01 1 9906-0009
5 LABEL; TIRE AIR PRESSURE 1-85880-763-0 01 1 0010-0104
5 LABEL; TIRE AIR PRESSURE 1-85880-764-0 01 1 0105-
48 PLATE; CAUTION,PTO
DUMP TRUCK<RA1> 		1-85881-254-0 01 1 9906-
74 PLATE; CAUTION,CHANGE LEV 1-85888-533-1 01 1 9906-
228 PLATE; CAUTION,AIR DRYER 1-85887-935-0 01 1 9906-

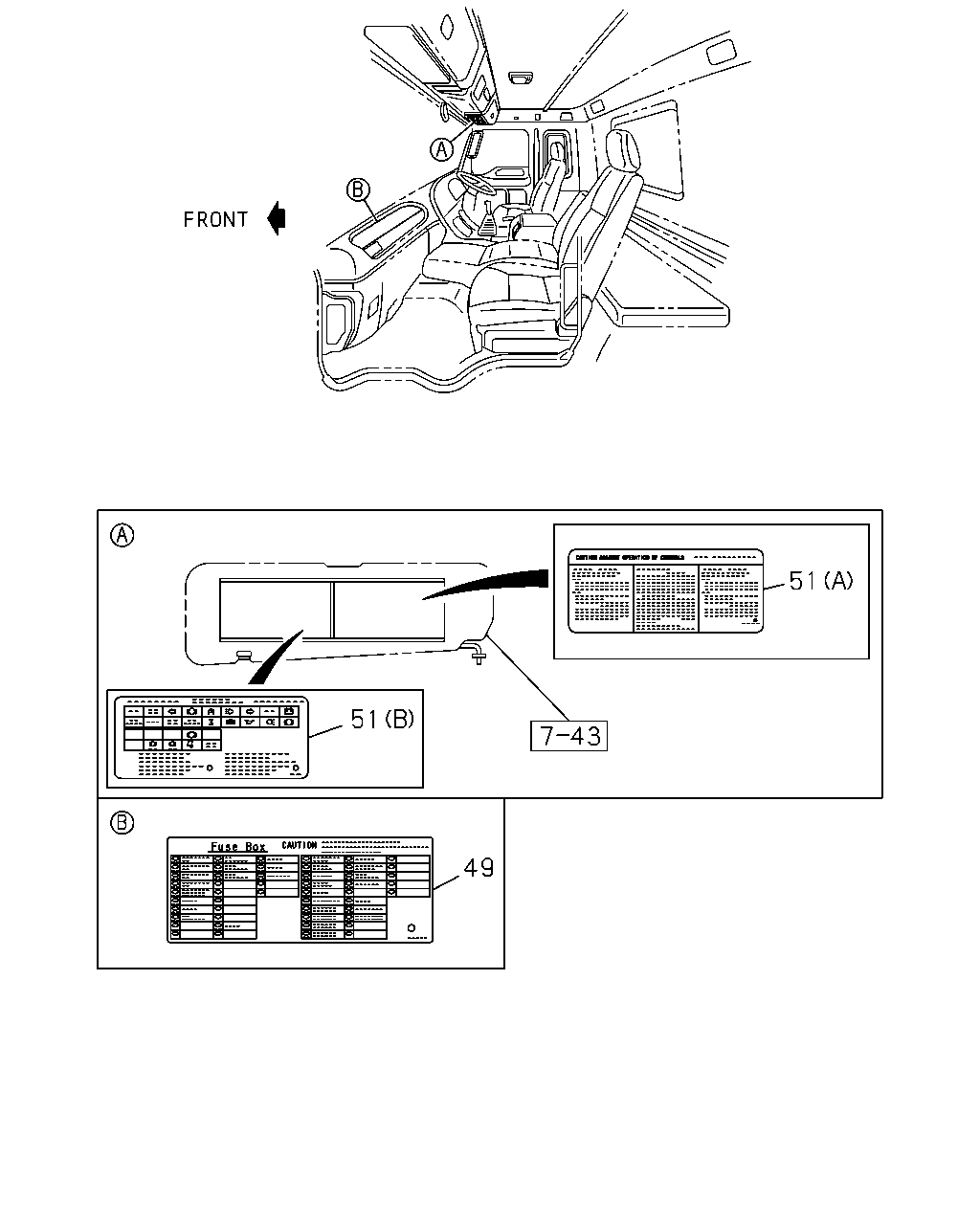

çizim 43886
51 51 49
BalonParca AdiParca NoAdetTipApplied Date
49 PLATE; CAUTION,FUSE BOX 1-85878-067-4 01 1 9906-
51 PLATE; CAUTION,WARNING
(B) 		1-85878-073-0 01 1 9906-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 9906-

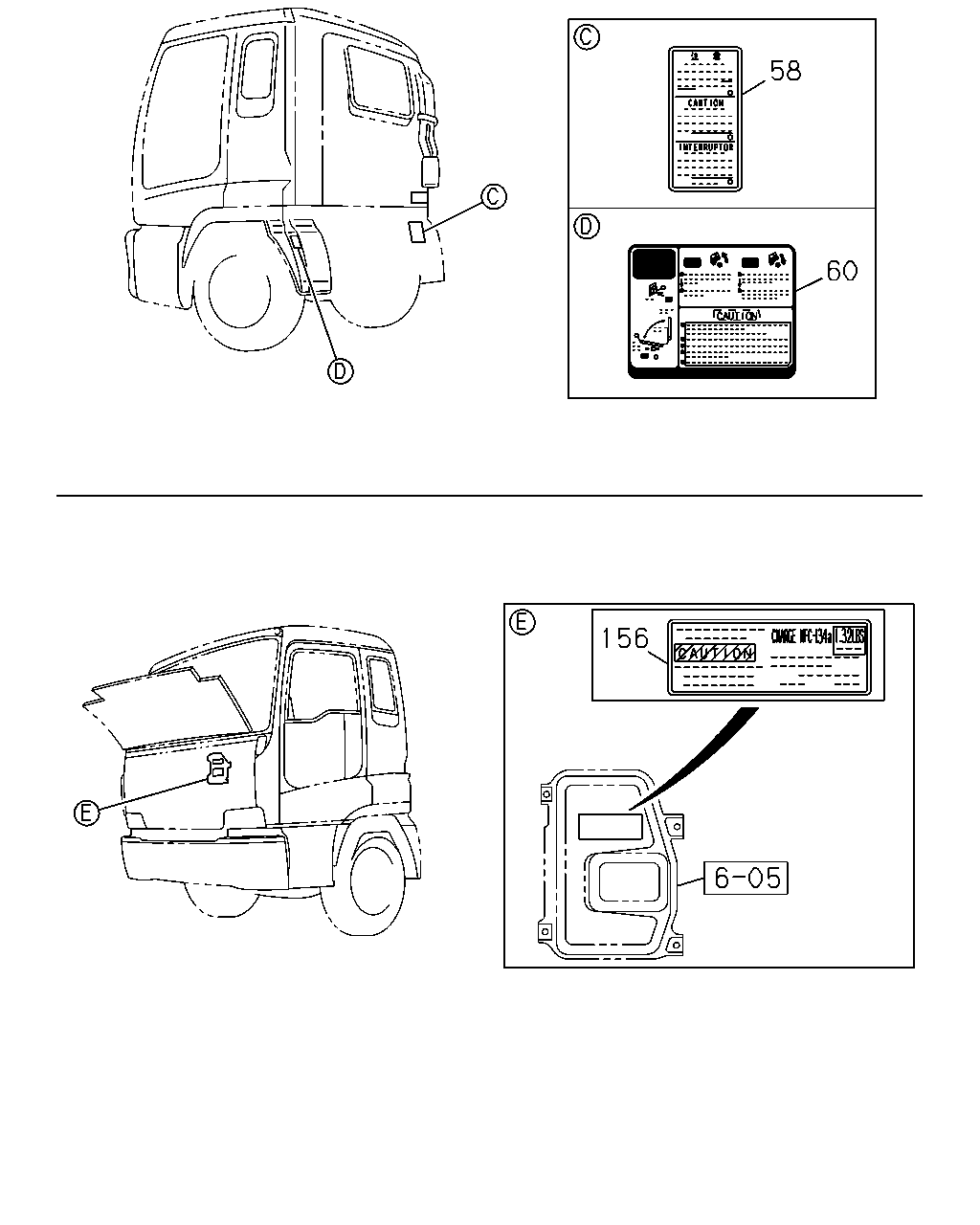

çizim 43891
58 60 156
BalonParca AdiParca NoAdetTipApplied Date
58 PLATE; CAUTION,ENG START 1-85887-457-0 01 1 9906-
60 PLATE; CAUTION,CAB TILT 1-85883-174-0 01 1 9906-
156 PLATE; CAUTION,A/C 8-97105-399-0 01 1 9906-
çizim 43892
6 173 135 7
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE 1-53639-004-0 01 1 9906-
7 LABEL; EMISSION
DUMP TRUCK<RA1> 		8-94391-418-0 01 1 9906-9906
7 LABEL; EMISSION
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 		8-94391-418-0 01 1 9907-
135 PLATE; CAUTION,ENGINE
DUMP TRUCK<RA1> 		1-85886-826-0 01 1 9906-9906
135 PLATE; CAUTION,ENGINE
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 		1-85886-826-0 01 1 9907-
173 PLATE; CAUTION,FUEL FILTER
DUMP TRUCK<RA1> 		1-85886-176-0 01 1 9906-9906
173 PLATE; CAUTION,FUEL FILTER
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 		1-85886-176-0 01 1 9907-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
