Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10819 - CXZ RHD SINGAPORE
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

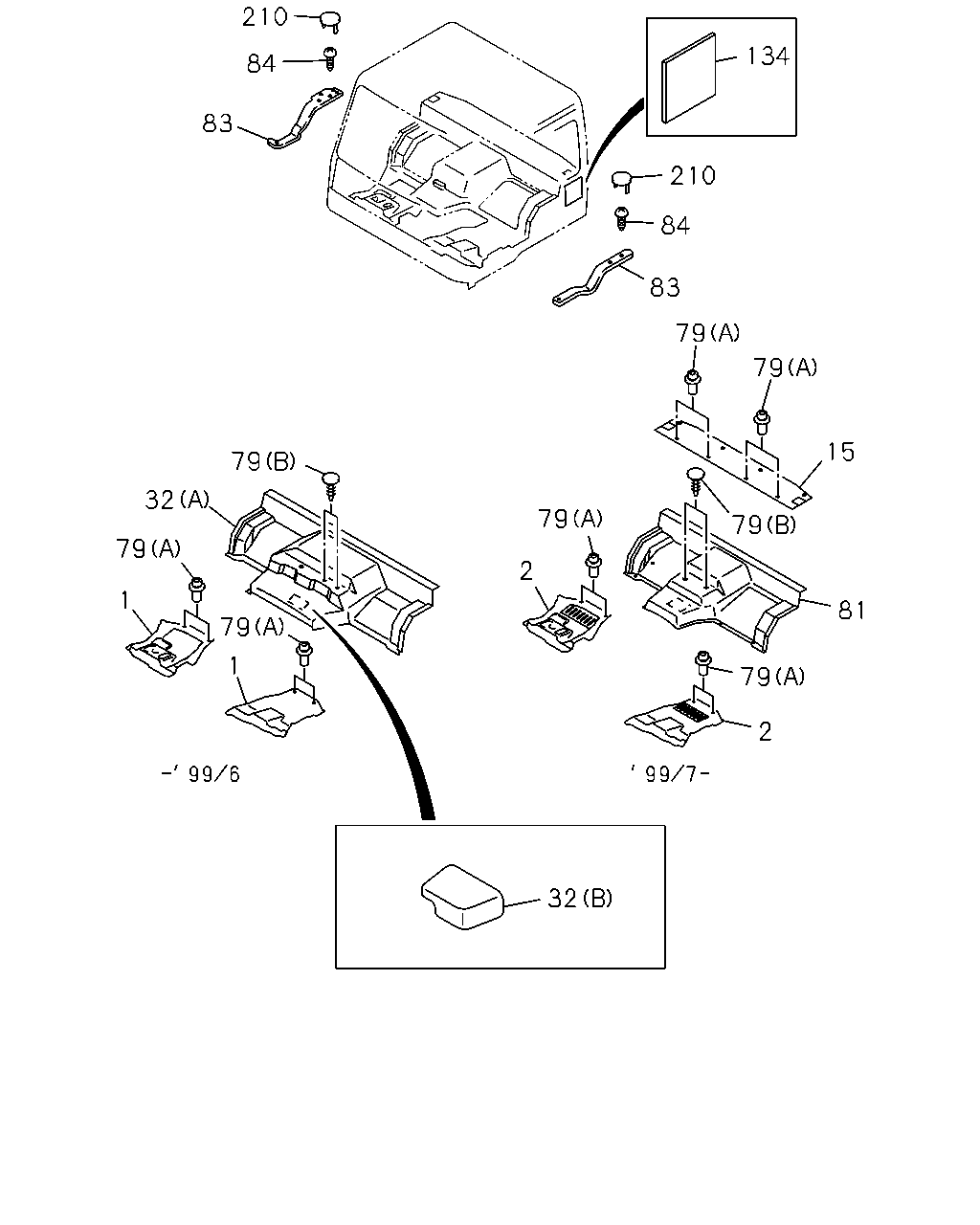

6-75 — MAT AND CARPET
(#8335) — 17 parça
210
134
84
83
210
84
83
79
79
15
79
32
79
79
79
2
1
81
79
1
79
2
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CARPET; FLOOR,FRT
1-73237-591-0
01
1
9906-9906
1
CARPET; FLOOR,FRT
1-73237-590-0
01
1
9906-9906
2
MAT; FLOOR
1-73237-536-3
01
1
9907-
2
MAT; FLOOR
1-73237-535-2
01
1
9907-0006
2
MAT; FLOOR
1-73237-675-0
01
1
0007-
15
MAT; FLOOR REAR
1-73237-517-2
01
1
9907-
32
CARPET; FLOOR
(B)
1-73237-539-0
01
1
9906-9906
32
CARPET; FLOOR
(A)
1-73237-635-0
01
1
9906-9906
79
HOOK; MALE
(B) D6X23 BLACK
1-09987-114-0
02
1
9906-
79
HOOK; MALE
(A) BLACK
8-94279-089-0
08
1
9906-
81
MAT; FLOOR,CENTER
1-73237-640-1
01
1
9907-0011
81
MAT; FLOOR,CENTER
1-73237-650-0
01
1
0012-
83
PLATE; KICKING,FLOOR MAT
1-76798-027-2
01
1
9906-
83
PLATE; KICKING,FLOOR MAT
1-76798-026-3
01
1
9906-
84
SCREW; PLATE TO FLOOR
M5X16
8-94279-312-0
08
1
9906-
134
SILENCER; RR FLOOR,SIDE
1-73367-016-0
01
1
9906-
210
COVER; KICKING PLATE
1-72538-166-0
09
1
9906-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
