◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10819 - CXZ RHD SINGAPORE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#8334) — 21 parça

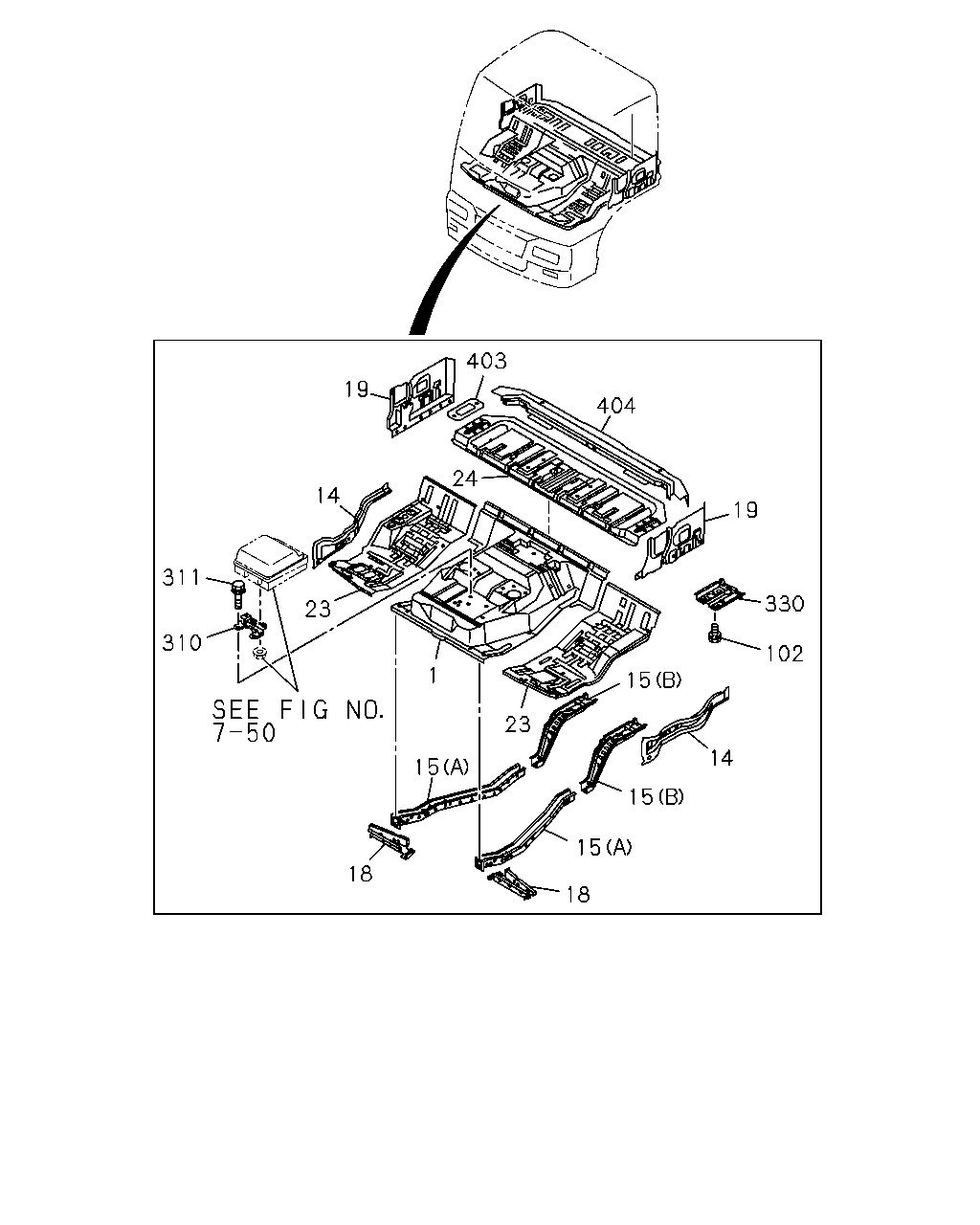

çizim 43574
403 404 19 330 102 15 14 15 15 18 18 15 1 23 24 14 23 310 311 19
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 1-62172-661-2 01 1 9906-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9906-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9906-
15 FRAME; UNDER
(A) 		1-62472-603-8 01 1 9906-
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 9906-
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 9906-
15 FRAME; UNDER
(A) 		1-62472-602-9 01 1 9906-0103
15 FRAME; UNDER
(A) 		1-62472-766-0 01 1 0104-
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-5 01 1 9906-
18 FRAME; FLOOR,CENTER SIDE 1-62483-168-2 01 1 9906-
19 PANEL; FLOOR SIDE,REAR 1-62472-660-2 01 1 9906-
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 9906-
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 9906-
23 PANEL; FLOOR,SIDE 1-62172-564-7 01 1 9906-
24 PANEL; BED PAN 1-62172-540-9 01 1 9906-
102 BOLT; FLOOR BOARD
M8X20 W/LK&PL WASHER 		8-94279-208-0 06 1 9906-
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 9906-
311 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-208-0 02 1 9906-
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 9906-
403 PATCH; FIRE EXTINGUSHER 1-62172-569-0 01 1 9906-
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 9906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
