Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10819 - CXZ RHD SINGAPORE
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

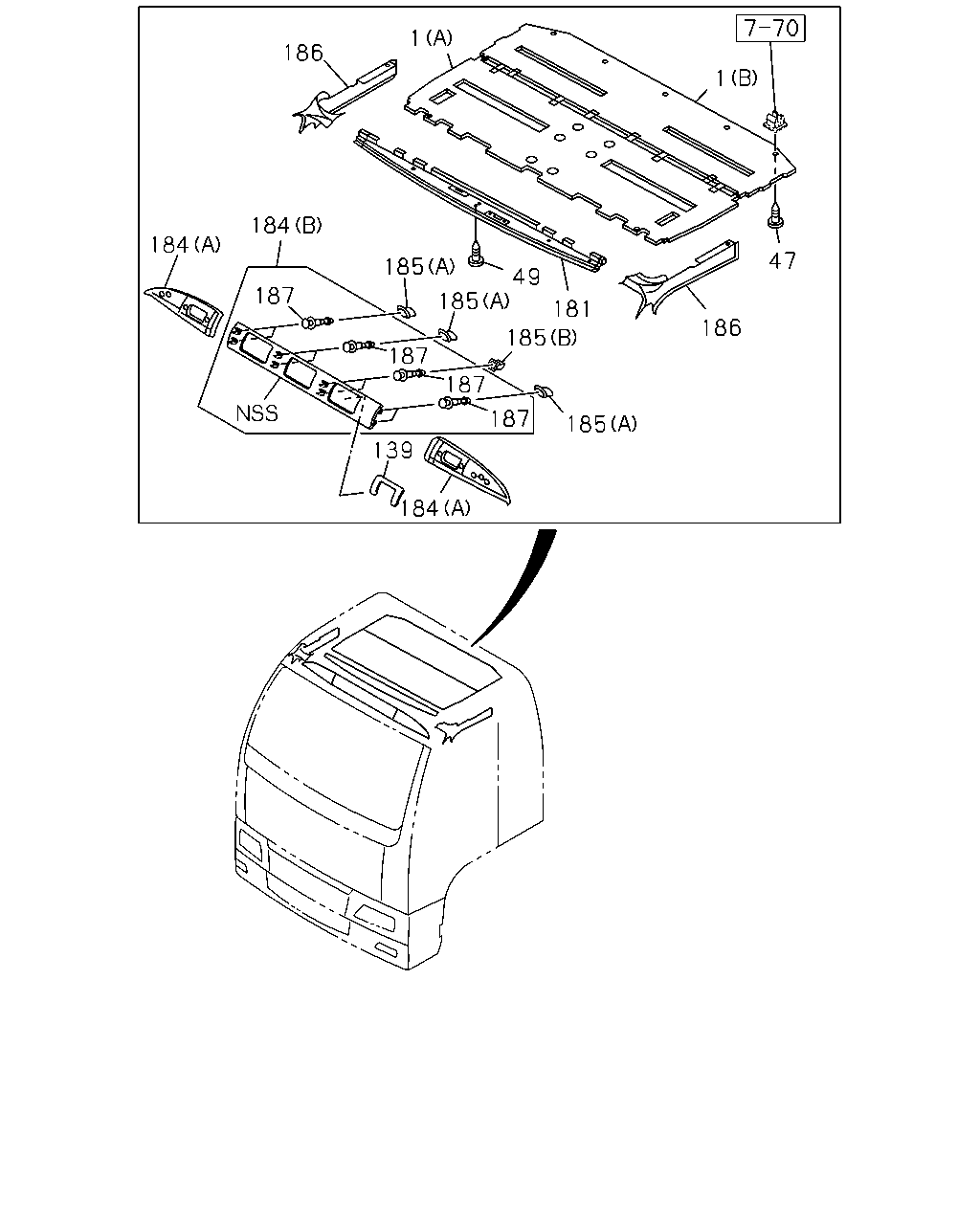

6-66 — HEAD LINING AND TRIM
(#8333) — 16 parça
1
186
1
184
47
184
185
49
187
185
181
186
185
187
187
187
185
139
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
(A)
1-73317-342-2
01
1
9906-
1
LINING; HD
(B)
1-73317-344-2
01
1
9906-
47
CLIP; HEADLINING
D6X23 LIGHT GRAY
1-73318-629-0
16
1
9906-
49
CLIP; TRIM COVER
D6X23 DARK GRAY
1-09987-238-0
01
1
9906-
139
SEAL; ROOF
1-73318-562-0
03
1
9906-
181
TRIM; ROOM,HEADER
1-73907-422-0
01
1
9906-
184
ORNAMENT; ROOF
(B)
1-73318-626-0
01
1
9906-
184
ORNAMENT; ROOF
(A)
1-73317-388-0
01
1
9906-9907
184
ORNAMENT; ROOF
(A)
1-73317-388-0
02
1
9908-
184
ORNAMENT; ROOF
(A)
1-73317-387-0
01
1
9906-9907
184
ORNAMENT; ROOF
(A)
1-73317-387-0
02
1
9908-
185
GROMMET; ORNAMENT
(A)
1-79198-012-0
06
1
9906-
185
GROMMET; ORNAMENT
(B)
1-79198-013-0
02
1
9906-
186
TRIM; ROOM,CANT RAIL SIDE
1-73348-917-0
01
1
9906-
186
TRIM; ROOM,CANT RAIL SIDE
1-73348-916-0
01
1
9906-
187
PIN; ORNAMENT
D4.2X13
1-09983-161-0
08
1
9906-
