Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10819 - CXZ RHD SINGAPORE
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

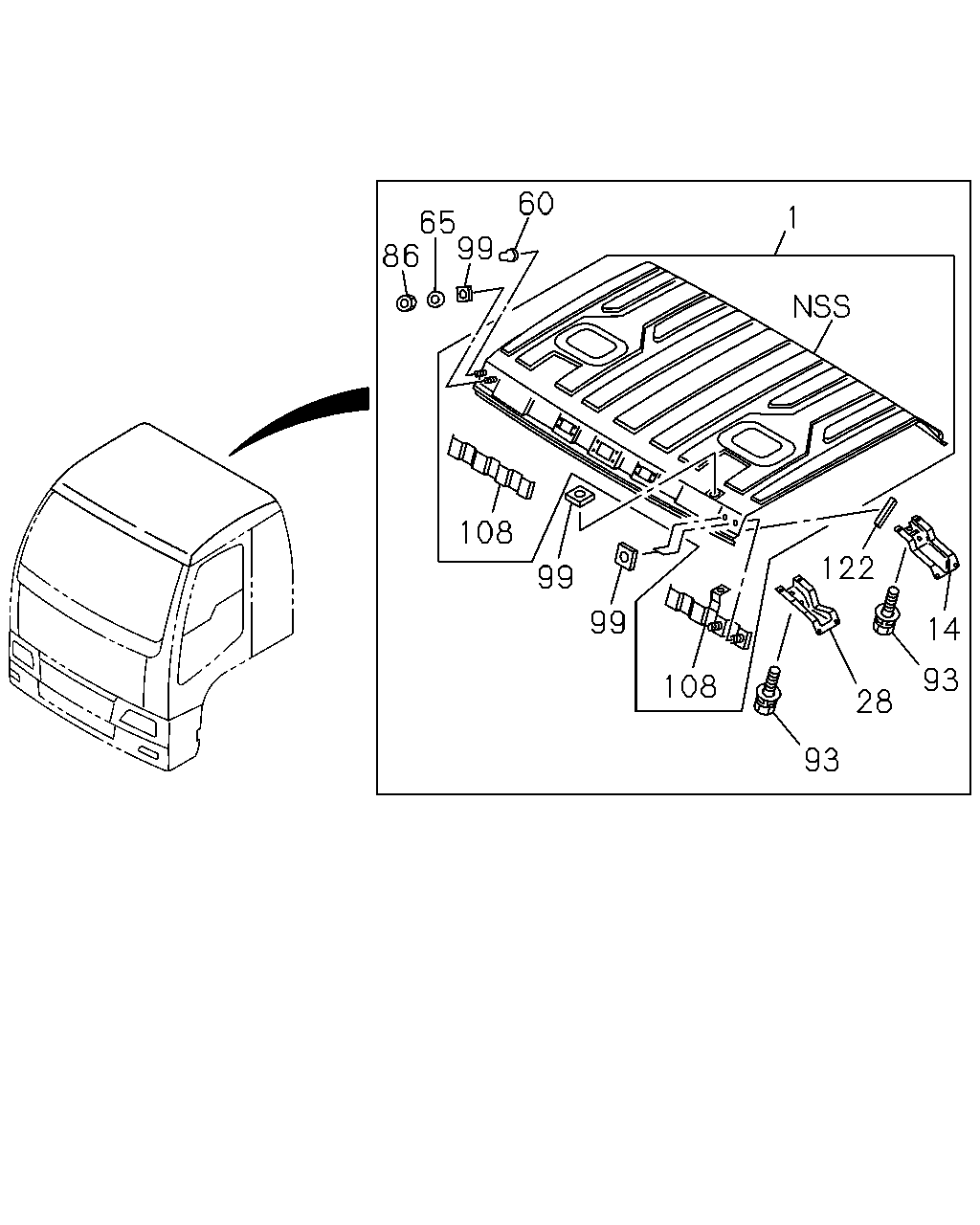

6-60 — ROOF PANEL
(#8332) — 15 parça
60
1
65
99
86
108
122
99
99
14
93
108
28
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
1-61170-848-0
01
1
9906-
14
SUPPORT; ROOF
1-73318-493-3
02
1
9906-
28
SUPPORT; ROOF FRT
1-73317-302-1
01
1
9906-
28
SUPPORT; ROOF FRT
1-73317-301-1
01
1
9906-
60
COVER; ROOF
1-79998-922-3
02
1
9906-9906
65
WASHER; PL
ID=8 T=2.3
8-94368-403-1
01
1
9906-9906
86
NUT; ROOF
M8 LOCK NUT
9-09131-408-0
01
1
9906-9906
93
BOLT; SUPPORT
M6X12 W/LK&PL WASHER
8-94279-200-0
20
1
9906-
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-1
18
1
9906-
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-0
08
1
9906-
99
SEAL; BODY,METAL
30X30 ID=9 T=0.7
1-61281-444-0
02
1
9906-
99
SEAL; BODY,METAL
55X55 ID=42 T=0.7
1-61281-445-0
02
1
9906-
108
PATCH; MIRROR
1-61170-438-6
01
1
9906-
108
PATCH; MIRROR
1-61170-857-2
01
1
9906-
122
SEAL; FRT UPR
1-61270-919-0
02
1
9906-
