6-47 — MUD GUARD AND INSULATOR (#8331) — 113 parça

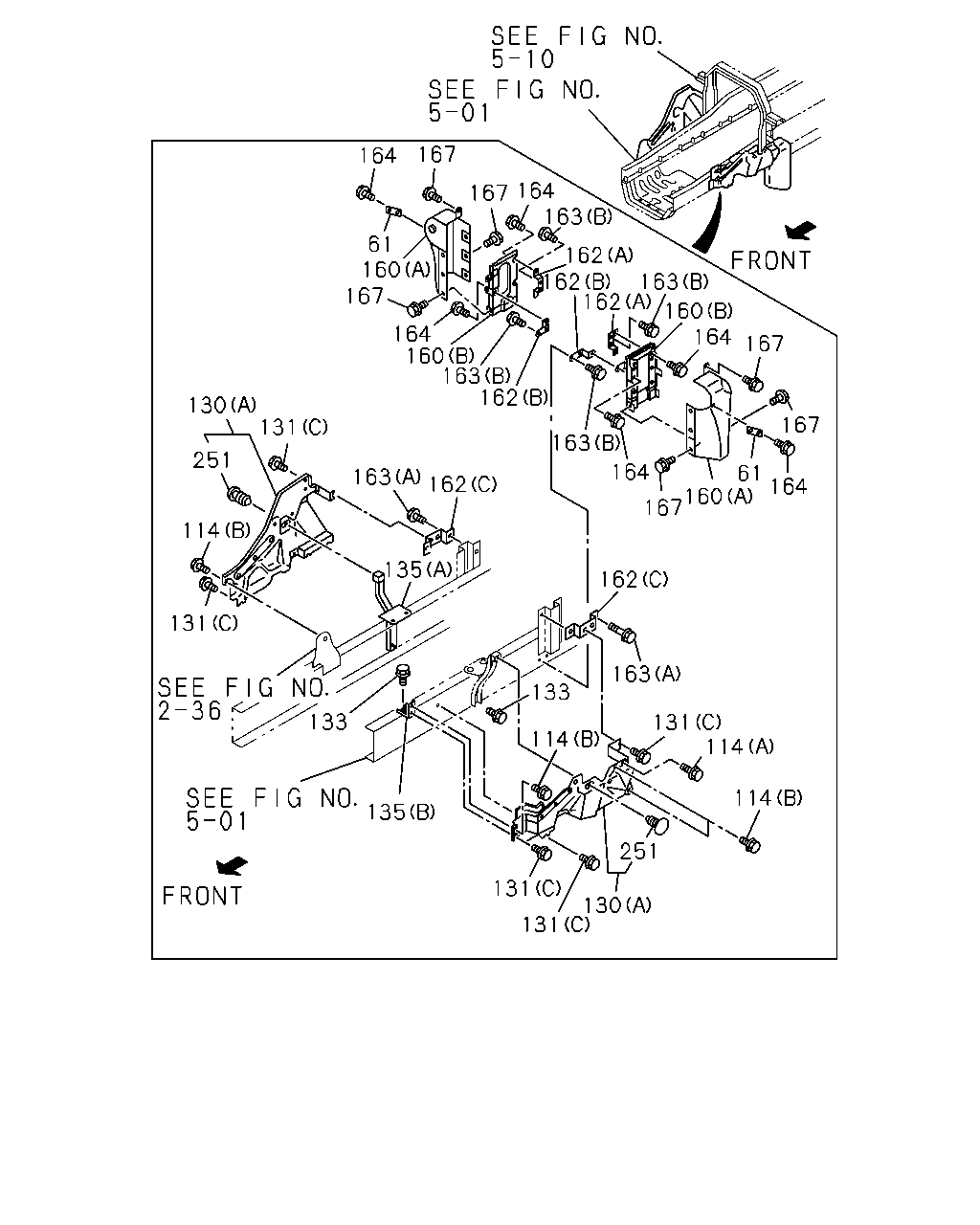

çizim 6958
164 167 61 167 164 162 162 163 162 163 160 167 163 160 164 162 164 163 160 167 61 167 167 164 160 164 162 163 131 114 114 251 131 130 131 135 114 133 135 162 163 131 130 251 114 131 133
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 1-53441-536-1 02 1 9906-
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9906-
114 BOLT
(B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9906-
130 PANEL; SHUTTER NOISE
(A) 		1-53192-768-3 01 1 9906-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 9906-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-920-2 01 1 9906-
130 PANEL; SHUTTER NOISE
(A) 		1-53192-767-4 01 1 9906-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 9906-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-917-2 01 1 9906-
131 BOLT; PANEL
(A) M8X30 FLANGE 		0-28680-830-0 03 1 9906-
131 BOLT; PANEL
(C) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9906-
131 BOLT; PANEL
(B) M8X35 FLANGE 		0-28680-835-0 01 1 9906-
133 BOLT; FRAME
M8X25 FLANGE 		0-28680-825-0 04 1 9906-
135 BRACKET; SIDE PANEL
(C) 		1-47477-180-1 01 1 9906-
135 BRACKET; SIDE PANEL
(B) 		1-53441-507-0 01 1 9906-
135 BRACKET; SIDE PANEL
(A) 		1-53441-508-0 01 1 9906-
160 COVER ASM; EXH
(A) 		1-79931-063-1 01 1 9906-
160 COVER ASM; EXH
(B) 		1-79931-111-0 01 1 9906-
160 COVER ASM; EXH
(A) 		1-79931-061-1 01 1 9906-
160 COVER ASM; EXH
(B) 		1-79931-110-0 01 1 9906-
162 BRACKET
(C) 		1-53441-520-0 02 1 9906-
162 BRACKET
(A) 		1-53441-521-2 02 1 9906-
162 BRACKET
(B) 		1-53441-522-0 02 1 9906-
163 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9906-
163 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 06 1 9906-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28680-820-0 10 1 9906-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28680-820-0 12 1 9906-
251 CLIP; NOISE INSULATOR 8-94279-048-0 35 1 9906-

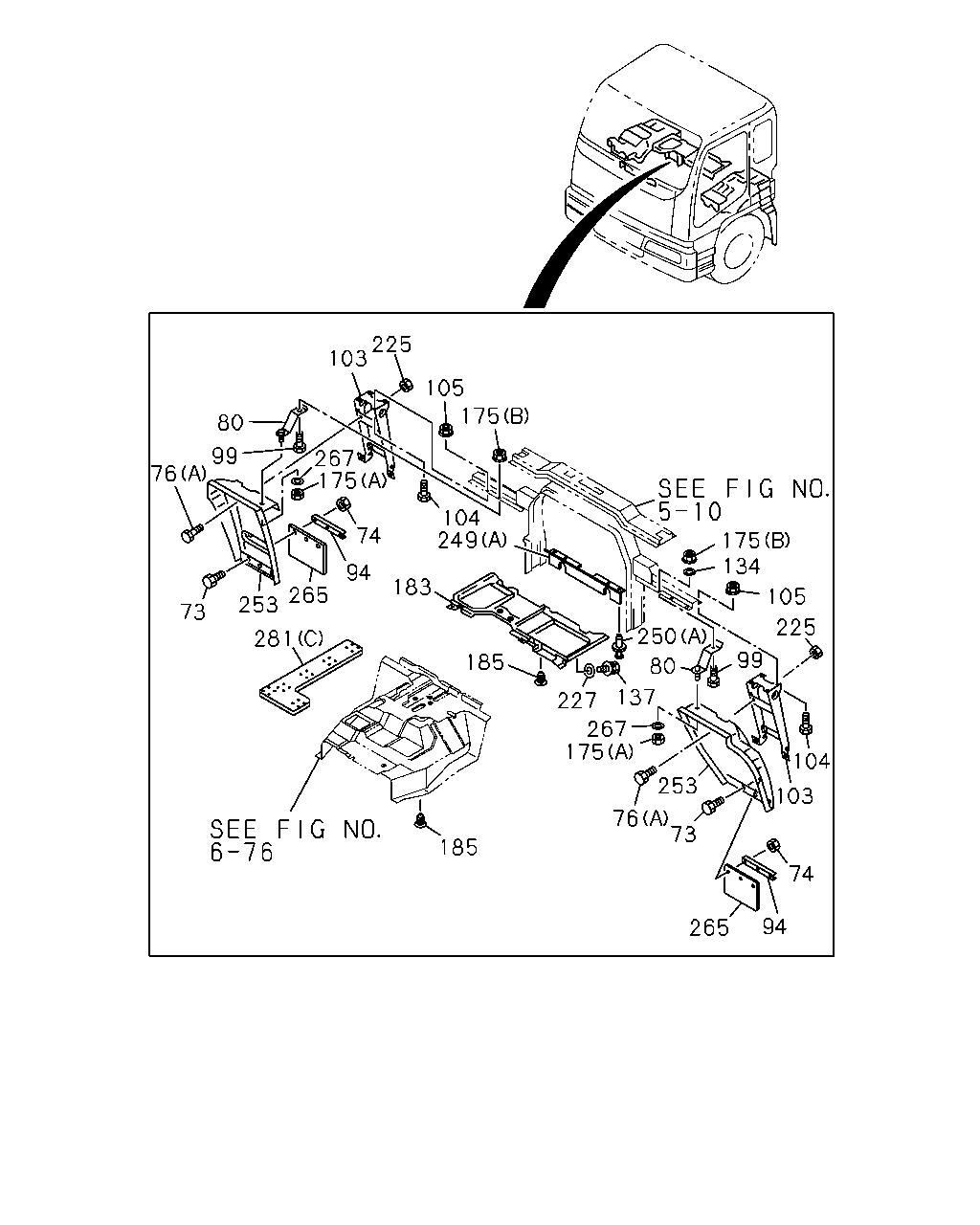

çizim 7156
225 103 80 99 76 267 105 175 175 104 74 94 265 253 73 183 281 185 249 227 137 134 175 105 225 99 80 250 104 103 74 253 267 175 76 73 265 94 185
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 9906-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 9906-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9906-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9906-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 9906-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 9906-
94 RETAINER; FLAP RUBBER 1-79931-091-2 02 1 9906-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 9906-
103 BRACKET ASM; RR MUD FLAP 1-79931-088-4 02 1 9906-
104 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 07 1 9906-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 07 1 9906-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 9906-
137 BOLT
M8X20 W/LK&PL WASHER 		8-94279-208-0 01 1 9906-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 9906-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 9906-
183 INSULATOR; HEAT,BED PAN 1-71907-526-2 01 1 9906-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 28 1 9906-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0203-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 9906-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 9906-
249 RUBBER; SHUTTER
(A) 		1-79937-924-1 01 1 9906-
249 RUBBER; SHUTTER
(B) 		1-79937-902-2 01 1 9906-
249 RUBBER; SHUTTER
(C) 		1-79937-975-0 01 1 9906-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 13 1 9906-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 9906-
250 FASTENER; SHUTTER
(C) D6X20 		8-94361-318-0 04 1 9906-
253 GUARD; MUD 1-79931-066-7 01 1 9906-
253 GUARD; MUD 1-79931-064-7 01 1 9906-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 9906-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 9906-
281 INSULATOR; NOISE
(C) 		1-73237-541-2 01 1 9906-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 9906-
281 INSULATOR; NOISE
(A) 		1-71907-166-0 01 1 9906-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 9906-

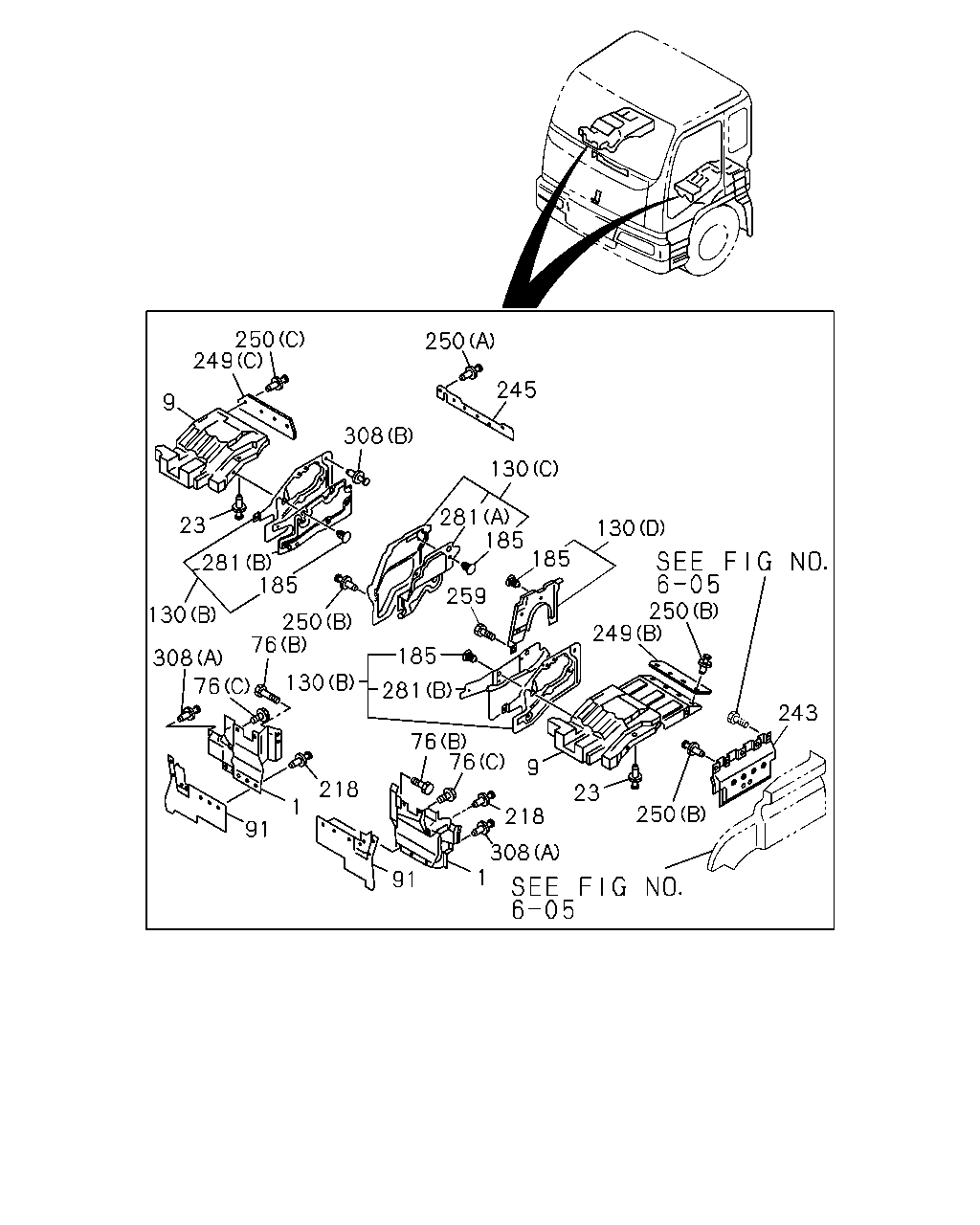

çizim 7157
250 23 9 218 76 76 281 218 1 91 130 76 250 185 76 308 281 130 23 9 249 250 308 245 250 130 281 130 250 249 185 185 259 185 243 308 1 91
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-4 01 1 9906-
1 GUARD; MUD,FRT 1-79937-894-5 01 1 9906-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-893-3 01 1 9906-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-892-3 01 1 9906-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 9906-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9906-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9906-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 9906-
91 COVER; MUD,FRT 1-79931-200-1 01 1 9906-
91 COVER; MUD,FRT 1-79931-199-1 01 1 9906-
130 PANEL; SHUTTER NOISE
(A) 		1-53192-768-3 01 1 9906-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 9906-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-920-2 01 1 9906-
130 PANEL; SHUTTER NOISE
(A) 		1-53192-767-4 01 1 9906-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 9906-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-917-2 01 1 9906-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 28 1 9906-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0203-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 9906-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-1 01 1 9906-
245 RUBBER; SHUTTER,RAD 1-79937-982-0 01 1 9906-
249 RUBBER; SHUTTER
(A) 		1-79937-924-1 01 1 9906-
249 RUBBER; SHUTTER
(B) 		1-79937-902-2 01 1 9906-
249 RUBBER; SHUTTER
(C) 		1-79937-975-0 01 1 9906-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 13 1 9906-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 9906-
250 FASTENER; SHUTTER
(C) D6X20 		8-94361-318-0 04 1 9906-
259 BOLT; NOISE PANEL
M8X20 W/LK&PL WASHER 		8-94279-208-0 12 1 9906-
281 INSULATOR; NOISE
(C) 		1-73237-541-2 01 1 9906-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 9906-
281 INSULATOR; NOISE
(A) 		1-71907-166-0 01 1 9906-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 9906-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 9906-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 9906-

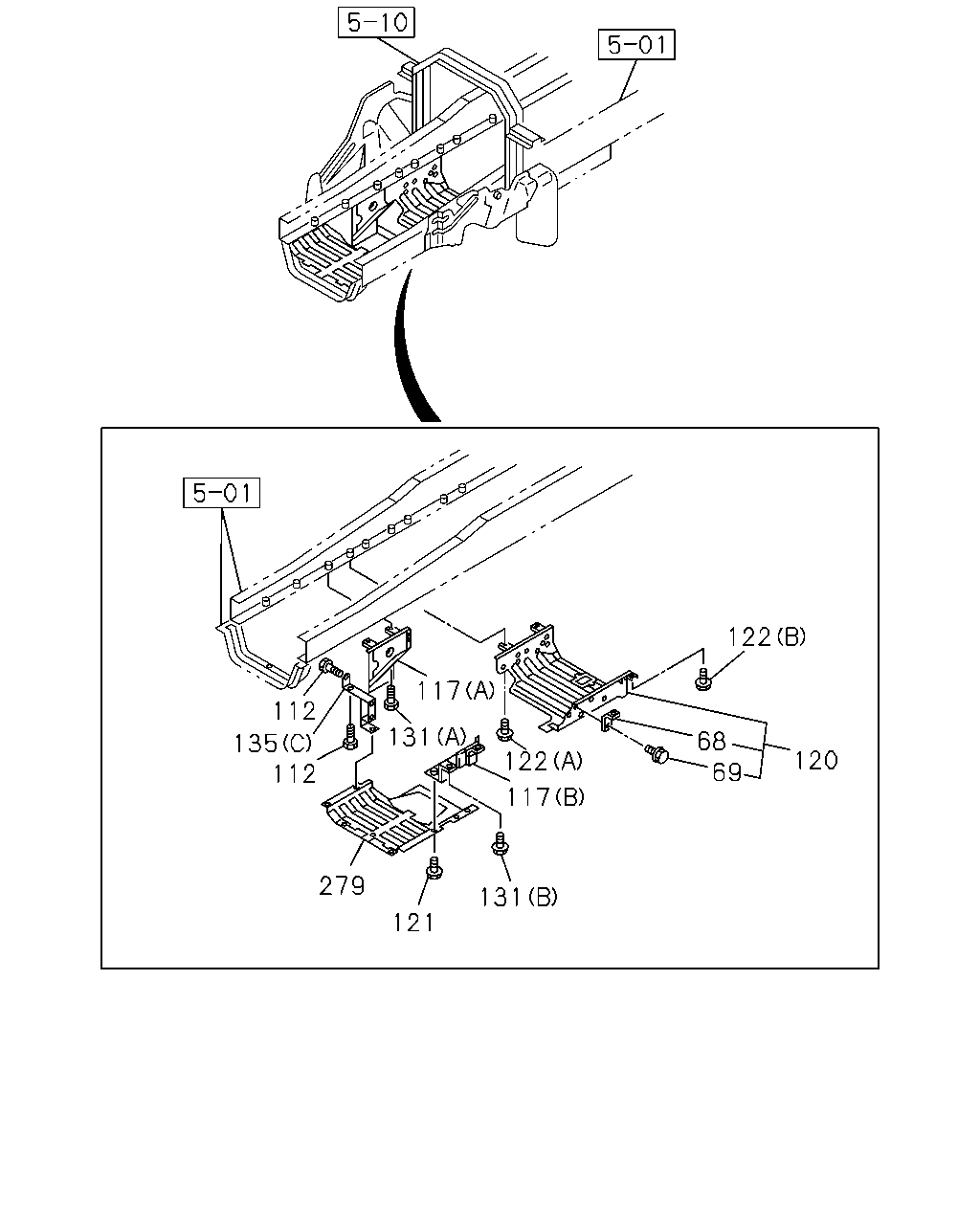

çizim 44076
122 117 112 131 68 69 135 112 120 122 117 279 131 121
BalonParca AdiParca NoAdetTipApplied Date
68 STAY; COVER 1-53441-541-0 02 1 9906-
68 STAY; COVER 1-53441-542-0 02 1 9906-
69 BOLT; COVER TO STAY
M8X16 FLANGE 		0-28280-816-0 08 1 9906-
112 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 9906-
117 PANEL; SIDE,B UNDER
(B) 		1-53192-890-3 01 1 9906-
117 PANEL; SIDE,B UNDER
(A) 		1-53192-607-0 01 1 9906-
120 PANEL; UNDER 1-53192-892-3 01 1 9906-
121 BOLT
M8X20 FLANGE 		0-28680-820-0 06 1 9906-
122 BOLT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9906-
122 BOLT
(B) M8X35 FLANGE 		0-28680-835-0 02 1 9906-
131 BOLT; PANEL
(A) M8X30 FLANGE 		0-28680-830-0 03 1 9906-
131 BOLT; PANEL
(C) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9906-
131 BOLT; PANEL
(B) M8X35 FLANGE 		0-28680-835-0 01 1 9906-
135 BRACKET; SIDE PANEL
(C) 		1-47477-180-1 01 1 9906-
135 BRACKET; SIDE PANEL
(B) 		1-53441-507-0 01 1 9906-
135 BRACKET; SIDE PANEL
(A) 		1-53441-508-0 01 1 9906-
279 COVER; UNDER 1-53192-889-3 01 1 9906-
