Sayfa 8-15 - Isuzu EPC

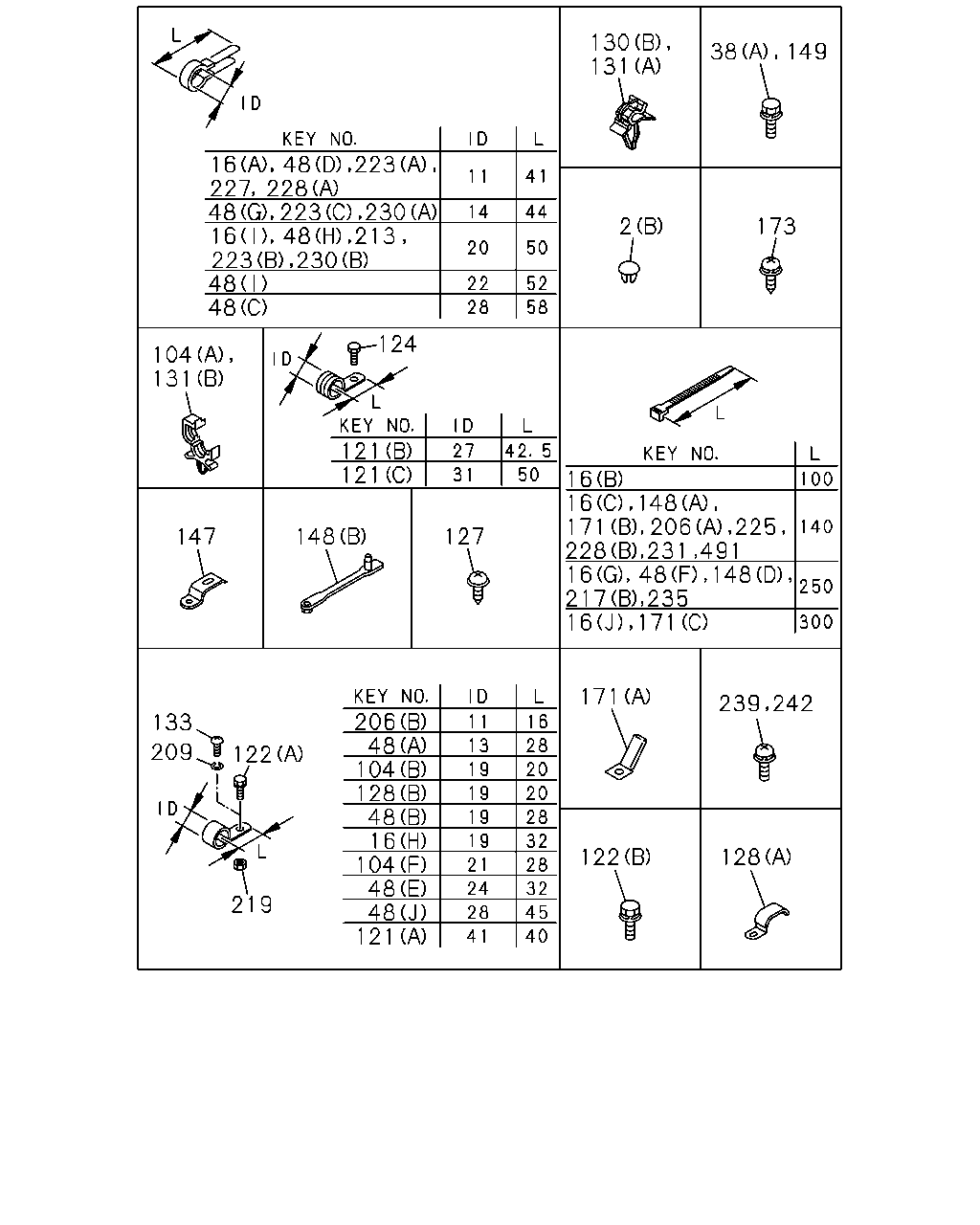

8-15 — FIXING PARTS; WIRING HARNESS (#833) — 253 parça

130 131 38 149 48 48 2 173 124 104 131 121 121 16 16 148 148 16 171 147 148 127 171 206 48 104 128 48 16 104 48 48 121 239 133 209 122 122 128 219 16 48 223 228 227 230 223 48 213 48 16 230 223 171 206 225 228 231 491 16 48 217 235 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GROMMET; CLIP HOLE,HARNESS (A) OD=47	1-09983-039-1	02	1	9202-9311	●	●
2	GROMMET; CLIP HOLE,HARNESS (A) OD=47	1-09983-039-1	02	1	9312-	●
2	GROMMET; CLIP HOLE,HARNESS EXC. AUSTRALIA PACKAGE<D2Y> (A) OD=47	1-09983-039-1	02	1	9312-		●
2	GROMMET; CLIP HOLE,HARNESS (B) OD=12.8	1-09983-065-0	04	1	9202-9311	●	●
2	GROMMET; CLIP HOLE,HARNESS (B) OD=12.8	1-09983-065-0	04	1	9312-	●
2	GROMMET; CLIP HOLE,HARNESS EXC. AUSTRALIA PACKAGE<D2Y> (B) OD=12.8	1-09983-065-0	04	1	9312-		●
2	GROMMET; CLIP HOLE,HARNESS AUSTRALIA PACKAGE<D2Y> (A) OD=47	1-09983-038-1	02	1	9312-		●
2	GROMMET; CLIP HOLE,HARNESS AUSTRALIA PACKAGE<D2Y> (B) OD=12.8	1-09983-065-0	02	1	9312-		●
16	CLIP; HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	9202-9206	●	●
16	CLIP; HARNESS (A) ID=11 L=41	1-09700-403-0	03	1	9207-	●	●
16	CLIP; HARNESS (D) ID=19 H=33 L=45	1-09701-045-0	01	1	9202-	●	●
16	CLIP; HARNESS (F) L=135	1-09987-143-1	03	1	9202-	●	●
16	CLIP; HARNESS (G) L=250	5-09707-030-0	02	1	9202-9202	●	●
16	CLIP; HARNESS (J) L=300	1-09707-001-0	02	1	9203-9206	●	●
16	CLIP; HARNESS (H) ID=19 L=32	9-09525-866-0	01	1	9202-	●	●
16	CLIP; HARNESS (I) ID=20 L=50	9-09917-430-0	01	1	9202-	●	●
16	CLIP; HARNESS (I) ID=20 L=50	9-09917-430-0	03	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (C) L=140	5-09707-031-0	01	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) L=219.5	1-09987-136-0	05	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) L=100	5-09707-036-0	02	1	9202-	●	●
16	CLIP; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) L=219.5	1-09987-136-0	04	1	9202-	●	●
16	CLIP; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) L=140	5-09707-031-0	03	1	9202-	●	●
16	CLIP; HARNESS WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 L=41	1-09700-403-0	01	1	9202-9206	●	●
16	CLIP; HARNESS MLD7R M/T(X5L),MLD6A M/T(X5N) (A) ID=11 L=41	1-09700-403-0	01	1	9202-9206	●	●
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28080-816-0	02	1	9202-9202	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28080-820-0	04	1	9203-9211	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28080-820-0	02	1	9212-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28080-820-0	02	1	9202-9202	●	●
38	BOLT; CLIP,HARNESS ENGINE REAR PTO(SV1) (A) M8X20 FLANGE	0-28080-820-0	02	1	9202-9202	●
38	BOLT; CLIP,HARNESS ENGINE REAR PTO(SV1) (A) M8X20 FLANGE	0-28080-820-0	02	1	9203-9211	●
38	BOLT; CLIP,HARNESS (A) M8X14 FLANGE	0-28080-814-0	02	1	9212-	●	●
38	BOLT; CLIP,HARNESS ENGINE REAR PTO(SV1) (A) M8X14 FLANGE	0-28080-814-0	02	1	9212-	●
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28080-825-0	04	1	9202-	●	●
38	BOLT; CLIP,HARNESS (B)	1-47475-730-0	01	1	9205-	●	●
38	BOLT; CLIP,HARNESS EXC. ENGINE REAR PTO(SV1) (A) M8X20 FLANGE	0-28080-820-0	01	1	9202-9211	●	●
38	BOLT; CLIP,HARNESS EXC. ENGINE REAR PTO(SV1) (A) M8X14 FLANGE	0-28080-814-0	01	1	9212-	●	●
38	BOLT; CLIP,HARNESS BUMPER W/HEADLAMPS<SLB> (A) M8X20 FLANGE	0-28010-820-0	06	1	9202-9204		●
38	BOLT; CLIP,HARNESS BUMPER W/HEADLAMPS<SLB> (A) M8X20 FLANGE	0-28080-820-0	06	1	9205-		●
48	CLIP; FRAME HARNESS (H) ID=20 L=50	9-09917-430-0	11	1	9202-9307	●
48	CLIP; FRAME HARNESS (H) ID=20 L=50	9-09917-430-0	10	1	9308-	●
48	CLIP; FRAME HARNESS ENGINE REAR PTO(SV1) (A) ID=13	9-09525-255-0	01	1	9202-9206	●
48	CLIP; FRAME HARNESS ENGINE REAR PTO(SV1) (B) ID=19 L=28	9-09525-856-0	01	1	9202-9206	●
48	CLIP; FRAME HARNESS (B) ID=19 L=28	9-09525-856-0	02	1	9207-	●	●
48	CLIP; FRAME HARNESS ENGINE REAR PTO(SV1) (B) ID=19 L=28	9-09525-856-0	02	1	9207-	●
48	CLIP; FRAME HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	9202-9205	●	●
48	CLIP; FRAME HARNESS (J) ID=28 L=45	1-09700-825-1	02	1	9202-	●	●
48	CLIP; FRAME HARNESS (F) L=250	5-09707-030-0	02	1	9202-	●	●
48	CLIP; FRAME HARNESS (B) ID=19 L=28	9-09525-856-0	02	1	9202-9206	●	●
48	CLIP; FRAME HARNESS (G) ID=14 L=44	9-09917-427-0	01	1	9207-	●	●
48	CLIP; FRAME HARNESS (G) ID=14 L=44	9-09917-427-0	03	1	9202-	●	●
48	CLIP; FRAME HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	9202-9206	●	●
48	CLIP; FRAME HARNESS (H) ID=20 L=50	9-09917-430-0	06	1	9207-	●	●
48	CLIP; FRAME HARNESS (C) ID=28 L=58	1-09700-400-0	01	1	9202-	●	●
48	CLIP; FRAME HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	9202-	●	●
48	CLIP; FRAME HARNESS (I) ID=22 L=52	9-09917-431-0	02	1	9202-	●	●
48	CLIP; FRAME HARNESS EXC. ENGINE REAR PTO(SV1) (K) ID=12 H=24 L=20	1-09700-605-0	01	1	9205-	●	●
48	CLIP; FRAME HARNESS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (D) ID=11 L=41	1-09700-403-0	03	1	9202-9206		●
48	CLIP; FRAME HARNESS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (D) ID=11 L=41	1-09700-403-0	02	1	9207-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (H) ID=20 L=50	9-09917-430-0	14	1	9202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (H) ID=20 L=50	9-09917-430-0	16	1	9202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (H) ID=20 L=50	9-09917-430-0	18	1	9202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (H) ID=20 L=50	9-09917-430-0	20	1	9202-		●
104	CLIP; HEADLAMP HARNESS (A) L=142	8-94232-619-0	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS (B) ID=19 L=20	9-09525-832-0	01	1	9202-9207	●	●
104	CLIP; HEADLAMP HARNESS EXC. POWER WINDOW<A30> (B) ID=19 L=20	9-09525-832-0	01	1	9208-	●	●
104	CLIP; HEADLAMP HARNESS POWER WINDOW<A30> (F) ID=21 L=28	1-09700-673-1	01	1	9208-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) ID=12 H=24 L=20	1-09700-605-0	02	1	9202-		●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (D) ID=14.5 H=23 L=30	1-09700-859-0	02	1	9202-		●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (E) ID=15 L=42	9-09716-203-1	02	1	9202-		●
121	CLIP; FACIA HARNESS (B) ID=27 L=32	1-09700-712-1	03	1	9202-	●
121	CLIP; FACIA HARNESS EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) ID=27 L=32	1-09700-712-1	03	1	9202-		●
121	CLIP; FACIA HARNESS (A) ID=41 L=40	1-09700-596-0	01	1	9202-	●	●
121	CLIP; FACIA HARNESS (C) ID=31 L=50	1-09700-870-1	01	1	9202-9208	●	●
122	BOLT; FACIA HARNESS CLIP (B) BLACK M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9202-	●	●
122	BOLT; FACIA HARNESS CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X20 W/LK&PL WASHER	9-01960-620-0	01	1	9202-9204	●	●
122	BOLT; FACIA HARNESS CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9205-	●	●
124	BOLT; GRAND,FACIA M6X22 W/LK&PL WASHER	1-09980-584-0	01	1	9202-9303	●	●
124	BOLT; GRAND,FACIA M6X20 W/LK&PL WASHER	8-97086-824-0	01	1	9304-	●	●
127	SCREW; FACIA HARNESS CLIP EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING W/PL WASHER	0-74100-516-0	01	1	9202-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A)	1-09987-193-0	01	1	9202-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=19 L=20	9-09525-832-0	01	1	9202-	●	●
130	CLIP; WASHER HARNESS (A) L=147	1-09987-219-0	01	1	9202-9202	●	●
130	CLIP; WASHER HARNESS (B) ID=7-10	8-94472-578-0	01	1	9203-	●	●
131	CLIP; HARNESS,A/C SW (A) ID=6.5	8-94206-730-0	01	1	9202-9301	●	●
131	CLIP; HARNESS,A/C SW (B) ID=7-10	8-94472-578-0	01	1	9302-	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/LK&PL WASHER	9-03920-612-0	02	1	9202-	●	●
147	BRACKET; HARNESS,HEADLAMP	1-71998-471-0	02	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS (A) L=140	5-09707-031-0	01	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=85	8-94232-611-0	02	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142	8-94232-619-0	08	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS EXC. DUAL AIR GAUGE<UG2> (B) L=85	8-94232-611-0	03	1	9202-9307	●	●
148	CLIP; BAND,HEADLAMP HARNESS EXC. DUAL AIR GAUGE<UG2> (B) L=85	8-94232-611-0	03	1	9308-	●	●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=85	8-94232-611-0	03	1	9308-		●
148	CLIP; BAND,HEADLAMP HARNESS EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,DUAL AIR GAUGE<UG2> (C) L=142	8-94232-619-0	07	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142	8-94232-619-0	10	1	9308-9310		●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142	8-94232-619-0	09	1	9311-		●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D) L=250	5-09707-030-0	01	1	9311-		●
149	BOLT; HEADLAMP HARNESS EARTH M6X22 W/LK&PL WASHER	1-09980-537-0	01	1	9202-9303	●	●
149	BOLT; HEADLAMP HARNESS EARTH EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X22 W/LK&PL WASHER	1-09980-430-0	01	1	9202-9303	●	●
149	BOLT; HEADLAMP HARNESS EARTH EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20 W/LK&PL WASHER	8-97086-824-0	02	1	9304-	●	●
149	BOLT; HEADLAMP HARNESS EARTH HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20 W/LK&PL WASHER	8-97086-824-0	01	1	9308-		●
171	CLIP; STARTER HARNESS (A) L=63	1-09700-418-1	01	1	9202-9204	●	●
171	CLIP; STARTER HARNESS (B) L=140	5-09707-031-0	01	1	9202-	●	●
171	CLIP; STARTER HARNESS (C) L=300	1-09707-001-0	01	1	9207-	●	●
173	BOLT; STARTER EARTH M10X16 FLANGE	0-28081-016-0	01	1	9202-9212	●	●
173	BOLT; STARTER EARTH M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	9301-	●	●
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-0	02	1	9202-	●	●
206	CLIP; FUEL TANK HARNESS FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6> (B) ID=11 L=16	9-09525-022-0	01	1	9202-	●	●
209	WASHER; LK,GEN,EARTH ID=5.1	9-09150-505-0	01	1	9202-	●	●
213	CLIP; END CROSS HARNESS ID=20 L=50	9-09917-430-0	03	1	9202-	●	●
217	CLIP; RR BODY HARNESS (A) ID=15 L=70	1-09700-980-0	02	1	9202-	●	●
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-0	02	1	9202-	●	●
219	NUT ENGINE REAR PTO(SV1) M8	9-09110-408-0	01	1	9202-9204	●
219	NUT M8	9-09110-408-0	01	1	9205-9206	●	●
219	NUT ENGINE REAR PTO(SV1) M8	9-09110-408-0	01	1	9205-9206	●
219	NUT M8	9-09110-408-0	02	1	9207-	●	●
219	NUT M8	9-09110-408-0	02	1	9207-	●	●
219	NUT BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> M8	9-09110-408-0	02	1	9207-		●
219	NUT M8	9-09110-408-0	02	1	9202-9206	●	●
219	NUT M8	9-09110-408-0	02	1	9202-9206	●	●
219	NUT M8	9-09110-408-0	02	1	9202-9206	●	●
219	NUT BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> M8	9-09110-408-0	02	1	9202-9206		●
219	NUT M8	9-09110-408-0	02	1	9207-	●	●
223	CLIP; AIR TANK HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	9202-9205	●	●
223	CLIP; AIR TANK HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	9206-	●	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	05	1	9202-9205	●	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	04	1	9206-	●	●
223	CLIP; AIR TANK HARNESS (C) ID=14 L=44	9-09917-427-0	01	1	9206-	●	●
225	CLIP; AIR TANK HARNESS L=140	5-09707-031-0	01	1	9206-	●	●
227	CLIP; FOG LAMP HARNESS EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,REINFORCEMENT BUMPER<VG7> ID=11 L=41	1-09700-403-0	02	1	9202-	●	●
228	CLIP; COOLER HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11 L=41	1-09700-403-0	01	1	9202-9202	●	●
228	CLIP; COOLER HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-0	03	1	9202-9202	●	●
228	CLIP; COOLER HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-0	04	1	9203-	●	●
230	CLIP; C/MBR HARNESS (A) ID=14 L=44	9-09917-427-0	02	1	9202-9205	●	●
230	CLIP; C/MBR HARNESS (B) ID=20 L=50	9-09917-430-0	02	1	9206-	●	●
231	CLIP; BAND,OIL PRESS L=140	5-09707-031-0	01	1	9202-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS L=250	5-09707-030-0	01	1	9202-	●	●
239	BOLT; GRAND M8X20	0-28410-820-0	01	1	9202-9204	●	●
239	BOLT; GRAND M8X20 FLANGE	0-28480-820-0	01	1	9205-9212	●	●
239	BOLT; GRAND M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9301-	●	●
239	BOLT; GRAND M5X8	9-92040-508-0	01	1	9202-9204	●	●
239	BOLT; GRAND M5X8	0-20800-508-0	01	1	9205-	●	●
242	BOLT; BRKT,HARNESS M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
491	CLIP; BAND,HTR HOSE & HARNESS FIRE TRUCK<RA9> L=140	5-09707-031-0	01	1	9202-		●

64 2 27 184 210 520 16 104 48 104 178 148 16 182 194 176 154 38 252 185 115 130 224 115 115 115 119 16 95 305 104 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GROMMET; CLIP HOLE,HARNESS (A) OD=47	1-09983-039-1	02	1	9202-9311	●	●
2	GROMMET; CLIP HOLE,HARNESS (A) OD=47	1-09983-039-1	02	1	9312-	●
2	GROMMET; CLIP HOLE,HARNESS EXC. AUSTRALIA PACKAGE<D2Y> (A) OD=47	1-09983-039-1	02	1	9312-		●
2	GROMMET; CLIP HOLE,HARNESS (B) OD=12.8	1-09983-065-0	04	1	9202-9311	●	●
2	GROMMET; CLIP HOLE,HARNESS (B) OD=12.8	1-09983-065-0	04	1	9312-	●
2	GROMMET; CLIP HOLE,HARNESS EXC. AUSTRALIA PACKAGE<D2Y> (B) OD=12.8	1-09983-065-0	04	1	9312-		●
2	GROMMET; CLIP HOLE,HARNESS AUSTRALIA PACKAGE<D2Y> (A) OD=47	1-09983-038-1	02	1	9312-		●
2	GROMMET; CLIP HOLE,HARNESS AUSTRALIA PACKAGE<D2Y> (B) OD=12.8	1-09983-065-0	02	1	9312-		●
16	CLIP; HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	9202-9206	●	●
16	CLIP; HARNESS (A) ID=11 L=41	1-09700-403-0	03	1	9207-	●	●
16	CLIP; HARNESS (D) ID=19 H=33 L=45	1-09701-045-0	01	1	9202-	●	●
16	CLIP; HARNESS (F) L=135	1-09987-143-1	03	1	9202-	●	●
16	CLIP; HARNESS (G) L=250	5-09707-030-0	02	1	9202-9202	●	●
16	CLIP; HARNESS (J) L=300	1-09707-001-0	02	1	9203-9206	●	●
16	CLIP; HARNESS (H) ID=19 L=32	9-09525-866-0	01	1	9202-	●	●
16	CLIP; HARNESS (I) ID=20 L=50	9-09917-430-0	01	1	9202-	●	●
16	CLIP; HARNESS (I) ID=20 L=50	9-09917-430-0	03	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (C) L=140	5-09707-031-0	01	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) L=219.5	1-09987-136-0	05	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) L=100	5-09707-036-0	02	1	9202-	●	●
16	CLIP; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) L=219.5	1-09987-136-0	04	1	9202-	●	●
16	CLIP; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) L=140	5-09707-031-0	03	1	9202-	●	●
16	CLIP; HARNESS WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 L=41	1-09700-403-0	01	1	9202-9206	●	●
16	CLIP; HARNESS MLD7R M/T(X5L),MLD6A M/T(X5N) (A) ID=11 L=41	1-09700-403-0	01	1	9202-9206	●	●
27	PROTECTOR; EDGE L=2040	1-71997-513-1	02	1	9202-	●	●
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28080-816-0	02	1	9202-9202	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28080-820-0	04	1	9203-9211	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28080-820-0	02	1	9212-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28080-820-0	02	1	9202-9202	●	●
38	BOLT; CLIP,HARNESS ENGINE REAR PTO(SV1) (A) M8X20 FLANGE	0-28080-820-0	02	1	9202-9202	●
38	BOLT; CLIP,HARNESS ENGINE REAR PTO(SV1) (A) M8X20 FLANGE	0-28080-820-0	02	1	9203-9211	●
38	BOLT; CLIP,HARNESS (A) M8X14 FLANGE	0-28080-814-0	02	1	9212-	●	●
38	BOLT; CLIP,HARNESS ENGINE REAR PTO(SV1) (A) M8X14 FLANGE	0-28080-814-0	02	1	9212-	●
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28080-825-0	04	1	9202-	●	●
38	BOLT; CLIP,HARNESS (B)	1-47475-730-0	01	1	9205-	●	●
38	BOLT; CLIP,HARNESS EXC. ENGINE REAR PTO(SV1) (A) M8X20 FLANGE	0-28080-820-0	01	1	9202-9211	●	●
38	BOLT; CLIP,HARNESS EXC. ENGINE REAR PTO(SV1) (A) M8X14 FLANGE	0-28080-814-0	01	1	9212-	●	●
38	BOLT; CLIP,HARNESS BUMPER W/HEADLAMPS<SLB> (A) M8X20 FLANGE	0-28010-820-0	06	1	9202-9204		●
38	BOLT; CLIP,HARNESS BUMPER W/HEADLAMPS<SLB> (A) M8X20 FLANGE	0-28080-820-0	06	1	9205-		●
48	CLIP; FRAME HARNESS (H) ID=20 L=50	9-09917-430-0	11	1	9202-9307	●
48	CLIP; FRAME HARNESS (H) ID=20 L=50	9-09917-430-0	10	1	9308-	●
48	CLIP; FRAME HARNESS ENGINE REAR PTO(SV1) (A) ID=13	9-09525-255-0	01	1	9202-9206	●
48	CLIP; FRAME HARNESS ENGINE REAR PTO(SV1) (B) ID=19 L=28	9-09525-856-0	01	1	9202-9206	●
48	CLIP; FRAME HARNESS (B) ID=19 L=28	9-09525-856-0	02	1	9207-	●	●
48	CLIP; FRAME HARNESS ENGINE REAR PTO(SV1) (B) ID=19 L=28	9-09525-856-0	02	1	9207-	●
48	CLIP; FRAME HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	9202-9205	●	●
48	CLIP; FRAME HARNESS (J) ID=28 L=45	1-09700-825-1	02	1	9202-	●	●
48	CLIP; FRAME HARNESS (F) L=250	5-09707-030-0	02	1	9202-	●	●
48	CLIP; FRAME HARNESS (B) ID=19 L=28	9-09525-856-0	02	1	9202-9206	●	●
48	CLIP; FRAME HARNESS (G) ID=14 L=44	9-09917-427-0	01	1	9207-	●	●
48	CLIP; FRAME HARNESS (G) ID=14 L=44	9-09917-427-0	03	1	9202-	●	●
48	CLIP; FRAME HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	9202-9206	●	●
48	CLIP; FRAME HARNESS (H) ID=20 L=50	9-09917-430-0	06	1	9207-	●	●
48	CLIP; FRAME HARNESS (C) ID=28 L=58	1-09700-400-0	01	1	9202-	●	●
48	CLIP; FRAME HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	9202-	●	●
48	CLIP; FRAME HARNESS (I) ID=22 L=52	9-09917-431-0	02	1	9202-	●	●
48	CLIP; FRAME HARNESS EXC. ENGINE REAR PTO(SV1) (K) ID=12 H=24 L=20	1-09700-605-0	01	1	9205-	●	●
48	CLIP; FRAME HARNESS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (D) ID=11 L=41	1-09700-403-0	03	1	9202-9206		●
48	CLIP; FRAME HARNESS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (D) ID=11 L=41	1-09700-403-0	02	1	9207-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (H) ID=20 L=50	9-09917-430-0	14	1	9202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (H) ID=20 L=50	9-09917-430-0	16	1	9202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (H) ID=20 L=50	9-09917-430-0	18	1	9202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (H) ID=20 L=50	9-09917-430-0	20	1	9202-		●
64	SCREW; CLIP FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6> M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	9202-	●	●
95	CLIP; CABLE L=135	1-09987-143-1	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS (A) L=142	8-94232-619-0	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS (B) ID=19 L=20	9-09525-832-0	01	1	9202-9207	●	●
104	CLIP; HEADLAMP HARNESS EXC. POWER WINDOW<A30> (B) ID=19 L=20	9-09525-832-0	01	1	9208-	●	●
104	CLIP; HEADLAMP HARNESS POWER WINDOW<A30> (F) ID=21 L=28	1-09700-673-1	01	1	9208-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) ID=12 H=24 L=20	1-09700-605-0	02	1	9202-		●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (D) ID=14.5 H=23 L=30	1-09700-859-0	02	1	9202-		●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (E) ID=15 L=42	9-09716-203-1	02	1	9202-		●
115	CLIP; DOOR HARNESS POWER WINDOW<A30> (C) 1 SET=5 PIECE	1-09987-214-0	09	1	9206-	●	●
115	CLIP; DOOR HARNESS POWER WINDOW<A30> (B) ID=9	5-09707-027-0	02	1	9206-	●	●
115	CLIP; DOOR HARNESS POWER WINDOW<A30> (A)	8-94138-987-0	01	1	9211-	●	●
115	CLIP; DOOR HARNESS AUSTRALIA PACKAGE<D2Y> (D) L=142	8-94232-619-0	02	1	9312-		●
119	SCREW; DOOR HARNESS EARTH POWER WINDOW<A30> M4X13	1-09981-148-0	02	1	9206-	●	●
130	CLIP; WASHER HARNESS (A) L=147	1-09987-219-0	01	1	9202-9202	●	●
130	CLIP; WASHER HARNESS (B) ID=7-10	8-94472-578-0	01	1	9203-	●	●
148	CLIP; BAND,HEADLAMP HARNESS (A) L=140	5-09707-031-0	01	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=85	8-94232-611-0	02	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142	8-94232-619-0	08	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS EXC. DUAL AIR GAUGE<UG2> (B) L=85	8-94232-611-0	03	1	9202-9307	●	●
148	CLIP; BAND,HEADLAMP HARNESS EXC. DUAL AIR GAUGE<UG2> (B) L=85	8-94232-611-0	03	1	9308-	●	●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=85	8-94232-611-0	03	1	9308-		●
148	CLIP; BAND,HEADLAMP HARNESS EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,DUAL AIR GAUGE<UG2> (C) L=142	8-94232-619-0	07	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142	8-94232-619-0	10	1	9308-9310		●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142	8-94232-619-0	09	1	9311-		●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D) L=250	5-09707-030-0	01	1	9311-		●
154	BRACKET; STARTER EARTH CABLE	1-47465-518-0	01	1	9202-	●	●
176	CLIP; BACK SW HARNESS ID=11	1-09700-415-0	01	1	9202-	●
176	CLIP; BACK SW HARNESS MLD7R M/T(X5L),MLD6A M/T(X5N) ID=11	1-09700-415-0	01	1	9202-		●
178	GROMMET; HARNESS ID=15 OD=20 T=22	9-09956-181-0	02	1	9202-	●
178	GROMMET; HARNESS EXC. BUMPER W/HEADLAMPS<SLB> ID=15 OD=20 T=22	9-09956-181-0	02	1	9202-		●
178	GROMMET; HARNESS ID=15 OD=20 T=22	9-09956-181-0	01	1	9202-	●	●
178	GROMMET; HARNESS ID=28 OD=35 T=25	1-09332-011-1	01	1	9205-	●	●
182	CLIP; HARNESS,OIL FILTER L=140	5-09707-031-0	01	1	9202-	●	●
184	WASHER; PL,STARTER EARTH ID=10.5	1-09503-265-0	01	1	9301-	●	●
185	SLEEVE; RUBBER ID=9 OD=14 L=35	8-94127-043-0	01	1	9202-	●	●
194	CLIP; BAND L=180	1-09707-162-0	03	1	9202-	●	●
194	CLIP; BAND REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=180	1-09707-162-0	01	1	9202-	●	●
194	CLIP; BAND REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) L=180	1-09707-162-0	01	1	9202-		●
210	WASHER; PL,GEN ID=8.4	1-09503-264-0	01	1	9301-	●	●
217	CLIP; RR BODY HARNESS (A) ID=15 L=70	1-09700-980-0	02	1	9202-	●	●
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-0	02	1	9202-	●	●
224	SLEEVE; RUBBER,HARNESS ID=10 OD=14 L=30	9-09956-682-0	01	1	9206-	●	●
252	CLIP; CONNECTOR FIX W/SPONGE RUBBER	1-09709-150-0	01	1	9202-	●	●
305	CLIP; ENG HARNESS L=250	5-09707-030-0	01	1	9202-	●	●
520	WASHER; PL,EARTH CABLE ID=8.4	1-09503-264-0	01	1	9301-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
