◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10819 - CXZ RHD SINGAPORE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#8328) — 58 parça
çizim 43375
41 26 18 18 1 177 36 18 103 25 18 18
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR 1-73337-475-2 01 1 9906-0012
1 PAD; TRIM,FRT DOOR 1-73337-502-1 01 1 0101-
1 PAD; TRIM,FRT DOOR 1-73337-474-3 01 1 9906-0005
1 PAD; TRIM,FRT DOOR 1-73337-496-0 01 1 0006-0012
1 PAD; TRIM,FRT DOOR 1-73337-505-0 01 1 0101-
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 02 1 9906-
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 9906-
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 9906-0012
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 9906-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9906-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9906-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9906-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9906-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-7 01 1 9906-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-7 01 1 9906-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 9906-
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9906-0111
103 TRAY ASM; ASH,DOOR 1-76458-084-0 01 1 0112-
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9906-0111
103 TRAY ASM; ASH,DOOR 1-76458-083-0 01 1 0112-
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9906-
177 SEAL; WATER,DOOR
(A) 		1-76778-035-4 01 1 9906-

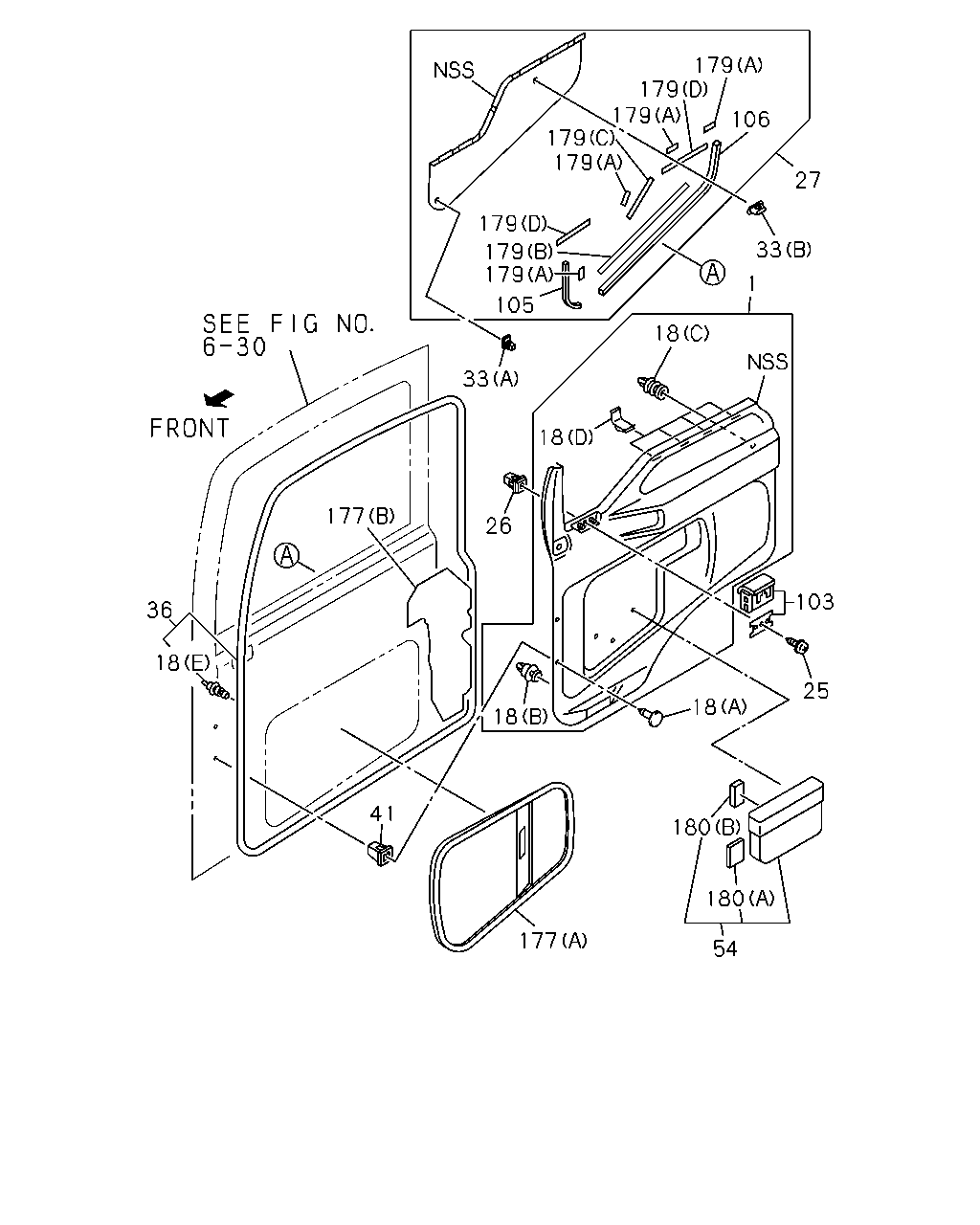

çizim 43807
177 36 33 26 18 18 1 33 27 103 25 18 180 180 54 177 41 18 105 179 179 179 179 179 179 179 179 106 18
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR 1-73337-475-2 01 1 9906-0012
1 PAD; TRIM,FRT DOOR 1-73337-502-1 01 1 0101-
1 PAD; TRIM,FRT DOOR 1-73337-474-3 01 1 9906-0005
1 PAD; TRIM,FRT DOOR 1-73337-496-0 01 1 0006-0012
1 PAD; TRIM,FRT DOOR 1-73337-505-0 01 1 0101-
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 02 1 9906-
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 9906-
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 9906-0012
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 9906-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9906-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9906-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9906-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9906-
27 PANEL; ORNAMENT,DOOR 1-76218-125-5 01 1 9906-
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 01 1 9906-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 01 1 9906-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-7 01 1 9906-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-7 01 1 9906-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 9906-
54 BOX; FRT DOOR 1-72538-155-2 01 1 9906-
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9906-0111
103 TRAY ASM; ASH,DOOR 1-76458-084-0 01 1 0112-
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9906-0111
103 TRAY ASM; ASH,DOOR 1-76458-083-0 01 1 0112-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 9906-
106 SEAL; DOOR ORNAMENT 1-76218-083-2 01 1 9906-
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9906-
177 SEAL; WATER,DOOR
(A) 		1-76778-035-4 01 1 9906-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-1 04 1 9906-
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-1 01 1 9906-
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-0 01 1 9906-
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-0 02 1 9906-
180 SEAL; BOX
(B) 5X10X30 		1-72538-153-1 02 1 9906-
180 SEAL; BOX
(A) 15X30 		1-74998-069-0 02 1 9906-
