6-32 — FRONT DOOR LOCK AND HANDLE (#8327) — 31 parça

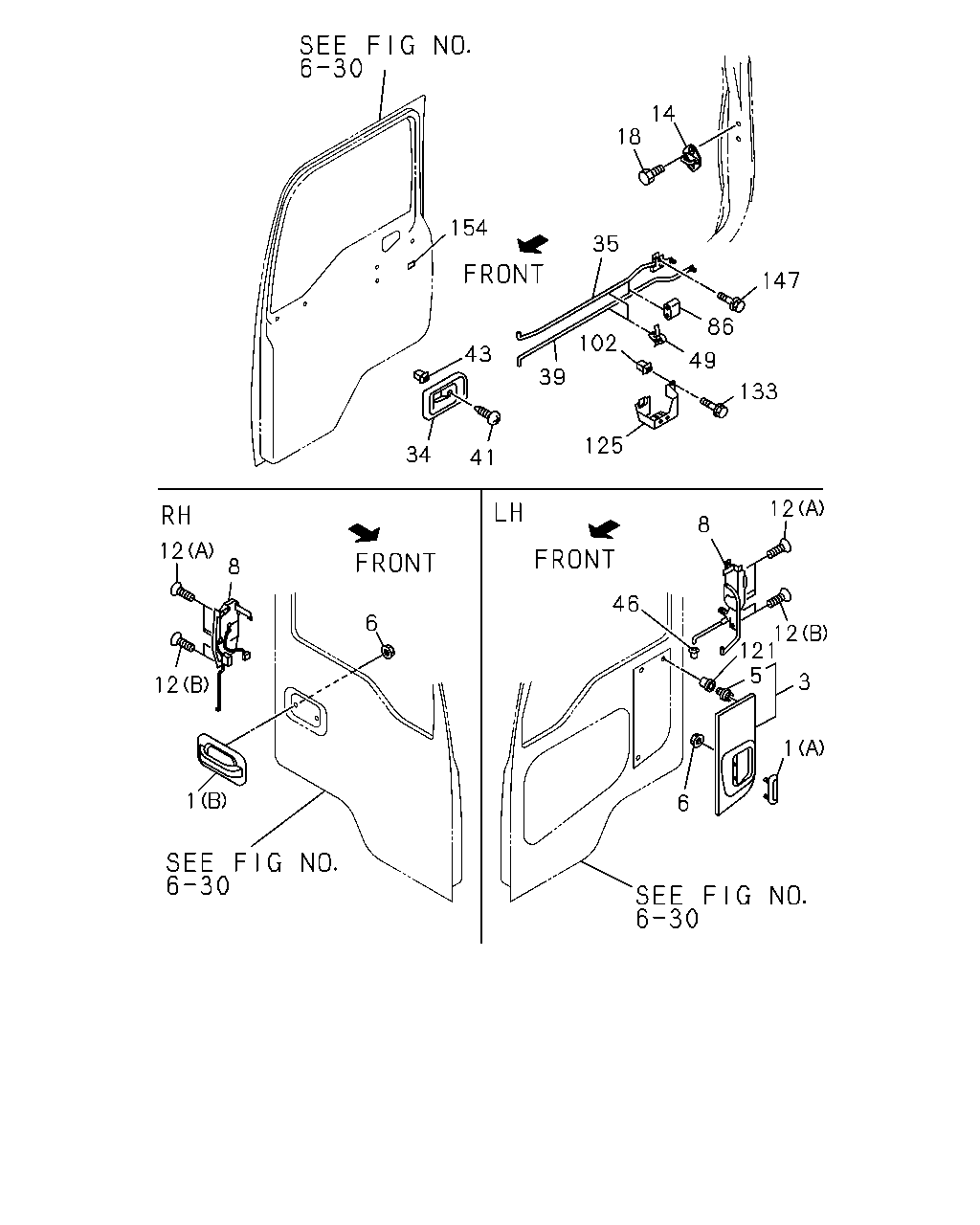

çizim 42225
6 3 8 12 12 121 5 46 125 133 49 86 147 102 39 35 18 14 154 43 41 34 12 12 8 6 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,FRT DOOR
(A) 		1-74618-032-0 01 1 9906-
1 HANDLE; OUTSIDE,FRT DOOR
(B) 		1-74618-040-0 01 1 9906-9906
1 HANDLE; OUTSIDE,FRT DOOR
(B) 		1-74618-024-4 01 1 9906-
3 BASE; HANDLE,DOOR OUTSIDE 1-74618-039-1 01 1 9906-
5 CLIP; BASE
D5.4X8 		1-09983-174-0 03 1 9906-
6 NUT; OUTSIDE HANDLE
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9906-
8 LOCK; DOOR,FRT DOOR 1-74518-092-7 01 1 9906-
8 LOCK; DOOR,FRT DOOR 1-74518-091-7 01 1 9906-
12 SCREW; DOOR LK
(A) M6X16 		1-09981-447-1 06 1 9906-
12 SCREW; DOOR LK
(B) M6X14 		1-09981-512-1 04 1 9906-
14 STRIKER; FRT DOOR 8-97221-702-0 02 1 9906-
18 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 9906-
34 HANDLE; INSIDE,FRT DOOR 1-74718-023-4 01 1 9906-
34 HANDLE; INSIDE,FRT DOOR 1-74718-022-4 01 1 9906-
35 LINK; DOOR LOCK,INSIDE 1-74518-094-3 01 1 9906-
35 LINK; DOOR LOCK,INSIDE 1-74518-093-3 01 1 9906-
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-022-2 01 1 9906-
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-021-2 01 1 9906-
41 SCREW; INSIDE HANDLE
M5X14 		8-94152-495-0 02 1 9906-
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9906-
46 BUSHING; DOOR LOCK TO OUTSIDE HANDLE 5-74617-009-0 01 1 9906-
49 CLAMP; DOOR LOCK LINK ROD
ID=3.8 WHITE 		8-94217-699-0 04 1 9906-
86 SEAL; DOOR LOCK LINK 1-76778-044-1 02 1 9906-
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 9906-
121 FASTENER; COVER
ID=5.4 OD=6.8 		1-09989-019-0 03 1 9906-
125 BRACKET; DOOR PULL 1-74718-011-4 01 1 9906-
125 BRACKET; DOOR PULL 1-74718-010-4 01 1 9906-
133 SCREW; DOOR PULL STAY
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9906-
147 BOLT; ROD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9906-
154 SEAL; DOOR
15X30 		1-74998-069-0 01 1 9906-0210
154 SEAL; DOOR
30X30 		1-74998-128-0 01 1 0211-
