◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10819 - CXZ RHD SINGAPORE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#8322) — 157 parça

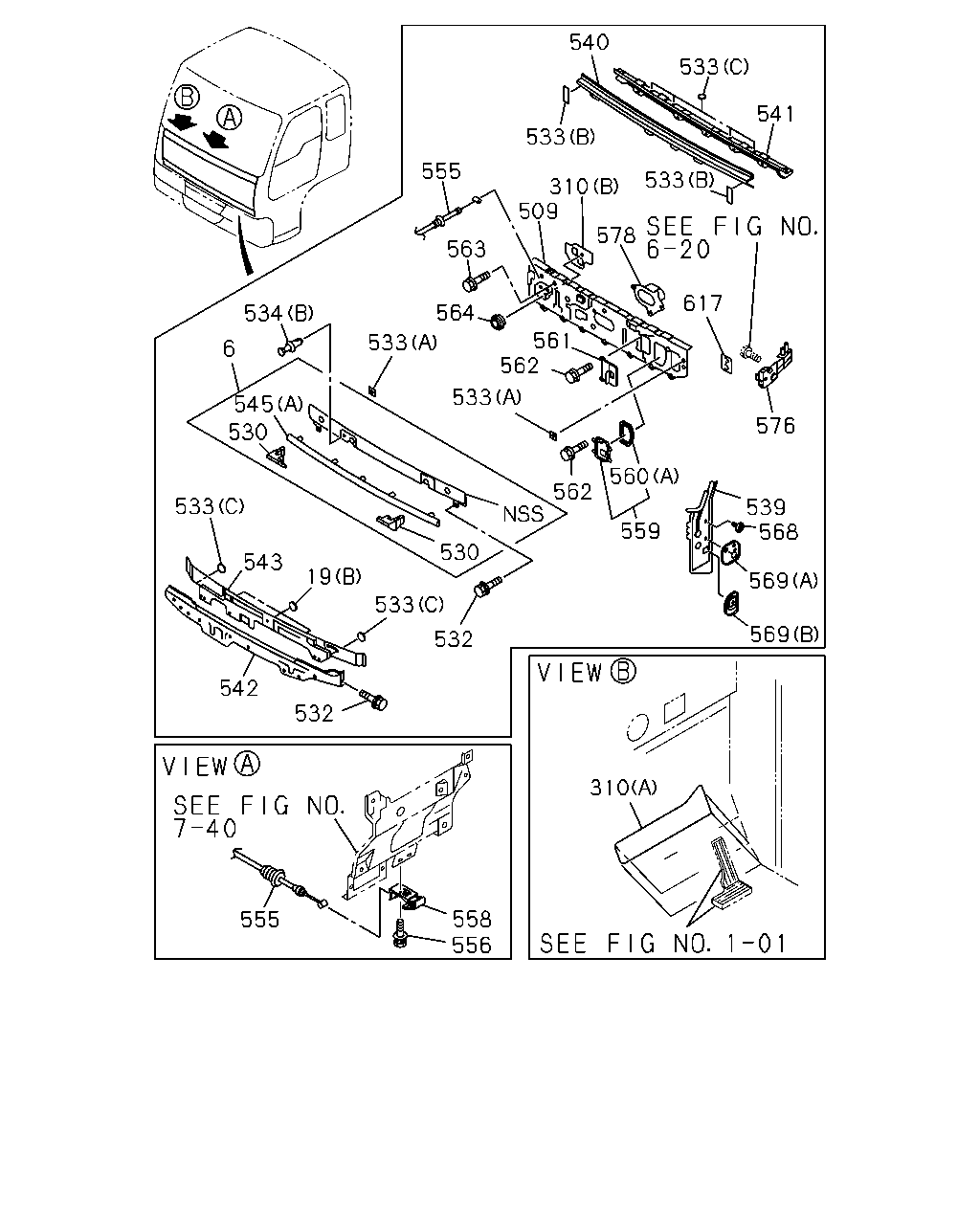

çizim 7202
540 541 533 533 310 533 555 578 509 563 564 533 561 562 533 534 6 530 545 530 562 560 576 617 539 569 568 569 559 532 533 19 543 533 542 532 555 558 556 310
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65472-549-3 01 1 9906-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9906-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-160-4 01 1 9906-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 9906-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-159-4 01 1 9906-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 9906-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 9906-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 9906-
509 PANEL; DASH 1-62270-478-5 01 1 9906-
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 9906-
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 9906-
532 BOLT; FRT PANEL
M8X20 		1-79198-002-0 02 1 9906-
532 BOLT; FRT PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9906-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 9906-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 9906-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9906-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9906-0001
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9906-
539 CLOSING; PILLAR 1-61480-674-6 01 1 9906-
539 CLOSING; PILLAR 1-61480-673-6 01 1 9906-
540 PANEL; FRONT,OUTER 1-61470-688-2 01 1 9906-
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 9906-
542 RAIL; FRT MOUNTING 1-61470-705-3 01 1 9906-
543 CLOSING; FRT MTG RAIL 1-61470-680-4 01 1 9906-0208
543 CLOSING; FRT MTG RAIL 1-61470-716-0 01 1 0209-
545 SEAL; FRT LID
(B) 		1-71907-472-0 02 1 9906-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-0 01 1 9906-
545 SEAL; FRT LID
(C) L=63 		1-71998-963-2 01 1 9906-
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 9906-
555 CABLE; FRT LID
L=2682 		1-79347-005-2 01 1 9906-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9906-
558 LEVER; FRT LID 1-79338-003-1 01 1 9906-0212
558 LEVER; FRT LID 1-79338-007-0 01 1 0301-
559 COVER; EVAPOLATOR 1-71996-194-0 01 1 9906-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 9906-
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9906-
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9906-
561 COVER; HEATER CORE 1-71998-829-1 01 1 9906-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9906-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 18 1 9906-0202
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 0203-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9906-
568 PATCH; INST REINF 1-61480-675-2 02 1 9906-
569 PATCH; LWR GRIP
(A) 		1-61480-689-2 01 1 9906-
569 PATCH; LWR GRIP
(B) 		1-61480-736-2 01 1 9906-
576 FRAME; INST SIDE 1-62280-177-7 01 1 9906-
576 FRAME; INST SIDE 1-62280-176-6 01 1 9906-
578 COVER; WIPER MOTOR 1-62280-185-3 01 1 9906-0009
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0010-
617 SEAL; DASH 1-61281-497-0 02 1 9906-

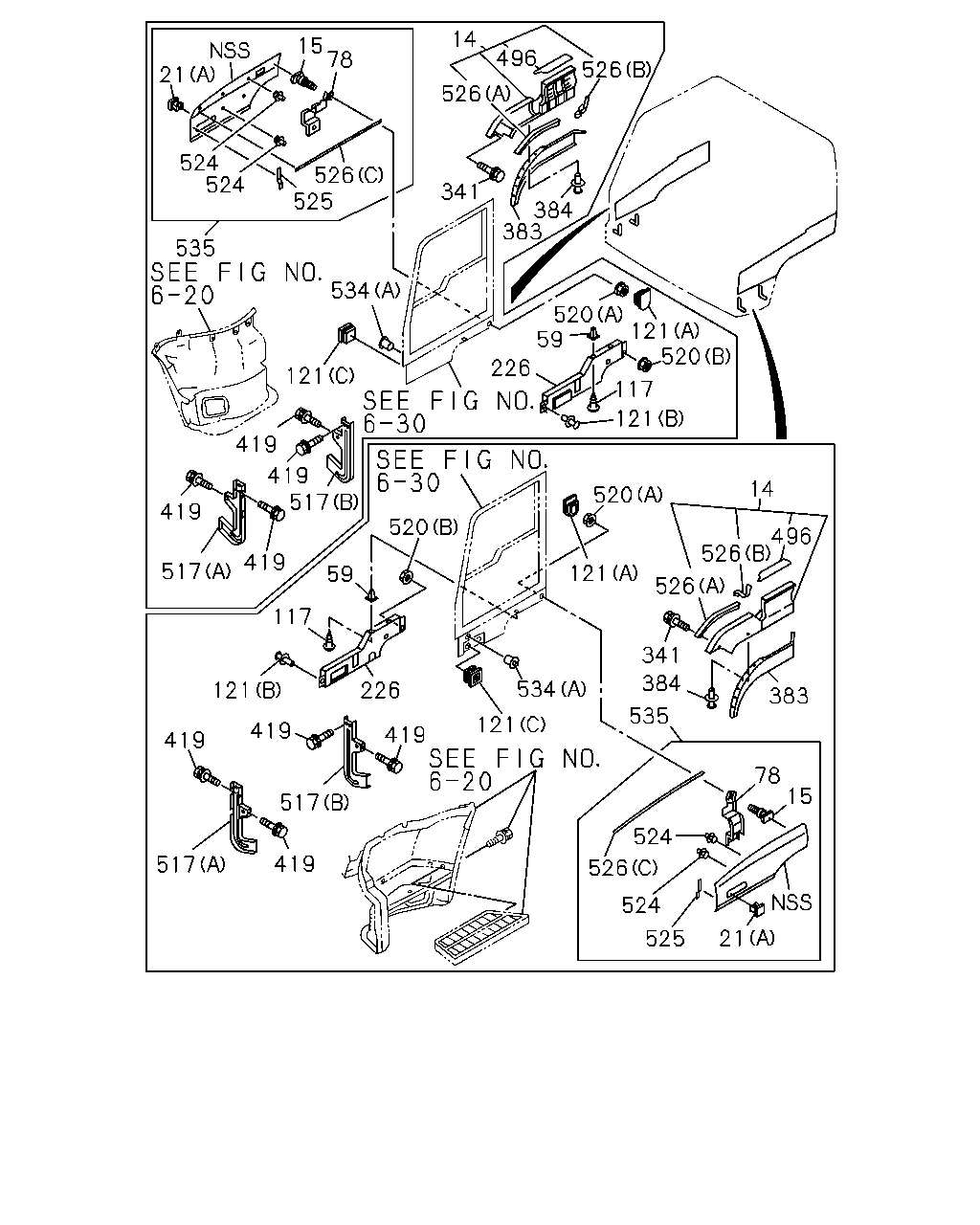

çizim 7296
15 21 524 526 525 524 341 526 496 14 526 384 383 520 59 226 121 121 117 520 121 534 419 419 419 517 419 517 59 520 117 121 419 419 517 226 121 419 419 517 534 121 520 526 526 496 14 383 341 384 535 78 15 524 526 524 525 21 78 535
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
WHITE 		1-65472-453-2 01 1 9906-
14 FENDER; FRT
WHITE 		1-65472-452-2 01 1 9906-
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 9906-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9906-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8X8 L=7.5 M5 		8-94279-078-0 02 1 9906-
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 9906-
78 BRACKET; FENDER 1-71267-215-0 01 1 9906-
78 BRACKET; FENDER 1-71267-214-0 01 1 9906-
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 9906-
121 GROMMET; FENDER
(A) 		1-09983-162-0 02 1 9906-
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 9906-
121 GROMMET; FENDER
(C) 14.5X14.5 BLACK 		8-94279-714-0 02 1 9906-0304
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0305-
226 PROTECTOR; FRT 1-71267-269-1 01 1 9906-
226 PROTECTOR; FRT 1-71267-268-1 01 1 9906-
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 9906-
383 GUARD; MUD,FENDER LWR 1-71907-443-2 01 1 9906-
383 GUARD; MUD,FENDER LWR 1-71907-442-2 01 1 9906-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 11 1 9906-
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-208-0 10 1 9906-
496 RUBBER; STEP 1-71998-862-0 01 1 9906-
496 RUBBER; STEP 1-71998-861-0 01 1 9906-
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 9906-
517 SUPPORT; STEP PANEL
(A) 		1-65671-767-1 01 1 9906-0208
517 SUPPORT; STEP PANEL
(A) 		1-65671-781-0 01 1 0209-
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 9906-
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 9906-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9906-
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 9906-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9906-
525 SEAL; FENDER 1-71268-281-1 02 1 9906-
526 FINISHER; FENDER
(A) 		1-71998-900-3 02 1 9906-0211
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 0212-
526 FINISHER; FENDER
(C) 		1-71268-276-1 01 1 9906-0209
526 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 9906-0211
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 0212-
526 FINISHER; FENDER
(C) 		1-71268-275-1 01 1 9906-0209
526 FINISHER; FENDER
(C) 		1-71268-275-1 02 1 0210-
526 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 9906-0211
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 0212-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9906-0001
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9906-
535 FENDER; BLISTER 1-71267-188-4 01 1 9906-9906
535 FENDER; BLISTER 1-71267-186-2 01 1 9906-0210
535 FENDER; BLISTER
WHITE 		1-71267-294-0 01 1 0211-
535 FENDER; BLISTER 1-71267-187-4 01 1 9906-9906
535 FENDER; BLISTER 1-71267-185-2 01 1 9906-0210
535 FENDER; BLISTER
WHITE 		1-71267-293-0 01 1 0211-
çizim 8725
544 544 560 548 545 545 198 545 548 548
BalonParca AdiParca NoAdetTipApplied Date
198 NUT; PANEL
M6 FLANGE 		8-94197-199-0 02 1 9906-
544 LID; FRT 1-71107-217-2 01 1 9906-
545 SEAL; FRT LID
(B) 		1-71907-472-0 02 1 9906-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-0 01 1 9906-
545 SEAL; FRT LID
(C) L=63 		1-71998-963-2 01 1 9906-
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 9906-
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-0 01 1 9906-
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-0 02 1 9906-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 9906-
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9906-
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9906-

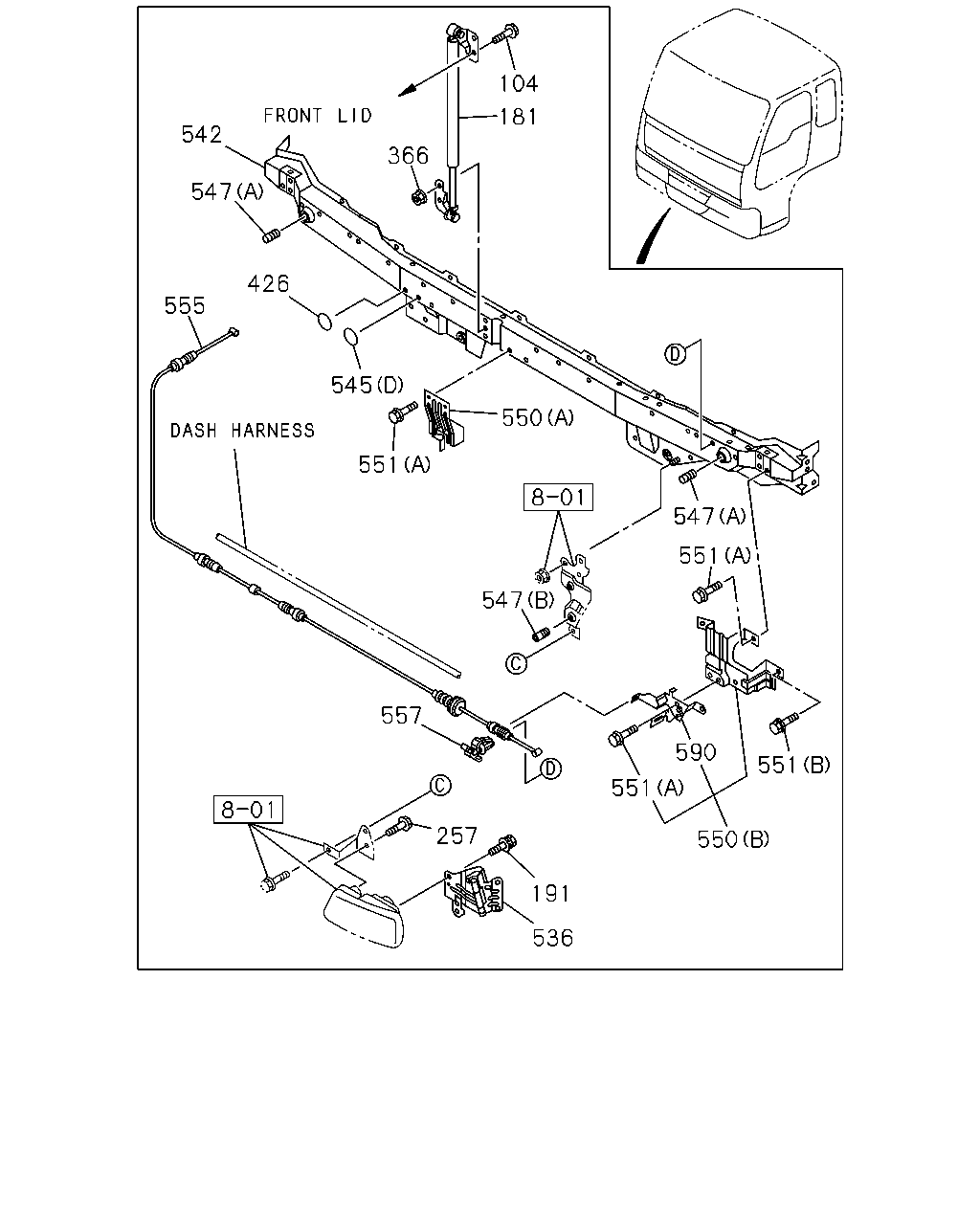

çizim 44333
104 181 542 366 547 426 555 545 550 551 547 551 547 557 590 551 551 257 550 191 536
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 9906-
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 9906-
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9906-
257 BOLT; BRKT
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9906-
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9906-
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 9906-0102
426 GASKET
OD=25 BLACK 		1-76798-019-0 04 1 0103-0111
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 0112-
536 HINGE 1-86830-032-5 01 1 9906-
536 HINGE 1-86830-031-5 01 1 9906-
542 RAIL; FRT MOUNTING 1-61470-705-3 01 1 9906-
545 SEAL; FRT LID
(B) 		1-71907-472-0 02 1 9906-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-0 01 1 9906-
545 SEAL; FRT LID
(C) L=63 		1-71998-963-2 01 1 9906-
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 9906-
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 9906-
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 9906-
550 LOCK ASM; FRT LID
(A) 		1-79317-006-1 01 1 9906-
550 LOCK ASM; FRT LID
(B) 		1-79317-008-0 01 1 9906-
550 LOCK ASM; FRT LID
(B) 		1-79317-007-1 01 1 9906-
551 BOLT; LOCK
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9906-
551 BOLT; LOCK
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 10 1 9906-
555 CABLE; FRT LID
L=2682 		1-79347-005-2 01 1 9906-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 01 1 9906-
590 LOCK; FRT LID 1-79318-010-1 01 1 9906-
590 LOCK; FRT LID 1-79318-009-3 01 1 9906-
çizim 44366
19 571 16 18 19 571 22 21 16 19 164 571 19 18 571 22 43 22 22 24 21
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE 1-65471-897-0 01 1 9906-
16 PANEL; FRONT,SIDE 1-65471-896-0 01 1 9906-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9906-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9906-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9906-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-160-4 01 1 9906-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 9906-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-159-4 01 1 9906-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 9906-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9906-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8X8 L=7.5 M5 		8-94279-078-0 02 1 9906-
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9906-0003
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0004-
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 06 1 9906-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9906-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9906-
571 CLIP; SEAL
(A) 		1-09987-228-0 14 1 9906-
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 9906-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 9906-
