Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10819 - CXZ RHD SINGAPORE
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

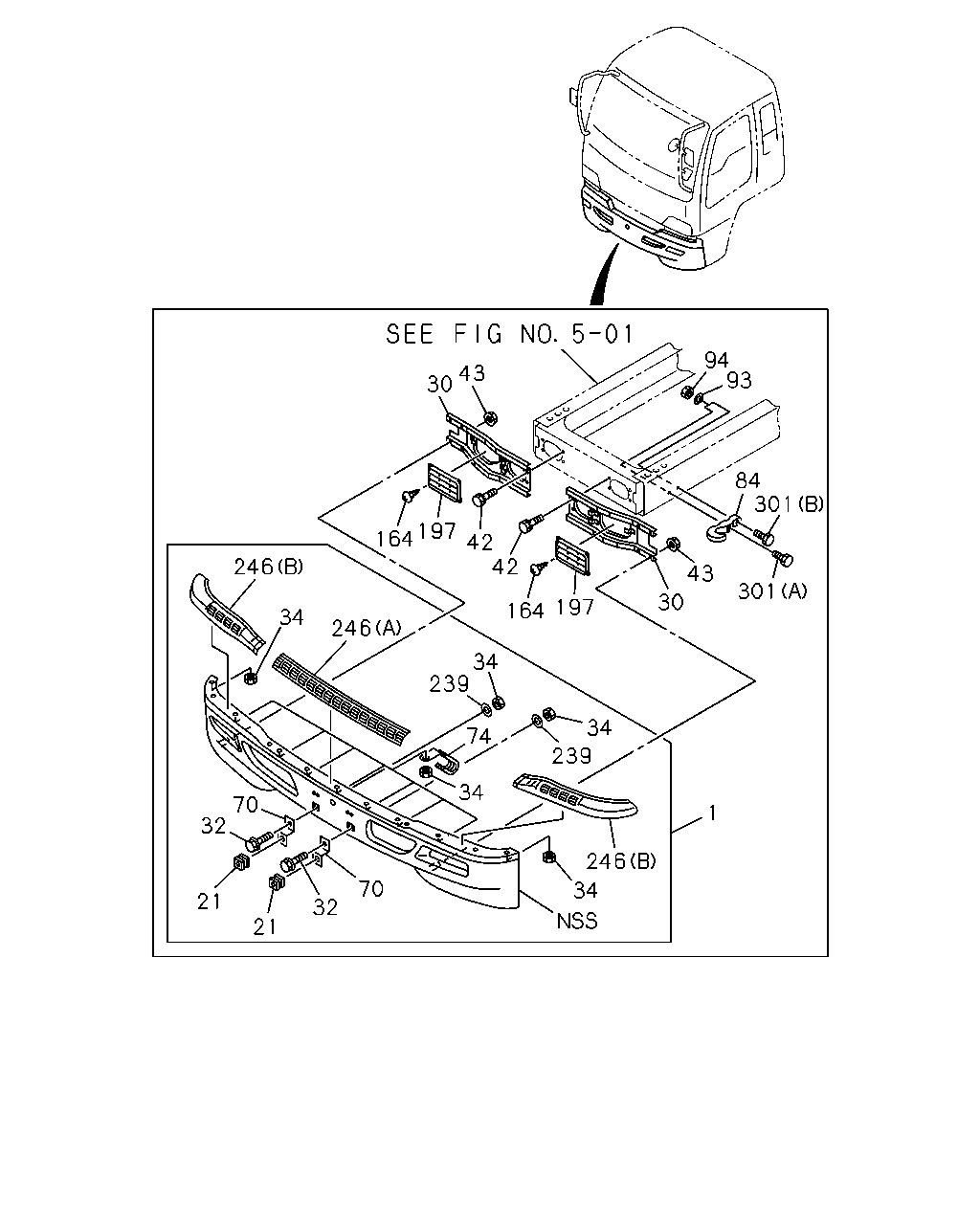

6-01 — FRONT BUMPER
(#8320) — 23 parça
43
30
94
84
93
301
301
43
30
197
164
42
42
197
164
246
246
34
34
239
34
239
74
34
246
34
1
70
32
21
21
32
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
1-71210-806-0
01
1
9906-
21
GROMMET; SCREW,BUMPER PROTECTOR
D=9X9 L=8 M6
8-94222-314-0
04
1
9906-
30
BRACKET; FRT BUMPER
1-71230-283-1
01
1
9906-
30
BRACKET; FRT BUMPER
1-71230-282-1
01
1
9906-
32
BOLT; BRKT,BUMPER
M8X20 W/LK&PL WASHER
0-50140-820-0
02
1
9906-
34
NUT; BRKT,BUMPER
M8 FLANGE
0-91150-108-0
15
1
9906-
42
BOLT; BUMPER
M10X25 FLANGE
0-28681-025-0
08
1
9906-
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91150-210-0
08
1
9906-
70
BRACKET; LICENSE PLATE,FRT
1-71260-150-0
02
1
9906-
74
CLIP; FOG LAMP HARNESS
1-09701-203-0
07
1
9906-
84
HOOK
1-57181-027-1
01
1
9906-
93
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
9906-
94
NUT; HOOK
M16
9-99110-416-0
02
1
9906-0206
94
NUT; HOOK
M16
9-99110-516-0
02
1
0207-
164
SCREW; AIR INT GRILLE
M6X20
1-71260-141-0
06
1
9906-
197
GRILLE; BUMPER
1-71260-134-0
01
1
9906-
197
GRILLE; BUMPER
1-71260-133-1
01
1
9906-
239
WASHER; PL,BRKT
ID=8.4 OD=22
9-09160-708-0
02
1
9906-
246
PROTECTOR; BUMPER
(A)
1-71260-155-0
01
1
9906-
246
PROTECTOR; BUMPER
(B)
1-71260-094-1
01
1
9906-
246
PROTECTOR; BUMPER
(B)
1-71260-095-1
01
1
9906-
301
BOLT; HOOK TO FRAME
(A) M16X60
0-10811-660-0
01
1
9906-
301
BOLT; HOOK TO FRAME
(B) M16X70
0-10811-670-0
01
1
9906-
