5-10 — CAB MOUNTING; FRAME SIDE (#8314) — 207 parça

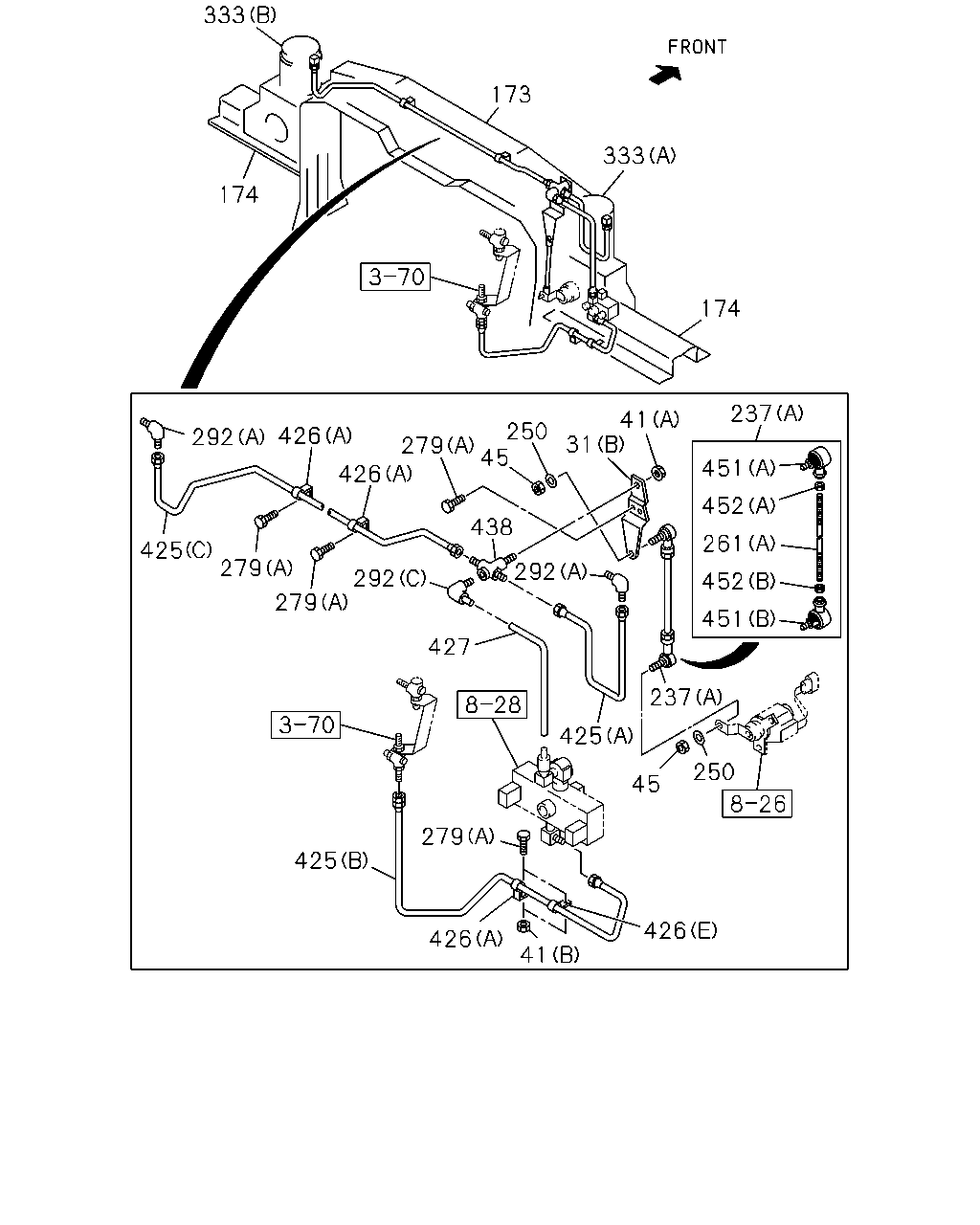

çizim 7198
333 173 333 174 174 237 41 31 250 45 426 292 279 451 426 452 438 261 425 279 292 292 452 279 451 427 237 425 250 45 279 425 426 426 41
BalonParca AdiParca NoAdetTipApplied Date
31 BRACKET; CAB
(A) 		1-44226-146-2 01 1 9906-
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 9906-
31 BRACKET; CAB
(C) 		1-81549-016-0 01 1 9906-
31 BRACKET; CAB
(D) 		1-53453-225-2 01 1 9906-
31 BRACKET; CAB
(D) 		1-53453-224-3 01 1 9906-
41 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 9906-
41 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 9906-
45 NUT
M5 		9-99110-405-0 04 1 9906-
173 MEMBER; CAB MTG RR 1-53450-545-6 01 1 9906-
174 OUTRIGGER 1-53456-277-3 01 1 9906-
174 OUTRIGGER 1-53456-278-3 01 1 9906-
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 9906-
237 ROD ASM; LATERAL
(C) 		1-33670-773-0 01 1 9906-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 9906-
250 WASHER; LK
ID=5.1 		9-09150-505-0 04 1 9906-
261 ROD; LINK
(B) 		9-08410-507-0 01 1 9906-
261 ROD; LINK
(A) 		9-08410-514-0 01 1 9906-
279 BOLT
(C) M8X16 FLANGE 		0-28080-816-0 04 1 9906-
279 BOLT
(E) M8X60 FLANGE 		0-28080-860-0 02 1 9906-
279 BOLT
(B) M12X40 FLANGE 		0-28091-240-0 04 1 9906-
279 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 07 1 9906-
279 BOLT
(D) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 9906-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9906-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 9906-
292 CONNECTOR; CAB SUSPENSION
(C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 9906-
292 CONNECTOR; CAB SUSPENSION
(D) DIN6X2 & R1/8 3WAY 		1-09660-761-1 01 1 9906-
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 9906-
333 SPRING
(B) 		1-52110-142-1 02 1 9906-
333 SPRING
(A) 		1-52110-143-1 02 1 9906-
425 PIPE ASM; AIR
(A) L=298 		1-47494-961-1 01 1 9906-
425 PIPE ASM; AIR
(B) 		1-47499-071-0 01 1 9906-9912
425 PIPE ASM; AIR
(B) L=510 		1-49122-367-0 01 1 0001-
425 PIPE ASM; AIR
(C) 		1-49113-541-0 01 1 9906-
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 03 1 9906-9912
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0001-
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 9906-
426 CLIP
(C) ID=5.8 L=8 		8-94155-681-0 02 1 9906-
426 CLIP
(D) ID=11 L=16 		9-09525-025-0 01 1 9906-
426 CLIP
(E) ID=7 L=32 		9-09524-665-0 01 1 0001-
427 TUBE
L=1300 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 9906-
427 TUBE
L=400 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 9906-
438 UNION
M12X2 & PT1/8 3WAY 		1-09656-655-0 01 1 9906-
451 JOINT; BALL
(A) 		1-09760-103-1 02 1 9906-
451 JOINT; BALL
(B) 		1-09760-104-1 02 1 9906-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 02 1 9906-
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 02 1 9906-

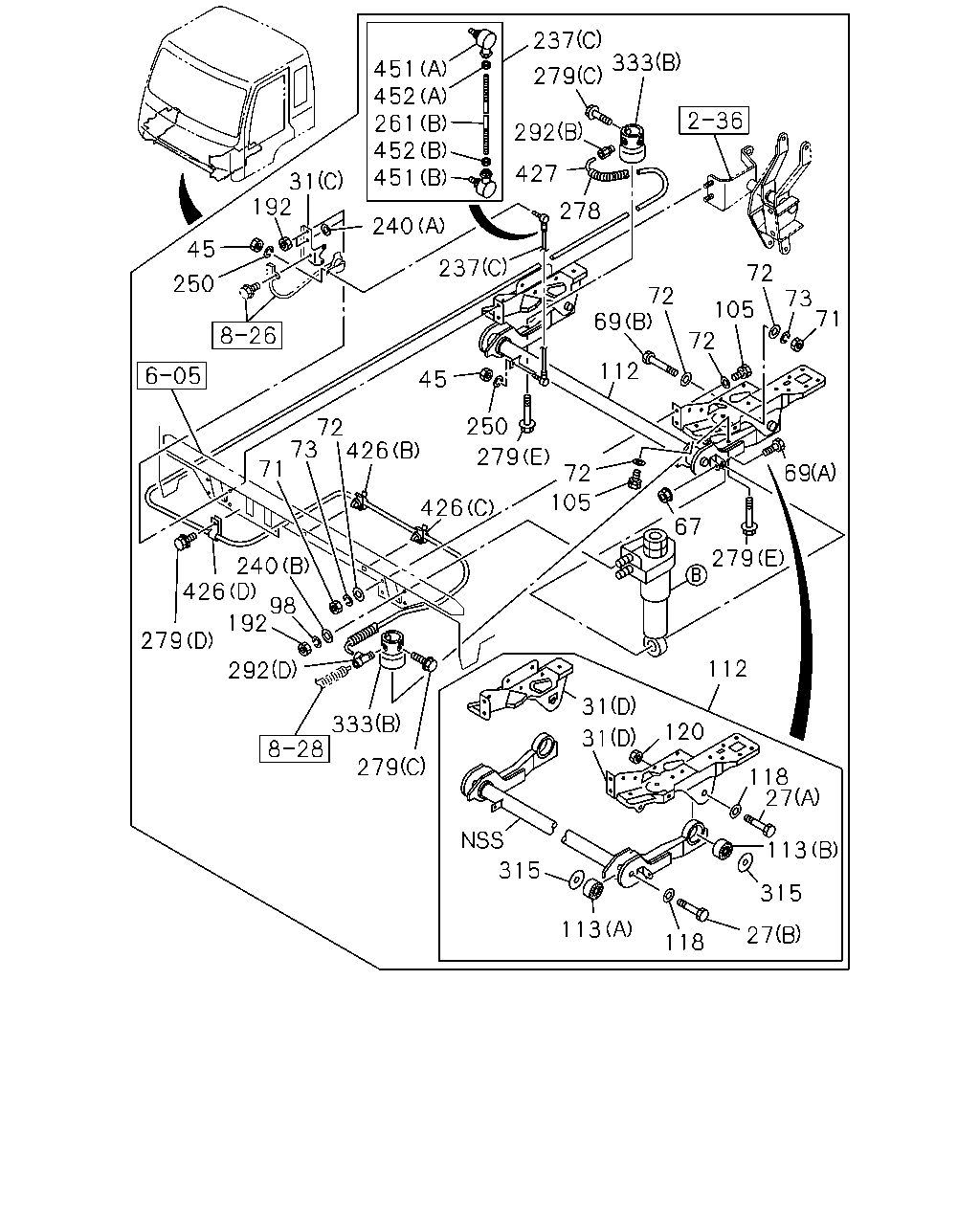

çizim 10820
237 333 451 452 261 452 451 279 292 427 31 192 278 240 45 237 72 250 72 69 73 71 105 72 112 45 250 72 71 279 69 72 105 426 67 279 240 426 98 192 279 292 112 31 333 120 31 279 118 27 113 315 315 113 27 118 73 426
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; BUSHING
(A) M18X120 		1-09000-442-1 02 1 9906-
27 BOLT; BUSHING
(B) M18X100 		9-91066-800-0 02 1 9906-0104
27 BOLT; BUSHING
(B) M18X90 		9-91066-890-0 02 1 0105-
31 BRACKET; CAB
(A) 		1-44226-146-2 01 1 9906-
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 9906-
31 BRACKET; CAB
(C) 		1-81549-016-0 01 1 9906-
31 BRACKET; CAB
(D) 		1-53453-225-2 01 1 9906-
31 BRACKET; CAB
(D) 		1-53453-224-3 01 1 9906-
45 NUT
M5 		9-99110-405-0 04 1 9906-
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91150-212-0 02 1 9906-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 9906-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X100 		1-09980-547-0 08 1 9906-0301
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-0 08 1 0302-
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 9906-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 24 1 9906-
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 9906-
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 9906-
105 BOLT; BRKT TO CAB FRAME
M10X30 		1-09980-546-0 08 1 9906-
112 ARM ASM; LINK,CAB FRT SUSP 1-53450-568-4 01 1 9906-0105
112 ARM ASM; LINK,CAB FRT SUSP 1-53450-645-1 01 1 0106-
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI
(A) 		1-53458-333-3 02 1 9906-0111
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI
(B) 		1-53458-714-0 02 1 9906-
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 9906-
120 NUT; STOPPER RUBBER,LINK ARM
M18 		9-99110-518-0 02 1 9906-
192 NUT; BRKT FIX
M10 		1-09984-142-0 06 1 9906-
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 9906-
237 ROD ASM; LATERAL
(C) 		1-33670-773-0 01 1 9906-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 9906-
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 9906-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 9906-
240 WASHER; PL,BRKT
(C) ID=12.5 		9-09160-512-0 02 1 9906-
250 WASHER; LK
ID=5.1 		9-09150-505-0 04 1 9906-
261 ROD; LINK
(B) 		9-08410-507-0 01 1 9906-
261 ROD; LINK
(A) 		9-08410-514-0 01 1 9906-
278 COVER
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9906-
279 BOLT
(C) M8X16 FLANGE 		0-28080-816-0 04 1 9906-
279 BOLT
(E) M8X60 FLANGE 		0-28080-860-0 02 1 9906-
279 BOLT
(B) M12X40 FLANGE 		0-28091-240-0 04 1 9906-
279 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 07 1 9906-
279 BOLT
(D) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 9906-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9906-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 9906-
292 CONNECTOR; CAB SUSPENSION
(C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 9906-
292 CONNECTOR; CAB SUSPENSION
(D) DIN6X2 & R1/8 3WAY 		1-09660-761-1 01 1 9906-
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 9906-
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 9906-
333 SPRING
(B) 		1-52110-142-1 02 1 9906-
333 SPRING
(A) 		1-52110-143-1 02 1 9906-
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 03 1 9906-9912
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0001-
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 9906-
426 CLIP
(C) ID=5.8 L=8 		8-94155-681-0 02 1 9906-
426 CLIP
(D) ID=11 L=16 		9-09525-025-0 01 1 9906-
426 CLIP
(E) ID=7 L=32 		9-09524-665-0 01 1 0001-
427 TUBE
L=1300 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 9906-
427 TUBE
L=400 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 9906-
451 JOINT; BALL
(A) 		1-09760-103-1 02 1 9906-
451 JOINT; BALL
(B) 		1-09760-104-1 02 1 9906-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 02 1 9906-
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 02 1 9906-

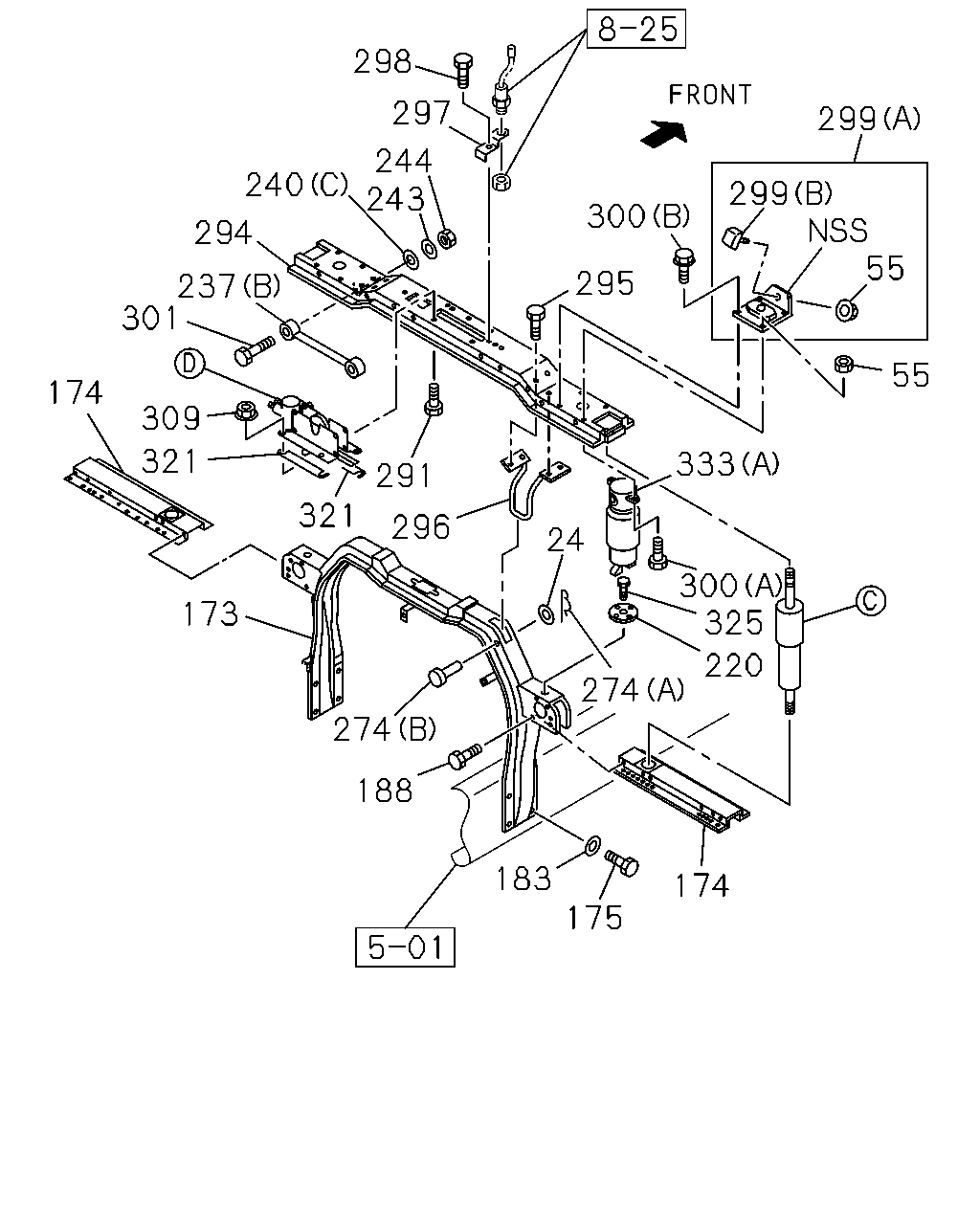

çizim 42863
298 297 299 244 243 240 299 55 300 294 295 237 301 55 174 309 321 333 291 321 296 24 300 325 173 220 274 274 188 183 174 175
BalonParca AdiParca NoAdetTipApplied Date
24 WASHER; PL
ID=12.5 		9-09160-512-0 01 1 9906-
55 NUT; RUBBER
M8 FLANGE 		0-91150-108-0 06 1 9906-
173 MEMBER; CAB MTG RR 1-53450-545-6 01 1 9906-
174 OUTRIGGER 1-53456-277-3 01 1 9906-
174 OUTRIGGER 1-53456-278-3 01 1 9906-
175 BOLT; MEMBER TO FRAME
M14X35 		9-92061-435-0 08 1 9906-
183 WASHER; PL,MEMBER
ID=15 		9-09651-069-0 08 1 9906-
188 BOLT; OUTRIGGER
M10X25 FLANGE 		0-28681-025-0 08 1 9906-
220 GUIDE; SPR 1-53458-648-1 02 1 9906-
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 9906-
237 ROD ASM; LATERAL
(C) 		1-33670-773-0 01 1 9906-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 9906-
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 9906-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 9906-
240 WASHER; PL,BRKT
(C) ID=12.5 		9-09160-512-0 02 1 9906-
243 WASHER; LK,LATERAL ROD
ID=12.2 		9-09150-512-0 02 1 9906-
244 NUT; LATERAL ROD
M12 		9-99110-512-0 02 1 9906-
274 PIN
(A) 		1-09987-158-1 01 1 9906-
274 PIN
(B) OD=12 L=72 		9-08234-272-0 01 1 9906-
291 BOLT; RATCH
M10X25 FLANGE 		0-28681-025-0 04 1 9906-
294 MEMBER; FLOATING 1-53454-828-2 01 1 9906-
295 BOLT; STOPPER,UPR
M8X20 FLANGE 		0-28680-820-0 04 1 9906-
296 STOPPER; UPR 1-53458-382-0 01 1 9906-
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 9906-
298 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 9906-
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 9906-
299 RUBBER; MTG
(A) 		1-53366-156-0 02 1 9906-
300 BOLT; MTG RUBBER
(B) M8X16 FLANGE 		0-28080-816-0 04 1 9906-
300 BOLT; MTG RUBBER
(A) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9906-
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 9906-
309 NUT
M10 FLANGE 		0-91150-210-0 04 1 9906-
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 9906-
325 BOLT; GUIDE NUT
M8X20 FLANGE 		0-28680-820-0 02 1 9906-
333 SPRING
(B) 		1-52110-142-1 02 1 9906-
333 SPRING
(A) 		1-52110-143-1 02 1 9906-

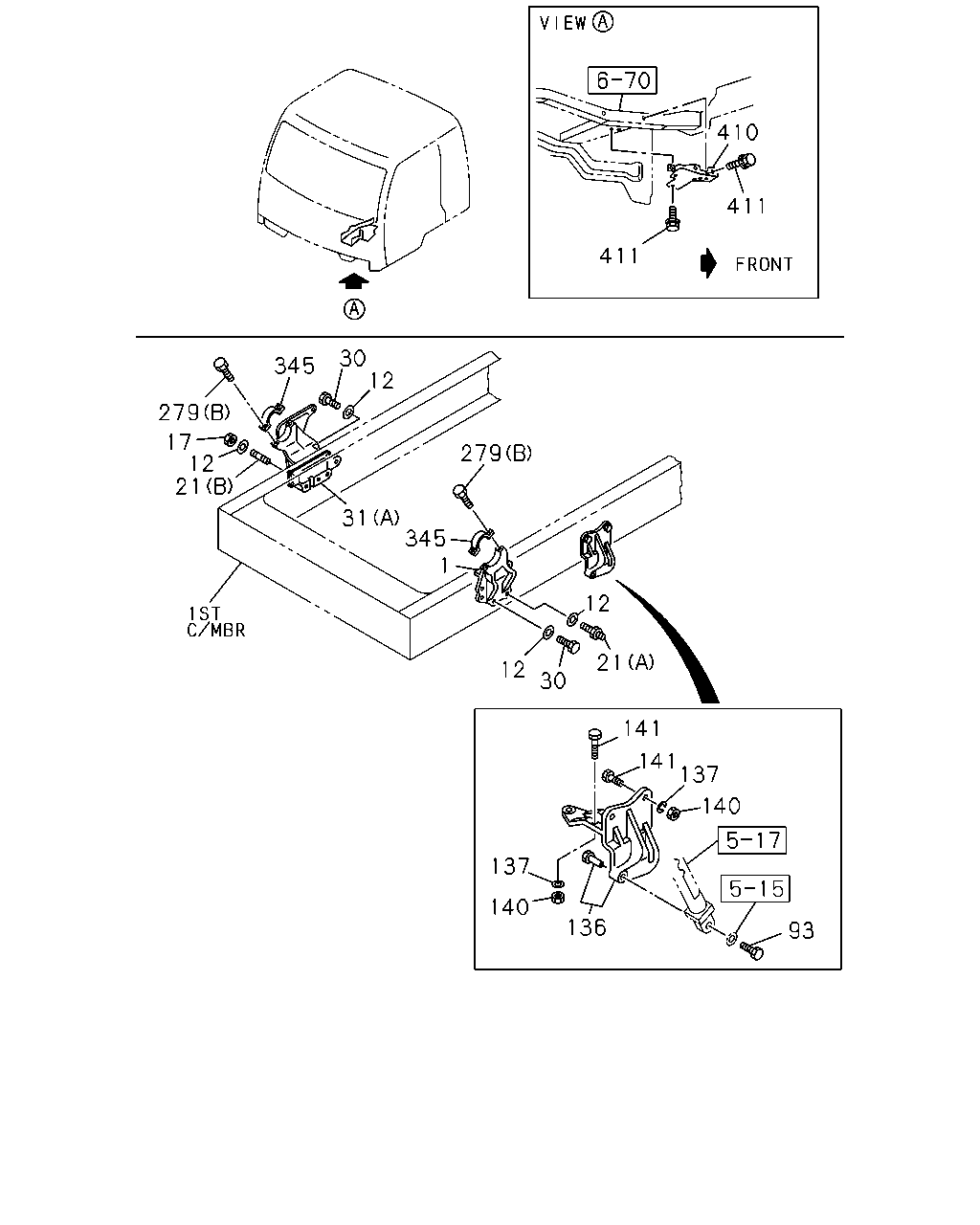

çizim 43851
410 411 411 30 12 345 279 17 12 21 279 31 345 1 12 21 12 30 141 141 137 140 137 140 136 93
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG 1-53453-214-2 01 1 9906-
12 WASHER; LK,BRKT
ID=15 		9-09651-069-0 11 1 9906-
17 NUT; BRKT,CAB TILT
M14 		9-99110-514-0 01 1 9906-
21 STUD; BRKT,CAB TILT
(A) M12X20, M14X45 L=76 		1-09029-068-0 02 1 9906-
21 STUD; BRKT,CAB TILT
(B) M14X48 L=75 		1-09300-094-0 01 1 9906-
30 BOLT; CAB FRT FOOT
M14X45 		9-92061-445-0 08 1 9906-
31 BRACKET; CAB
(A) 		1-44226-146-2 01 1 9906-
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 9906-
31 BRACKET; CAB
(C) 		1-81549-016-0 01 1 9906-
31 BRACKET; CAB
(D) 		1-53453-225-2 01 1 9906-
31 BRACKET; CAB
(D) 		1-53453-224-3 01 1 9906-
93 BOLT; PIN
M10X20 FLANGE 		0-28681-020-0 01 1 9906-
136 BRACKET; OIL CYL 1-53458-623-0 01 1 9906-
137 WASHER; PL,BRKT
ID=15 		9-09651-069-0 04 1 9906-
140 NUT; BRKT
M14 		9-99110-514-0 02 1 9906-
141 BOLT; BRKT
M14X50 		9-92061-450-0 04 1 9906-
279 BOLT
(C) M8X16 FLANGE 		0-28080-816-0 04 1 9906-
279 BOLT
(E) M8X60 FLANGE 		0-28080-860-0 02 1 9906-
279 BOLT
(B) M12X40 FLANGE 		0-28091-240-0 04 1 9906-
279 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 07 1 9906-
279 BOLT
(D) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 9906-
345 CAP; CAB 1-53458-336-3 02 1 9906-
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 9906-
411 BOLT; REINFORCEMENT
M8X20 W/LK&PL WASHER 		8-94279-208-0 04 1 9906-
411 BOLT; REINFORCEMENT
M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 9906-
çizim 43852
202 202 203 69 72 204 205 65 70 204 203
BalonParca AdiParca NoAdetTipApplied Date
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-603-0 02 1 9906-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 9906-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X100 		1-09980-547-0 08 1 9906-0301
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-0 08 1 0302-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 9906-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 9906-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 24 1 9906-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 9906-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 9906-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 9906-
203 WASHER; RUBBER,SHOCK
(A) 		1-51631-005-0 10 1 9906-
203 WASHER; RUBBER,SHOCK
(B) 		1-51631-104-0 02 1 9906-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 9906-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 9906-
çizim 44601
202 205 204 203 202 205 174 173 203 201 204 203 204 205 204 203 202 202 294
BalonParca AdiParca NoAdetTipApplied Date
173 MEMBER; CAB MTG RR 1-53450-545-6 01 1 9906-
174 OUTRIGGER 1-53456-277-3 01 1 9906-
174 OUTRIGGER 1-53456-278-3 01 1 9906-
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-607-0 02 1 9906-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 9906-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 9906-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 9906-
203 WASHER; RUBBER,SHOCK
(A) 		1-51631-005-0 10 1 9906-
203 WASHER; RUBBER,SHOCK
(B) 		1-51631-104-0 02 1 9906-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 9906-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 9906-
294 MEMBER; FLOATING 1-53454-828-2 01 1 9906-
çizim 44770
293 293 431 434 292 433 435 436 437 418 100 432
BalonParca AdiParca NoAdetTipApplied Date
100 PIN; JOINT 1-53458-831-0 01 1 9906-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9906-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 9906-
292 CONNECTOR; CAB SUSPENSION
(C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 9906-
292 CONNECTOR; CAB SUSPENSION
(D) DIN6X2 & R1/8 3WAY 		1-09660-761-1 01 1 9906-
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 9906-
293 RATCH; CAB SUSP,RR 1-53458-923-0 01 1 9906-
418 WASHER; PL,PIN 1-53458-059-0 01 1 9906-
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 9906-
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 9906-
433 FILTER; AIR CYL 1-53458-048-0 01 1 9906-
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 9906-
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 9906-
436 NUT; AIR CYL 1-53458-528-0 02 1 9906-
437 PIN; SNAP 1-53458-526-0 01 1 9906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
