5-01 — FRAME AND OTHER PARTS
(#8313) — 51 parça
◀

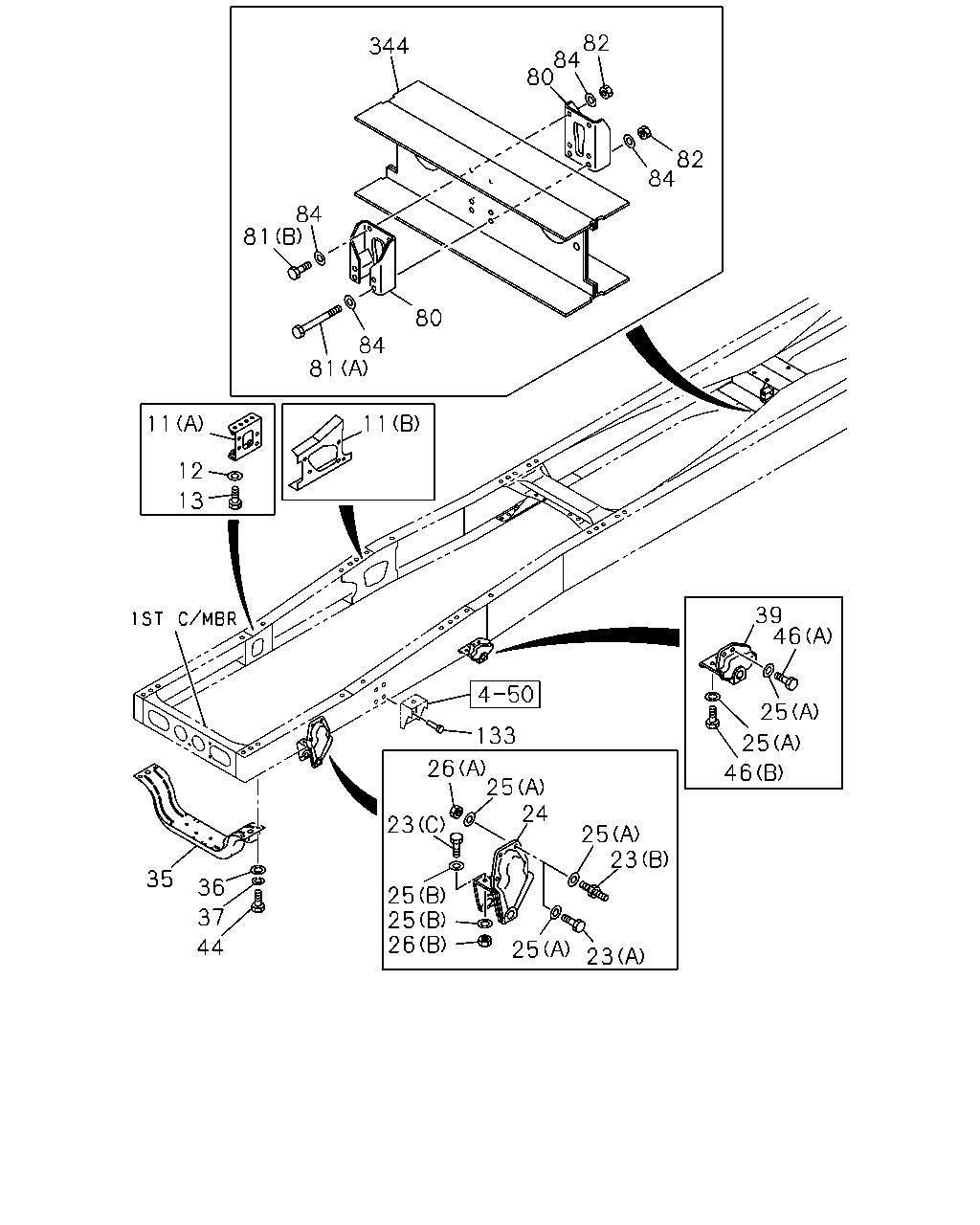

[501A] UNDER MEMBER AND BRACKET (38 parça)

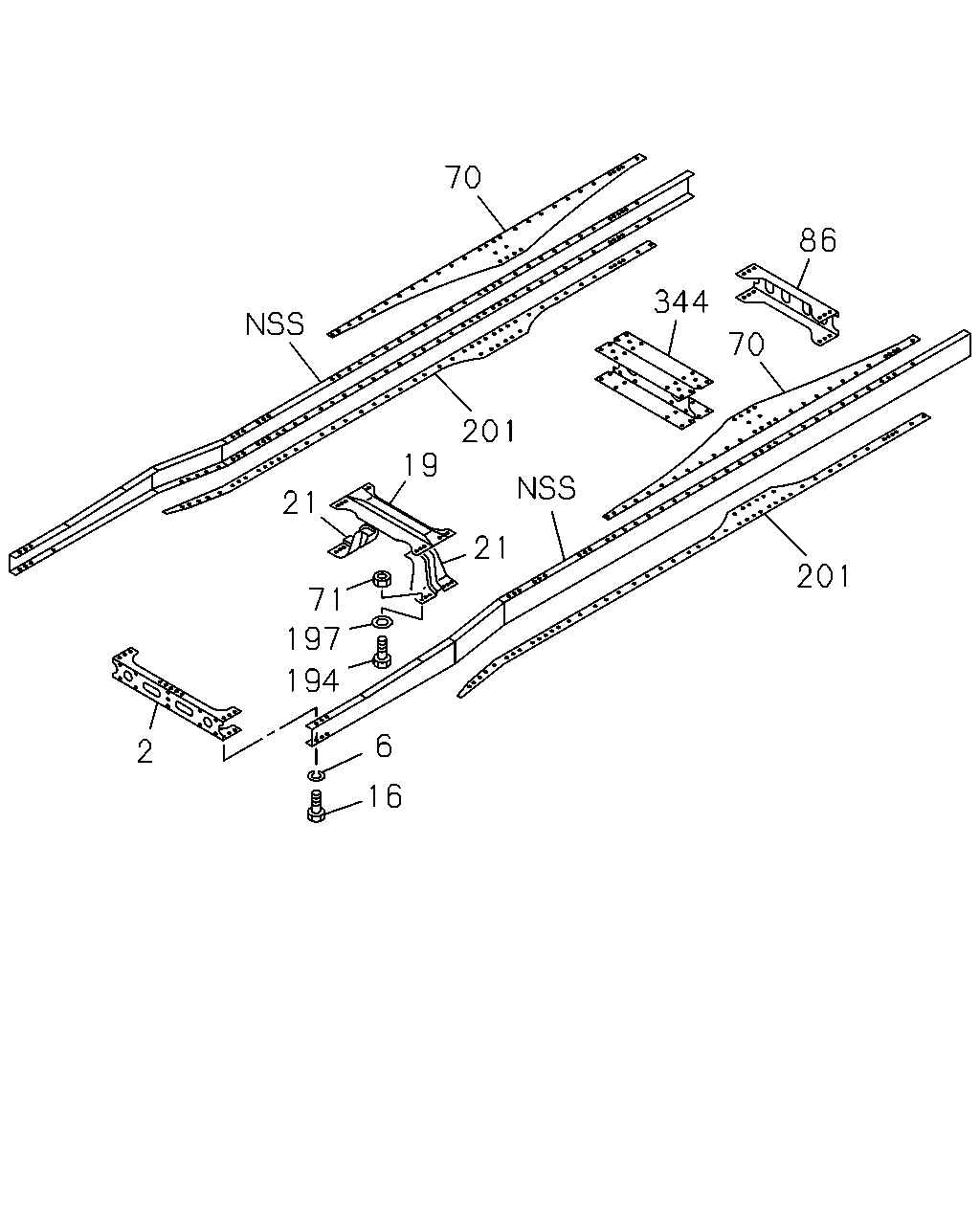

[501A] FRAME AND GUSSET (13 parça)
▶
82
84
80
344
82
84
84
81
80
84
81
11
11
12
13
39
46
25
133
25
26
25
24
46
23
25
23
35
36
25
25
26
37
44
25
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A) FRONT
1-53219-583-0
01
1
9906-
11
BRACKET; ENG MTG
(B) REAR
1-53219-659-3
01
1
9906-9906
11
BRACKET; ENG MTG
DUMP TRUCK<RA1> (B) REAR
1-53219-659-3
01
1
9907-
11
BRACKET; ENG MTG
(A) FRONT
1-53219-582-0
01
1
9906-
11
BRACKET; ENG MTG
(B) REAR
1-53219-658-3
01
1
9906-9906
11
BRACKET; ENG MTG
DUMP TRUCK<RA1> (B) REAR
1-53219-658-3
01
1
9907-
11
BRACKET; ENG MTG
MIXER TRUCK<RA2> (B) REAR
1-53219-571-2
01
1
9907-
11
BRACKET; ENG MTG
MIXER TRUCK<RA2> (B) REAR
1-53219-570-1
01
1
9907-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
01
1
9906-
13
BOLT; BRKT,ENG MTG
M14X40
9-92061-440-0
01
1
9906-
23
BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100
1-09029-075-0
03
1
9906-
23
BOLT; BRKT,SPR
(A) M14X40
9-92061-440-0
05
1
9906-
23
BOLT; BRKT,SPR
(C) M16X50
9-92061-650-0
04
1
9906-
24
BRACKET; FRT SPR,FRT
1-53351-220-0
01
1
9906-
24
BRACKET; FRT SPR,FRT
1-53351-219-0
01
1
9906-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
06
1
9906-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
16
1
9906-9906
25
WASHER; PL,BRKT
DUMP TRUCK<RA1> (A) ID=15
9-09651-069-0
16
1
9907-
25
WASHER; PL,BRKT
MIXER TRUCK<RA2> (A) ID=15
9-09651-069-0
20
1
9907-
26
NUT; BRKT,SPR
(A) M14
9-99110-514-0
04
1
9906-9906
26
NUT; BRKT,SPR
DUMP TRUCK<RA1> (A) M14
9-99110-514-0
04
1
9907-
26
NUT; BRKT,SPR
(B) M16
9-99110-516-0
02
1
9906-
26
NUT; BRKT,SPR
MIXER TRUCK<RA2> (A) M14
9-99110-514-0
06
1
9907-
35
MEMBER; UNDER
1-53174-214-2
01
1
9906-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
04
1
9906-
37
WASHER; LK,UNDER MBR
ID=16.2
9-09150-816-0
04
1
9906-
39
BRACKET; FRT SPR,RR
1-53352-153-0
01
1
9906-
39
BRACKET; FRT SPR,RR
1-53352-152-0
01
1
9906-
44
BOLT; UNDER MBR
M16X45
9-92061-645-0
04
1
9906-
46
BOLT; BRKT FIX
(A) M14X40
9-92061-440-0
04
1
9906-
46
BOLT; BRKT FIX
(B) M14X50
9-92061-450-0
04
1
9906-
80
BRACKET; C/MBR
1-53363-031-2
02
1
9906-
81
BOLT; BRKT
(A) M14X205
1-09000-147-0
02
1
9906-
81
BOLT; BRKT
(B) M14X50
9-92061-450-0
02
1
9906-
82
NUT; BRKT
M14
9-99110-514-0
04
1
9906-
84
WASHER; PL,BRKT
ID=15
9-09651-069-0
08
1
9906-
133
RIVET; BRKT
D13X34 PLATED TAPER END
9-06771-334-0
08
1
9906-
344
MEMBER; CROSS,4TH
1-53181-657-1
01
1
9906-
70
86
344
70
201
19
21
21
201
71
197
194
6
2
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
1-53181-526-4
01
1
9906-
6
WASHER; LK,1ST C/MBR
ID=16.2
9-09150-616-0
02
1
9906-0112
6
WASHER; LK,1ST C/MBR
ID=16.2
9-09150-516-0
02
1
0201-
16
BOLT; 1ST C/MBR TO S/MBR
M16X40
0-20801-640-0
02
1
9906-
19
MEMBER; CROSS,2ND
1-53174-221-0
01
1
9906-
21
GUSSET; 2ND CROSS
1-53164-207-0
02
1
9906-
70
GUSSET; TRUNNION,UPR
1-53161-476-0
02
1
9906-
71
NUT; 2ND C/MBR
M14
9-99110-514-0
08
1
9906-
86
MEMBER; CROSS,RR SUSP RR
1-53181-609-1
02
1
9906-
194
BOLT; 2ND C/MBR
M14X50
9-92061-450-0
08
1
9906-
197
WASHER; PL,2ND C/MBR
ID=15
9-09651-069-0
08
1
9906-
201
GUSSET; C/MBR
1-53161-479-3
02
1
9906-
344
MEMBER; CROSS,4TH
1-53181-657-1
01
1
9906-
