Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10819 - CXZ RHD SINGAPORE
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

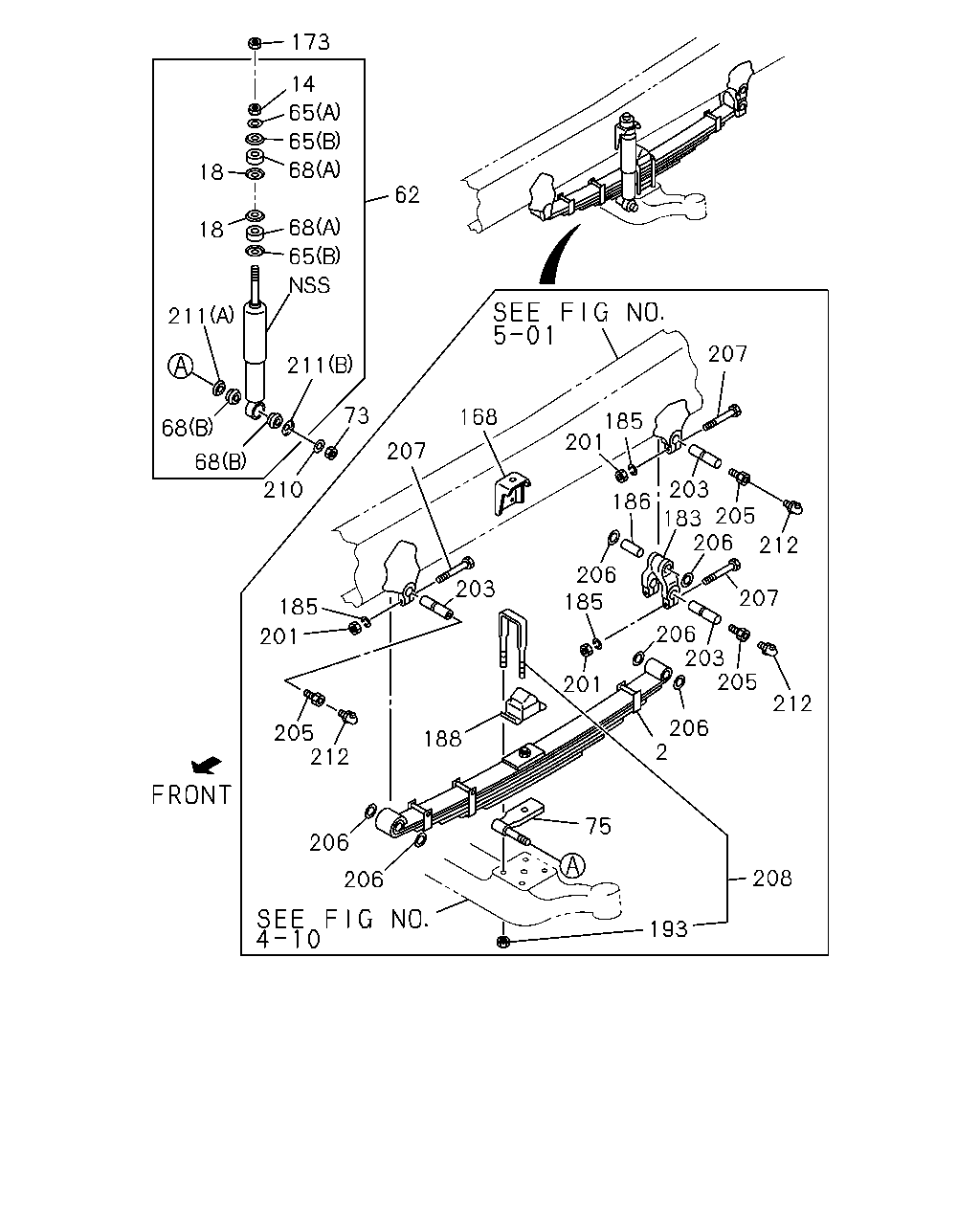

4-50 — FRONT SUSPENSION
(#8308) — 30 parça
208
193
75
2
205
212
206
201
203
206
185
206
206
212
205
183
203
186
201
185
207
168
207
203
188
212
205
201
185
206
206
73
210
68
68
211
211
18
18
68
65
65
14
68
62
65
173
207
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF
1-51130-075-1
02
1
9906-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
9906-
18
WASHER; CENTERING,S/ABS
ID=24
1-51631-067-0
04
1
9906-
62
ABSORBER ASM; SHOCK,FRT
1-51630-417-0
02
1
9906-
65
WASHER; S/ABS
(A) ID=16.5
1-09503-266-0
02
1
9906-
65
WASHER; S/ABS
(B) ID=16.5
1-51631-068-0
04
1
9906-
68
BUSHING; S/ABS
(A) ID=16 T=25
1-51631-069-0
04
1
9906-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
9906-
73
NUT; BRKT,SHOCK
M20
9-99110-420-0
02
1
9906-
75
BRACKET; FRT S/ABS
1-51681-598-2
01
1
9906-0002
75
BRACKET; FRT S/ABS
1-51681-826-0
01
1
0003-
75
BRACKET; FRT S/ABS
1-51681-597-2
01
1
9906-0002
75
BRACKET; FRT S/ABS
1-51681-825-0
01
1
0003-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
9906-
173
NUT; S/ABS
M14
9-99111-414-0
02
1
9906-
183
SHACKLE; FRT SUSP
1-51162-029-4
02
1
9906-
185
WASHER; LK,PIN
ID=12.2
9-09150-612-0
12
1
9906-
186
BUSHING; SHACKLE
OD=38
1-51351-009-0
02
1
9906-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-085-0
02
1
9906-
193
NUT; U BOLT
M22
9-09112-822-0
08
1
9906-
201
NUT; PIN LK
M12
9-99110-512-0
12
1
9906-
203
PIN; SPR TO SHACKLE
1-51161-031-0
06
1
9906-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
9906-
206
WASHER; LK,SPRING PIN
ID=32.4
1-51169-018-0
12
1
9906-
207
BOLT; SPR TO SHACKLE
M12X80
0-10806-280-0
12
1
9906-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-269-1
04
1
9906-
210
WASHER; S/ABS,OUTER
ID=21
9-09160-520-0
02
1
9906-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
9906-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
9906-
212
NIPPLE; GREASE,ELBOW
PT1/8 ELBOW
9-09031-210-0
06
1
9906-
