4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#8304) — 78 parça

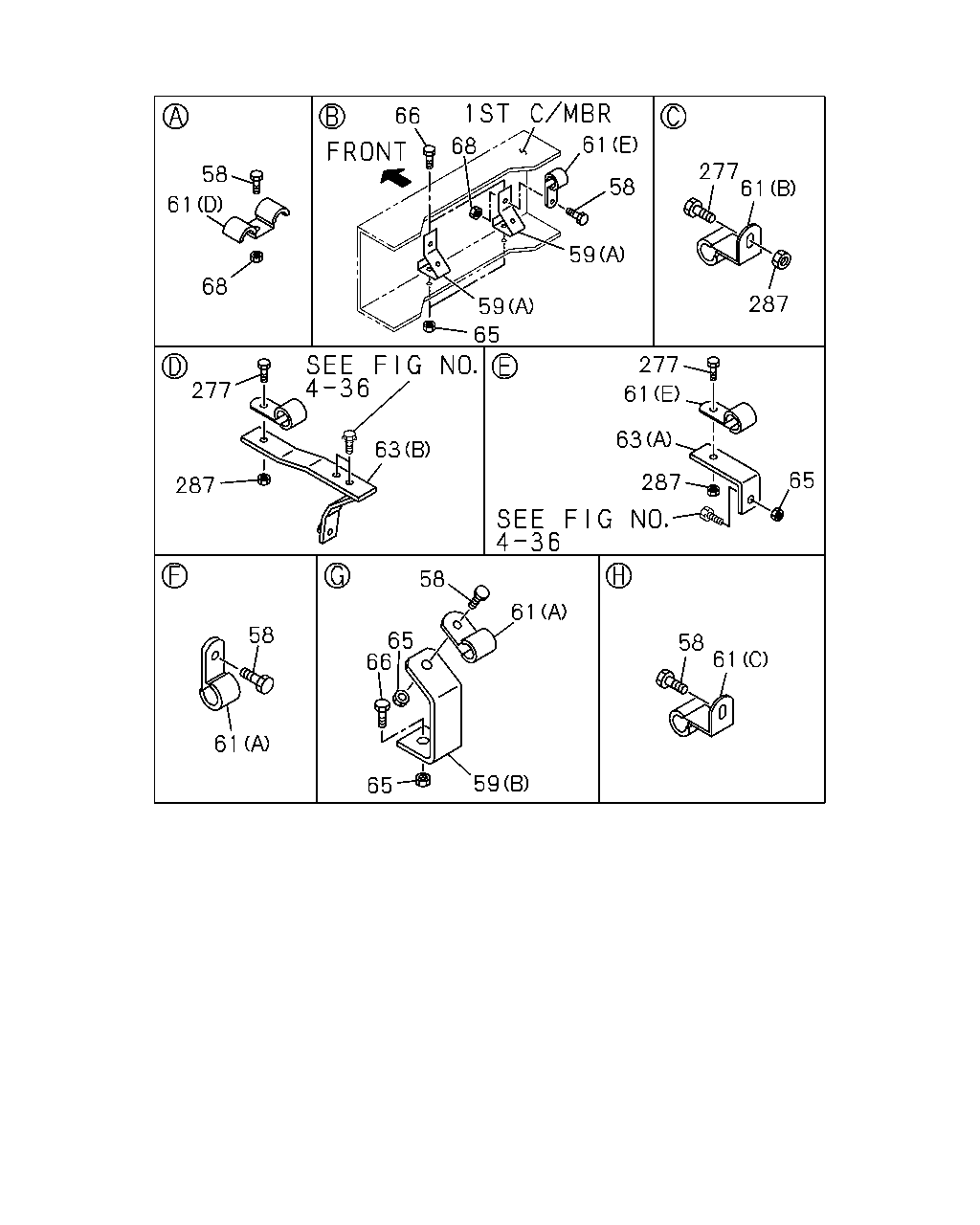

61 58 61 59 65 66 58 65 58 61 287 277 63 287 63 61 277 65 287 61 277 58 61 59 59 65 68 66 58 61 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	10	1	9906-0103
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0104-
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9906-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	08	1	0104-
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-193-0	01	1	9906-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-426-0	02	1	9906-
61	CLIP; OIL PIPE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9906-
61	CLIP; OIL PIPE (C) ID=15 H=24 L=20	1-09700-606-0	03	1	9906-
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9906-
61	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	05	1	9906-
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	03	1	9906-
63	BRACKET; CLIP,P/S (A) L=60	1-47476-217-0	01	1	9906-
63	BRACKET; CLIP,P/S (B)	1-47476-315-0	01	1	9906-
63	BRACKET; CLIP,P/S (A) L=85	1-47476-758-0	01	1	9906-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	12	1	9906-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	9906-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9906-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9906-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	05	1	9906-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9906-

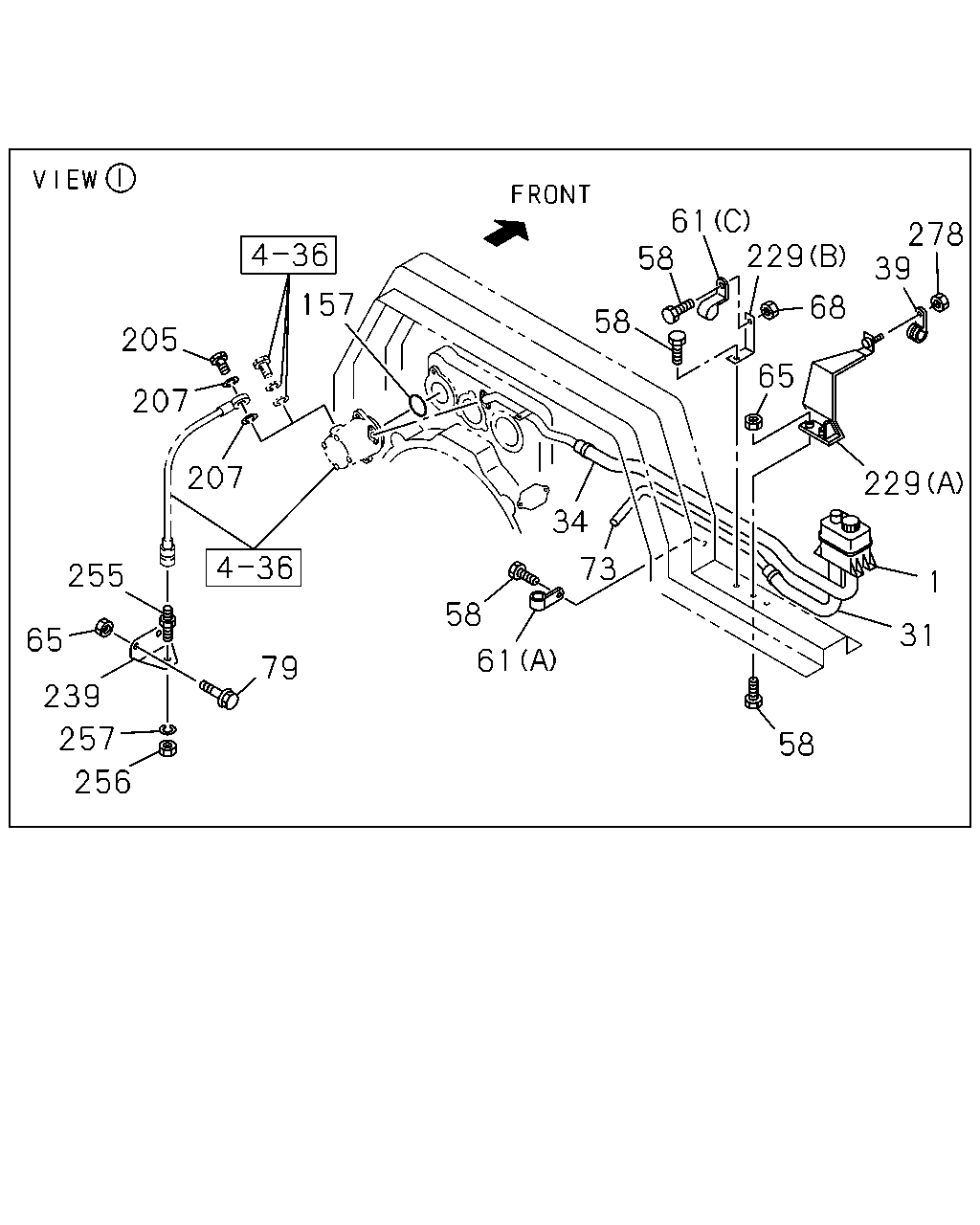

61 58 229 278 39 157 68 58 205 65 207 207 229 34 73 255 1 58 31 65 61 79 239 257 58 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9906-
31	HOSE; P/S OIL TANK,INL	1-21114-262-0	01	1	9906-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-254-1	01	1	9906-
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	9906-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	10	1	9906-0103
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0104-
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9906-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	08	1	0104-
61	CLIP; OIL PIPE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9906-
61	CLIP; OIL PIPE (C) ID=15 H=24 L=20	1-09700-606-0	03	1	9906-
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9906-
61	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	05	1	9906-
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	03	1	9906-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	12	1	9906-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9906-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE	1-21115-014-1	01	1	9906-
79	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9906-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). DUMP TRUCK<RA1> ID=79.6	1-09623-421-0	01	1	9906-9906
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). DUMP TRUCK<RA1>,MIXER TRUCK<RA2> ID=79.6	1-09623-421-0	01	1	9907-
205	BOLT; EYE,FLEX HOSE,P/S M18X40	1-09675-153-0	01	1	9906-9906
205	BOLT; EYE,FLEX HOSE,P/S EXC. ENGINE REAR PTO(SV1) M18X40	1-09675-153-0	01	1	9907-
207	GASKET; FLEX HOSE,P/S PUMP ID=18.2 OD=24.4	1-09630-087-0	02	1	9906-9906
207	GASKET; FLEX HOSE,P/S PUMP EXC. ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	9907-
229	BRACKET; HOSE,POWER STRG (B)	1-21464-480-0	01	1	9906-
229	BRACKET; HOSE,POWER STRG (A)	1-21464-481-0	01	1	9906-
239	BRACKET; FLEX HOSE	1-47477-336-0	01	1	9906-
255	UNION; FLEX HOSE M20 & M22 STRAIGHT	1-09654-167-1	01	1	9906-
256	NUT; UNION M22	9-09111-422-0	01	1	9906-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9906-
278	NUT; HOSE CLIP M8 FLANGE	0-91150-108-0	01	1	9906-

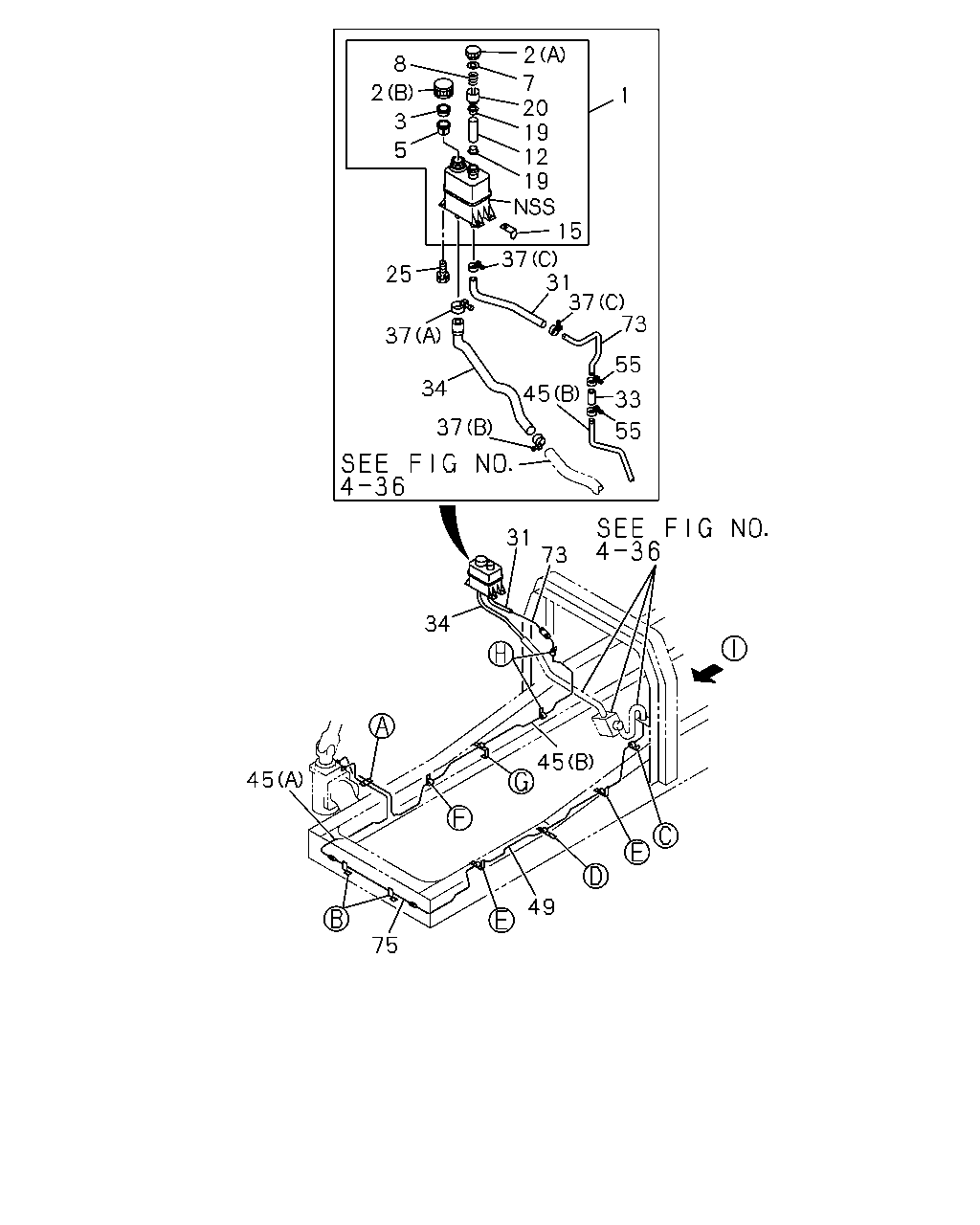

8 2 2 7 1 20 3 19 5 12 19 37 15 25 37 31 55 37 33 73 45 34 55 37 34 73 34 45 49 75 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9906-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9906-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9906-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9906-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9906-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9906-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9906-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9906-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9906-
19	SEAT; OIL TANK	1-21262-001-0	02	1	9906-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9906-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	9906-
31	HOSE; P/S OIL TANK,INL	1-21114-262-0	01	1	9906-
33	HOSE; RUBBER,POWER STRG L=80	1-09360-570-0	01	1	9906-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-254-1	01	1	9906-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	01	1	9906-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	01	1	9906-
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9906-
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21115-671-0	01	1	9906-
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21116-125-0	01	1	9906-9906
45	PIPE; OIL,P/S UNIT TO UNION FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-21116-125-0	01	1	9907-
45	PIPE; OIL,P/S UNIT TO UNION EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-21116-119-0	01	1	9907-
49	PIPE; OIL,FLEX HOSE TO UNION	1-21115-741-0	01	1	9906-9906
49	PIPE; OIL,FLEX HOSE TO UNION FRAME ENG MTG SEPARATE TYPE<SGM>	1-21115-741-0	01	1	9907-
49	PIPE; OIL,FLEX HOSE TO UNION EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-21115-740-0	01	1	9907-
55	CLIP; P/S RUBBER HOSE ID=28	9-09915-672-1	02	1	9906-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE	1-21115-014-1	01	1	9906-
75	PIPE; OIL,P/S,UNION TO UNION	1-21115-668-1	01	1	9906-
