4-33 — STEERING LINKAGE
(#8303) — 22 parça
◀

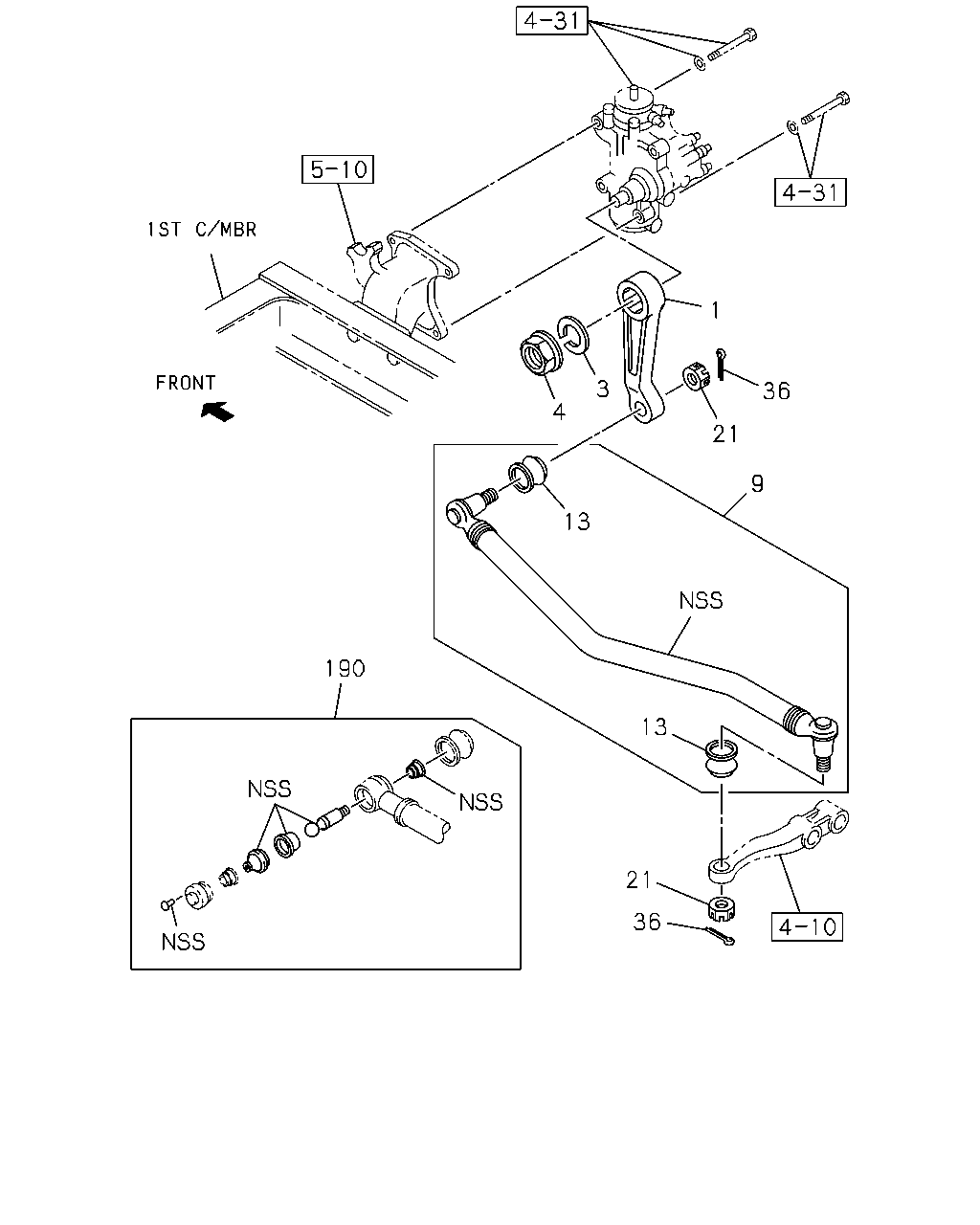

[433A] -'01/11 (9 parça)

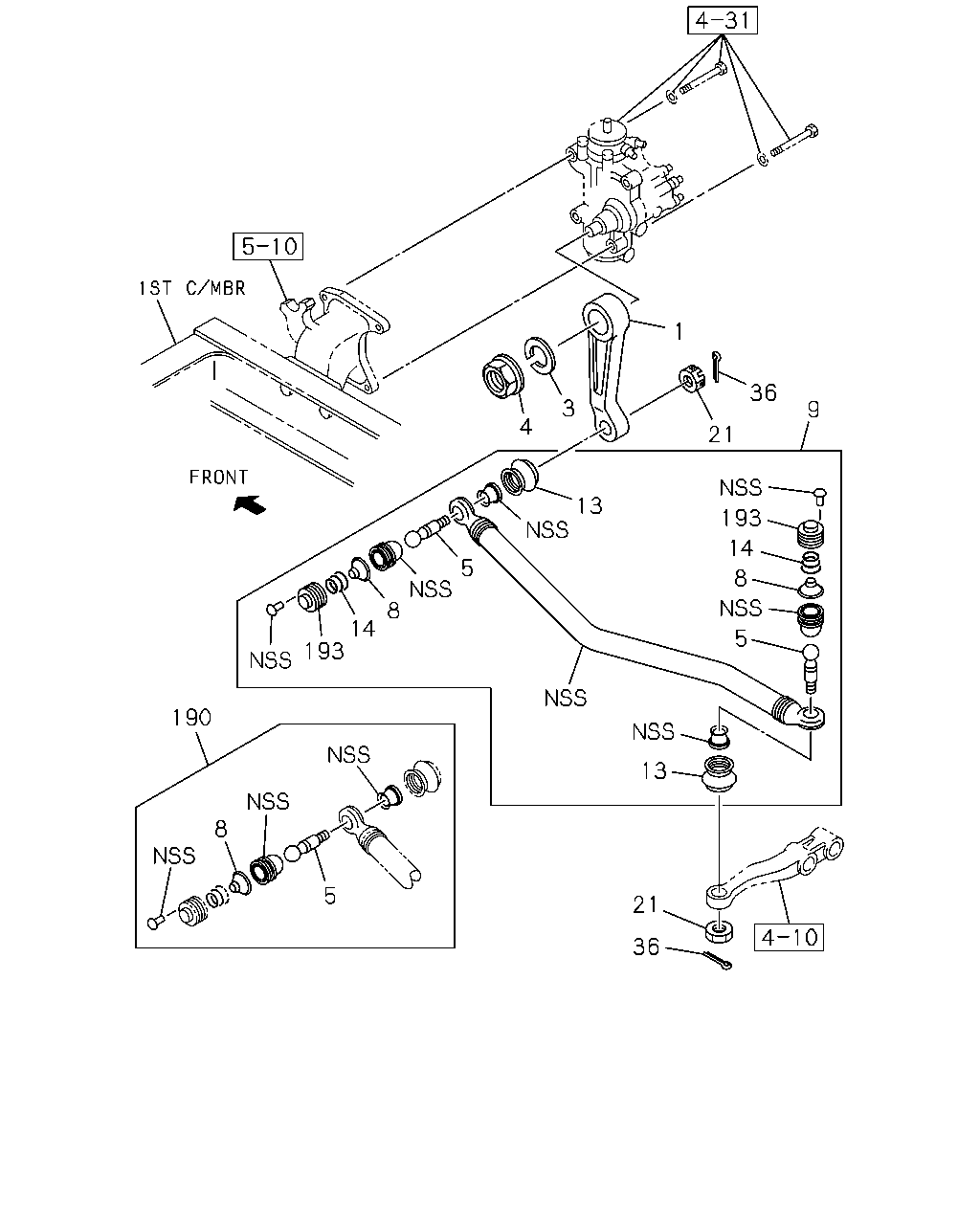

[433A] '01/12- (13 parça)
▶
1
3
36
4
21
9
13
190
13
21
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-448-1
01
1
9906-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
9906-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
9906-
9
LINK; DRAG
1-44380-150-0
01
1
9906-0111
9
LINK; DRAG
1-44380-157-1
01
1
0112-
13
BOOT; DRAG LINK
1-43159-099-0
02
1
9906-
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
9906-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
9906-
190
REPAIR KIT; DRAG LINK
1-85574-061-0
02
1
9906-
1
36
3
9
4
21
13
193
14
5
8
8
14
193
5
190
13
8
5
21
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-448-1
01
1
9906-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
9906-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
9906-
5
BALL; JOINT,DRAG LINK
1-44361-111-0
02
1
0112-
8
SEAT; SPR,ROD END
1-43159-102-0
02
1
0112-
9
LINK; DRAG
1-44380-150-0
01
1
9906-0111
9
LINK; DRAG
1-44380-157-1
01
1
0112-
13
BOOT; DRAG LINK
1-43159-099-0
02
1
9906-
14
SPRING; COIL,DRAG LINK
1-43159-101-0
02
1
0112-
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
9906-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
9906-
190
REPAIR KIT; DRAG LINK
1-85574-061-0
02
1
9906-
193
PLUG; END,DRAG LINK
1-43159-100-0
02
1
0112-
