4-25 — REAR FINAL DRIVE (#8300) — 264 parça

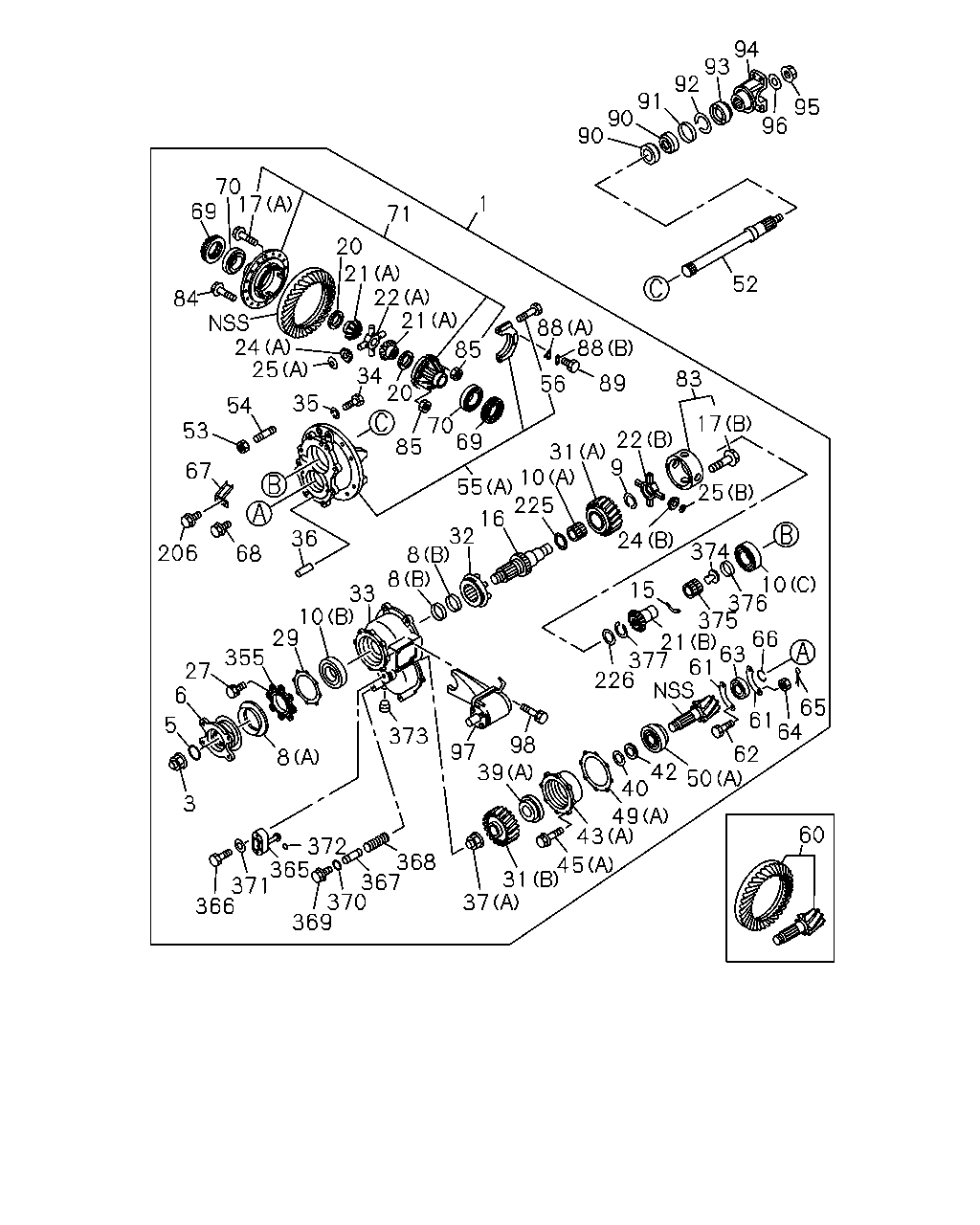

çizim 9557
70 69 71 17 1 90 90 91 92 93 94 95 96 52 83 89 88 88 56 69 70 85 20 85 21 22 21 20 25 24 84 35 34 54 53 67 206 68 36 32 16 225 10 55 31 22 17 9 24 25 8 8 33 10 29 355 27 6 5 3 8 373 97 98 39 226 15 374 375 21 377 10 63 61 376 66 65 64 62 61 50 42 40 49 43 45 31 37 368 367 369 372 370 365 371 366 60
BalonParca AdiParca NoAdetTipApplied Date
1 DRIVE ASM; FINAL,RR
REARWARD 45/7 		1-41001-391-0 01 1 9906-
1 DRIVE ASM; FINAL,RR
FORWARD 45/7 		1-41002-036-0 01 1 9906-
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 9906-
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 9906-
6 FLANGE ASM; INPUT SHAFT 1-37245-265-2 01 1 9906-
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 9906-
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 9906-
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 9906-
10 BEARING; INPUT SHAFT
(A) KOYO 		1-09811-346-0 01 1 9906-
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 9906-
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 9906-
10 BEARING; INPUT SHAFT
(C) KOYO 		1-09812-182-0 01 1 9906-
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 9906-
10 BEARING; INPUT SHAFT
(B) KOYO 		1-09812-198-0 01 1 9906-
15 CATCHER; OIL 1-41129-007-0 01 1 9906-
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 9906-
17 BOLT; DIFF CAGE SETTING
(A) M16X125 		1-09070-007-0 08 1 9906-
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 16 1 9906-
17 BOLT; DIFF CAGE SETTING
(B) M10X55 		1-09070-108-0 08 1 9906-
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9906-
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9906-
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9906-
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9906-
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9906-
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9906-
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9906-
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 04 1 9906-
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-103-1 01 1 9906-
22 PIN; CROSS,DIFF PINION
(A) 		1-41521-037-1 02 1 9906-
22 PIN; CROSS,DIFF PINION
(B) 		1-41521-049-2 01 1 9906-
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 08 1 9906-
24 GEAR; PINION,DIFF
(B) Z=16 		1-41551-031-0 04 1 9906-
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 9906-
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 9906-
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50051-235-0 08 1 9906-
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 9906-
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 9906-
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 9906-
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 9906-
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-030-0 01 1 9906-
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 9906-
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 9906-
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 9906-
34 BOLT; CASE TO CARRIER
M14X40 		0-23801-440-0 10 1 9906-
35 WASHER; CASE TO CARRIER
ID=14.2 		9-09150-814-0 10 1 9906-
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 9906-
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 9906-
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 9906-
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 9906-
39 BEARING; FINAL PINION
(A) KOYO 		1-09812-074-1 01 1 9906-
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 9906-
39 BEARING; FINAL PINION
(B) KOYO 		1-09812-076-1 01 1 9906-
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9906-
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 9906-
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 9906-
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 9906-
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 9906-
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 9906-
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 9906-
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 9906-
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 9906-
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 9906-
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 9906-
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 9906-
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 9906-
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 9906-
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 9906-
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 9906-
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 9906-
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 9906-
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 9906-
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 9906-
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 9906-
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 9906-
50 BEARING; FINAL PINION
(B) KOYO 		1-09812-074-1 01 1 9906-
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 9906-
50 BEARING; FINAL PINION
(A) KOYO 		1-09812-076-1 01 1 9906-
52 SHAFT; OUTPUT 1-41343-020-0 01 1 9906-
53 NUT; FINAL DRIVE SET
M16 		9-99110-516-0 01 1 9906-
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 9906-
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 9906-
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 9906-
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 9906-
60 GEAR SET; FINAL DRIVE,RR
FORWARD 45/7 		1-41210-474-0 01 1 9906-
60 GEAR SET; FINAL DRIVE,RR
REARWARD 45/7 		1-41210-602-0 01 1 9906-
61 RETAINER; PILOT BRG,PINION 1-41227-012-0 04 1 9906-
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 9906-
63 BEARING; PINION PILOT
KOYO 		1-09810-182-0 02 1 9906-
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 9906-
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 04 1 9906-
65 PIN; SPLIT,RET 9-08112-012-0 04 1 9906-
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 02 1 9906-
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 9906-
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 9906-
69 NUT; ADJ,DIFF CAGE 1-41121-002-0 02 1 9906-
69 NUT; ADJ,DIFF CAGE 1-41121-001-0 02 1 9906-
70 BEARING; DIFF CAGE
KOYO ID=92 OD=152 T=40 		1-09812-225-0 04 1 9906-
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 9906-
83 CAGE ASM; DIFF 1-41510-224-0 01 1 9906-
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 9906-
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 24 1 9906-
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 9906-
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 9906-
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 08 1 9906-
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 9906-
90 BEARING; OUTPUT SHAFT
KOYO 		1-09812-069-0 02 1 9906-
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 9906-
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 9906-
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 9906-
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 9906-
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 9906-
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 9906-
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 9906-
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 9906-
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 9906-
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 9906-
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 9906-
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 9906-
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 9906-
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 9906-
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 9906-

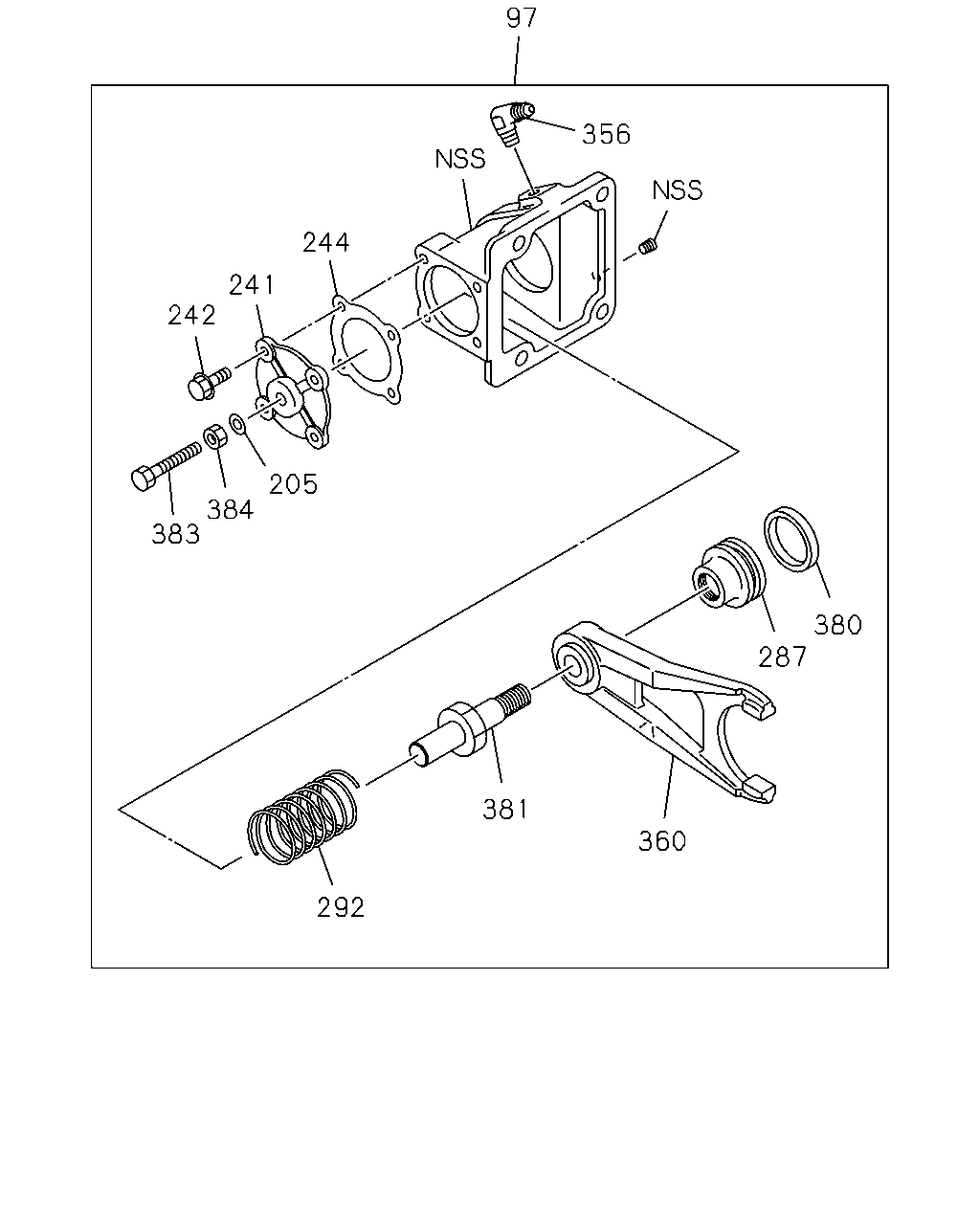

97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 9906-
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28181-050-0 01 1 9906-
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28781-025-0 03 1 9906-
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 9906-
225 WASHER; THRUST
T=5.9 		1-41552-024-2 AR 1 9906-
225 WASHER; THRUST
T=6.0 		1-41552-025-2 AR 1 9906-
225 WASHER; THRUST
T=6.1 		1-41552-026-2 AR 1 9906-
225 WASHER; THRUST
T=6.2 		1-41552-027-2 AR 1 9906-
225 WASHER; THRUST
T=6.3 		1-41552-028-2 AR 1 9906-
225 WASHER; THRUST
T=6.4 		1-41552-029-2 AR 1 9906-
225 WASHER; THRUST
T=6.5 		1-41552-030-2 AR 1 9906-
225 WASHER; THRUST
T=6.6 		1-41552-031-2 AR 1 9906-
225 WASHER; THRUST
T=6.7 		1-41552-032-2 AR 1 9906-
225 WASHER; THRUST
T=6.8 		1-41552-033-2 AR 1 9906-
225 WASHER; THRUST
T=6.9 		1-41552-034-2 AR 1 9906-
225 WASHER; THRUST
T=7.0 		1-41552-035-2 AR 1 9906-
225 WASHER; THRUST
T=7.1 		1-41552-036-2 AR 1 9906-
226 WASHER; THRUST 1-41562-267-0 01 1 9906-
355 RETAINER; BRG 1-41227-011-0 01 1 9906-9906
355 RETAINER; BRG 1-41227-016-0 01 1 9907-
365 PUMP ASM; OIL 1-41381-008-1 01 1 9906-
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 9906-
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 9906-
368 SPRING; STRAINER 1-09580-504-0 01 1 9906-
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 9906-
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 9906-
371 WASHER; LK,PUMP
ID=8.2 		9-09150-808-0 04 1 9906-
372 BALL; CASE 9-00097-517-0 01 1 9906-
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 9906-
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 9906-
375 BEARING; SIDE GEAR
KOYO 		1-09811-348-0 01 1 9906-
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 9906-
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 9906-
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 9906-

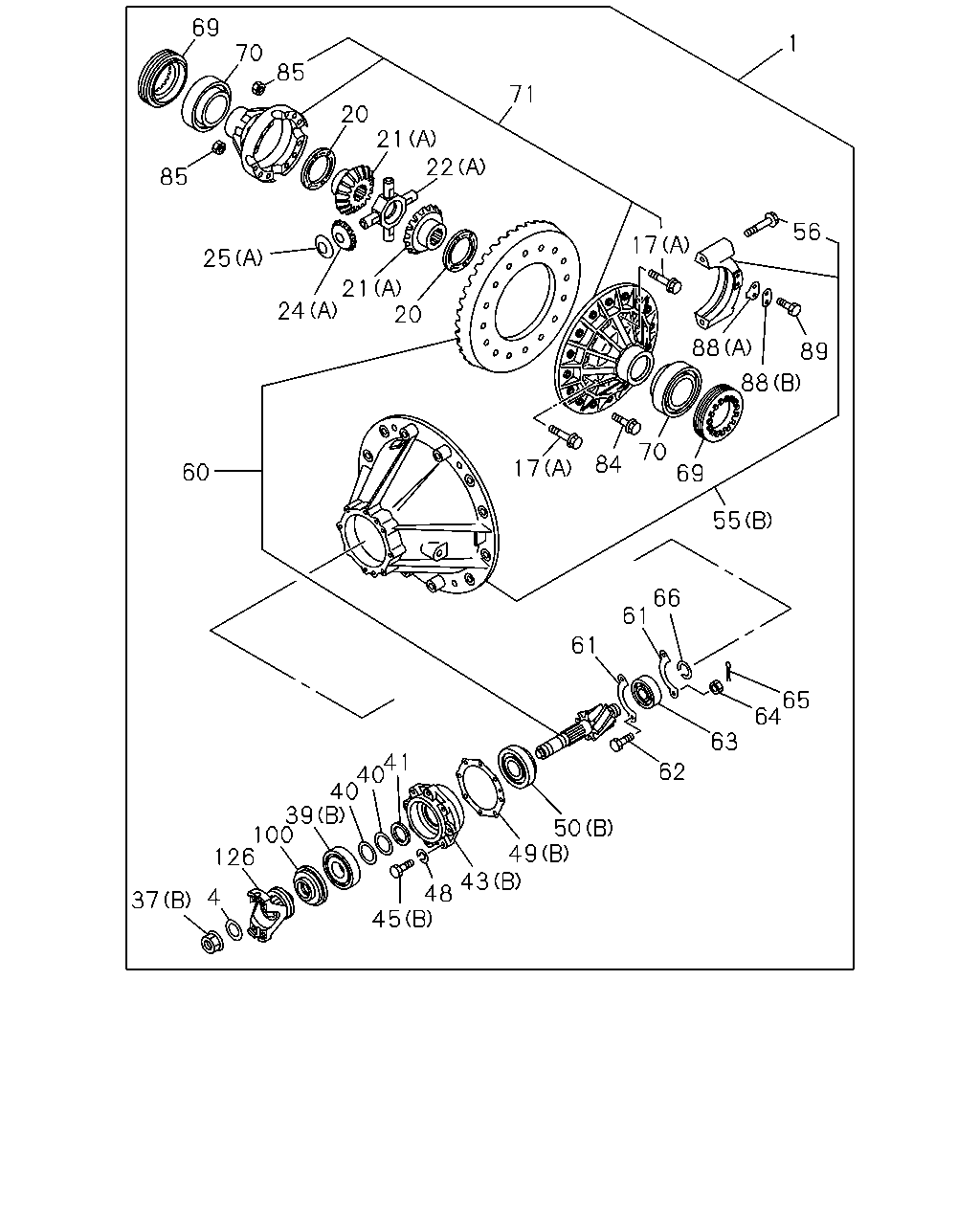

çizim 9558
69 1 70 85 71 20 21 22 85 56 17 25 21 20 24 88 89 88 70 84 17 60 69 55 66 61 61 65 64 63 41 40 40 39 100 126 62 50 49 43 48 45 4 37
BalonParca AdiParca NoAdetTipApplied Date
1 DRIVE ASM; FINAL,RR
REARWARD 45/7 		1-41001-391-0 01 1 9906-
1 DRIVE ASM; FINAL,RR
FORWARD 45/7 		1-41002-036-0 01 1 9906-
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 9906-
17 BOLT; DIFF CAGE SETTING
(A) M16X125 		1-09070-007-0 08 1 9906-
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 16 1 9906-
17 BOLT; DIFF CAGE SETTING
(B) M10X55 		1-09070-108-0 08 1 9906-
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9906-
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9906-
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9906-
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9906-
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9906-
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9906-
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9906-
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 04 1 9906-
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-103-1 01 1 9906-
22 PIN; CROSS,DIFF PINION
(A) 		1-41521-037-1 02 1 9906-
22 PIN; CROSS,DIFF PINION
(B) 		1-41521-049-2 01 1 9906-
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 08 1 9906-
24 GEAR; PINION,DIFF
(B) Z=16 		1-41551-031-0 04 1 9906-
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 9906-
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 9906-
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 9906-
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 9906-
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 9906-
39 BEARING; FINAL PINION
(A) KOYO 		1-09812-074-1 01 1 9906-
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 9906-
39 BEARING; FINAL PINION
(B) KOYO 		1-09812-076-1 01 1 9906-
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9906-
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9906-
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 9906-
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 9906-
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 9906-
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 9906-
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 9906-
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 9906-
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 9906-
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 9906-
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 9906-
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 9906-
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 9906-
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 9906-
48 WASHER; LK,FINAL PINION
ID=16.2 		9-09150-516-0 08 1 9906-
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 9906-
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 9906-
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 9906-
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 9906-
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 9906-
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 9906-
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 9906-
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 9906-
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 9906-
50 BEARING; FINAL PINION
(B) KOYO 		1-09812-074-1 01 1 9906-
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 9906-
50 BEARING; FINAL PINION
(A) KOYO 		1-09812-076-1 01 1 9906-
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 9906-
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 9906-
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 9906-
60 GEAR SET; FINAL DRIVE,RR
FORWARD 45/7 		1-41210-474-0 01 1 9906-
60 GEAR SET; FINAL DRIVE,RR
REARWARD 45/7 		1-41210-602-0 01 1 9906-
61 RETAINER; PILOT BRG,PINION 1-41227-012-0 04 1 9906-
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 9906-
63 BEARING; PINION PILOT
KOYO 		1-09810-182-0 02 1 9906-
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 9906-
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 04 1 9906-
65 PIN; SPLIT,RET 9-08112-012-0 04 1 9906-
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 02 1 9906-
69 NUT; ADJ,DIFF CAGE 1-41121-002-0 02 1 9906-
69 NUT; ADJ,DIFF CAGE 1-41121-001-0 02 1 9906-
70 BEARING; DIFF CAGE
KOYO ID=92 OD=152 T=40 		1-09812-225-0 04 1 9906-
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 9906-
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 9906-
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 24 1 9906-
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 9906-
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 9906-
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 08 1 9906-
100 SEAL; OIL,FINAL PINION 1-09625-322-0 01 1 9906-
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 9906-
çizim 44365
97 356 244 241 242 205 384 383 380 287 381 360 292
BalonParca AdiParca NoAdetTipApplied Date
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 9906-
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 9906-
241 COVER; SHIFT HSG 1-48266-012-1 01 1 9906-
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 9906-
244 GASKET; COVER 1-48269-062-0 01 1 9906-
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 9906-
292 SPRING; PISTON 1-48265-007-0 01 1 9906-
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9906-
360 FORK; SHIFT 1-48269-066-0 01 1 9906-
380 GASKET; PISTON 1-48269-064-0 01 1 9906-
381 ROD; SHIFT 1-48263-005-0 01 1 9906-
383 BOLT; SET,SHIFT UNIT
M10X45 		0-20801-045-0 01 1 9906-
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 9906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
