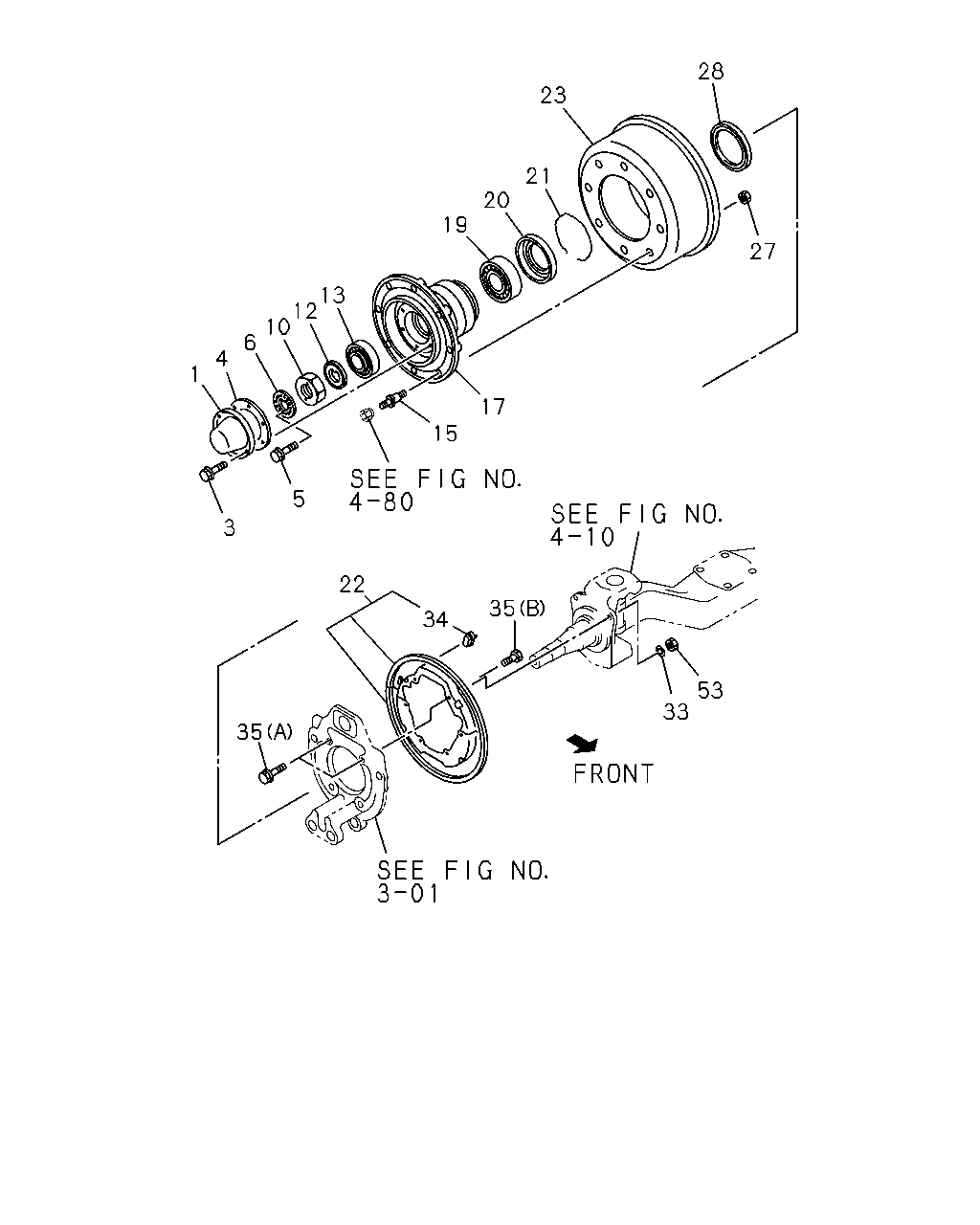

4-11 — FRONT HUB AND DRUM OR ROTOR
(#8298) — 24 parça
53
33
35
34
22
35
3
5
15
17
27
28
23
21
20
19
13
12
10
6
4
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
OD=156
9-42313-123-2
02
1
9906-
3
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
0-28080-812-0
12
1
9906-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-029-0
02
1
9906-9906
4
GASKET; HUB CAP,FRT WHEEL
1-42319-185-0
02
1
9907-
5
BOLT; LK WASHER
M6X16 FLANGE
0-28680-616-0
04
1
9906-
6
WASHER; LK,FRT HUB
ID=48
1-09533-012-1
02
1
9906-
10
NUT; FRT HUB BRG
M48
1-09840-012-5
02
1
9906-
12
WASHER; LK,FRT HUB BRG
ID=48
1-09533-016-0
02
1
9906-
13
BEARING; HUB OUTER,FRT AXLE
KOYO
1-09812-234-0
02
1
9906-
15
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD
1-42332-109-0
08
1
9906-
15
PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD
1-42331-109-0
08
1
9906-
17
HUB; FRT AXLE
1-42312-128-2
02
1
9906-
19
BEARING; HUB INNER,FRT AXLE
KOYO
1-09812-231-0
02
1
9906-
20
COVER; HUB BRG INNER
1-42319-039-0
02
1
9906-
21
RING; SNAP,HUB
1-09587-017-0
02
1
9906-
22
COVER SET; FRT BRK DRUM
1-47151-458-1
02
1
9906-
23
DRUM; BRK,FRT
1-42315-336-1
02
1
9906-
27
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
1-09440-065-0
16
1
9906-
28
SEAL; OIL,FRT HUB
OD=140
1-09625-041-0
02
1
9906-
33
WASHER; LK,DRUM COVER
ID=16.2
9-09150-816-0
04
1
9906-
34
COVER; CHECK HOLE,DRUM COVER
1-09333-151-0
04
1
9906-
35
BOLT; DRUM COVER
(B) M10X16 W/LK WASHER
0-50041-016-0
12
1
9906-
35
BOLT; DRUM COVER
(A) M16X52
1-09044-001-2
04
1
9906-
53
NUT; DRUM COVER
M16
9-99110-416-0
04
1
9906-
