4-01 — PROPELLER SHAFT (#8296) — 31 parça

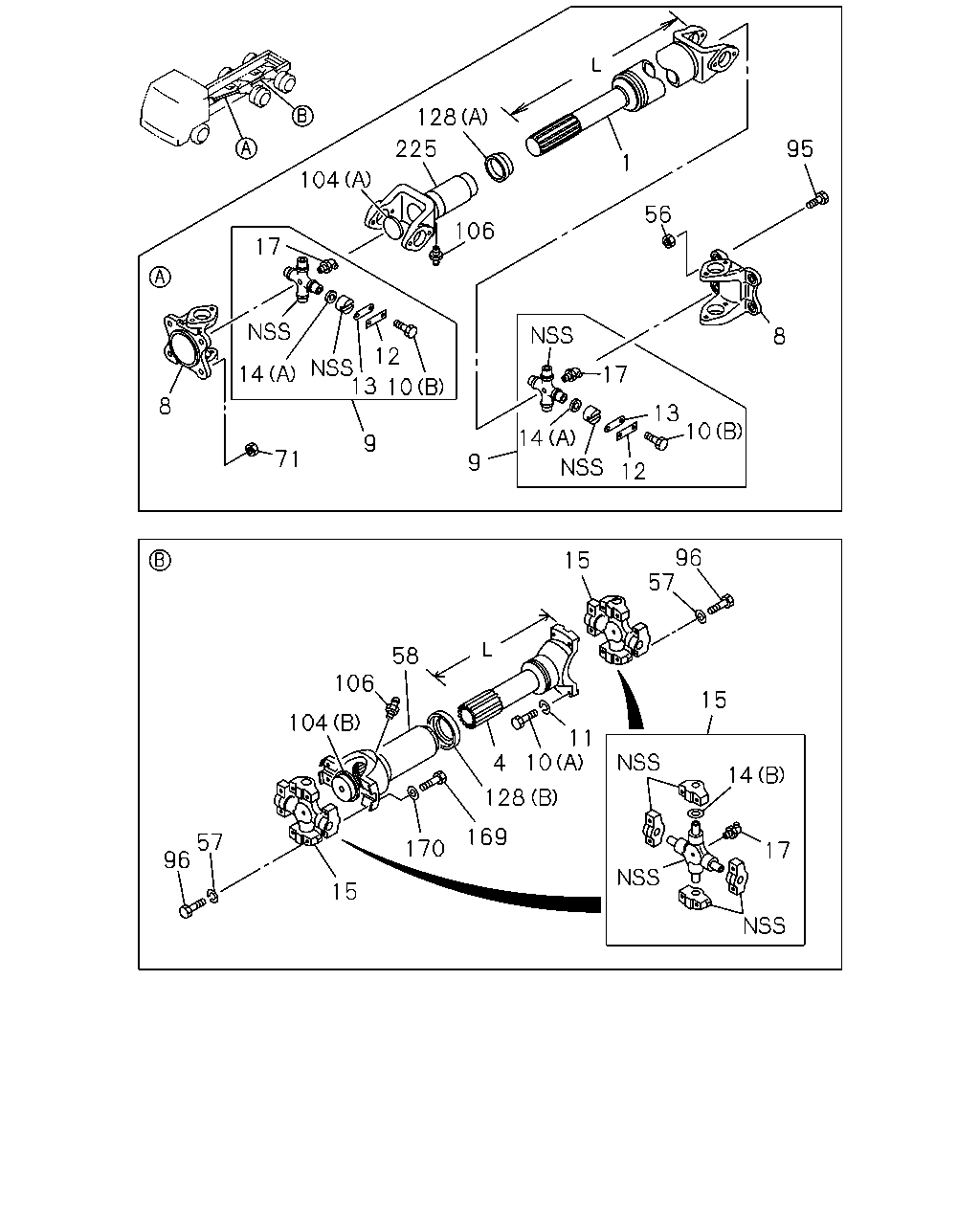

çizim 8234
128 225 95 1 104 56 106 17 8 12 13 14 17 10 8 13 10 4 9 71 9 12 96 57 15 58 106 15 104 11 10 4 14 128 169 57 96 170 17 15
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
L=957 		1-37123-847-0 01 1 9906-9906
1 SHAFT; PROP
MJD7S M/T(Y2Y) L=957 		1-37123-847-0 01 1 9907-
1 SHAFT; PROP
MAL6Q M/T(Y1M) L=1062 		1-37123-826-0 01 1 9907-
4 SHAFT; PROP
L=348 		1-37171-127-1 01 1 9906-
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 9906-
9 JOURNAL ASM; PROP SHAFT 1-37300-091-0 AR 1 9906-
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 9906-
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 9906-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 9906-
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 AR 1 9906-
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 AR 1 9906-
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 AR 1 9906-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 9906-
15 UNIVERSAL CENTER 1-37300-100-1 02 1 9906-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 		9-09031-110-0 AR 1 9906-
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9906-
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 9906-
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 9906-
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9906-
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 9906-
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 9906-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9906-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 9906-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9906-9906
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9907-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9907-
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 9906-
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 9906-
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 9906-
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 9906-
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 9906-
