Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#8295) — 94 parça

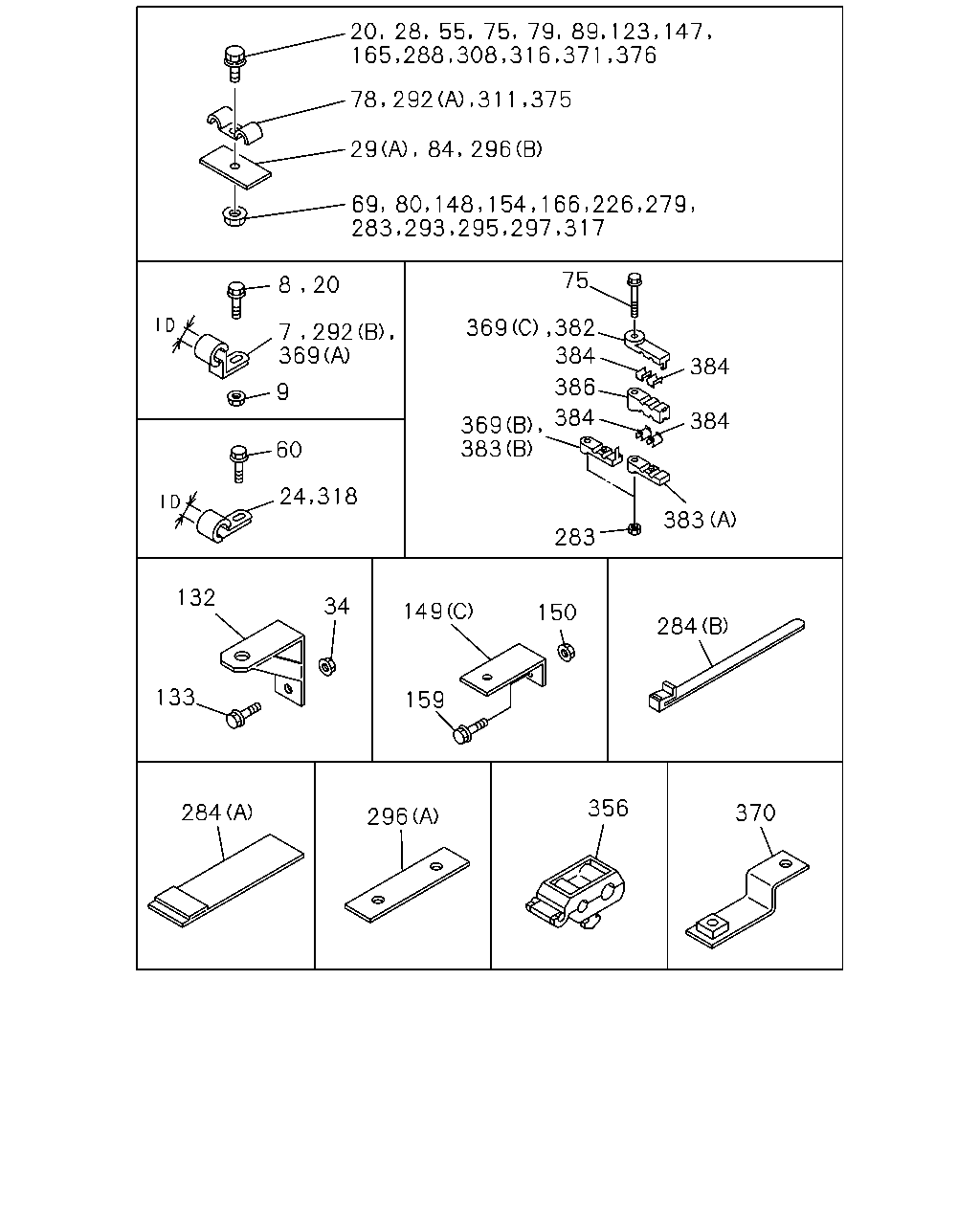

20 28 55 75 79 89 123 147 165 288 308 316 371 376 78 292 311 375 29 84 296 69 80 148 154 166 226 279 283 293 295 297 317 8 20 7 292 369 9 60 24 318 369 382 75 384 384 384 386 384 369 383 383 283 284 150 149 159 34 132 133 284 296 356 370

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	9906-
8	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	02	1	9906-
9	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9906-
20	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9906-
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9906-
24	CLIP; PIPE ID=16 L=20	9-09525-535-0	02	1	9906-
28	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28080-816-0	01	1	9906-
29	BRACKET; CLIP,AIR PIPE (A) L=50	1-47475-299-2	01	1	9906-
29	BRACKET; CLIP,AIR PIPE (B)	1-47477-104-0	01	1	9906-
34	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9906-
55	BOLT; PIPE CLIP M10X30 FLANGE	0-28681-030-0	02	1	9906-
60	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	9906-
69	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9906-
75	BOLT; CLIP M8X40 FLANGE	0-28080-840-0	01	1	9906-
75	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	02	1	9906-
75	BOLT; CLIP M8X70 FLANGE	0-28080-870-0	02	1	9906-
75	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9906-
78	CLIP; AIR PIPE ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9906-
78	CLIP; AIR PIPE ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
78	CLIP; AIR PIPE ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9906-
79	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	03	1	9906-
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	03	1	9906-
84	BRACKET; PIPE CLIP L=50	1-47475-299-2	01	1	9906-
89	BOLT; PIPE CLIP M8X50 FLANGE	0-28080-850-0	01	1	9906-
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	01	1	9906-
123	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9906-
132	BRACKET; PIPE CLIP	1-47477-153-0	01	1	9906-
133	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9906-
147	BOLT; PIPE CLIP M8X60 FLANGE	0-28080-860-0	01	1	9906-
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28080-870-0	04	1	9906-
148	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9906-
149	BRACKET; PIPE CLIP (C) L=85	1-47476-758-0	01	1	9906-
149	BRACKET; PIPE CLIP (B)	1-47477-604-2	01	1	9906-
149	BRACKET; PIPE CLIP (A)	1-82699-304-0	01	1	9906-
150	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	9906-
154	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9906-
159	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	02	1	9906-
165	BOLT; PIPE CLIP M8X50 FLANGE	0-28080-850-0	01	1	9906-
166	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9906-
166	NUT; PIPE CLIP M10 FLANGE	0-91150-210-0	02	1	9906-
226	NUT; PIPE CLIP M10 FLANGE	0-91150-210-0	02	1	9906-
279	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9906-
283	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	9906-
284	CLIP; FLEX HOSE (A) L=175	1-09707-178-0	02	1	9906-
284	CLIP; FLEX HOSE (B) L=250	5-09707-030-1	02	1	9906-
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	02	1	9906-
292	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9906-
292	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9906-
293	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9906-
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9906-
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9906-
296	BRACKET; CLIP (A) L=85	1-47476-758-0	01	1	9906-
297	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9906-
308	BOLT; CLIP,AIR PIPE M8X50 FLANGE	0-28080-850-0	01	1	9906-
311	CLIP; AIR PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9906-
316	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9906-
317	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9906-
318	CLIP; AIR PIPE ID=7 L=20	9-09524-635-0	01	1	9906-
356	CLIP; AIR PIPE BLACK	8-94222-876-0	01	1	9906-
369	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9906-
369	CLIP; AIR PIPE (C) ID=10 & 10	1-09709-241-0	01	1	9906-
369	CLIP; AIR PIPE (B) ID=6 & 6	1-09709-244-0	01	1	9906-
370	BRACKET; PIPE CLIP	1-82699-304-0	01	1	9906-
371	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	01	1	9906-
375	CLIP; AIR PIPE ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9906-
376	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	9906-
382	CLIP; UPR ID=10 & 10	1-09709-241-0	11	1	9906-
383	CLIP; LWR (B) ID=10 & 10	1-09709-241-0	07	1	9906-
383	CLIP; LWR (A) ID=10 & 10	1-09709-243-0	04	1	9906-
384	COLLAR ID=6	1-47459-010-0	08	1	9906-
384	COLLAR ID=8	1-47459-011-0	06	1	9906-
386	CLIP; CENTER ID=10	1-09709-242-0	07	1	9906-

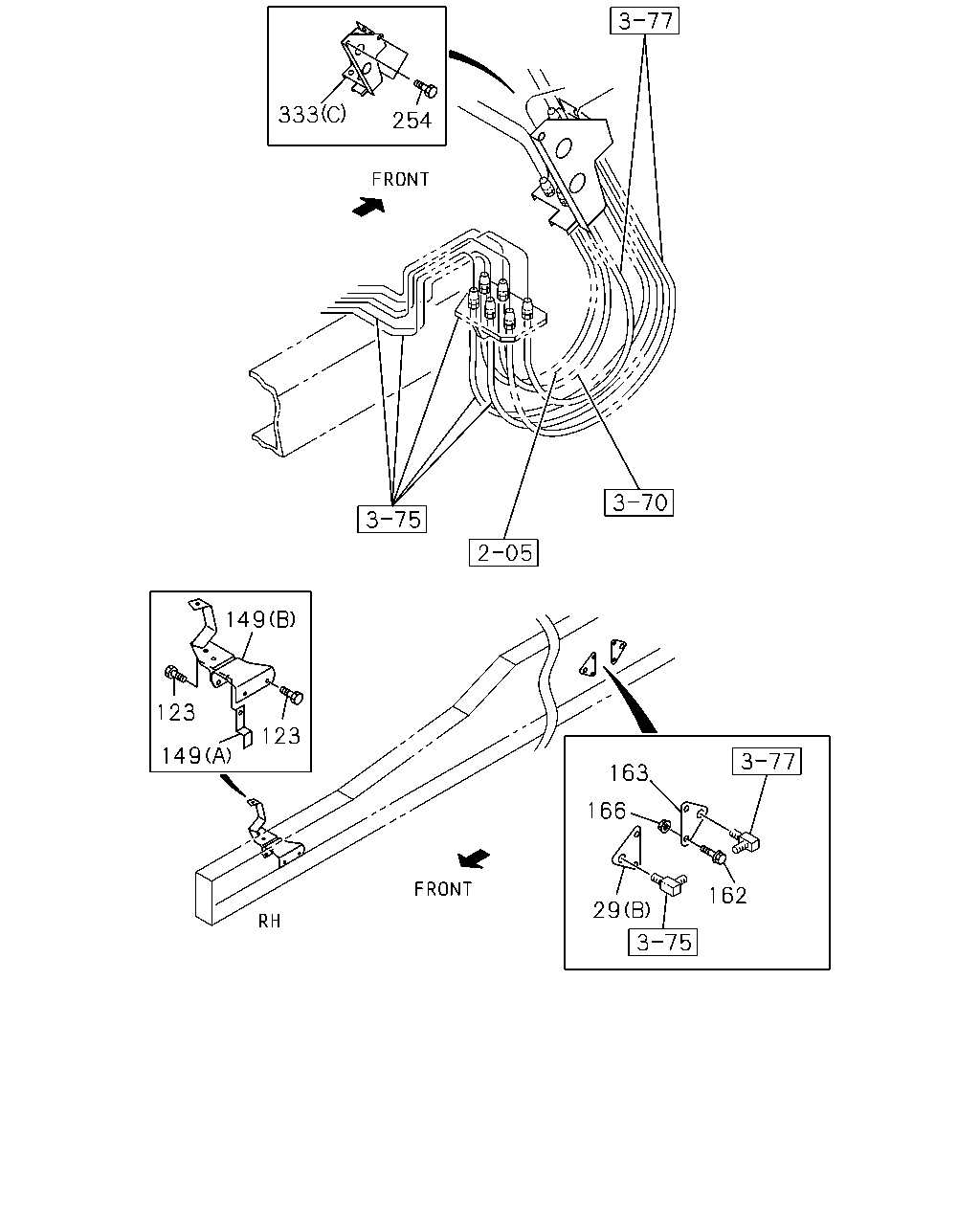

333 254 149 123 123 149 163 166 162 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	BRACKET; CLIP,AIR PIPE (A) L=50	1-47475-299-2	01	1	9906-
29	BRACKET; CLIP,AIR PIPE (B)	1-47477-104-0	01	1	9906-
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	01	1	9906-
123	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9906-
149	BRACKET; PIPE CLIP (C) L=85	1-47476-758-0	01	1	9906-
149	BRACKET; PIPE CLIP (B)	1-47477-604-2	01	1	9906-
149	BRACKET; PIPE CLIP (A)	1-82699-304-0	01	1	9906-
162	BOLT; PIPE CLIP M10X30 FLANGE	0-28681-030-0	02	1	9906-
163	BRACKET; PIPE CLIP	1-47477-104-0	01	1	9906-
166	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9906-
166	NUT; PIPE CLIP M10 FLANGE	0-91150-210-0	02	1	9906-
254	BOLT; PIPE CLIP M8X20 W/LK&PL WASHER	8-94279-208-0	03	1	9906-0204
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0205-
333	BRACKET; BRK AIR PIPE (B)	1-47477-337-1	01	1	9906-
333	BRACKET; BRK AIR PIPE (A)	1-47477-818-0	01	1	9906-
333	BRACKET; BRK AIR PIPE (C)	1-79997-339-6	01	1	9906-

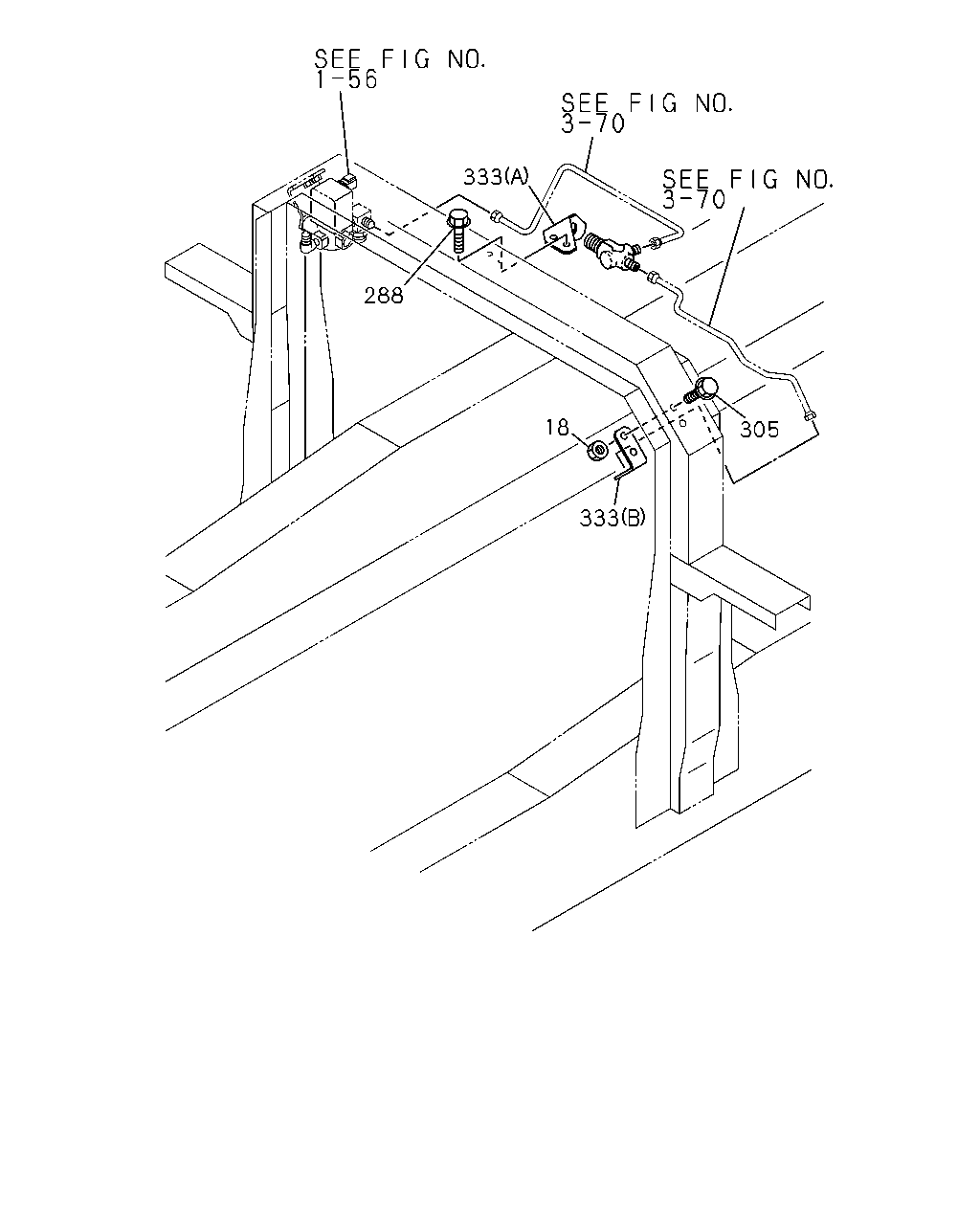

288 333 305 333 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9906-
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	02	1	9906-
305	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	02	1	9906-
333	BRACKET; BRK AIR PIPE (B)	1-47477-337-1	01	1	9906-
333	BRACKET; BRK AIR PIPE (A)	1-47477-818-0	01	1	9906-
333	BRACKET; BRK AIR PIPE (C)	1-79997-339-6	01	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
