3-77 — BRAKE PIPING; AIR,REAR (#8294) — 28 parça

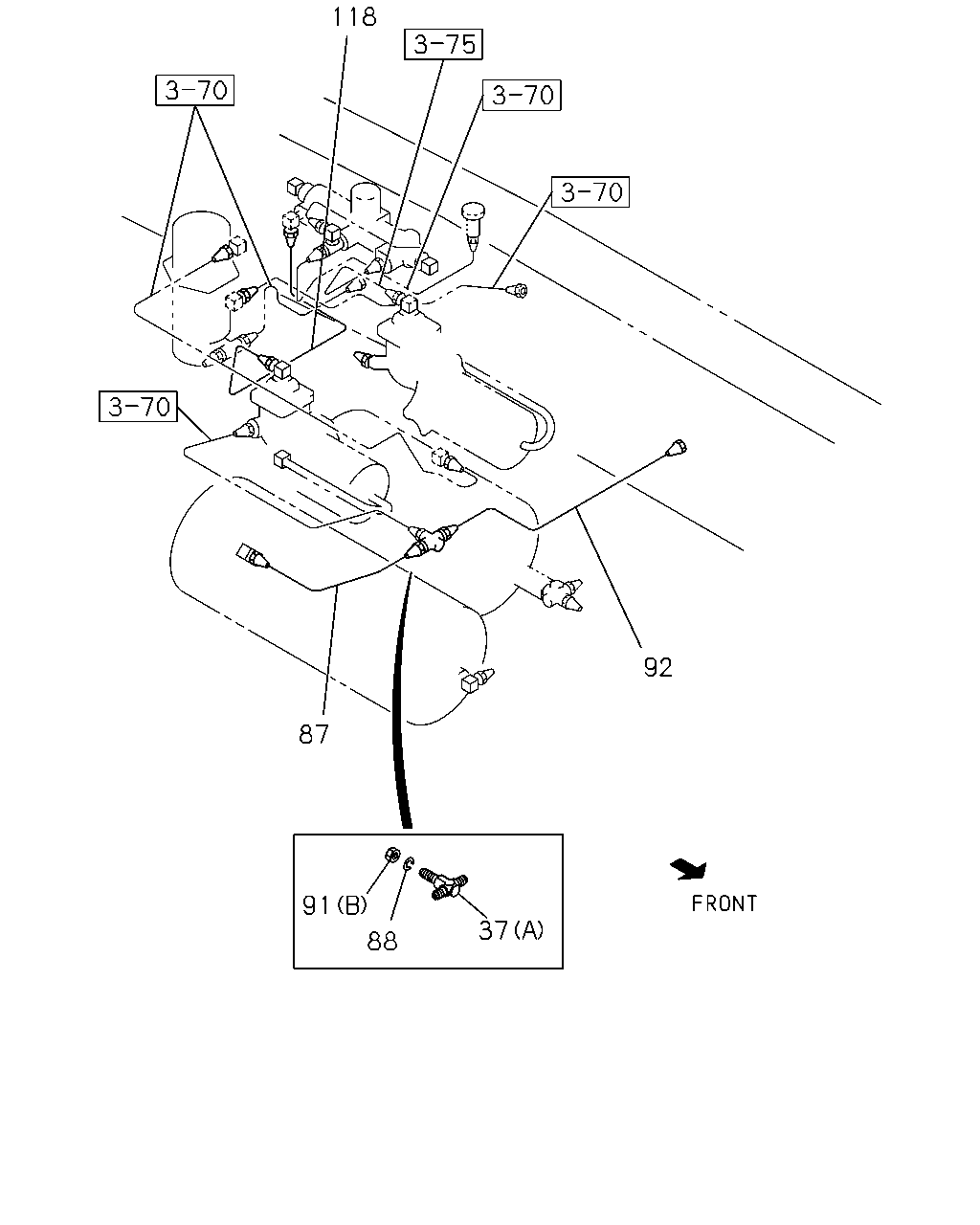

çizim 7212
118 92 87 91 37 88
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) M22 		1-09656-099-1 01 1 9906-
37 UNION; AIR PIPE
(B) M16 L=42 		9-09233-010-1 01 1 9906-
37 UNION; AIR PIPE
(C) M16 ELBOW 		9-09235-210-1 01 1 9906-
87 PIPE; AIR,AIR TANK TO UNION
L=333 		1-49121-411-0 01 1 9906-
88 WASHER; LK,PIPE UNION
ID=22.5 		9-09150-522-0 01 1 9906-
91 NUT; PIPE UNION
(B) M22 		9-09111-422-0 01 1 9906-
91 NUT; PIPE UNION
(A) M16 		9-99111-416-0 02 1 9906-
92 PIPE; AIR,UNION TO UNION
L=528 		1-49121-418-0 01 1 9906-
118 PIPE; AIR,UNION TO AIR MASTER 1-49113-575-0 01 1 9906-
çizim 44542
206 1 101 59 1 206 7 7 6 6 8 8 8 8 59 101 7 6 8
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,FLEX HOSE TO BRK VLV
L=445 		1-49121-467-0 01 1 9906-
6 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 04 1 9906-
7 NUT; FLEX HOSE
M16 		9-99111-416-0 04 1 9906-
8 HOSE; FLEX,AIR,CAB SIDE
L=500 		0-07424-500-0 01 1 9906-
8 HOSE; FLEX,AIR,CAB SIDE
L=780 		0-07424-780-0 01 1 9906-
59 PIPE; AIR,UNION TO FLEX HOSE
L=2457 		1-49121-439-0 01 1 9906-
101 PIPE; AIR,FLEX HOSE TO UNION
L=2577 		1-49112-883-0 01 1 9906-
206 PIPE; AIR,BRK VLV TO FLEX HOSE
L=518 		1-47494-214-4 01 1 9906-

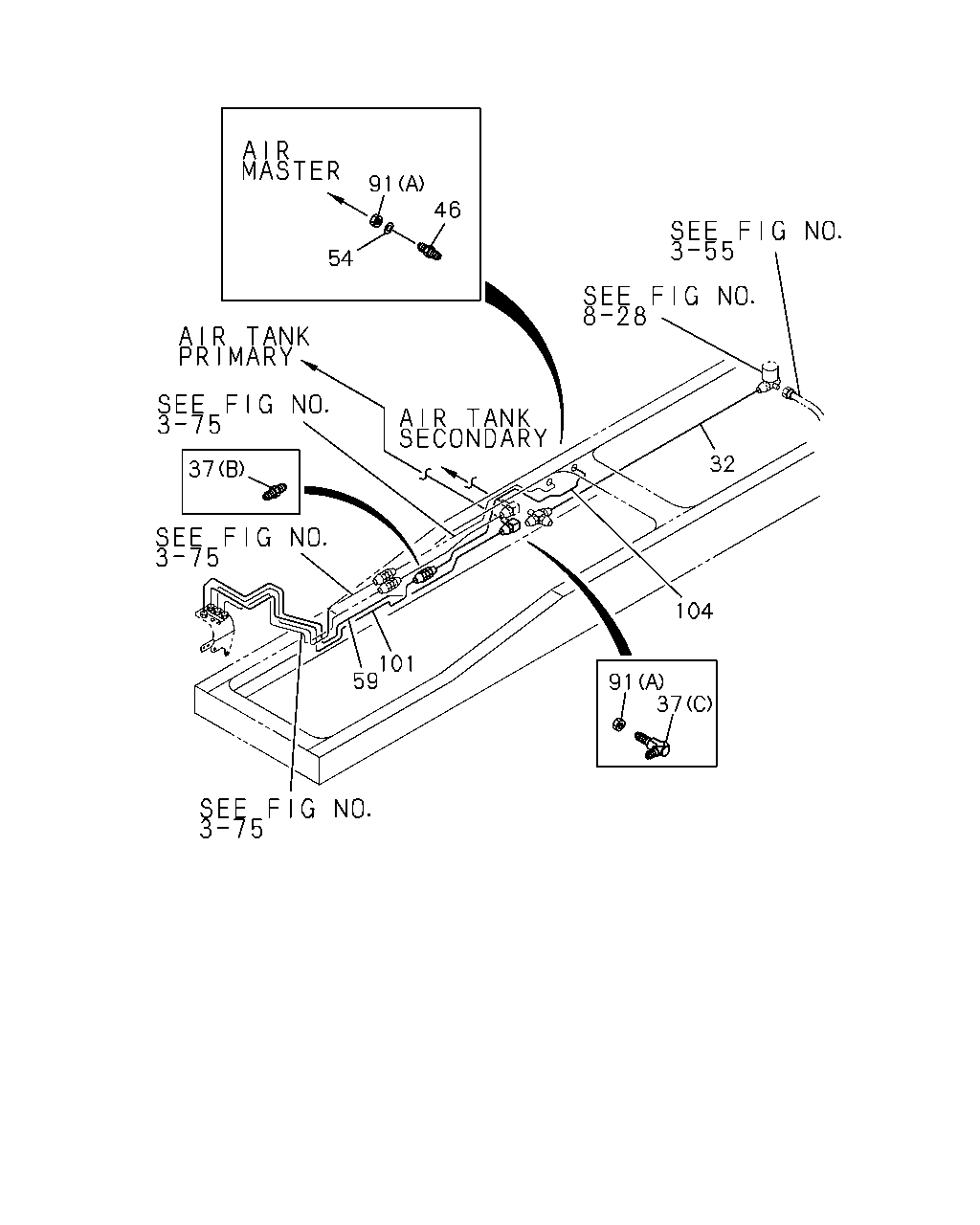

çizim 46036
91 54 46 32 104 91 37 101 59 37
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; AIR,UNION TO MAG VLV,DIFF LOCK
L=801 SERVICED BY L=800 		1-47428-812-0 01 1 9906-
37 UNION; AIR PIPE
(A) M22 		1-09656-099-1 01 1 9906-
37 UNION; AIR PIPE
(B) M16 L=42 		9-09233-010-1 01 1 9906-
37 UNION; AIR PIPE
(C) M16 ELBOW 		9-09235-210-1 01 1 9906-
46 NIPPLE; AIR PIPE
M16 L=74 		9-09233-310-1 01 1 9906-
54 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 01 1 9906-
59 PIPE; AIR,UNION TO FLEX HOSE
L=2457 		1-49121-439-0 01 1 9906-
91 NUT; PIPE UNION
(B) M22 		9-09111-422-0 01 1 9906-
91 NUT; PIPE UNION
(A) M16 		9-99111-416-0 02 1 9906-
101 PIPE; AIR,FLEX HOSE TO UNION
L=2577 		1-49112-883-0 01 1 9906-
104 PIPE; AIR,UNION TO UNION
L=979 SERVICED BY L=1000 		1-47428-874-0 01 1 9906-
