3-70 — BRAKE PIPING; AIR,AIR MASTER (#8292) — 127 parça

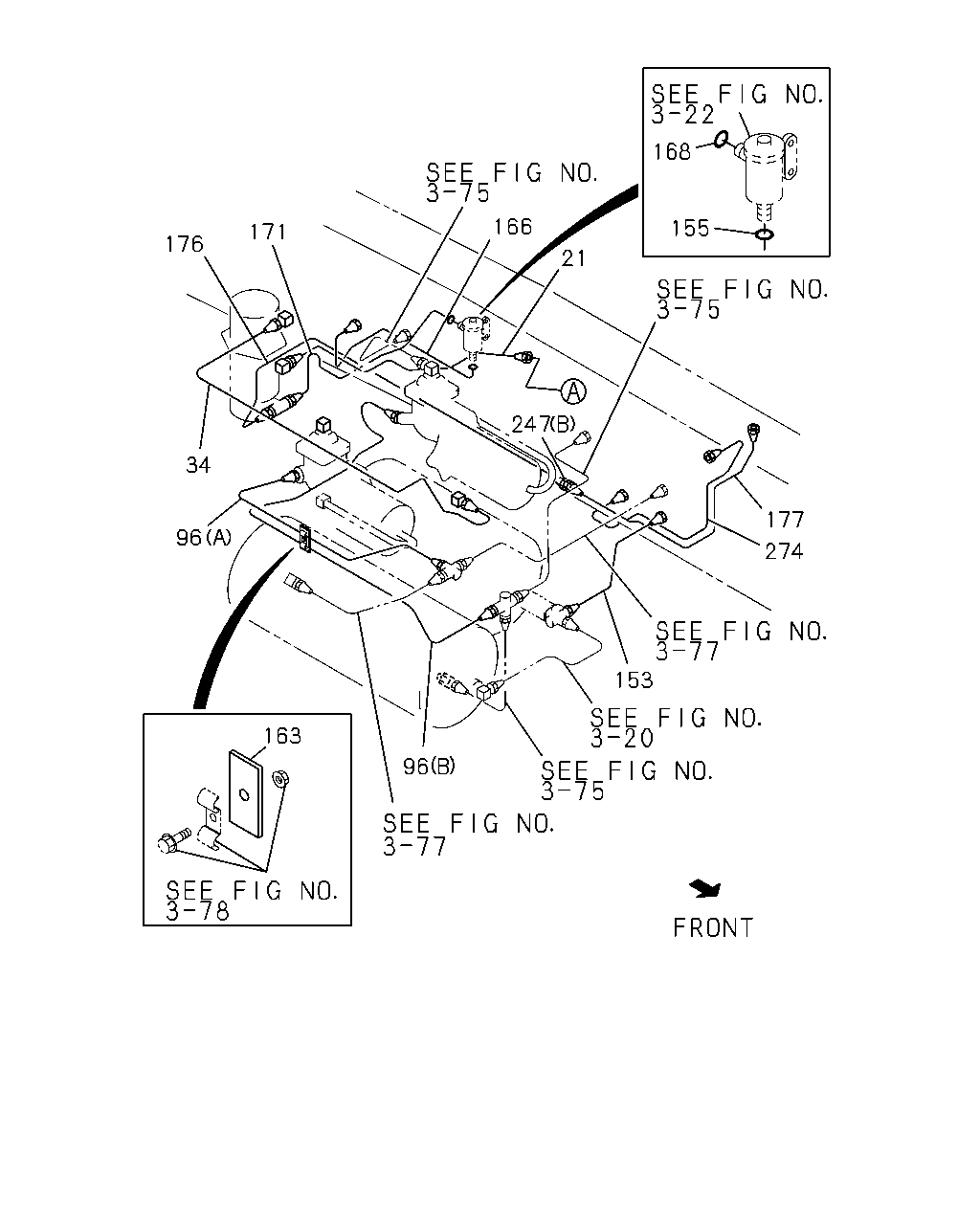

çizim 10125
168 155 21 166 171 176 34 96 163 96 153 274 177 247
BalonParca AdiParca NoAdetTipApplied Date
21 PIPE; AIR,UNION TO AIR DRYER 1-49112-867-0 01 1 9906-
34 PIPE; AIR
L=1065 		1-49121-551-0 01 1 9906-
96 PIPE; AIR,UNION TO AIR MASTER
(A) 		1-49112-154-1 01 1 9906-
96 PIPE; AIR,UNION TO AIR MASTER
(B) 		1-49116-147-1 01 1 9906-
153 PIPE; AIR,AIR TANK TO UNION
L=360 SERVICED BY L=400 		1-49115-476-0 01 1 9906-
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 01 1 9906-
163 BRACKET; AIR PIPE
L=50 		1-47475-299-2 02 1 9906-
166 PIPE; AIR,UNION TO GOV 1-49116-178-0 01 1 9906-
168 GASKET; AIR PIPE,GOV
ID=11 OD=18 		9-09572-510-0 01 1 9906-
171 PIPE; AIR,GOV TO AIR DRYER 1-49116-214-0 01 1 9906-
176 PIPE; AIR,AIR DRYER TO UNION 1-49113-989-0 01 1 9906-
177 PIPE; AIR,UNION TO UNION 1-49113-982-0 01 1 9906-
247 UNION; AIR PIPE
(A) M12 		1-09654-087-1 01 1 9906-
247 UNION; AIR PIPE
(B) M12 L=40 		9-09223-006-1 01 1 9906-
274 PIPE; AIR UNION TO UNION
L=995 		1-49112-555-0 01 1 9906-

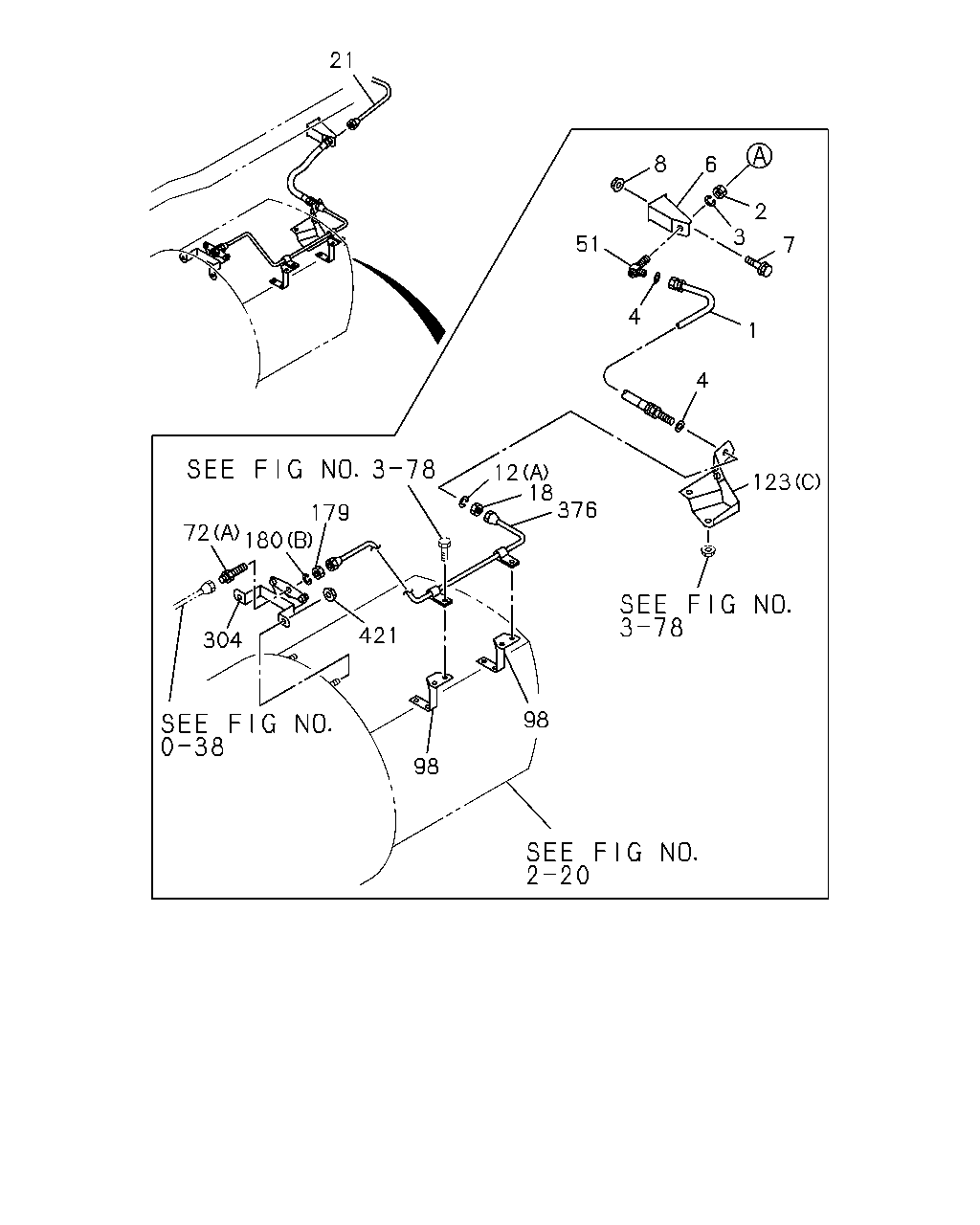

çizim 43376
21 8 6 7 3 2 1 4 51 4 123 376 18 12 421 98 98 179 180 72 304
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=610 		0-07816-610-1 01 1 9906-
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9906-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9906-
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9906-
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-198-1 01 1 9906-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9906-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 9906-
12 NUT; UNION
(A) M22 		9-09111-422-0 01 1 9906-
12 NUT; UNION
(B) M12 		9-09840-280-0 01 1 9906-
18 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 9906-
21 PIPE; AIR,UNION TO AIR DRYER 1-49112-867-0 01 1 9906-
51 UNION 1-48320-024-2 01 1 9906-
72 UNION; AIR PIPE
(A) 		1-09654-097-1 01 1 9906-
72 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 9906-
98 BRACKET; AIR PIPE 1-47477-840-0 02 1 9906-
123 BRACKET; UNION
(A) 		1-47475-222-5 01 1 9906-
123 BRACKET; UNION
(B) 		1-47477-045-0 01 1 9906-
123 BRACKET; UNION
(C) 		1-47477-879-0 01 1 9906-0005
123 BRACKET; UNION
EXC. ENGINE REAR PTO(SV1) (C) 		1-47477-879-1 01 1 0006-
123 BRACKET; UNION
ENGINE REAR PTO(SV1) (C) 		1-47477-877-0 01 1 0006-
179 NUT; UNION
M22 		9-09111-422-0 01 1 9906-
180 WASHER; LK,UNION
(A) ID=12.2 		9-09150-512-0 01 1 9906-
180 WASHER; LK,UNION
(B) ID=22.5 		9-09150-522-0 01 1 9906-
304 BRACKET; UNION 1-47477-182-1 01 1 9906-0005
304 BRACKET; UNION
EXC. ENGINE REAR PTO(SV1) 		1-47477-182-1 01 1 0006-
304 BRACKET; UNION
ENGINE REAR PTO(SV1) 		1-47477-184-1 01 1 0006-
376 PIPE; AIR,FLEX HOSE
L=741 		1-49112-563-0 01 1 9906-0005
376 PIPE; AIR,FLEX HOSE
EXC. ENGINE REAR PTO(SV1) L=741 		1-49112-563-0 01 1 0006-
376 PIPE; AIR,FLEX HOSE
ENGINE REAR PTO(SV1) L=623 		1-49112-571-0 01 1 0006-
421 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9906-

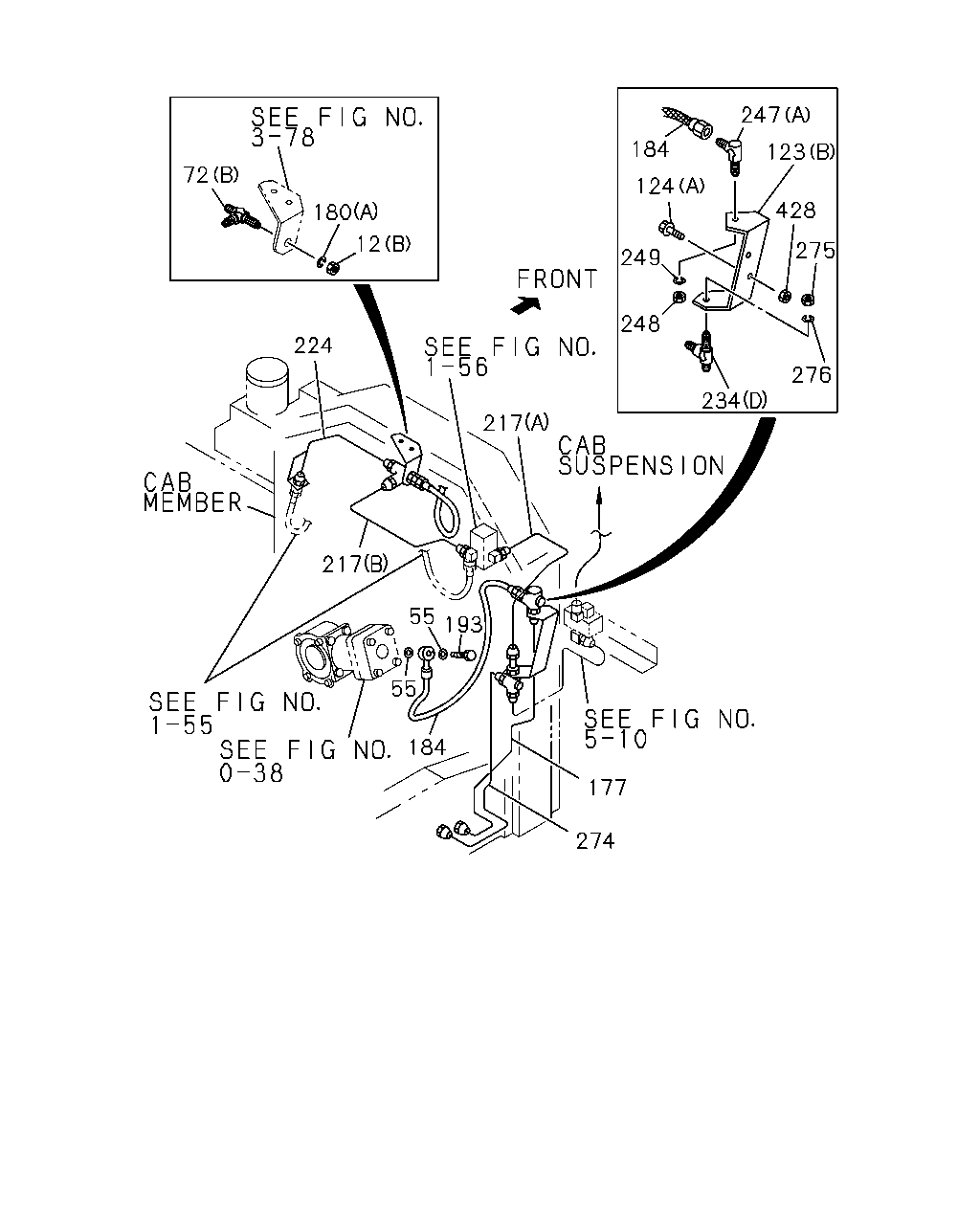

çizim 43520
276 275 428 123 247 124 184 249 248 217 234 217 224 12 180 72 55 55 193 184 177 274
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
(A) M22 		9-09111-422-0 01 1 9906-
12 NUT; UNION
(B) M12 		9-09840-280-0 01 1 9906-
55 GASKET; AIR PIPE
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9906-
72 UNION; AIR PIPE
(A) 		1-09654-097-1 01 1 9906-
72 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 9906-
123 BRACKET; UNION
(A) 		1-47475-222-5 01 1 9906-
123 BRACKET; UNION
(B) 		1-47477-045-0 01 1 9906-
123 BRACKET; UNION
(C) 		1-47477-879-0 01 1 9906-0005
123 BRACKET; UNION
EXC. ENGINE REAR PTO(SV1) (C) 		1-47477-879-1 01 1 0006-
123 BRACKET; UNION
ENGINE REAR PTO(SV1) (C) 		1-47477-877-0 01 1 0006-
124 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9906-
124 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9906-
177 PIPE; AIR,UNION TO UNION 1-49113-982-0 01 1 9906-
180 WASHER; LK,UNION
(A) ID=12.2 		9-09150-512-0 01 1 9906-
180 WASHER; LK,UNION
(B) ID=22.5 		9-09150-522-0 01 1 9906-
184 HOSE; FLEX,AIR GOV
L=370 		0-07532-370-1 01 1 9906-
193 BOLT; EYE,FLEX HOSE,GOV LINE
M14X27 FLANGE 		1-09675-086-0 01 1 9906-
217 PIPE; VAC,UNION TO MAG VLV
(A) L=336 		1-47499-145-0 01 1 9906-
217 PIPE; VAC,UNION TO MAG VLV
(B) L=438 		1-49117-523-0 01 1 9906-
224 PIPE; AIR,UNION TO FLEX HOSE
L=416 		1-49117-522-0 01 1 9906-
234 UNION; AIR PIPE
(A) M12 2WAY 		1-09654-059-2 01 1 9906-
234 UNION; AIR PIPE
(B) 		1-09656-381-1 01 1 9906-
234 UNION; AIR PIPE
(E) M12 		9-09228-306-1 01 1 9906-
234 UNION; AIR PIPE
(F) M12 3WAY 		9-09228-606-1 01 1 9906-
234 UNION; AIR PIPE
(D) M12 3WAY 		9-09228-906-1 02 1 9906-
234 UNION; AIR PIPE
(C) M12 		9-09229-206-1 01 1 9906-
247 UNION; AIR PIPE
(A) M12 		1-09654-087-1 01 1 9906-
247 UNION; AIR PIPE
(B) M12 L=40 		9-09223-006-1 01 1 9906-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 9906-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 9906-
274 PIPE; AIR UNION TO UNION
L=995 		1-49112-555-0 01 1 9906-
275 NUT; UNION
M12 		9-09840-280-0 01 1 9906-
276 WASHER; LK UNION
ID=12.2 		9-09150-512-0 01 1 9906-
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9906-

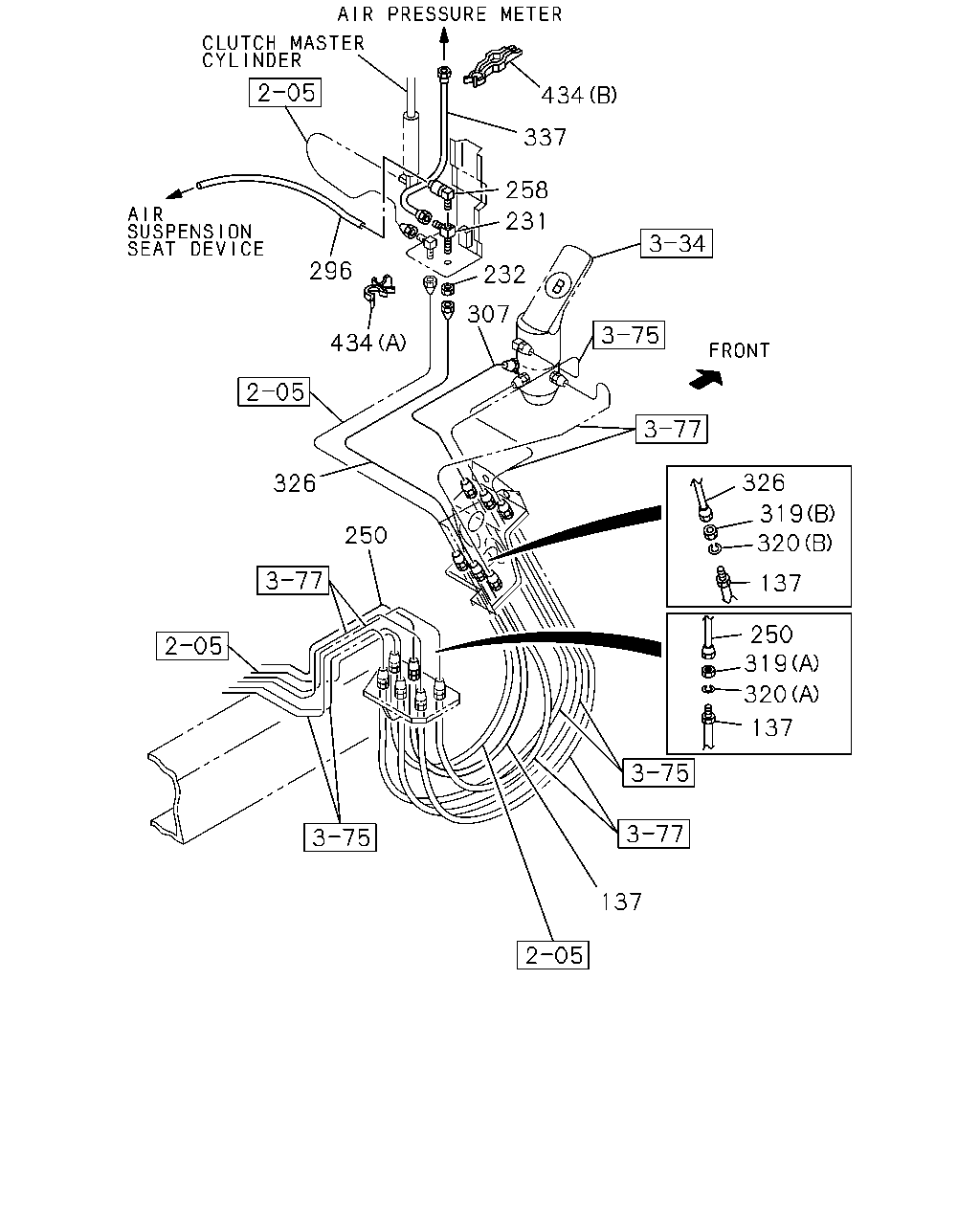

çizim 44175
434 337 258 231 296 232 307 434 326 326 319 320 250 137 250 319 320 137 137
BalonParca AdiParca NoAdetTipApplied Date
137 HOSE; FLEX,AIR PRESSURE GAGE
L=490 		0-07020-490-0 01 1 9906-
231 UNION; AIR PIPE 1-09656-682-0 01 1 9906-
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 9906-
250 PIPE; AIR,UNION TO FLEX HOSE
L=3030 		1-49117-389-0 01 1 9906-
258 CONNECTOR; NYLON TUBE
DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9906-0302
258 CONNECTOR; NYLON TUBE
TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9906-0001
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0002-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=361 		1-49121-466-0 01 1 9906-
319 NUT; FLEX HOSE,CAB SIDE
(A) M10 H=8 		1-09400-029-0 01 1 9906-
319 NUT; FLEX HOSE,CAB SIDE
(B) M12 		9-09840-280-0 01 1 9906-
320 WASHER; LK,FLEX HOSE,CAB SIDE
(A) ID=10 		1-09985-185-0 01 1 9906-
320 WASHER; LK,FLEX HOSE,CAB SIDE
(B) ID=12.2 		9-09150-512-0 01 1 9906-
326 PIPE; AIR,FLEX HOSE
L=529 		1-47494-216-3 01 1 9906-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=850 		0-07210-850-0 01 1 9906-
434 CLIP
(B) ID=17 		1-09987-105-1 01 1 9906-
434 CLIP
(A) 		8-94297-486-0 03 1 9906-

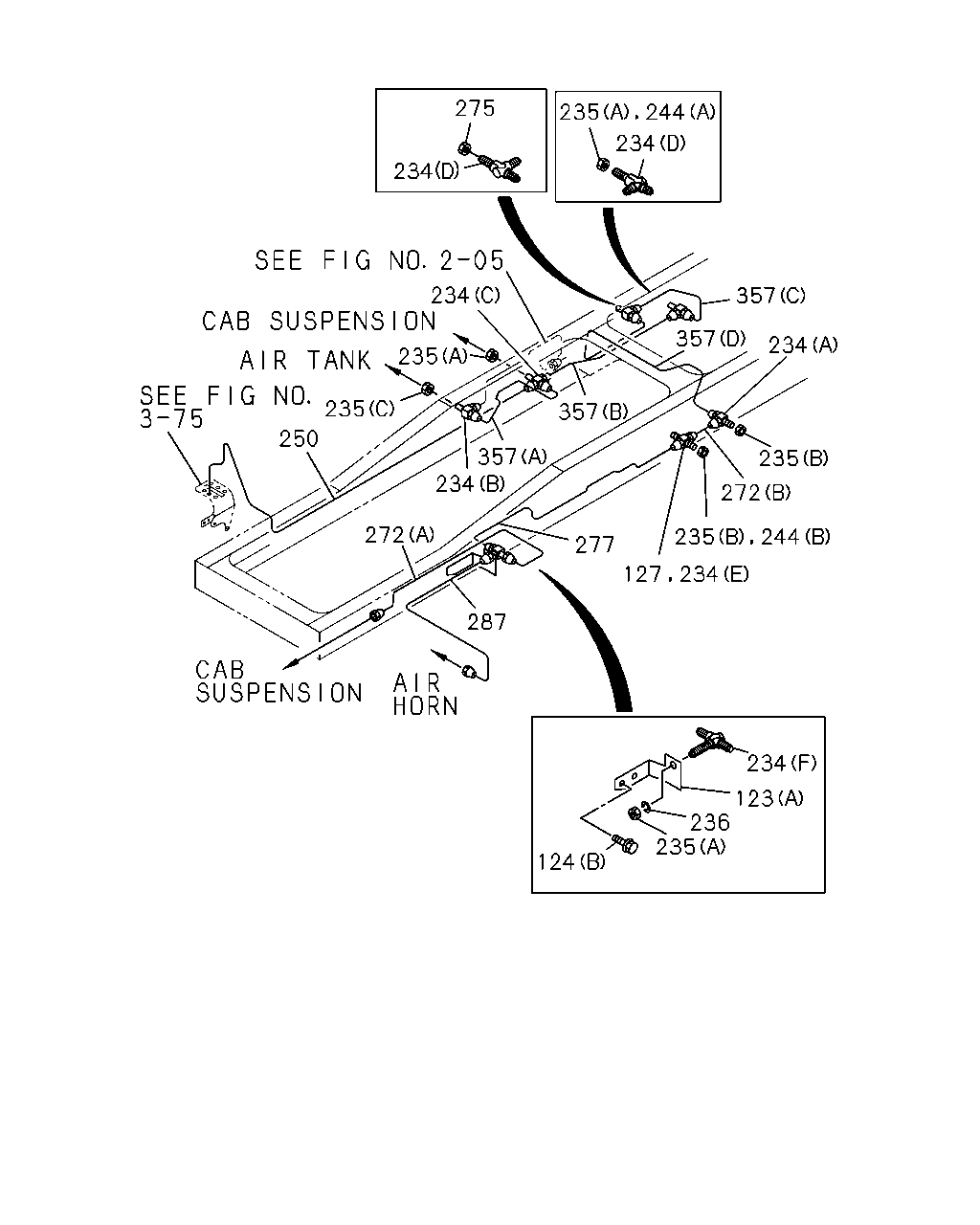

çizim 44196
275 234 235 244 234 357 234 357 357 357 234 272 250 235 235 234 287 277 235 244 272 235 127 234 124 235 234 123 236
BalonParca AdiParca NoAdetTipApplied Date
123 BRACKET; UNION
(A) 		1-47475-222-5 01 1 9906-
123 BRACKET; UNION
(B) 		1-47477-045-0 01 1 9906-
123 BRACKET; UNION
(C) 		1-47477-879-0 01 1 9906-0005
123 BRACKET; UNION
EXC. ENGINE REAR PTO(SV1) (C) 		1-47477-879-1 01 1 0006-
123 BRACKET; UNION
ENGINE REAR PTO(SV1) (C) 		1-47477-877-0 01 1 0006-
124 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9906-
124 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9906-
127 UNION; AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09228-306-1 01 1 9906-
127 UNION; AIR PIPE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 3WAY 		1-09654-137-2 01 1 9906-
234 UNION; AIR PIPE
(A) M12 2WAY 		1-09654-059-2 01 1 9906-
234 UNION; AIR PIPE
(B) 		1-09656-381-1 01 1 9906-
234 UNION; AIR PIPE
(E) M12 		9-09228-306-1 01 1 9906-
234 UNION; AIR PIPE
(F) M12 3WAY 		9-09228-606-1 01 1 9906-
234 UNION; AIR PIPE
(D) M12 3WAY 		9-09228-906-1 02 1 9906-
234 UNION; AIR PIPE
(C) M12 		9-09229-206-1 01 1 9906-
235 NUT; PIPE UNION
(A) M12 		9-09840-280-0 02 1 9906-
235 NUT; PIPE UNION
(B) M12 		9-99111-412-0 02 1 9906-
235 NUT; PIPE UNION
(C) M20 		9-99111-420-0 01 1 9906-
236 WASHER; LK,UNION,PIPE
ID=12.2 		9-09150-512-0 01 1 9906-
244 NUT; UNION,AIR PIPE
(A) M12 		9-09840-280-0 01 1 9906-
244 NUT; UNION,AIR PIPE
(B) M12 		9-99111-412-0 01 1 9906-
250 PIPE; AIR,UNION TO FLEX HOSE
L=3030 		1-49117-389-0 01 1 9906-
272 PIPE; AIR,MAG VLV TO UNION
(B) L=682 SERVICED BY L=700 		1-47428-811-0 01 1 9906-
272 PIPE; AIR,MAG VLV TO UNION
(A) L=919 		1-49117-607-0 01 1 9906-
275 NUT; UNION
M12 		9-09840-280-0 01 1 9906-
277 PIPE ASM; AIR,UNION TO UNION
L=1684 		1-49117-407-0 01 1 9906-
287 PIPE; AIR,MAG VLV
L=781 		1-49117-483-0 01 1 9906-
357 PIPE; AIR,UNION TO UNION
(A) L=426 SERVICED BY L=460 		1-47428-806-0 01 1 9906-
357 PIPE; AIR,UNION TO UNION
(B) L=973 SERVICED BY L=1000 		1-47428-814-0 01 1 9906-
357 PIPE; AIR,UNION TO UNION
(C) L=424 		1-49112-934-0 01 1 9906-
357 PIPE; AIR,UNION TO UNION
(D) 		1-49116-643-0 01 1 9906-
