Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10819 - CXZ RHD SINGAPORE
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#8288) — 36 parça
◀

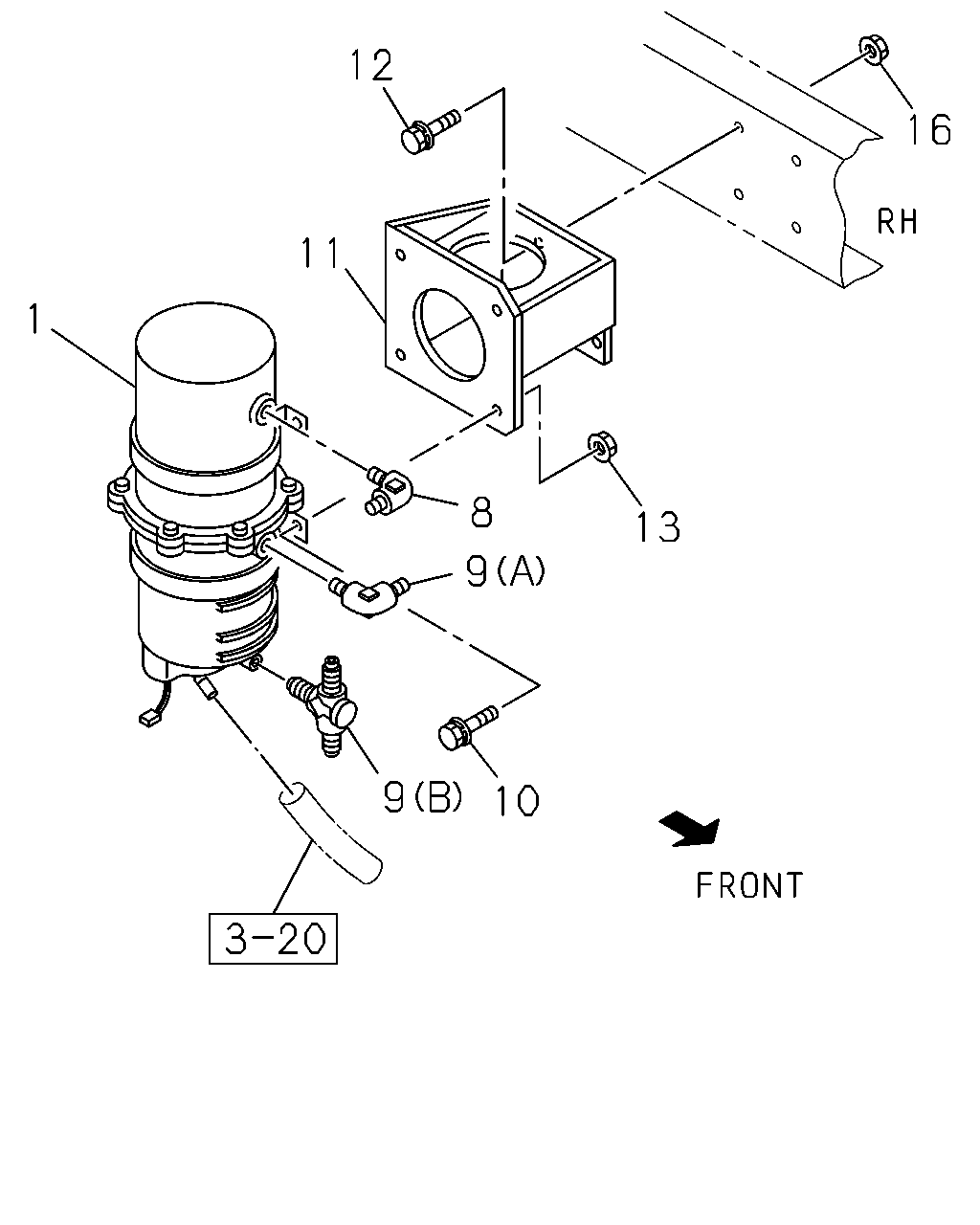

[346A] FIXING;BRACKET AND CONNECTOR (9 parça)
[346A] REPAIR KIT AND PISTON KIT (4 parça)
[346A] COMPONENT (23 parça)
▶
12
16
11
1
8
13
9
9
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-168-1
01
1
9906-
8
CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW
1-09650-443-0
01
1
9906-
9
CONNECTOR; PIPE,AIR DRYER
(A) M22 & PT1/2 ELBOW
1-09650-444-0
01
1
9906-
9
CONNECTOR; PIPE,AIR DRYER
(B) M12X2 & PT1/4 3WAY
1-09656-229-1
01
1
9906-
10
BOLT; AIR DRYER
M10X25 FLANGE
0-28681-025-0
04
1
9906-
11
BRACKET; AIR DRYER
1-48317-713-0
01
1
9906-
12
BOLT; BRKT
M10X35 FLANGE
0-28681-035-0
04
1
9906-
13
NUT; AIR DRYER
M10 FLANGE
0-91150-210-0
04
1
9906-
16
NUT; BRKT
M10 FLANGE
0-91150-210-0
04
1
9906-

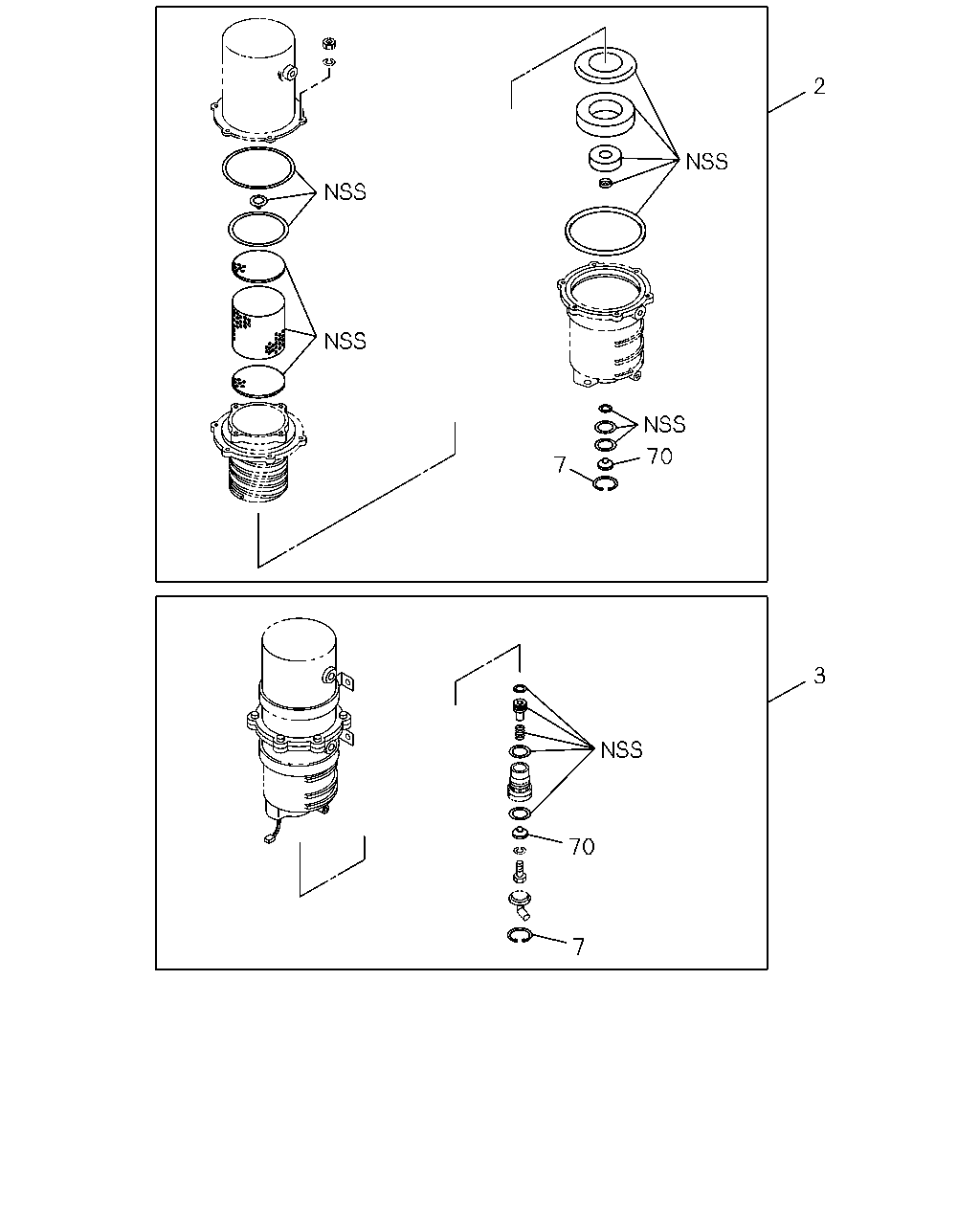

2
70
7
3
70
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-161-0
01
1
9906-
3
PISTON KIT; AIR DRYER
1-85576-084-0
01
1
9906-
7
RING; SNAP,AIR DRYER
1-48199-100-0
01
1
9906-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
9906-

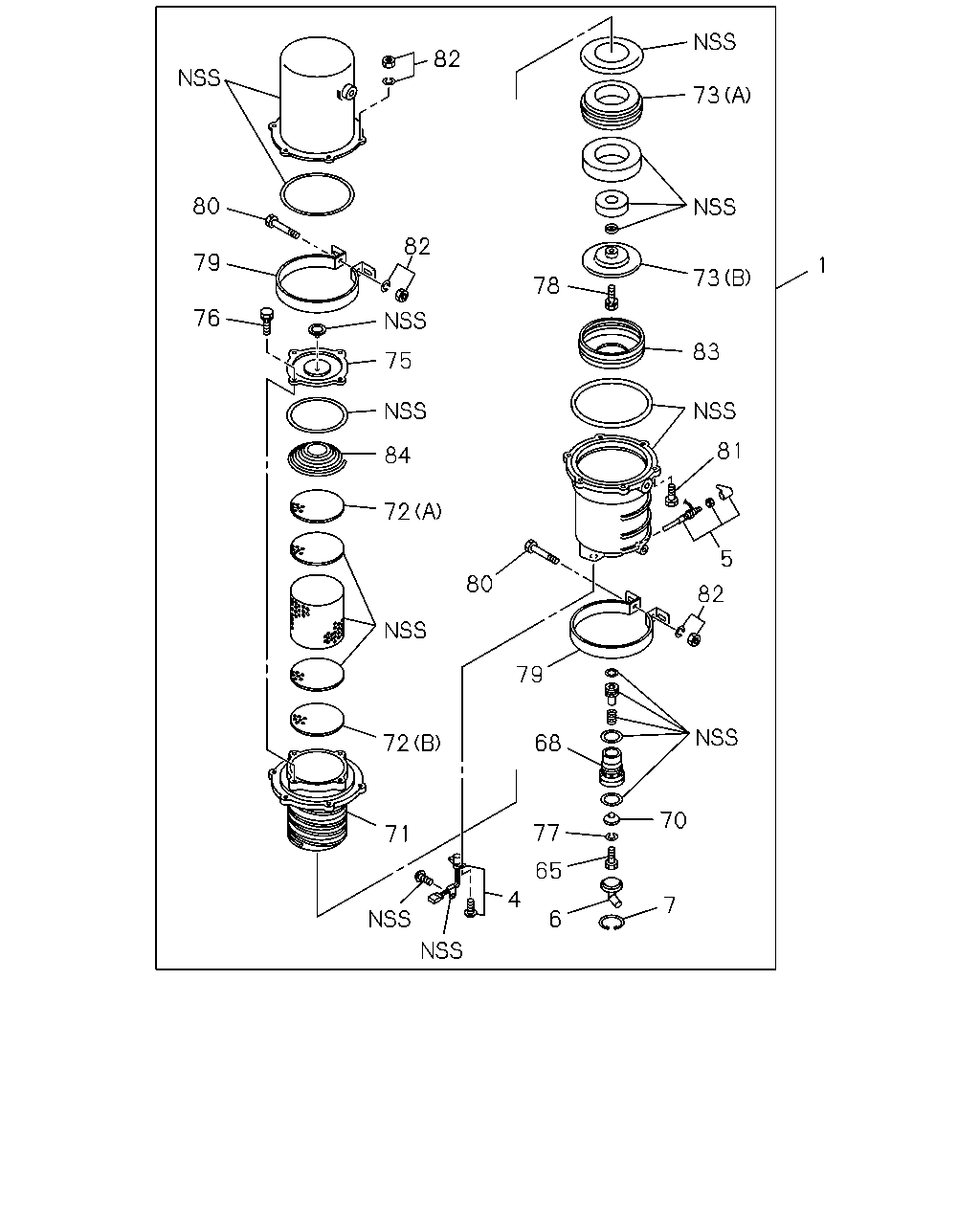

82
73
80
82
79
1
73
78
76
83
75
81
84
72
5
80
82
79
72
68
70
77
71
65
4
7
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-168-1
01
1
9906-
4
THERMOSTAT KIT; AIR DRYER
1-85576-121-0
01
1
9906-
5
HEATER ASM; AIR DRYER
1-48199-200-0
01
1
9906-
6
COVER; EXH,AIR DRYER
1-48199-132-0
01
1
9906-
7
RING; SNAP,AIR DRYER
1-48199-100-0
01
1
9906-
65
BOLT; PURGE VLV
1-48199-102-0
01
1
9906-
68
BODY; VALVE
1-48199-216-0
01
1
9906-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
9906-
71
CASE; INNER,AIR DRYER
1-48199-374-0
01
1
9906-
72
PLATE; FILTER,AIR DRYER
(A)
1-48199-097-0
01
1
9906-
72
PLATE; FILTER,AIR DRYER
(B)
1-48199-382-0
01
1
9906-
73
COVER; FILTER,AIR DRYER
(A)
1-48199-377-0
01
1
9906-
73
COVER; FILTER,AIR DRYER
(B)
1-48199-379-0
01
1
9906-
75
COVER; CASE,AIR DRYER
1-48199-383-0
01
1
9906-
76
BOLT; COVER,AIR DRYER
1-48199-385-0
04
1
9906-
77
WASHER; LK,VALVE
1-48199-103-0
01
1
9906-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-380-0
01
1
9906-
79
BRACKET; AIR DRYER
1-48199-209-0
02
1
9906-
80
BOLT; BRKT
1-48199-212-0
02
1
9906-
81
BOLT; CASE,AIR DRYER
1-48199-208-0
06
1
9906-
82
NUT; CASE,AIR DRYER
1-48199-320-0
08
1
9906-
83
BAFFLE; AIR DRYER
1-48199-381-0
01
1
9906-
84
SPRING; AIR DRYER
1-48199-092-0
01
1
9906-
