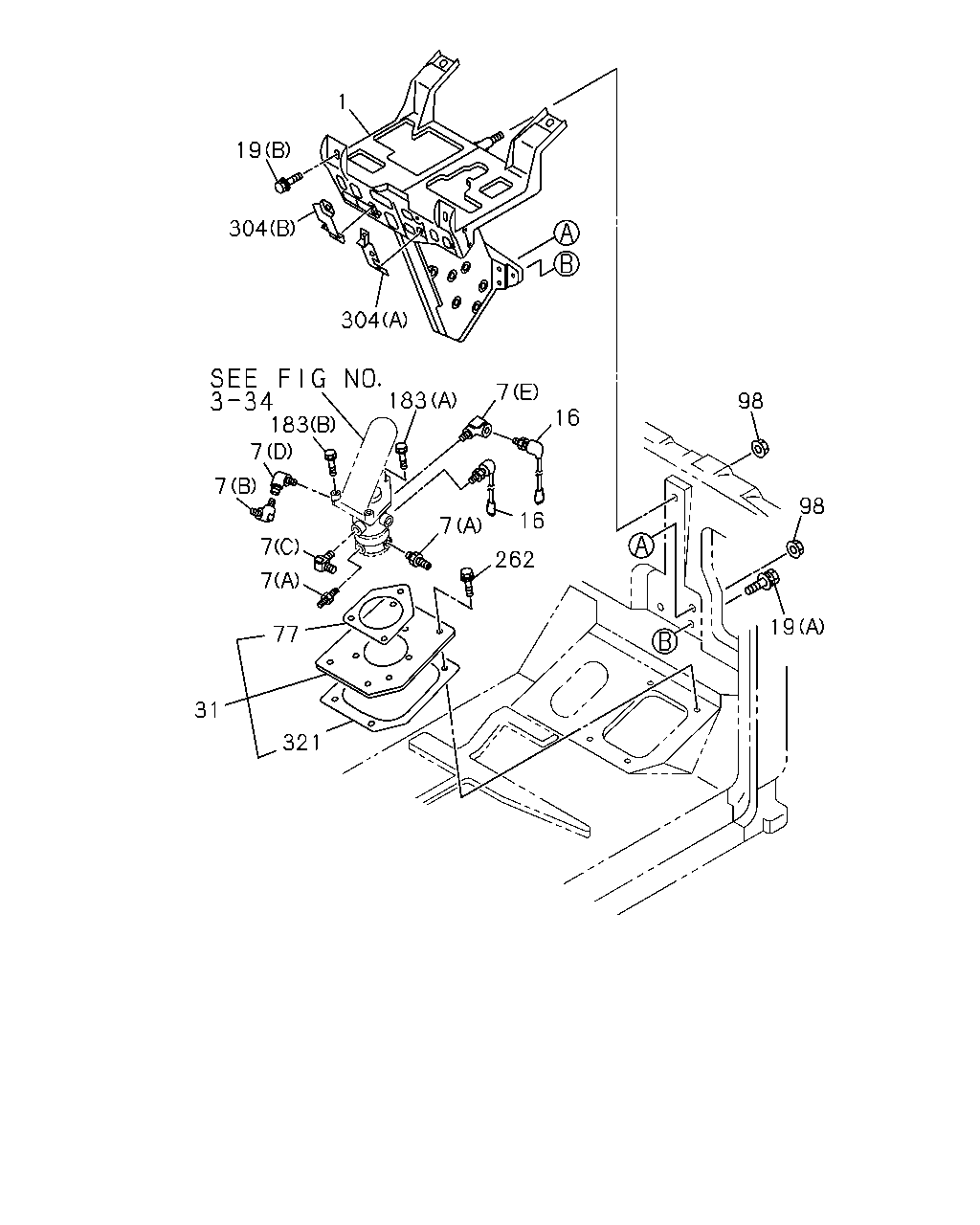

3-10 — BRAKE PEDAL AND CONTROL
(#8282) — 18 parça
1
19
304
304
183
7
183
16
16
262
7
77
7
7
7
7
31
321
19
98
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
1-73908-191-6
01
1
9906-
7
CONNECTOR; BRK VALVE
(A) M16 & PT3/8 STRAIGHT
1-09650-179-1
02
1
9906-
7
CONNECTOR; BRK VALVE
(B) M16 & PT1/4 ELBOW
1-09650-434-0
01
1
9906-
7
CONNECTOR; BRK VALVE
(C) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
9906-
7
CONNECTOR; BRK VALVE
(D) M20 & PT3/8 ELBOW
1-09660-686-0
01
1
9906-
7
CONNECTOR; BRK VALVE
(E) PT1/4 2WAY
1-09660-693-0
01
1
9906-
16
SWITCH; STOP LAMP
GREEN
1-82410-176-0
02
1
9906-
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
9906-
19
BOLT; BRKT
(B) M8X20 W/LK&PL WASHER
8-94279-208-0
04
1
9906-
31
PLATE; MTG,BRKT VLV
1-73996-329-0
01
1
9906-
77
RUBBER; SEAL,BRK
1-73996-207-0
01
1
9906-
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
9906-
183
BOLT; BRK VLV
(A) M10X25 W/LK WASHER
1-09980-503-0
01
1
9906-
183
BOLT; BRK VLV
(B) M10X35 W/LK WASHER
1-09980-504-0
02
1
9906-
262
BOLT; PLATE
M8X20 W/LK&PL WASHER
8-94279-208-0
04
1
9906-
304
SUPPORT ASM; PEDAL BRKT
(A)
1-73996-341-1
01
1
9906-
304
SUPPORT ASM; PEDAL BRKT
(B)
1-73996-342-1
01
1
9906-
321
SEAL; VALVE
1-73996-143-0
01
1
9906-
