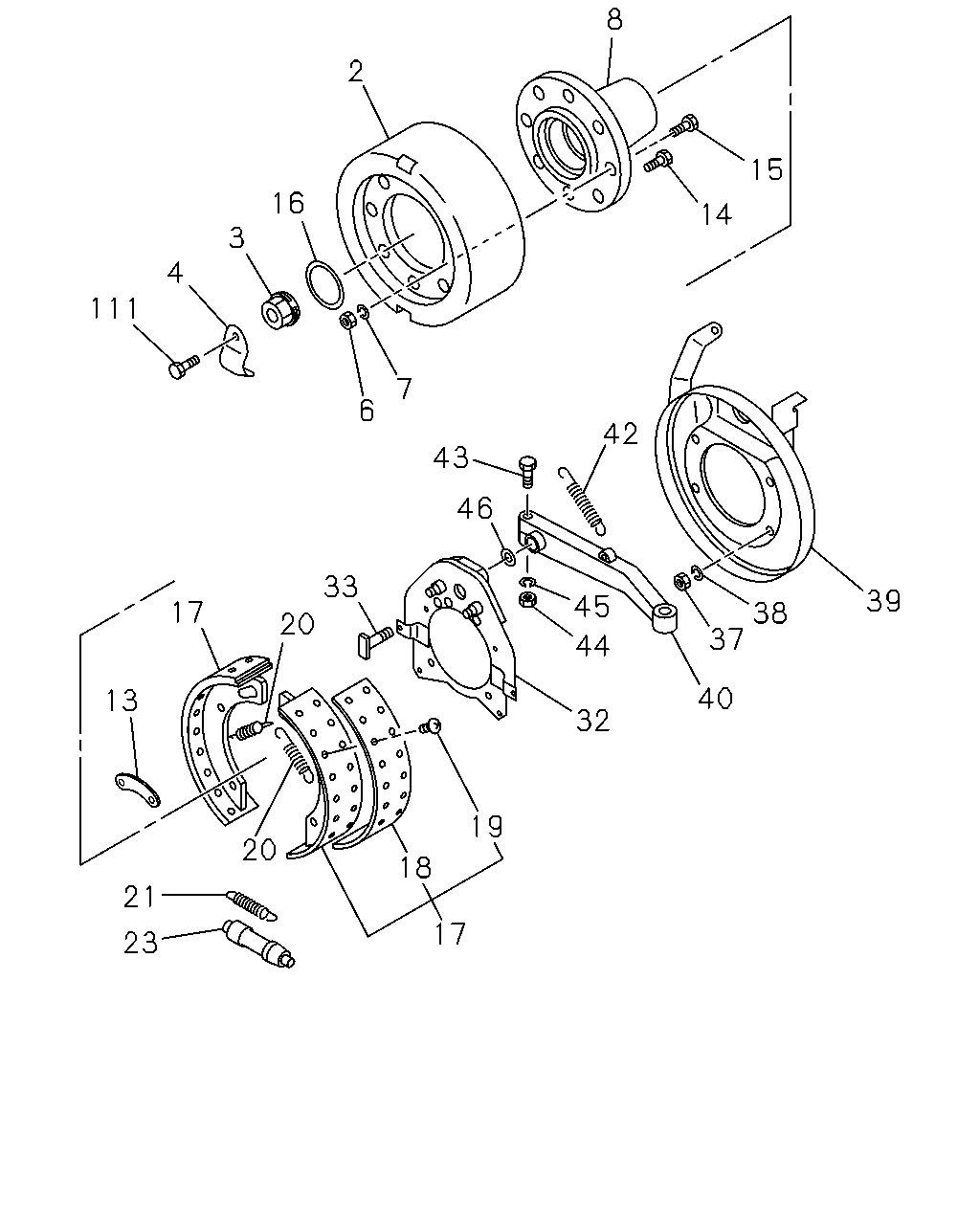

3-08 — PARKING BRAKE (#8281) — 62 parça

68 89 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
68	BOLT; BRKT,PARKING BRK CONT M10X22 FLANGE	0-28181-022-0	03	1	9906-9906	●
68	BOLT; BRKT,PARKING BRK CONT M10X22 FLANGE	0-28181-022-0	03	1	9907-	●	●
89	BRACKET; PARKING BRK CONT (B)	1-46147-198-1	01	1	9906-	●
89	BRACKET; PARKING BRK CONT (A)	1-46147-025-0	01	1	9907-9910		●
89	BRACKET; PARKING BRK CONT (A)	1-46147-295-0	01	1	9911-		●

8 2 15 16 14 3 4 111 7 6 42 43 46 33 39 45 17 38 37 20 44 40 13 32 19 20 18 21 17 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK	1-46211-026-1	01	1	9906-9906	●
2	DRUM; PARKING BRK	1-46211-026-1	01	1	9907-	●	●
3	NUT; LK M46	1-09449-062-0	01	1	9906-	●
3	NUT; LK M42	1-09449-061-0	01	1	9907-9908		●
3	NUT; LK M44	1-09449-076-0	01	1	9909-		●
4	COVER; ADJ HOLE	1-46219-019-0	02	1	9906-9906	●
4	COVER; ADJ HOLE	1-46219-019-0	02	1	9907-	●	●
6	NUT; FLANGE M16	9-99110-516-0	02	1	9906-9906	●
6	NUT; FLANGE M16	9-99110-516-0	02	1	9907-	●	●
7	WASHER; LK,FLANGE ID=16.2	9-09150-516-0	02	1	9906-9906	●
7	WASHER; LK,FLANGE ID=16.2	9-09150-516-0	02	1	9907-	●	●
8	FLANGE; PARKING BRK	1-37243-215-0	01	1	9906-	●
8	FLANGE; PARKING BRK	1-37243-213-0	01	1	9907-		●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	9906-9906	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	9907-	●	●
14	BOLT; DRUM TO FLANGE M16X38	1-46219-010-0	02	1	9906-9906	●
14	BOLT; DRUM TO FLANGE M16X38	1-46219-010-0	02	1	9907-	●	●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	9906-9906	●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	9907-	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	9906-	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9907-		●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	9906-9906	●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	9907-	●	●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	9906-9906	●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	9907-	●	●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	9906-9906	●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	9907-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	9906-9906	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	9907-	●	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	9906-9906	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	9907-	●	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	9906-9906	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	9907-	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-033-0	01	1	9906-9906	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-033-0	01	1	9907-	●	●
33	SHAFT; CAM,PARKING BRK	9-46251-069-0	01	1	9906-9906	●
33	SHAFT; CAM,PARKING BRK	9-46251-069-0	01	1	9907-	●	●
37	NUT; SUPPORT PLATE M16	9-99110-516-0	04	1	9906-9906	●
37	NUT; SUPPORT PLATE M16	9-99110-516-0	04	1	9907-	●	●
38	WASHER; LK,SUPPORT PLATE ID=16.2	9-09150-516-0	04	1	9906-9906	●
38	WASHER; LK,SUPPORT PLATE ID=16.2	9-09150-516-0	04	1	9907-	●	●
39	COVER; DUST,PARKING BRK	1-46213-066-1	01	1	9906-9906	●
39	COVER; DUST,PARKING BRK	1-46213-066-1	01	1	9907-	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-014-0	01	1	9906-9906	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-014-0	01	1	9907-	●	●
42	SPRING; RETURN,LEVER	1-09583-128-0	01	1	9906-9906	●
42	SPRING; RETURN,LEVER	1-09583-128-0	01	1	9907-	●	●
43	BOLT; LEVER TO CM/SHF	0-10811-045-0	01	1	9906-9906	●
43	BOLT; LEVER TO CM/SHF	0-10811-045-0	01	1	9907-	●	●
44	NUT; LEVER TO CM/SHF M10	9-09111-410-0	01	1	9906-9906	●
44	NUT; LEVER TO CM/SHF M10	9-09111-410-0	01	1	9907-	●	●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	9906-9906	●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	9907-	●	●
46	WASHER; LEVER	9-09855-362-0	01	1	9906-9906	●
46	WASHER; LEVER	9-09855-362-0	01	1	9907-	●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9906-9906	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9907-	●	●
