◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10626 - FTR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#828) — 30 parça

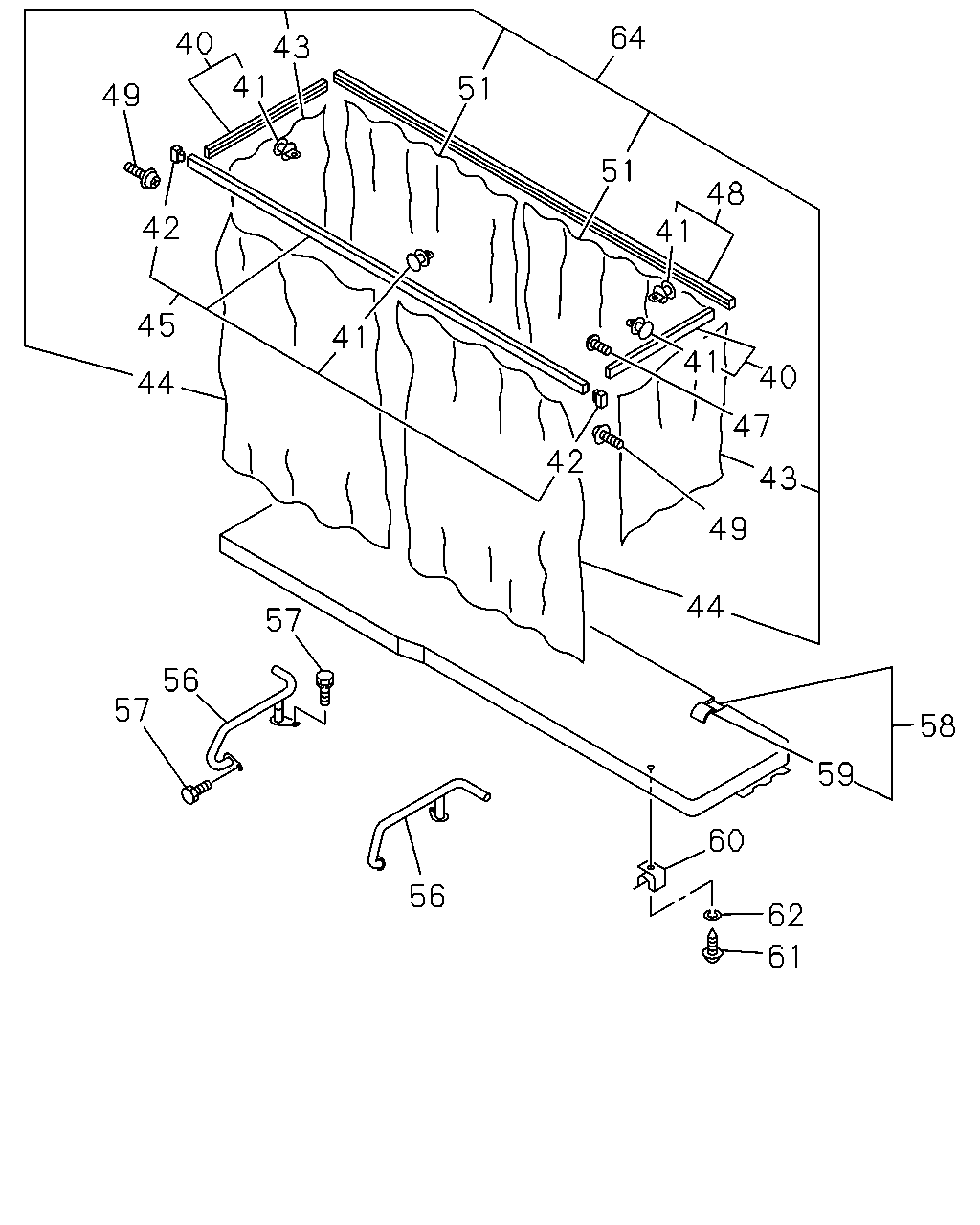

çizim 92219
64 40 43 41 51 49 51 48 42 41 45 41 41 40 44 47 42 43 49 44 57 56 57 58 59 60 56 62 61
BalonParca AdiParca NoAdetTipApplied Date A B
40 RAIL; CURTAIN,SIDE
CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> DELUXE CAB(W14) 		1-73998-863-0 02 1 9202- ● ●
40 RAIL; CURTAIN,SIDE
DELUXE CAB(W14) EXC. CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> 		1-73998-739-0 02 1 9202- ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> DELUXE CAB(W14) GRAY MATT FINISH 		1-73997-980-0 18 1 9202- ● ●
42 STOPPER; CURTAIN RAIL
DELUXE CAB(W14) DARK GRAY 		1-73998-787-0 01 1 9202- ● ●
42 STOPPER; CURTAIN RAIL
DELUXE CAB(W14) DARK GRAY 		1-73998-786-0 01 1 9202- ● ●
43 CURTAIN ASM; QUARTER WINDOW
CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> 		1-73997-991-0 01 1 9301- ● ●
43 CURTAIN ASM; QUARTER WINDOW
CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> 		1-73997-990-0 01 1 9301- ● ●
44 CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> 		1-73998-880-0 01 1 9301- ● ●
44 CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> 		1-73998-879-0 01 1 9301- ● ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> DELUXE CAB(W14) 		1-73998-862-0 01 1 9202- ● ●
45 RAIL; CURTAIN,FRT
DELUXE CAB(W14) EXC. CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> 		1-73998-738-0 01 1 9202- ● ●
47 SCREW; CURTAIN RAIL
DELUXE CAB(W14) M4X16 TAPPING 		1-09981-475-0 16 1 9202-9207 ● ●
47 SCREW; CURTAIN RAIL
DELUXE CAB(W14) M4X16 TAPPING 		1-09981-477-0 16 1 9208- ● ●
47 SCREW; CURTAIN RAIL
EXC. DELUXE CAB(W14) M4X16 TAPPING 		1-09981-475-0 03 1 9202-9207 ● ●
47 SCREW; CURTAIN RAIL
EXC. DELUXE CAB(W14) M4X16 TAPPING 		1-09981-477-0 03 1 9208- ● ●
48 RAIL; CURTAIN,BACK
CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> DELUXE CAB(W14) 		1-73998-864-0 01 1 9202- ● ●
48 RAIL; CURTAIN,BACK
DELUXE CAB(W14) EXC. CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> 		1-73998-740-0 01 1 9202- ● ●
49 HOOK; CURTAIN
DELUXE CAB(W14) M4X14 HOOK MALE 		1-09981-370-0 02 1 9202-9212 ● ●
49 HOOK; CURTAIN
DELUXE CAB(W14) CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> M4X14 HOOK MALE 		1-09981-370-0 02 1 9301- ● ●
51 CURTAIN; BACK
CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> 		1-73907-228-0 01 1 9301- ● ●
51 CURTAIN; BACK
CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> 		1-73907-227-0 01 1 9301- ● ●
56 STAND; BED
PASSENGER SEAT MULTI USED<WX9> 		1-75558-266-1 01 1 9202- ● ●
56 STAND; BED
PASSENGER SEAT MULTI USED<WX9> 		1-75558-265-1 01 1 9202- ● ●
57 BOLT; BED STAND
PASSENGER SEAT MULTI USED<WX9> 		1-09980-566-0 04 1 9202- ● ●
58 BED; MAT
PASSENGER SEAT MULTI USED<WX9> DARK GRAY 		1-75118-964-1 01 1 9202- ● ●
59 COVER ASM; TRIM,BED MAT
PASSENGER SEAT MULTI USED<WX9> 		1-75118-966-0 01 1 9202- ● ●
60 HOLDER
PASSENGER SEAT MULTI USED<WX9> 		1-75147-582-0 04 1 9202- ● ●
61 SCREW; ROD HOLDER FIX
PASSENGER SEAT MULTI USED<WX9> M6X16 		9-03490-616-0 14 1 9202- ● ●
62 WASHER; LK,ROD HOLDER
PASSENGER SEAT MULTI USED<WX9> ID=8.2 		9-09150-508-0 14 1 9202- ● ●
64 CURTAIN KIT
CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> 		1-73998-865-0 01 1 9202- ● ●
