Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#8278) — 451 parça

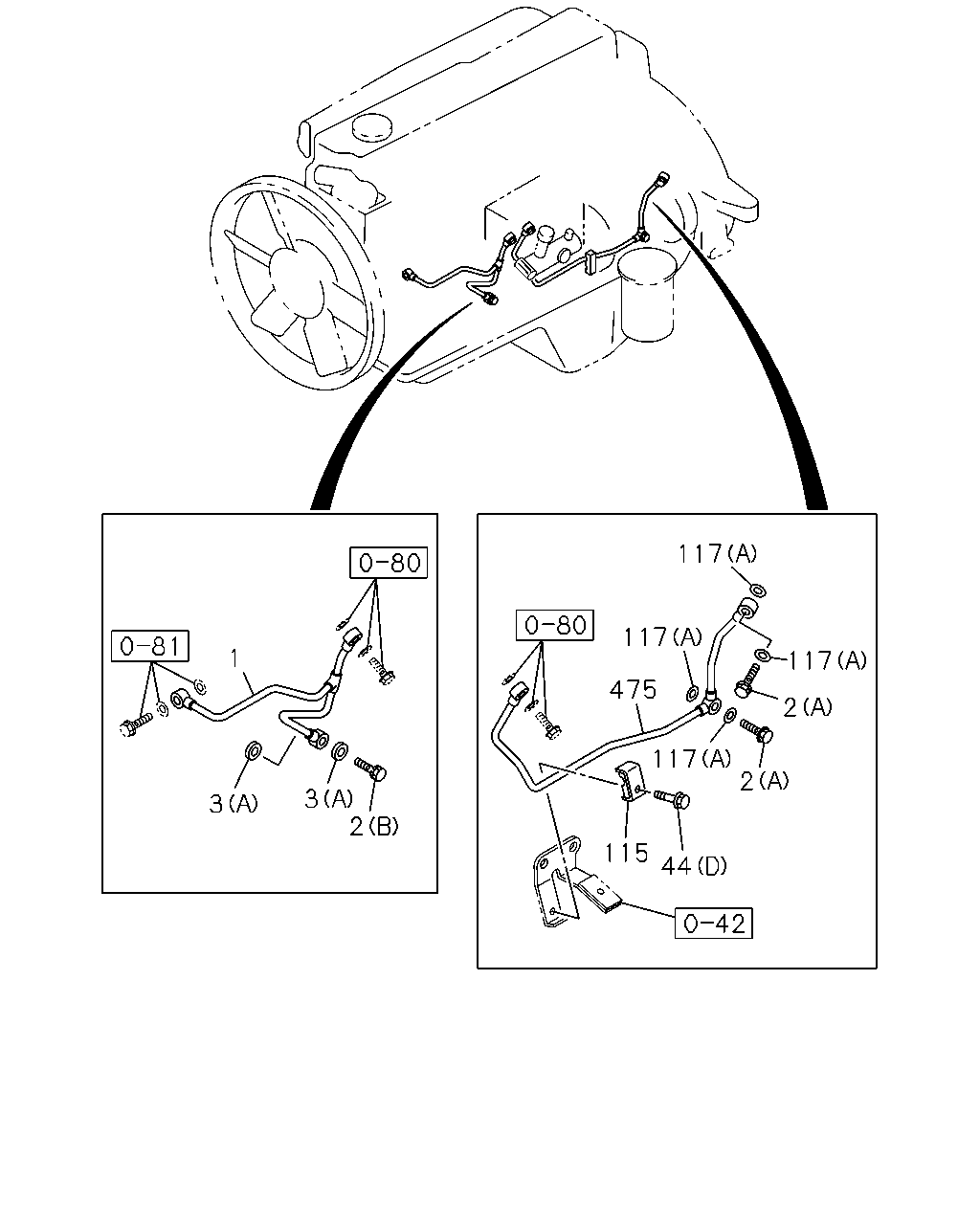

117 117 1 117 475 2 117 2 3 2 3 115 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	0005-0210	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-537-0	01	1	0005-0210		●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-717-0	01	1	0211-		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-97600-649-1	01	1	0303-			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0005-0805		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-		●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0005-0805		●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0303-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-			●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0303-			●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0303-			●
2	BOLT; EYE,OIL PIPE (D) M12X25	5-09675-006-1	01	1	0303-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0302		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	04	1	0303-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	04	1	1401-			●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	0005-0210	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (D) M6X22 FLANGE	0-28080-622-0	01	1	0303-			●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0303-			●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0210	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0005-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0005-1312		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	02	1	1401-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0303-			●
475	PIPE; OIL,OIL FILTER TO INJ PUMP	8-97600-567-1	01	1	0005-0210	●
475	PIPE; OIL,OIL FILTER TO INJ PUMP	8-97600-567-1	01	1	0303-			●

3 117 117 3 117 117 1 2 2 2 475 100 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	0005-0210	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-537-0	01	1	0005-0210		●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-717-0	01	1	0211-		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-97600-649-1	01	1	0303-			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0005-0805		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-		●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0005-0805		●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0303-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-			●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0303-			●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0303-			●
2	BOLT; EYE,OIL PIPE (D) M12X25	5-09675-006-1	01	1	0303-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0302		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	04	1	0303-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	04	1	1401-			●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	0005-0210	●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0005-0210	●
48	CLIP; OIL PIPE (A)	1-09701-228-0	03	1	0005-0210		●
48	CLIP; OIL PIPE (A)	1-09701-228-3	01	1	0211-		●
48	CLIP; OIL PIPE (B)	1-09701-229-0	03	1	0005-0210		●
48	CLIP; OIL PIPE (B)	1-09701-229-2	01	1	0211-		●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0303-			●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0005-0210	●
100	BOLT; CLIP (A) M6X22 FLANGE	0-28080-622-0	01	1	0005-0210	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0303-0512			●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28050-616-0	01	1	0601-			●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0210	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0005-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0005-1312		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	02	1	1401-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0303-			●
475	PIPE; OIL,OIL FILTER TO INJ PUMP	8-97600-567-1	01	1	0005-0210	●
475	PIPE; OIL,OIL FILTER TO INJ PUMP	8-97600-567-1	01	1	0303-			●

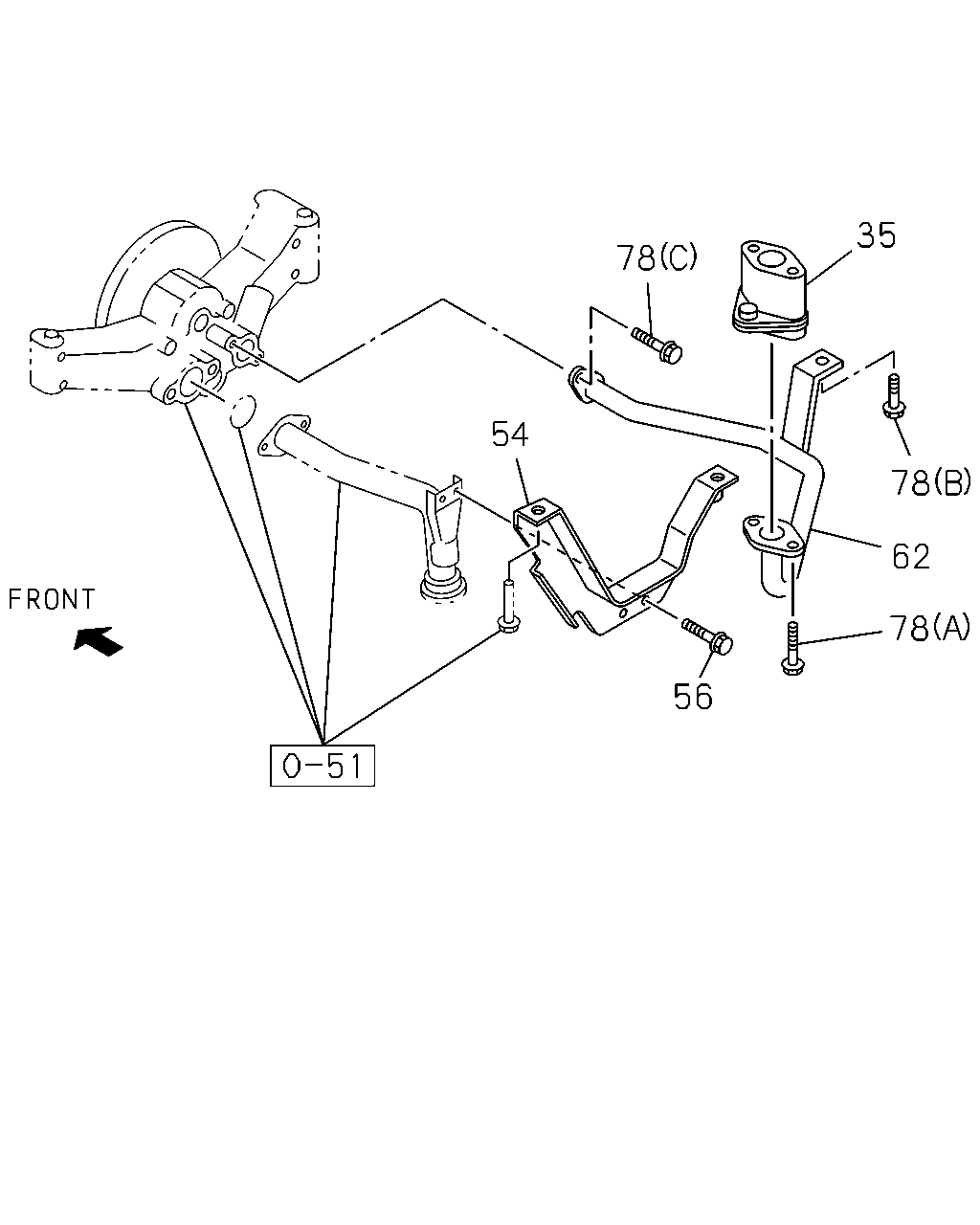

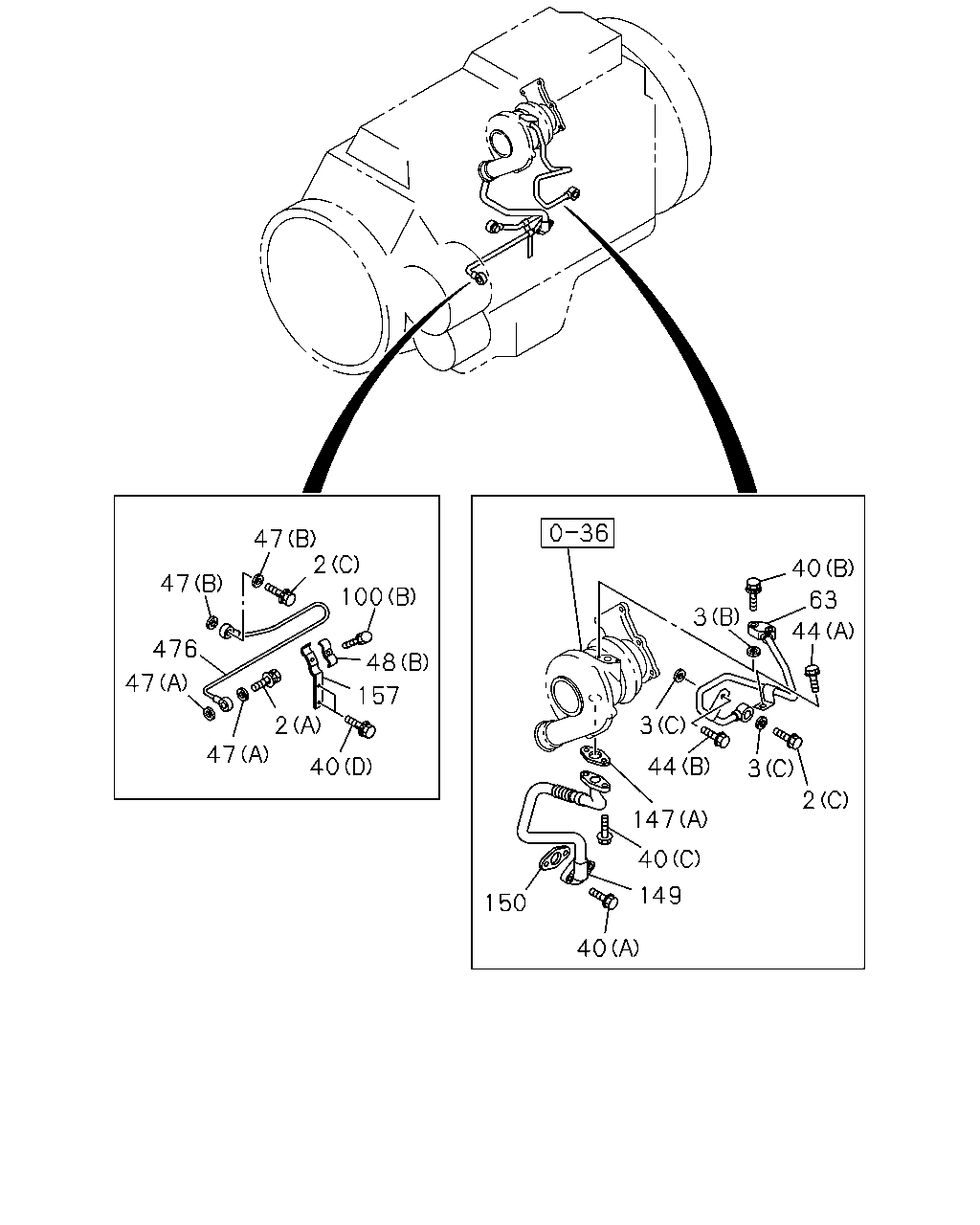

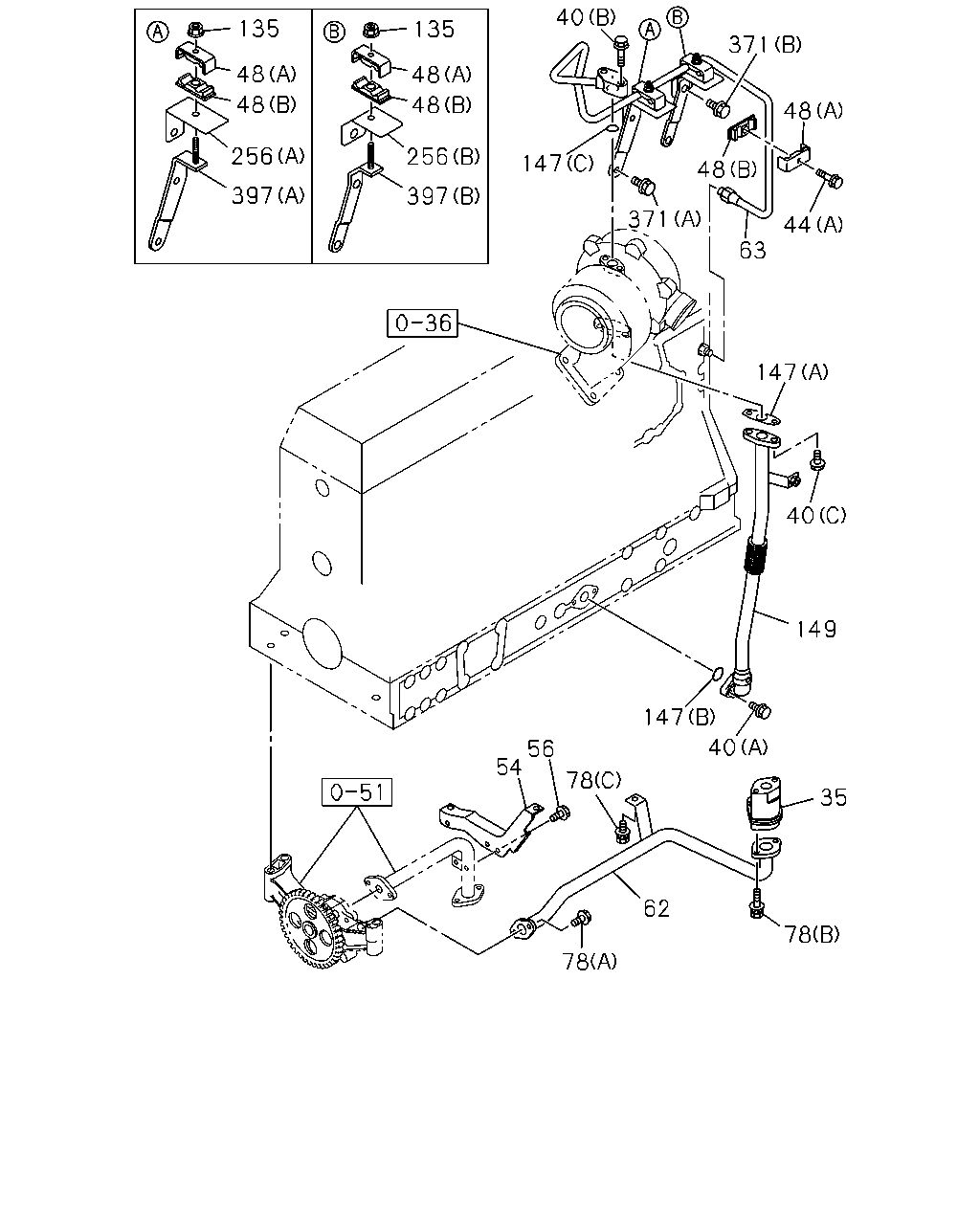

40 135 135 371 48 48 48 48 48 256 256 147 48 397 397 371 44 63 147 40 149 147 40 56 54 78 35 62 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
35	VALVE ASM; DRAIN BACK	1-13260-086-0	01	1	0005-		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0005-0210	●
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28181-016-0	02	1	0005-0210	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0005-0210	●	●
40	BOLT; OIL PIPE (F) M6X50 FLANGE	0-28080-650-0	01	1	0211-0512		●
40	BOLT; OIL PIPE (F) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0005-0210	●	●
40	BOLT; OIL PIPE (E) M10X30 FLANGE	0-28781-030-0	02	1	0211-0512		●
40	BOLT; OIL PIPE (E) M10X30 FLANGE	0-28751-030-0	02	1	0601-		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28080-825-0	02	1	0005-0512		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0303-0512			●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-			●
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28181-016-0	02	1	0303-0512			●
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28151-016-0	02	1	0601-			●
40	BOLT; OIL PIPE (G) M10X22 FLANGE	0-28181-022-0	02	1	0303-			●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	0005-0210	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (D) M6X22 FLANGE	0-28080-622-0	01	1	0303-			●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	0005-0210	●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0005-0210	●
48	CLIP; OIL PIPE (A)	1-09701-228-0	03	1	0005-0210		●
48	CLIP; OIL PIPE (A)	1-09701-228-3	01	1	0211-		●
48	CLIP; OIL PIPE (B)	1-09701-229-0	03	1	0005-0210		●
48	CLIP; OIL PIPE (B)	1-09701-229-2	01	1	0211-		●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0303-			●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	0005-		●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	0005-0512		●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	0005-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-94392-976-0	01	1	0005-0210	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-567-0	01	1	0005-0210		●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-958-0	01	1	0211-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97601-975-0	01	1	0303-			●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	0005-		●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	0005-0906		●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50640-800-0	02	1	0907-		●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	0005-0512		●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50640-816-0	01	1	0601-		●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	0005-0210		●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0211-0602		●
135	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09637-058-1	01	1	0005-0210	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-297-0	01	1	0005-0210		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=22.1	8-94399-399-0	01	1	0211-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.3	1-09623-481-0	01	1	0005-0210		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09637-058-2	01	1	0303-			●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94392-977-0	01	1	0005-0210	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-725-0	01	1	0005-0210		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-959-0	01	1	0211-		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97601-976-0	01	1	0303-			●
256	PROTECTOR; HEAT,PIPE (A)	1-14181-293-0	01	1	0005-0210		●
256	PROTECTOR; HEAT,PIPE (B)	1-14181-294-0	01	1	0005-0210		●
371	BOLT; STAY (A) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210		●
371	BOLT; STAY (B) M10X16 FLANGE	0-28181-016-0	02	1	0005-0210		●
397	STAY; OIL PIPE (A)	1-13319-038-0	01	1	0005-0210		●
397	STAY; OIL PIPE (B)	1-13319-039-0	01	1	0005-0210		●

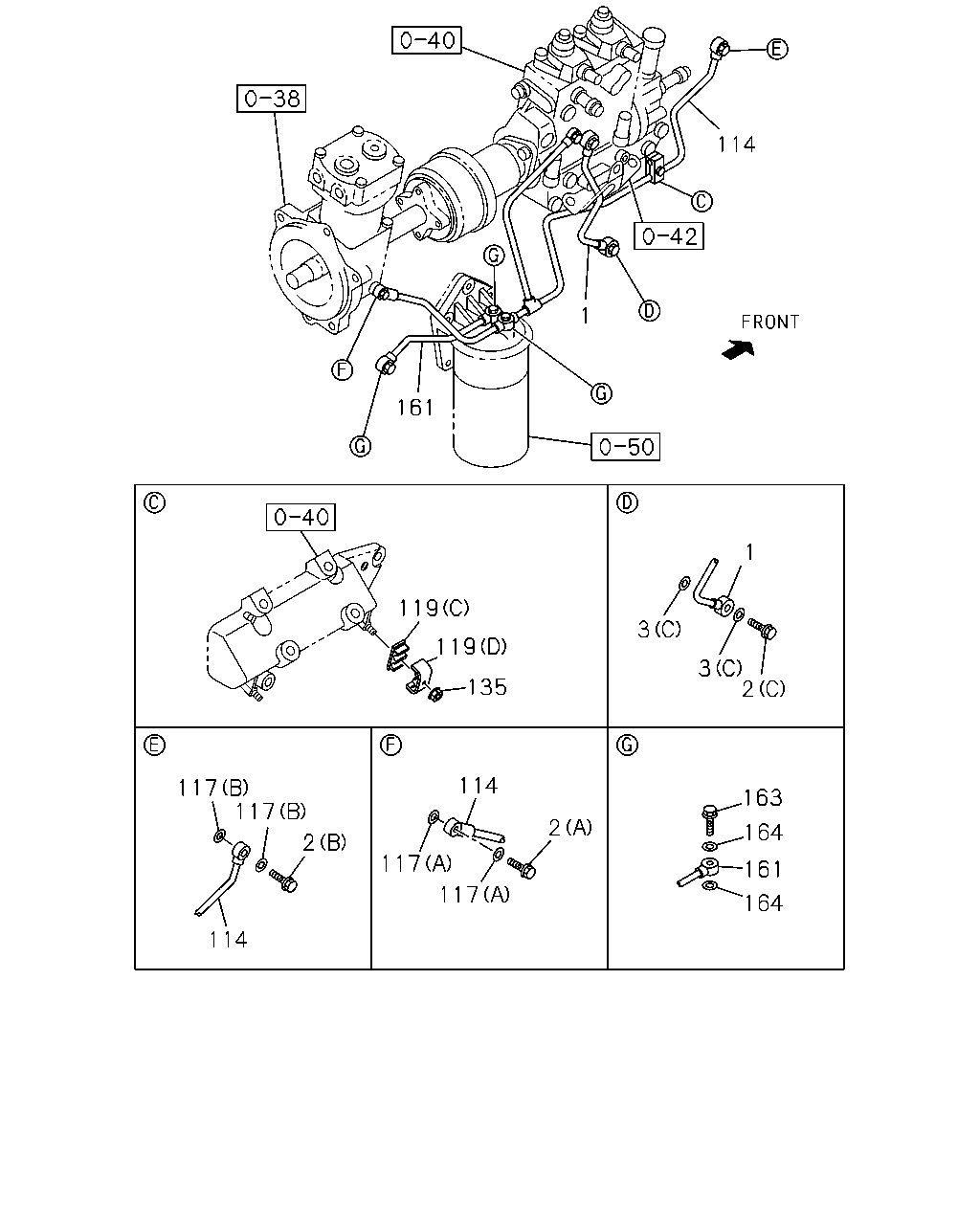

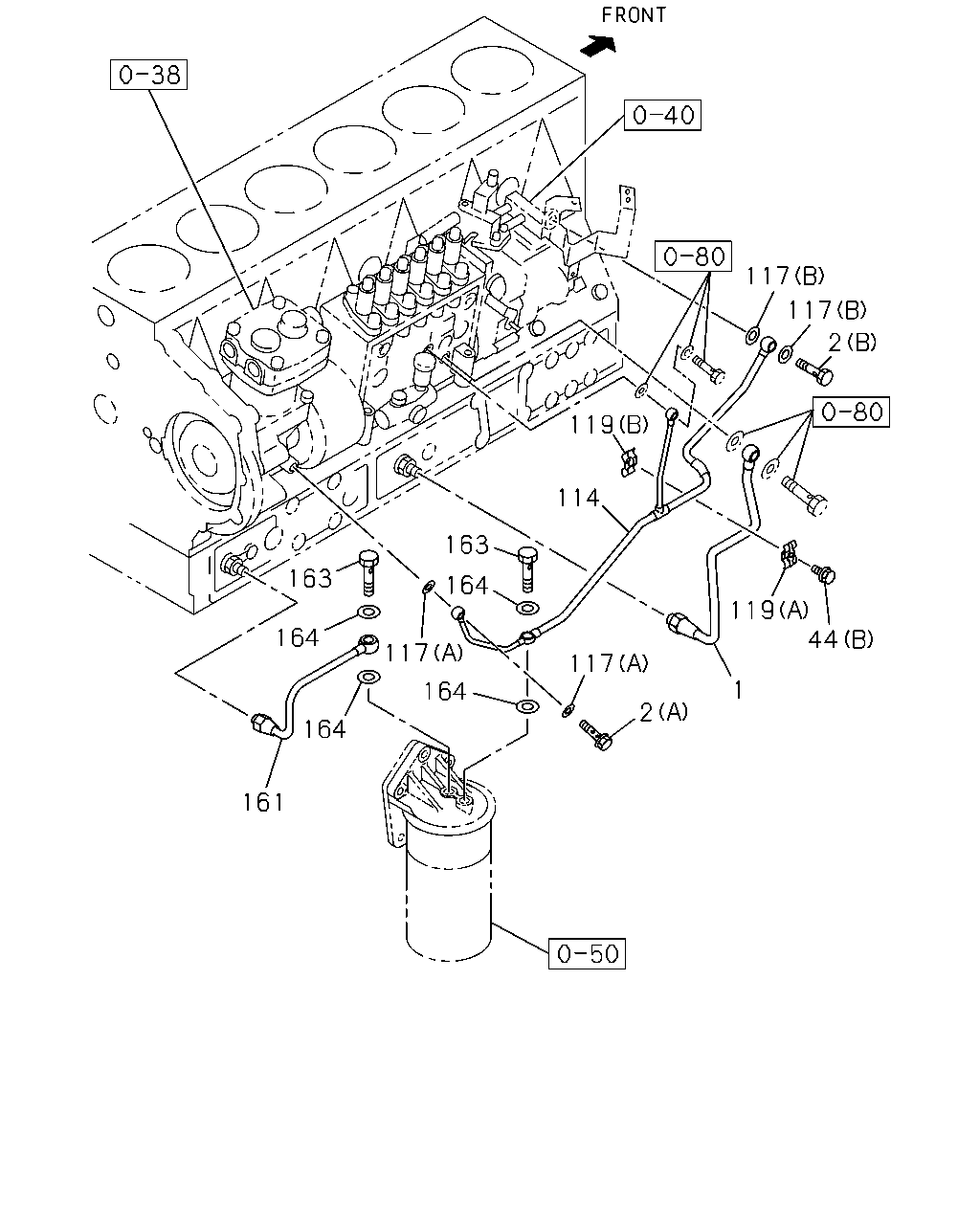

117 117 2 119 114 163 163 164 119 44 164 117 117 1 164 2 164 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	0005-0210	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-537-0	01	1	0005-0210		●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-717-0	01	1	0211-		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-97600-649-1	01	1	0303-			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0005-0805		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-		●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0005-0805		●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0303-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-			●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0303-			●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0303-			●
2	BOLT; EYE,OIL PIPE (D) M12X25	5-09675-006-1	01	1	0303-			●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	0005-0210	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (D) M6X22 FLANGE	0-28080-622-0	01	1	0303-			●
114	PIPE ASM; OIL,BODY	1-13313-907-0	01	1	0005-0207		●
114	PIPE ASM; OIL,BODY	1-13314-028-0	01	1	0208-0210		●
114	PIPE ASM; OIL,BODY	1-13313-991-0	01	1	0211-0511		●
114	PIPE ASM; OIL,BODY	8-97612-147-0	01	1	0512-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0210	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0005-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0005-1312		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	02	1	1401-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0303-			●
119	CLIP; OIL PIPE,BODY TO CMPR (A) WO/NUT	1-09700-079-0	01	1	0005-0210		●
119	CLIP; OIL PIPE,BODY TO CMPR (C)	1-09701-180-0	01	1	0211-		●
119	CLIP; OIL PIPE,BODY TO CMPR (B) W/NUT	1-09700-080-0	01	1	0005-0210		●
119	CLIP; OIL PIPE,BODY TO CMPR (D) ID=10 & 10 L=25	8-94393-280-3	01	1	0211-		●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	0005-0210		●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-961-0	01	1	0211-		●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0005-0210		●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	03	1	0211-		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-0210		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	06	1	0211-1312		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-		●

47 2 40 47 100 63 3 44 476 48 47 157 3 2 47 44 40 3 2 147 40 149 150 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0005-0805		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-		●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0005-0805		●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0303-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-			●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0303-			●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0303-			●
2	BOLT; EYE,OIL PIPE (D) M12X25	5-09675-006-1	01	1	0303-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0302		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	04	1	0303-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	04	1	1401-			●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0005-0210	●
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28181-016-0	02	1	0005-0210	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0005-0210	●	●
40	BOLT; OIL PIPE (F) M6X50 FLANGE	0-28080-650-0	01	1	0211-0512		●
40	BOLT; OIL PIPE (F) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0005-0210	●	●
40	BOLT; OIL PIPE (E) M10X30 FLANGE	0-28781-030-0	02	1	0211-0512		●
40	BOLT; OIL PIPE (E) M10X30 FLANGE	0-28751-030-0	02	1	0601-		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28080-825-0	02	1	0005-0512		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0303-0512			●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-			●
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28181-016-0	02	1	0303-0512			●
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28151-016-0	02	1	0601-			●
40	BOLT; OIL PIPE (G) M10X22 FLANGE	0-28181-022-0	02	1	0303-			●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	0005-0210	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (D) M6X22 FLANGE	0-28080-622-0	01	1	0303-			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0005-0210	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0303-			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	0005-0210	●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0005-0210	●
48	CLIP; OIL PIPE (A)	1-09701-228-0	03	1	0005-0210		●
48	CLIP; OIL PIPE (A)	1-09701-228-3	01	1	0211-		●
48	CLIP; OIL PIPE (B)	1-09701-229-0	03	1	0005-0210		●
48	CLIP; OIL PIPE (B)	1-09701-229-2	01	1	0211-		●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0303-			●
63	PIPE; OIL,TURBOCHARGER FEED	8-94392-976-0	01	1	0005-0210	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-567-0	01	1	0005-0210		●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-958-0	01	1	0211-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97601-975-0	01	1	0303-			●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0005-0210	●
100	BOLT; CLIP (A) M6X22 FLANGE	0-28080-622-0	01	1	0005-0210	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0303-0512			●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28050-616-0	01	1	0601-			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09637-058-1	01	1	0005-0210	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-297-0	01	1	0005-0210		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=22.1	8-94399-399-0	01	1	0211-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.3	1-09623-481-0	01	1	0005-0210		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09637-058-2	01	1	0303-			●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94392-977-0	01	1	0005-0210	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-725-0	01	1	0005-0210		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-959-0	01	1	0211-		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97601-976-0	01	1	0303-			●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0005-0210	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	0211-		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0303-			●
157	BRACKET; OIL PIPE	8-94395-168-0	01	1	0005-0210	●
157	BRACKET; OIL PIPE	8-94395-168-0	01	1	0303-			●
476	PIPE; OIL,C/BL TO AIR CMPR	8-94394-940-1	01	1	0005-0210	●
476	PIPE; OIL,C/BL TO AIR CMPR	8-94394-940-1	01	1	0303-			●

63 149 149 147 63 40 384 384 40 48 48 44 76 85 234 234 85 388 234 388 150 63 40 63 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0005-0210	●
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28181-016-0	02	1	0005-0210	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0005-0210	●	●
40	BOLT; OIL PIPE (F) M6X50 FLANGE	0-28080-650-0	01	1	0211-0512		●
40	BOLT; OIL PIPE (F) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0005-0210	●	●
40	BOLT; OIL PIPE (E) M10X30 FLANGE	0-28781-030-0	02	1	0211-0512		●
40	BOLT; OIL PIPE (E) M10X30 FLANGE	0-28751-030-0	02	1	0601-		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28080-825-0	02	1	0005-0512		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0303-0512			●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-			●
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28181-016-0	02	1	0303-0512			●
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28151-016-0	02	1	0601-			●
40	BOLT; OIL PIPE (G) M10X22 FLANGE	0-28181-022-0	02	1	0303-			●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	0005-0210	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (D) M6X22 FLANGE	0-28080-622-0	01	1	0303-			●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	0005-0210	●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0005-0210	●
48	CLIP; OIL PIPE (A)	1-09701-228-0	03	1	0005-0210		●
48	CLIP; OIL PIPE (A)	1-09701-228-3	01	1	0211-		●
48	CLIP; OIL PIPE (B)	1-09701-229-0	03	1	0005-0210		●
48	CLIP; OIL PIPE (B)	1-09701-229-2	01	1	0211-		●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0303-			●
63	PIPE; OIL,TURBOCHARGER FEED	8-94392-976-0	01	1	0005-0210	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-567-0	01	1	0005-0210		●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-958-0	01	1	0211-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97601-975-0	01	1	0303-			●
76	WASHER; CLIP ID=6.4 OD=18	9-09160-706-0	01	1	0211-0605		●
76	WASHER; CLIP ID=6.4 OD=18	0-91610-706-0	01	1	0606-		●
85	BOLT; EYE,OIL PIPE FIX (A) M14X27 FLANGE	1-09675-086-0	01	1	0211-		●
85	BOLT; EYE,OIL PIPE FIX (B) M10X24	9-09906-205-1	01	1	0211-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09637-058-1	01	1	0005-0210	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-297-0	01	1	0005-0210		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=22.1	8-94399-399-0	01	1	0211-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.3	1-09623-481-0	01	1	0005-0210		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09637-058-2	01	1	0303-			●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94392-977-0	01	1	0005-0210	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-725-0	01	1	0005-0210		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-959-0	01	1	0211-		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97601-976-0	01	1	0303-			●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0005-0210	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	0211-		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0303-			●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0211-		●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-1312		●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	1-19199-315-0	02	1	0211-		●
388	CLIP; TURBOCHARGER RETURN PIPE	1-09701-281-1	02	1	0211-		●

35 78 54 78 62 78 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
35	VALVE ASM; DRAIN BACK	1-13260-086-0	01	1	0005-	●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	0005-	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	0005-	●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	0005-	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	0005-0906	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50640-800-0	02	1	0907-	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	0005-0512	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50640-816-0	01	1	0601-	●

2 3 63 3 3 3 2 157 40 48 100 147 149 47 150 47 2 40 2 47 476 40 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0005-0805		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-		●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0005-0805		●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0303-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-			●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0303-			●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0303-			●
2	BOLT; EYE,OIL PIPE (D) M12X25	5-09675-006-1	01	1	0303-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0302		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	04	1	0303-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	04	1	1401-			●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0005-0210	●
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28181-016-0	02	1	0005-0210	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0005-0210	●	●
40	BOLT; OIL PIPE (F) M6X50 FLANGE	0-28080-650-0	01	1	0211-0512		●
40	BOLT; OIL PIPE (F) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0005-0210	●	●
40	BOLT; OIL PIPE (E) M10X30 FLANGE	0-28781-030-0	02	1	0211-0512		●
40	BOLT; OIL PIPE (E) M10X30 FLANGE	0-28751-030-0	02	1	0601-		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28080-825-0	02	1	0005-0512		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0303-0512			●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-			●
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28181-016-0	02	1	0303-0512			●
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28151-016-0	02	1	0601-			●
40	BOLT; OIL PIPE (G) M10X22 FLANGE	0-28181-022-0	02	1	0303-			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0005-0210	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0303-			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	0005-0210	●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0005-0210	●
48	CLIP; OIL PIPE (A)	1-09701-228-0	03	1	0005-0210		●
48	CLIP; OIL PIPE (A)	1-09701-228-3	01	1	0211-		●
48	CLIP; OIL PIPE (B)	1-09701-229-0	03	1	0005-0210		●
48	CLIP; OIL PIPE (B)	1-09701-229-2	01	1	0211-		●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0303-			●
63	PIPE; OIL,TURBOCHARGER FEED	8-94392-976-0	01	1	0005-0210	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-567-0	01	1	0005-0210		●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-958-0	01	1	0211-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97601-975-0	01	1	0303-			●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0005-0210	●
100	BOLT; CLIP (A) M6X22 FLANGE	0-28080-622-0	01	1	0005-0210	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0303-0512			●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28050-616-0	01	1	0601-			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09637-058-1	01	1	0005-0210	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-297-0	01	1	0005-0210		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=22.1	8-94399-399-0	01	1	0211-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.3	1-09623-481-0	01	1	0005-0210		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09637-058-2	01	1	0303-			●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94392-977-0	01	1	0005-0210	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-725-0	01	1	0005-0210		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-959-0	01	1	0211-		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97601-976-0	01	1	0303-			●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0005-0210	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	0211-		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0303-			●
157	BRACKET; OIL PIPE	8-94395-168-0	01	1	0005-0210	●
157	BRACKET; OIL PIPE	8-94395-168-0	01	1	0303-			●
476	PIPE; OIL,C/BL TO AIR CMPR	8-94394-940-1	01	1	0005-0210	●
476	PIPE; OIL,C/BL TO AIR CMPR	8-94394-940-1	01	1	0303-			●

114 1 161 1 119 3 119 3 2 135 114 117 117 163 2 164 2 117 161 117 164 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	0005-0210	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-537-0	01	1	0005-0210		●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-717-0	01	1	0211-		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-97600-649-1	01	1	0303-			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0005-0805		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-		●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0005-0805		●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0303-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-			●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0303-			●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0303-			●
2	BOLT; EYE,OIL PIPE (D) M12X25	5-09675-006-1	01	1	0303-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0302		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	04	1	0303-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	04	1	1401-			●
114	PIPE ASM; OIL,BODY	1-13313-907-0	01	1	0005-0207		●
114	PIPE ASM; OIL,BODY	1-13314-028-0	01	1	0208-0210		●
114	PIPE ASM; OIL,BODY	1-13313-991-0	01	1	0211-0511		●
114	PIPE ASM; OIL,BODY	8-97612-147-0	01	1	0512-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0210	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0005-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0005-1312		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	02	1	1401-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0303-			●
119	CLIP; OIL PIPE,BODY TO CMPR (A) WO/NUT	1-09700-079-0	01	1	0005-0210		●
119	CLIP; OIL PIPE,BODY TO CMPR (C)	1-09701-180-0	01	1	0211-		●
119	CLIP; OIL PIPE,BODY TO CMPR (B) W/NUT	1-09700-080-0	01	1	0005-0210		●
119	CLIP; OIL PIPE,BODY TO CMPR (D) ID=10 & 10 L=25	8-94393-280-3	01	1	0211-		●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	0005-0210		●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0211-0602		●
135	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-		●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	0005-0210		●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-961-0	01	1	0211-		●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0005-0210		●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	03	1	0211-		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-0210		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	06	1	0211-1312		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
