1 |

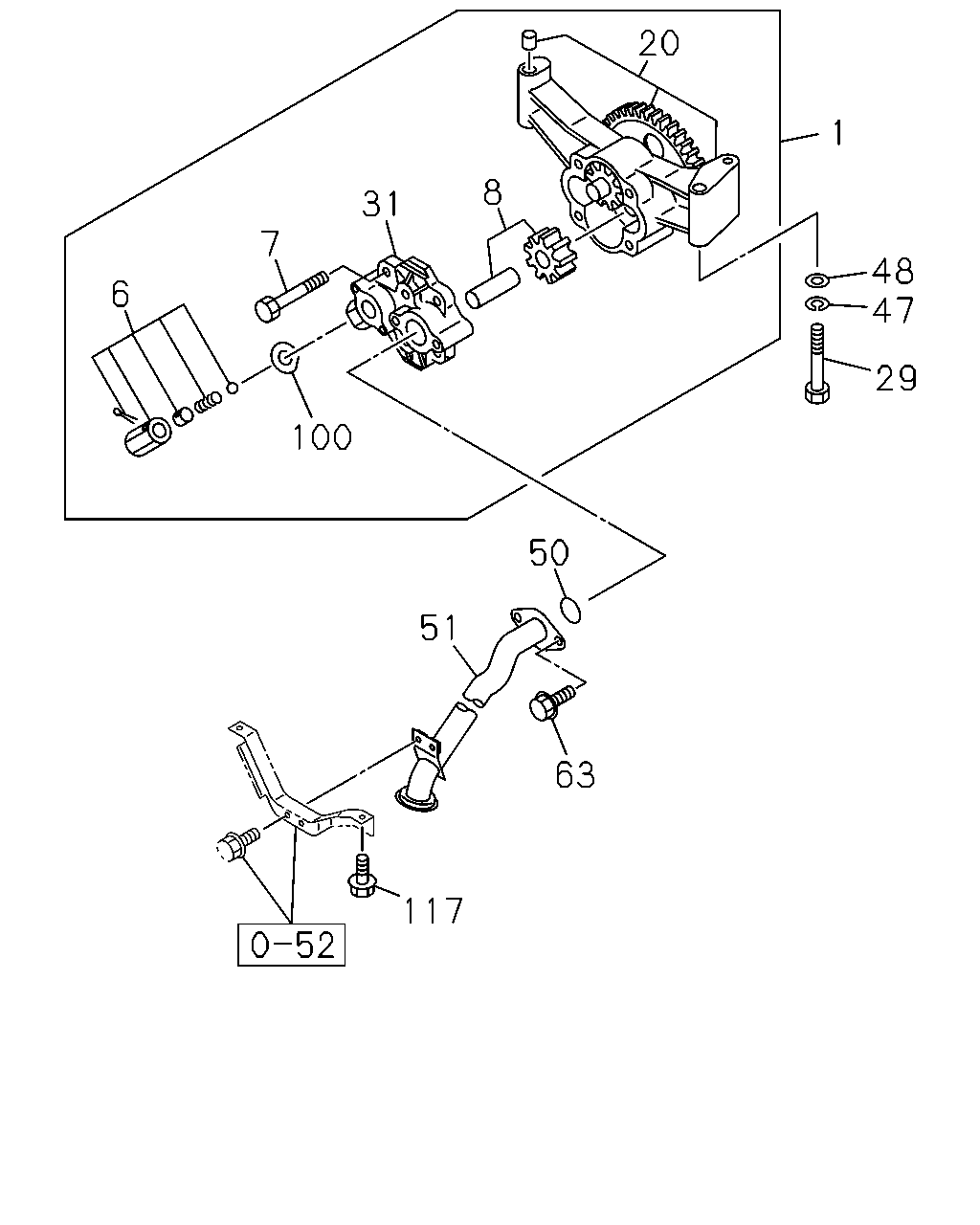

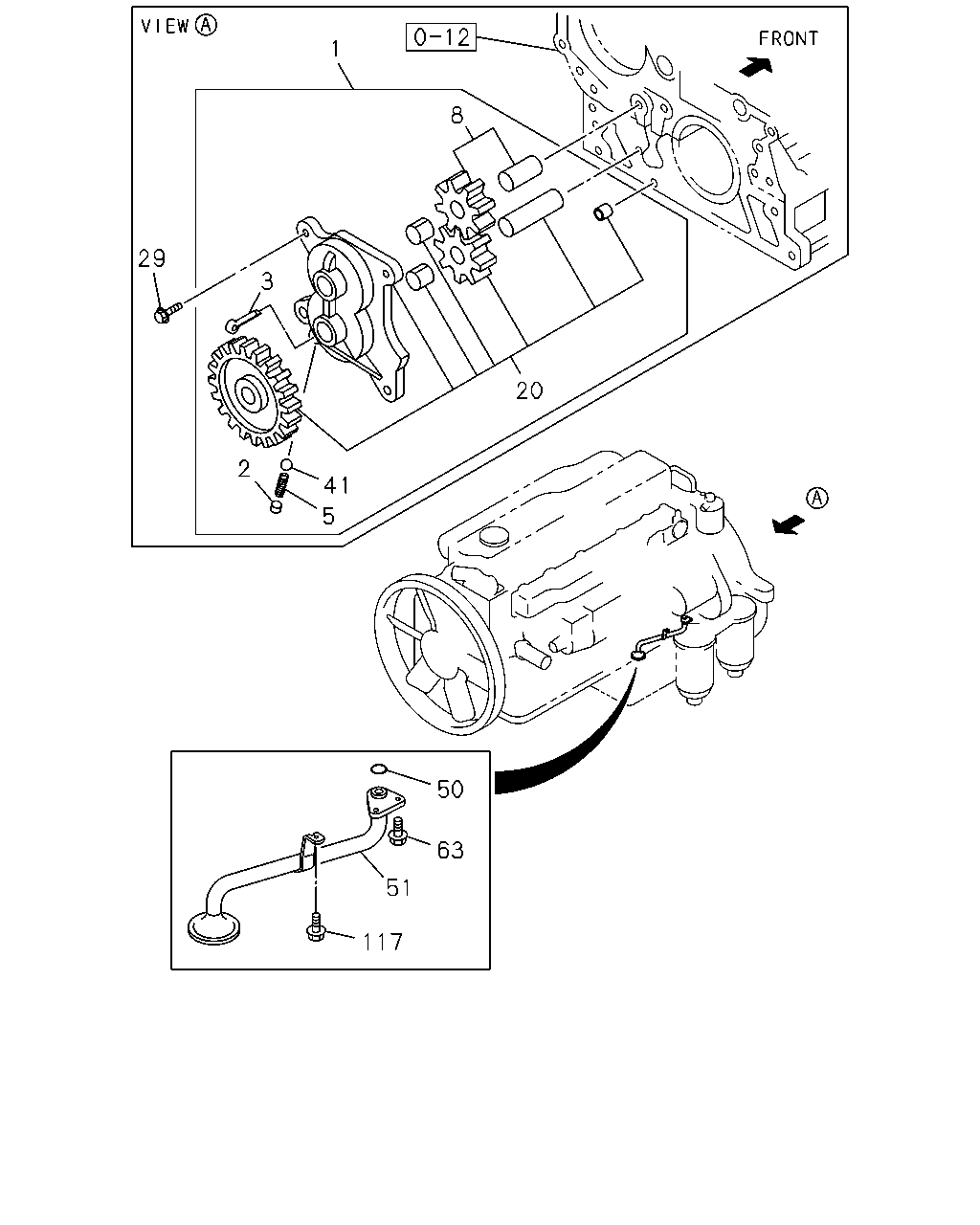

PUMP ASM; OIL
|
8-94395-564-1 |
01 |
1 |
0005-0210 |
● |
|
|
| |
1 |
PUMP ASM; OIL
|
1-13100-219-1 |
01 |
1 |
0005-0109 |
|
● |
|
| |
1 |
PUMP ASM; OIL
|
1-13100-191-2 |
01 |
1 |
0110- |
|
● |
|
| |
1 |
PUMP ASM; OIL
|
8-94395-564-3 |
01 |
1 |
0303- |
|
|
● |
| |
6 |
VALVE ASM; RELIEF,OIL PUMP
|
1-13160-021-1 |
01 |
1 |
0005-0109 |
|
● |
|
| |
6 |
VALVE ASM; RELIEF,OIL PUMP
|
1-13160-018-0 |
01 |
1 |
0110- |
|
● |
|
| |
7 |
BOLT; COVER,OIL PUMP
M8X35 W/LK WASHER
|
0-50040-835-0 |
04 |
1 |
0005-0512 |
|
● |
|
| |
7 |
BOLT; COVER,OIL PUMP
M8X35 W/LK WASHER
|
0-50540-835-0 |
04 |
1 |
0601- |
|
● |
|
| |
8 |
GEAR; DRIVEN,OIL PUMP
|
8-94392-559-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
8 |
GEAR; DRIVEN,OIL PUMP
|
1-13120-059-0 |
01 |
1 |
0005- |
|
● |
|
| |
8 |
GEAR; DRIVEN,OIL PUMP
|
8-94392-559-0 |
01 |
1 |
0303- |
|
|
● |
| |
20 |
GEAR; DRIVE,OIL PUMP
|
8-94392-557-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
20 |
GEAR; DRIVE,OIL PUMP
|
1-13120-063-0 |
01 |
1 |
0005- |
|
● |
|
| |
20 |
GEAR; DRIVE,OIL PUMP
|
8-94392-557-1 |
01 |
1 |
0303- |
|
|
● |
| |
29 |
BOLT; OIL PUMP
M8X25 FLANGE
|
0-28080-825-0 |
04 |
1 |
0005-0210 |
● |
|
|
| |
29 |
BOLT; OIL PUMP
M10X80
|
0-16806-080-0 |
03 |
1 |
0005-0512 |
|
● |
|
| |
29 |
BOLT; OIL PUMP
M10X80
|
0-16856-080-0 |
03 |
1 |
0601- |
|
● |
|
| |
29 |
BOLT; OIL PUMP
M8X25 FLANGE
|
0-28080-825-0 |
04 |
1 |
0303-0512 |
|
|
● |
| |
29 |
BOLT; OIL PUMP
M8X25 FLANGE
|
0-28050-825-0 |
04 |
1 |
0601- |
|
|
● |
| |
31 |
COVER; OIL PUMP
|
1-13113-057-0 |
01 |
1 |
0005-0109 |
|
● |
|
| |
31 |
COVER; OIL PUMP
|
1-13113-058-0 |
01 |
1 |
0110- |
|
● |
|
| |
47 |
WASHER; LK,OIL PUMP
ID=10.2
|
9-09150-810-0 |
03 |
1 |
0005-0603 |
|
● |
|
| |
47 |
WASHER; LK,OIL PUMP
ID=10.2
|
0-91510-810-0 |
03 |
1 |
0604- |
|
● |
|
| |
48 |
WASHER; PL,OIL PUMP
ID=10.5 OD=22
|
9-09164-610-0 |
03 |
1 |
0005-0605 |
|
● |
|
| |
48 |
WASHER; PL,OIL PUMP
ID=10.5 OD=22
|
0-91614-610-0 |
03 |
1 |
0606- |
|
● |
|
| |
50 |
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.4
|
1-09623-183-0 |
01 |
1 |
0005-0112 |
● |
|
|
| |
50 |
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.5
|
8-94399-398-0 |
01 |
1 |
0201-0210 |
● |
|
|
| |
50 |
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=31.2
|
1-09623-220-0 |
01 |
1 |
0005- |
|
● |
|
| |
50 |
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.5
|
8-94399-398-0 |
01 |
1 |
0303- |
|
|
● |
| |
51 |
STRAINER & PIPE ASM; OIL
|
8-94392-597-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
51 |
STRAINER & PIPE ASM; OIL
|
1-13312-512-1 |
01 |
1 |
0005- |
|
● |
|
| |
51 |
STRAINER & PIPE ASM; OIL
|
8-94392-597-0 |
01 |
1 |
0303-1209 |
|
|
● |
| |
51 |
STRAINER & PIPE ASM; OIL
|
8-98204-155-0 |
01 |
1 |
1210- |
|
|
● |
| |
63 |
BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE
|
0-28080-814-0 |
02 |
1 |
0005-0210 |
● |
|
|
| |
63 |
BOLT; OIL PIPE,STRAINER TO PUMP
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
0005-0512 |
|
● |
|
| |
63 |
BOLT; OIL PIPE,STRAINER TO PUMP
M8X20 FLANGE
|
0-28050-820-0 |
02 |
1 |
0601- |
|
● |
|
| |
63 |
BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE
|
0-28080-814-0 |
02 |
1 |
0303- |
|
|
● |
| |
100 |
WASHER; LK,RELIEF VLV,OIL PUMP
|
1-09530-003-0 |
01 |
1 |
0005-0109 |
|
● |
|
| |
100 |
WASHER; LK,RELIEF VLV,OIL PUMP
OD=34
|
1-09530-004-0 |
01 |
1 |
0110- |
|
● |
|
| |
117 |
BOLT; STAY TO CRANKCASE
M10X75 FLANGE
|
8-94399-669-1 |
01 |
1 |
0005-0210 |
● |
|
|
| |
117 |
BOLT; STAY TO CRANKCASE
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0005-0512 |
|
● |
|
| |
117 |
BOLT; STAY TO CRANKCASE
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
|
● |
|
| |
117 |
BOLT; STAY TO CRANKCASE
M10X75 FLANGE
|
8-94399-669-1 |
01 |
1 |
0303- |
|
|
● |
