Sayfa 0-50 - Isuzu EPC

0-50 — OIL COOLER AND OIL FILTER (#8276) — 257 parça

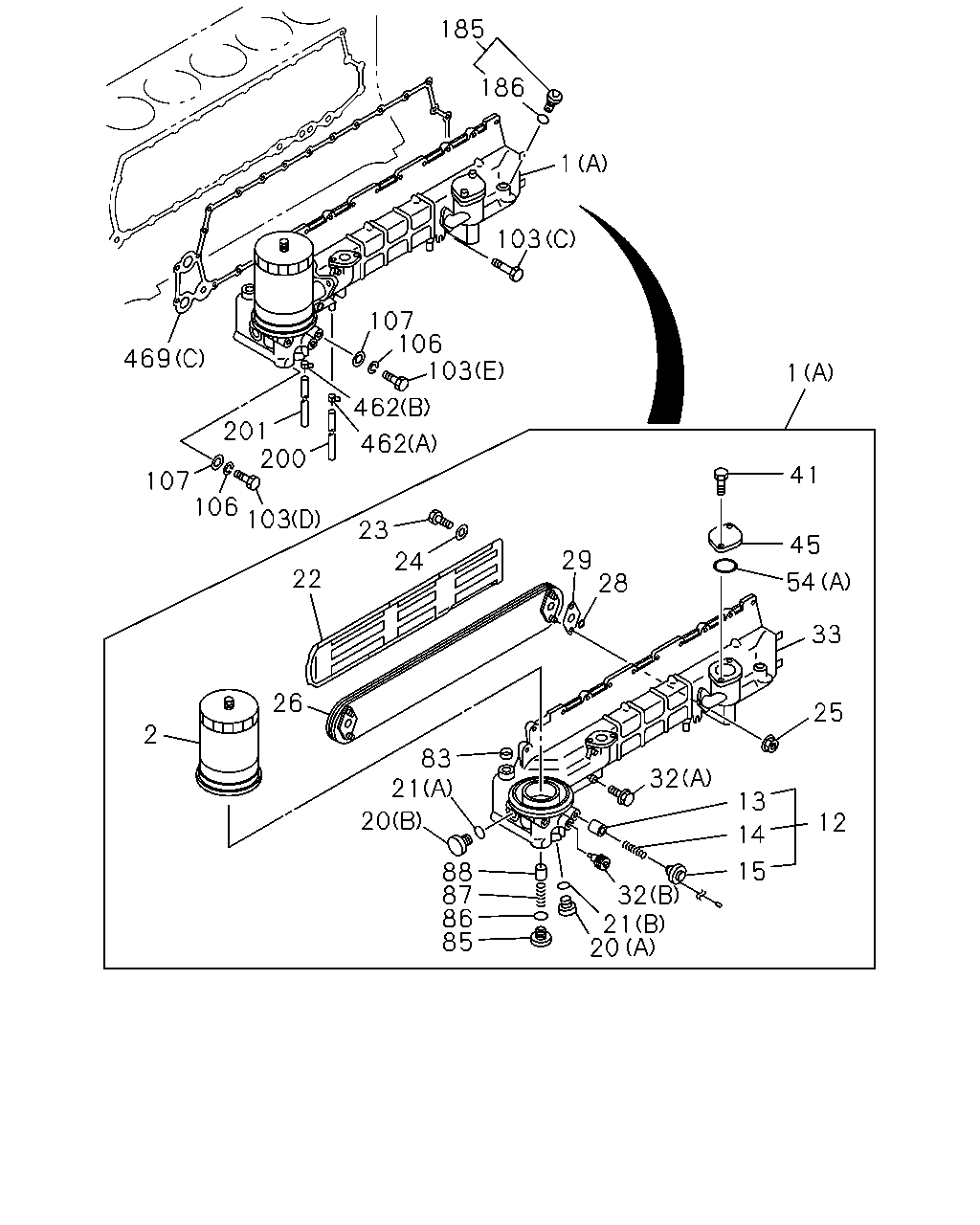

185 186 1 103 107 106 103 469 1 462 20 200 462 41 107 106 103 23 24 45 29 28 22 54 33 26 25 2 83 21 32 13 20 12 14 15 88 87 86 85 32 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER & COOLER ASM; OIL (A)	1-13200-936-2	01	1	0005-0210	●
1	FILTER & COOLER ASM; OIL (B)	1-13201-022-0	01	1	0211-	●
2	ELEMENT; OIL FILTER	8-94391-049-2	01	1	0005-0210		●
2	ELEMENT; OIL FILTER	1-13240-168-1	01	1	0005-	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	0303-			●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-0	01	1	0005-0210		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	0303-1110			●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1111-			●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	0005-	●
13	VALVE; RELIEF	9-13262-010-0	01	1	0005-	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	0005-	●
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	0005-	●
20	PLUG; COOLER BODY (A) M26	1-13219-153-0	04	1	0005-	●
20	PLUG; COOLER BODY (B) M24	1-13219-356-0	01	1	0005-	●
20	PLUG; COOLER BODY (C)	8-94393-604-0	01	1	0303-			●
20	PLUG; COOLER BODY (D)	8-94396-753-0	01	1	0303-			●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	0005-	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0005-0302	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0303-	●		●
21	GASKET; PLUG (C)	1-13219-253-0	01	1	0303-			●
22	GUIDE; WATER	1-13219-155-1	01	1	0005-	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	0005-	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	0005-	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0005-0302	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0303-	●		●
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	0005-	●
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	0303-			●
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	0005-	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	0303-			●
29	GASKET; CORE TO BODY	8-94394-930-0	02	1	0005-	●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	0005-	●
32	PLUG; DRAIN (B)	1-13219-295-1	01	1	0005-	●
33	HOUSING ASM; COOLER	1-13211-308-0	01	1	0005-	●
41	BOLT; COVER FIX M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●
45	COVER; OIL PORT	1-13219-172-0	01	1	0005-0210	●
54	GASKET; OIL PIPE (A)	1-13219-162-0	01	1	0005-	●
54	GASKET; OIL PIPE (B)	1-13219-164-0	01	1	0211-	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	0005-	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	0005-	●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	0005-	●
87	SPRING; DRAIN UNIT,OIL FILTER	1-13219-148-0	01	1	0005-	●
88	VALVE; DRAIN UNIT,OIL FILTER	9-13262-009-0	01	1	0005-	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	25	1	0005-0210		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	02	1	0005-0210		●
103	BOLT; OIL COOLER (C) M8X25 FLANGE	0-28080-825-0	24	1	0005-0512	●
103	BOLT; OIL COOLER (C) M8X25 FLANGE	0-28050-825-0	24	1	0601-	●
103	BOLT; OIL COOLER (D) M8X138	5-09000-031-1	02	1	0005-	●
103	BOLT; OIL COOLER (E) M8X155	9-09801-275-0	02	1	0005-	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	24	1	0303-			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	03	1	0303-0512			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0601-			●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	0005-0603	●
106	WASHER; LK,OIL COOLER ID=8.2	0-91510-508-0	04	1	0604-	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	0005-0605	●
107	WASHER; PL,OIL COOLER ID=8.4 OD=16	0-91610-508-0	04	1	0606-	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	0005-0210	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-034-0	01	1	0211-	●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	0005-	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	0005-0206	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03457-300-0	01	1	0207-	●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	0005-	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-1	01	1	0005-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0005-0210		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	0005-0210		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-177-1	01	1	0005-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0303-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	0303-0606			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98045-449-0	01	1	0607-			●

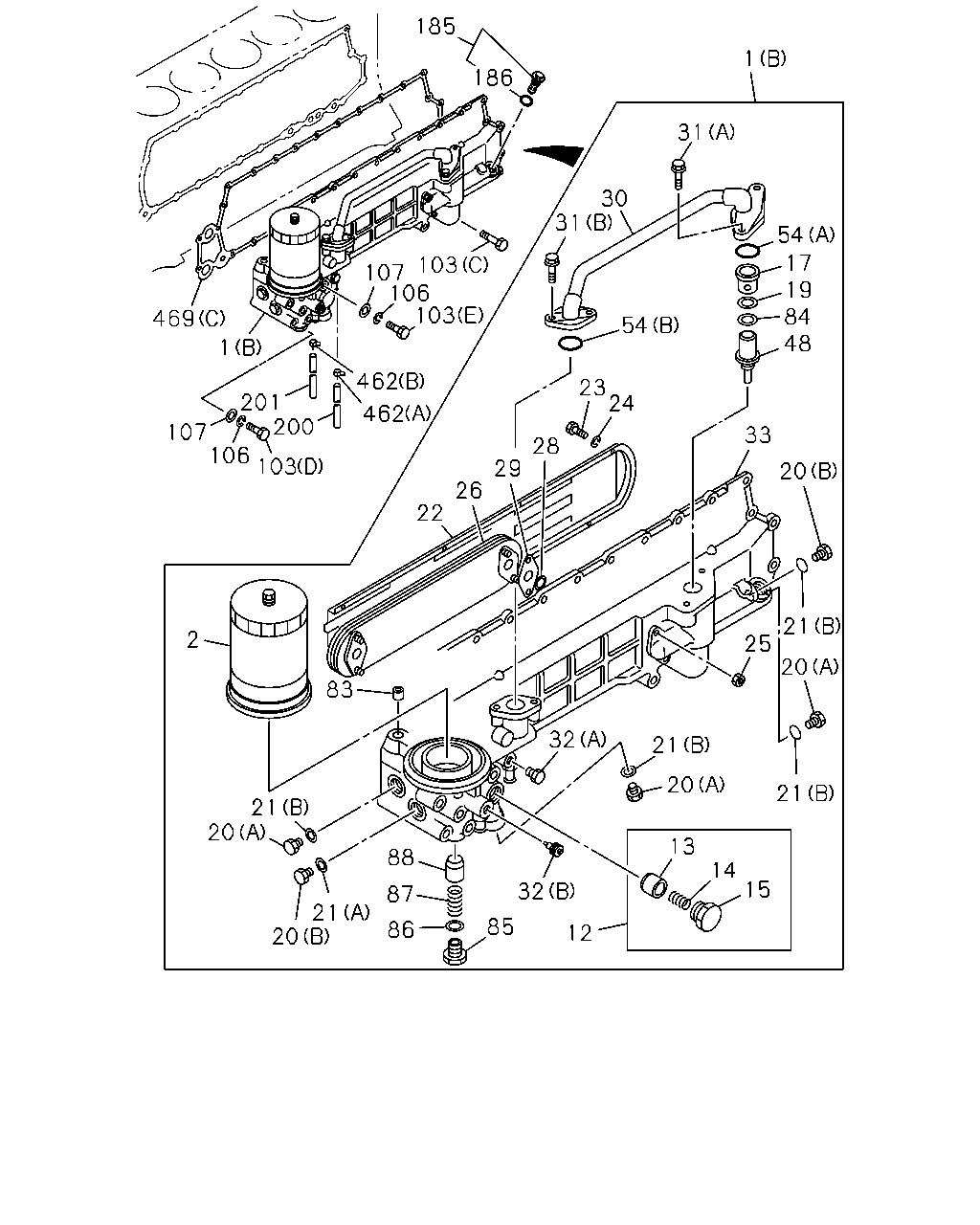

185 1 186 31 30 31 54 17 19 84 48 103 107 106 103 469 54 1 462 23 24 201 200 462 107 106 33 28 103 29 20 26 22 21 2 25 20 83 32 21 20 21 21 20 13 88 14 15 32 87 21 20 85 86 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER & COOLER ASM; OIL (A)	1-13200-936-2	01	1	0005-0210	●
1	FILTER & COOLER ASM; OIL (B)	1-13201-022-0	01	1	0211-	●
2	ELEMENT; OIL FILTER	8-94391-049-2	01	1	0005-0210		●
2	ELEMENT; OIL FILTER	1-13240-168-1	01	1	0005-	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	0303-			●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-0	01	1	0005-0210		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	0303-1110			●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1111-			●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	0005-	●
13	VALVE; RELIEF	9-13262-010-0	01	1	0005-	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	0005-	●
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	0005-	●
17	STOPPER; VLV	1-13779-009-0	01	1	0211-	●
19	SEAL ASM; VLV	1-13779-007-0	01	1	0211-	●
20	PLUG; COOLER BODY (A) M26	1-13219-153-0	04	1	0005-	●
20	PLUG; COOLER BODY (B) M24	1-13219-356-0	01	1	0005-	●
20	PLUG; COOLER BODY (C)	8-94393-604-0	01	1	0303-			●
20	PLUG; COOLER BODY (D)	8-94396-753-0	01	1	0303-			●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	0005-	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0005-0302	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0303-	●		●
21	GASKET; PLUG (C)	1-13219-253-0	01	1	0303-			●
22	GUIDE; WATER	1-13219-155-1	01	1	0005-	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	0005-	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	0005-	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0005-0302	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0303-	●		●
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	0005-	●
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	0303-			●
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	0005-	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	0303-			●
29	GASKET; CORE TO BODY	8-94394-930-0	02	1	0005-	●
30	PIPE ASM; OIL COOLER	1-13312-247-0	01	1	0211-	●
31	BOLT; OIL PIPE (A)	8-98272-067-0	02	1	0211-	●
31	BOLT; OIL PIPE (B)	1-13219-163-0	02	1	0211-	●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	0005-	●
32	PLUG; DRAIN (B)	1-13219-295-1	01	1	0005-	●
33	HOUSING ASM; COOLER	1-13211-308-0	01	1	0005-	●
48	VALVE; THERMO,OIL COOLER	8-98271-171-0	01	1	0211-	●
54	GASKET; OIL PIPE (A)	1-13219-162-0	01	1	0005-	●
54	GASKET; OIL PIPE (B)	1-13219-164-0	01	1	0211-	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	0005-	●
84	SUPPORT; VLV,OIL COOLER & FILTER	1-13779-010-0	01	1	0211-	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	0005-	●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	0005-	●
87	SPRING; DRAIN UNIT,OIL FILTER	1-13219-148-0	01	1	0005-	●
88	VALVE; DRAIN UNIT,OIL FILTER	9-13262-009-0	01	1	0005-	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	25	1	0005-0210		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	02	1	0005-0210		●
103	BOLT; OIL COOLER (C) M8X25 FLANGE	0-28080-825-0	24	1	0005-0512	●
103	BOLT; OIL COOLER (C) M8X25 FLANGE	0-28050-825-0	24	1	0601-	●
103	BOLT; OIL COOLER (D) M8X138	5-09000-031-1	02	1	0005-	●
103	BOLT; OIL COOLER (E) M8X155	9-09801-275-0	02	1	0005-	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	24	1	0303-			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	03	1	0303-0512			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0601-			●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	0005-0603	●
106	WASHER; LK,OIL COOLER ID=8.2	0-91510-508-0	04	1	0604-	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	0005-0605	●
107	WASHER; PL,OIL COOLER ID=8.4 OD=16	0-91610-508-0	04	1	0606-	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	0005-0210	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-034-0	01	1	0211-	●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	0005-	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	0005-0206	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03457-300-0	01	1	0207-	●
201	PIPE; VINYL,OIL DRAIN L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0005-	●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	0005-	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-1	01	1	0005-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0005-0210		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	0005-0210		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-177-1	01	1	0005-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0303-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	0303-0606			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98045-449-0	01	1	0607-			●

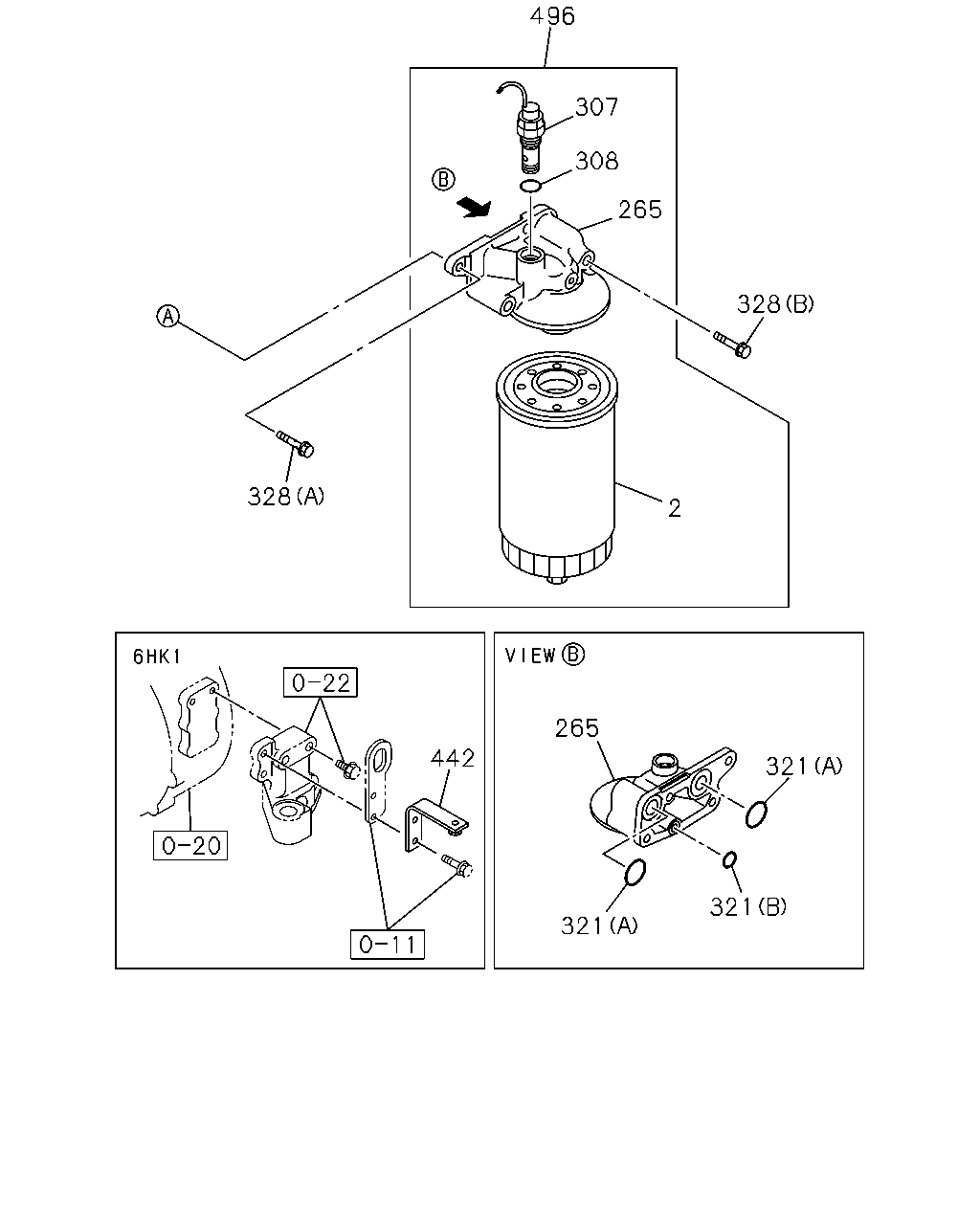

496 307 308 265 328 328 2 265 442 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER	8-94391-049-2	01	1	0005-0210		●
2	ELEMENT; OIL FILTER	1-13240-168-1	01	1	0005-	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	0303-			●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-0	01	1	0005-0210		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	0303-1110			●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1111-			●
265	BODY; OIL FILTER	8-94391-016-4	01	1	0005-0210		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	0303-			●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0005-0210		●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0303-			●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0005-0210		●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0303-			●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0005-0210		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0005-0210		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0303-			●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0303-			●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28181-030-0	02	1	0005-0210		●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28181-090-0	02	1	0005-0210		●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28181-030-0	02	1	0303-0512			●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0601-			●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28181-090-0	02	1	0303-0512			●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0601-			●
442	BRACKET; HARNESS,OIL FILTER	8-94392-781-0	01	1	0303-			●
496	FILTER ASM; OIL	8-94391-015-5	01	1	0005-0210		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0303-			●

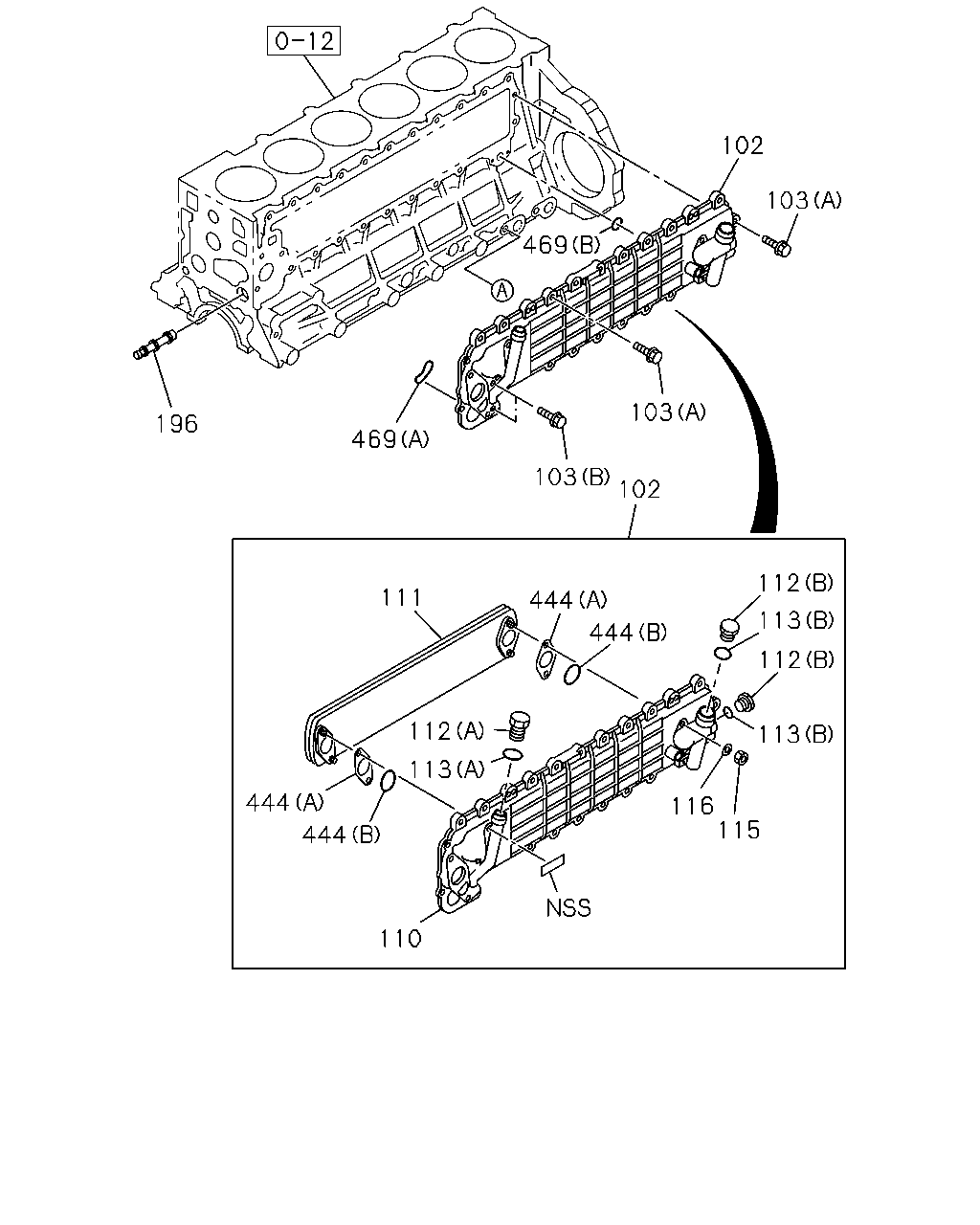

102 469 103 103 196 469 103 102 112 111 444 113 444 112 112 113 113 444 116 115 444 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
102	COOLER ASM; OIL	8-94390-536-0	01	1	0005-0210		●
102	COOLER ASM; OIL	8-97601-079-1	01	1	0303-			●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	25	1	0005-0210		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	02	1	0005-0210		●
103	BOLT; OIL COOLER (C) M8X25 FLANGE	0-28080-825-0	24	1	0005-0512	●
103	BOLT; OIL COOLER (C) M8X25 FLANGE	0-28050-825-0	24	1	0601-	●
103	BOLT; OIL COOLER (D) M8X138	5-09000-031-1	02	1	0005-	●
103	BOLT; OIL COOLER (E) M8X155	9-09801-275-0	02	1	0005-	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	24	1	0303-			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	03	1	0303-0512			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0601-			●
110	BODY; CASE,OIL COOLER	8-94395-283-4	01	1	0005-0210		●
111	CORE; OIL COOLER	8-94390-537-0	01	1	0005-0210		●
112	PLUG; OIL COOLER CASE (A)	8-94393-604-0	01	1	0005-0210		●
112	PLUG; OIL COOLER CASE (B)	8-94396-753-0	02	1	0005-0210		●
113	GASKET; PLUG,OIL COOLER CASE (A)	1-09623-499-0	01	1	0005-0210		●
113	GASKET; PLUG,OIL COOLER CASE (B) M24	8-94396-755-0	02	1	0005-0210		●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	0005-0210		●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	0005-0210		●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	0005-0111		●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-935-0	01	1	0112-0210		●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0303-			●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	0005-0210		●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	0005-0210		●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	0303-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0005-0210		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	0005-0210		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-177-1	01	1	0005-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0303-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	0303-0606			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98045-449-0	01	1	0607-			●

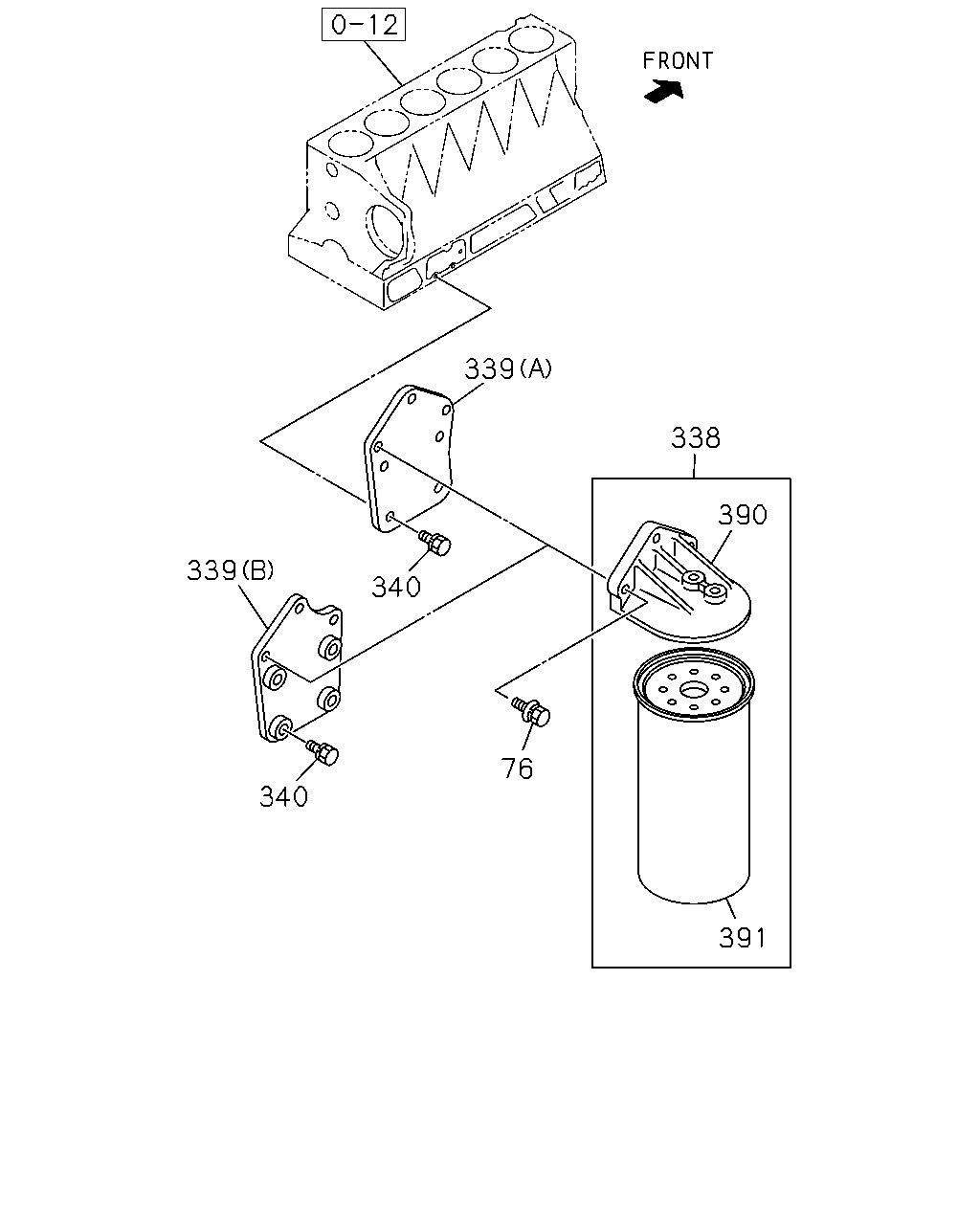

339 338 390 339 340 76 340 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
76	BOLT; OIL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	03	1	0005-0512	●
76	BOLT; OIL FILTER M10X35 W/LK&PL WASHER	0-50641-035-0	03	1	0601-	●
338	FILTER ASM; OIL PARTIAL	1-13200-744-0	01	1	0005-	●
339	BRACKET; PARTIAL OIL FILTER (A)	1-19755-062-1	01	1	0005-0210	●
339	BRACKET; PARTIAL OIL FILTER (B)	1-19755-219-0	01	1	0211-0408	●
339	BRACKET; PARTIAL OIL FILTER (B)	8-97604-630-0	01	1	0409-	●
340	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	04	1	0005-0210	●
340	BOLT; BRKT M10X35 FLANGE	0-28781-035-0	04	1	0211-0512	●
340	BOLT; BRKT M10X35 FLANGE	0-28751-035-0	04	1	0601-	●
390	BODY; OIL FILTER,PARTIAL	1-13212-089-2	01	1	0005-	●
391	CARTRIDGE; OIL FILTER,PARTIAL	1-13240-163-2	01	1	0005-	●

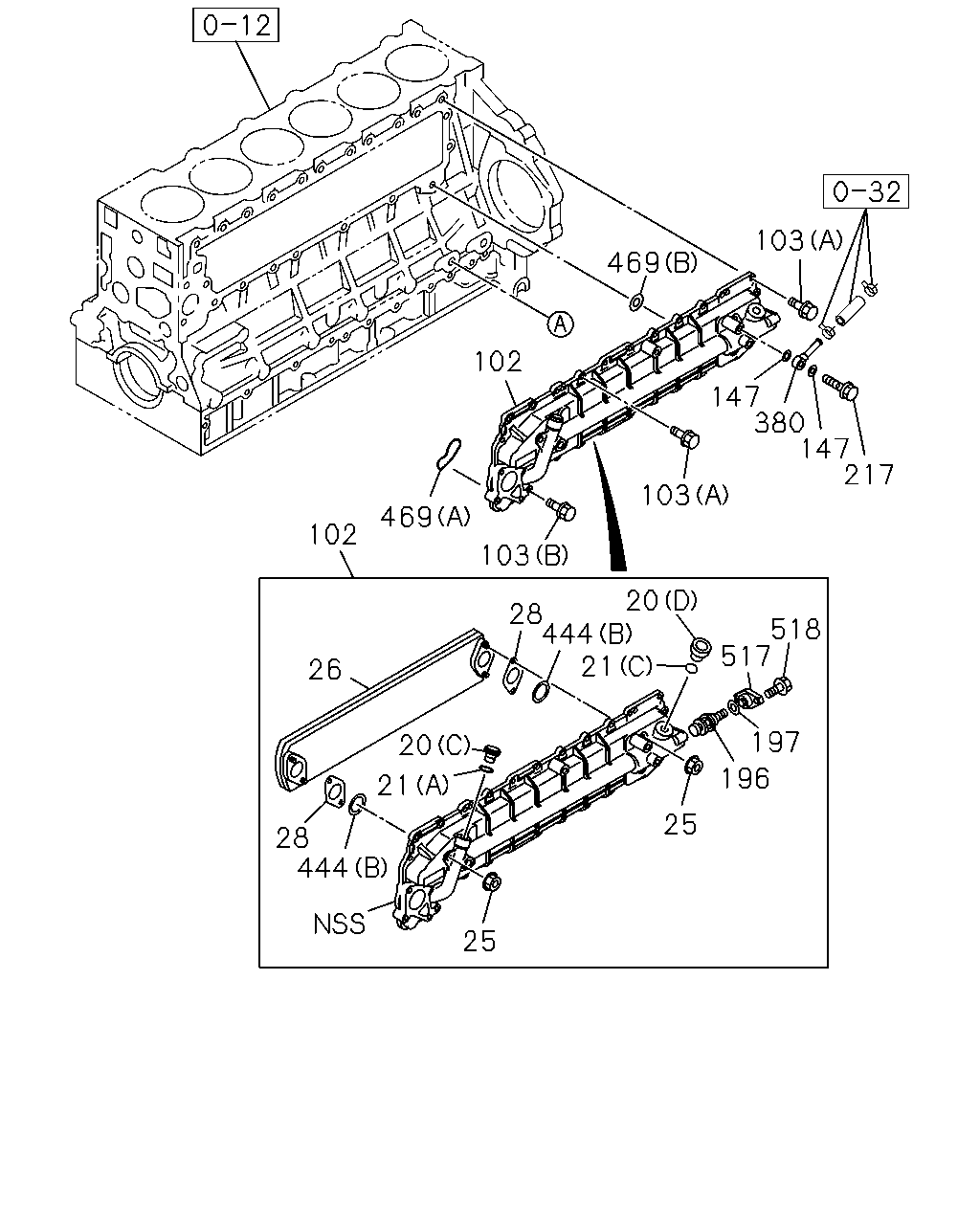

12 32 103 469 102 147 380 147 217 103 469 102 103 20 28 444 21 518 517 26 197 20 196 21 25 28 444 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	0005-	●
20	PLUG; COOLER BODY (A) M26	1-13219-153-0	04	1	0005-	●
20	PLUG; COOLER BODY (B) M24	1-13219-356-0	01	1	0005-	●
20	PLUG; COOLER BODY (C)	8-94393-604-0	01	1	0303-			●
20	PLUG; COOLER BODY (D)	8-94396-753-0	01	1	0303-			●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	0005-	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0005-0302	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0303-	●		●
21	GASKET; PLUG (C)	1-13219-253-0	01	1	0303-			●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0005-0302	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0303-	●		●
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	0005-	●
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	0303-			●
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	0005-	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	0303-			●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	0005-	●
32	PLUG; DRAIN (B)	1-13219-295-1	01	1	0005-	●
102	COOLER ASM; OIL	8-94390-536-0	01	1	0005-0210		●
102	COOLER ASM; OIL	8-97601-079-1	01	1	0303-			●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	25	1	0005-0210		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	02	1	0005-0210		●
103	BOLT; OIL COOLER (C) M8X25 FLANGE	0-28080-825-0	24	1	0005-0512	●
103	BOLT; OIL COOLER (C) M8X25 FLANGE	0-28050-825-0	24	1	0601-	●
103	BOLT; OIL COOLER (D) M8X138	5-09000-031-1	02	1	0005-	●
103	BOLT; OIL COOLER (E) M8X155	9-09801-275-0	02	1	0005-	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	24	1	0303-			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	03	1	0303-0512			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0601-			●
147	GASKET; PLUG ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312			●
147	GASKET; PLUG ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	0005-0111		●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-935-0	01	1	0112-0210		●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0303-			●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	0303-			●
217	BOLT; CONNECTOR M14X33 FLANGE	1-09675-088-0	01	1	0303-			●
380	CONNECTOR; WATER	8-97601-493-0	01	1	0303-			●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	0005-0210		●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	0005-0210		●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	0303-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0005-0210		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	0005-0210		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-177-1	01	1	0005-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0303-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	0303-0606			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98045-449-0	01	1	0607-			●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	0303-			●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	0303-0512			●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0601-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
