0-41 — FUEL FILTER AND BRACKET (#8274) — 93 parça

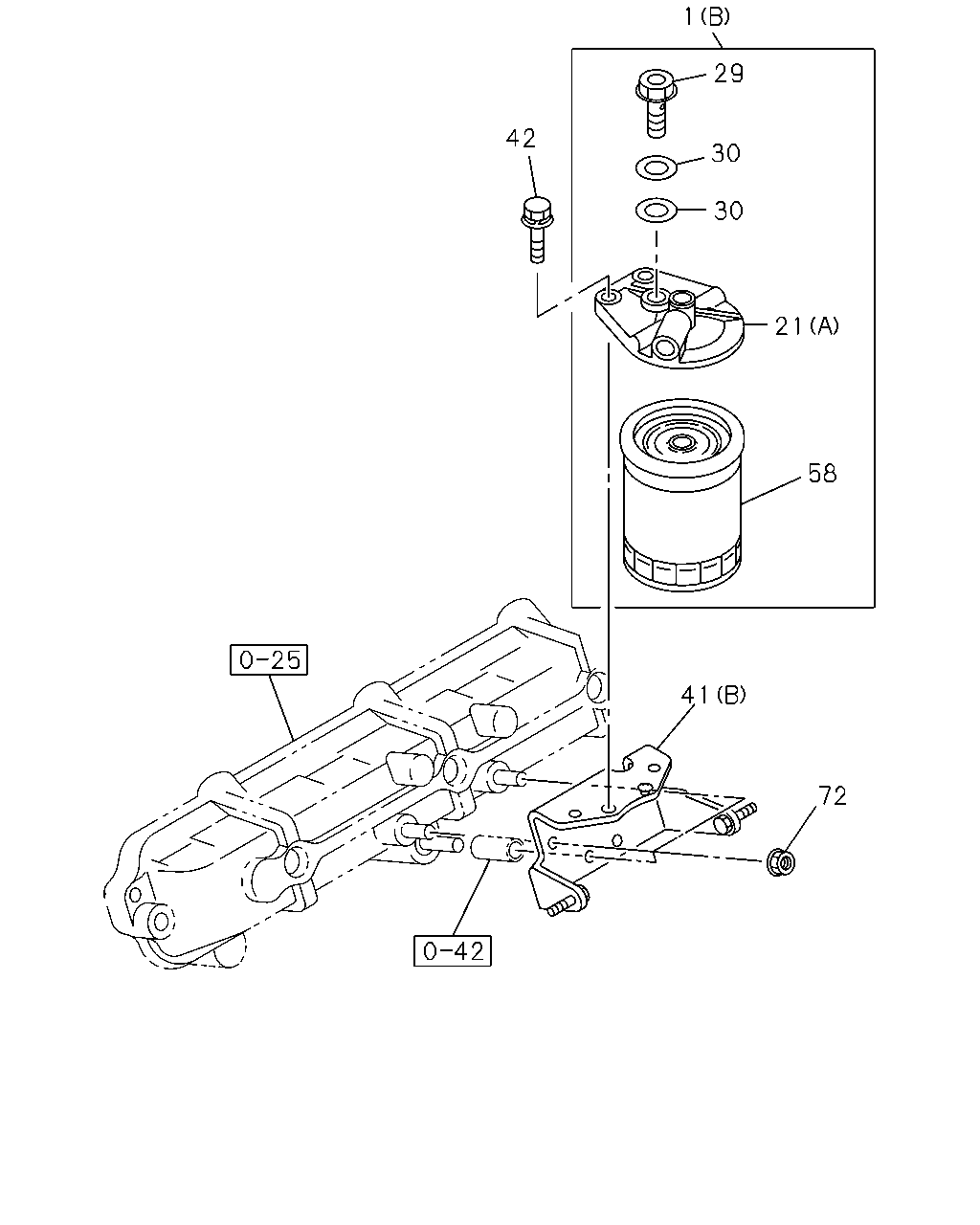

1 29 42 30 30 21 58 41 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER ASM; FUEL (A)	1-13200-890-2	01	1	0005-0210	●
1	FILTER ASM; FUEL (B)	1-13200-973-1	01	1	0005-0210		●
1	FILTER ASM; FUEL (C)	1-13200-996-1	01	1	0211-1106		●
1	FILTER ASM; FUEL (C)	8-98175-166-0	01	1	1107-		●
1	FILTER ASM; FUEL (D)	1-13200-890-4	01	1	0303-			●
21	COVER; UPR,FUEL FILTER (A)	1-13212-108-1	01	1	0005-0210	●	●
21	COVER; UPR,FUEL FILTER (B)	1-13212-049-1	01	1	0211-		●
21	COVER; UPR,FUEL FILTER (C)	1-13212-159-2	01	1	0303-			●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	0005-0210		●
29	VALVE; OVERFLOW	1-13260-115-0	01	1	0211-		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	1107-		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0005-0206	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0212		●
41	BRACKET; FUEL FILTER (A)	8-94395-066-1	01	1	0005-0108	●
41	BRACKET; FUEL FILTER (C)	8-94391-451-0	01	1	0109-0210	●
41	BRACKET; FUEL FILTER (B)	1-13219-312-2	01	1	0005-0210		●
41	BRACKET; FUEL FILTER (D)	8-97602-219-0	01	1	0303-			●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	0005-0210	●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0005-0210		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	04	1	0211-0512		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	04	1	0601-		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	0303-0512			●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	02	1	0601-			●
58	ELEMENT; FUEL FILTER BEST VALUE PARTS	1-87610-053-1	01	1	0712-			●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	0005-0210	●	●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	0303-0711			●
58	ELEMENT; FUEL FILTER	8-98036-654-0	01	1	0712-			●
72	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-110-0	02	1	0005-0210	●
72	NUT; BRKT,FUEL FILTER M8 FLANGE	0-91150-108-0	03	1	0005-0210		●
72	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-110-0	02	1	0303-0602			●
72	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-110-0	02	1	0603-			●

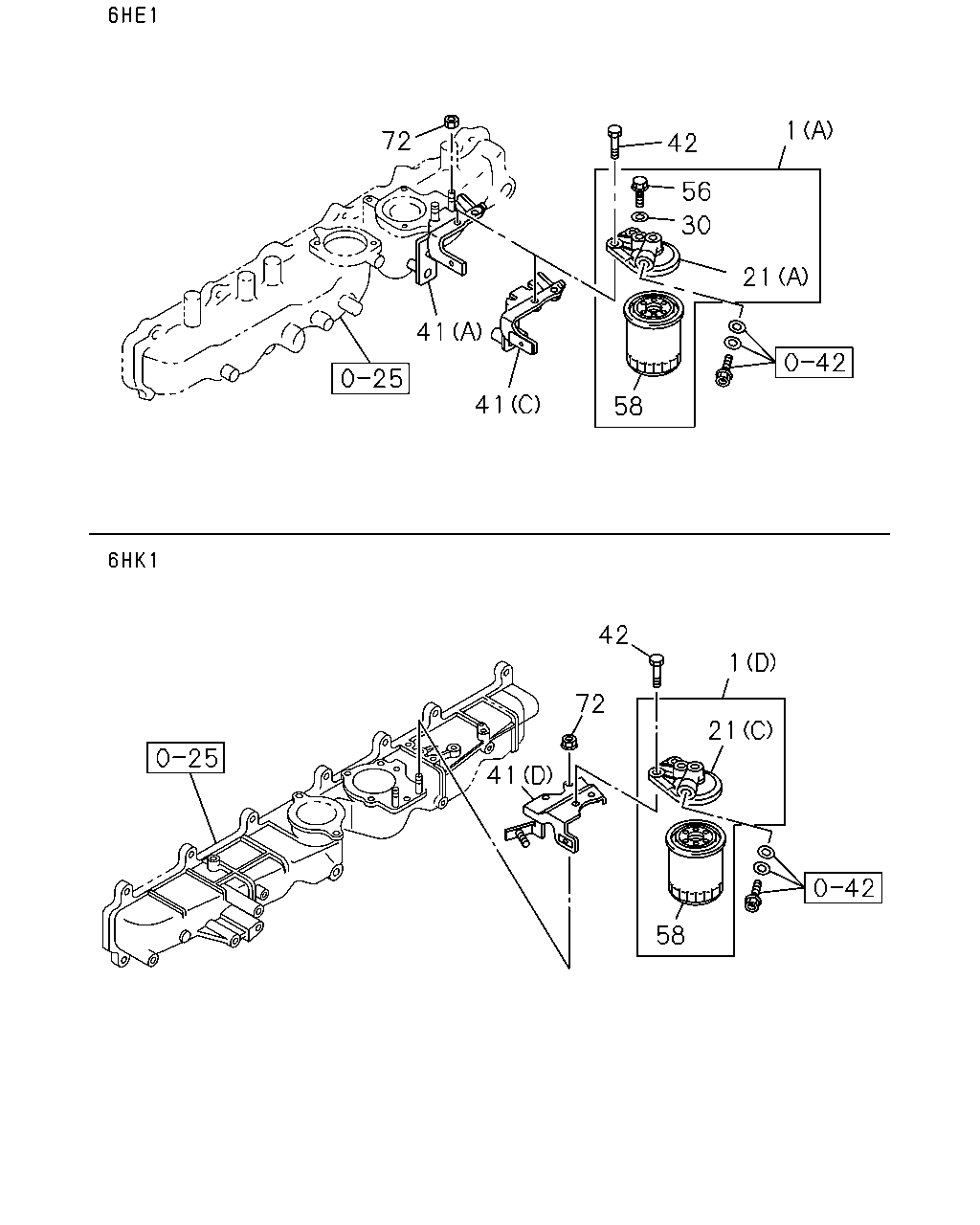

1 72 42 56 30 21 41 41 58 42 1 72 21 41 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER ASM; FUEL (A)	1-13200-890-2	01	1	0005-0210	●
1	FILTER ASM; FUEL (B)	1-13200-973-1	01	1	0005-0210		●
1	FILTER ASM; FUEL (C)	1-13200-996-1	01	1	0211-1106		●
1	FILTER ASM; FUEL (C)	8-98175-166-0	01	1	1107-		●
1	FILTER ASM; FUEL (D)	1-13200-890-4	01	1	0303-			●
21	COVER; UPR,FUEL FILTER (A)	1-13212-108-1	01	1	0005-0210	●	●
21	COVER; UPR,FUEL FILTER (B)	1-13212-049-1	01	1	0211-		●
21	COVER; UPR,FUEL FILTER (C)	1-13212-159-2	01	1	0303-			●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	1107-		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0005-0206	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0212		●
41	BRACKET; FUEL FILTER (A)	8-94395-066-1	01	1	0005-0108	●
41	BRACKET; FUEL FILTER (C)	8-94391-451-0	01	1	0109-0210	●
41	BRACKET; FUEL FILTER (B)	1-13219-312-2	01	1	0005-0210		●
41	BRACKET; FUEL FILTER (D)	8-97602-219-0	01	1	0303-			●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	0005-0210	●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0005-0210		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	04	1	0211-0512		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	04	1	0601-		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	0303-0512			●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	02	1	0601-			●
56	PLUG; FUEL FILTER M14X9	9-99202-314-0	01	1	0005-0206	●
58	ELEMENT; FUEL FILTER BEST VALUE PARTS	1-87610-053-1	01	1	0712-			●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	0005-0210	●	●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	0303-0711			●
58	ELEMENT; FUEL FILTER	8-98036-654-0	01	1	0712-			●
72	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-110-0	02	1	0005-0210	●
72	NUT; BRKT,FUEL FILTER M8 FLANGE	0-91150-108-0	03	1	0005-0210		●
72	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-110-0	02	1	0303-0602			●
72	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-110-0	02	1	0603-			●

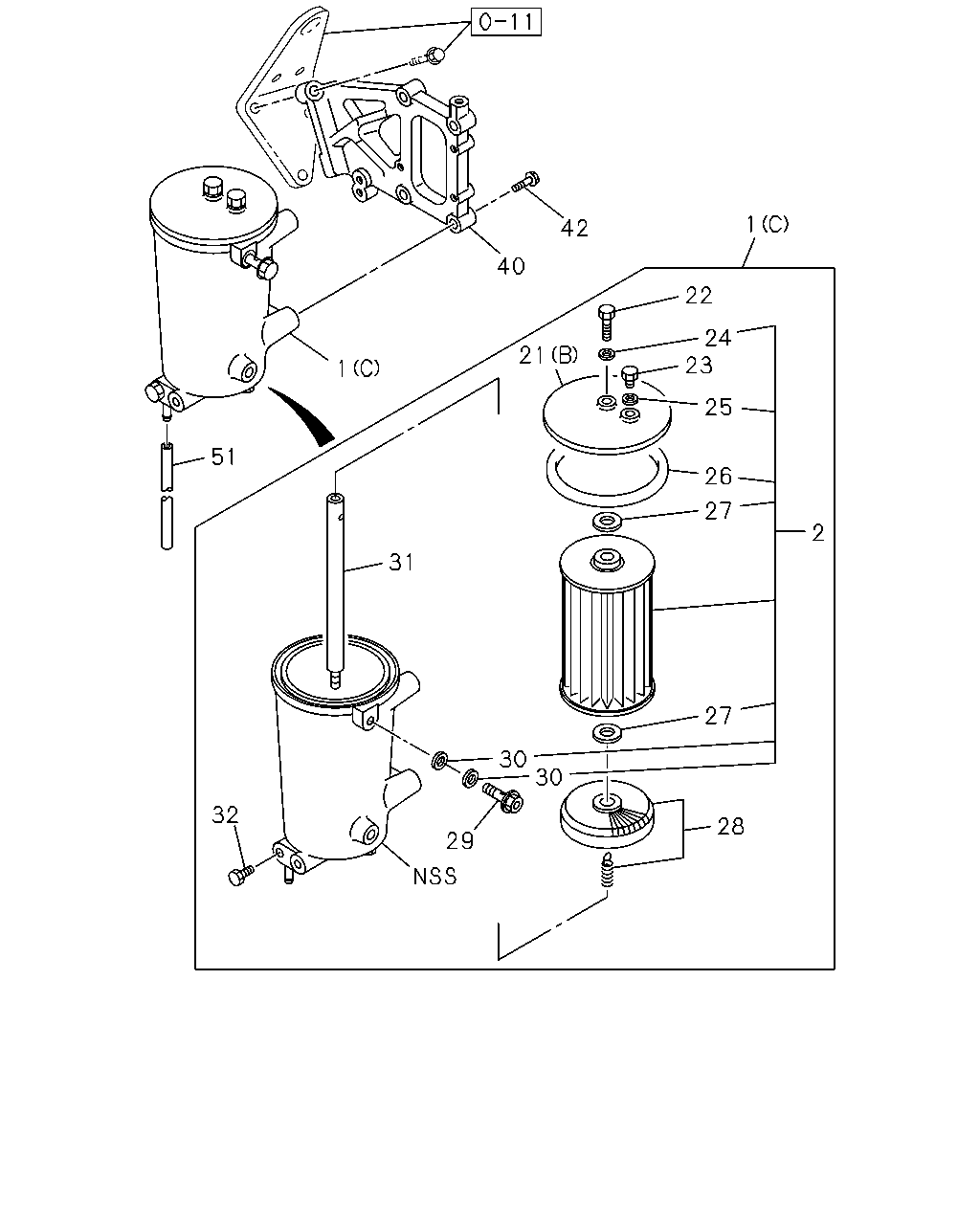

1 42 40 22 24 23 21 1 25 51 26 27 2 31 27 30 30 32 28 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER ASM; FUEL (A)	1-13200-890-2	01	1	0005-0210	●
1	FILTER ASM; FUEL (B)	1-13200-973-1	01	1	0005-0210		●
1	FILTER ASM; FUEL (C)	1-13200-996-1	01	1	0211-1106		●
1	FILTER ASM; FUEL (C)	8-98175-166-0	01	1	1107-		●
1	FILTER ASM; FUEL (D)	1-13200-890-4	01	1	0303-			●
2	ELEMENT KIT; FUEL FILTER	1-87810-976-0	01	1	0211-1106		●
2	ELEMENT KIT; FUEL FILTER	8-98174-903-0	02	1	1107-		●
21	COVER; UPR,FUEL FILTER (A)	1-13212-108-1	01	1	0005-0210	●	●
21	COVER; UPR,FUEL FILTER (B)	1-13212-049-1	01	1	0211-		●
21	COVER; UPR,FUEL FILTER (C)	1-13212-159-2	01	1	0303-			●
22	BOLT; CENTER TUBE,COVER	1-13219-045-0	01	1	0211-		●
23	PLUG; COVER	1-13219-074-0	01	1	0211-		●
24	GASKET; CENTER TUBE BOLT ID=10.2 OD=15.2	1-09630-083-0	01	1	0211-		●
25	GASKET; AIR DRAIN PLUG ID=10.2 OD=15.2	1-09630-083-0	01	1	0211-		●
26	GASKET; COVER TO BODY	9-09720-797-0	01	1	0211-		●
27	GASKET; ELEMENT	1-09630-007-0	02	1	0211-		●
28	STRAINER; WATER,FUEL FILTER	1-13251-001-0	01	1	0211-		●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	0005-0210		●
29	VALVE; OVERFLOW	1-13260-115-0	01	1	0211-		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	1107-		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0005-0206	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0212		●
31	TUBE; CENTER BOLT	1-13231-026-0	01	1	0211-		●
32	BOLT; DRAIN,FUEL FILTER	1-13219-030-0	01	1	0211-		●
40	BRACKET; FUEL FILTER	1-13219-352-1	01	1	0211-		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	0005-0210	●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0005-0210		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	04	1	0211-0512		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	04	1	0601-		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	0303-0512			●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	02	1	0601-			●
51	PIPE; VINYL L=800 SERVICED BY L=10000	9-09914-909-0	01	1	0211-		●
