◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#8273) — 781 parça

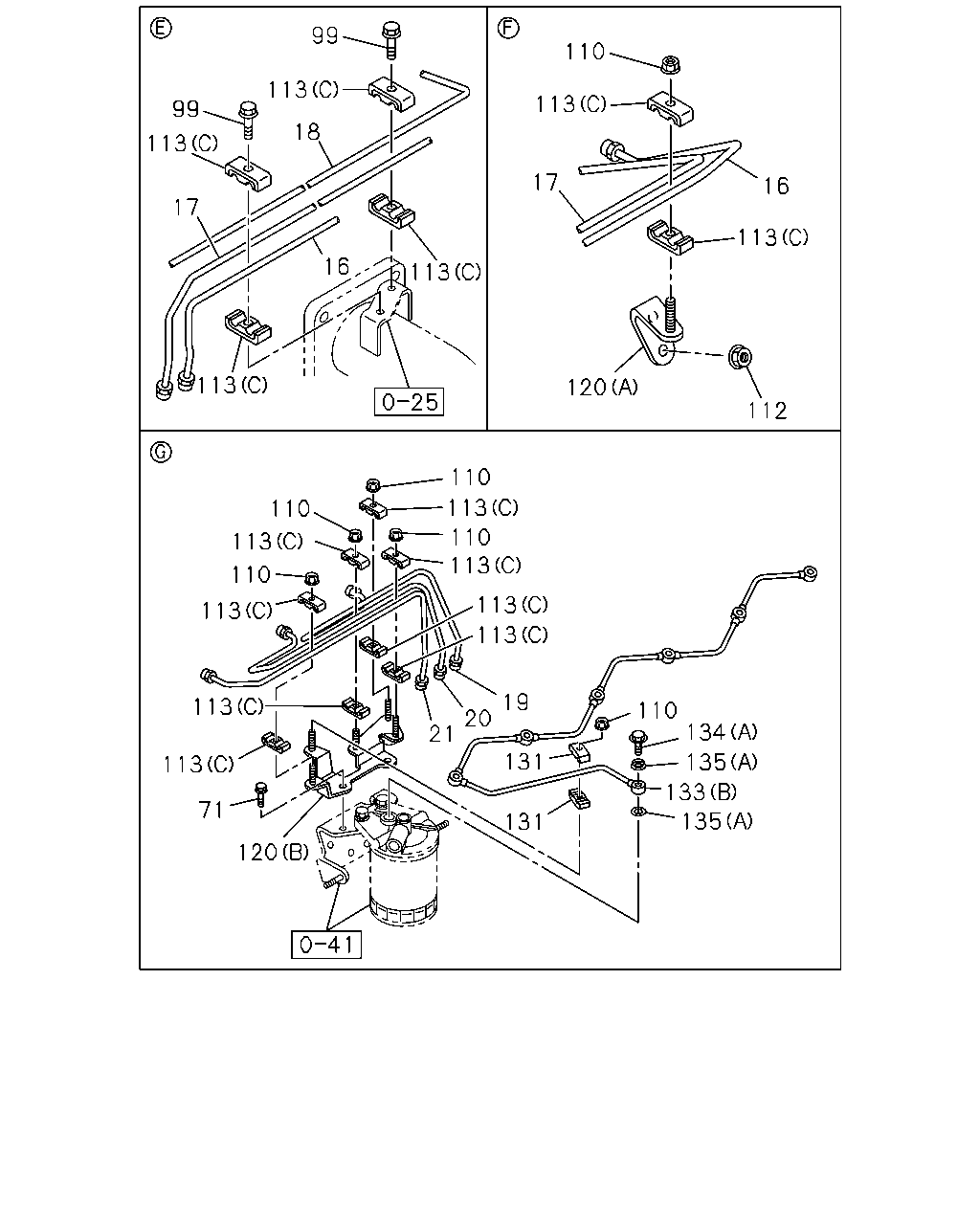

çizim 5811
99 110 113 113 99 18 113 17 16 17 113 16 113 113 120 112 110 113 110 110 113 113 110 113 113 113 19 113 110 20 134 21 131 135 113 133 71 135 131 120 41
BalonParca AdiParca NoAdetTipApplied Date A B C
16 PIPE; INJ NO.1 8-94394-223-1 01 1 0005-0108 ●
16 PIPE; INJ NO.1 8-94391-422-0 01 1 0109-0210 ●
16 PIPE; INJ NO.1 1-15415-763-0 01 1 0005-0210 ●
16 PIPE; INJ NO.1 1-15416-329-1 01 1 0211- ●
16 PIPE; INJ NO.1 8-97600-667-0 01 1 0303- ●
17 PIPE; INJ NO.2 8-94394-224-1 01 1 0005-0108 ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 0109-0109 ●
17 PIPE; INJ NO.2 8-97602-329-0 01 1 0110-0210 ●
17 PIPE; INJ NO.2 1-15415-764-0 01 1 0005-0210 ●
17 PIPE; INJ NO.2 1-15416-175-1 01 1 0211- ●
17 PIPE; INJ NO.2 8-97600-668-0 01 1 0303- ●
18 PIPE; INJ NO.3 8-94390-830-0 01 1 0005-0108 ●
18 PIPE; INJ NO.3 8-97602-257-0 01 1 0109-0210 ●
18 PIPE; INJ NO.3 1-15415-765-0 01 1 0005-0210 ●
18 PIPE; INJ NO.3 1-15416-474-1 01 1 0211- ●
18 PIPE; INJ NO.3 8-97600-669-0 01 1 0303- ●
19 PIPE; INJ NO.4 8-94394-226-1 01 1 0005-0108 ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 0109-0210 ●
19 PIPE; INJ NO.4 1-15415-766-0 01 1 0005-0210 ●
19 PIPE; INJ NO.4 1-15416-372-1 01 1 0211- ●
19 PIPE; INJ NO.4 8-97600-670-0 01 1 0303- ●
20 PIPE; INJ NO.5 8-94394-227-1 01 1 0005-0108 ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 0109-0210 ●
20 PIPE; INJ NO.5 1-15415-767-0 01 1 0005-0210 ●
20 PIPE; INJ NO.5 1-15416-397-1 01 1 0211- ●
20 PIPE; INJ NO.5 8-97600-671-1 01 1 0303- ●
21 PIPE; INJ NO.6 8-94394-228-1 01 1 0005-0108 ●
21 PIPE; INJ NO.6 8-94391-427-0 01 1 0109-0210 ●
21 PIPE; INJ NO.6 1-15415-768-0 01 1 0005-0210 ●
21 PIPE; INJ NO.6 1-15416-332-1 01 1 0211- ●
21 PIPE; INJ NO.6 8-97600-672-0 01 1 0303- ●
41 CONNECTOR; FUEL INL,NOZZLE HOLDER 1-15351-005-0 06 1 0005-0210 ●
71 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 0005-0210 ●
71 BOLT; BRKT
M6X12 FLANGE 		0-28080-612-0 02 1 0303-0512 ●
71 BOLT; BRKT
M6X12 FLANGE 		0-28050-612-0 02 1 0601- ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28080-635-0 02 1 0005-0210 ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 0005-0210 ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 06 1 0005-0210 ●
112 NUT; BRKT,INJ PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
113 CLIP; INJ PIPE
(A) 		8-94396-793-0 04 1 0005-0108 ●
113 CLIP; INJ PIPE
(C) 		1-09701-132-0 10 1 0109-0210 ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 05 1 0005-0108 ●
113 CLIP; INJ PIPE
(C) 		1-09701-132-0 14 1 0005-0210 ●
113 CLIP; INJ PIPE
(C) 		1-09701-132-1 08 1 0303-1202 ●
113 CLIP; INJ PIPE
(C) 		1-09701-240-0 08 1 1203- ●
120 BRACKET; INJ PIPE
(A) 		1-15419-430-0 01 1 0005-0210 ●
120 BRACKET; INJ PIPE
(B) 		1-15419-431-0 01 1 0005-0210 ●
131 CLIP; OVERFLOW LEAK OFF 1-09701-091-0 01 1 0005-0210 ●
131 CLIP; OVERFLOW LEAK OFF 1-09701-132-0 02 1 0005-0210 ●
131 CLIP; OVERFLOW LEAK OFF
L=48 		5-09709-103-0 01 1 0303- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94390-071-0 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		1-15415-777-0 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		1-15416-693-1 01 1 0211- ●
133 PIPE; INJ NOZZLE LEAK OFF
(D) 		8-94390-451-0 01 1 0303- ●
133 PIPE; INJ NOZZLE LEAK OFF
(E) 		8-97600-692-2 01 1 0303- ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 01 1 0005- ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 0211- ●
134 BOLT; JOINT,LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0303- ●
134 BOLT; JOINT,LEAK OFF PIPE
(D) M10X21 FLANGE 		8-94396-711-0 01 1 0303- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 13 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6 		8-94395-214-0 07 1 0211-0702 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.3 		8-98065-992-0 07 1 0703-0704 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6 		8-94395-214-0 07 1 0705-1312 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6 		8-98246-930-0 07 1 1401- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0211-0702 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20 		8-98065-990-0 02 1 0703- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0303-0908 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0909- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3 		8-97600-925-0 06 1 0303-0908 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3 		8-98065-992-0 06 1 0909- ●
çizim 7130
31 42 32 145 140 44 141 46 146 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B C
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 1-15300-332-0 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 1-15300-415-1 06 1 0211- ●
31 NOZZLE ASM; INJ 8-97600-666-0 06 1 0303- ●
32 HOLDER ASM; NOZZLE 8-94395-197-1 06 1 0005-0210 ●
32 HOLDER ASM; NOZZLE 1-15330-054-1 06 1 0005-0210 ●
32 HOLDER ASM; NOZZLE 8-97602-022-0 06 1 0303- ●
33 NOZZLE; INJ 8-94394-699-0 06 1 0005-0210 ●
33 NOZZLE; INJ 1-15311-265-0 06 1 0005-0210 ●
33 NOZZLE; INJ 8-97602-021-0 06 1 0303- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 0005-0210 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15332-017-0 06 1 0005-0210 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-142-0 06 1 0303- ●
42 GASKET; INL CONNECTOR,NOZZLE HOLDER 5-15339-003-0 06 1 0005-0210 ●
42 GASKET; INL CONNECTOR,NOZZLE HOLDER 9-09561-112-0 06 1 0303- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 0005-0210 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94246-531-0 06 1 0005-0210 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 5-15345-003-0 06 1 0303- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(A) 		8-94174-139-0 12 1 0005-0210 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(B) 		9-15347-003-0 12 1 0005-0210 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(C) 		1-15347-001-1 12 1 0303- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(D) 		9-15347-003-0 12 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97027-432-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97027-433-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97027-434-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97027-435-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97027-436-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97027-437-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97027-438-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97027-439-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97027-440-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		5-15339-007-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		5-15339-008-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		5-15339-009-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.80 		5-15339-010-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.90 		5-15339-011-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.00 		5-15339-012-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		5-15339-018-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		5-15339-019-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		5-15339-020-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		5-15339-021-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-94128-982-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-94128-983-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-94128-984-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-94128-985-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		1-15349-120-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		1-15349-121-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		1-15349-122-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		1-15349-123-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		1-15349-124-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		1-15349-125-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		1-15349-126-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		1-15349-127-0 AR 1 0303- ●
141 ROD; PUSH,UPR,NOZZLE HOLDER 1-15341-006-0 06 1 0005-0210 ●
141 ROD; PUSH,UPR,NOZZLE HOLDER 1-15349-132-0 06 1 0303- ●
145 GASKET; RET NUT 8-94128-915-0 06 1 0005-0210 ●
145 GASKET; RET NUT
ID=23.3 		8-94173-412-0 06 1 0303- ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 0005-0210 ●
146 SPACER; NOZZLE 1-15349-133-0 06 1 0303- ●

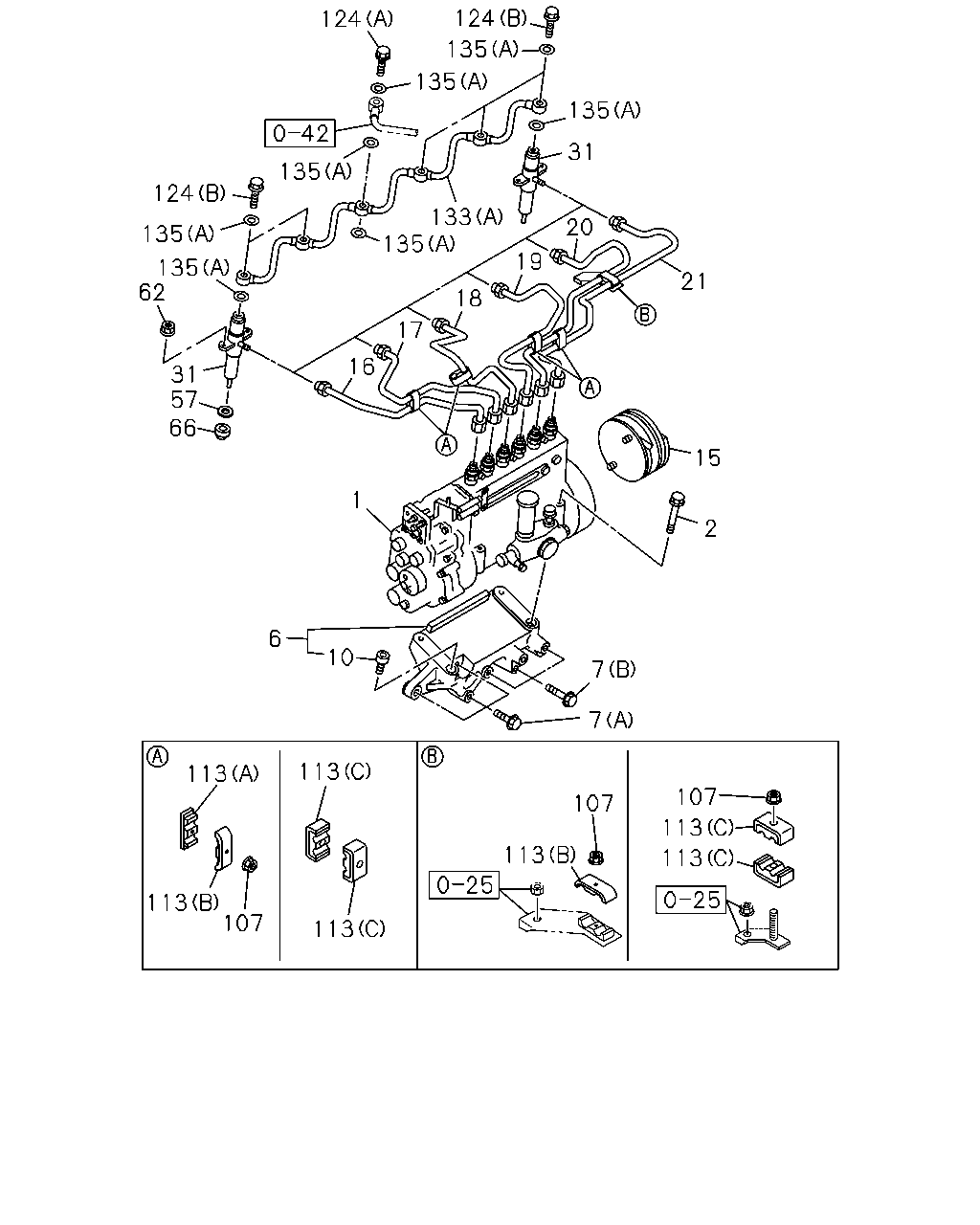

çizim 7668
124 124 135 135 135 31 135 124 133 135 20 135 19 135 62 21 18 17 16 31 57 66 15 1 2 6 10 7 7 113 113 107 107 113 113 113 113 107 113
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94390-618-3 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> 		1-15603-287-1 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		1-15603-129-5 01 1 0211- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. A/T<X9D> 		1-15603-258-3 01 1 0012-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. A/T<X9D> 		1-15603-258-3 01 1 0005-0011 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97600-665-4 01 1 0303- ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0005-0210 ●
2 BOLT; INJ PUMP
M10X90 		0-16806-090-0 04 1 0005-0210 ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28090-890-0 04 1 0211-0512 ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28060-890-0 04 1 0601- ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0303-0512 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601- ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 0005-0210 ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-168-0 01 1 0005-0210 ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-158-1 01 1 0211- ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 0303- ●
7 BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE 		0-28181-040-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE 		0-28181-080-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(A) M10X60 FLANGE 		0-28181-060-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(B) M10X25 FLANGE 		0-28781-025-0 01 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(D) M10X100 FLANGE 		0-28181-000-0 02 1 0211-0512 ●
7 BOLT; INJ PUMP BRKT
(D) M10X100 FLANGE 		0-28151-000-0 02 1 0601- ●
7 BOLT; INJ PUMP BRKT
(C) M10X40 FLANGE 		0-28781-040-0 01 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(E) M10X35 FLANGE 		0-28181-035-0 03 1 0211-0512 ●
7 BOLT; INJ PUMP BRKT
(E) M10X35 FLANGE 		0-28151-035-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(F) M10X40 FLANGE 		0-28181-040-0 03 1 0303-0512 ●
7 BOLT; INJ PUMP BRKT
(F) M10X40 FLANGE 		0-28151-040-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(G) M10X80 FLANGE 		0-28181-080-0 03 1 0303-0512 ●
7 BOLT; INJ PUMP BRKT
(G) M10X80 FLANGE 		0-28151-080-0 03 1 0601- ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 0005-0210 ● ●
10 DOWEL; INJ PUMP 1-11229-012-1 02 1 0211- ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 0303- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-111-1 01 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-192-0 01 1 0211- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 0303- ●
16 PIPE; INJ NO.1 8-94394-223-1 01 1 0005-0108 ●
16 PIPE; INJ NO.1 8-94391-422-0 01 1 0109-0210 ●
16 PIPE; INJ NO.1 1-15415-763-0 01 1 0005-0210 ●
16 PIPE; INJ NO.1 1-15416-329-1 01 1 0211- ●
16 PIPE; INJ NO.1 8-97600-667-0 01 1 0303- ●
17 PIPE; INJ NO.2 8-94394-224-1 01 1 0005-0108 ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 0109-0109 ●
17 PIPE; INJ NO.2 8-97602-329-0 01 1 0110-0210 ●
17 PIPE; INJ NO.2 1-15415-764-0 01 1 0005-0210 ●
17 PIPE; INJ NO.2 1-15416-175-1 01 1 0211- ●
17 PIPE; INJ NO.2 8-97600-668-0 01 1 0303- ●
18 PIPE; INJ NO.3 8-94390-830-0 01 1 0005-0108 ●
18 PIPE; INJ NO.3 8-97602-257-0 01 1 0109-0210 ●
18 PIPE; INJ NO.3 1-15415-765-0 01 1 0005-0210 ●
18 PIPE; INJ NO.3 1-15416-474-1 01 1 0211- ●
18 PIPE; INJ NO.3 8-97600-669-0 01 1 0303- ●
19 PIPE; INJ NO.4 8-94394-226-1 01 1 0005-0108 ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 0109-0210 ●
19 PIPE; INJ NO.4 1-15415-766-0 01 1 0005-0210 ●
19 PIPE; INJ NO.4 1-15416-372-1 01 1 0211- ●
19 PIPE; INJ NO.4 8-97600-670-0 01 1 0303- ●
20 PIPE; INJ NO.5 8-94394-227-1 01 1 0005-0108 ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 0109-0210 ●
20 PIPE; INJ NO.5 1-15415-767-0 01 1 0005-0210 ●
20 PIPE; INJ NO.5 1-15416-397-1 01 1 0211- ●
20 PIPE; INJ NO.5 8-97600-671-1 01 1 0303- ●
21 PIPE; INJ NO.6 8-94394-228-1 01 1 0005-0108 ●
21 PIPE; INJ NO.6 8-94391-427-0 01 1 0109-0210 ●
21 PIPE; INJ NO.6 1-15415-768-0 01 1 0005-0210 ●
21 PIPE; INJ NO.6 1-15416-332-1 01 1 0211- ●
21 PIPE; INJ NO.6 8-97600-672-0 01 1 0303- ●
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 1-15300-332-0 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 1-15300-415-1 06 1 0211- ●
31 NOZZLE ASM; INJ 8-97600-666-0 06 1 0303- ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 0005-0210 ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 0005-0210 ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 0211-0602 ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91180-108-0 12 1 0603- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94391-472-0 12 1 0005-0210 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-013-1 06 1 0005- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0303-0909 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 05 1 0005-0108 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 06 1 0109-0210 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 04 1 0303-0602 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91180-106-0 04 1 0603- ●
113 CLIP; INJ PIPE
(A) 		8-94396-793-0 04 1 0005-0108 ●
113 CLIP; INJ PIPE
(C) 		1-09701-132-0 10 1 0109-0210 ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 05 1 0005-0108 ●
113 CLIP; INJ PIPE
(C) 		1-09701-132-0 14 1 0005-0210 ●
113 CLIP; INJ PIPE
(C) 		1-09701-132-1 08 1 0303-1202 ●
113 CLIP; INJ PIPE
(C) 		1-09701-240-0 08 1 1203- ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X18 EYE-BOLT 		1-09675-037-1 05 1 0005-0210 ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X20 EYE-BOLT 		5-09675-018-1 06 1 0211- ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X30 FLANGE 		1-09675-039-1 01 1 0005-0210 ●
124 BOLT; EYE LEAK OFF PIPE
(D) M10X21 FLANGE 		8-94396-711-0 01 1 0303- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94390-071-0 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		1-15415-777-0 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		1-15416-693-1 01 1 0211- ●
133 PIPE; INJ NOZZLE LEAK OFF
(D) 		8-94390-451-0 01 1 0303- ●
133 PIPE; INJ NOZZLE LEAK OFF
(E) 		8-97600-692-2 01 1 0303- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 13 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6 		8-94395-214-0 07 1 0211-0702 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.3 		8-98065-992-0 07 1 0703-0704 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6 		8-94395-214-0 07 1 0705-1312 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6 		8-98246-930-0 07 1 1401- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0211-0702 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20 		8-98065-990-0 02 1 0703- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0303-0908 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0909- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3 		8-97600-925-0 06 1 0303-0908 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3 		8-98065-992-0 06 1 0909- ●

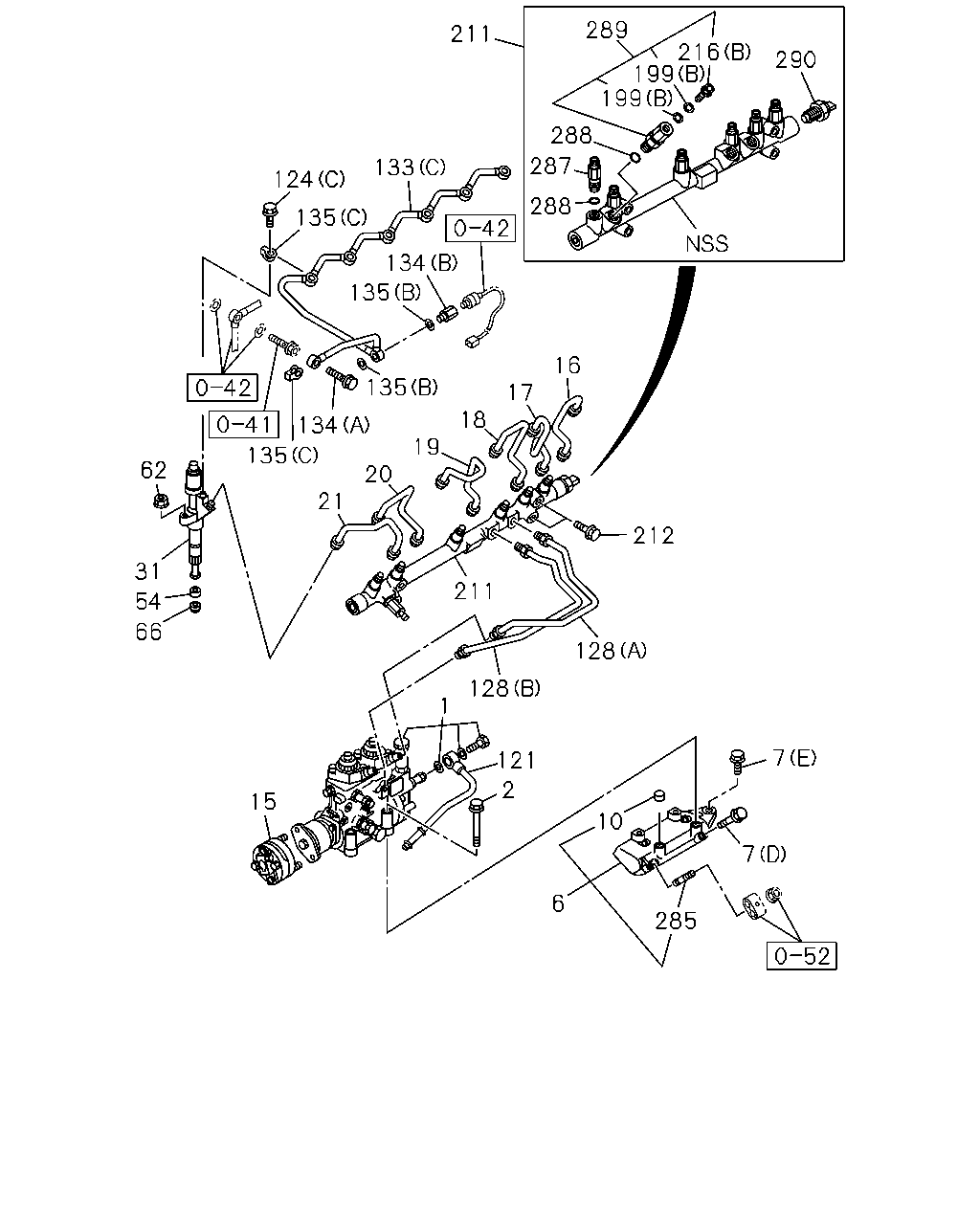

çizim 11019
289 211 216 199 199 290 288 287 133 124 288 135 134 135 135 16 17 18 134 19 135 62 20 21 212 31 211 54 66 128 128 1 7 121 2 15 10 7 6 285
BalonParca AdiParca NoAdetTipApplied Date A B C

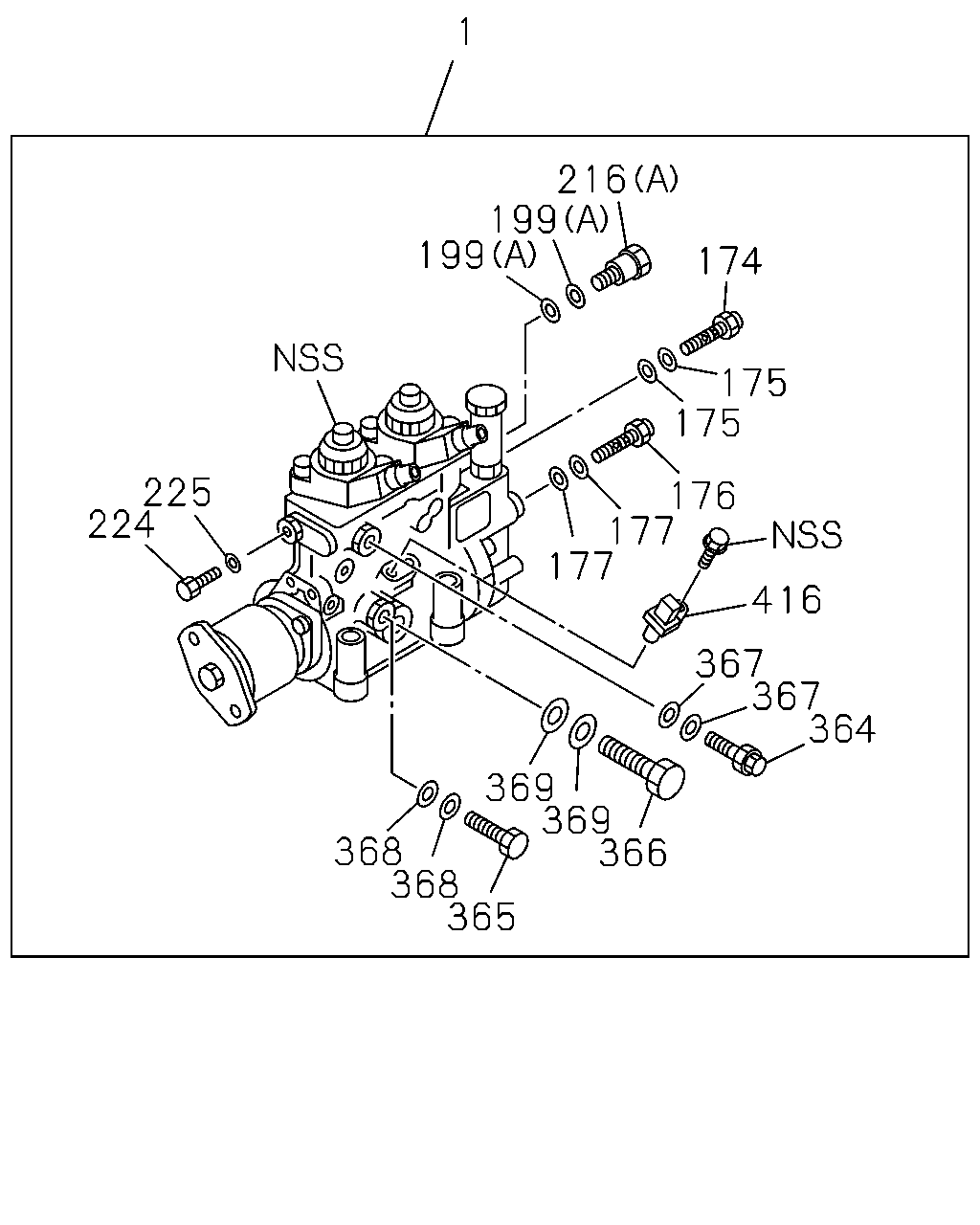

1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94390-618-3 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> 		1-15603-287-1 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		1-15603-129-5 01 1 0211- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. A/T<X9D> 		1-15603-258-3 01 1 0012-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. A/T<X9D> 		1-15603-258-3 01 1 0005-0011 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97600-665-4 01 1 0303- ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0005-0210 ●
2 BOLT; INJ PUMP
M10X90 		0-16806-090-0 04 1 0005-0210 ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28090-890-0 04 1 0211-0512 ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28060-890-0 04 1 0601- ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0303-0512 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601- ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 0005-0210 ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-168-0 01 1 0005-0210 ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-158-1 01 1 0211- ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 0303- ●
7 BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE 		0-28181-040-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE 		0-28181-080-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(A) M10X60 FLANGE 		0-28181-060-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(B) M10X25 FLANGE 		0-28781-025-0 01 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(D) M10X100 FLANGE 		0-28181-000-0 02 1 0211-0512 ●
7 BOLT; INJ PUMP BRKT
(D) M10X100 FLANGE 		0-28151-000-0 02 1 0601- ●
7 BOLT; INJ PUMP BRKT
(C) M10X40 FLANGE 		0-28781-040-0 01 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(E) M10X35 FLANGE 		0-28181-035-0 03 1 0211-0512 ●
7 BOLT; INJ PUMP BRKT
(E) M10X35 FLANGE 		0-28151-035-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(F) M10X40 FLANGE 		0-28181-040-0 03 1 0303-0512 ●
7 BOLT; INJ PUMP BRKT
(F) M10X40 FLANGE 		0-28151-040-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(G) M10X80 FLANGE 		0-28181-080-0 03 1 0303-0512 ●
7 BOLT; INJ PUMP BRKT
(G) M10X80 FLANGE 		0-28151-080-0 03 1 0601- ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 0005-0210 ● ●
10 DOWEL; INJ PUMP 1-11229-012-1 02 1 0211- ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 0303- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-111-1 01 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-192-0 01 1 0211- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 0303- ●
16 PIPE; INJ NO.1 8-94394-223-1 01 1 0005-0108 ●
16 PIPE; INJ NO.1 8-94391-422-0 01 1 0109-0210 ●
16 PIPE; INJ NO.1 1-15415-763-0 01 1 0005-0210 ●
16 PIPE; INJ NO.1 1-15416-329-1 01 1 0211- ●
16 PIPE; INJ NO.1 8-97600-667-0 01 1 0303- ●
17 PIPE; INJ NO.2 8-94394-224-1 01 1 0005-0108 ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 0109-0109 ●
17 PIPE; INJ NO.2 8-97602-329-0 01 1 0110-0210 ●
17 PIPE; INJ NO.2 1-15415-764-0 01 1 0005-0210 ●
17 PIPE; INJ NO.2 1-15416-175-1 01 1 0211- ●
17 PIPE; INJ NO.2 8-97600-668-0 01 1 0303- ●
18 PIPE; INJ NO.3 8-94390-830-0 01 1 0005-0108 ●
18 PIPE; INJ NO.3 8-97602-257-0 01 1 0109-0210 ●
18 PIPE; INJ NO.3 1-15415-765-0 01 1 0005-0210 ●
18 PIPE; INJ NO.3 1-15416-474-1 01 1 0211- ●
18 PIPE; INJ NO.3 8-97600-669-0 01 1 0303- ●
19 PIPE; INJ NO.4 8-94394-226-1 01 1 0005-0108 ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 0109-0210 ●
19 PIPE; INJ NO.4 1-15415-766-0 01 1 0005-0210 ●
19 PIPE; INJ NO.4 1-15416-372-1 01 1 0211- ●
19 PIPE; INJ NO.4 8-97600-670-0 01 1 0303- ●
20 PIPE; INJ NO.5 8-94394-227-1 01 1 0005-0108 ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 0109-0210 ●
20 PIPE; INJ NO.5 1-15415-767-0 01 1 0005-0210 ●
20 PIPE; INJ NO.5 1-15416-397-1 01 1 0211- ●
20 PIPE; INJ NO.5 8-97600-671-1 01 1 0303- ●
21 PIPE; INJ NO.6 8-94394-228-1 01 1 0005-0108 ●
21 PIPE; INJ NO.6 8-94391-427-0 01 1 0109-0210 ●
21 PIPE; INJ NO.6 1-15415-768-0 01 1 0005-0210 ●
21 PIPE; INJ NO.6 1-15416-332-1 01 1 0211- ●
21 PIPE; INJ NO.6 8-97600-672-0 01 1 0303- ●
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 1-15300-332-0 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 1-15300-415-1 06 1 0211- ●
31 NOZZLE ASM; INJ 8-97600-666-0 06 1 0303- ●
54 COVER; DUST,NOZZLE HOLDER 9-15339-051-0 06 1 0005- ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 0005-0210 ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 0211-0602 ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91180-108-0 12 1 0603- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94391-472-0 12 1 0005-0210 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-013-1 06 1 0005- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0303-0909 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 0005-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15415-778-0 01 1 0005-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15416-689-0 01 1 0211- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 0303- ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X18 EYE-BOLT 		1-09675-037-1 05 1 0005-0210 ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X20 EYE-BOLT 		5-09675-018-1 06 1 0211- ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X30 FLANGE 		1-09675-039-1 01 1 0005-0210 ●
124 BOLT; EYE LEAK OFF PIPE
(D) M10X21 FLANGE 		8-94396-711-0 01 1 0303- ●
128 PIPE ASM; INJ
(A) 		1-15416-266-1 01 1 0211- ●
128 PIPE ASM; INJ
(B) 		1-15416-374-1 01 1 0211- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94390-071-0 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		1-15415-777-0 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		1-15416-693-1 01 1 0211- ●
133 PIPE; INJ NOZZLE LEAK OFF
(D) 		8-94390-451-0 01 1 0303- ●
133 PIPE; INJ NOZZLE LEAK OFF
(E) 		8-97600-692-2 01 1 0303- ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 01 1 0005- ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 0211- ●
134 BOLT; JOINT,LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0303- ●
134 BOLT; JOINT,LEAK OFF PIPE
(D) M10X21 FLANGE 		8-94396-711-0 01 1 0303- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 13 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6 		8-94395-214-0 07 1 0211-0702 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.3 		8-98065-992-0 07 1 0703-0704 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6 		8-94395-214-0 07 1 0705-1312 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6 		8-98246-930-0 07 1 1401- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0211-0702 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20 		8-98065-990-0 02 1 0703- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0303-0908 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0909- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3 		8-97600-925-0 06 1 0303-0908 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3 		8-98065-992-0 06 1 0909- ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0211- ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0211- ●
211 RAIL ASM; COMMON 1-15651-003-2 01 1 0211- ●
212 BOLT; RAIL ASM
M10X50 FLANGE 		0-28181-050-0 04 1 0211-0512 ●
212 BOLT; RAIL ASM
M10X50 FLANGE 		0-28151-050-0 04 1 0601- ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0211- ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0211- ●
285 STUD; BRKT
M6X30 L=38 		9-04110-630-0 02 1 0211-0604 ●
285 STUD; BRKT
M6X30 L=38 		0-41010-630-0 02 1 0605- ●
287 DAMPER; FUEL FLOW 1-15641-053-0 06 1 0211- ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 07 1 0211- ●
289 LIMITER; FUEL PRESS 1-15641-047-1 01 1 0211- ●
290 SENSOR; PRESS 1-80220-012-0 01 1 0211- ●
çizim 43708
31 32 36 36 58 145 140 44 43 146 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B C
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 1-15300-332-0 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 1-15300-415-1 06 1 0211- ●
31 NOZZLE ASM; INJ 8-97600-666-0 06 1 0303- ●
32 HOLDER ASM; NOZZLE 8-94395-197-1 06 1 0005-0210 ●
32 HOLDER ASM; NOZZLE 1-15330-054-1 06 1 0005-0210 ●
32 HOLDER ASM; NOZZLE 8-97602-022-0 06 1 0303- ●
33 NOZZLE; INJ 8-94394-699-0 06 1 0005-0210 ●
33 NOZZLE; INJ 1-15311-265-0 06 1 0005-0210 ●
33 NOZZLE; INJ 8-97602-021-0 06 1 0303- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 0005-0210 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15332-017-0 06 1 0005-0210 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-142-0 06 1 0303- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 0005-0210 ● ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 0005-0210 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 0005-0210 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94246-531-0 06 1 0005-0210 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 5-15345-003-0 06 1 0303- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(A) 		8-94174-139-0 12 1 0005-0210 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(B) 		9-15347-003-0 12 1 0005-0210 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(C) 		1-15347-001-1 12 1 0303- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(D) 		9-15347-003-0 12 1 0303- ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97027-432-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97027-433-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97027-434-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97027-435-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97027-436-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97027-437-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97027-438-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97027-439-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97027-440-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		5-15339-007-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		5-15339-008-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		5-15339-009-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.80 		5-15339-010-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.90 		5-15339-011-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.00 		5-15339-012-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		5-15339-018-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		5-15339-019-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		5-15339-020-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		5-15339-021-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-94128-982-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-94128-983-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-94128-984-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-94128-985-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		1-15349-120-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		1-15349-121-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		1-15349-122-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		1-15349-123-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		1-15349-124-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		1-15349-125-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		1-15349-126-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		1-15349-127-0 AR 1 0303- ●
145 GASKET; RET NUT 8-94128-915-0 06 1 0005-0210 ●
145 GASKET; RET NUT
ID=23.3 		8-94173-412-0 06 1 0303- ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 0005-0210 ●
146 SPACER; NOZZLE 1-15349-133-0 06 1 0303- ●
çizim 45162
1 216 199 199 174 175 175 225 224 176 177 177 416 367 367 364 369 369 366 368 368 365
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94390-618-3 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> 		1-15603-287-1 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		1-15603-129-5 01 1 0211- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. A/T<X9D> 		1-15603-258-3 01 1 0012-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. A/T<X9D> 		1-15603-258-3 01 1 0005-0011 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97600-665-4 01 1 0303- ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 0211- ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-507-0 02 1 0211- ●
176 BOLT; EYE,FEED PUMP 1-15619-509-0 01 1 0211- ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 0211- ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0211- ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0211- ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0211- ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0211- ●
224 PLUG; INJ PUMP 1-15619-500-0 01 1 0211- ●
225 GASKET; PLUG 1-15619-502-0 01 1 0211- ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 0211- ●
365 BOLT; EYE,OIL INLET 9-88130-088-0 01 1 0211- ●
366 BOLT; EYE,OIL OUTLET 1-15619-497-0 01 1 0211- ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 0211- ●
368 GASKET; EYE BOLT,OIL INLET 1-15619-508-0 02 1 0211- ●
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-504-0 02 1 0211- ●
416 SENSOR; POSITION,PUMP 8-97174-899-0 01 1 0211- ●

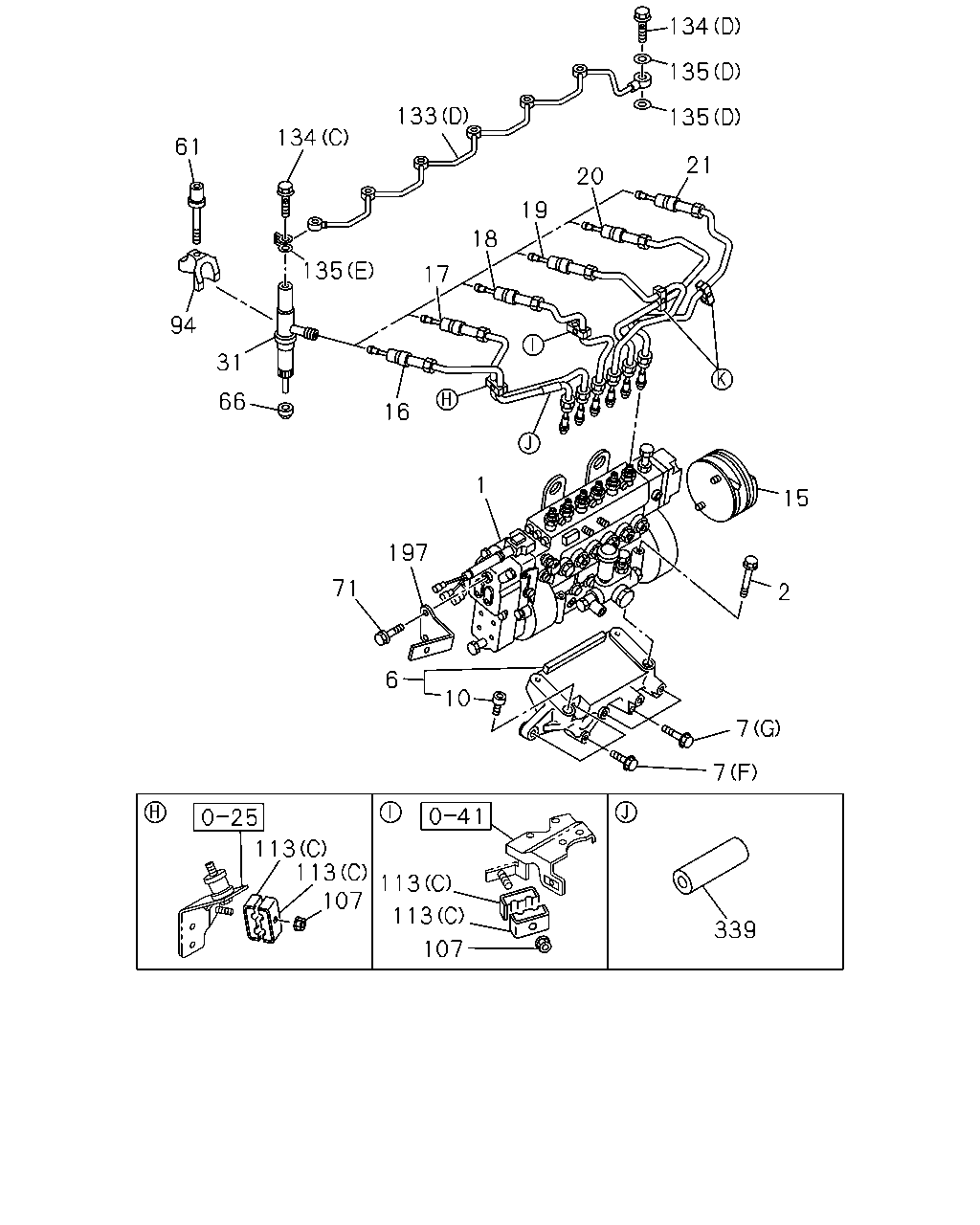

çizim 45197
134 135 133 135 134 61 21 20 19 18 135 17 94 31 66 16 1 15 197 71 2 6 10 7 7 113 113 107 113 113 339 107
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94390-618-3 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> 		1-15603-287-1 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		1-15603-129-5 01 1 0211- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. A/T<X9D> 		1-15603-258-3 01 1 0012-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. A/T<X9D> 		1-15603-258-3 01 1 0005-0011 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97600-665-4 01 1 0303- ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0005-0210 ●
2 BOLT; INJ PUMP
M10X90 		0-16806-090-0 04 1 0005-0210 ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28090-890-0 04 1 0211-0512 ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28060-890-0 04 1 0601- ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0303-0512 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601- ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 0005-0210 ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-168-0 01 1 0005-0210 ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-158-1 01 1 0211- ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 0303- ●
7 BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE 		0-28181-040-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE 		0-28181-080-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(A) M10X60 FLANGE 		0-28181-060-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(B) M10X25 FLANGE 		0-28781-025-0 01 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(D) M10X100 FLANGE 		0-28181-000-0 02 1 0211-0512 ●
7 BOLT; INJ PUMP BRKT
(D) M10X100 FLANGE 		0-28151-000-0 02 1 0601- ●
7 BOLT; INJ PUMP BRKT
(C) M10X40 FLANGE 		0-28781-040-0 01 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(E) M10X35 FLANGE 		0-28181-035-0 03 1 0211-0512 ●
7 BOLT; INJ PUMP BRKT
(E) M10X35 FLANGE 		0-28151-035-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(F) M10X40 FLANGE 		0-28181-040-0 03 1 0303-0512 ●
7 BOLT; INJ PUMP BRKT
(F) M10X40 FLANGE 		0-28151-040-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(G) M10X80 FLANGE 		0-28181-080-0 03 1 0303-0512 ●
7 BOLT; INJ PUMP BRKT
(G) M10X80 FLANGE 		0-28151-080-0 03 1 0601- ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 0005-0210 ● ●
10 DOWEL; INJ PUMP 1-11229-012-1 02 1 0211- ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 0303- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-111-1 01 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-192-0 01 1 0211- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 0303- ●
16 PIPE; INJ NO.1 8-94394-223-1 01 1 0005-0108 ●
16 PIPE; INJ NO.1 8-94391-422-0 01 1 0109-0210 ●
16 PIPE; INJ NO.1 1-15415-763-0 01 1 0005-0210 ●
16 PIPE; INJ NO.1 1-15416-329-1 01 1 0211- ●
16 PIPE; INJ NO.1 8-97600-667-0 01 1 0303- ●
17 PIPE; INJ NO.2 8-94394-224-1 01 1 0005-0108 ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 0109-0109 ●
17 PIPE; INJ NO.2 8-97602-329-0 01 1 0110-0210 ●
17 PIPE; INJ NO.2 1-15415-764-0 01 1 0005-0210 ●
17 PIPE; INJ NO.2 1-15416-175-1 01 1 0211- ●
17 PIPE; INJ NO.2 8-97600-668-0 01 1 0303- ●
18 PIPE; INJ NO.3 8-94390-830-0 01 1 0005-0108 ●
18 PIPE; INJ NO.3 8-97602-257-0 01 1 0109-0210 ●
18 PIPE; INJ NO.3 1-15415-765-0 01 1 0005-0210 ●
18 PIPE; INJ NO.3 1-15416-474-1 01 1 0211- ●
18 PIPE; INJ NO.3 8-97600-669-0 01 1 0303- ●
19 PIPE; INJ NO.4 8-94394-226-1 01 1 0005-0108 ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 0109-0210 ●
19 PIPE; INJ NO.4 1-15415-766-0 01 1 0005-0210 ●
19 PIPE; INJ NO.4 1-15416-372-1 01 1 0211- ●
19 PIPE; INJ NO.4 8-97600-670-0 01 1 0303- ●
20 PIPE; INJ NO.5 8-94394-227-1 01 1 0005-0108 ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 0109-0210 ●
20 PIPE; INJ NO.5 1-15415-767-0 01 1 0005-0210 ●
20 PIPE; INJ NO.5 1-15416-397-1 01 1 0211- ●
20 PIPE; INJ NO.5 8-97600-671-1 01 1 0303- ●
21 PIPE; INJ NO.6 8-94394-228-1 01 1 0005-0108 ●
21 PIPE; INJ NO.6 8-94391-427-0 01 1 0109-0210 ●
21 PIPE; INJ NO.6 1-15415-768-0 01 1 0005-0210 ●
21 PIPE; INJ NO.6 1-15416-332-1 01 1 0211- ●
21 PIPE; INJ NO.6 8-97600-672-0 01 1 0303- ●
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 1-15300-332-0 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 1-15300-415-1 06 1 0211- ●
31 NOZZLE ASM; INJ 8-97600-666-0 06 1 0303- ●
61 BOLT; CLAMP NOZZLE HOLDER 8-94390-989-1 06 1 0303-0412 ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 0501- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94391-472-0 12 1 0005-0210 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-013-1 06 1 0005- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0303-0909 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ●
71 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 0005-0210 ●
71 BOLT; BRKT
M6X12 FLANGE 		0-28080-612-0 02 1 0303-0512 ●
71 BOLT; BRKT
M6X12 FLANGE 		0-28050-612-0 02 1 0601- ●
94 BRACKET; INJ NOZZLE 8-94390-988-0 06 1 0303-0410 ●
94 BRACKET; INJ NOZZLE 8-97306-074-1 06 1 0411-0606 ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 0607- ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 05 1 0005-0108 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 06 1 0109-0210 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 04 1 0303-0602 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91180-106-0 04 1 0603- ●
113 CLIP; INJ PIPE
(A) 		8-94396-793-0 04 1 0005-0108 ●
113 CLIP; INJ PIPE
(C) 		1-09701-132-0 10 1 0109-0210 ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 05 1 0005-0108 ●
113 CLIP; INJ PIPE
(C) 		1-09701-132-0 14 1 0005-0210 ●
113 CLIP; INJ PIPE
(C) 		1-09701-132-1 08 1 0303-1202 ●
113 CLIP; INJ PIPE
(C) 		1-09701-240-0 08 1 1203- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94390-071-0 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		1-15415-777-0 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		1-15416-693-1 01 1 0211- ●
133 PIPE; INJ NOZZLE LEAK OFF
(D) 		8-94390-451-0 01 1 0303- ●
133 PIPE; INJ NOZZLE LEAK OFF
(E) 		8-97600-692-2 01 1 0303- ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 01 1 0005- ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 0211- ●
134 BOLT; JOINT,LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0303- ●
134 BOLT; JOINT,LEAK OFF PIPE
(D) M10X21 FLANGE 		8-94396-711-0 01 1 0303- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 13 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6 		8-94395-214-0 07 1 0211-0702 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.3 		8-98065-992-0 07 1 0703-0704 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6 		8-94395-214-0 07 1 0705-1312 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6 		8-98246-930-0 07 1 1401- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0211-0702 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20 		8-98065-990-0 02 1 0703- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0303-0908 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0909- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3 		8-97600-925-0 06 1 0303-0908 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3 		8-98065-992-0 06 1 0909- ●
197 BRACKET; FUEL CUT CABLE 8-97600-860-0 01 1 0303-0308 ●
197 BRACKET; FUEL CUT CABLE 8-97603-534-0 01 1 0309- ●
339 RUBBER; COVER
ID=6 OD=10 L=70 		1-09376-512-0 01 1 0303- ●

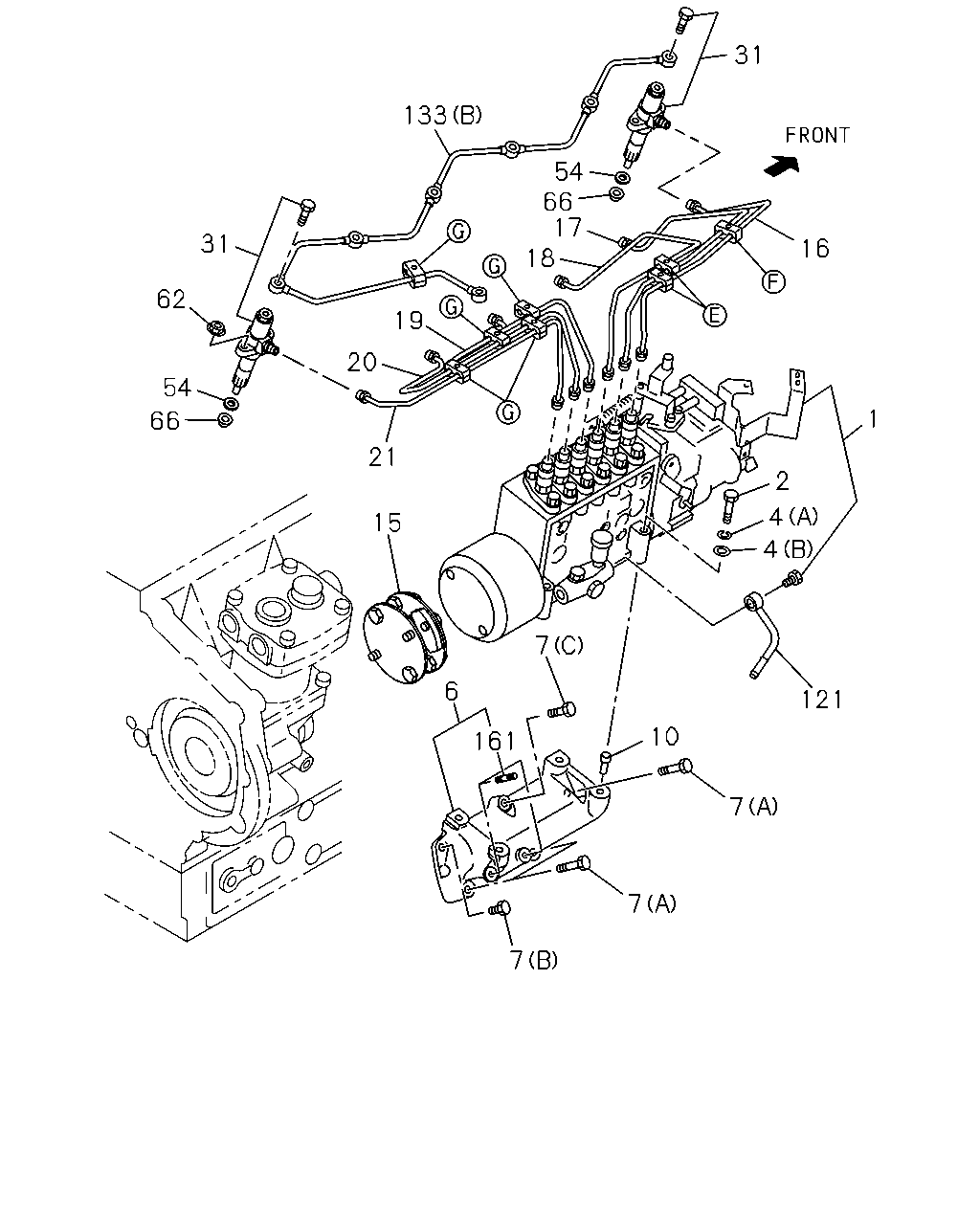

çizim 45546
31 133 54 66 17 18 31 16 62 19 20 54 1 66 21 2 4 15 4 7 6 121 10 161 7 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94390-618-3 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> 		1-15603-287-1 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		1-15603-129-5 01 1 0211- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. A/T<X9D> 		1-15603-258-3 01 1 0012-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. A/T<X9D> 		1-15603-258-3 01 1 0005-0011 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97600-665-4 01 1 0303- ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0005-0210 ●
2 BOLT; INJ PUMP
M10X90 		0-16806-090-0 04 1 0005-0210 ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28090-890-0 04 1 0211-0512 ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28060-890-0 04 1 0601- ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0303-0512 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601- ●
4 WASHER; INJ PUMP
(A) ID=10.2 		9-09150-510-0 04 1 0005-0210 ●
4 WASHER; INJ PUMP
(B) ID=10.5 OD=18 		9-09160-510-0 04 1 0005-0210 ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 0005-0210 ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-168-0 01 1 0005-0210 ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-158-1 01 1 0211- ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 0303- ●
7 BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE 		0-28181-040-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE 		0-28181-080-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(A) M10X60 FLANGE 		0-28181-060-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(B) M10X25 FLANGE 		0-28781-025-0 01 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(D) M10X100 FLANGE 		0-28181-000-0 02 1 0211-0512 ●
7 BOLT; INJ PUMP BRKT
(D) M10X100 FLANGE 		0-28151-000-0 02 1 0601- ●
7 BOLT; INJ PUMP BRKT
(C) M10X40 FLANGE 		0-28781-040-0 01 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(E) M10X35 FLANGE 		0-28181-035-0 03 1 0211-0512 ●
7 BOLT; INJ PUMP BRKT
(E) M10X35 FLANGE 		0-28151-035-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(F) M10X40 FLANGE 		0-28181-040-0 03 1 0303-0512 ●
7 BOLT; INJ PUMP BRKT
(F) M10X40 FLANGE 		0-28151-040-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(G) M10X80 FLANGE 		0-28181-080-0 03 1 0303-0512 ●
7 BOLT; INJ PUMP BRKT
(G) M10X80 FLANGE 		0-28151-080-0 03 1 0601- ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 0005-0210 ● ●
10 DOWEL; INJ PUMP 1-11229-012-1 02 1 0211- ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 0303- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-111-1 01 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-192-0 01 1 0211- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 0303- ●
16 PIPE; INJ NO.1 8-94394-223-1 01 1 0005-0108 ●
16 PIPE; INJ NO.1 8-94391-422-0 01 1 0109-0210 ●
16 PIPE; INJ NO.1 1-15415-763-0 01 1 0005-0210 ●
16 PIPE; INJ NO.1 1-15416-329-1 01 1 0211- ●
16 PIPE; INJ NO.1 8-97600-667-0 01 1 0303- ●
17 PIPE; INJ NO.2 8-94394-224-1 01 1 0005-0108 ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 0109-0109 ●
17 PIPE; INJ NO.2 8-97602-329-0 01 1 0110-0210 ●
17 PIPE; INJ NO.2 1-15415-764-0 01 1 0005-0210 ●
17 PIPE; INJ NO.2 1-15416-175-1 01 1 0211- ●
17 PIPE; INJ NO.2 8-97600-668-0 01 1 0303- ●
18 PIPE; INJ NO.3 8-94390-830-0 01 1 0005-0108 ●
18 PIPE; INJ NO.3 8-97602-257-0 01 1 0109-0210 ●
18 PIPE; INJ NO.3 1-15415-765-0 01 1 0005-0210 ●
18 PIPE; INJ NO.3 1-15416-474-1 01 1 0211- ●
18 PIPE; INJ NO.3 8-97600-669-0 01 1 0303- ●
19 PIPE; INJ NO.4 8-94394-226-1 01 1 0005-0108 ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 0109-0210 ●
19 PIPE; INJ NO.4 1-15415-766-0 01 1 0005-0210 ●
19 PIPE; INJ NO.4 1-15416-372-1 01 1 0211- ●
19 PIPE; INJ NO.4 8-97600-670-0 01 1 0303- ●
20 PIPE; INJ NO.5 8-94394-227-1 01 1 0005-0108 ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 0109-0210 ●
20 PIPE; INJ NO.5 1-15415-767-0 01 1 0005-0210 ●
20 PIPE; INJ NO.5 1-15416-397-1 01 1 0211- ●
20 PIPE; INJ NO.5 8-97600-671-1 01 1 0303- ●
21 PIPE; INJ NO.6 8-94394-228-1 01 1 0005-0108 ●
21 PIPE; INJ NO.6 8-94391-427-0 01 1 0109-0210 ●
21 PIPE; INJ NO.6 1-15415-768-0 01 1 0005-0210 ●
21 PIPE; INJ NO.6 1-15416-332-1 01 1 0211- ●
21 PIPE; INJ NO.6 8-97600-672-0 01 1 0303- ●
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 1-15300-332-0 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 1-15300-415-1 06 1 0211- ●
31 NOZZLE ASM; INJ 8-97600-666-0 06 1 0303- ●
54 COVER; DUST,NOZZLE HOLDER 9-15339-051-0 06 1 0005- ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 0005-0210 ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 0211-0602 ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91180-108-0 12 1 0603- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94391-472-0 12 1 0005-0210 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-013-1 06 1 0005- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0303-0909 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 0005-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15415-778-0 01 1 0005-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15416-689-0 01 1 0211- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 0303- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94390-071-0 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		1-15415-777-0 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		1-15416-693-1 01 1 0211- ●
133 PIPE; INJ NOZZLE LEAK OFF
(D) 		8-94390-451-0 01 1 0303- ●
133 PIPE; INJ NOZZLE LEAK OFF
(E) 		8-97600-692-2 01 1 0303- ●
161 STUD; INJ PUMP
M8X20 L=32 		9-04110-820-0 02 1 0005-0210 ●
çizim 45587
121 133 113 131 124 113 168 107 135 169 133 107 135 113 113
BalonParca AdiParca NoAdetTipApplied Date A B C
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 05 1 0005-0108 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 06 1 0109-0210 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 04 1 0303-0602 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91180-106-0 04 1 0603- ●
113 CLIP; INJ PIPE
(A) 		8-94396-793-0 04 1 0005-0108 ●
113 CLIP; INJ PIPE
(C) 		1-09701-132-0 10 1 0109-0210 ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 05 1 0005-0108 ●
113 CLIP; INJ PIPE
(C) 		1-09701-132-0 14 1 0005-0210 ●
113 CLIP; INJ PIPE
(C) 		1-09701-132-1 08 1 0303-1202 ●
113 CLIP; INJ PIPE
(C) 		1-09701-240-0 08 1 1203- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 0005-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15415-778-0 01 1 0005-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15416-689-0 01 1 0211- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 0303- ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X18 EYE-BOLT 		1-09675-037-1 05 1 0005-0210 ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X20 EYE-BOLT 		5-09675-018-1 06 1 0211- ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X30 FLANGE 		1-09675-039-1 01 1 0005-0210 ●
124 BOLT; EYE LEAK OFF PIPE
(D) M10X21 FLANGE 		8-94396-711-0 01 1 0303- ●
131 CLIP; OVERFLOW LEAK OFF 1-09701-091-0 01 1 0005-0210 ●
131 CLIP; OVERFLOW LEAK OFF 1-09701-132-0 02 1 0005-0210 ●
131 CLIP; OVERFLOW LEAK OFF
L=48 		5-09709-103-0 01 1 0303- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94390-071-0 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		1-15415-777-0 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		1-15416-693-1 01 1 0211- ●
133 PIPE; INJ NOZZLE LEAK OFF
(D) 		8-94390-451-0 01 1 0303- ●
133 PIPE; INJ NOZZLE LEAK OFF
(E) 		8-97600-692-2 01 1 0303- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 13 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6 		8-94395-214-0 07 1 0211-0702 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.3 		8-98065-992-0 07 1 0703-0704 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6 		8-94395-214-0 07 1 0705-1312 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6 		8-98246-930-0 07 1 1401- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0211-0702 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20 		8-98065-990-0 02 1 0703- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0303-0908 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0909- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3 		8-97600-925-0 06 1 0303-0908 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3 		8-98065-992-0 06 1 0909- ●
168 BRACKET; FUEL PIPE 8-94395-046-2 01 1 0005-0210 ●
168 BRACKET; FUEL PIPE 8-97602-186-0 01 1 0303- ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0303-0602 ●
169 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
çizim 47688
121 168 130 131 110 169 169 169
BalonParca AdiParca NoAdetTipApplied Date A B C
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 0005-0210 ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 06 1 0005-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 0005-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15415-778-0 01 1 0005-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15416-689-0 01 1 0211- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 0303- ●
130 BRACKET; OVERFLOW TO LEAK OFF 8-94394-980-2 01 1 0005-0210 ●
131 CLIP; OVERFLOW LEAK OFF 1-09701-091-0 01 1 0005-0210 ●
131 CLIP; OVERFLOW LEAK OFF 1-09701-132-0 02 1 0005-0210 ●
131 CLIP; OVERFLOW LEAK OFF
L=48 		5-09709-103-0 01 1 0303- ●
168 BRACKET; FUEL PIPE 8-94395-046-2 01 1 0005-0210 ●
168 BRACKET; FUEL PIPE 8-97602-186-0 01 1 0303- ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0303-0602 ●
169 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
çizim 48399
31 32 34 36 36 37 38 39 40 140 143 138 45 44 141 42 140 142 41 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B C
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 1-15300-332-0 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 1-15300-415-1 06 1 0211- ●
31 NOZZLE ASM; INJ 8-97600-666-0 06 1 0303- ●
32 HOLDER ASM; NOZZLE 8-94395-197-1 06 1 0005-0210 ●
32 HOLDER ASM; NOZZLE 1-15330-054-1 06 1 0005-0210 ●
32 HOLDER ASM; NOZZLE 8-97602-022-0 06 1 0303- ●
33 NOZZLE; INJ 8-94394-699-0 06 1 0005-0210 ●
33 NOZZLE; INJ 1-15311-265-0 06 1 0005-0210 ●
33 NOZZLE; INJ 8-97602-021-0 06 1 0303- ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 0002-0210 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 0005-0210 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15332-017-0 06 1 0005-0210 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-142-0 06 1 0303- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 0005-0210 ● ●
37 NUT; CAP,NOZZLE HOLDER 1-15334-010-0 06 1 0005-0210 ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-15339-056-0 06 1 0005-0210 ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 1-15345-004-0 06 1 0005-0210 ●
40 NUT; ADJ SCREW,NOZZLE HOLDER 1-15332-011-0 06 1 0005-0210 ●
41 CONNECTOR; FUEL INL,NOZZLE HOLDER 1-15351-005-0 06 1 0005-0210 ●
42 GASKET; INL CONNECTOR,NOZZLE HOLDER 5-15339-003-0 06 1 0005-0210 ●
42 GASKET; INL CONNECTOR,NOZZLE HOLDER 9-09561-112-0 06 1 0303- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 0005-0210 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94246-531-0 06 1 0005-0210 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 5-15345-003-0 06 1 0303- ●
45 ROD; PUSH,NOZZLE HOLDER 1-15341-004-0 06 1 0005-0210 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(A) 		8-94174-139-0 12 1 0005-0210 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(B) 		9-15347-003-0 12 1 0005-0210 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(C) 		1-15347-001-1 12 1 0303- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(D) 		9-15347-003-0 12 1 0303- ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-001-0 06 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97027-432-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97027-433-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97027-434-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97027-435-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97027-436-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97027-437-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97027-438-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97027-439-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97027-440-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		5-15339-007-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		5-15339-008-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		5-15339-009-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.80 		5-15339-010-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.90 		5-15339-011-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.00 		5-15339-012-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		5-15339-018-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		5-15339-019-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		5-15339-020-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		5-15339-021-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-94128-982-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-94128-983-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-94128-984-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-94128-985-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		1-15349-120-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		1-15349-121-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		1-15349-122-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		1-15349-123-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		1-15349-124-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		1-15349-125-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		1-15349-126-0 AR 1 0303- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		1-15349-127-0 AR 1 0303- ●
141 ROD; PUSH,UPR,NOZZLE HOLDER 1-15341-006-0 06 1 0005-0210 ●
141 ROD; PUSH,UPR,NOZZLE HOLDER 1-15349-132-0 06 1 0303- ●
142 SPACER; PUSH ROD 1-15339-093-0 06 1 0005-0210 ●
143 SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER 1-15345-003-0 06 1 0005-0210 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
