◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶
0-39 — AIR COMPRESSOR; BRAKE (#8272) — 165 parça

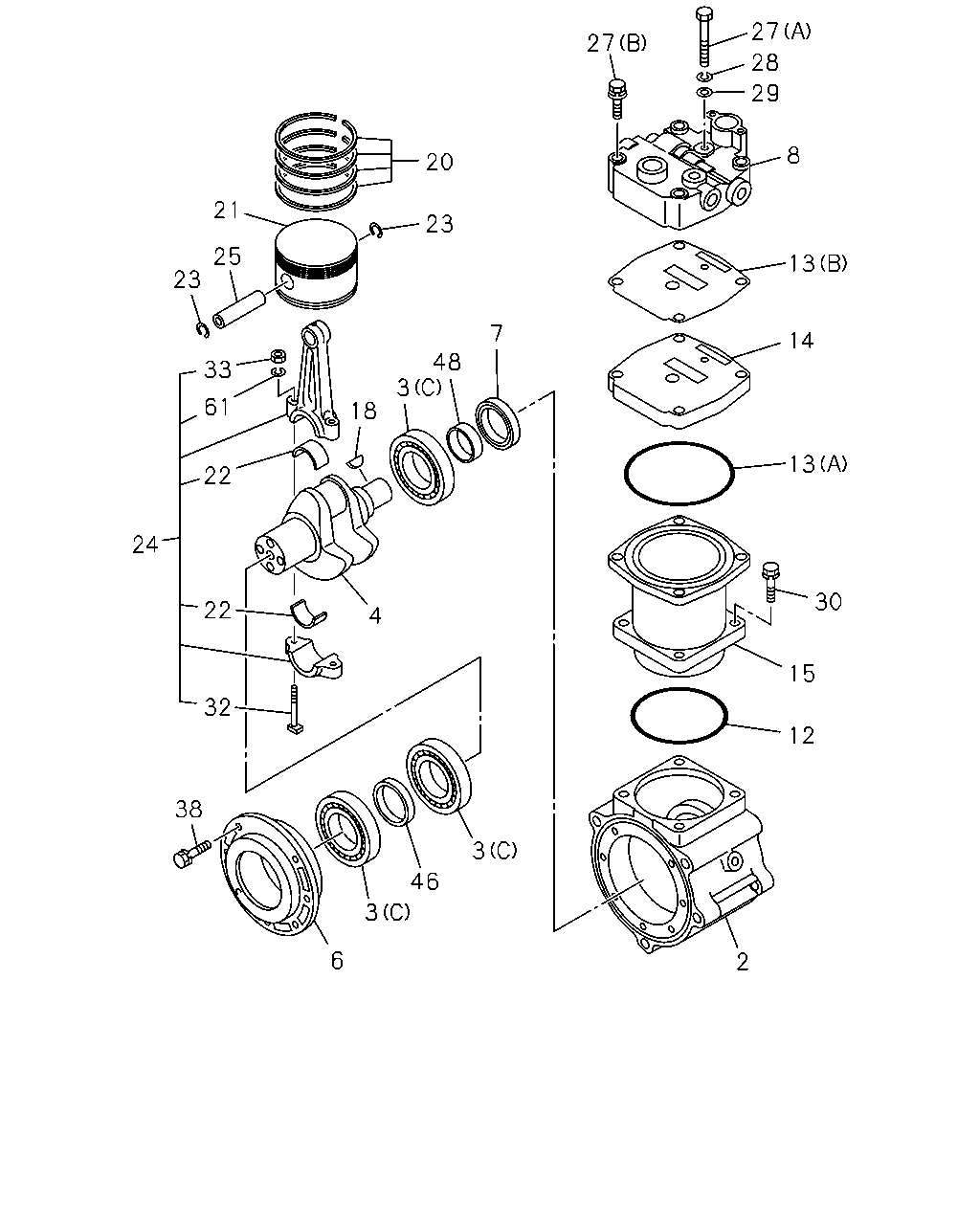

çizim 45586
27 27 28 29 8 20 21 23 25 13 23 7 14 48 3 33 61 18 13 22 24 30 22 4 15 32 12 38 3 46 3 6 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0005-0210 ●
2 CRANKCASE; AIR CMPR 1-19151-293-0 01 1 0005- ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0303- ●
3 BEARING; AIR CMPR
(C) 		8-98171-672-0 03 1 0005-0210 ●
3 BEARING; AIR CMPR
(C) 		8-98171-672-0 03 1 0211- ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0005-0210 ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0005-0210 ●
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 0303-1202 ●
3 BEARING; AIR CMPR
(B) 		9-00090-152-0 01 1 0303- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0005-0210 ●
4 CRANKSHAFT; AIR CMPR 1-19171-084-0 01 1 0005- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0303-1202 ●
4 CRANKSHAFT; AIR CMPR 8-98209-089-0 01 1 1203- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0005-0210 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-082-0 01 1 0005- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0303-1202 ●
6 COVER ASM; BRG,AIR CMPR 8-98209-092-0 01 1 1203- ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-619-0 01 1 0005- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-063-1 01 1 0005-0302 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-072-0 01 1 0303-1012 ●
8 HEAD ASM; CYL,AIR CMPR 8-98167-016-0 01 1 1101- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0303- ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0005-0210 ●
12 GASKET; AIR CMPR 1-09623-651-1 01 1 0005- ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0303-1107 ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108- ●
13 GASKET; AIR CMPR
(C) 		1-19139-016-0 01 1 0303- ●
13 GASKET; AIR CMPR
(A) 		1-19139-002-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
(A) 		1-09623-650-1 01 1 0005- ●
13 GASKET; AIR CMPR
(B) 		1-19139-019-0 01 1 0005-1306 ●
13 GASKET; AIR CMPR
(B) 		8-98242-649-0 01 1 1307-1402 ●
13 GASKET; AIR CMPR
(B) 		8-98269-488-0 01 1 1403- ●
14 PLATE; AIR CMPR 1-19110-064-1 01 1 0005- ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR 1-19163-065-0 01 1 0005- ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0303- ●
18 KEY; AIR CMPR 9-08055-622-0 01 1 0005- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0005-0210 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-064-0 01 1 0005- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0303-0812 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901- ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0005-0210 ●
21 PISTON; AIR CMPR 1-19161-023-0 01 1 0005- ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0303-0812 ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901- ●
22 METAL; CONNROD,AIR CMPR 1-19179-025-0 02 1 0005- ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-001-0 02 1 0211- ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0005-0210 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-003-0 02 1 0005-0210 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0303-0812 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0005-0210 ●
24 ROD ASM; CONN,AIR CMPR 1-19171-078-0 01 1 0005- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0303-1202 ●
24 ROD ASM; CONN,AIR CMPR 8-98209-093-0 01 1 1203- ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0005-0210 ●
25 PIN; PISTON,AIR CMPR 1-19167-004-0 01 1 0005-0906 ●
25 PIN; PISTON,AIR CMPR 1-19167-007-0 01 1 0907- ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0303-0812 ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901- ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0005-0210 ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0005-0210 ●
27 BOLT; HD
(A) 		1-09044-071-0 01 1 0005- ●
27 BOLT; HD
(B) 		1-19119-024-0 04 1 0005-1012 ●
27 BOLT; HD
(B) M10X75 		8-98167-018-0 04 1 1101- ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0303- ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0303- ●
28 WASHER; LK,HD BOLT
ID=8.2 		9-09150-508-0 08 1 0005- ●
29 WASHER; PL,HD BOLT
ID=8.4 		9-09160-508-0 01 1 0005- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0005-0210 ●
30 BOLT; CYL TO CRANKCASE
M10X30 		1-19119-026-0 04 1 0005- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0303- ●
32 BOLT; CONNROD 1-19179-021-0 02 1 0005- ●
33 NUT; CONNROD BOLT 1-19179-026-0 02 1 0005- ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0005-0210 ●
38 BOLT; COVER FIX
M8X30 		0-20800-830-0 07 1 0005- ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0303- ●
46 SPACER; BRG 1-19179-031-0 01 1 0005- ●
48 SLEEVE; CR/SHF 1-19179-027-0 01 1 0005- ●
61 WASHER; LK,CONNROD BOLT 1-19179-022-0 02 1 0005- ●

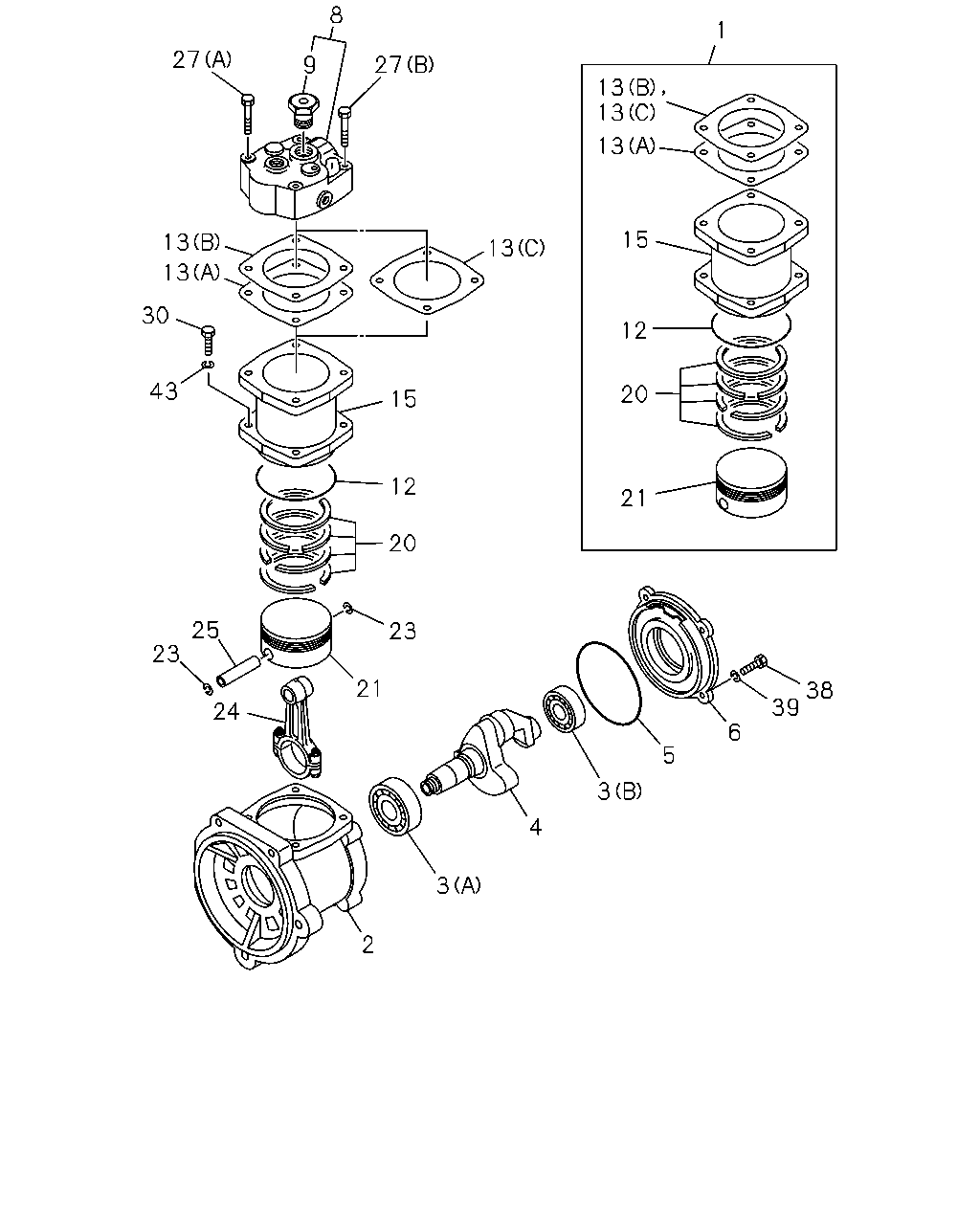

çizim 47179
27 8 9 27 13 13 30 43 15 12 20 23 21 25 23 24 3 2 4 3 5 6 39 38 21 20 12 15 13 13 13 13 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0005-0210 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0303-0812 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-075-0 01 1 0901- ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0005-0210 ●
2 CRANKCASE; AIR CMPR 1-19151-293-0 01 1 0005- ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0303- ●
3 BEARING; AIR CMPR
(C) 		8-98171-672-0 03 1 0005-0210 ●
3 BEARING; AIR CMPR
(C) 		8-98171-672-0 03 1 0211- ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0005-0210 ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0005-0210 ●
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 0303-1202 ●
3 BEARING; AIR CMPR
(B) 		9-00090-152-0 01 1 0303- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0005-0210 ●
4 CRANKSHAFT; AIR CMPR 1-19171-084-0 01 1 0005- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0303-1202 ●
4 CRANKSHAFT; AIR CMPR 8-98209-089-0 01 1 1203- ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0005-0210 ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0303-1107 ●
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1108- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0005-0210 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-082-0 01 1 0005- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0303-1202 ●
6 COVER ASM; BRG,AIR CMPR 8-98209-092-0 01 1 1203- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-063-1 01 1 0005-0302 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-072-0 01 1 0303-1012 ●
8 HEAD ASM; CYL,AIR CMPR 8-98167-016-0 01 1 1101- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0303- ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0005-0210 ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0303- ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0005-0210 ●
12 GASKET; AIR CMPR 1-09623-651-1 01 1 0005- ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0303-1107 ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108- ●
13 GASKET; AIR CMPR
(C) 		1-19139-016-0 01 1 0303- ●
13 GASKET; AIR CMPR
(A) 		1-19139-002-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
(A) 		1-09623-650-1 01 1 0005- ●
13 GASKET; AIR CMPR
(B) 		1-19139-019-0 01 1 0005-1306 ●
13 GASKET; AIR CMPR
(B) 		8-98242-649-0 01 1 1307-1402 ●
13 GASKET; AIR CMPR
(B) 		8-98269-488-0 01 1 1403- ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR 1-19163-065-0 01 1 0005- ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0303- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0005-0210 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-064-0 01 1 0005- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0303-0812 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901- ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0005-0210 ●
21 PISTON; AIR CMPR 1-19161-023-0 01 1 0005- ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0303-0812 ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901- ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-001-0 02 1 0211- ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0005-0210 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-003-0 02 1 0005-0210 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0303-0812 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0005-0210 ●
24 ROD ASM; CONN,AIR CMPR 1-19171-078-0 01 1 0005- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0303-1202 ●
24 ROD ASM; CONN,AIR CMPR 8-98209-093-0 01 1 1203- ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0005-0210 ●
25 PIN; PISTON,AIR CMPR 1-19167-004-0 01 1 0005-0906 ●
25 PIN; PISTON,AIR CMPR 1-19167-007-0 01 1 0907- ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0303-0812 ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901- ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0005-0210 ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0005-0210 ●
27 BOLT; HD
(A) 		1-09044-071-0 01 1 0005- ●
27 BOLT; HD
(B) 		1-19119-024-0 04 1 0005-1012 ●
27 BOLT; HD
(B) M10X75 		8-98167-018-0 04 1 1101- ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0303- ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0303- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0005-0210 ●
30 BOLT; CYL TO CRANKCASE
M10X30 		1-19119-026-0 04 1 0005- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0303- ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0005-0210 ●
38 BOLT; COVER FIX
M8X30 		0-20800-830-0 07 1 0005- ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0303- ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 0005-0210 ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 0303- ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 0005-0210 ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 0303- ●
