Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#8269) — 301 parça

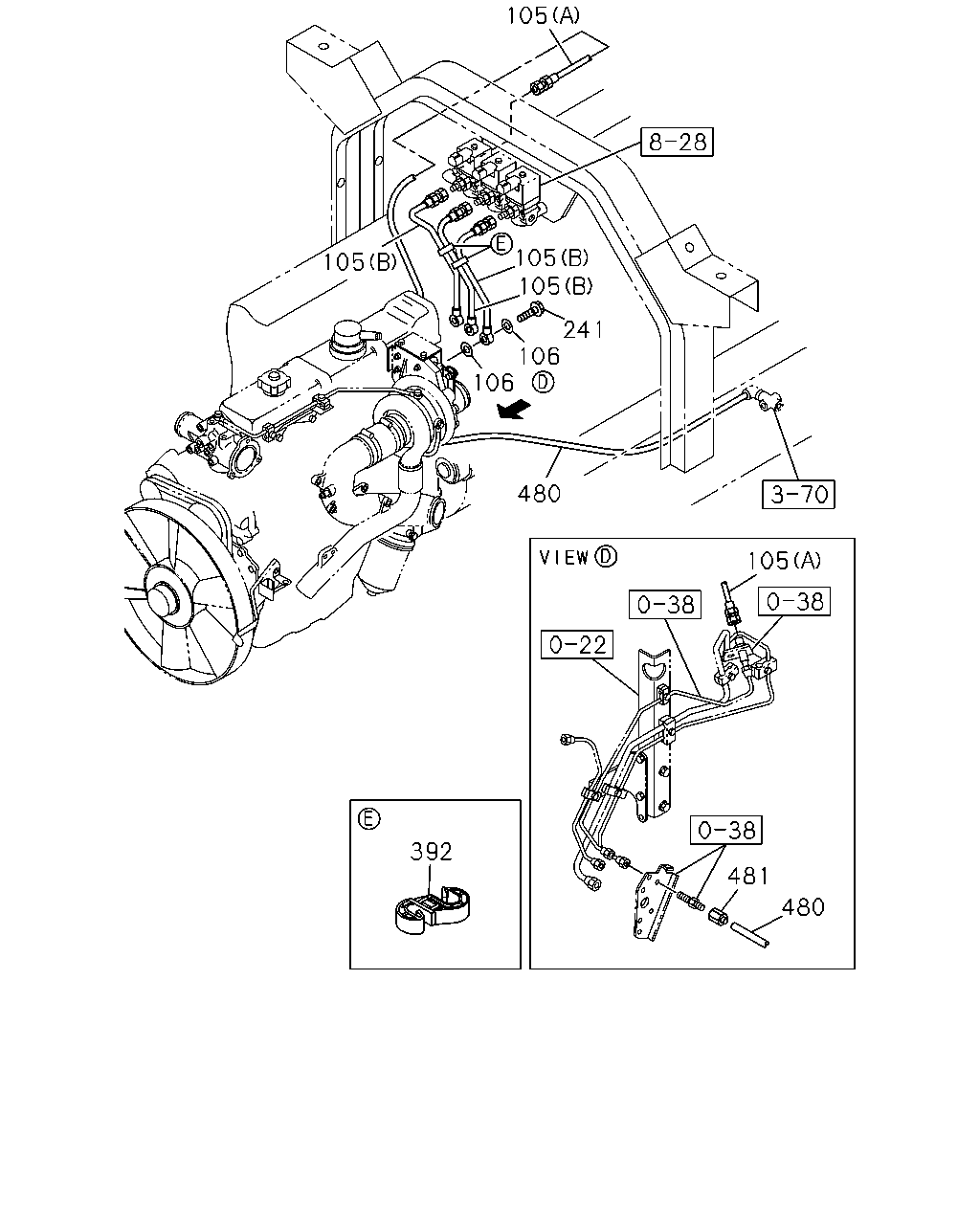

105 105 105 105 241 106 106 480 105 392 481 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
105	TUBE; FLEX MAG VLV (A) L=210	1-09363-614-0	01	1	0211-	●
105	TUBE; FLEX MAG VLV (B) L=390	1-09363-879-0	03	1	0211-	●
106	GASKET; FLEX TUBE ID=10.2 OD=15.2	1-09630-083-0	06	1	0211-	●
241	BOLT	8-94107-713-2	03	1	0211-	●
392	CLIP; FLEX HOSE ID=10 & 10	1-09709-277-1	02	1	0211-	●
480	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0211-	●
481	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0211-	●

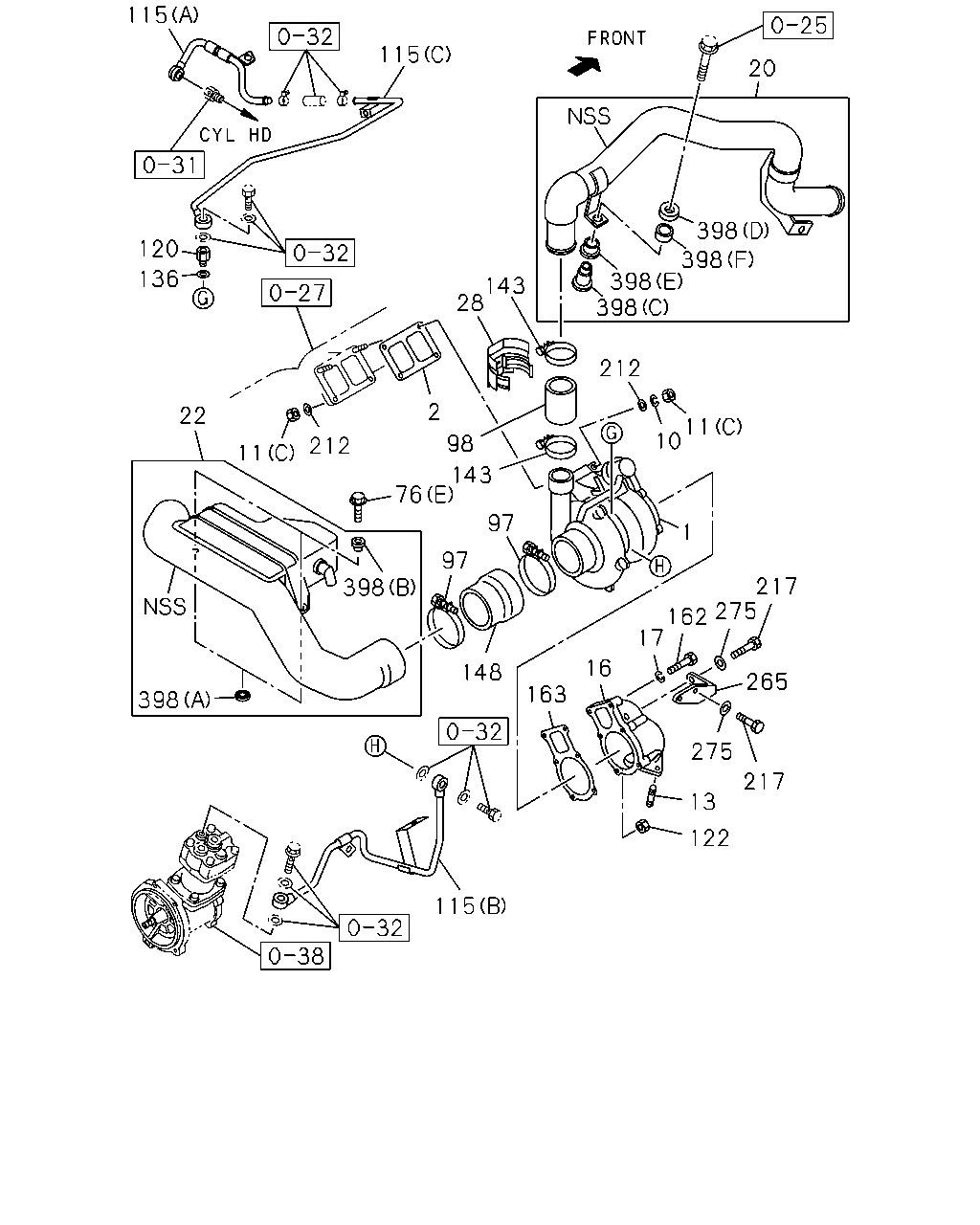

115 115 20 398 120 398 398 398 136 143 28 212 2 22 11 10 98 22 11 143 76 97 1 97 217 275 162 17 398 16 148 265 163 398 275 217 13 122 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-650-0	01	1	0005-0210		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-339-4	01	1	0005-0210	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-407-5	01	1	0211-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97601-974-0	01	1	0303-			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0005-0210		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-181-0	01	1	0005-0210	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-140-1	01	1	0211-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0303-			●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	0005-0210		●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	0303-			●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	04	1	0005-0210		●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	01	1	0005-0210	●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	08	1	0211-	●
11	NUT; TURBOCHARGER (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0005-0210	●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	0303-			●
13	STUD; EXH PIPE M12X103 L=123	8-94394-656-0	01	1	0005-0210		●
13	STUD; EXH PIPE M12X123 L=141	1-09302-012-0	02	1	0303-			●
16	ADAPTER; EXH PIPE	8-94391-161-1	01	1	0005-0210		●
16	ADAPTER; EXH PIPE	1-14144-650-0	01	1	0211-	●
16	ADAPTER; EXH PIPE	8-97600-283-0	01	1	0303-			●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0005-0210		●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0303-			●
20	PIPE; INL,TURBOCHARGER OUT	8-94390-649-2	01	1	0005-0210		●
20	PIPE; INL,TURBOCHARGER OUT	8-97600-383-1	01	1	0303-			●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	0005-0210		●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-347-1	01	1	0005-0210	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-398-3	01	1	0211-	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-97600-110-1	01	1	0303-			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	1-14181-264-0	01	1	0005-0210		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	1-14181-221-0	01	1	0005-0210	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	8-94393-182-0	01	1	0303-			●
76	BOLT; AIR DUCT (A) M8X50 FLANGE	0-28080-850-0	02	1	0005-0210		●
76	BOLT; AIR DUCT (C) M10X80 FLANGE	0-28081-080-0	02	1	0211-0512	●
76	BOLT; AIR DUCT (C) M10X80 FLANGE	0-28051-080-0	02	1	0601-	●
76	BOLT; AIR DUCT (B) M10X90 FLANGE	0-28081-090-0	02	1	0005-0210	●
76	BOLT; AIR DUCT (D) M10X60 FLANGE	0-28081-060-0	01	1	0211-0512	●
76	BOLT; AIR DUCT (D) M10X60 FLANGE	0-28051-060-0	01	1	0601-	●
76	BOLT; AIR DUCT (E) M8X35 FLANGE	0-28680-835-0	02	1	0303-0512			●
76	BOLT; AIR DUCT (E) M8X35 FLANGE	0-28650-835-0	02	1	0601-			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	04	1	0812-			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-142	1-09707-155-0	02	1	0809-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	02	1	0005-0210		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	0005-0210	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-142	1-09707-155-0	02	1	0211-0306	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-139	1-09707-200-0	04	1	0307-0809	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-139	1-09707-200-0	02	1	0810-0812	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-142	1-09707-155-0	02	1	0901-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0303-0306			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0307-0810			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0811-0811			●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	0005-0210		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-797-1	01	1	0005-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-94392-854-0	01	1	0303-			●
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-97601-977-1	01	1	0303-			●
115	PIPE; WATER,TURBOCHARGER OUT (C)	8-97602-062-0	01	1	0303-			●
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-97602-490-0	01	1	0303-			●
120	ADAPTER; WATER	8-97602-061-1	01	1	0303-			●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	0005-0210		●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	0303-			●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	0303-1312			●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0307-0809			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	0005-0210		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0005-0302	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0303-0306	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	04	1	0307-0809	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0810-0811	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-	●		●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	0005-0210		●
148	HOSE; TURBOCHARGER,INL	1-09360-403-1	01	1	0005-0210	●
148	HOSE; TURBOCHARGER,INL	1-09360-988-0	01	1	0211-0304	●
148	HOSE; TURBOCHARGER,INL	1-09361-135-1	01	1	0305-	●
148	HOSE; TURBOCHARGER,INL	8-94392-853-0	01	1	0303-			●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	0005-0210		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	0303-			●
163	GASKET; ADAPTER TO EXH PIPE	1-14145-162-0	01	1	0005-0210		●
163	GASKET; ADAPTER TO EXH PIPE	1-14145-162-2	01	1	0303-			●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0005-0210	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0303-			●
217	BOLT; BRKT M12X30	8-94394-324-0	03	1	0303-			●
265	BRACKET; EXH PIPE	8-94395-764-2	01	1	0303-			●
275	WASHER; PL ID=12.2	1-09503-008-0	03	1	0303-			●
398	MOUNTING (F)	8-94160-177-0	01	1	0303-			●
398	MOUNTING (A) ID=19.5	8-94202-456-3	02	1	0303-			●
398	MOUNTING (C)	8-94390-551-1	01	1	0303-			●
398	MOUNTING (D)	8-94394-504-0	01	1	0303-			●
398	MOUNTING (E)	8-94394-529-0	01	1	0303-			●
398	MOUNTING (B)	8-97600-053-0	02	1	0303-			●

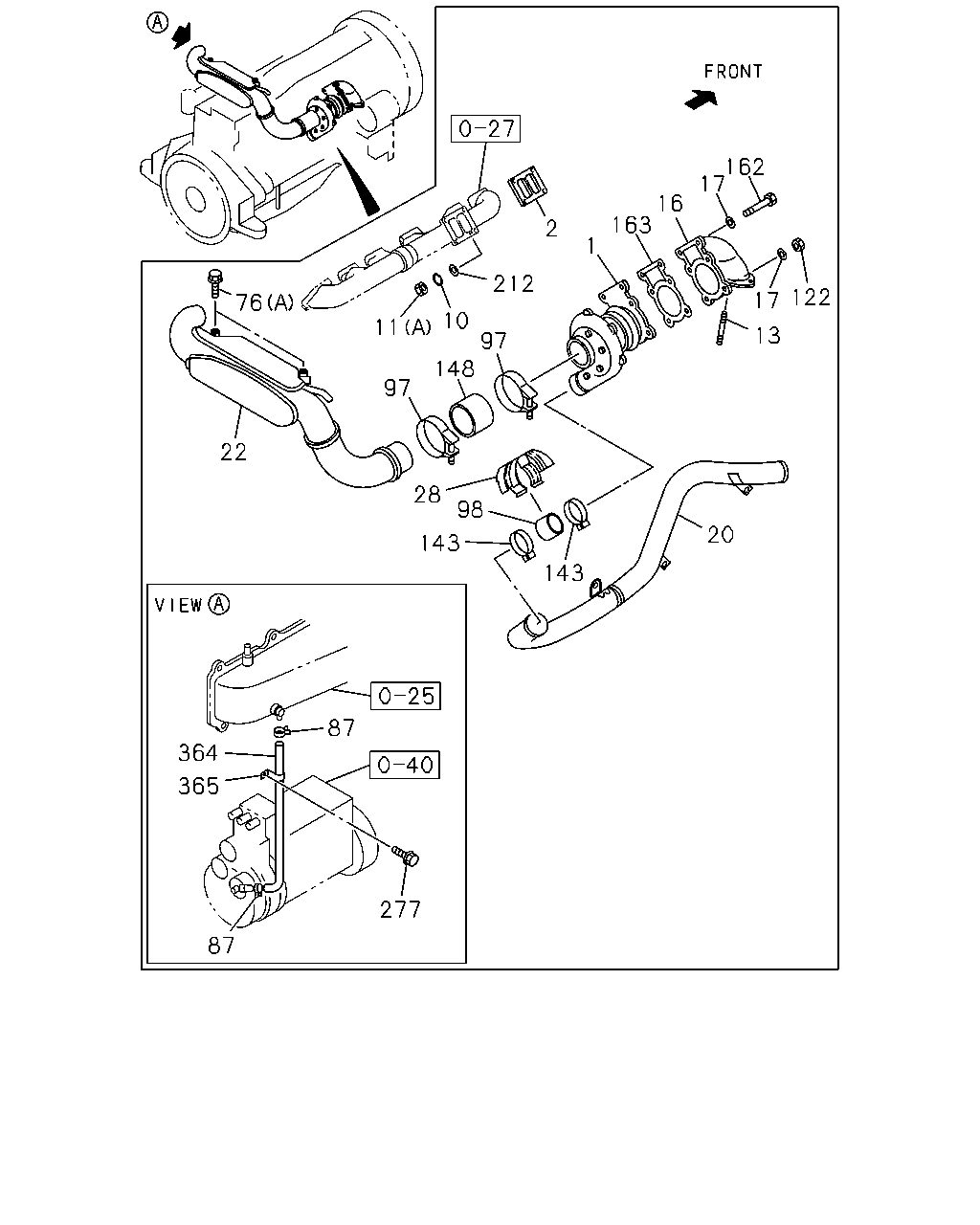

162 17 16 163 2 1 212 17 122 76 10 11 13 97 148 97 22 28 98 20 143 143 87 364 365 277 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-650-0	01	1	0005-0210		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-339-4	01	1	0005-0210	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-407-5	01	1	0211-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97601-974-0	01	1	0303-			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0005-0210		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-181-0	01	1	0005-0210	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-140-1	01	1	0211-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0303-			●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	0005-0210		●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	0303-			●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	04	1	0005-0210		●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	01	1	0005-0210	●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	08	1	0211-	●
11	NUT; TURBOCHARGER (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0005-0210	●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	0303-			●
13	STUD; EXH PIPE M12X103 L=123	8-94394-656-0	01	1	0005-0210		●
13	STUD; EXH PIPE M12X123 L=141	1-09302-012-0	02	1	0303-			●
16	ADAPTER; EXH PIPE	8-94391-161-1	01	1	0005-0210		●
16	ADAPTER; EXH PIPE	1-14144-650-0	01	1	0211-	●
16	ADAPTER; EXH PIPE	8-97600-283-0	01	1	0303-			●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0005-0210		●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0303-			●
20	PIPE; INL,TURBOCHARGER OUT	8-94390-649-2	01	1	0005-0210		●
20	PIPE; INL,TURBOCHARGER OUT	8-97600-383-1	01	1	0303-			●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	0005-0210		●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-347-1	01	1	0005-0210	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-398-3	01	1	0211-	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-97600-110-1	01	1	0303-			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	1-14181-264-0	01	1	0005-0210		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	1-14181-221-0	01	1	0005-0210	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	8-94393-182-0	01	1	0303-			●
76	BOLT; AIR DUCT (A) M8X50 FLANGE	0-28080-850-0	02	1	0005-0210		●
76	BOLT; AIR DUCT (C) M10X80 FLANGE	0-28081-080-0	02	1	0211-0512	●
76	BOLT; AIR DUCT (C) M10X80 FLANGE	0-28051-080-0	02	1	0601-	●
76	BOLT; AIR DUCT (B) M10X90 FLANGE	0-28081-090-0	02	1	0005-0210	●
76	BOLT; AIR DUCT (D) M10X60 FLANGE	0-28081-060-0	01	1	0211-0512	●
76	BOLT; AIR DUCT (D) M10X60 FLANGE	0-28051-060-0	01	1	0601-	●
76	BOLT; AIR DUCT (E) M8X35 FLANGE	0-28680-835-0	02	1	0303-0512			●
76	BOLT; AIR DUCT (E) M8X35 FLANGE	0-28650-835-0	02	1	0601-			●
87	CLIP; RUBBER HOSE FIX ID=11	8-94238-570-0	02	1	0005-0210		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	04	1	0812-			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-142	1-09707-155-0	02	1	0809-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	02	1	0005-0210		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	0005-0210	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-142	1-09707-155-0	02	1	0211-0306	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-139	1-09707-200-0	04	1	0307-0809	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-139	1-09707-200-0	02	1	0810-0812	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-142	1-09707-155-0	02	1	0901-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0303-0306			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0307-0810			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0811-0811			●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	0005-0210		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-797-1	01	1	0005-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-94392-854-0	01	1	0303-			●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	0005-0210		●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	0303-			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0307-0809			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	0005-0210		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0005-0302	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0303-0306	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	04	1	0307-0809	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0810-0811	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-	●		●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	0005-0210		●
148	HOSE; TURBOCHARGER,INL	1-09360-403-1	01	1	0005-0210	●
148	HOSE; TURBOCHARGER,INL	1-09360-988-0	01	1	0211-0304	●
148	HOSE; TURBOCHARGER,INL	1-09361-135-1	01	1	0305-	●
148	HOSE; TURBOCHARGER,INL	8-94392-853-0	01	1	0303-			●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	0005-0210		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	0303-			●
163	GASKET; ADAPTER TO EXH PIPE	1-14145-162-0	01	1	0005-0210		●
163	GASKET; ADAPTER TO EXH PIPE	1-14145-162-2	01	1	0303-			●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0005-0210	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0303-			●
277	BOLT; CLIP M6X10 FLANGE	0-28080-610-0	01	1	0005-0210		●
364	HOSE; BOOST L=200 SERVICED BY L=3000	0-04770-300-0	01	1	0005-0210		●
365	CLIP; RUBBER HOSE,BOOST D=11 H=40 L=20	8-94246-610-0	01	1	0005-0210		●

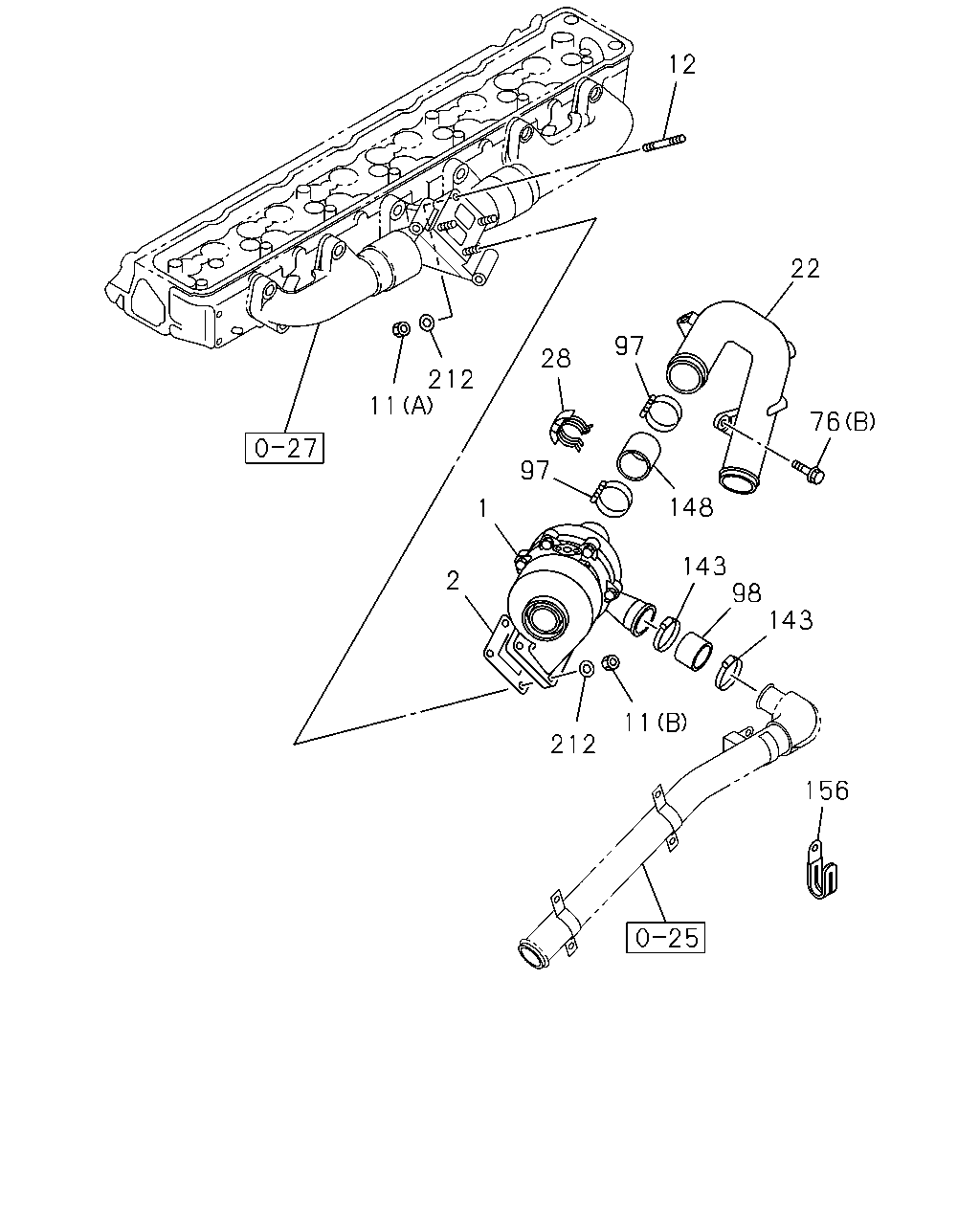

12 22 97 28 212 11 76 97 148 1 143 98 143 2 11 212 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-650-0	01	1	0005-0210		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-339-4	01	1	0005-0210	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-407-5	01	1	0211-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97601-974-0	01	1	0303-			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0005-0210		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-181-0	01	1	0005-0210	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-140-1	01	1	0211-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0303-			●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	04	1	0005-0210		●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	01	1	0005-0210	●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	08	1	0211-	●
11	NUT; TURBOCHARGER (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0005-0210	●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	0303-			●
12	STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	01	1	0005-0210	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	0005-0210		●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-347-1	01	1	0005-0210	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-398-3	01	1	0211-	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-97600-110-1	01	1	0303-			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	1-14181-264-0	01	1	0005-0210		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	1-14181-221-0	01	1	0005-0210	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	8-94393-182-0	01	1	0303-			●
76	BOLT; AIR DUCT (A) M8X50 FLANGE	0-28080-850-0	02	1	0005-0210		●
76	BOLT; AIR DUCT (C) M10X80 FLANGE	0-28081-080-0	02	1	0211-0512	●
76	BOLT; AIR DUCT (C) M10X80 FLANGE	0-28051-080-0	02	1	0601-	●
76	BOLT; AIR DUCT (B) M10X90 FLANGE	0-28081-090-0	02	1	0005-0210	●
76	BOLT; AIR DUCT (D) M10X60 FLANGE	0-28081-060-0	01	1	0211-0512	●
76	BOLT; AIR DUCT (D) M10X60 FLANGE	0-28051-060-0	01	1	0601-	●
76	BOLT; AIR DUCT (E) M8X35 FLANGE	0-28680-835-0	02	1	0303-0512			●
76	BOLT; AIR DUCT (E) M8X35 FLANGE	0-28650-835-0	02	1	0601-			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	04	1	0812-			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-142	1-09707-155-0	02	1	0809-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	02	1	0005-0210		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	0005-0210	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-142	1-09707-155-0	02	1	0211-0306	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-139	1-09707-200-0	04	1	0307-0809	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-139	1-09707-200-0	02	1	0810-0812	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-142	1-09707-155-0	02	1	0901-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0303-0306			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0307-0810			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0811-0811			●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	0005-0210		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-797-1	01	1	0005-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-94392-854-0	01	1	0303-			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0307-0809			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	0005-0210		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0005-0302	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0303-0306	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	04	1	0307-0809	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0810-0811	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-	●		●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	0005-0210		●
148	HOSE; TURBOCHARGER,INL	1-09360-403-1	01	1	0005-0210	●
148	HOSE; TURBOCHARGER,INL	1-09360-988-0	01	1	0211-0304	●
148	HOSE; TURBOCHARGER,INL	1-09361-135-1	01	1	0305-	●
148	HOSE; TURBOCHARGER,INL	8-94392-853-0	01	1	0303-			●
156	CLIP; GLOW HARNESS ID=18 L=44	8-94225-185-0	01	1	0005-0210	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0005-0210	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0303-			●

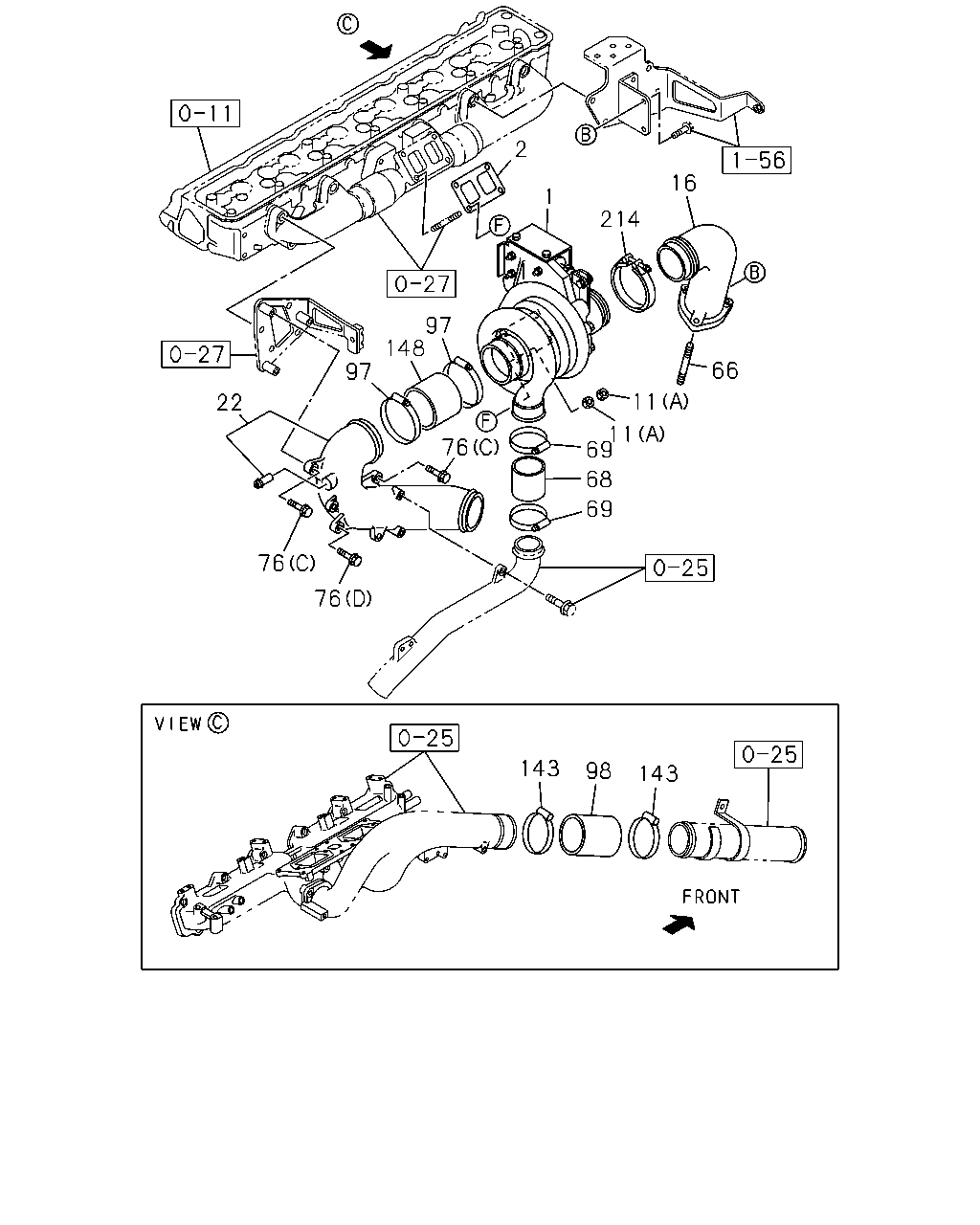

2 16 1 214 97 148 66 97 11 22 76 11 69 68 69 76 76 143 98 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-650-0	01	1	0005-0210		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-339-4	01	1	0005-0210	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-407-5	01	1	0211-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97601-974-0	01	1	0303-			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0005-0210		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-181-0	01	1	0005-0210	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-140-1	01	1	0211-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0303-			●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	04	1	0005-0210		●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	01	1	0005-0210	●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	08	1	0211-	●
11	NUT; TURBOCHARGER (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0005-0210	●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	0303-			●
16	ADAPTER; EXH PIPE	8-94391-161-1	01	1	0005-0210		●
16	ADAPTER; EXH PIPE	1-14144-650-0	01	1	0211-	●
16	ADAPTER; EXH PIPE	8-97600-283-0	01	1	0303-			●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	0005-0210		●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-347-1	01	1	0005-0210	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-398-3	01	1	0211-	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-97600-110-1	01	1	0303-			●
66	STUD; EXH PIPE	1-09302-165-0	02	1	0211-0501	●
66	STUD; EXH PIPE M12X90 L=110	1-09302-035-0	02	1	0502-	●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER	1-09360-989-0	01	1	0211-0212	●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER	1-09361-124-0	01	1	0301-	●
69	CLIP; RUBBER HOSE,TURBOCHARGER ID=68-85	8-94320-428-0	02	1	0211-0306	●
69	CLIP; RUBBER HOSE,TURBOCHARGER ID=68-85	1-09707-202-0	02	1	0307-0808	●
69	CLIP; RUBBER HOSE,TURBOCHARGER ID=68-85	8-94320-428-0	02	1	0809-	●
76	BOLT; AIR DUCT (A) M8X50 FLANGE	0-28080-850-0	02	1	0005-0210		●
76	BOLT; AIR DUCT (C) M10X80 FLANGE	0-28081-080-0	02	1	0211-0512	●
76	BOLT; AIR DUCT (C) M10X80 FLANGE	0-28051-080-0	02	1	0601-	●
76	BOLT; AIR DUCT (B) M10X90 FLANGE	0-28081-090-0	02	1	0005-0210	●
76	BOLT; AIR DUCT (D) M10X60 FLANGE	0-28081-060-0	01	1	0211-0512	●
76	BOLT; AIR DUCT (D) M10X60 FLANGE	0-28051-060-0	01	1	0601-	●
76	BOLT; AIR DUCT (E) M8X35 FLANGE	0-28680-835-0	02	1	0303-0512			●
76	BOLT; AIR DUCT (E) M8X35 FLANGE	0-28650-835-0	02	1	0601-			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	04	1	0812-			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-142	1-09707-155-0	02	1	0809-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	02	1	0005-0210		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	0005-0210	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-142	1-09707-155-0	02	1	0211-0306	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-139	1-09707-200-0	04	1	0307-0809	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-139	1-09707-200-0	02	1	0810-0812	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-142	1-09707-155-0	02	1	0901-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0303-0306			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0307-0810			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0811-0811			●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	0005-0210		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-797-1	01	1	0005-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-94392-854-0	01	1	0303-			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0307-0809			●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	0005-0210		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0005-0302	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0303-0306	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	04	1	0307-0809	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0810-0811	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-	●		●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	0005-0210		●
148	HOSE; TURBOCHARGER,INL	1-09360-403-1	01	1	0005-0210	●
148	HOSE; TURBOCHARGER,INL	1-09360-988-0	01	1	0211-0304	●
148	HOSE; TURBOCHARGER,INL	1-09361-135-1	01	1	0305-	●
148	HOSE; TURBOCHARGER,INL	8-94392-853-0	01	1	0303-			●
214	BAND; "V",TURBOCHARGER TO EXH PIPE	1-09709-094-1	01	1	0211-0609	●
214	BAND; "V",TURBOCHARGER TO EXH PIPE	8-98059-890-0	01	1	0610-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
