Isuzu WW
▶
TRUCKS
▶
FV
▶
10829 - FV/GV(AUSTRAL)A.SUS
▶
0 - Engine, Emission, Engine Electrical
▶
0-35 - ENGINE CONTROL VALVE AND LEVER
▶

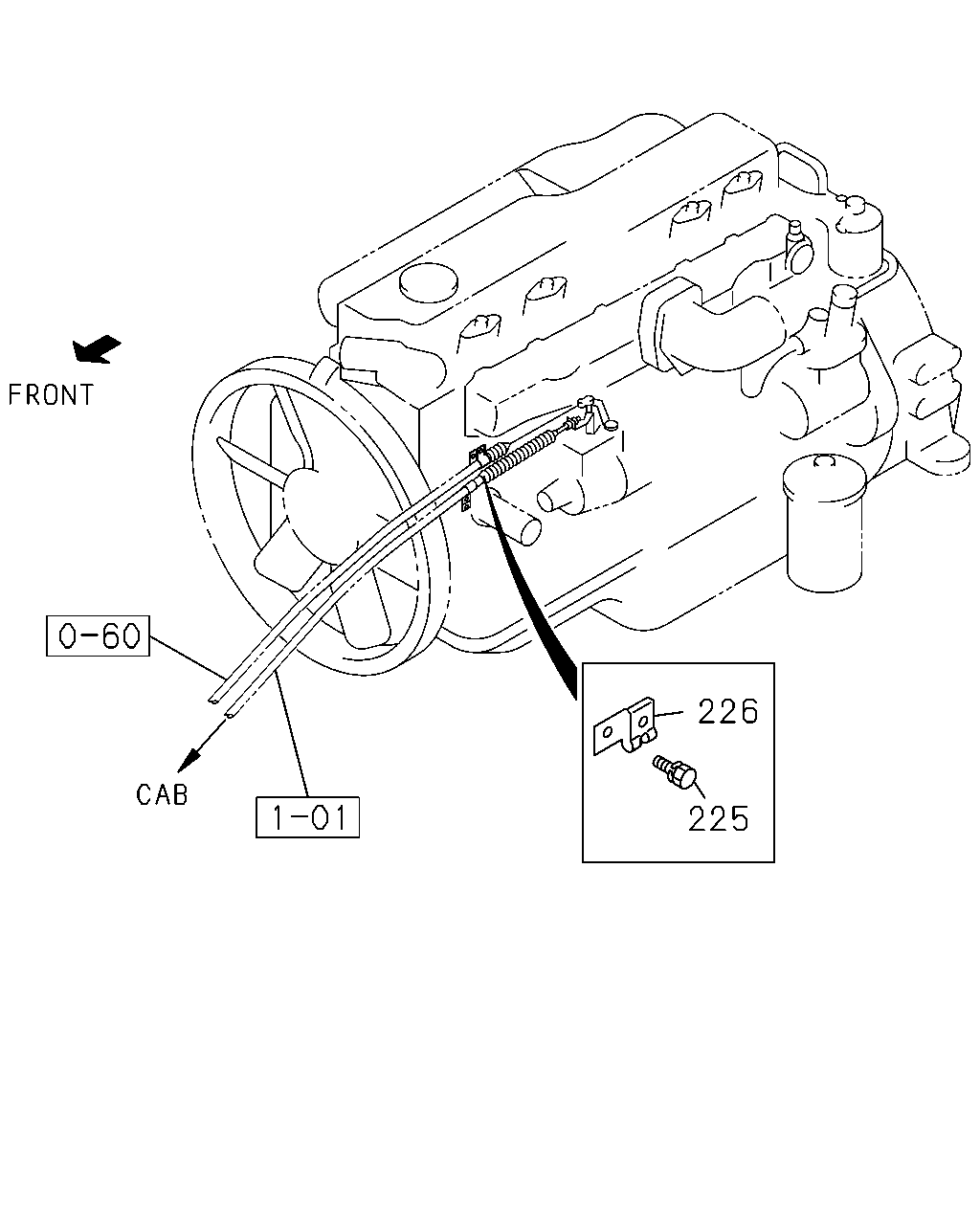

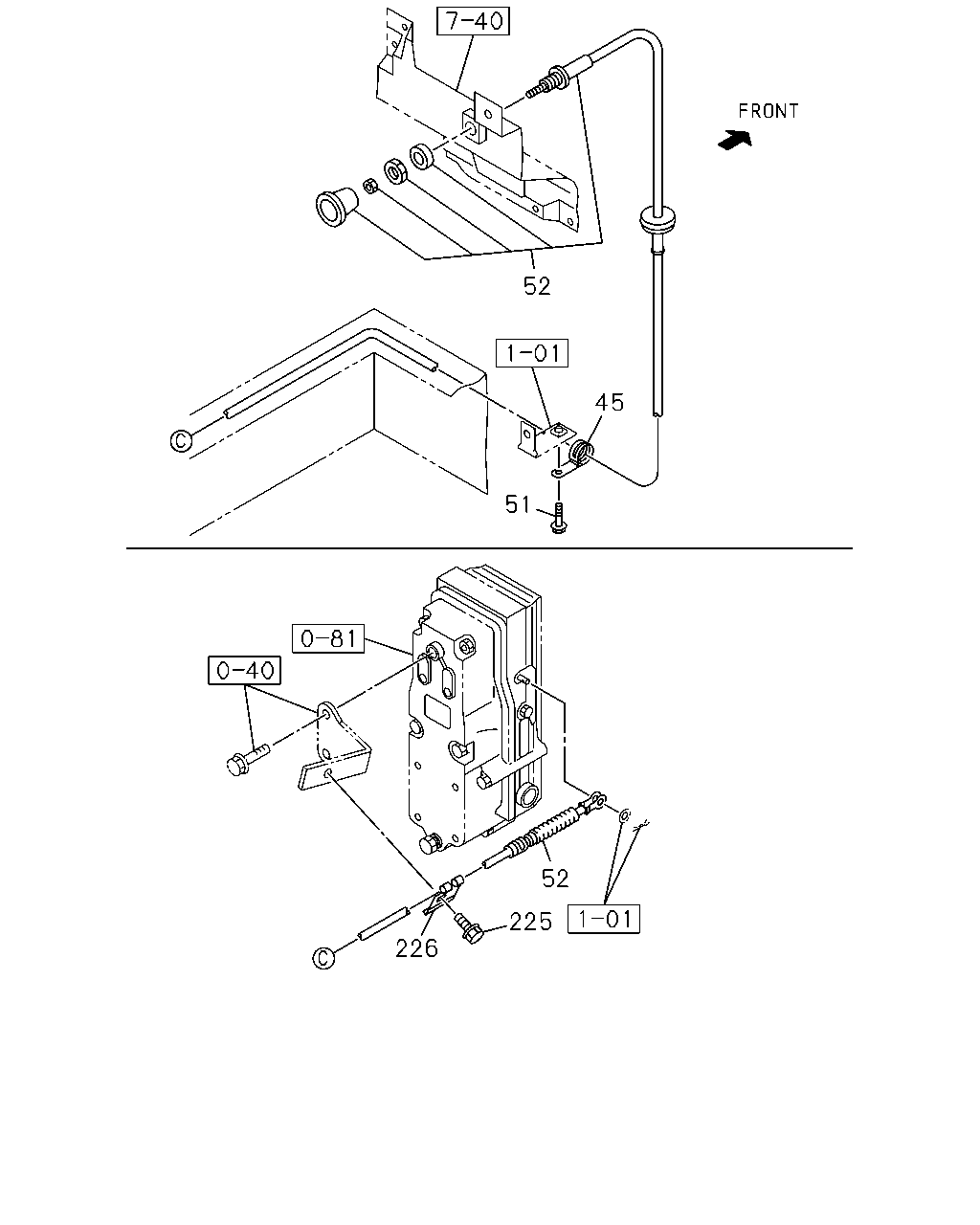

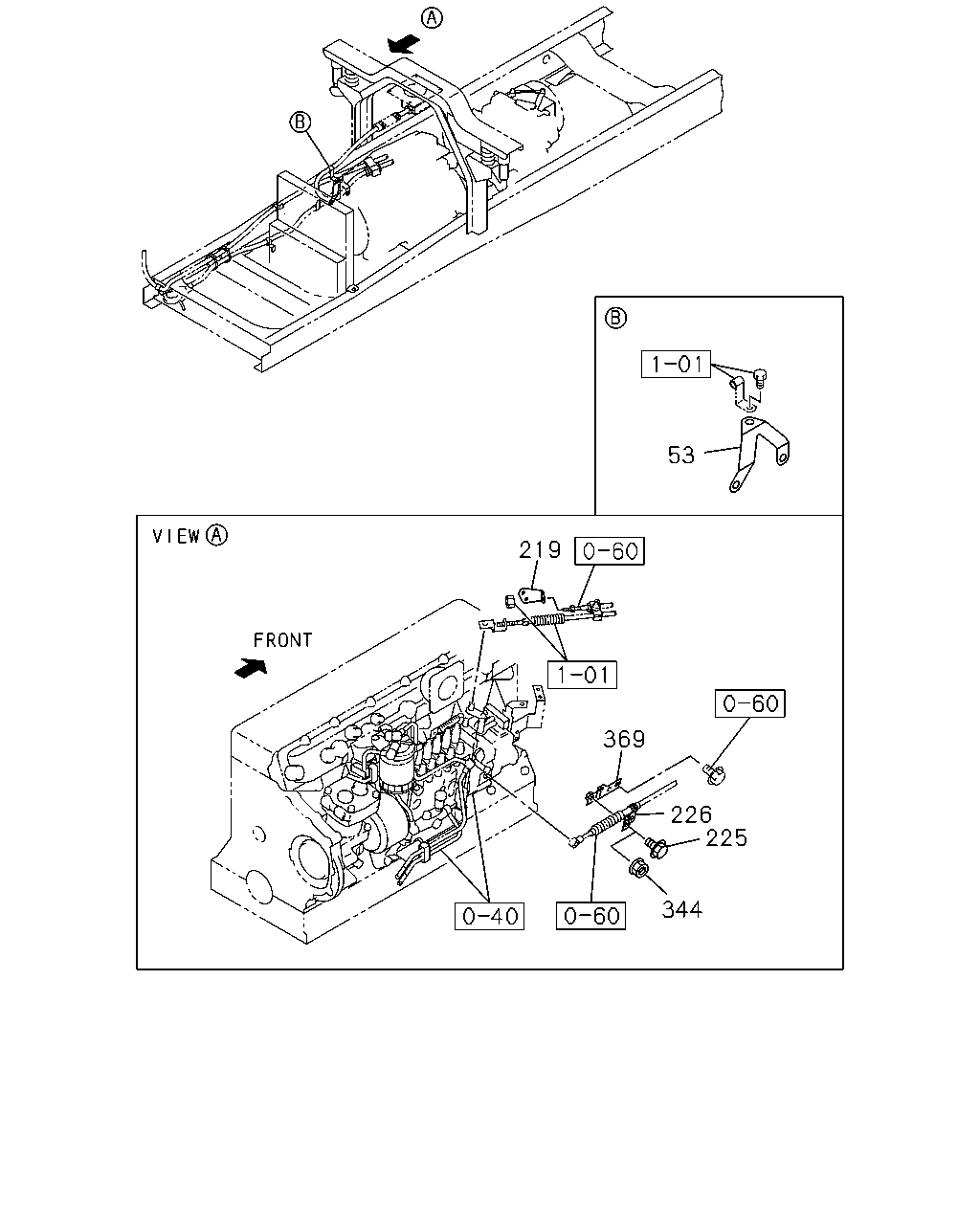

0-35 — ENGINE CONTROL VALVE AND LEVER
(#8268) — 28 parça
Tümü
A - 6HE1 TC ENG
B - 6SD1 TCN ENG
C - 6HK1 TCS ENG
◀
[035A] 6HE1 (6 parça)
[035A] 6HK1 (11 parça)
[035A] 6SD1 (11 parça)
▶
226
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
02
1
0005-0210
●
225
BOLT; CLIP FIX
M8X16 FLANGE
0-28080-816-0
01
1
0005-0210
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
01
1
0303-0308
●
226
CLIP; CABLE END
1-23219-032-0
01
1
0005-0210
●
226
CLIP; CABLE END
1-23219-084-0
01
1
0005-0210
●
226
CLIP; CABLE END
1-14319-082-0
01
1
0303-
●
52
45
51
52
225
226
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
45
CLIP; FUEL CUT CABLE
ID=11 L=20
9-09525-035-0
01
1
0303-0606
●
45
CLIP; FUEL CUT CABLE
ID=11 L=20
0-95235-035-0
01
1
0607-
●
51
BOLT; CLIP,FUEL CUT CABLE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0303-0904
●
51
BOLT; CLIP,FUEL CUT CABLE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
●
52
CABLE; FUEL CUT
1-73908-427-0
01
1
0303-
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
02
1
0005-0210
●
225
BOLT; CLIP FIX
M8X16 FLANGE
0-28080-816-0
01
1
0005-0210
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
01
1
0303-0308
●
226
CLIP; CABLE END
1-23219-032-0
01
1
0005-0210
●
226
CLIP; CABLE END
1-23219-084-0
01
1
0005-0210
●
226
CLIP; CABLE END
1-14319-082-0
01
1
0303-
●
53
219
369
226
225
344
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
53
BRACKET; CABLE
1-23319-103-0
01
1
0005-0210
●
219
BRACKET; ENG CONT
1-23319-101-0
01
1
0005-0210
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
02
1
0005-0210
●
225
BOLT; CLIP FIX
M8X16 FLANGE
0-28080-816-0
01
1
0005-0210
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
01
1
0303-0308
●
226
CLIP; CABLE END
1-23219-032-0
01
1
0005-0210
●
226
CLIP; CABLE END
1-23219-084-0
01
1
0005-0210
●
226
CLIP; CABLE END
1-14319-082-0
01
1
0303-
●
344
NUT; CABLE END
M8 FLANGE
0-91150-108-0
01
1
0309-0602
●
344
NUT; CABLE END
M8 FLANGE
0-91180-108-0
01
1
0603-
●
369
BRACKET; STOPPER CABLE
1-13219-363-0
01
1
0005-0210
●
