Isuzu WW
▶
TRUCKS
▶
FV
▶
10829 - FV/GV(AUSTRAL)A.SUS
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#8263) — 51 parça
Tümü
A - 6HE1 TC ENG
B - 6HK1 TCS ENG
C - 6SD1 TCN ENG
◀

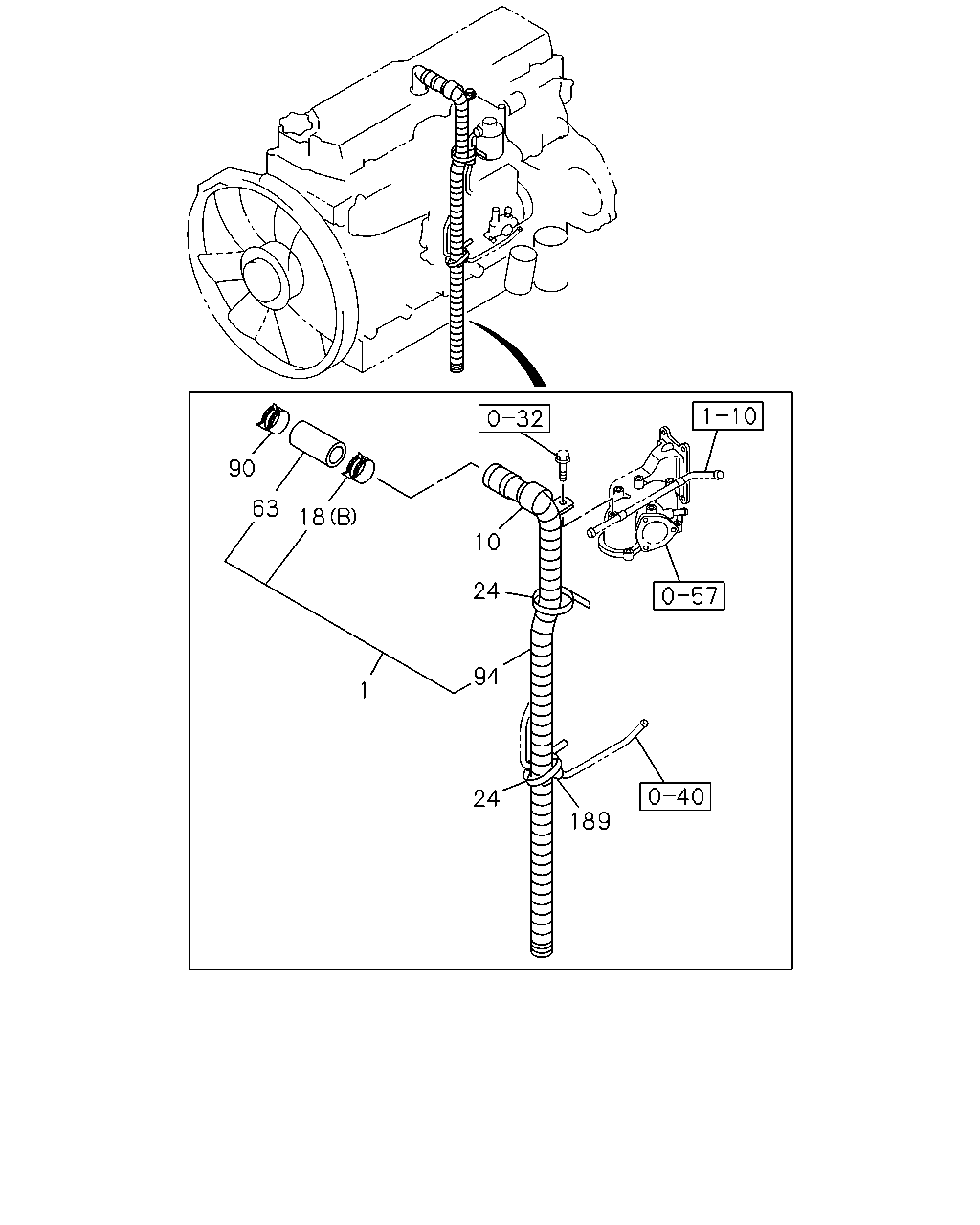

[028A] 6HK1 (20 parça)

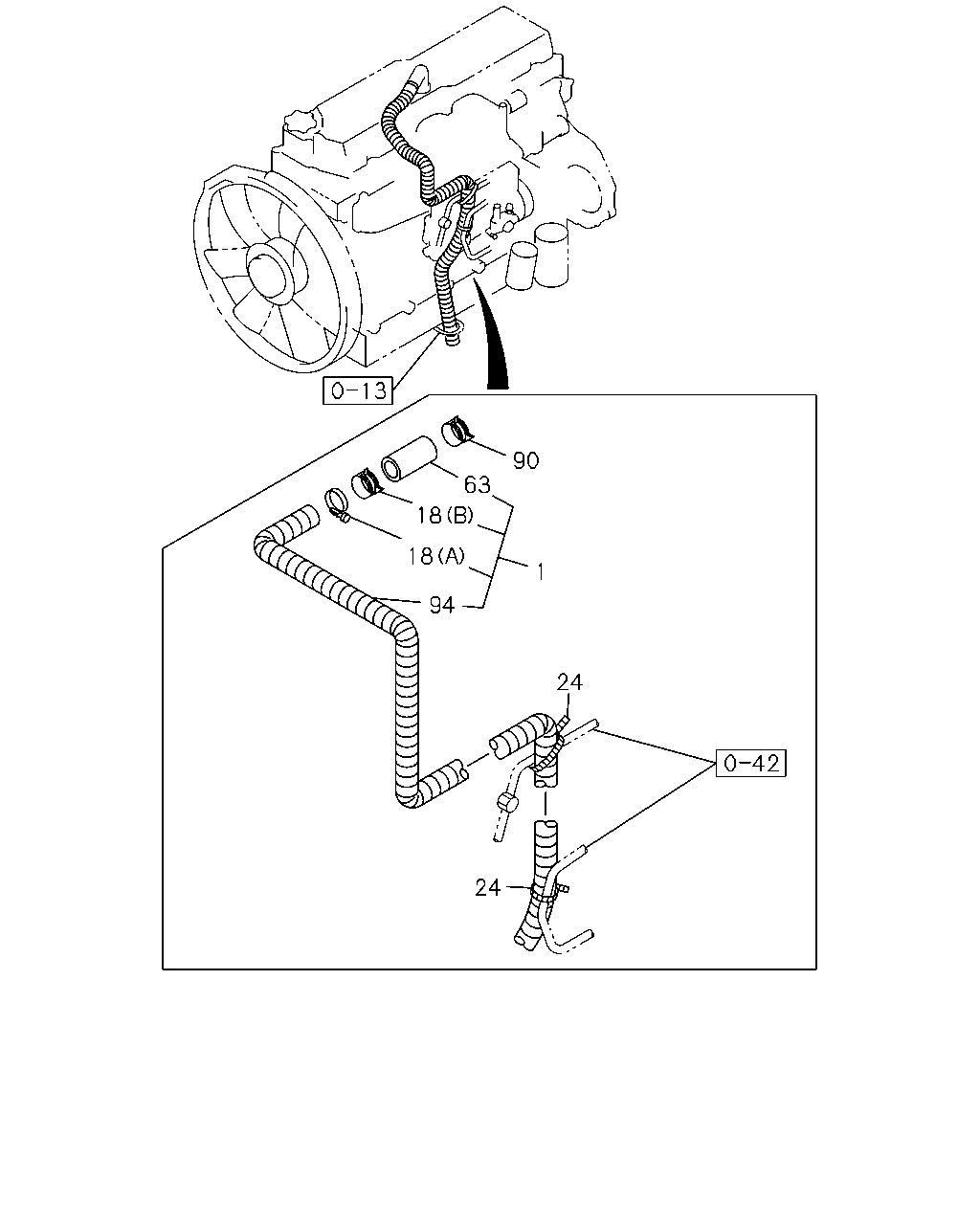

[028A] 6HE1 (16 parça)

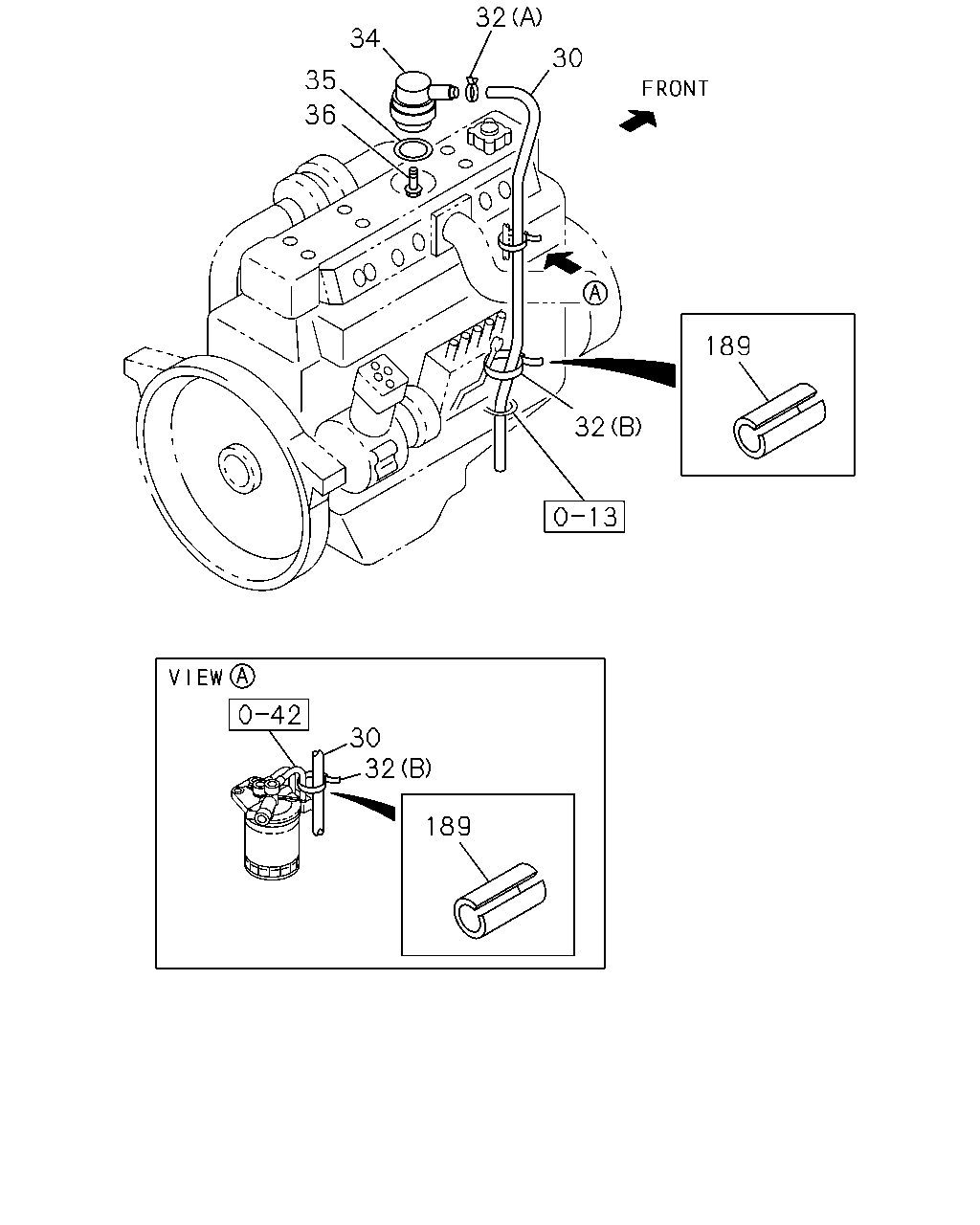

[028A] 6SD1 (15 parça)
▶
90
63
18
10
24
94
1
24
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
BREATHER; AIR
8-94394-777-1
01
1
0005-0210
●
1
BREATHER; AIR
8-97600-171-3
01
1
0303-
●
10
CLIP; AIR BREATHER
5-09700-342-0
01
1
0303-
●
18
CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=33.6
8-94362-518-0
01
1
0005-0210
●
18
CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=38
9-09915-041-1
01
1
0005-0210
●
18
CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=33.6
8-94362-518-0
01
1
0303-
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
02
1
0005-0005
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
03
1
0006-0210
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
02
1
0303-1205
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
8-98216-430-0
02
1
1206-
●
63
HOSE; RUBBER,AIR BREATHER
0-02828-070-0
01
1
0704-1005
●
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02728-070-0
01
1
1006-
●
63
HOSE; RUBBER,AIR BREATHER
8-94394-471-0
01
1
0005-0210
●
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
0005-0210
●
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
0303-
●
94
HOSE; BREATHER TO PIPE
L=1100
8-94394-785-0
01
1
0005-0210
●
94
HOSE; BREATHER TO PIPE
L=1320
8-97600-189-0
01
1
0303-
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
02
1
0107-0210
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
01
1
0211-
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
02
1
0303-
●
90
63
1
18
1
94
24
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
BREATHER; AIR
8-94394-777-1
01
1
0005-0210
●
1
BREATHER; AIR
8-97600-171-3
01
1
0303-
●
18
CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=33.6
8-94362-518-0
01
1
0005-0210
●
18
CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=38
9-09915-041-1
01
1
0005-0210
●
18
CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=33.6
8-94362-518-0
01
1
0303-
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
02
1
0005-0005
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
03
1
0006-0210
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
02
1
0303-1205
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
8-98216-430-0
02
1
1206-
●
63
HOSE; RUBBER,AIR BREATHER
0-02828-070-0
01
1
0704-1005
●
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02728-070-0
01
1
1006-
●
63
HOSE; RUBBER,AIR BREATHER
8-94394-471-0
01
1
0005-0210
●
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
0005-0210
●
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
0303-
●
94
HOSE; BREATHER TO PIPE
L=1100
8-94394-785-0
01
1
0005-0210
●
94
HOSE; BREATHER TO PIPE
L=1320
8-97600-189-0
01
1
0303-
●
32
34
30
35
36
189
32
30
32
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
30
HOSE; VENTILATOR,CYL HD COVER
1-09360-730-1
01
1
0005-
●
32
CLIP; VENT HOSE
(A) ID=20
1-09707-084-1
01
1
0005-
●
32
CLIP; VENT HOSE
(B) L=140
5-09707-031-1
01
1
0005-0106
●
32
CLIP; VENT HOSE
(B) L=140
5-09707-031-1
02
1
0107-0210
●
32
CLIP; VENT HOSE
(B) L=140
5-09707-031-1
01
1
0211-1205
●
32
CLIP; VENT HOSE
(B) L=140
8-98216-431-0
01
1
1206-
●
32
CLIP; VENT HOSE
(B) L=250
5-09707-030-1
01
1
0211-1205
●
32
CLIP; VENT HOSE
(B) L=250
8-98216-430-0
01
1
1206-
●
34
VENTILATOR
1-11740-172-2
01
1
0005-
●
35
GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-209-0
01
1
0005-
●
36
BOLT; VENTILATOR
M10X25 W/LK WASHER
0-50051-025-0
01
1
0005-0906
●
36
BOLT; VENTILATOR
M10X25 W/LK WASHER
0-50551-025-0
01
1
0907-
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
02
1
0107-0210
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
01
1
0211-
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
02
1
0303-
●
