0-27 — EXHAUST MANIFOLD (#8262) — 190 parça

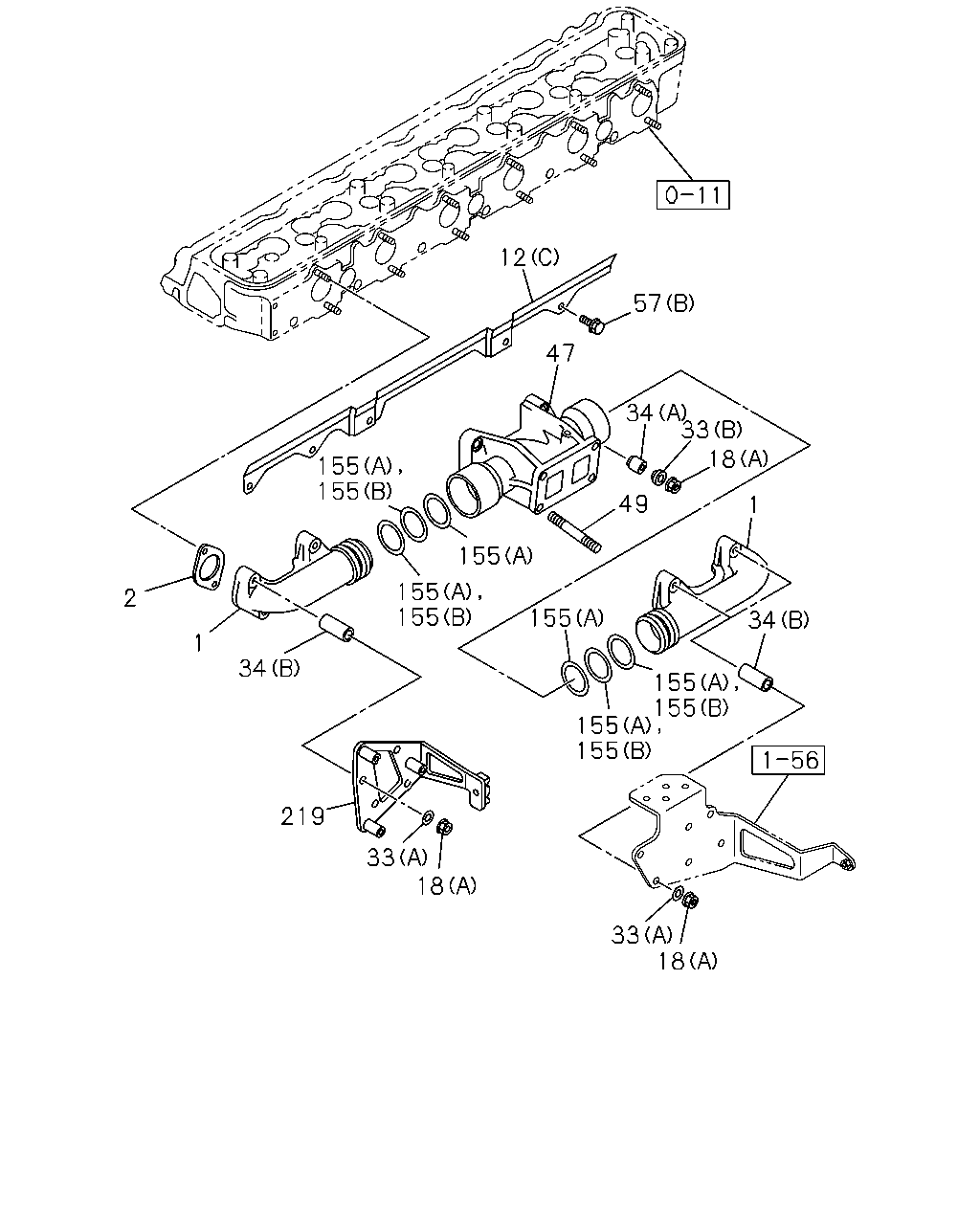

12 57 47 34 33 18 155 155 49 1 155 155 155 2 34 155 1 34 155 155 155 155 219 33 18 33 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MANIFOLD; EXHAUST	1-14141-685-4	02	1	0005-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	0005-0210		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	0005-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0303-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14119-396-0	01	1	0005-0210	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	1-14181-236-0	01	1	0211-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-234-0	01	1	0005-0210	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0005-0210		●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0005-0210		●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0005-0602	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	12	1	0603-	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0303-0602			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	10	1	0603-			●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0303-1202			●
18	NUT; EXH MANIF (B)	8-98205-394-0	02	1	1203-			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0005-0210	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0211-0302	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0303-	●		●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	0005-0210	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0211-	●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-94395-679-0	12	1	0005-0209		●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0210-0210		●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	0005-0210	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	03	1	0211-	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	0005-0210	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	08	1	0211-	●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0303-			●
47	MANIFOLD; EXH,CENTER	1-14141-880-0	01	1	0005-0210	●
47	MANIFOLD; EXH,CENTER	1-14141-994-0	01	1	0211-	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=40	9-04731-025-0	03	1	0005-0210	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	1-09302-167-1	04	1	0211-0408	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	8-97378-071-0	04	1	0409-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	01	1	0005-0210	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0512	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M10X16 FLANGE	0-28151-016-0	01	1	0601-	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	04	1	0502-	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0005-0210		●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0005-0501	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	02	1	0502-	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0303-0501			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0502-			●
219	BRACKET; DUCT	1-14149-244-0	01	1	0211-	●

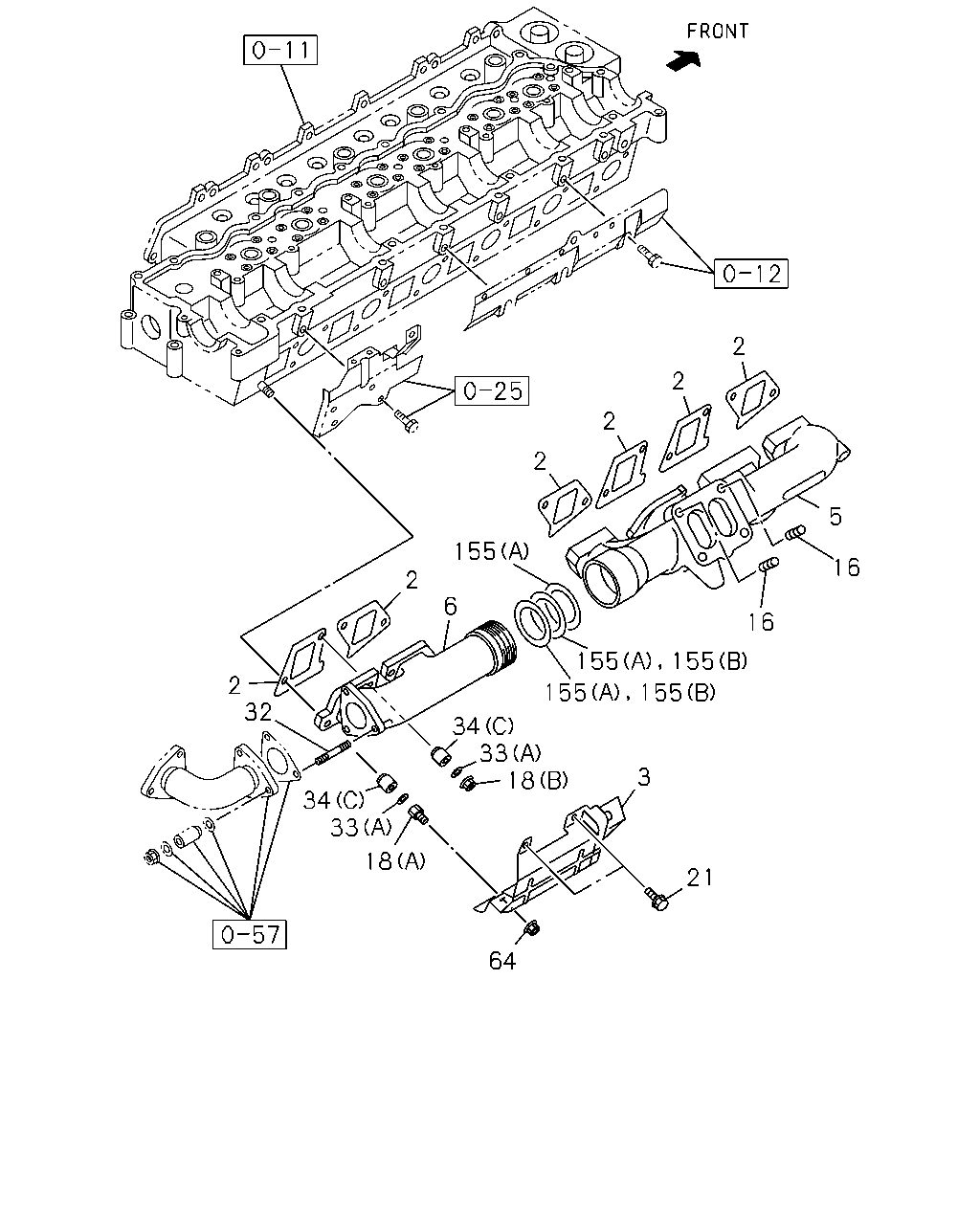

2 2 2 2 5 155 16 2 6 16 155 155 2 32 155 155 34 33 18 3 34 33 18 21 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	0005-0210		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	0005-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0303-			●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0005-0210		●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0303-			●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	0005-0104		●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-0210		●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0303-			●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	0005-0104		●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-0210		●
6	MANIFOLD; EXH,RR	8-97601-166-0	01	1	0303-			●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0005-0210		●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0303-			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0005-0210		●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0005-0210		●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0005-0602	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	12	1	0603-	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0303-0602			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	10	1	0603-			●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0303-1202			●
18	NUT; EXH MANIF (B)	8-98205-394-0	02	1	1203-			●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0005-0210		●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0303-0512			●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
32	STUD; EXH PIPE M10X60 L=75	9-04411-060-0	02	1	0005-0210	●
32	STUD; EXH PIPE M8X55 L=67	9-04110-855-0	03	1	0303-0604			●
32	STUD; EXH PIPE M8X55 L=67	0-41010-855-0	03	1	0605-			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0005-0210	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0211-0302	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0303-	●		●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	0005-0210	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0211-	●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-94395-679-0	12	1	0005-0209		●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0210-0210		●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	0005-0210	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	03	1	0211-	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	0005-0210	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	08	1	0211-	●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0303-			●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0005-0210		●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0303-0602			●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-			●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	04	1	0502-	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0005-0210		●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0005-0501	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	02	1	0502-	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0303-0501			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0502-			●

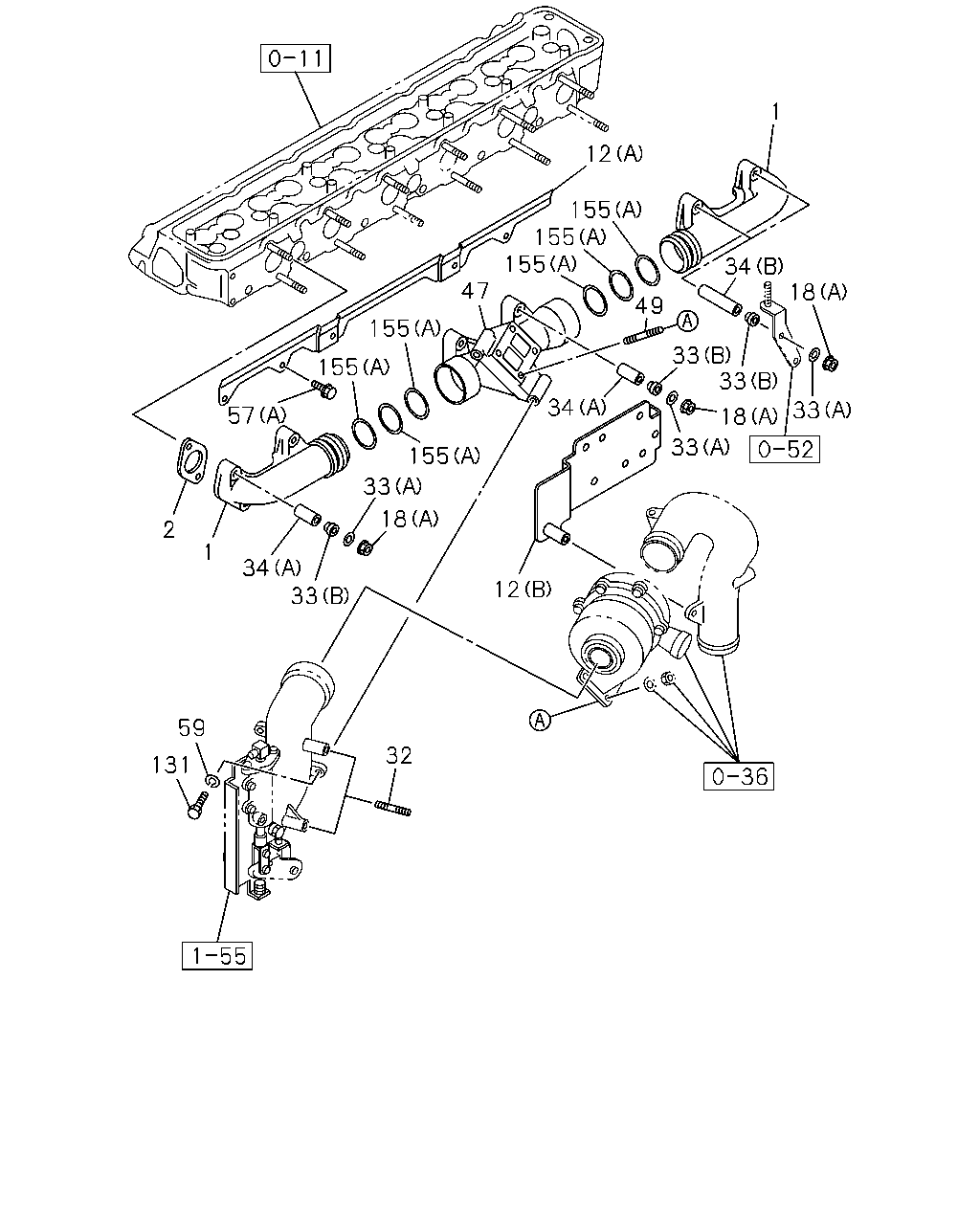

1 12 155 155 155 34 18 47 49 155 33 33 155 57 34 33 18 33 155 33 18 2 1 34 33 12 59 32 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MANIFOLD; EXHAUST	1-14141-685-4	02	1	0005-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	0005-0210		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	0005-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0303-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14119-396-0	01	1	0005-0210	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	1-14181-236-0	01	1	0211-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-234-0	01	1	0005-0210	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0005-0210		●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0005-0210		●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0005-0602	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	12	1	0603-	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0303-0602			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	10	1	0603-			●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0303-1202			●
18	NUT; EXH MANIF (B)	8-98205-394-0	02	1	1203-			●
32	STUD; EXH PIPE M10X60 L=75	9-04411-060-0	02	1	0005-0210	●
32	STUD; EXH PIPE M8X55 L=67	9-04110-855-0	03	1	0303-0604			●
32	STUD; EXH PIPE M8X55 L=67	0-41010-855-0	03	1	0605-			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0005-0210	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0211-0302	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0303-	●		●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	0005-0210	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0211-	●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-94395-679-0	12	1	0005-0209		●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0210-0210		●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	0005-0210	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	03	1	0211-	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	0005-0210	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	08	1	0211-	●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0303-			●
47	MANIFOLD; EXH,CENTER	1-14141-880-0	01	1	0005-0210	●
47	MANIFOLD; EXH,CENTER	1-14141-994-0	01	1	0211-	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=40	9-04731-025-0	03	1	0005-0210	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	1-09302-167-1	04	1	0211-0408	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	8-97378-071-0	04	1	0409-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	01	1	0005-0210	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0512	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M10X16 FLANGE	0-28151-016-0	01	1	0601-	●
59	WASHER; LK,EXH PIPE ID=10	1-09503-033-1	02	1	0005-0210	●
131	BOLT; MTG	9-09804-206-0	02	1	0005-0210	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	04	1	0502-	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0005-0210		●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0005-0501	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	02	1	0502-	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0303-0501			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0502-			●

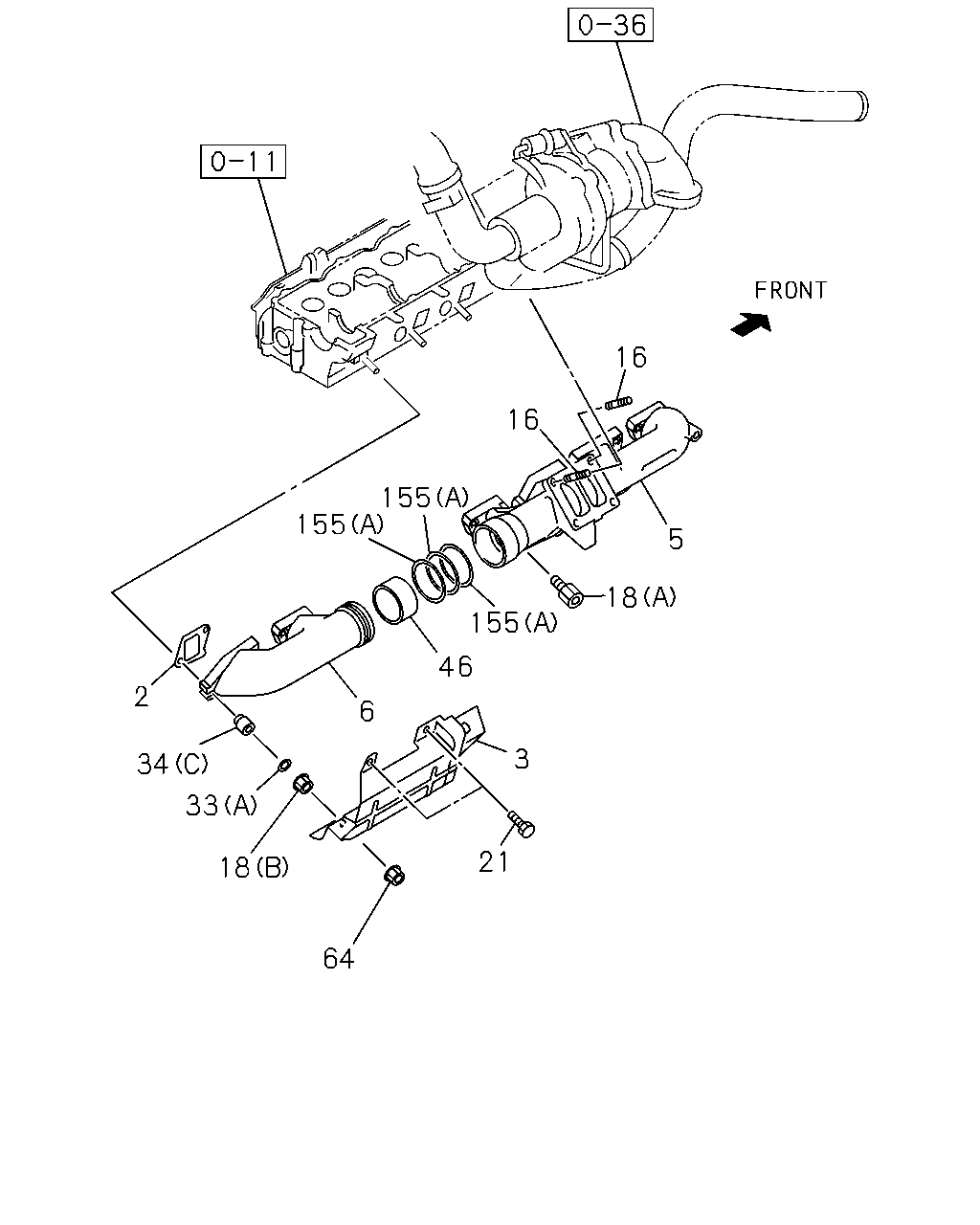

16 16 155 155 5 18 155 46 2 6 3 34 33 21 18 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	0005-0210		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	0005-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0303-			●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0005-0210		●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0303-			●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	0005-0104		●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-0210		●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0303-			●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	0005-0104		●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-0210		●
6	MANIFOLD; EXH,RR	8-97601-166-0	01	1	0303-			●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0005-0210		●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0303-			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0005-0210		●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0005-0210		●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0005-0602	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	12	1	0603-	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0303-0602			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	10	1	0603-			●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0303-1202			●
18	NUT; EXH MANIF (B)	8-98205-394-0	02	1	1203-			●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0005-0210		●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0303-0512			●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0005-0210	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0211-0302	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0303-	●		●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	0005-0210	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0211-	●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-94395-679-0	12	1	0005-0209		●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0210-0210		●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	0005-0210	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	03	1	0211-	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	0005-0210	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	08	1	0211-	●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0303-			●
46	PIPE; SEAL,EXH MANIF OD=49.5 L=43	1-14149-131-1	01	1	0005-0104		●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0005-0210		●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0303-0602			●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-			●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	04	1	0502-	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0005-0210		●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0005-0501	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	02	1	0502-	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0303-0501			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0502-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
