◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#8261) — 301 parça

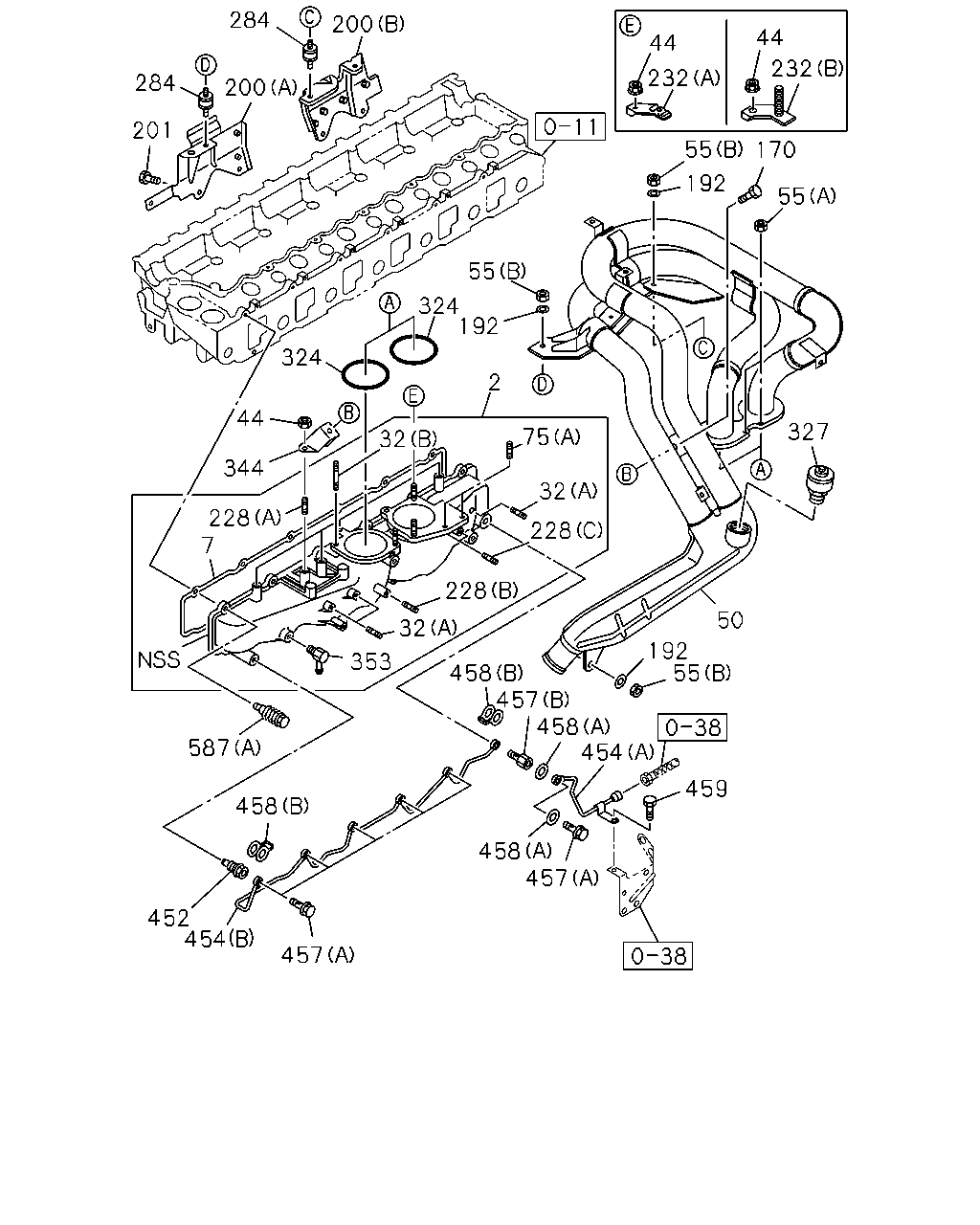

çizim 7433
284 200 44 44 232 232 284 200 201 55 170 192 55 55 324 192 324 2 44 327 75 32 344 32 228 7 228 228 50 32 192 55 353 458 457 458 454 587 459 458 458 457 452 454 457
BalonParca AdiParca NoAdetTipApplied Date A B C
2 COVER; INL 8-94391-106-1 01 1 0005-0108 ●
2 COVER; INL 8-97602-255-0 01 1 0109-0210 ●
2 COVER; INL 1-14110-552-1 01 1 0005-0101 ●
2 COVER; INL 1-14110-603-0 01 1 0102-0210 ●
2 COVER; INL 8-97600-658-1 01 1 0303- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 0005-0210 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-091-0 06 1 0211- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-775-0 01 1 0303- ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 03 1 0005-0108 ●
32 STUD; INL PIPE
(A) M6X30 L=38 		9-04110-630-0 03 1 0109-0210 ●
32 STUD; INL PIPE
(B) M10X20 L=35 		9-04411-020-0 04 1 0005-0210 ●
44 NUT; PIPE BRKT
M8 FLANGE 		0-91150-108-0 03 1 0005-0210 ●
44 NUT; PIPE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0303-0602 ●
44 NUT; PIPE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
50 PIPE; INL 8-97601-301-0 01 1 0005-0210 ●
50 PIPE; INL 8-97601-469-0 01 1 0303- ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 0005-0210 ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 0005-0210 ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91150-108-0 07 1 0005-0210 ●
55 NUT; INL PIPE
(B) M10 FLANGE 		0-91150-110-0 02 1 0005-0210 ●
55 NUT; INL PIPE
(B) M10 FLANGE 		0-91150-110-0 04 1 0211-0602 ●
55 NUT; INL PIPE
(B) M10 FLANGE 		0-91180-110-0 04 1 0603- ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91150-108-0 02 1 0303-0602 ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
75 STUD; BRKT,AIR PIPE
(A) M10X25 L=40 		9-04411-025-0 02 1 0005-0210 ●
75 STUD; BRKT,AIR PIPE
(C) M6X16 L=25 		9-04110-616-0 01 1 0303-0604 ●
75 STUD; BRKT,AIR PIPE
(C) M6X16 L=25 		0-41010-616-0 01 1 0605- ●
75 STUD; BRKT,AIR PIPE
(D) M6X25 L=34 		9-04110-625-0 01 1 0303-0604 ●
75 STUD; BRKT,AIR PIPE
(D) M6X25 L=34 		0-41010-625-0 01 1 0605- ●
75 STUD; BRKT,AIR PIPE
(E) M8X16 L=28 		9-04110-816-0 04 1 0303-0604 ●
75 STUD; BRKT,AIR PIPE
(E) M8X16 L=28 		0-41010-816-0 04 1 0605- ●
75 STUD; BRKT,AIR PIPE
(B) M10X25 L=40 		9-04411-025-0 02 1 0303-0604 ●
75 STUD; BRKT,AIR PIPE
(B) M10X25 L=40 		0-44011-025-0 02 1 0605- ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ●
170 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 0005-0210 ●
170 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 01 1 0005-0210 ●
192 WASHER; PL,INL PIPE
ID=8.4 OD=26 		9-09164-808-0 03 1 0005-0210 ●
192 WASHER; PL,INL PIPE
ID=8.4 OD=26 		9-09164-808-0 02 1 0303-0605 ●
192 WASHER; PL,INL PIPE
ID=8.4 OD=26 		0-91614-808-0 02 1 0606- ●
200 BRACKET; AIR DUCT
(B) 		8-94390-088-0 01 1 0005-0210 ●
200 BRACKET; AIR DUCT
(A) 		8-94394-312-1 01 1 0005-0210 ●
200 BRACKET; AIR DUCT
(D) 		8-97601-726-0 01 1 0303- ●
200 BRACKET; AIR DUCT
(C) 		8-97601-818-0 01 1 0303- ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28080-816-0 05 1 0005-0210 ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28080-816-0 05 1 0303-0512 ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28050-816-0 05 1 0601- ●
228 STUD; INL COVER
(A) M8X16 L=28 		9-04110-816-0 06 1 0005-0210 ●
228 STUD; INL COVER
(B) M8X25 L=37 		9-04110-825-0 01 1 0005-0210 ●
228 STUD; INL COVER
(C) M8X40 L=52 		9-04110-840-0 01 1 0005-0210 ●
228 STUD; INL COVER
(A) M8X20 L=32 		9-04110-820-0 02 1 0005-0210 ●
228 STUD; INL COVER
(B) M8X25 L=37 		9-04110-825-0 04 1 0005-0210 ●
228 STUD; INL COVER
(C) M8X60 L=72 		9-04110-860-0 01 1 0005-0210 ●
232 BRACKET; INJ PIPE
(A) 		8-94395-027-0 01 1 0005-0108 ●
232 BRACKET; INJ PIPE
(B) 		8-94391-452-0 01 1 0109-0210 ●
284 RUBBER; INL PIPE MTG 8-94394-268-1 02 1 0005-0210 ●
284 RUBBER; INL PIPE MTG 8-94393-869-0 01 1 0005-0210 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 0005-0210 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97601-471-2 01 1 0303- ●
327 VALVE; SAFETY,TURBOCHARGER 8-94393-227-0 01 1 0005-0210 ●
344 BRACKET; INL PIPE 8-94393-865-0 01 1 0005-0210 ●
344 BRACKET; INL PIPE 8-97602-160-0 01 1 0303- ●
353 PIPE; AIR,BOOST
PT1/4 ELBOW 		8-94221-562-0 01 1 0005-0210 ●
353 PIPE; AIR,BOOST 1-19192-980-0 01 1 0005-0210 ●
452 CYLINDER ASM; AIR 1-14370-007-0 06 1 0005-0210 ●
454 PIPE; AIR,IVES
(B) 6-JOINT 		8-94394-415-1 01 1 0005-0210 ●
454 PIPE; AIR,IVES
(A) JOINT & NUT W/BRKT 		8-94395-743-0 01 1 0005-0210 ●
457 BOLT; EYE,AIR PIPE,IVES
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0005-0210 ●
457 BOLT; EYE,AIR PIPE,IVES
(B) M8X19 		1-09675-220-0 01 1 0005-0210 ●
458 GASKET; AIR PIPE,VSS
(A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0005-0210 ●
458 GASKET; AIR PIPE,VSS
(B) ID=8.3 		8-97600-925-0 06 1 0005-0210 ●
459 BOLT; CLIP FIX
M8X12 FLANGE 		0-28080-812-0 01 1 0005-0210 ●
459 BOLT; CLIP FIX
M6X35 FLANGE 		0-28680-635-0 02 1 0211-0512 ●
459 BOLT; CLIP FIX
M6X35 FLANGE 		0-28650-635-0 02 1 0601- ●
587 MOUNTING; INTAKE DUCT
(A) 		8-94395-966-0 13 1 0005-0210 ●
587 MOUNTING; INTAKE DUCT
(B) 		8-94395-766-0 01 1 0303- ●
587 MOUNTING; INTAKE DUCT
(C) OD=23 		8-97105-689-6 01 1 0303- ●

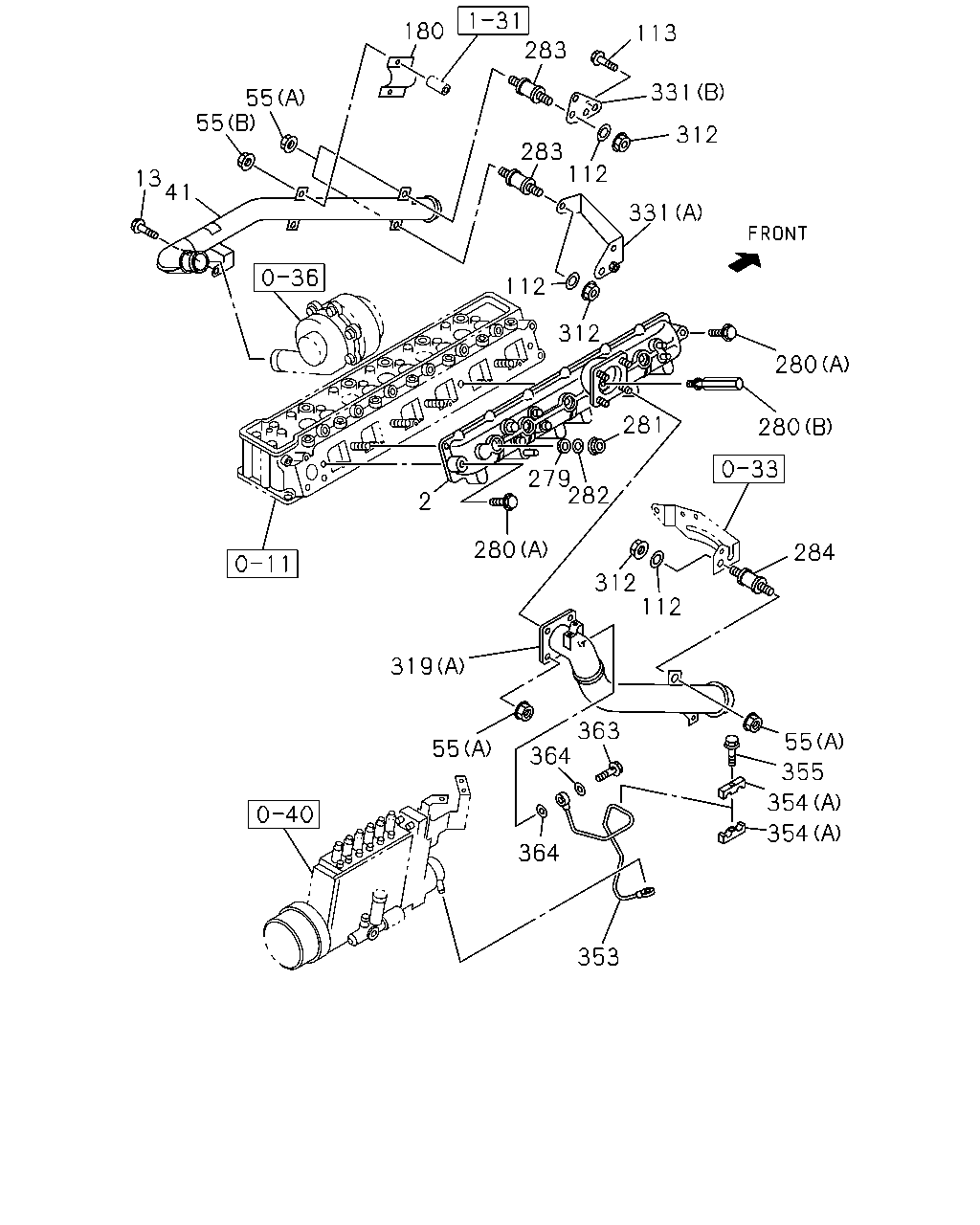

çizim 8022
180 113 283 331 55 55 312 283 112 13 41 331 112 312 280 281 280 279 282 2 280 284 312 112 319 363 364 55 55 355 354 354 364 353
BalonParca AdiParca NoAdetTipApplied Date A B C
2 COVER; INL 8-94391-106-1 01 1 0005-0108 ●
2 COVER; INL 8-97602-255-0 01 1 0109-0210 ●
2 COVER; INL 1-14110-552-1 01 1 0005-0101 ●
2 COVER; INL 1-14110-603-0 01 1 0102-0210 ●
2 COVER; INL 8-97600-658-1 01 1 0303- ●
13 BOLT; INL MANIF
M10X85 FLANGE 		8-97020-251-0 01 1 0005-0210 ●
13 BOLT; INL MANIF
M8X35 FLANGE 		0-28080-835-0 04 1 0211-0512 ●
13 BOLT; INL MANIF
M8X35 FLANGE 		0-28050-835-0 04 1 0601- ●
41 DUCT; INT COVER 1-14134-146-2 01 1 0005-0210 ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 0005-0210 ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 0005-0210 ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91150-108-0 07 1 0005-0210 ●
55 NUT; INL PIPE
(B) M10 FLANGE 		0-91150-110-0 02 1 0005-0210 ●
55 NUT; INL PIPE
(B) M10 FLANGE 		0-91150-110-0 04 1 0211-0602 ●
55 NUT; INL PIPE
(B) M10 FLANGE 		0-91180-110-0 04 1 0603- ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91150-108-0 02 1 0303-0602 ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
112 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 03 1 0005-0210 ●
113 BOLT; STAY
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ●
180 PROTECTOR; HEAT 1-14181-286-0 01 1 0005-0210 ●
279 GASKET; FIX NUT,INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-046-0 04 1 0005-0210 ●
280 BOLT; INL COVER
(A) M8X45 FLANGE 		0-28080-845-0 02 1 0005-0210 ●
280 BOLT; INL COVER
(B) M8X28.5 		1-09009-125-1 01 1 0005-0210 ●
281 NUT; INL COVER 1-11175-011-1 04 1 0005-0210 ●
282 WASHER; PL,INL CVR FIX
ID=12.5 		1-09503-186-0 04 1 0005-0210 ●
283 RUBBER 8-94394-268-1 02 1 0005-0210 ●
283 RUBBER 1-14119-435-0 01 1 0211- ●
283 RUBBER 8-94394-268-1 01 1 0303-0910 ●
283 RUBBER 8-98148-109-0 01 1 0911- ●
284 RUBBER; INL PIPE MTG 8-94394-268-1 02 1 0005-0210 ●
284 RUBBER; INL PIPE MTG 8-94393-869-0 01 1 0005-0210 ●
312 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 03 1 0005-0210 ●
312 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0303-0602 ●
312 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
319 DUCT; INL,TURBOCHARGER
A/T<X9D> (A) 		1-14134-394-0 01 1 0005-0210 ●
319 DUCT; INL,TURBOCHARGER
(B) 		1-14134-399-2 01 1 0211- ●
319 DUCT; INL,TURBOCHARGER
EXC. A/T<X9D> (A) 		1-14134-393-0 01 1 0012-0210 ●
319 DUCT; INL,TURBOCHARGER
EXC. A/T<X9D> (A) 		1-14134-393-0 01 1 0005-0011 ●
331 STAY; INL DUCT
(A) 		1-13719-088-0 01 1 0005-0210 ●
331 STAY; INL DUCT
(B) 		1-14119-389-0 01 1 0005-0210 ●
353 PIPE; AIR,BOOST
PT1/4 ELBOW 		8-94221-562-0 01 1 0005-0210 ●
353 PIPE; AIR,BOOST 1-19192-980-0 01 1 0005-0210 ●
354 CLIP; AIR PIPE
(A) 		1-09701-132-0 02 1 0005-0210 ●
354 CLIP; AIR PIPE
(B) 		1-09701-240-0 04 1 0211- ●
354 CLIP; AIR PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0303- ●
354 CLIP; AIR PIPE
(D) ID=6.35 & 6.35 		1-09709-273-1 02 1 0303- ●
355 BOLT; CLIP,AIR PIPE
M6X35 FLANGE 		0-28080-635-0 01 1 0005-0210 ●
363 BOLT; EYE 1-09675-184-0 01 1 0005-0210 ●
363 BOLT; EYE
M8X24 		1-09675-206-0 01 1 0211-0306 ●
363 BOLT; EYE
M8X24 		8-97257-826-0 01 1 0307- ●
364 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 02 1 0005-0210 ●

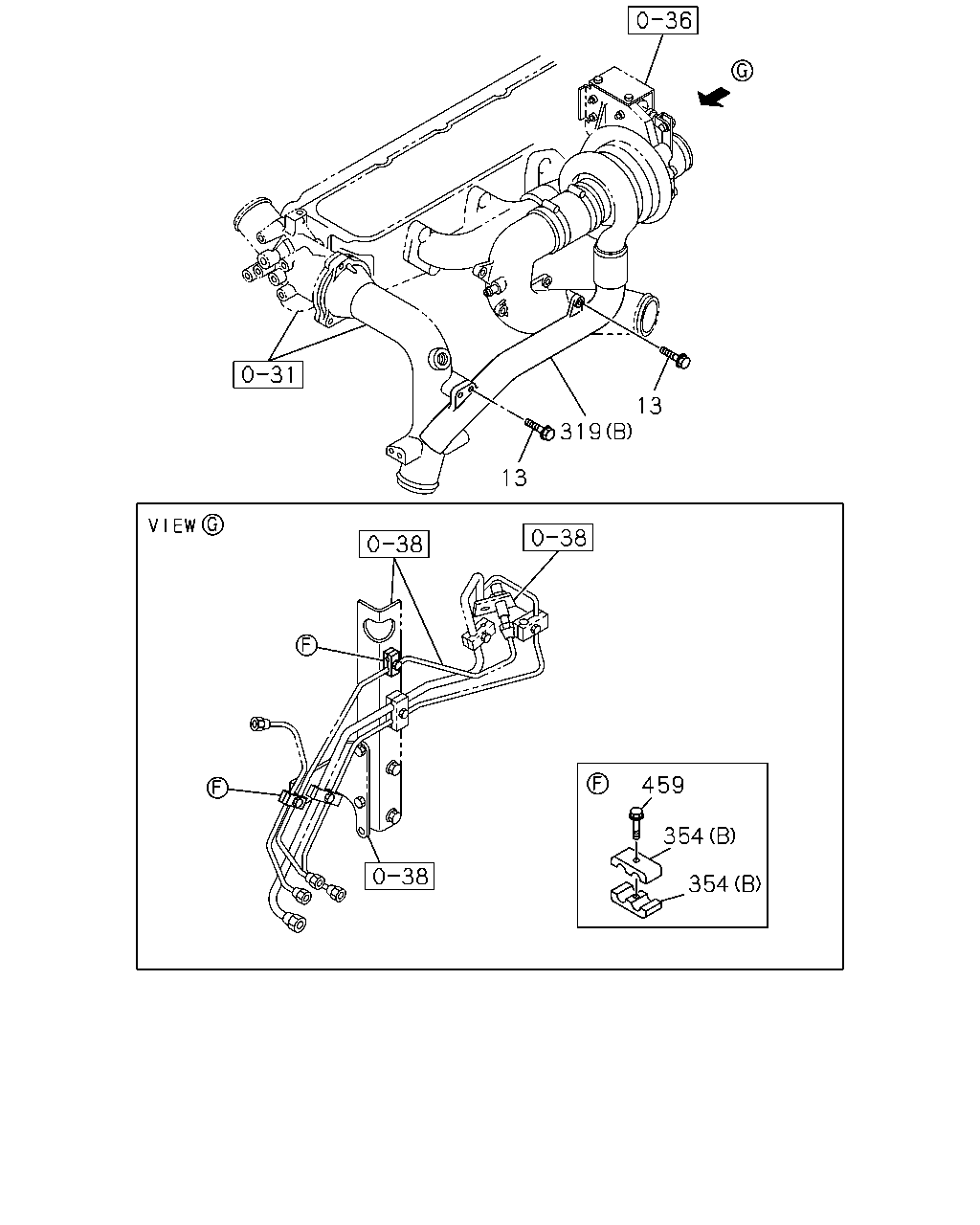

çizim 9903
13 319 13 459 354 354
BalonParca AdiParca NoAdetTipApplied Date A B C
13 BOLT; INL MANIF
M10X85 FLANGE 		8-97020-251-0 01 1 0005-0210 ●
13 BOLT; INL MANIF
M8X35 FLANGE 		0-28080-835-0 04 1 0211-0512 ●
13 BOLT; INL MANIF
M8X35 FLANGE 		0-28050-835-0 04 1 0601- ●
319 DUCT; INL,TURBOCHARGER
A/T<X9D> (A) 		1-14134-394-0 01 1 0005-0210 ●
319 DUCT; INL,TURBOCHARGER
(B) 		1-14134-399-2 01 1 0211- ●
319 DUCT; INL,TURBOCHARGER
EXC. A/T<X9D> (A) 		1-14134-393-0 01 1 0012-0210 ●
319 DUCT; INL,TURBOCHARGER
EXC. A/T<X9D> (A) 		1-14134-393-0 01 1 0005-0011 ●
354 CLIP; AIR PIPE
(A) 		1-09701-132-0 02 1 0005-0210 ●
354 CLIP; AIR PIPE
(B) 		1-09701-240-0 04 1 0211- ●
354 CLIP; AIR PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0303- ●
354 CLIP; AIR PIPE
(D) ID=6.35 & 6.35 		1-09709-273-1 02 1 0303- ●
459 BOLT; CLIP FIX
M8X12 FLANGE 		0-28080-812-0 01 1 0005-0210 ●
459 BOLT; CLIP FIX
M6X35 FLANGE 		0-28680-635-0 02 1 0211-0512 ●
459 BOLT; CLIP FIX
M6X35 FLANGE 		0-28650-635-0 02 1 0601- ●

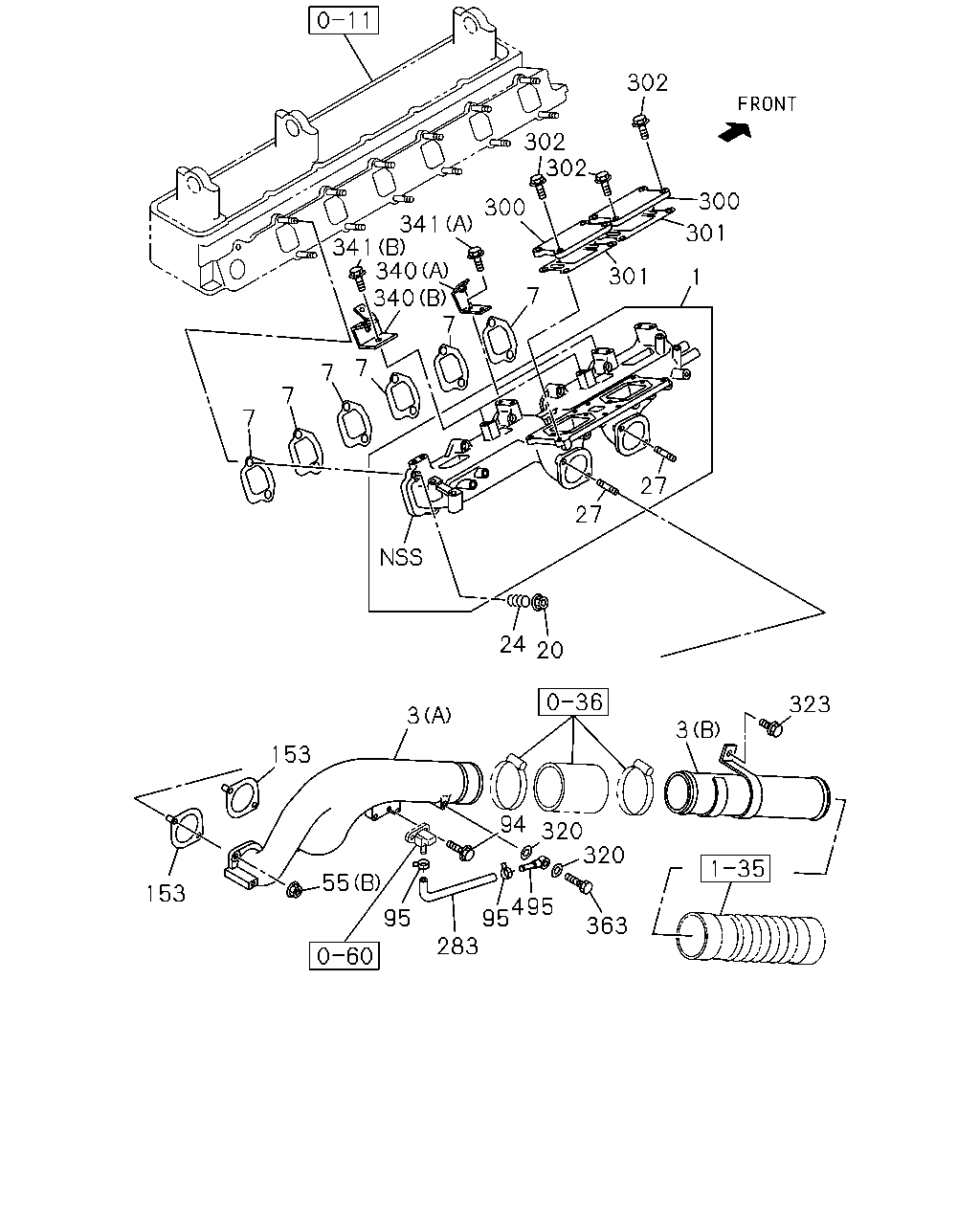

çizim 10278
302 302 302 300 300 341 341 340 340 7 301 301 1 7 7 7 7 7 27 27 24 20 323 3 3 153 320 320 94 55 153 495 95 283 95 363
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MANIFOLD; INL 1-14110-599-1 01 1 0211- ●
3 DUCT; INT
(A) 		1-14134-400-2 01 1 0211- ●
3 DUCT; INT
(B) 		1-14134-471-0 01 1 0211- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 0005-0210 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-091-0 06 1 0211- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-775-0 01 1 0303- ●
20 NUT; INL MANIF
M8 FLANGE 		0-91150-108-0 12 1 0211-0602 ●
20 NUT; INL MANIF
M8 FLANGE 		0-91180-108-0 12 1 0603- ●
24 SPRING; INL MANIF 8-94393-858-0 12 1 0211- ●
27 STUD; INL MANIF
M10X25 L=40 		9-04411-025-0 04 1 0211-0604 ●
27 STUD; INL MANIF
M10X25 L=40 		0-44011-025-0 04 1 0605- ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 0005-0210 ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 0005-0210 ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91150-108-0 07 1 0005-0210 ●
55 NUT; INL PIPE
(B) M10 FLANGE 		0-91150-110-0 02 1 0005-0210 ●
55 NUT; INL PIPE
(B) M10 FLANGE 		0-91150-110-0 04 1 0211-0602 ●
55 NUT; INL PIPE
(B) M10 FLANGE 		0-91180-110-0 04 1 0603- ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91150-108-0 02 1 0303-0602 ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
94 BOLT
M6X12 FLANGE 		0-28080-612-0 02 1 0211-0512 ●
94 BOLT
M6X12 FLANGE 		0-28050-612-0 02 1 0601- ●
95 CLIP; RUBBER HOSE
ID=11 WHITE 		5-09707-005-1 02 1 0211- ●
153 GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-097-0 02 1 0211- ●
283 RUBBER 8-94394-268-1 02 1 0005-0210 ●
283 RUBBER 1-14119-435-0 01 1 0211- ●
283 RUBBER 8-94394-268-1 01 1 0303-0910 ●
283 RUBBER 8-98148-109-0 01 1 0911- ●
300 COVER; INL MANIF 1-11749-208-0 02 1 0211- ●
301 GASKET; INL MANIF COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16185-004-0 02 1 0211- ●
302 BOLT; INL MANIF COVER
M10X30 FLANGE 		0-28181-030-0 08 1 0211-0512 ●
302 BOLT; INL MANIF COVER
M10X30 FLANGE 		0-28151-030-0 08 1 0601- ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0211- ●
323 BOLT; DUCT
M8X35 FLANGE 		0-28680-835-0 02 1 0211-0512 ●
323 BOLT; DUCT
M8X35 FLANGE 		0-28650-835-0 02 1 0601- ●
323 BOLT; DUCT
M8X25 FLANGE 		0-28680-825-0 14 1 0303-0512 ●
323 BOLT; DUCT
M8X25 FLANGE 		0-28650-825-0 14 1 0601- ●
340 BRACKET; HARNESS INL MANIF
(B) 		1-13729-052-0 02 1 0211- ●
340 BRACKET; HARNESS INL MANIF
(A) 		1-14119-463-0 03 1 0211- ●
341 BOLT; BRKT,INL COVER
(A) M8X16 FLANGE 		0-28080-816-0 03 1 0211-0512 ●
341 BOLT; BRKT,INL COVER
(A) M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
341 BOLT; BRKT,INL COVER
(B) M10X16 FLANGE 		0-28181-016-0 02 1 0211-0512 ●
341 BOLT; BRKT,INL COVER
(B) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
363 BOLT; EYE 1-09675-184-0 01 1 0005-0210 ●
363 BOLT; EYE
M8X24 		1-09675-206-0 01 1 0211-0306 ●
363 BOLT; EYE
M8X24 		8-97257-826-0 01 1 0307- ●
495 PIPE; BOOST SENSOR 8-94428-807-0 01 1 0211- ●
çizim 11067
2 228 161 228 18 221 228
BalonParca AdiParca NoAdetTipApplied Date A B C
2 COVER; INL 8-94391-106-1 01 1 0005-0108 ●
2 COVER; INL 8-97602-255-0 01 1 0109-0210 ●
2 COVER; INL 1-14110-552-1 01 1 0005-0101 ●
2 COVER; INL 1-14110-603-0 01 1 0102-0210 ●
2 COVER; INL 8-97600-658-1 01 1 0303- ●
18 SCREW; PLATE,INL CVR 1-09054-019-0 08 1 0005-0210 ●
161 STUD; BRKT,INJ PUMP
M8X20 L=32 		9-04110-820-0 02 1 0005-0210 ●
221 PLATE; INL COVER 1-14119-261-0 04 1 0005-0210 ●
228 STUD; INL COVER
(A) M8X16 L=28 		9-04110-816-0 06 1 0005-0210 ●
228 STUD; INL COVER
(B) M8X25 L=37 		9-04110-825-0 01 1 0005-0210 ●
228 STUD; INL COVER
(C) M8X40 L=52 		9-04110-840-0 01 1 0005-0210 ●
228 STUD; INL COVER
(A) M8X20 L=32 		9-04110-820-0 02 1 0005-0210 ●
228 STUD; INL COVER
(B) M8X25 L=37 		9-04110-825-0 04 1 0005-0210 ●
228 STUD; INL COVER
(C) M8X60 L=72 		9-04110-860-0 01 1 0005-0210 ●

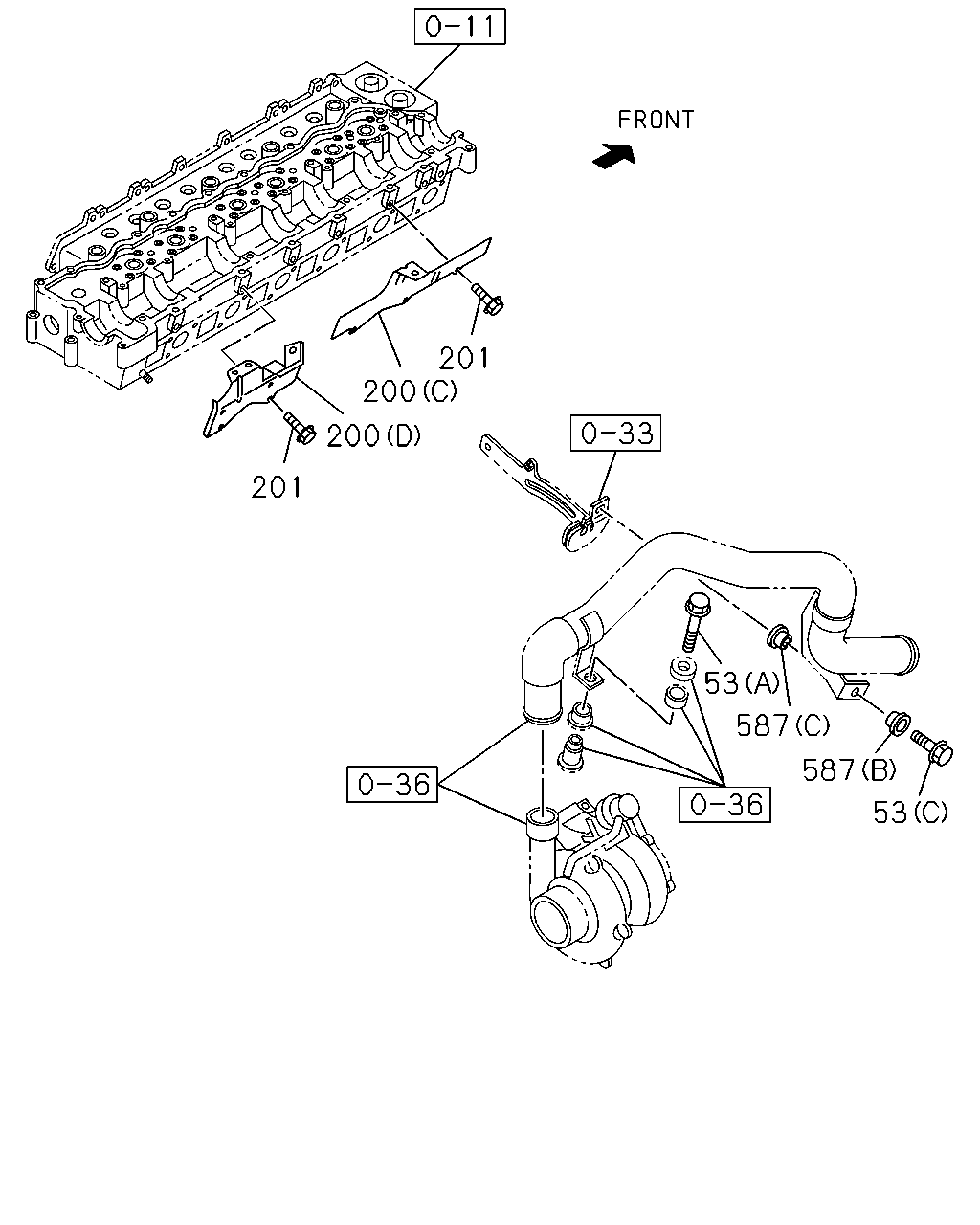

çizim 45550
201 200 200 201 53 587 587 53
BalonParca AdiParca NoAdetTipApplied Date A B C
53 BOLT; INL PIPE
(B) M8X20 FLANGE 		0-28680-820-0 03 1 0303-0512 ●
53 BOLT; INL PIPE
(B) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
53 BOLT; INL PIPE
(C) M8X35 FLANGE 		0-28680-835-0 01 1 0303-0512 ●
53 BOLT; INL PIPE
(C) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ●
53 BOLT; INL PIPE
(A) M10X35 FLANGE 		0-28681-035-0 01 1 0303-0512 ●
53 BOLT; INL PIPE
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0601- ●
200 BRACKET; AIR DUCT
(B) 		8-94390-088-0 01 1 0005-0210 ●
200 BRACKET; AIR DUCT
(A) 		8-94394-312-1 01 1 0005-0210 ●
200 BRACKET; AIR DUCT
(D) 		8-97601-726-0 01 1 0303- ●
200 BRACKET; AIR DUCT
(C) 		8-97601-818-0 01 1 0303- ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28080-816-0 05 1 0005-0210 ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28080-816-0 05 1 0303-0512 ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28050-816-0 05 1 0601- ●
587 MOUNTING; INTAKE DUCT
(A) 		8-94395-966-0 13 1 0005-0210 ●
587 MOUNTING; INTAKE DUCT
(B) 		8-94395-766-0 01 1 0303- ●
587 MOUNTING; INTAKE DUCT
(C) OD=23 		8-97105-689-6 01 1 0303- ●

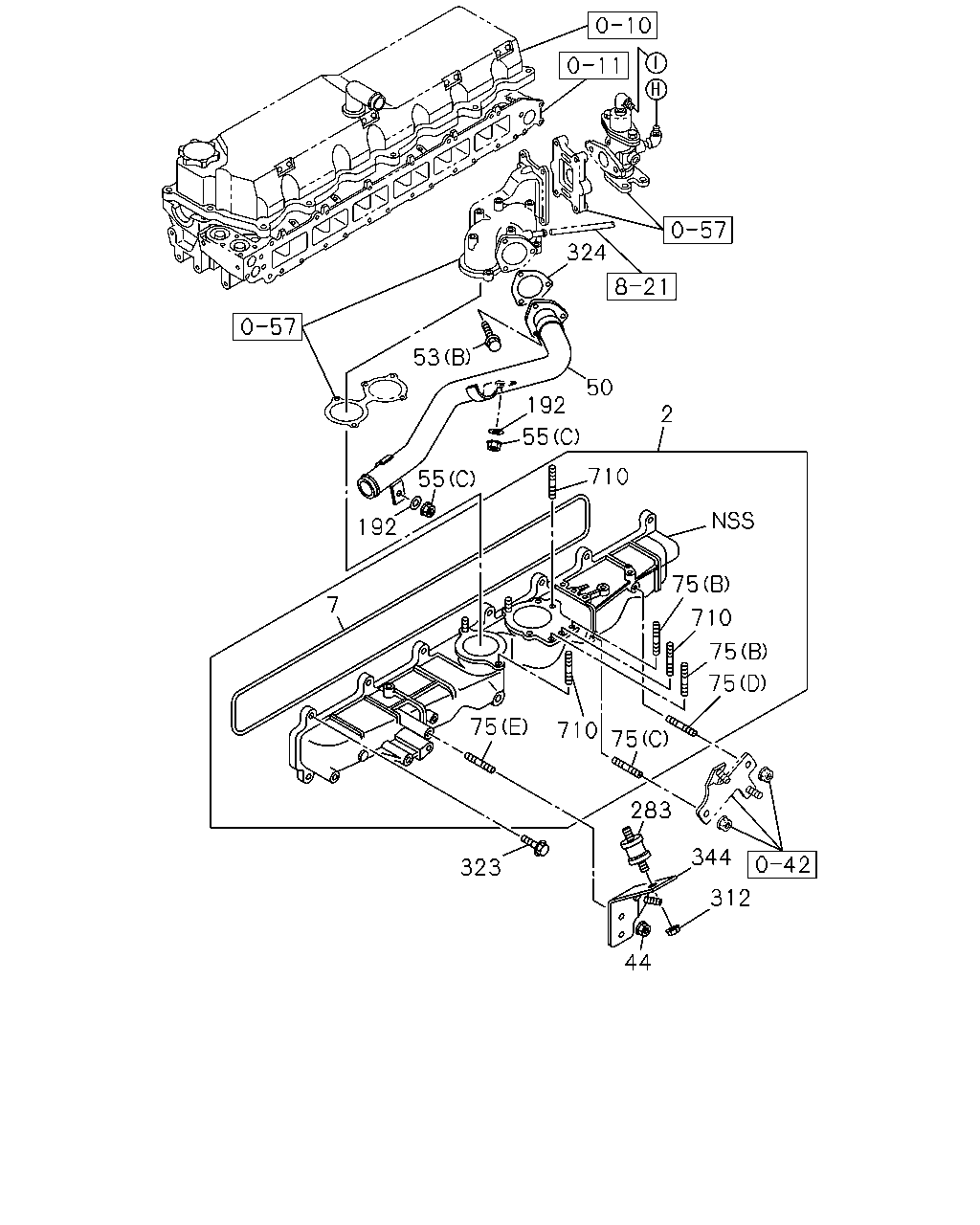

çizim 47013
324 53 50 192 2 55 710 55 192 75 7 710 75 75 75 710 75 283 344 323 312 44
BalonParca AdiParca NoAdetTipApplied Date A B C
2 COVER; INL 8-94391-106-1 01 1 0005-0108 ●
2 COVER; INL 8-97602-255-0 01 1 0109-0210 ●
2 COVER; INL 1-14110-552-1 01 1 0005-0101 ●
2 COVER; INL 1-14110-603-0 01 1 0102-0210 ●
2 COVER; INL 8-97600-658-1 01 1 0303- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 0005-0210 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-091-0 06 1 0211- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-775-0 01 1 0303- ●
44 NUT; PIPE BRKT
M8 FLANGE 		0-91150-108-0 03 1 0005-0210 ●
44 NUT; PIPE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0303-0602 ●
44 NUT; PIPE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
50 PIPE; INL 8-97601-301-0 01 1 0005-0210 ●
50 PIPE; INL 8-97601-469-0 01 1 0303- ●
53 BOLT; INL PIPE
(B) M8X20 FLANGE 		0-28680-820-0 03 1 0303-0512 ●
53 BOLT; INL PIPE
(B) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
53 BOLT; INL PIPE
(C) M8X35 FLANGE 		0-28680-835-0 01 1 0303-0512 ●
53 BOLT; INL PIPE
(C) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ●
53 BOLT; INL PIPE
(A) M10X35 FLANGE 		0-28681-035-0 01 1 0303-0512 ●
53 BOLT; INL PIPE
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0601- ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 0005-0210 ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 0005-0210 ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91150-108-0 07 1 0005-0210 ●
55 NUT; INL PIPE
(B) M10 FLANGE 		0-91150-110-0 02 1 0005-0210 ●
55 NUT; INL PIPE
(B) M10 FLANGE 		0-91150-110-0 04 1 0211-0602 ●
55 NUT; INL PIPE
(B) M10 FLANGE 		0-91180-110-0 04 1 0603- ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91150-108-0 02 1 0303-0602 ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
75 STUD; BRKT,AIR PIPE
(A) M10X25 L=40 		9-04411-025-0 02 1 0005-0210 ●
75 STUD; BRKT,AIR PIPE
(C) M6X16 L=25 		9-04110-616-0 01 1 0303-0604 ●
75 STUD; BRKT,AIR PIPE
(C) M6X16 L=25 		0-41010-616-0 01 1 0605- ●
75 STUD; BRKT,AIR PIPE
(D) M6X25 L=34 		9-04110-625-0 01 1 0303-0604 ●
75 STUD; BRKT,AIR PIPE
(D) M6X25 L=34 		0-41010-625-0 01 1 0605- ●
75 STUD; BRKT,AIR PIPE
(E) M8X16 L=28 		9-04110-816-0 04 1 0303-0604 ●
75 STUD; BRKT,AIR PIPE
(E) M8X16 L=28 		0-41010-816-0 04 1 0605- ●
75 STUD; BRKT,AIR PIPE
(B) M10X25 L=40 		9-04411-025-0 02 1 0303-0604 ●
75 STUD; BRKT,AIR PIPE
(B) M10X25 L=40 		0-44011-025-0 02 1 0605- ●
192 WASHER; PL,INL PIPE
ID=8.4 OD=26 		9-09164-808-0 03 1 0005-0210 ●
192 WASHER; PL,INL PIPE
ID=8.4 OD=26 		9-09164-808-0 02 1 0303-0605 ●
192 WASHER; PL,INL PIPE
ID=8.4 OD=26 		0-91614-808-0 02 1 0606- ●
283 RUBBER 8-94394-268-1 02 1 0005-0210 ●
283 RUBBER 1-14119-435-0 01 1 0211- ●
283 RUBBER 8-94394-268-1 01 1 0303-0910 ●
283 RUBBER 8-98148-109-0 01 1 0911- ●
312 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 03 1 0005-0210 ●
312 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0303-0602 ●
312 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
323 BOLT; DUCT
M8X35 FLANGE 		0-28680-835-0 02 1 0211-0512 ●
323 BOLT; DUCT
M8X35 FLANGE 		0-28650-835-0 02 1 0601- ●
323 BOLT; DUCT
M8X25 FLANGE 		0-28680-825-0 14 1 0303-0512 ●
323 BOLT; DUCT
M8X25 FLANGE 		0-28650-825-0 14 1 0601- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 0005-0210 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97601-471-2 01 1 0303- ●
344 BRACKET; INL PIPE 8-94393-865-0 01 1 0005-0210 ●
344 BRACKET; INL PIPE 8-97602-160-0 01 1 0303- ●
710 STUD; DUCT
M8X25 L=37 		9-04110-825-0 03 1 0303-0604 ●
710 STUD; DUCT
M8X25 L=37 		0-41010-825-0 03 1 0605- ●

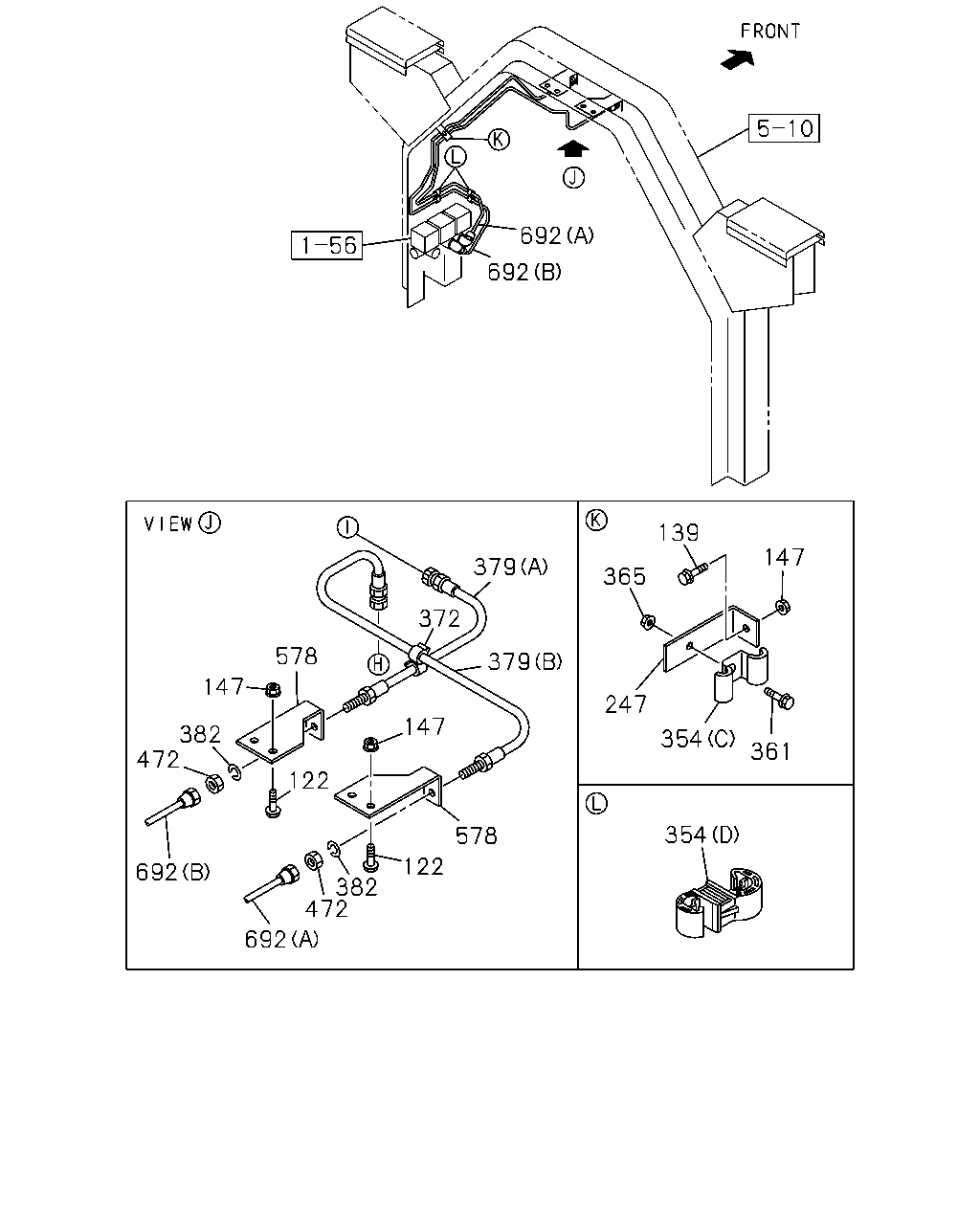

çizim 47049
692 692 139 147 379 365 372 578 379 147 247 147 382 472 354 361 122 354 578 122 692 382 472 692
BalonParca AdiParca NoAdetTipApplied Date A B C
122 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0303-0512 ●
122 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
139 BOLT; BRKT FIX
M8X20 FLANGE 		0-28680-820-0 01 1 0303-0512 ●
139 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
147 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0303-0602 ●
147 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
247 BRACKET; CLIP
L=60 		1-47475-455-0 01 1 0303- ●
354 CLIP; AIR PIPE
(A) 		1-09701-132-0 02 1 0005-0210 ●
354 CLIP; AIR PIPE
(B) 		1-09701-240-0 04 1 0211- ●
354 CLIP; AIR PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0303- ●
354 CLIP; AIR PIPE
(D) ID=6.35 & 6.35 		1-09709-273-1 02 1 0303- ●
361 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0303-0512 ●
361 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
365 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0303-0602 ●
365 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
372 CLIP; HOSE
ID=10 & 10 		1-09709-277-1 01 1 0303- ●
379 HOSE; FLEX
(A) L=260 		1-09363-609-0 01 1 0303- ●
379 HOSE; FLEX
(B) L=380 		1-09363-884-0 01 1 0303- ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 0303-0603 ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 02 1 0604- ●
472 NUT
M12 		9-09840-280-0 02 1 0303- ●
578 BRACKET; FLEX HOSE 1-47479-244-0 01 1 0303-0303 ●
578 BRACKET; FLEX HOSE 1-47479-244-0 01 1 0304- ●
578 BRACKET; FLEX HOSE 1-47479-243-0 01 1 0303-0303 ●
578 BRACKET; FLEX HOSE 1-47479-243-0 01 1 0304- ●
692 PIPE; AIR,MAG VLV
(A) 		1-49123-086-0 01 1 0303- ●
692 PIPE; AIR,MAG VLV
(B) 		1-49123-087-0 01 1 0303-0303 ●
692 PIPE; AIR,MAG VLV
(B) 		1-49124-048-0 01 1 0304- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
