Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#826) — 310 parça

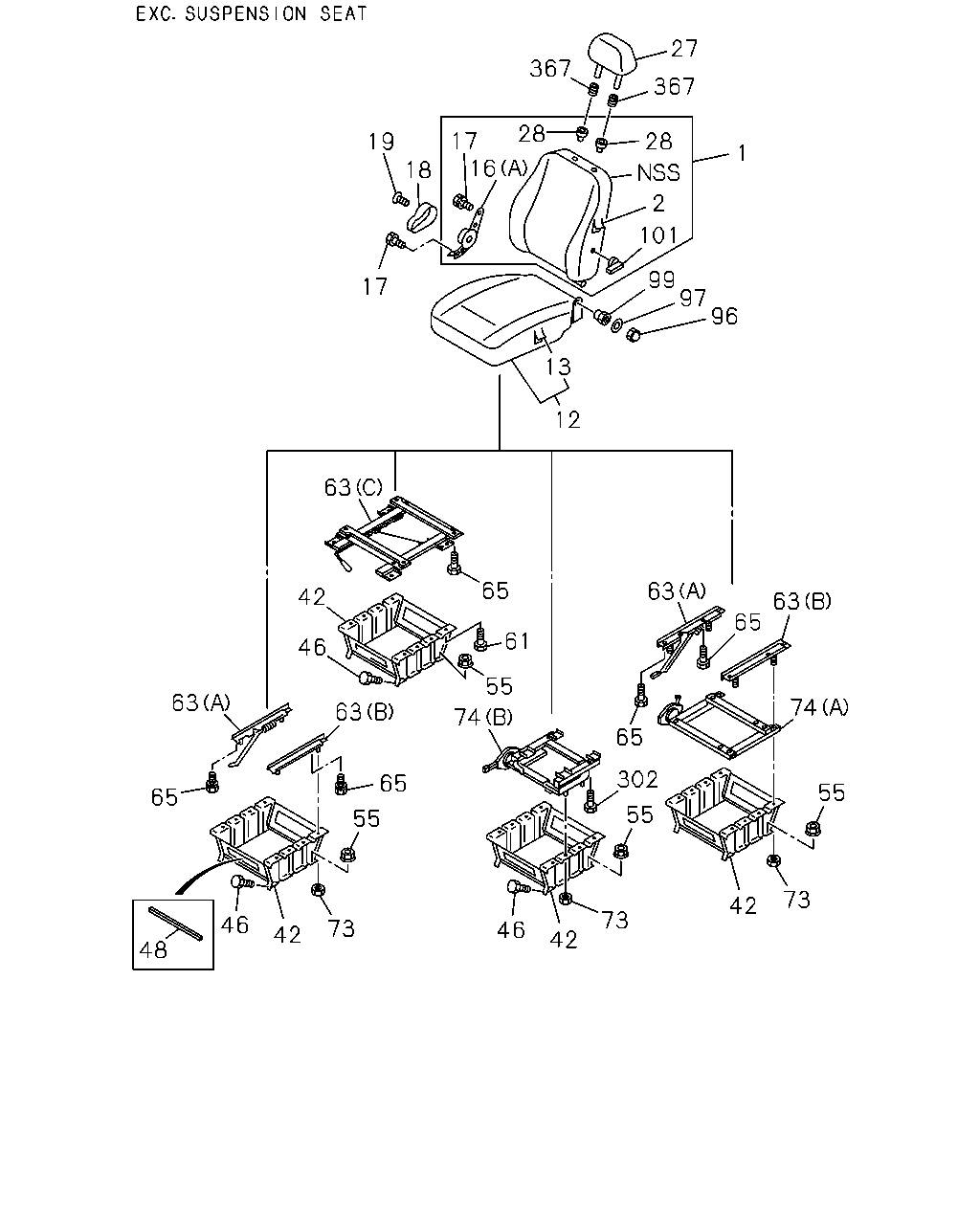

27 367 367 28 17 16 28 19 1 18 2 101 99 97 96 17 13 12 63 65 63 42 63 65 61 46 55 63 74 63 74 65 302 65 55 65 55 55 73 42 73 46 73 46 42 42 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DELUXE CAB(W14)	1-75028-314-0	01	1	9202-	●	●
1	BACK ASM; SEAT EXC. DELUXE CAB(W14)	1-75028-315-0	01	1	9202-	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE CAB(W14)	1-75116-119-0	01	1	9202-	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE CAB(W14)	1-75116-118-0	01	1	9202-	●	●
12	CUSHION; SEAT,FRT SUSPENSION SEAT<SA3>	1-75028-513-0	01	1	9401-	●	●
12	CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>	1-75028-322-0	01	1	9202-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-119-0	01	1	9202-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3>	1-75116-189-0	01	1	9401-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-111-0	01	1	9202-	●	●
16	ADJUSTER ASM; RECLINING (A)	1-75418-014-2	01	1	9202-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED<WX9> (B)	1-75417-064-0	01	1	9202-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED<WX9> (B)	1-75417-042-4	01	1	9202-	●	●
17	BOLT; RECLINING M8X20	1-09980-438-0	04	1	9202-	●	●
18	COVER; RECLINING	1-75417-060-0	01	1	9202-	●	●
19	SCREW; COVER M6X6	1-09981-499-0	01	1	9202-	●	●
27	REST; HD,FRT SEAT	1-75657-020-0	01	1	9202-	●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9202-	●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9202-	●	●
42	STAND; DRIVER SEAT DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75557-405-0	01	1	9202-	●	●
42	STAND; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-75558-294-4	01	1	9202-	●	●
42	STAND; DRIVER SEAT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-75557-391-8	01	1	9202-	●	●
46	BOLT; STAND TO FLOOR	1-09980-566-0	02	1	9202-	●	●
46	BOLT; STAND TO FLOOR DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-09980-566-0	04	1	9202-9504	●	●
48	PROTECTOR; SEAT STAND EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) SERVICED BY L=500	1-79937-746-0	01	1	9202-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M8 FLANGE	8-94279-504-1	02	1	9202-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-504-1	04	1	9202-9504	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) M8 FLANGE	8-94279-504-1	04	1	9202-9504	●	●
61	BOLT; SEAT TO STAND DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-09980-566-0	04	1	9505-	●	●
61	BOLT; SEAT TO STAND EXC. PASSENGER SEAT MULTI USED<WX9>	1-09980-566-0	04	1	9505-	●	●
63	ADJUSTER; SEAT SLIDE DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) (C)	1-75518-034-2	01	1	9202-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3> (B)	1-75518-020-1	01	1	9202-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3> (A)	1-75518-019-1	01	1	9202-	●	●
63	ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> (D)	1-75518-056-2	01	1	9401-	●	●
63	ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> (D)	1-75518-057-1	01	1	9401-	●	●
65	SCREW; ADJ TO SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DELUXE CAB(W14) M8X23 W/LK WASHER	8-94254-743-0	01	1	9202-	●	●
65	SCREW; ADJ TO SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) M8X23 W/LK WASHER	8-94254-743-0	04	1	9202-	●	●
65	SCREW; ADJ TO SEAT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3> M8X23 W/LK WASHER	8-94254-743-0	04	1	9202-	●	●
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9202-	●	●
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9202-	●	●
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-518-0	04	1	9505-	●	●
73	NUT; ADJ,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) M8 FLANGE	8-94279-518-0	04	1	9505-	●	●
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE	5-09440-005-0	08	1	9202-	●	●
73	NUT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8 FLANGE	5-09440-005-0	06	1	9401-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-013-7	01	1	9202-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-013-7	01	1	9202-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75518-045-5	01	1	9202-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75518-045-5	01	1	9202-	●	●
96	NUT; LK,HINGE M8	1-09984-109-0	01	1	9202-	●	●
97	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9202-	●	●
99	BUSHING; SEAT BACK	1-75508-004-0	01	1	9202-	●	●
101	LEVER ASM; LUMBAR DELUXE CAB(W14)	1-75508-002-0	01	1	9202-	●	●
302	BOLT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8X18	8-94279-109-1	04	1	9202-	●	●
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X18	8-94279-109-1	04	1	9202-	●	●
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X18	8-94279-109-1	04	1	9202-	●	●
367	BOOT; HD REST	8-94412-828-0	02	1	9202-	●	●

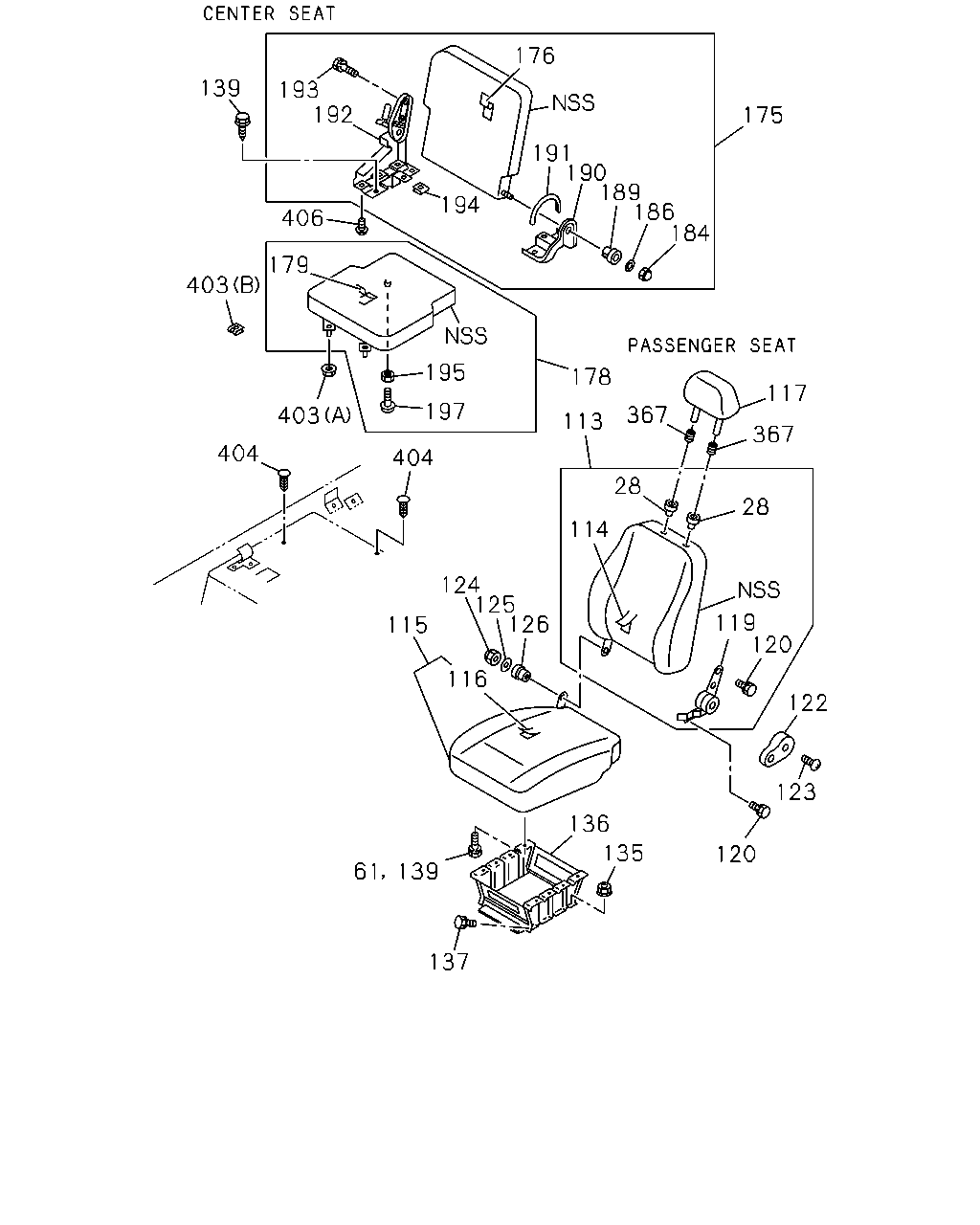

176 139 193 192 175 191 190 189 186 184 194 406 179 403 195 178 117 197 367 403 113 367 404 404 28 28 114 124 125 126 119 120 115 116 122 123 136 135 120 61 139 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9202-	●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9202-	●	●
61	BOLT; SEAT TO STAND DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-09980-566-0	04	1	9505-	●	●
61	BOLT; SEAT TO STAND EXC. PASSENGER SEAT MULTI USED<WX9>	1-09980-566-0	04	1	9505-	●	●
113	BACK ASM; SEAT EXC. PASSENGER SEAT MULTI USED<WX9>	1-75028-319-0	01	1	9202-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. PASSENGER SEAT MULTI USED<WX9>	1-75116-115-0	01	1	9202-	●	●
115	CUSHION ASM; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED<WX9>	1-75028-327-0	01	1	9202-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. PASSENGER SEAT MULTI USED<WX9>	1-75116-113-0	01	1	9202-	●	●
117	REST; HD	1-75657-020-0	01	1	9202-	●	●
119	ADJ; SEAT RECLINING,ASSIST SIDE EXC. PASSENGER SEAT MULTI USED<WX9>	1-75418-015-2	01	1	9202-	●	●
120	BOLT; RECLINING ADJ EXC. PASSENGER SEAT MULTI USED<WX9> M8X20	1-09980-438-0	04	1	9202-	●	●
122	COVER; ADJ,RECLINING EXC. PASSENGER SEAT MULTI USED<WX9>	1-75417-061-0	01	1	9202-	●	●
123	SCREW; COVER,RECLINING EXC. PASSENGER SEAT MULTI USED<WX9> M6X6	1-09981-499-0	01	1	9202-	●	●
124	NUT; CAP,RECLINING EXC. PASSENGER SEAT MULTI USED<WX9> M8	1-09984-109-0	01	1	9202-	●	●
125	WASHER; PL,RECLINING EXC. PASSENGER SEAT MULTI USED<WX9> ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9202-	●	●
126	BUSHING; HINGE,RECLINING EXC. PASSENGER SEAT MULTI USED<WX9>	1-75508-004-0	01	1	9202-	●	●
135	NUT; SEAT STAND M8 FLANGE	8-94279-504-1	02	1	9202-	●	●
135	NUT; SEAT STAND PASSENGER SEAT MULTI USED<WX9> M8 FLANGE	8-94279-504-1	01	1	9202-	●	●
136	STAND; PASSENGER SEAT PASSENGER SEAT MULTI USED<WX9>	1-75557-391-8	01	1	9202-	●	●
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED<WX9>	1-75558-294-4	01	1	9202-	●	●
137	BOLT; STAND	1-09980-566-0	02	1	9202-	●	●
137	BOLT; STAND PASSENGER SEAT MULTI USED<WX9>	1-09980-566-0	04	1	9505-	●	●
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	9202-9504	●	●
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	9202-9504	●	●
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED<WX9>	1-09980-566-0	04	1	9202-9504	●	●
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	9505-	●	●
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED<WX9>	1-09980-566-0	04	1	9505-	●	●
175	BACK ASM; PASSENGER CENTER SEAT EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTIUSED<WX9>,DELUXE CAB(W14)	1-75028-307-0	01	1	9202-	●	●
175	BACK ASM; PASSENGER CENTER SEAT SEPARATE PASSENGER CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI USED<WX9>	1-75028-303-0	01	1	9202-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTIUSED<WX9>,DELUXE CAB(W14)	1-75118-990-0	01	1	9202-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEPARATE PASSENGER CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI USED<WX9>	1-75118-989-0	01	1	9202-	●	●
178	CUSHION ASM; PASSENGER CENTER SEAT EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTIUSED<WX9>,DELUXE CAB(W14)	1-75028-313-0	01	1	9202-	●	●
178	CUSHION ASM; PASSENGER CENTER SEAT DELUXE CAB(W14) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI USED<WX9>	1-75028-304-0	01	1	9202-	●	●
178	CUSHION ASM; PASSENGER CENTER SEAT NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB(W14)	1-75028-302-0	01	1	9202-		●
178	CUSHION ASM; PASSENGER CENTER SEAT AUSTRALIA EQUIPMENT(RR3)	1-75028-302-0	01	1	9202-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTIUSED<WX9>,DELUXE CAB(W14)	1-75118-988-0	01	1	9202-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE CAB(W14) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTI USED<WX9>	1-75118-987-0	01	1	9202-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB(W14)	1-75118-985-0	01	1	9202-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH AUSTRALIA EQUIPMENT(RR3)	1-75118-985-0	01	1	9202-		●
184	NUT; CAP,CENTER SEAT SEPARATE PASSENGER CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI USED<WX9> M8	1-09984-109-0	01	1	9202-	●	●
184	NUT; CAP,CENTER SEAT EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTIUSED<WX9>,DELUXE CAB(W14) M8	1-09984-109-0	01	1	9202-	●	●
186	WASHER; PL,HINGE,CENTER SEAT BACK SEPARATE PASSENGER CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI USED<WX9> ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9202-	●	●
186	WASHER; PL,HINGE,CENTER SEAT BACK EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTIUSED<WX9>,DELUXE CAB(W14) ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9202-	●	●
189	BUSHING; HINGE,CENTER SEAT BACK SEPARATE PASSENGER CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI USED<WX9>	1-75508-004-0	01	1	9202-	●	●
189	BUSHING; HINGE,CENTER SEAT BACK EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTIUSED<WX9>,DELUXE CAB(W14)	1-75508-004-0	01	1	9202-	●	●
190	BRACKET ASM; HINGE,CENTER SEAT EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTIUSED<WX9>,DELUXE CAB(W14)	1-75418-019-2	01	1	9202-	●	●
190	BRACKET ASM; HINGE,CENTER SEAT SEPARATE PASSENGER CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI USED<WX9>	1-75418-022-0	01	1	9202-	●	●
191	FINISHER; HINGE,CENTER SEAT BACK SEPARATE PASSENGER CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI USED<WX9> L=190	1-71998-300-0	01	1	9202-	●	●
191	FINISHER; HINGE,CENTER SEAT BACK EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTIUSED<WX9>,DELUXE CAB(W14) L=190	1-71998-300-0	01	1	9202-	●	●
192	ADJUSTER ASM; RECLINING,CENTER SEAT BA EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTIUSED<WX9>,DELUXE CAB(W14)	1-75418-016-3	01	1	9202-	●	●
192	ADJUSTER ASM; RECLINING,CENTER SEAT BA SEPARATE PASSENGER CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI USED<WX9>	1-75418-021-2	01	1	9202-	●	●
193	BOLT; RECLINING ADJ,CENTER SEAT BACK SEPARATE PASSENGER CENTER SEAT<WP2> EXC. PASSENGER SEAT MULTI USED<WX9> M10X16 FLANGE	1-75198-053-0	02	1	9202-	●	●
193	BOLT; RECLINING ADJ,CENTER SEAT BACK EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTIUSED<WX9>,DELUXE CAB(W14) M10X16 FLANGE	1-75198-053-0	02	1	9202-	●	●
194	RUBBER; BUFFER,CENTER SEAT BACK EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTIUSED<WX9>,DELUXE CAB(W14)	1-75198-054-0	01	1	9202-	●	●
195	SPACER; CUSHION,CENTER SEAT EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTIUSED<WX9>,DELUXE CAB(W14) M8	9-09110-408-0	01	1	9202-	●	●
197	SCREW; TAPPING,SPACER FIX,CENTER SEAT EXC. AUSTRALIA EQUIPMENT(RR3),PASSENGER SEAT MULTIUSED<WX9>,DELUXE CAB(W14) M6X16 TAPPING W/PL WASHER	0-74110-616-0	01	1	9202-	●	●
367	BOOT; HD REST	8-94412-828-0	02	1	9202-	●	●
403	NUT; CENTER SEAT SEPARATE PASSENGER CENTER SEAT<WP2> (B)	5-09466-004-1	02	1	9202-	●	●
403	NUT; CENTER SEAT EXC. PASSENGER SEAT MULTI USED<WX9> (A) M8 FLANGE	8-94279-504-1	02	1	9202-	●	●
404	PLUG; SEAT PASSENGER SEAT MULTI USED<WX9> OD=15 L=14.5	1-76378-157-0	02	1	9202-	●	●
404	PLUG; SEAT EXC. PASSENGER SEAT MULTI USED<WX9> OD=15 L=14.5	1-76378-157-0	04	1	9202-	●	●
404	PLUG; SEAT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PASSENGER SEAT MULTI USED<WX9> OD=15 L=14.5	1-76378-157-0	01	1	9202-	●	●
406	SCREW; CENTER SEAT SEPARATE PASSENGER CENTER SEAT<WP2> M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	9202-	●	●

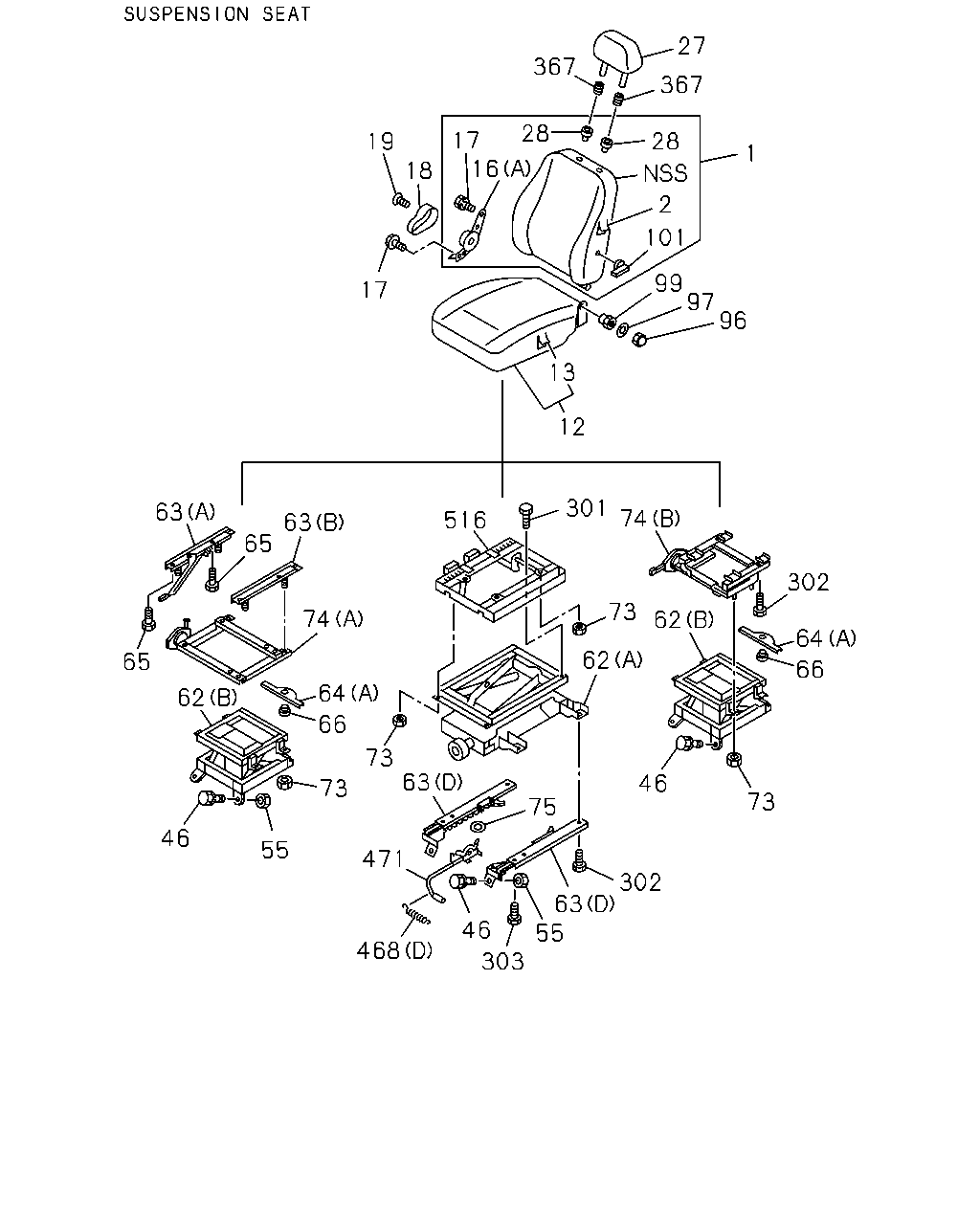

27 367 367 28 17 16 28 19 1 18 2 101 99 97 96 17 13 12 301 63 74 516 63 65 302 73 74 62 64 62 65 66 62 64 66 73 63 46 73 73 75 46 55 471 302 63 55 46 468 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DELUXE CAB(W14)	1-75028-314-0	01	1	9202-	●	●
1	BACK ASM; SEAT EXC. DELUXE CAB(W14)	1-75028-315-0	01	1	9202-	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE CAB(W14)	1-75116-119-0	01	1	9202-	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE CAB(W14)	1-75116-118-0	01	1	9202-	●	●
12	CUSHION; SEAT,FRT SUSPENSION SEAT<SA3>	1-75028-513-0	01	1	9401-	●	●
12	CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>	1-75028-322-0	01	1	9202-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-119-0	01	1	9202-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3>	1-75116-189-0	01	1	9401-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-111-0	01	1	9202-	●	●
16	ADJUSTER ASM; RECLINING (A)	1-75418-014-2	01	1	9202-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED<WX9> (B)	1-75417-064-0	01	1	9202-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED<WX9> (B)	1-75417-042-4	01	1	9202-	●	●
17	BOLT; RECLINING M8X20	1-09980-438-0	04	1	9202-	●	●
18	COVER; RECLINING	1-75417-060-0	01	1	9202-	●	●
19	SCREW; COVER M6X6	1-09981-499-0	01	1	9202-	●	●
27	REST; HD,FRT SEAT	1-75657-020-0	01	1	9202-	●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9202-	●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9202-	●	●
46	BOLT; STAND TO FLOOR	1-09980-566-0	02	1	9202-	●	●
46	BOLT; STAND TO FLOOR DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-09980-566-0	04	1	9202-9504	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M8 FLANGE	8-94279-504-1	02	1	9202-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-504-1	04	1	9202-9504	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) M8 FLANGE	8-94279-504-1	04	1	9202-9504	●	●

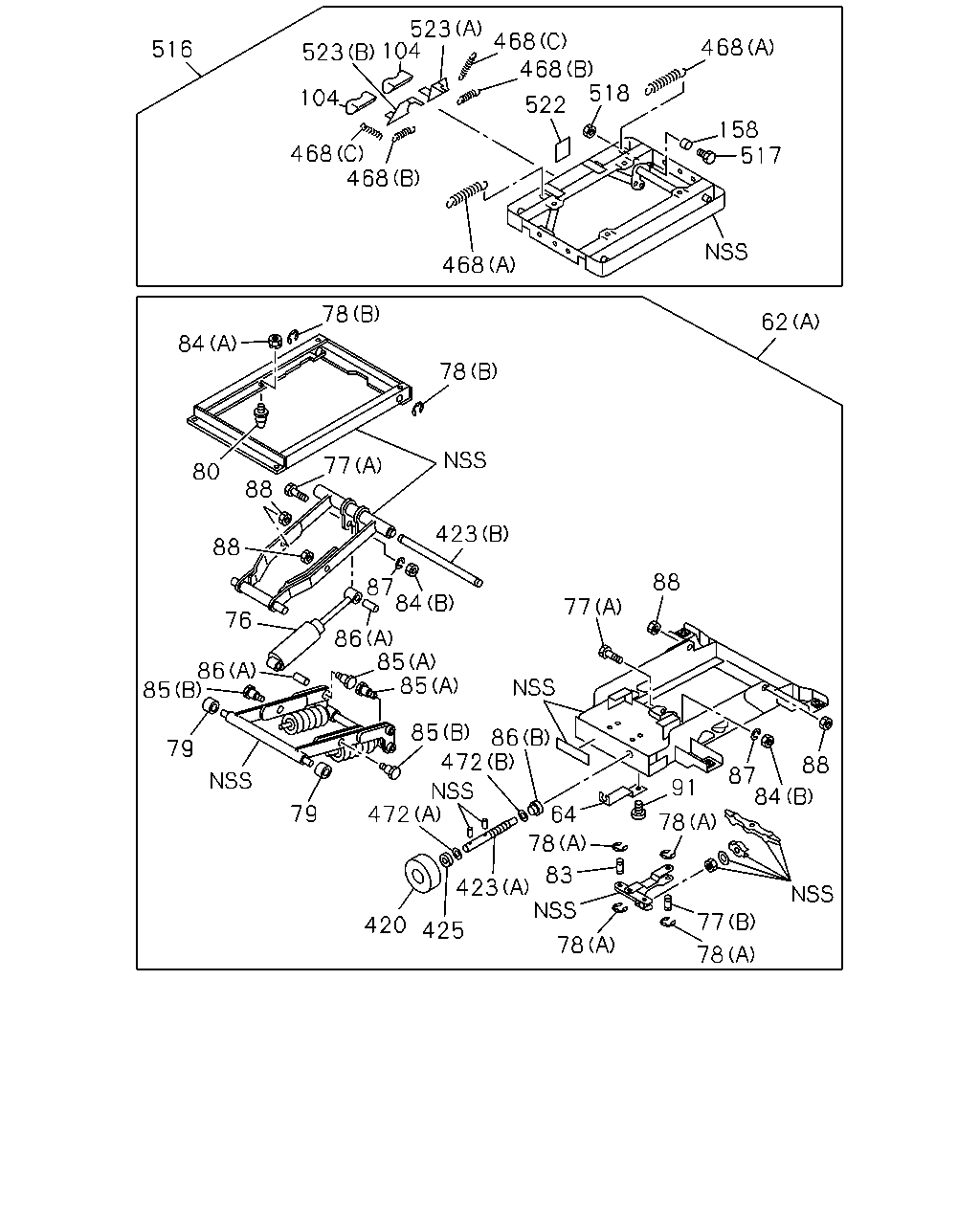

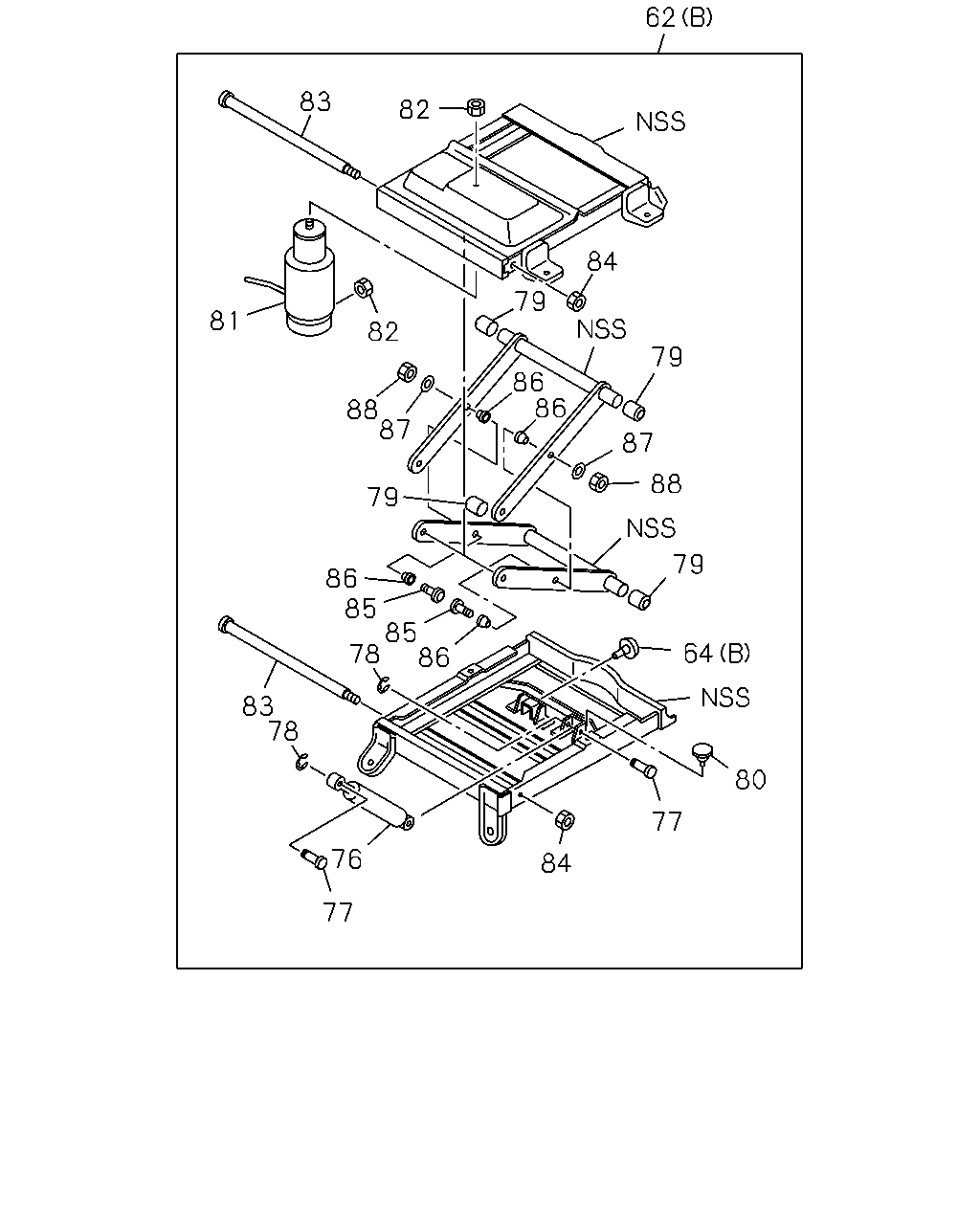

62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75538-113-7	01	1	9202-	●	●
62	DAMPER ASM; SEAT SUSP SUSPENSION SEAT<SA3> (A)	1-75530-028-2	01	1	9401-	●	●
63	ADJUSTER; SEAT SLIDE DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) (C)	1-75518-034-2	01	1	9202-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3> (B)	1-75518-020-1	01	1	9202-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3> (A)	1-75518-019-1	01	1	9202-	●	●
63	ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> (D)	1-75518-056-2	01	1	9401-	●	●
63	ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> (D)	1-75518-057-1	01	1	9401-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-09987-123-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75537-194-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSPENSION SEAT<SA3>	1-75530-080-0	01	1	9401-	●	●
65	SCREW; ADJ TO SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DELUXE CAB(W14) M8X23 W/LK WASHER	8-94254-743-0	01	1	9202-	●	●
65	SCREW; ADJ TO SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) M8X23 W/LK WASHER	8-94254-743-0	04	1	9202-	●	●
65	SCREW; ADJ TO SEAT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3> M8X23 W/LK WASHER	8-94254-743-0	04	1	9202-	●	●
66	RUBBER; LWR STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-130-0	01	1	9202-	●	●
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9202-	●	●
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9202-	●	●
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-518-0	04	1	9505-	●	●
73	NUT; ADJ,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) M8 FLANGE	8-94279-518-0	04	1	9505-	●	●
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE	5-09440-005-0	08	1	9202-	●	●
73	NUT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8 FLANGE	5-09440-005-0	06	1	9401-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-013-7	01	1	9202-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-013-7	01	1	9202-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75518-045-5	01	1	9202-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75518-045-5	01	1	9202-	●	●
75	WASHER; SEAT ADJ SUSPENSION SEAT<SA3> ID=4.3 OD=10	9-09160-604-0	04	1	9401-	●	●
96	NUT; LK,HINGE M8	1-09984-109-0	01	1	9202-	●	●
97	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9202-	●	●
99	BUSHING; SEAT BACK	1-75508-004-0	01	1	9202-	●	●
101	LEVER ASM; LUMBAR DELUXE CAB(W14)	1-75508-002-0	01	1	9202-	●	●
301	BOLT; ADJ CONT SUSPENSION SEAT<SA3>	1-09980-585-0	02	1	9401-	●	●
302	BOLT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8X18	8-94279-109-1	04	1	9202-	●	●
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X18	8-94279-109-1	04	1	9202-	●	●
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X18	8-94279-109-1	04	1	9202-	●	●
303	BOLT; HINGE,DRIVER SEAT SUSPENSION SEAT<SA3>	1-09980-590-0	01	1	9401-	●	●
367	BOOT; HD REST	8-94412-828-0	02	1	9202-	●	●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (A)	1-75517-878-0	02	1	9401-	●	●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (B)	1-75517-879-0	02	1	9401-	●	●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (C)	1-75517-880-0	01	1	9401-	●	●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (D)	1-75518-059-0	01	1	9401-	●	●
471	LEVER; SEAT ADJ SUSPENSION SEAT<SA3>	1-75518-058-2	01	1	9401-	●	●
516	ADJUSTER; TILT SUSPENSION SEAT<SA3>	1-75518-055-2	01	1	9401-	●	●

523 468 468 518 468 516 104 522 158 517 468 468 468 78 62 84 78 77 80 88 423 88 87 84 88 77 76 86 85 85 86 85 85 86 472 79 88 87 84 91 79 472 64 78 78 83 423 77 420 425 78 78 523 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75538-113-7	01	1	9202-	●	●
62	DAMPER ASM; SEAT SUSP SUSPENSION SEAT<SA3> (A)	1-75530-028-2	01	1	9401-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-09987-123-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75537-194-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSPENSION SEAT<SA3>	1-75530-080-0	01	1	9401-	●	●
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-197-0	01	1	9202-	●	●
76	DAMPER; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-073-0	01	1	9401-	●	●
77	PIN; DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-08201-035-0	02	1	9202-	●	●
77	PIN; DAMPER SUSPENSION SEAT<SA3> (A)	1-75530-040-0	02	1	9401-	●	●
77	PIN; DAMPER SUSPENSION SEAT<SA3> (B)	1-75530-065-0	01	1	9401-	●	●
78	RING; SNAP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=8	9-09185-008-0	02	1	9202-	●	●
78	RING; SNAP SUSPENSION SEAT<SA3> (A)	1-75530-066-0	04	1	9401-	●	●
78	RING; SNAP SUSPENSION SEAT<SA3> (B)	1-75530-069-0	02	1	9401-	●	●
79	ROLLER ASM; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-119-0	04	1	9202-	●	●
79	ROLLER ASM; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-043-0	04	1	9401-	●	●
80	RUBBER; STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-61468-039-0	02	1	9202-	●	●
80	RUBBER; STOPPER SUSPENSION SEAT<SA3>	1-75530-062-0	02	1	9401-	●	●
83	PIN; LOW & UPR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-016-0	02	1	9202-	●	●
83	PIN; LOW & UPR SUSPENSION SEAT<SA3>	1-75530-070-0	01	1	9401-	●	●
84	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-014-0	02	1	9202-	●	●
84	NUT; AIR SUSP SUSPENSION SEAT<SA3> (B)	1-75530-042-0	02	1	9401-	●	●
84	NUT; AIR SUSP SUSPENSION SEAT<SA3> (A)	1-75530-063-0	02	1	9401-	●	●
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-118-0	02	1	9202-	●	●
85	BOLT; AIR SUSP SUSPENSION SEAT<SA3> (A)	1-75530-048-0	02	1	9401-	●	●
85	BOLT; AIR SUSP SUSPENSION SEAT<SA3> (B)	1-75530-068-0	02	1	9401-	●	●
86	BUSHING; GUIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75148-153-0	02	1	9202-	●	●
86	BUSHING; GUIDE SUSPENSION SEAT<SA3> (A)	1-75530-041-0	02	1	9401-	●	●
86	BUSHING; GUIDE SUSPENSION SEAT<SA3> (B)	1-75530-071-0	01	1	9401-	●	●
87	WASHER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=10.5 OD=26	9-09160-710-0	02	1	9202-	●	●
87	WASHER; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-036-0	02	1	9401-	●	●
88	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M10	8-94279-519-0	02	1	9202-	●	●
88	NUT; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-039-0	04	1	9401-	●	●
91	SCREW; SEAT ADJ COVER SUSPENSION SEAT<SA3>	1-75530-081-0	01	1	9401-	●	●
104	KNOB; TILT SUSPENSION SEAT<SA3>	1-75517-875-0	02	1	9401-	●	●
158	BUSHING; LINK ARM SUSPENSION SEAT<SA3>	1-09983-171-0	04	1	9401-	●	●
420	KNOB; ADJ,SEAT SUSP SUSPENSION SEAT<SA3>	1-75530-067-0	01	1	9401-	●	●
423	SHAFT; SEAT DAMPER SUSPENSION SEAT<SA3> (A)	1-75530-064-0	01	1	9401-	●	●
423	SHAFT; SEAT DAMPER SUSPENSION SEAT<SA3> (B)	1-75530-082-0	01	1	9401-	●	●
425	BEARING; THRUST,KNOB SUSPENSION SEAT<SA3>	1-75530-074-0	01	1	9401-	●	●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (A)	1-75517-878-0	02	1	9401-	●	●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (B)	1-75517-879-0	02	1	9401-	●	●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (C)	1-75517-880-0	01	1	9401-	●	●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (D)	1-75518-059-0	01	1	9401-	●	●
472	PIN; SPRING SUSPENSION SEAT<SA3> (A)	1-75530-072-0	01	1	9401-	●	●
472	PIN; SPRING SUSPENSION SEAT<SA3> (B)	1-75530-075-0	01	1	9401-	●	●
516	ADJUSTER; TILT SUSPENSION SEAT<SA3>	1-75518-055-2	01	1	9401-	●	●
517	BOLT; TILT ADJ SUSPENSION SEAT<SA3>	1-09980-590-0	04	1	9401-	●	●
518	NUT; TILT ADJ SUSPENSION SEAT<SA3>	8-94279-521-0	04	1	9401-	●	●
522	BUSHING; LEVER SUSPENSION SEAT<SA3>	1-75517-876-0	01	1	9401-	●	●
523	PLATE; LEVER SUSPENSION SEAT<SA3> (A)	1-75517-881-0	01	1	9401-	●	●
523	PLATE; LEVER SUSPENSION SEAT<SA3> (B)	1-75517-882-0	01	1	9401-	●	●

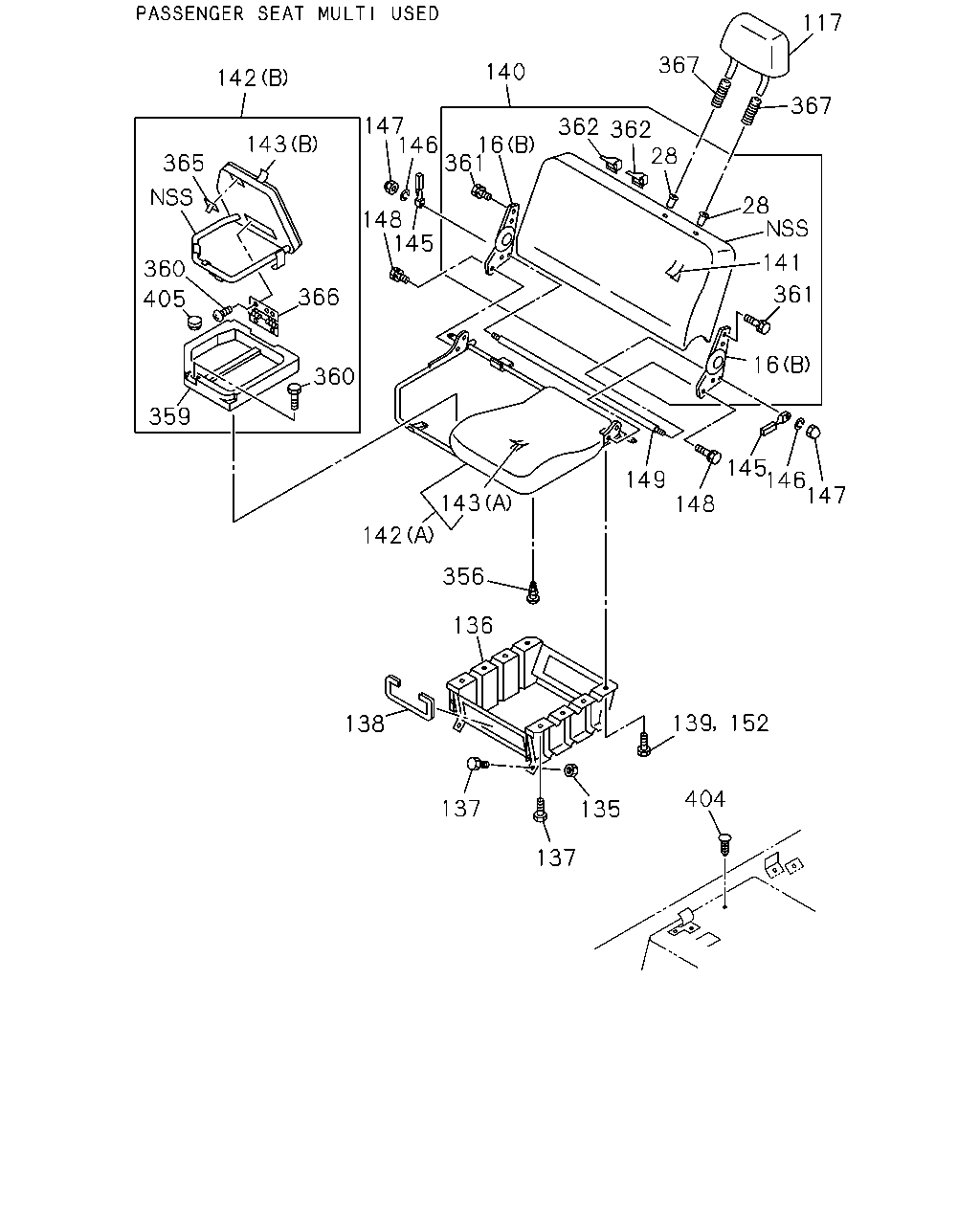

117 367 140 142 367 147 146 16 361 362 362 28 143 365 28 148 145 141 360 361 366 405 16 360 359 145 146 147 149 143 148 142 356 136 152 139 138 404 137 135 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING (A)	1-75418-014-2	01	1	9202-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED<WX9> (B)	1-75417-064-0	01	1	9202-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED<WX9> (B)	1-75417-042-4	01	1	9202-	●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9202-	●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9202-	●	●
117	REST; HD	1-75657-020-0	01	1	9202-	●	●
135	NUT; SEAT STAND M8 FLANGE	8-94279-504-1	02	1	9202-	●	●
135	NUT; SEAT STAND PASSENGER SEAT MULTI USED<WX9> M8 FLANGE	8-94279-504-1	01	1	9202-	●	●
136	STAND; PASSENGER SEAT PASSENGER SEAT MULTI USED<WX9>	1-75557-391-8	01	1	9202-	●	●
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED<WX9>	1-75558-294-4	01	1	9202-	●	●
137	BOLT; STAND	1-09980-566-0	02	1	9202-	●	●
137	BOLT; STAND PASSENGER SEAT MULTI USED<WX9>	1-09980-566-0	04	1	9505-	●	●
138	PROTECTOR; SEAT STAND PASSENGER SEAT MULTI USED<WX9> SERVICED BY L=500	1-79937-746-0	01	1	9202-	●	●
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	9202-9504	●	●
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	9202-9504	●	●
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED<WX9>	1-09980-566-0	04	1	9202-9504	●	●
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	9505-	●	●
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED<WX9>	1-09980-566-0	04	1	9505-	●	●
140	SEAT ASM; BACK,BENCH SEAT PASSENGER SEAT MULTI USED<WX9>	1-75028-334-0	01	1	9202-	●	●
141	COVER; TRIM,BENCH SEAT,BACK PASSENGER SEAT MULTI USED<WX9>	1-75116-120-0	01	1	9202-	●	●
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED<WX9> (A)	1-75028-336-1	01	1	9202-	●	●
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED<WX9> (B)	1-75028-379-0	01	1	9202-	●	●
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED<WX9> (A)	1-75116-122-0	01	1	9202-	●	●
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED<WX9> (B)	1-75116-124-0	01	1	9202-	●	●
145	LEVER; SHAFT PASSENGER SEAT MULTI USED<WX9>	1-75418-024-0	01	1	9202-	●	●
145	LEVER; SHAFT PASSENGER SEAT MULTI USED<WX9>	1-75418-030-0	01	1	9202-	●	●
146	WASHER; LK,SHAFT PASSENGER SEAT MULTI USED<WX9>	5-09985-015-0	02	1	9202-	●	●
147	NUT; CAP,SHAFT PASSENGER SEAT MULTI USED<WX9>	1-09984-031-0	02	1	9202-	●	●
148	BOLT; LEVER PASSENGER SEAT MULTI USED<WX9> M10X16 FLANGE	1-75198-053-0	04	1	9202-	●	●
149	SHAFT; CUSHION TO BACK PASSENGER SEAT MULTI USED<WX9>	1-75418-025-0	01	1	9202-	●	●
152	BOLT; BENCH SEAT PASSENGER SEAT MULTI USED<WX9>	1-09980-566-0	01	1	9202-	●	●
356	SCREW; CUSHION PASSENGER SEAT MULTI USED<WX9>	9-93290-416-0	06	1	9202-	●	●
359	BOX; PARCEL PASSENGER SEAT MULTI USED<WX9>	1-72538-068-0	01	1	9202-	●	●
360	SCREW; PARCEL PASSENGER SEAT MULTI USED<WX9> M4X8 TAPPING	9-07066-408-1	04	1	9202-	●	●
361	BOLT; ADJ,RECLINING PASSENGER SEAT MULTI USED<WX9> M10X16 FLANGE	1-75198-053-0	04	1	9202-	●	●
362	CAP; HD REST PASSENGER SEAT MULTI USED<WX9>	1-75658-036-1	04	1	9202-	●	●
365	LOCK ASM; SEAT PASSENGER SEAT MULTI USED<WX9>	8-94273-271-0	01	1	9202-	●	●
366	HINGE; CENTER SEAT CUSHION PASSENGER SEAT MULTI USED<WX9>	1-72447-391-0	02	1	9202-	●	●
367	BOOT; HD REST	8-94412-828-0	02	1	9202-	●	●
404	PLUG; SEAT PASSENGER SEAT MULTI USED<WX9> OD=15 L=14.5	1-76378-157-0	02	1	9202-	●	●
404	PLUG; SEAT EXC. PASSENGER SEAT MULTI USED<WX9> OD=15 L=14.5	1-76378-157-0	04	1	9202-	●	●
404	PLUG; SEAT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PASSENGER SEAT MULTI USED<WX9> OD=15 L=14.5	1-76378-157-0	01	1	9202-	●	●
405	GROMMET; CENTER SEAT PASSENGER SEAT MULTI USED<WX9>	1-09983-049-0	01	1	9202-	●	●

62 83 82 84 79 81 82 79 86 86 88 87 87 88 79 79 86 85 85 78 86 64 83 78 80 77 76 84 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75538-113-7	01	1	9202-	●	●
62	DAMPER ASM; SEAT SUSP SUSPENSION SEAT<SA3> (A)	1-75530-028-2	01	1	9401-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-09987-123-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75537-194-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSPENSION SEAT<SA3>	1-75530-080-0	01	1	9401-	●	●
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-197-0	01	1	9202-	●	●
76	DAMPER; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-073-0	01	1	9401-	●	●
77	PIN; DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-08201-035-0	02	1	9202-	●	●
77	PIN; DAMPER SUSPENSION SEAT<SA3> (A)	1-75530-040-0	02	1	9401-	●	●
77	PIN; DAMPER SUSPENSION SEAT<SA3> (B)	1-75530-065-0	01	1	9401-	●	●
78	RING; SNAP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=8	9-09185-008-0	02	1	9202-	●	●
78	RING; SNAP SUSPENSION SEAT<SA3> (A)	1-75530-066-0	04	1	9401-	●	●
78	RING; SNAP SUSPENSION SEAT<SA3> (B)	1-75530-069-0	02	1	9401-	●	●
79	ROLLER ASM; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-119-0	04	1	9202-	●	●
79	ROLLER ASM; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-043-0	04	1	9401-	●	●
80	RUBBER; STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-61468-039-0	02	1	9202-	●	●
80	RUBBER; STOPPER SUSPENSION SEAT<SA3>	1-75530-062-0	02	1	9401-	●	●
81	SPRING; AIR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-192-0	01	1	9202-	●	●
82	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-09984-096-0	02	1	9202-	●	●
83	PIN; LOW & UPR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-016-0	02	1	9202-	●	●
83	PIN; LOW & UPR SUSPENSION SEAT<SA3>	1-75530-070-0	01	1	9401-	●	●
84	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-014-0	02	1	9202-	●	●
84	NUT; AIR SUSP SUSPENSION SEAT<SA3> (B)	1-75530-042-0	02	1	9401-	●	●
84	NUT; AIR SUSP SUSPENSION SEAT<SA3> (A)	1-75530-063-0	02	1	9401-	●	●
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-118-0	02	1	9202-	●	●
85	BOLT; AIR SUSP SUSPENSION SEAT<SA3> (A)	1-75530-048-0	02	1	9401-	●	●
85	BOLT; AIR SUSP SUSPENSION SEAT<SA3> (B)	1-75530-068-0	02	1	9401-	●	●
86	BUSHING; GUIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75148-153-0	02	1	9202-	●	●
86	BUSHING; GUIDE SUSPENSION SEAT<SA3> (A)	1-75530-041-0	02	1	9401-	●	●
86	BUSHING; GUIDE SUSPENSION SEAT<SA3> (B)	1-75530-071-0	01	1	9401-	●	●
87	WASHER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=10.5 OD=26	9-09160-710-0	02	1	9202-	●	●
87	WASHER; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-036-0	02	1	9401-	●	●
88	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M10	8-94279-519-0	02	1	9202-	●	●
88	NUT; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-039-0	04	1	9401-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
