Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#8259) — 291 parça

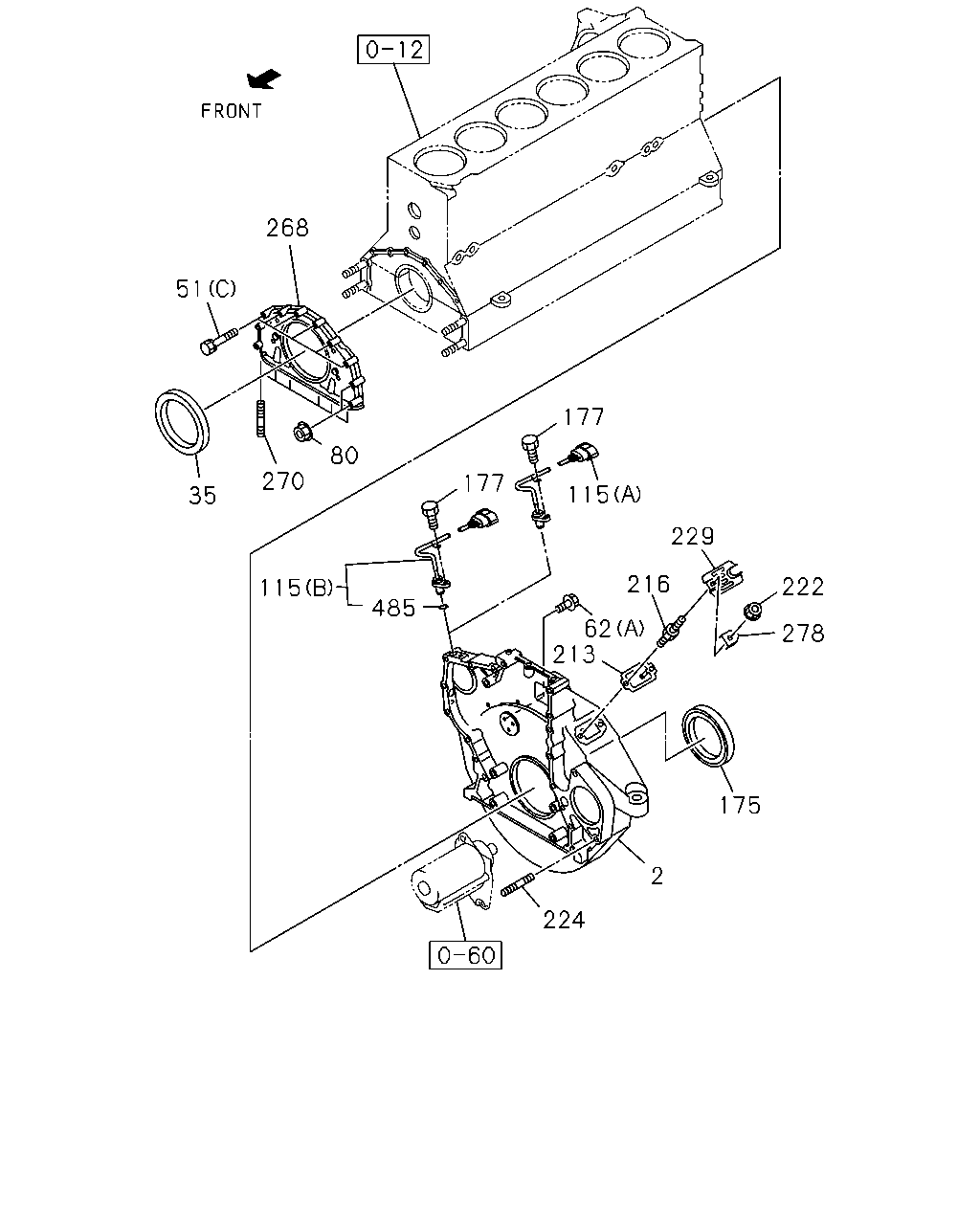

268 51 177 80 270 177 115 35 229 216 222 115 485 62 213 278 175 2 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	0005-0210	●
2	HOUSING; FLYWHEEL A/T<X9D>	1-11341-538-1	01	1	0005-0210		●
2	HOUSING; FLYWHEEL A/T<X9D>	1-11341-659-0	01	1	0211-		●
2	HOUSING; FLYWHEEL EXC. A/T<X9D>	1-11341-498-4	01	1	0012-0210		●
2	HOUSING; FLYWHEEL EXC. A/T<X9D>	1-11341-668-1	01	1	0211-		●
2	HOUSING; FLYWHEEL EXC. A/T<X9D>	1-11341-498-4	01	1	0005-0011		●
2	HOUSING; FLYWHEEL	8-97601-766-1	01	1	0303-			●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	0005-0112	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-0	01	1	0201-0210	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09625-540-3	01	1	0005-		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-3	01	1	0303-			●

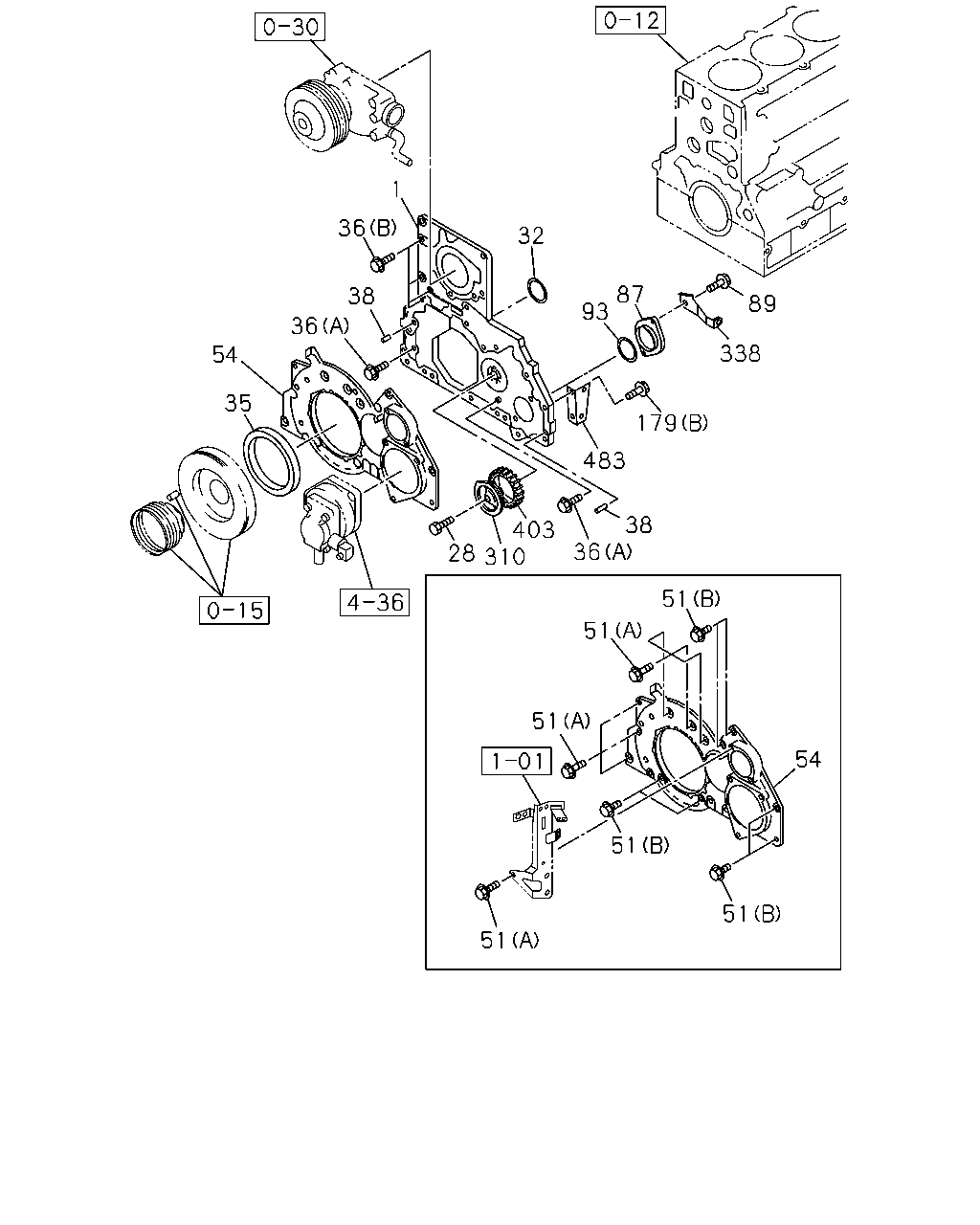

51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	0005-0210	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	0005-0210	●
51	BOLT; GEAR CASE COVER (C) M8X45 W/LK&PL WASHER	0-50140-845-0	08	1	0005-0906		●
51	BOLT; GEAR CASE COVER (C) M8X45 W/LK&PL WASHER	0-50640-845-0	08	1	0907-		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	0303-0512			●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	11	1	0601-			●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	0303-0512			●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-			●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	0005-0210	●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	0005-0210	●	●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	0211-0302		●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	0303-		●	●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	0303-0512			●
62	BOLT; COVER (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-			●
80	NUT; COVER M10 FLANGE	0-91150-110-0	04	1	0005-0602		●
80	NUT; COVER M10 FLANGE	0-91180-110-0	04	1	0603-		●
115	SENSOR; REVOLUTION,ENG SPD (A)	8-97601-117-0	01	1	0005-0210	●
115	SENSOR; REVOLUTION,ENG SPD (B)	1-81510-343-2	01	1	0005-0210		●
115	SENSOR; REVOLUTION,ENG SPD (A)	8-94390-279-0	01	1	0211-		●
115	SENSOR; REVOLUTION,ENG SPD (A)	8-97601-747-4	01	1	0303-			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	0005-0112	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0201-0210	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09625-541-2	01	1	0005-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0303-			●
177	BOLT; SENSOR M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●
177	BOLT; SENSOR M6X18 W/LK WASHER	0-50040-618-0	01	1	0005-0210		●
177	BOLT; SENSOR M6X16 FLANGE	0-28680-616-0	01	1	0211-0512		●
177	BOLT; SENSOR M6X16 FLANGE	0-28650-616-0	01	1	0601-		●
177	BOLT; SENSOR M8X20 FLANGE	0-28080-820-0	02	1	0303-0512			●
177	BOLT; SENSOR M8X20 FLANGE	0-28050-820-0	02	1	0601-			●
213	POINTER; FLYWHEEL HSG	1-11342-018-0	01	1	0005-0210		●
213	POINTER; FLYWHEEL HSG	1-11342-029-0	01	1	0211-		●
216	STUD; COVER,TIMING CHECK HOLE M8X14,M8X14 L=33	1-09300-058-1	02	1	0005-		●
222	NUT; COVER,TIMING CHECK HOLE M8 FLANGE	0-91150-108-0	02	1	0005-0602		●
222	NUT; COVER,TIMING CHECK HOLE M8 FLANGE	0-91180-108-0	02	1	0603-		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0005-0210	●
224	STUD; STARTER M14X40 L=61	9-04411-440-0	02	1	0005-0604		●
224	STUD; STARTER M14X40 L=61	0-44011-440-0	02	1	0605-		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0303-0604			●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-			●
229	COVER; TIMING CHECK HOLE	1-11349-126-0	01	1	0005-		●
268	COVER; FRT	1-11321-085-3	01	1	0005-		●
270	STUD; FRT COVER M8X20	9-04010-820-0	06	1	0005-		●
278	WASHER; COVER FIX	1-11349-127-0	01	1	0005-		●
485	GASKET; SENSOR	9-09565-212-0	01	1	0005-0210		●

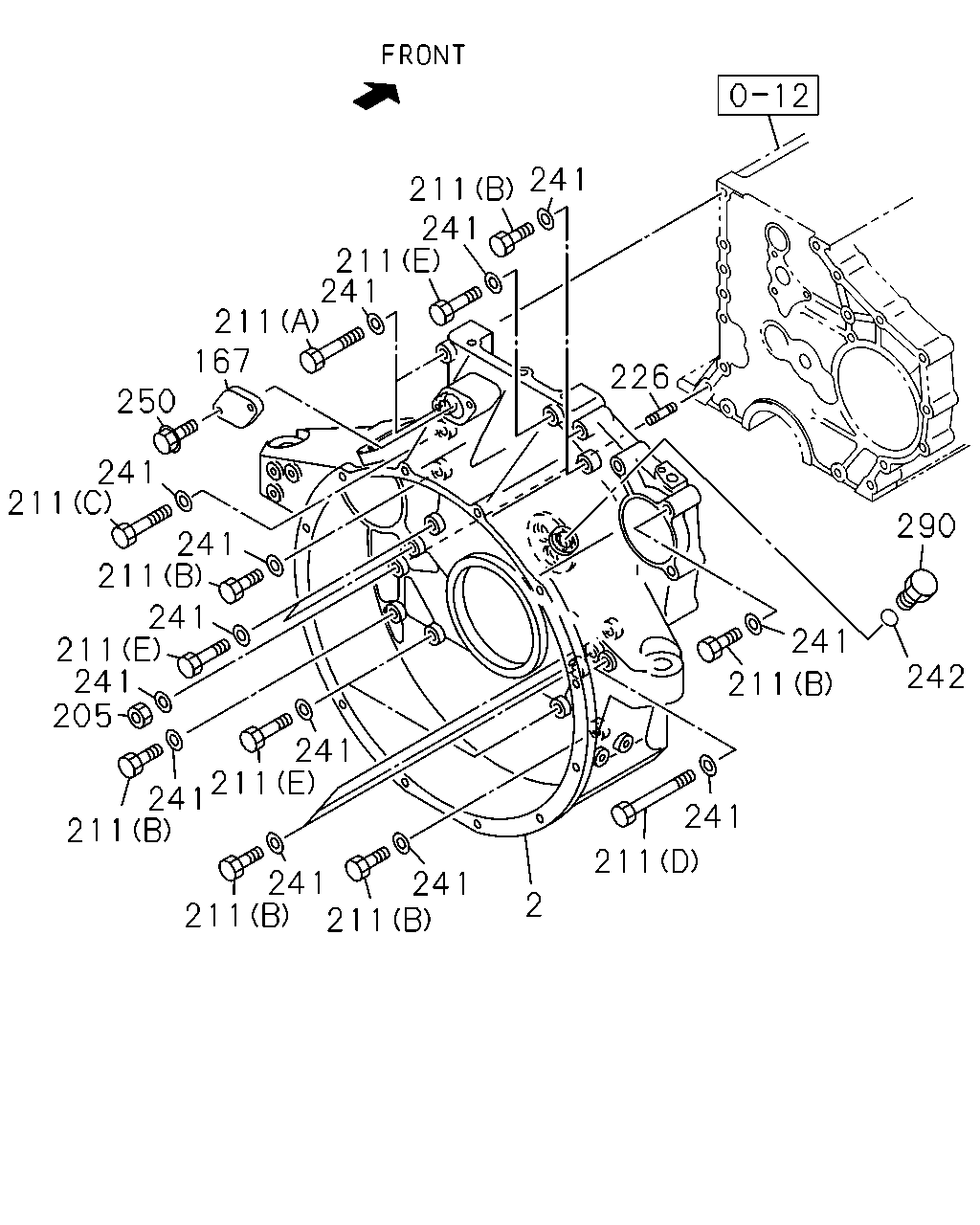

241 211 241 211 241 211 167 226 250 241 211 290 241 211 241 211 241 205 241 242 211 241 211 241 211 241 211 241 241 211 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	0005-0210	●
2	HOUSING; FLYWHEEL A/T<X9D>	1-11341-538-1	01	1	0005-0210		●
2	HOUSING; FLYWHEEL A/T<X9D>	1-11341-659-0	01	1	0211-		●
2	HOUSING; FLYWHEEL EXC. A/T<X9D>	1-11341-498-4	01	1	0012-0210		●
2	HOUSING; FLYWHEEL EXC. A/T<X9D>	1-11341-668-1	01	1	0211-		●
2	HOUSING; FLYWHEEL EXC. A/T<X9D>	1-11341-498-4	01	1	0005-0011		●
2	HOUSING; FLYWHEEL	8-97601-766-1	01	1	0303-			●
167	COVER; OIL	1-11219-163-0	01	1	0005-0210	●
167	COVER; OIL	1-11749-103-0	01	1	0005-		●
167	COVER; OIL	1-11219-163-0	01	1	0303-			●
205	NUT; HSG M12	9-99110-412-0	01	1	0005-0512		●
205	NUT; HSG M12	0-91110-512-0	01	1	0601-		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0005-0210	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0005-0210	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0005-0210	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0005-0210	●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	0005-0512		●
211	BOLT; HSG (A) M12X100	0-16856-200-0	02	1	0601-		●
211	BOLT; HSG (B) M12X60	0-16806-260-0	09	1	0005-0512		●
211	BOLT; HSG (B) M12X60	0-16856-260-0	09	1	0601-		●
211	BOLT; HSG (C) M12X90	0-16806-290-0	01	1	0005-0512		●
211	BOLT; HSG (C) M12X90	0-16856-290-0	01	1	0601-		●
211	BOLT; HSG (D) M12X173	1-09020-057-1	01	1	0005-		●
211	BOLT; HSG (E) M12X75	9-01666-275-0	05	1	0005-		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0303-0512			●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-			●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0303-0512			●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-			●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0303-			●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0303-0512			●
211	BOLT; HSG (D) M12X70	0-16956-270-0	11	1	0601-			●
226	STUD; HSG M12X60 L=78	9-94411-260-0	01	1	0005-0604		●
226	STUD; HSG M12X60 L=78	0-44011-260-0	01	1	0605-		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0005-0210	●
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	0005-		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0303-			●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24	9-09571-416-0	01	1	0005-0210		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0005-0210	●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28080-816-0	02	1	0005-0512		●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0303-			●
290	PLUG; SENSOR HOLE M16X12	9-99202-316-0	01	1	0005-0210		●

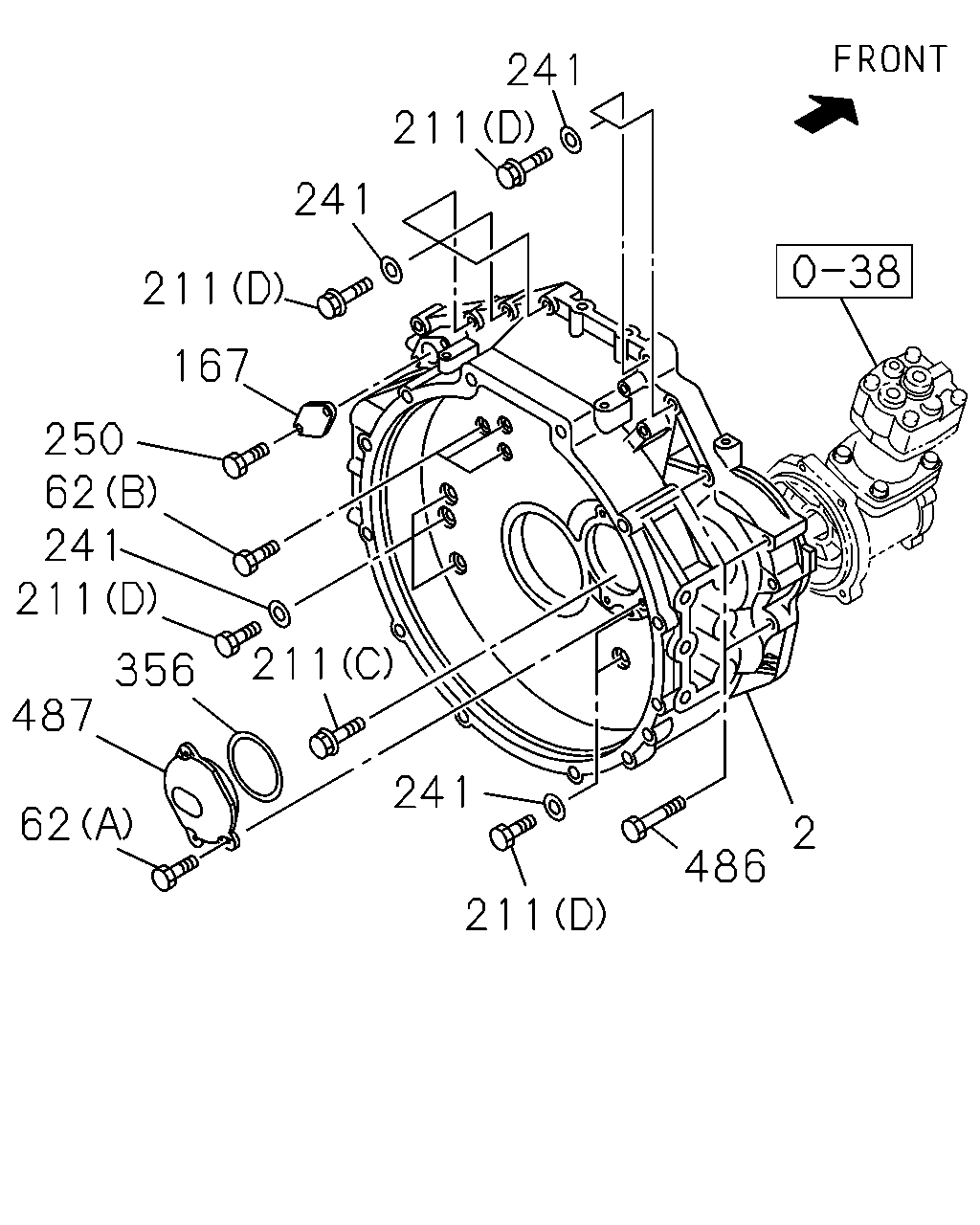

241 211 241 211 167 250 62 241 211 211 356 487 241 62 2 486 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	0005-0210	●
2	HOUSING; FLYWHEEL A/T<X9D>	1-11341-538-1	01	1	0005-0210		●
2	HOUSING; FLYWHEEL A/T<X9D>	1-11341-659-0	01	1	0211-		●
2	HOUSING; FLYWHEEL EXC. A/T<X9D>	1-11341-498-4	01	1	0012-0210		●
2	HOUSING; FLYWHEEL EXC. A/T<X9D>	1-11341-668-1	01	1	0211-		●
2	HOUSING; FLYWHEEL EXC. A/T<X9D>	1-11341-498-4	01	1	0005-0011		●
2	HOUSING; FLYWHEEL	8-97601-766-1	01	1	0303-			●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	0005-0210	●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	0005-0210	●	●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	0211-0302		●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	0303-		●	●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	0303-0512			●
62	BOLT; COVER (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-			●
167	COVER; OIL	1-11219-163-0	01	1	0005-0210	●
167	COVER; OIL	1-11749-103-0	01	1	0005-		●
167	COVER; OIL	1-11219-163-0	01	1	0303-			●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0005-0210	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0005-0210	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0005-0210	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0005-0210	●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	0005-0512		●
211	BOLT; HSG (A) M12X100	0-16856-200-0	02	1	0601-		●
211	BOLT; HSG (B) M12X60	0-16806-260-0	09	1	0005-0512		●
211	BOLT; HSG (B) M12X60	0-16856-260-0	09	1	0601-		●
211	BOLT; HSG (C) M12X90	0-16806-290-0	01	1	0005-0512		●
211	BOLT; HSG (C) M12X90	0-16856-290-0	01	1	0601-		●
211	BOLT; HSG (D) M12X173	1-09020-057-1	01	1	0005-		●
211	BOLT; HSG (E) M12X75	9-01666-275-0	05	1	0005-		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0303-0512			●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-			●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0303-0512			●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-			●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0303-			●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0303-0512			●
211	BOLT; HSG (D) M12X70	0-16956-270-0	11	1	0601-			●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0005-0210	●
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	0005-		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0303-			●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0005-0210	●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28080-816-0	02	1	0005-0512		●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0303-			●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	0005-0210	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	0303-			●
486	BOLT; AIR CMPR M12X70 FLANGE	0-28181-270-0	03	1	0005-0210	●
486	BOLT; AIR CMPR M12X70 FLANGE	0-28181-270-0	02	1	0303-0512			●
486	BOLT; AIR CMPR M12X70 FLANGE	0-28151-270-0	02	1	0601-			●
486	BOLT; AIR CMPR M12X15	0-28186-215-0	01	1	0303-0512			●
486	BOLT; AIR CMPR M12X15	0-28156-215-0	01	1	0601-			●
487	COVER; HOLE	8-94394-513-1	01	1	0005-0210	●
487	COVER; HOLE	8-94394-513-1	01	1	0303-0805			●
487	COVER; HOLE	8-98023-824-1	01	1	0806-			●

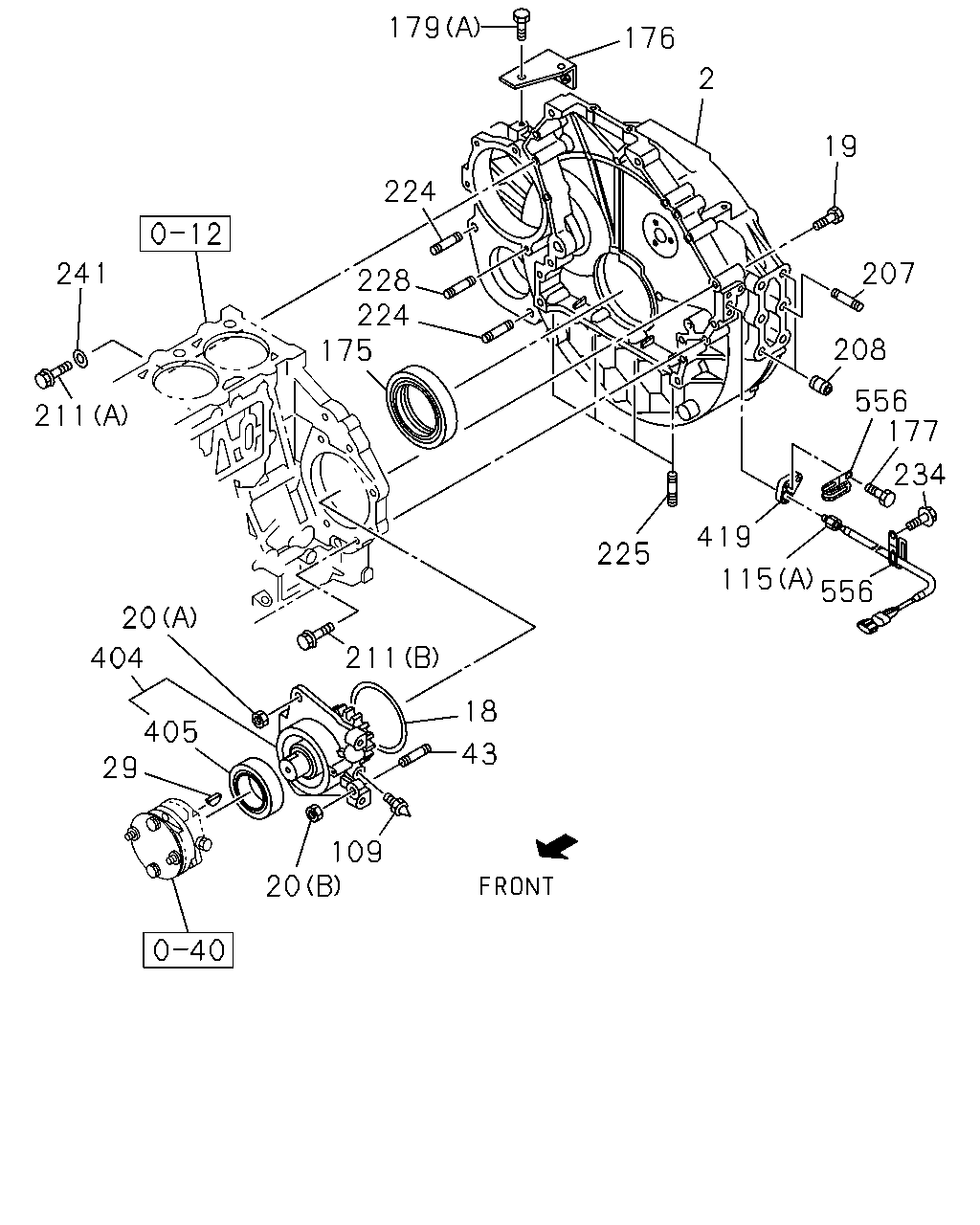

179 176 2 19 224 207 241 228 224 175 208 556 177 211 234 419 225 115 556 20 211 404 18 405 29 43 109 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	0005-0210	●
2	HOUSING; FLYWHEEL A/T<X9D>	1-11341-538-1	01	1	0005-0210		●
2	HOUSING; FLYWHEEL A/T<X9D>	1-11341-659-0	01	1	0211-		●
2	HOUSING; FLYWHEEL EXC. A/T<X9D>	1-11341-498-4	01	1	0012-0210		●
2	HOUSING; FLYWHEEL EXC. A/T<X9D>	1-11341-668-1	01	1	0211-		●
2	HOUSING; FLYWHEEL EXC. A/T<X9D>	1-11341-498-4	01	1	0005-0011		●
2	HOUSING; FLYWHEEL	8-97601-766-1	01	1	0303-			●
18	GASKET; BRG CASE,DRIVE SHAFT ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0210	●
18	GASKET; BRG CASE,DRIVE SHAFT ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0303-			●
19	BOLT; BRG CASE M12X100 FLANGE	0-28181-200-0	01	1	0005-0210	●
19	BOLT; BRG CASE M12X100 FLANGE	0-28181-200-0	01	1	0303-0512			●
19	BOLT; BRG CASE M12X100 FLANGE	0-28151-200-0	01	1	0601-			●
20	NUT; BRG CASE (A) M10 FLANGE	0-91150-110-0	02	1	0005-0210	●
20	NUT; BRG CASE (B) M12 FLANGE	0-91150-212-0	01	1	0005-0210	●
20	NUT; BRG CASE (A) M10 FLANGE	0-91150-110-0	02	1	0303-0602			●
20	NUT; BRG CASE (A) M10 FLANGE	0-91180-110-0	02	1	0603-			●
20	NUT; BRG CASE (B) M12 FLANGE	0-91150-212-0	01	1	0303-0602			●
20	NUT; BRG CASE (B) M12 FLANGE	0-91180-212-0	01	1	0603-			●
29	KEY; COUPLING	9-08055-516-0	01	1	0005-0210	●
29	KEY; COUPLING	9-08055-516-0	01	1	0303-			●
43	STUD; BRG COVER M12X67 L=82	1-09302-112-0	01	1	0005-0210	●
43	STUD; BRG COVER M12X67 L=82	1-09302-112-0	01	1	0303-			●
109	POINTER; TIMING L=21	9-11327-602-0	01	1	0005-0210	●
109	POINTER; TIMING L=21	9-11327-602-0	01	1	0303-			●
115	SENSOR; REVOLUTION,ENG SPD (A)	8-97601-117-0	01	1	0005-0210	●
115	SENSOR; REVOLUTION,ENG SPD (B)	1-81510-343-2	01	1	0005-0210		●
115	SENSOR; REVOLUTION,ENG SPD (A)	8-94390-279-0	01	1	0211-		●
115	SENSOR; REVOLUTION,ENG SPD (A)	8-97601-747-4	01	1	0303-			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	0005-0112	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0201-0210	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09625-541-2	01	1	0005-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0303-			●
176	BRACKET; HARNESS	1-82699-828-1	01	1	0005-0210	●
176	BRACKET; HARNESS	1-82699-828-1	01	1	0303-			●
177	BOLT; SENSOR M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●
177	BOLT; SENSOR M6X18 W/LK WASHER	0-50040-618-0	01	1	0005-0210		●
177	BOLT; SENSOR M6X16 FLANGE	0-28680-616-0	01	1	0211-0512		●
177	BOLT; SENSOR M6X16 FLANGE	0-28650-616-0	01	1	0601-		●
177	BOLT; SENSOR M8X20 FLANGE	0-28080-820-0	02	1	0303-0512			●
177	BOLT; SENSOR M8X20 FLANGE	0-28050-820-0	02	1	0601-			●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512			●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0303-0512			●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-			●
207	STUD; ENG FOOT M12X24 L=104	8-94390-111-0	02	1	0303-			●
207	STUD; ENG FOOT M12X10 L=55	9-94321-255-0	06	1	0303-0604			●
207	STUD; ENG FOOT M12X10 L=55	0-43211-255-0	06	1	0605-			●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0005-0210	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0303-			●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0005-0210	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0005-0210	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0005-0210	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0005-0210	●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	0005-0512		●
211	BOLT; HSG (A) M12X100	0-16856-200-0	02	1	0601-		●
211	BOLT; HSG (B) M12X60	0-16806-260-0	09	1	0005-0512		●
211	BOLT; HSG (B) M12X60	0-16856-260-0	09	1	0601-		●
211	BOLT; HSG (C) M12X90	0-16806-290-0	01	1	0005-0512		●
211	BOLT; HSG (C) M12X90	0-16856-290-0	01	1	0601-		●
211	BOLT; HSG (D) M12X173	1-09020-057-1	01	1	0005-		●
211	BOLT; HSG (E) M12X75	9-01666-275-0	05	1	0005-		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0303-0512			●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-			●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0303-0512			●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-			●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0303-			●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0303-0512			●
211	BOLT; HSG (D) M12X70	0-16956-270-0	11	1	0601-			●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0005-0210	●
224	STUD; STARTER M14X40 L=61	9-04411-440-0	02	1	0005-0604		●
224	STUD; STARTER M14X40 L=61	0-44011-440-0	02	1	0605-		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0303-0604			●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-			●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0005-0210	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0303-			●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	0005-0210	●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	0303-0604			●
228	STUD; AIR CMPR M12X35 L=53	0-44011-235-0	01	1	0605-			●
234	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0303-0512			●
234	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-			●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0005-0210	●
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	0005-		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0303-			●
404	CASE ASM; BRG,INJ PUMP	8-94391-643-0	01	1	0005-0210	●
404	CASE ASM; BRG,INJ PUMP	8-94391-643-0	01	1	0303-			●
405	SEAL; OIL,BRG CASE	1-09625-576-0	01	1	0005-0210	●
405	SEAL; OIL,BRG CASE	1-09625-576-0	01	1	0303-			●
419	BRACKET; SENSOR	8-94394-773-1	01	1	0005-0210	●
419	BRACKET; SENSOR	8-97600-360-0	01	1	0303-			●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-94225-185-0	01	1	0005-0210	●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-94225-185-0	03	1	0303-0801			●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-97367-985-1	03	1	0802-			●

1 36 32 87 93 38 89 36 338 54 35 179 483 38 403 28 310 36 51 51 51 54 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CASE; TIMING GEAR	8-94396-434-6	01	1	0005-0210	●
1	CASE; TIMING GEAR	8-94396-434-6	01	1	0303-			●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	0005-0210	●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	0303-			●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	0005-0210	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	0303-			●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	0005-0112	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-0	01	1	0201-0210	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09625-540-3	01	1	0005-		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-3	01	1	0303-			●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	0005-0210	●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	0005-0210	●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	0303-0401			●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	0303-0801			●
36	BOLT; GEAR CASE (B) M8X35 FLANGE	0-28050-835-0	04	1	0802-			●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	0005-0210	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	0303-			●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	0005-0210	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	0005-0210	●
51	BOLT; GEAR CASE COVER (C) M8X45 W/LK&PL WASHER	0-50140-845-0	08	1	0005-0906		●
51	BOLT; GEAR CASE COVER (C) M8X45 W/LK&PL WASHER	0-50640-845-0	08	1	0907-		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	0303-0512			●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	11	1	0601-			●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	0303-0512			●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-			●
54	COVER; GEAR CASE	8-94393-304-1	01	1	0005-0210	●
54	COVER; GEAR CASE	8-94393-304-1	01	1	0303-			●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	0005-0210	●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	0303-			●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	0005-0210	●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	0303-			●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	0005-0210	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	0303-			●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512			●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0303-0512			●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-			●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	0005-0210	●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	0303-			●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	0005-0210	●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	0303-			●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	0005-0210	●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	0303-			●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	0005-0210	●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	0303-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
