Sayfa 0-15 - Isuzu EPC

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#8258) — 372 parça

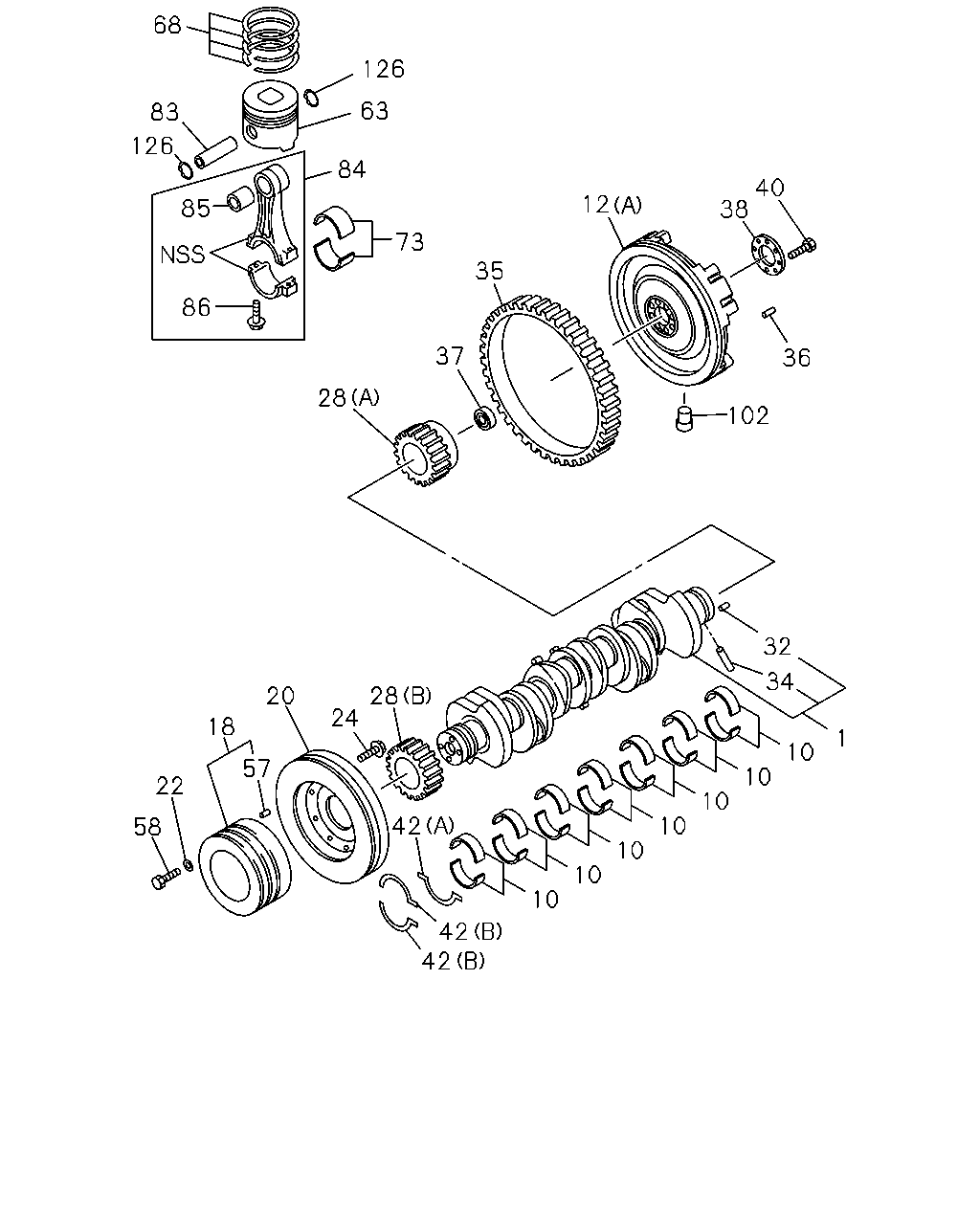

68 126 63 83 126 84 40 38 85 73 35 86 37 36 28 102 32 34 20 28 24 18 1 10 57 10 22 10 42 10 58 10 10 10 42 42 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	8-94396-737-4	01	1	0005-0210	●
1	CRANKSHAFT	1-12310-668-0	01	1	0005-		●
1	CRANKSHAFT	8-94396-737-4	01	1	0303-0305			●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-			●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	0005-0308	●		●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	0005-0308	●		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	0005-0308	●		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0309-			●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0309-			●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0309-			●
12	FLYWHEEL (A)	8-94395-450-1	01	1	0005-0210	●
12	FLYWHEEL A/T<X9D> (C)	1-12331-321-1	01	1	0005-0210		●
12	FLYWHEEL A/T<X9D> (C)	1-12331-400-0	01	1	0211-		●
12	FLYWHEEL EXC. A/T<X9D> (B)	1-12331-162-4	01	1	0012-0210		●
12	FLYWHEEL EXC. A/T<X9D> (B)	1-12331-388-0	01	1	0211-		●
12	FLYWHEEL EXC. A/T<X9D> (B)	1-12331-162-4	01	1	0005-0011		●
12	FLYWHEEL (A)	8-97601-269-1	01	1	0303-			●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0005-0210	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-359-2	01	1	0005-		●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0303-			●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	0005-0210	●
20	DAMPER; CR/SHF	1-12375-180-2	01	1	0005-		●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	0303-1110			●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-			●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0005-0210	●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0211-0302		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0303-		●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0005-0210	●
24	BOLT; DAMPER	9-02361-220-0	08	1	0005-		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0303-0512			●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-			●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0005-0210	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0005-0210	●
28	GEAR; CR/SHF (A) Z=53	1-12521-027-1	01	1	0005-		●
28	GEAR; CR/SHF (B) Z=46	1-12521-053-1	01	1	0005-		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0303-			●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0303-			●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0005-0210	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	0005-		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0303-			●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0005-0210	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0211-0302		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0303-		●	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0005-0210	●
35	GEAR; RING Z=140	1-12333-016-0	01	1	0005-0501		●
35	GEAR; RING Z=140	1-12333-025-0	01	1	0502-		●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0303-			●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0005-0210	●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	0005-0210		●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	0211-0302		●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	0303-		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0303-			●
36	PIN; FLYWHEEL A/T<X9D> ID=6 L=12	9-08160-612-0	02	1	0005-		●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0005-0210	●
37	BEARING; PILOT,TOP GEAR SHAFT EXC. A/T<X9D>	1-09800-214-0	01	1	0012-		●
37	BEARING; PILOT,TOP GEAR SHAFT EXC. A/T<X9D>	1-09800-214-0	01	1	0005-0011		●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0303-			●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0005-0210	●
38	WASHER; FLYWHEEL	1-12336-005-1	01	1	0005-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0303-			●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0005-0210	●
40	BOLT; FLYWHEEL A/T<X9D>	1-09070-149-0	08	1	0005-		●
40	BOLT; FLYWHEEL EXC. A/T<X9D>	1-09000-183-1	08	1	0012-0905		●
40	BOLT; FLYWHEEL EXC. A/T<X9D> M16X62	1-09070-146-1	08	1	0906-		●
40	BOLT; FLYWHEEL EXC. A/T<X9D>	1-09000-183-1	08	1	0005-0011		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0303-			●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0005-0210	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0005-0210	●
42	WASHER; THRUST,CR/SHF (C)	1-11599-007-1	02	1	0005-		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0303-0703			●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-			●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0303-0703			●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-			●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0005-0210	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0303-			●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0005-0210	●
58	BOLT; CR/SHF PULLEY M16X45	9-92061-645-0	04	1	0005-		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0303-0512			●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-			●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-1	06	1	0005-0210	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-842-0	06	1	0005-0210		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-985-0	06	1	0211-0309		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12112-013-0	06	1	0310-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-843-0	06	1	0005-0210		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-986-0	06	1	0211-0309		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12112-014-0	06	1	0310-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97602-109-0	06	1	0303-			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-6	06	1	0005-0210	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-137-1	06	1	0005-0210		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-149-0	06	1	0211-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	0303-			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD	1-12271-068-0	06	1	0005-0210		●
73	METAL SET; CONN ROD,STANDARD	1-12271-084-0	06	1	0211-		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	0303-0706			●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	0303-0706			●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	06	1	0707-			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	06	1	0707-			●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0005-0210	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-022-0	06	1	0005-0210		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-037-0	06	1	0211-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0303-			●
84	ROD ASM; CONN	8-94399-661-1	06	1	0005-0108	●
84	ROD ASM; CONN	8-94391-791-1	06	1	0109-0210	●
84	ROD ASM; CONN	1-12230-097-0	06	1	0005-0210		●
84	ROD ASM; CONN	1-12230-180-1	06	1	0211-		●
84	ROD ASM; CONN	8-94391-791-1	06	1	0303-0305			●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-0706			●
84	ROD ASM; CONN	8-98018-425-2	06	1	0707-			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0005-0108	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0109-0210	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-021-1	06	1	0005-0210		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-043-0	06	1	0211-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0303-0305			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-0706			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0707-			●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0005-0210	●
86	BOLT; CONNROD	1-12235-025-1	12	1	0005-		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0303-1004			●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-			●
102	PIN; TIMING SENSOR	1-12339-013-0	06	1	0303-			●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0005-0210	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	12	1	0005-0210		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-099-0	12	1	0211-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0303-			●

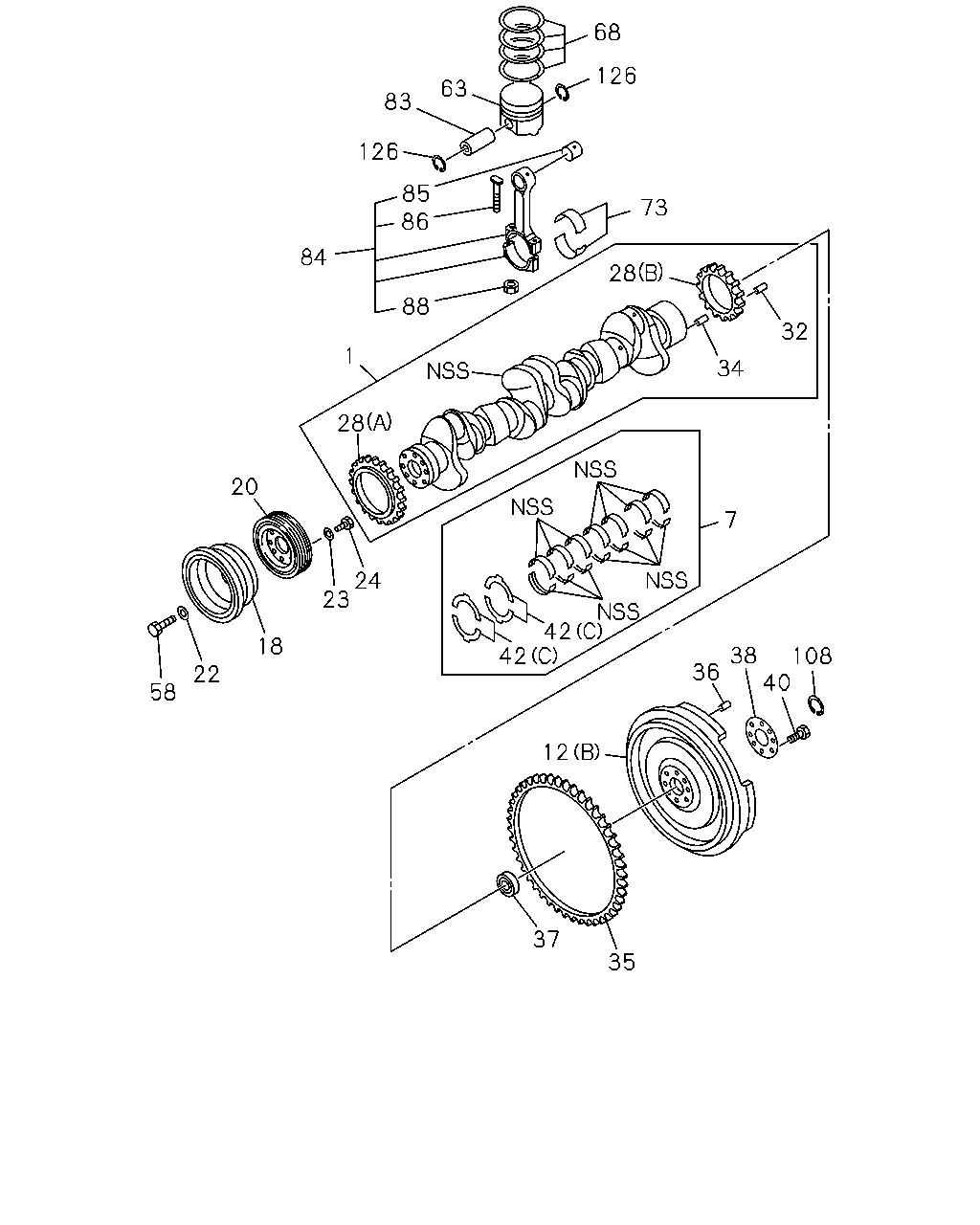

68 126 63 83 126 85 86 73 84 28 88 32 1 34 28 20 7 24 23 42 42 18 38 108 40 36 22 58 12 37 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	8-94396-737-4	01	1	0005-0210	●
1	CRANKSHAFT	1-12310-668-0	01	1	0005-		●
1	CRANKSHAFT	8-94396-737-4	01	1	0303-0305			●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-			●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-087-0	01	1	0005-0210		●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-108-3	01	1	0211-		●
12	FLYWHEEL (A)	8-94395-450-1	01	1	0005-0210	●
12	FLYWHEEL A/T<X9D> (C)	1-12331-321-1	01	1	0005-0210		●
12	FLYWHEEL A/T<X9D> (C)	1-12331-400-0	01	1	0211-		●
12	FLYWHEEL EXC. A/T<X9D> (B)	1-12331-162-4	01	1	0012-0210		●
12	FLYWHEEL EXC. A/T<X9D> (B)	1-12331-388-0	01	1	0211-		●
12	FLYWHEEL EXC. A/T<X9D> (B)	1-12331-162-4	01	1	0005-0011		●
12	FLYWHEEL (A)	8-97601-269-1	01	1	0303-			●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0005-0210	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-359-2	01	1	0005-		●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0303-			●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	0005-0210	●
20	DAMPER; CR/SHF	1-12375-180-2	01	1	0005-		●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	0303-1110			●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-			●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0005-0210	●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0211-0302		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0303-		●	●
23	WASHER; DAMPER ID=12.5	9-09851-682-0	08	1	0005-		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0005-0210	●
24	BOLT; DAMPER	9-02361-220-0	08	1	0005-		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0303-0512			●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-			●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0005-0210	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0005-0210	●
28	GEAR; CR/SHF (A) Z=53	1-12521-027-1	01	1	0005-		●
28	GEAR; CR/SHF (B) Z=46	1-12521-053-1	01	1	0005-		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0303-			●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0303-			●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0005-0210	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	0005-		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0303-			●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0005-0210	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0211-0302		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0303-		●	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0005-0210	●
35	GEAR; RING Z=140	1-12333-016-0	01	1	0005-0501		●
35	GEAR; RING Z=140	1-12333-025-0	01	1	0502-		●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0303-			●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0005-0210	●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	0005-0210		●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	0211-0302		●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	0303-		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0303-			●
36	PIN; FLYWHEEL A/T<X9D> ID=6 L=12	9-08160-612-0	02	1	0005-		●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0005-0210	●
37	BEARING; PILOT,TOP GEAR SHAFT EXC. A/T<X9D>	1-09800-214-0	01	1	0012-		●
37	BEARING; PILOT,TOP GEAR SHAFT EXC. A/T<X9D>	1-09800-214-0	01	1	0005-0011		●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0303-			●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0005-0210	●
38	WASHER; FLYWHEEL	1-12336-005-1	01	1	0005-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0303-			●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0005-0210	●
40	BOLT; FLYWHEEL A/T<X9D>	1-09070-149-0	08	1	0005-		●
40	BOLT; FLYWHEEL EXC. A/T<X9D>	1-09000-183-1	08	1	0012-0905		●
40	BOLT; FLYWHEEL EXC. A/T<X9D> M16X62	1-09070-146-1	08	1	0906-		●
40	BOLT; FLYWHEEL EXC. A/T<X9D>	1-09000-183-1	08	1	0005-0011		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0303-			●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0005-0210	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0005-0210	●
42	WASHER; THRUST,CR/SHF (C)	1-11599-007-1	02	1	0005-		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0303-0703			●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-			●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0303-0703			●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-			●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0005-0210	●
58	BOLT; CR/SHF PULLEY M16X45	9-92061-645-0	04	1	0005-		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0303-0512			●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-			●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-1	06	1	0005-0210	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-842-0	06	1	0005-0210		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-985-0	06	1	0211-0309		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12112-013-0	06	1	0310-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-843-0	06	1	0005-0210		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-986-0	06	1	0211-0309		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12112-014-0	06	1	0310-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97602-109-0	06	1	0303-			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-6	06	1	0005-0210	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-137-1	06	1	0005-0210		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-149-0	06	1	0211-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	0303-			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD	1-12271-068-0	06	1	0005-0210		●
73	METAL SET; CONN ROD,STANDARD	1-12271-084-0	06	1	0211-		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	0303-0706			●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	0303-0706			●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	06	1	0707-			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	06	1	0707-			●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0005-0210	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-022-0	06	1	0005-0210		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-037-0	06	1	0211-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0303-			●
84	ROD ASM; CONN	8-94399-661-1	06	1	0005-0108	●
84	ROD ASM; CONN	8-94391-791-1	06	1	0109-0210	●
84	ROD ASM; CONN	1-12230-097-0	06	1	0005-0210		●
84	ROD ASM; CONN	1-12230-180-1	06	1	0211-		●
84	ROD ASM; CONN	8-94391-791-1	06	1	0303-0305			●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-0706			●
84	ROD ASM; CONN	8-98018-425-2	06	1	0707-			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0005-0108	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0109-0210	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-021-1	06	1	0005-0210		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-043-0	06	1	0211-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0303-0305			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-0706			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0707-			●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0005-0210	●
86	BOLT; CONNROD	1-12235-025-1	12	1	0005-		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0303-1004			●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-			●
88	NUT; CONNROD	1-09840-003-1	12	1	0005-		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0012-0210	●
108	RING; SNAP,BRG SET EXC. A/T<X9D> OD=59.2	9-09180-155-0	01	1	0012-0210		●
108	RING; SNAP,BRG SET EXC. A/T<X9D> OD=59.2	9-09180-155-0	01	1	0211-0302		●
108	RING; SNAP,BRG SET EXC. A/T<X9D> OD=59.2	9-09180-155-0	01	1	0303-		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0303-			●
108	RING; SNAP,BRG SET EXC. A/T<X9D> OD=59.2	9-09180-155-0	01	1	0005-0011		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0005-0210	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	12	1	0005-0210		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-099-0	12	1	0211-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0303-			●

68 126 63 83 126 73 85 1 86 28 34 32 84 88 28 7 20 42 42 24 40 23 18 22 58 36 38 100 100 100 100 12 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	8-94396-737-4	01	1	0005-0210	●
1	CRANKSHAFT	1-12310-668-0	01	1	0005-		●
1	CRANKSHAFT	8-94396-737-4	01	1	0303-0305			●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-			●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-087-0	01	1	0005-0210		●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-108-3	01	1	0211-		●
12	FLYWHEEL (A)	8-94395-450-1	01	1	0005-0210	●
12	FLYWHEEL A/T<X9D> (C)	1-12331-321-1	01	1	0005-0210		●
12	FLYWHEEL A/T<X9D> (C)	1-12331-400-0	01	1	0211-		●
12	FLYWHEEL EXC. A/T<X9D> (B)	1-12331-162-4	01	1	0012-0210		●
12	FLYWHEEL EXC. A/T<X9D> (B)	1-12331-388-0	01	1	0211-		●
12	FLYWHEEL EXC. A/T<X9D> (B)	1-12331-162-4	01	1	0005-0011		●
12	FLYWHEEL (A)	8-97601-269-1	01	1	0303-			●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0005-0210	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-359-2	01	1	0005-		●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0303-			●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	0005-0210	●
20	DAMPER; CR/SHF	1-12375-180-2	01	1	0005-		●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	0303-1110			●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-			●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0005-0210	●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0211-0302		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0303-		●	●
23	WASHER; DAMPER ID=12.5	9-09851-682-0	08	1	0005-		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0005-0210	●
24	BOLT; DAMPER	9-02361-220-0	08	1	0005-		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0303-0512			●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-			●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0005-0210	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0005-0210	●
28	GEAR; CR/SHF (A) Z=53	1-12521-027-1	01	1	0005-		●
28	GEAR; CR/SHF (B) Z=46	1-12521-053-1	01	1	0005-		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0303-			●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0303-			●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0005-0210	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	0005-		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0303-			●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0005-0210	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0211-0302		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0303-		●	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0005-0210	●
35	GEAR; RING Z=140	1-12333-016-0	01	1	0005-0501		●
35	GEAR; RING Z=140	1-12333-025-0	01	1	0502-		●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0303-			●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0005-0210	●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	0005-0210		●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	0211-0302		●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	0303-		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0303-			●
36	PIN; FLYWHEEL A/T<X9D> ID=6 L=12	9-08160-612-0	02	1	0005-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0005-0210	●
38	WASHER; FLYWHEEL	1-12336-005-1	01	1	0005-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0303-			●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0005-0210	●
40	BOLT; FLYWHEEL A/T<X9D>	1-09070-149-0	08	1	0005-		●
40	BOLT; FLYWHEEL EXC. A/T<X9D>	1-09000-183-1	08	1	0012-0905		●
40	BOLT; FLYWHEEL EXC. A/T<X9D> M16X62	1-09070-146-1	08	1	0906-		●
40	BOLT; FLYWHEEL EXC. A/T<X9D>	1-09000-183-1	08	1	0005-0011		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0303-			●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0005-0210	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0005-0210	●
42	WASHER; THRUST,CR/SHF (C)	1-11599-007-1	02	1	0005-		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0303-0703			●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-			●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0303-0703			●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-			●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0005-0210	●
58	BOLT; CR/SHF PULLEY M16X45	9-92061-645-0	04	1	0005-		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0303-0512			●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-			●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-1	06	1	0005-0210	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-842-0	06	1	0005-0210		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-985-0	06	1	0211-0309		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12112-013-0	06	1	0310-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-843-0	06	1	0005-0210		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-986-0	06	1	0211-0309		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12112-014-0	06	1	0310-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97602-109-0	06	1	0303-			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-6	06	1	0005-0210	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-137-1	06	1	0005-0210		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-149-0	06	1	0211-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	0303-			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD	1-12271-068-0	06	1	0005-0210		●
73	METAL SET; CONN ROD,STANDARD	1-12271-084-0	06	1	0211-		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	0303-0706			●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	0303-0706			●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	06	1	0707-			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	06	1	0707-			●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0005-0210	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-022-0	06	1	0005-0210		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-037-0	06	1	0211-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0303-			●
84	ROD ASM; CONN	8-94399-661-1	06	1	0005-0108	●
84	ROD ASM; CONN	8-94391-791-1	06	1	0109-0210	●
84	ROD ASM; CONN	1-12230-097-0	06	1	0005-0210		●
84	ROD ASM; CONN	1-12230-180-1	06	1	0211-		●
84	ROD ASM; CONN	8-94391-791-1	06	1	0303-0305			●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-0706			●
84	ROD ASM; CONN	8-98018-425-2	06	1	0707-			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0005-0108	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0109-0210	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-021-1	06	1	0005-0210		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-043-0	06	1	0211-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0303-0305			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-0706			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0707-			●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0005-0210	●
86	BOLT; CONNROD	1-12235-025-1	12	1	0005-		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0303-1004			●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-			●
88	NUT; CONNROD	1-09840-003-1	12	1	0005-		●
100	PLATE; FLEX A/T<X9D> (A)	1-32213-057-0	03	1	0005-		●
100	PLATE; FLEX A/T<X9D> (B)	1-32213-058-0	01	1	0005-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0005-0210	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	12	1	0005-0210		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-099-0	12	1	0211-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0303-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
