Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#8255) — 403 parça

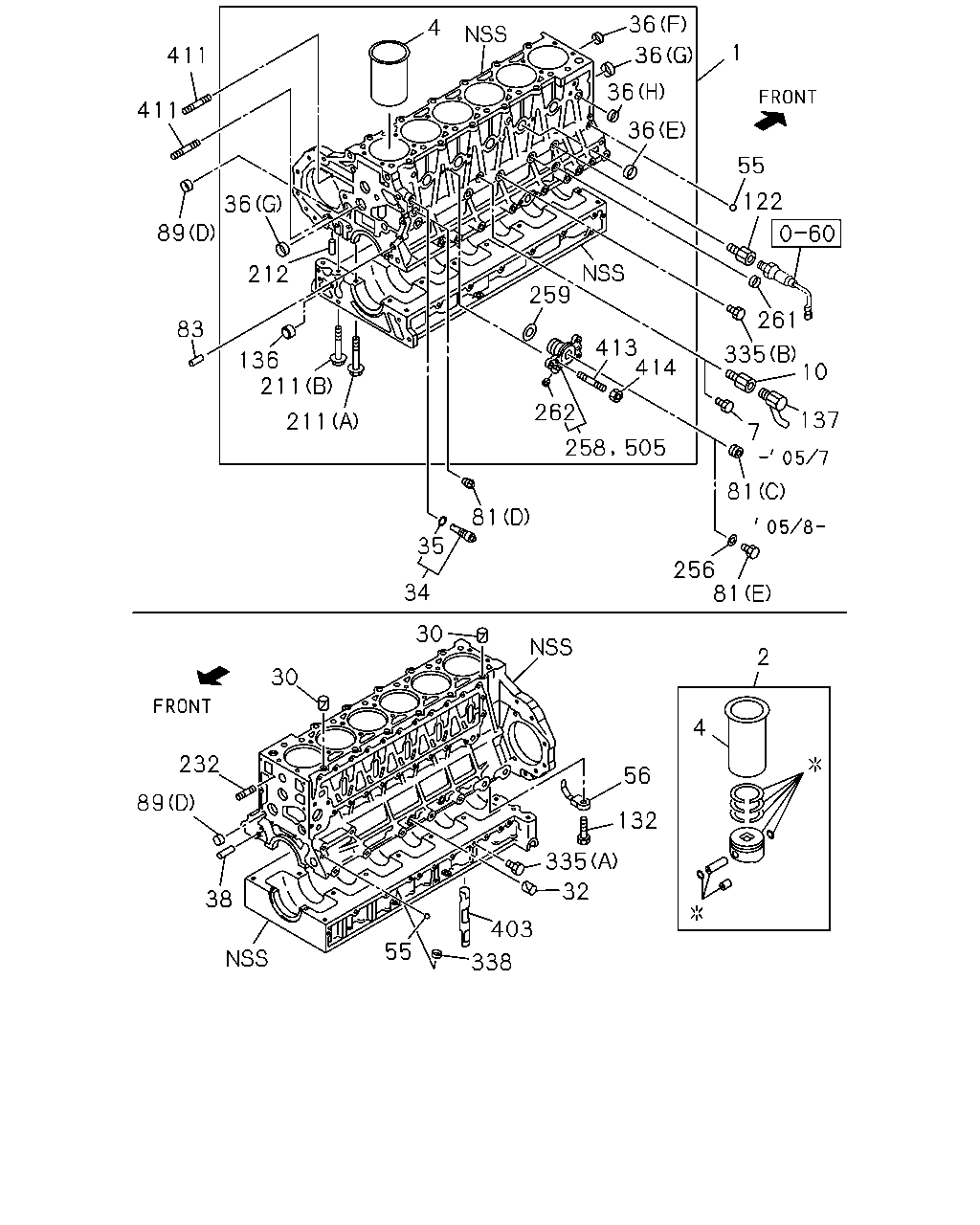

36 4 411 1 36 36 411 36 55 36 122 89 261 259 212 335 83 413 414 10 137 211 262 211 258 81 81 35 34 30 30 232 56 132 89 335 55 38 32 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	8-97601-299-0	01	1	0005-0210	●
1	BLOCK ASM; CYL	1-11210-620-3	01	1	0005-0210		●
1	BLOCK ASM; CYL	1-11210-682-2	01	1	0211-		●
1	BLOCK ASM; CYL	8-97602-025-2	01	1	0303-0504			●
1	BLOCK ASM; CYL	8-98005-409-3	01	1	0505-1012			●
1	BLOCK ASM; CYL	8-98180-707-0	01	1	1101-1209			●
1	BLOCK ASM; CYL	8-98206-964-0	01	1	1210-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0303-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0303-			●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0303-1012			●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0005-0210	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0005-0210	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	0005-		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0303-			●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0005-0210	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	0005-		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0303-			●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0005-0210	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0303-			●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0005-0210	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0303-			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	0005-		●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	0005-		●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	0005-		●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-005-2	04	1	0303-			●
36	CUP; SEALING,WATER JACKET (H) OD=25	1-09600-016-0	01	1	0303-			●
36	CUP; SEALING,WATER JACKET (F) OD=25	8-94399-005-0	01	1	0303-			●
36	CUP; SEALING,WATER JACKET (G) OD=40	8-94399-639-0	04	1	0303-0502			●
36	CUP; SEALING,WATER JACKET (G) OD=40	8-97096-824-0	04	1	0503-			●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0005-0210	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0303-			●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0005-0210	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0303-			●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0005-0210	●
56	JET; OIL,PISTON COOLING	1-13342-127-0	06	1	0005-0210		●
56	JET; OIL,PISTON COOLING	1-13342-140-1	06	1	0211-		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0303-0703			●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007			●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-			●
81	PLUG; WATER JACKET (A) NPTF1-11 1/2	1-09605-065-1	01	1	0005-0210	●
81	PLUG; WATER JACKET (B) PT3/8	8-94397-338-0	01	1	0005-0210	●
81	PLUG; WATER JACKET (C) NPTF1-11 1/2	1-09605-065-1	01	1	0303-0507			●
81	PLUG; WATER JACKET (E) M14X14	9-09862-156-0	01	1	0508-			●
81	PLUG; WATER JACKET (D) PT3/8	8-94397-338-0	01	1	0303-			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0005-0210	●
83	PIN; FLYWHEEL HSG	9-08161-025-0	02	1	0005-		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0303-0306			●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-			●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	0005-0210	●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	0005-0301		●
89	CUP; SEALING,OIL GALLERY (A) OD=16	5-11129-006-0	01	1	0302-		●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	0005-0909		●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11129-128-0	02	1	0910-		●
89	CUP; SEALING,OIL GALLERY (D) OD=20	9-11219-192-0	03	1	0303-0908			●
89	CUP; SEALING,OIL GALLERY (D) OD=20	9-11129-128-0	03	1	0909-			●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0005-0210	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0303-			●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0005-0210	●
132	VALVE; CHECK,OIL	1-13161-025-2	06	1	0211-		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0303-			●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0303-1012			●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0005-0210	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0005-0210	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0005-0210	●
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	0005-		●
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	0005-1107		●
211	BOLT; CRANKCASE (B)	8-98141-538-0	24	1	1108-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0303-0905			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-			●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0303-			●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0005-0210	●
212	PIN; CRANKCASE	1-09740-031-0	02	1	0005-		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0303-0306			●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-			●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0005-0210	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0303-0604			●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-			●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0005-0210	●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0303-0507			●
258	ADAPTER; BLOCK HTR	8-97602-806-0	01	1	0508-1012			●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0005-0210	●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0303-			●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0005-0210	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0303-0307			●
262	PLUG; ADAPTER	1-13163-002-0	01	1	0005-0210	●
262	PLUG; ADAPTER	1-13163-002-0	01	1	0303-			●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	02	1	0005-0210	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0005-0210	●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	06	1	0005-		●
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	02	1	0005-		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	02	1	0303-0703			●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	02	1	0704-			●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0303-0501			●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-			●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0005-0210	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0303-			●
411	STUD; BRG CASE M10X25 L=40	0-49841-025-0	02	1	0303-0512			●
411	STUD; BRG CASE M10X25 L=48.5	0-49241-025-0	02	1	0601-			●
411	STUD; BRG CASE M10X36.5 L=48.5	8-94396-145-0	02	1	0005-0210	●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0005-0210	●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0303-0604			●
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	0605-			●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0005-0210	●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0303-0602			●
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	0603-			●

343 308 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-2	06	1	0005-0108	●
2	LINER SET; ENG CYL GRADE=1X	1-87812-203-2	06	1	0109-0210	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-2	06	1	0005-0108	●
2	LINER SET; ENG CYL GRADE=3X	1-87812-204-2	06	1	0109-0210	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-1	06	1	0005-0210		●
2	LINER SET; ENG CYL GRADE=1X	1-87812-160-0	06	1	0211-0309		●
2	LINER SET; ENG CYL GRADE=1X	1-87812-631-3	06	1	0310-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-1	06	1	0005-0210		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-161-0	06	1	0211-0309		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-632-3	06	1	0310-		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-0	06	1	0303-0305			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-165-3	06	1	0306-0706			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-4	06	1	0707-			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-0	06	1	0303-0305			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-166-3	06	1	0306-0706			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-4	06	1	0707-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0303-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0303-			●
308	PROTECTOR; HEAT,HD COVER	8-94395-748-0	01	1	0005-0210	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	0005-0210	●

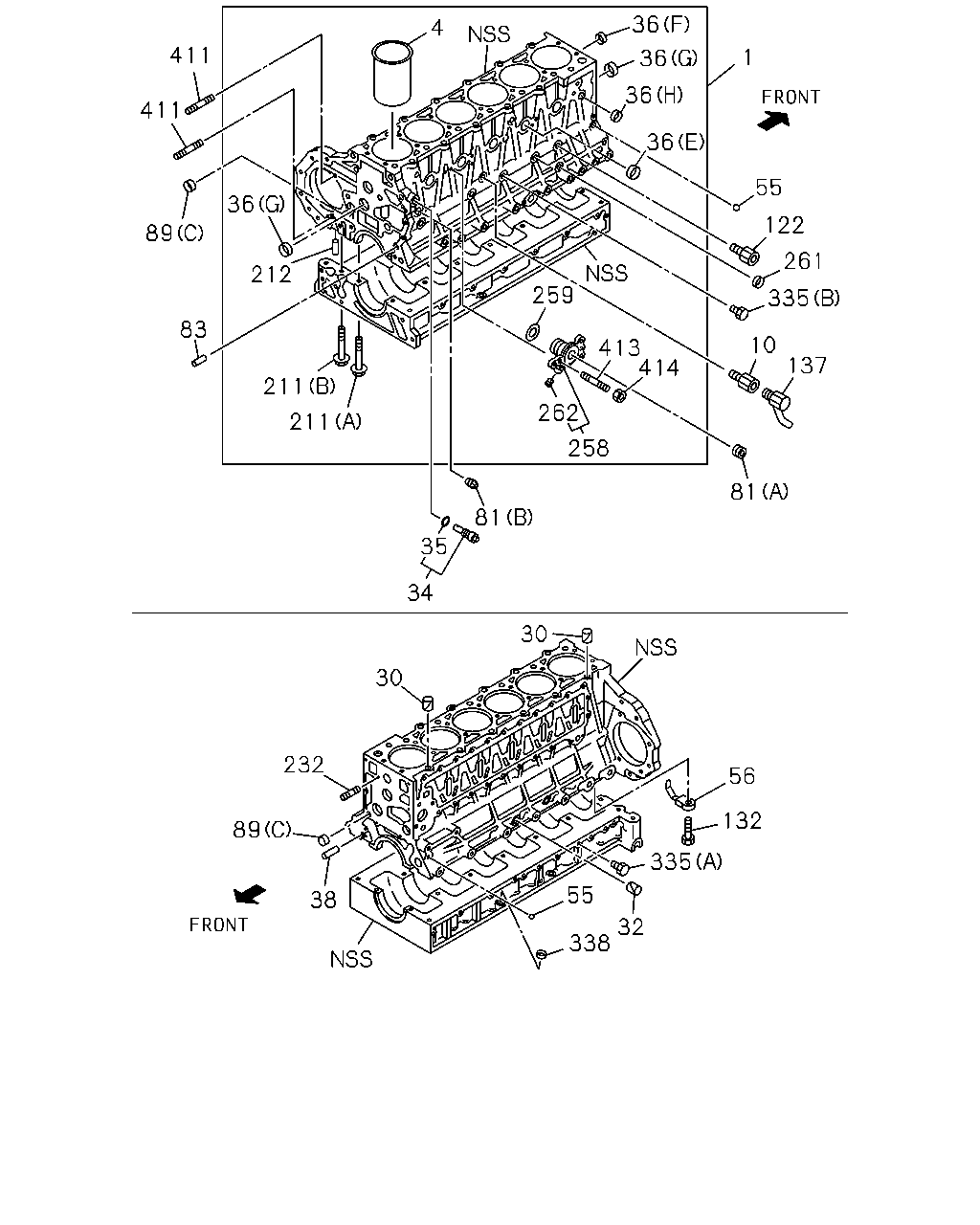

36 4 1 411 36 36 411 36 55 122 36 89 259 212 261 83 413 414 335 10 136 211 262 137 211 7 258 505 81 81 35 256 81 34 30 2 30 4 232 56 89 132 335 32 38 403 55 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	8-97601-299-0	01	1	0005-0210	●
1	BLOCK ASM; CYL	1-11210-620-3	01	1	0005-0210		●
1	BLOCK ASM; CYL	1-11210-682-2	01	1	0211-		●
1	BLOCK ASM; CYL	8-97602-025-2	01	1	0303-0504			●
1	BLOCK ASM; CYL	8-98005-409-3	01	1	0505-1012			●
1	BLOCK ASM; CYL	8-98180-707-0	01	1	1101-1209			●
1	BLOCK ASM; CYL	8-98206-964-0	01	1	1210-			●
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-2	06	1	0005-0108	●
2	LINER SET; ENG CYL GRADE=1X	1-87812-203-2	06	1	0109-0210	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-2	06	1	0005-0108	●
2	LINER SET; ENG CYL GRADE=3X	1-87812-204-2	06	1	0109-0210	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-1	06	1	0005-0210		●
2	LINER SET; ENG CYL GRADE=1X	1-87812-160-0	06	1	0211-0309		●
2	LINER SET; ENG CYL GRADE=1X	1-87812-631-3	06	1	0310-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-1	06	1	0005-0210		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-161-0	06	1	0211-0309		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-632-3	06	1	0310-		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-0	06	1	0303-0305			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-165-3	06	1	0306-0706			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-4	06	1	0707-			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-0	06	1	0303-0305			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-166-3	06	1	0306-0706			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-4	06	1	0707-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0303-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0303-			●
7	PLUG; WATER DRAIN M14X16.5	8-97329-617-0	01	1	1101-			●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0303-1012			●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0005-0210	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0005-0210	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	0005-		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0303-			●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0005-0210	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	0005-		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0303-			●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0005-0210	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0303-			●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0005-0210	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0303-			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	0005-		●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	0005-		●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	0005-		●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-005-2	04	1	0303-			●
36	CUP; SEALING,WATER JACKET (H) OD=25	1-09600-016-0	01	1	0303-			●
36	CUP; SEALING,WATER JACKET (F) OD=25	8-94399-005-0	01	1	0303-			●
36	CUP; SEALING,WATER JACKET (G) OD=40	8-94399-639-0	04	1	0303-0502			●
36	CUP; SEALING,WATER JACKET (G) OD=40	8-97096-824-0	04	1	0503-			●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0005-0210	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0303-			●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0005-0210	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0303-			●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0005-0210	●
56	JET; OIL,PISTON COOLING	1-13342-127-0	06	1	0005-0210		●
56	JET; OIL,PISTON COOLING	1-13342-140-1	06	1	0211-		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0303-0703			●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007			●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-			●
81	PLUG; WATER JACKET (A) NPTF1-11 1/2	1-09605-065-1	01	1	0005-0210	●
81	PLUG; WATER JACKET (B) PT3/8	8-94397-338-0	01	1	0005-0210	●
81	PLUG; WATER JACKET (C) NPTF1-11 1/2	1-09605-065-1	01	1	0303-0507			●
81	PLUG; WATER JACKET (E) M14X14	9-09862-156-0	01	1	0508-			●
81	PLUG; WATER JACKET (D) PT3/8	8-94397-338-0	01	1	0303-			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0005-0210	●
83	PIN; FLYWHEEL HSG	9-08161-025-0	02	1	0005-		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0303-0306			●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-			●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	0005-0210	●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	0005-0301		●
89	CUP; SEALING,OIL GALLERY (A) OD=16	5-11129-006-0	01	1	0302-		●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	0005-0909		●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11129-128-0	02	1	0910-		●
89	CUP; SEALING,OIL GALLERY (D) OD=20	9-11219-192-0	03	1	0303-0908			●
89	CUP; SEALING,OIL GALLERY (D) OD=20	9-11129-128-0	03	1	0909-			●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0005-0210	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0303-			●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0005-0210	●
132	VALVE; CHECK,OIL	1-13161-025-2	06	1	0211-		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0303-			●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0303-0812			●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-			●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0303-1012			●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0005-0210	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0005-0210	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0005-0210	●
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	0005-		●
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	0005-1107		●
211	BOLT; CRANKCASE (B)	8-98141-538-0	24	1	1108-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0303-0905			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-			●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0303-			●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0005-0210	●
212	PIN; CRANKCASE	1-09740-031-0	02	1	0005-		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0303-0306			●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-			●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0005-0210	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0303-0604			●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-			●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0508-			●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0005-0210	●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0303-0507			●
258	ADAPTER; BLOCK HTR	8-97602-806-0	01	1	0508-1012			●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0005-0210	●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0303-			●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0005-0210	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0303-0307			●
262	PLUG; ADAPTER	1-13163-002-0	01	1	0005-0210	●
262	PLUG; ADAPTER	1-13163-002-0	01	1	0303-			●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	02	1	0005-0210	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0005-0210	●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	06	1	0005-		●
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	02	1	0005-		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	02	1	0303-0703			●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	02	1	0704-			●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0303-0501			●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-			●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0005-0210	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0303-			●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0303-			●
411	STUD; BRG CASE M10X25 L=40	0-49841-025-0	02	1	0303-0512			●
411	STUD; BRG CASE M10X25 L=48.5	0-49241-025-0	02	1	0601-			●
411	STUD; BRG CASE M10X36.5 L=48.5	8-94396-145-0	02	1	0005-0210	●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0005-0210	●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0303-0604			●
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	0605-			●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0005-0210	●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0303-0602			●
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	0603-			●
505	ADAPTER; WATER FEED	8-97611-854-0	01	1	1101-			●

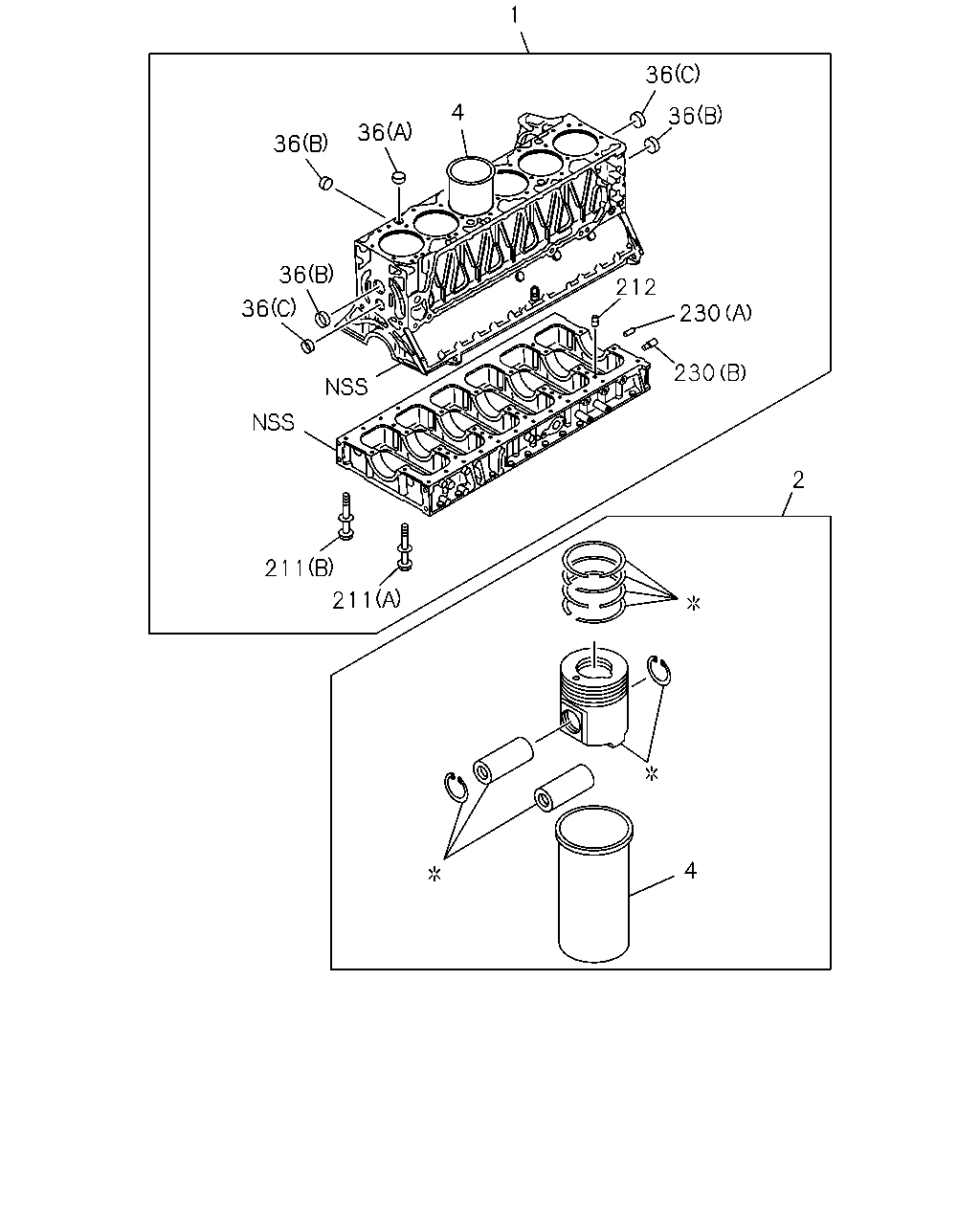

1 36 4 36 36 36 36 212 36 230 230 2 211 211 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	8-97601-299-0	01	1	0005-0210	●
1	BLOCK ASM; CYL	1-11210-620-3	01	1	0005-0210		●
1	BLOCK ASM; CYL	1-11210-682-2	01	1	0211-		●
1	BLOCK ASM; CYL	8-97602-025-2	01	1	0303-0504			●
1	BLOCK ASM; CYL	8-98005-409-3	01	1	0505-1012			●
1	BLOCK ASM; CYL	8-98180-707-0	01	1	1101-1209			●
1	BLOCK ASM; CYL	8-98206-964-0	01	1	1210-			●
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-2	06	1	0005-0108	●
2	LINER SET; ENG CYL GRADE=1X	1-87812-203-2	06	1	0109-0210	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-2	06	1	0005-0108	●
2	LINER SET; ENG CYL GRADE=3X	1-87812-204-2	06	1	0109-0210	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-1	06	1	0005-0210		●
2	LINER SET; ENG CYL GRADE=1X	1-87812-160-0	06	1	0211-0309		●
2	LINER SET; ENG CYL GRADE=1X	1-87812-631-3	06	1	0310-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-1	06	1	0005-0210		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-161-0	06	1	0211-0309		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-632-3	06	1	0310-		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-0	06	1	0303-0305			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-165-3	06	1	0306-0706			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-4	06	1	0707-			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-0	06	1	0303-0305			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-166-3	06	1	0306-0706			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-4	06	1	0707-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0303-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0303-			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	0005-		●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	0005-		●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	0005-		●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-005-2	04	1	0303-			●
36	CUP; SEALING,WATER JACKET (H) OD=25	1-09600-016-0	01	1	0303-			●
36	CUP; SEALING,WATER JACKET (F) OD=25	8-94399-005-0	01	1	0303-			●
36	CUP; SEALING,WATER JACKET (G) OD=40	8-94399-639-0	04	1	0303-0502			●
36	CUP; SEALING,WATER JACKET (G) OD=40	8-97096-824-0	04	1	0503-			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0005-0210	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0005-0210	●
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	0005-		●
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	0005-1107		●
211	BOLT; CRANKCASE (B)	8-98141-538-0	24	1	1108-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0303-0905			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-			●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0303-			●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0005-0210	●
212	PIN; CRANKCASE	1-09740-031-0	02	1	0005-		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0303-0306			●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-			●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	0005-		●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	0005-		●

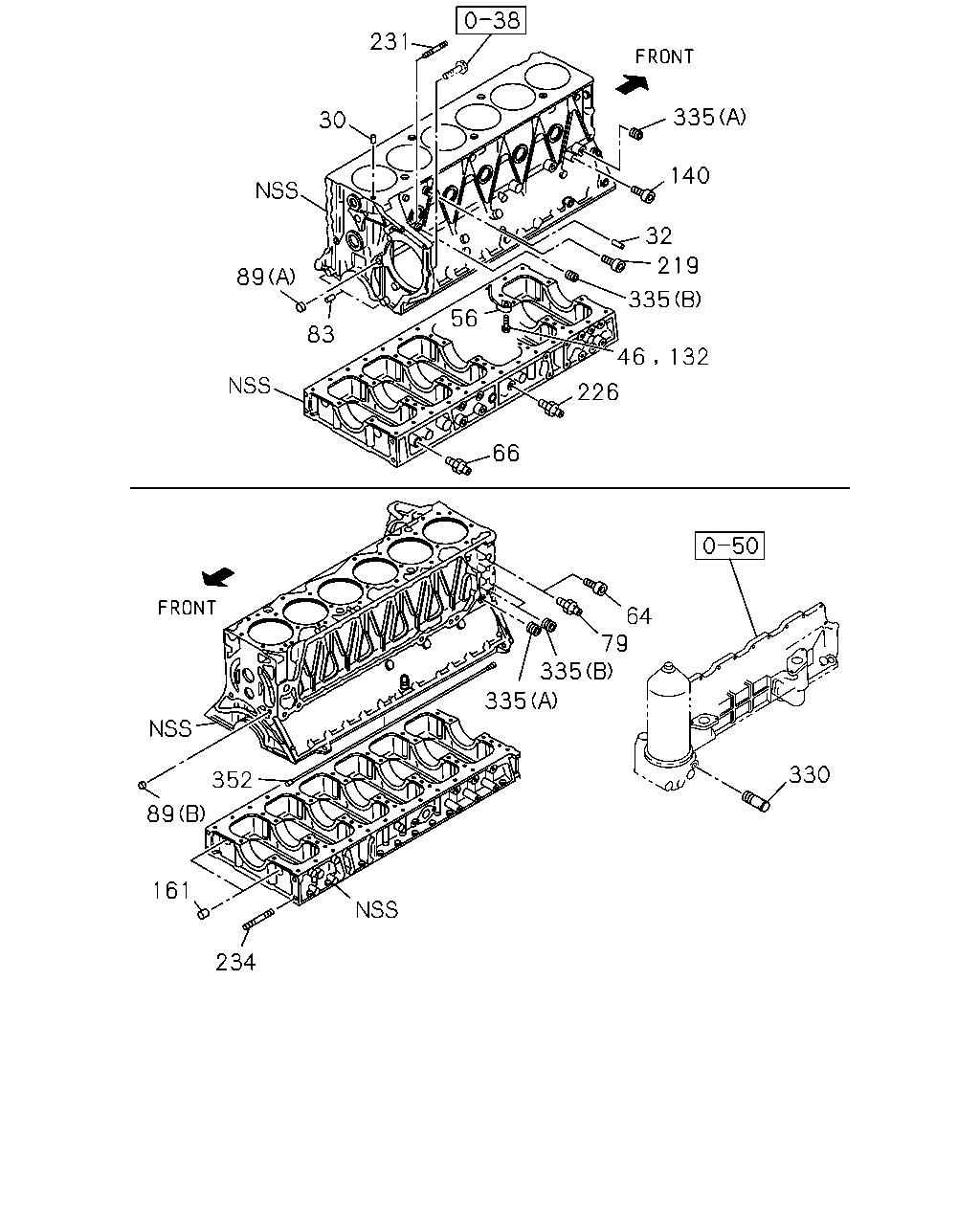

231 335 30 140 32 219 89 335 56 46 83 132 226 66 64 79 335 335 330 352 89 161 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0005-0210	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	0005-		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0303-			●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0005-0210	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	0005-		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0303-			●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-09675-105-1	06	1	0005-0210		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0005-0210	●
56	JET; OIL,PISTON COOLING	1-13342-127-0	06	1	0005-0210		●
56	JET; OIL,PISTON COOLING	1-13342-140-1	06	1	0211-		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0303-0703			●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007			●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-			●
64	CONNECTOR; TURBOCHARGER OIL FEED	1-09660-526-0	01	1	0211-		●
66	CONNECTOR; PARTIAL FILTER M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	0005-0210		●
66	CONNECTOR; PARTIAL FILTER	1-09660-526-0	01	1	0211-		●
79	NIPPLE; OIL FEED,TURBOCHARGER M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	0005-0210		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0005-0210	●
83	PIN; FLYWHEEL HSG	9-08161-025-0	02	1	0005-		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0303-0306			●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-			●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	0005-0210	●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	0005-0301		●
89	CUP; SEALING,OIL GALLERY (A) OD=16	5-11129-006-0	01	1	0302-		●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	0005-0909		●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11129-128-0	02	1	0910-		●
89	CUP; SEALING,OIL GALLERY (D) OD=20	9-11219-192-0	03	1	0303-0908			●
89	CUP; SEALING,OIL GALLERY (D) OD=20	9-11129-128-0	03	1	0909-			●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0005-0210	●
132	VALVE; CHECK,OIL	1-13161-025-2	06	1	0211-		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0303-			●
140	NIPPLE; INJ PUMP	1-09660-155-0	01	1	0005-		●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	0005-		●
219	NIPPLE; AIR CMPR,WATER	1-09660-408-0	01	1	0005-		●
226	CONNECTOR; INJ PUMP,RETURN M20 & PT3/8 STRAIGHT	1-09650-211-1	01	1	0005-0210		●
226	CONNECTOR; INJ PUMP,RETURN	1-09660-408-0	01	1	0211-		●
231	STUD; AIR CMPR M12X140 L=160	1-09302-169-0	04	1	0005-0005		●
231	STUD; AIR CMPR M12X140 L=160	1-09302-169-0	02	1	0006-		●
234	STUD; FRT COVER M10X50 L=65	1-09302-105-0	04	1	0005-		●
330	JOINT; HTR PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	0005-		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	02	1	0005-0210	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0005-0210	●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	06	1	0005-		●
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	02	1	0005-		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	02	1	0303-0703			●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	02	1	0704-			●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0303-0501			●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-			●
352	GASKET; C/BL TO CRANKCASE	1-11219-166-0	02	1	0005-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
