◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#8252) — 137 parça

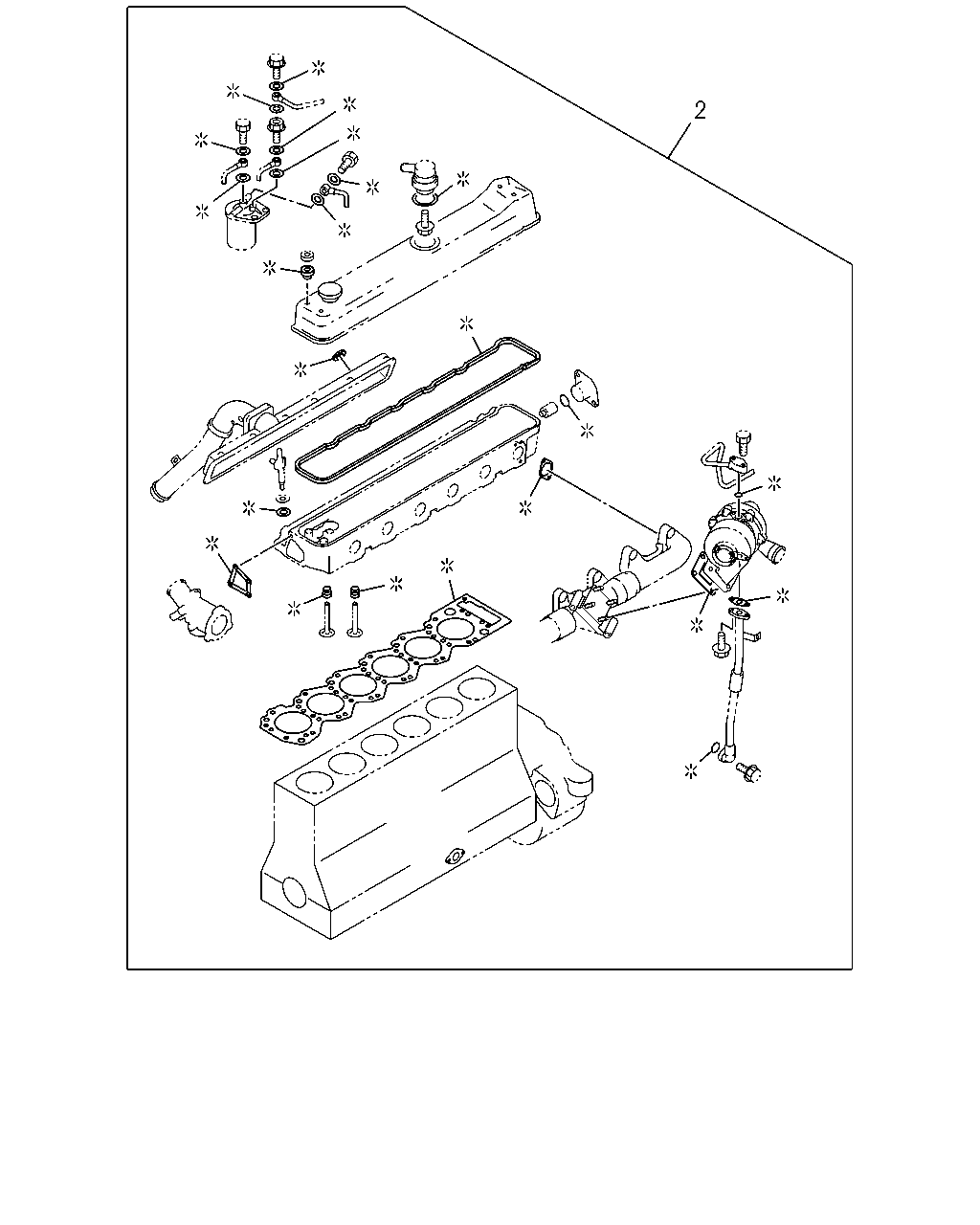

çizim 7434
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GASKET SET; ENG HD OVERHAUL 1-87811-626-0 01 1 0005-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-184-0 01 1 0106-0210 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-178-2 01 1 0005-0210 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-159-2 01 1 0211-0703 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-219-0 01 1 0704-0704 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-305-1 01 1 0705-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-260-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-356-1 01 1 0303-0410 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-916-2 01 1 0411-0707 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-268-0 01 1 0708-0908 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-454-3 01 1 0909-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-200-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-855-0 01 1 1409- ●

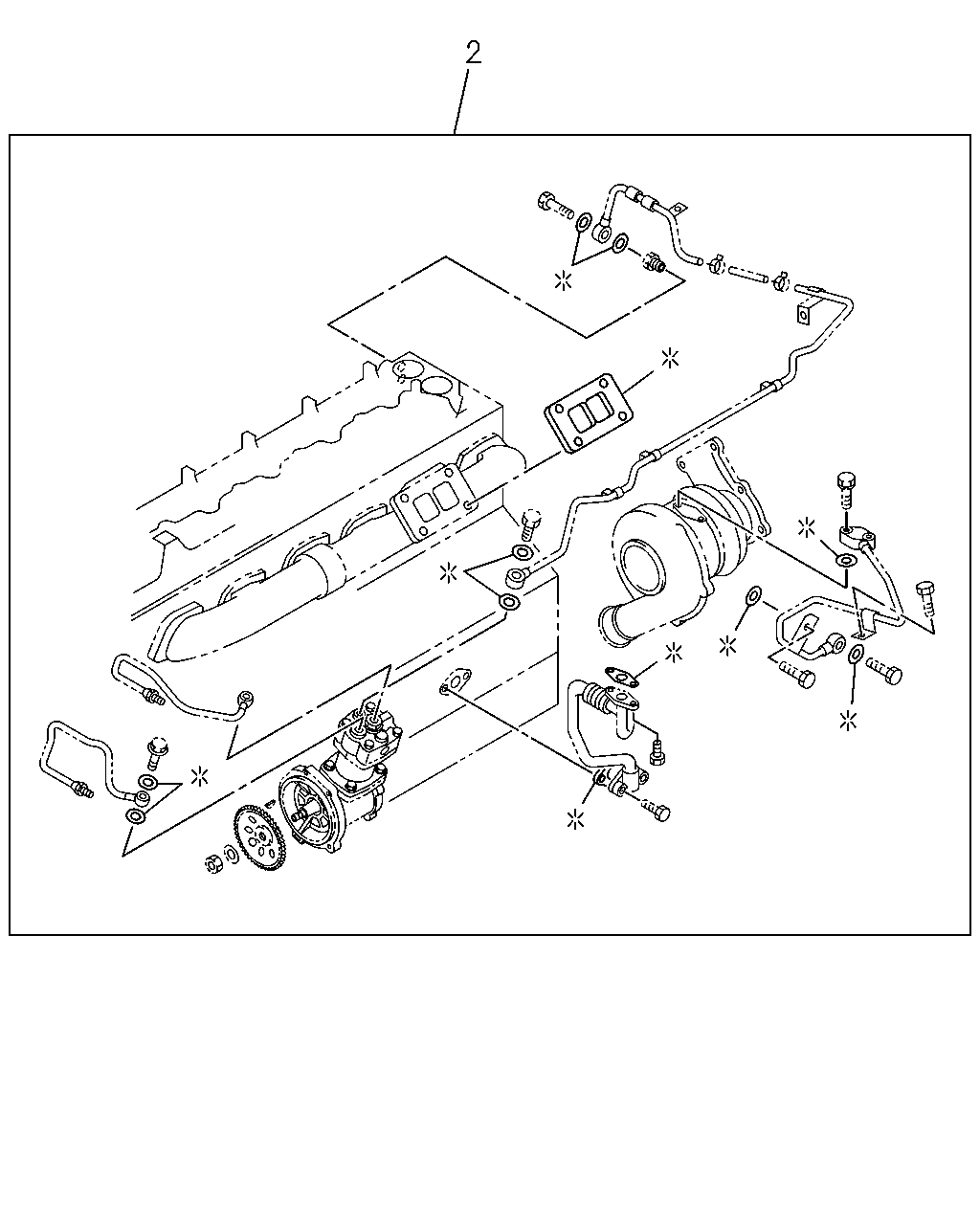

çizim 7453
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GASKET SET; ENG HD OVERHAUL 1-87811-626-0 01 1 0005-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-184-0 01 1 0106-0210 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-178-2 01 1 0005-0210 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-159-2 01 1 0211-0703 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-219-0 01 1 0704-0704 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-305-1 01 1 0705-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-260-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-356-1 01 1 0303-0410 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-916-2 01 1 0411-0707 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-268-0 01 1 0708-0908 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-454-3 01 1 0909-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-200-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-855-0 01 1 1409- ●

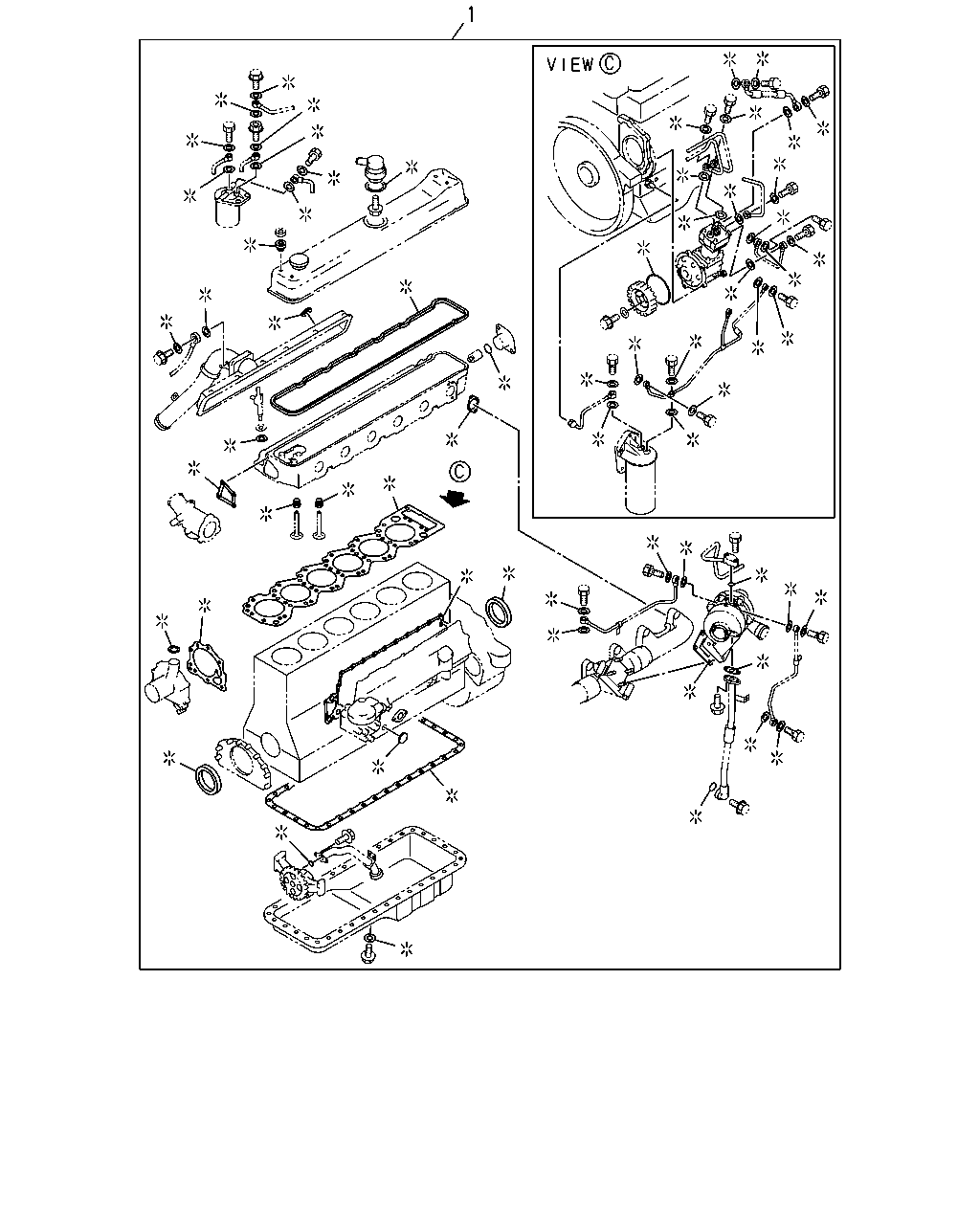

çizim 7454
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 0005-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-182-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL 1-87812-331-0 01 1 0201-0210 ●
1 GASKET SET; ENG OVERHAUL 1-87812-197-0 01 1 0005-0206 ●
1 GASKET SET; ENG OVERHAUL 1-87812-320-0 01 1 0207-0210 ●
1 GASKET SET; ENG OVERHAUL 1-87812-319-2 01 1 0211-0703 ●
1 GASKET SET; ENG OVERHAUL 1-87813-218-0 01 1 0704-0704 ●
1 GASKET SET; ENG OVERHAUL 1-87813-304-0 01 1 0705-0802 ●
1 GASKET SET; ENG OVERHAUL 1-87813-360-2 01 1 0803-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-271-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL 1-87812-354-1 01 1 0303-0410 ●
1 GASKET SET; ENG OVERHAUL 1-87812-913-1 01 1 0411-0606 ●
1 GASKET SET; ENG OVERHAUL 1-87813-110-0 01 1 0607-0707 ●
1 GASKET SET; ENG OVERHAUL 1-87813-289-0 01 1 0708-0908 ●
1 GASKET SET; ENG OVERHAUL 1-87813-453-2 01 1 0909-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-324-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL 1-87814-793-0 01 1 1409- ●

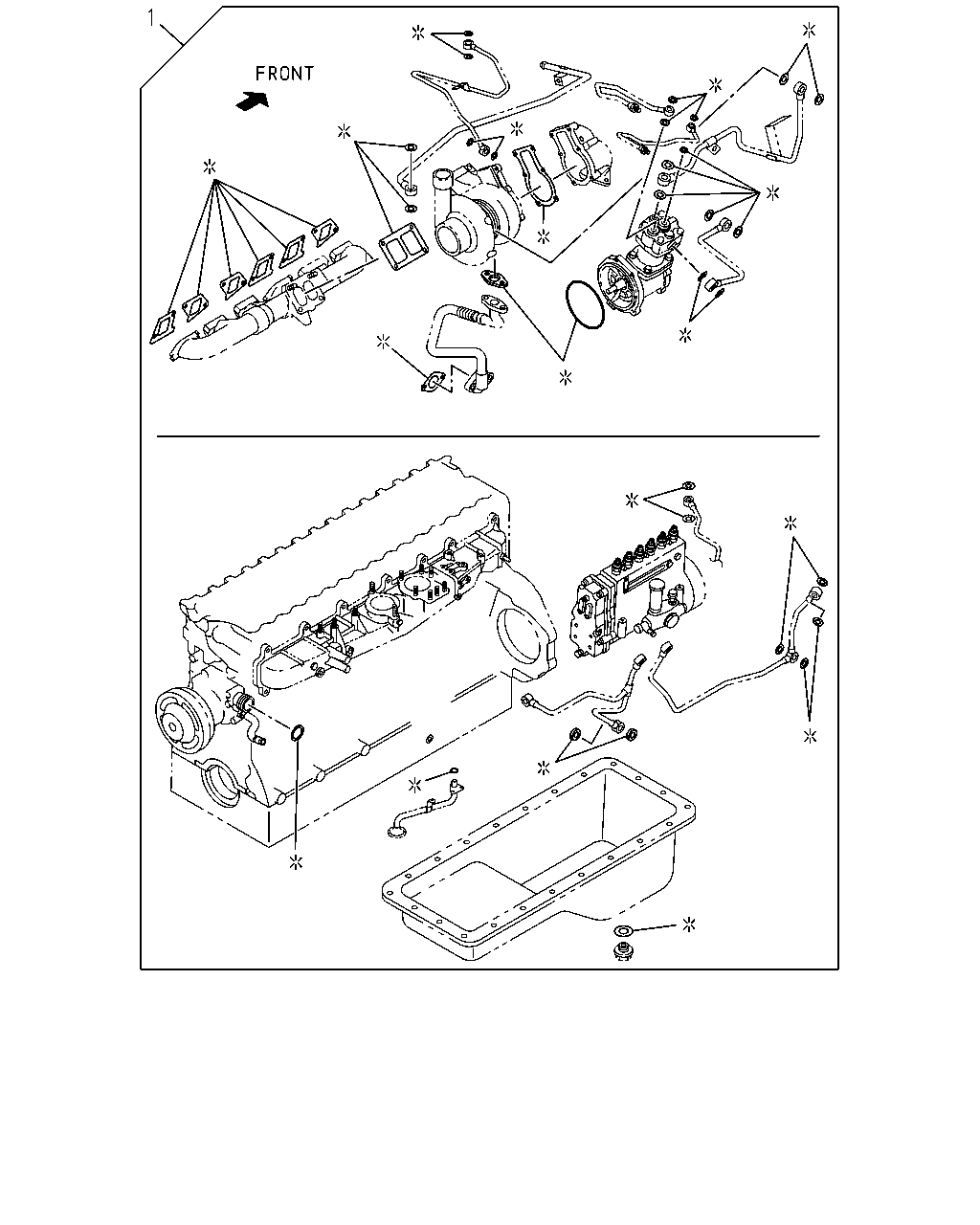

çizim 7560
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 0005-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-182-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL 1-87812-331-0 01 1 0201-0210 ●
1 GASKET SET; ENG OVERHAUL 1-87812-197-0 01 1 0005-0206 ●
1 GASKET SET; ENG OVERHAUL 1-87812-320-0 01 1 0207-0210 ●
1 GASKET SET; ENG OVERHAUL 1-87812-319-2 01 1 0211-0703 ●
1 GASKET SET; ENG OVERHAUL 1-87813-218-0 01 1 0704-0704 ●
1 GASKET SET; ENG OVERHAUL 1-87813-304-0 01 1 0705-0802 ●
1 GASKET SET; ENG OVERHAUL 1-87813-360-2 01 1 0803-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-271-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL 1-87812-354-1 01 1 0303-0410 ●
1 GASKET SET; ENG OVERHAUL 1-87812-913-1 01 1 0411-0606 ●
1 GASKET SET; ENG OVERHAUL 1-87813-110-0 01 1 0607-0707 ●
1 GASKET SET; ENG OVERHAUL 1-87813-289-0 01 1 0708-0908 ●
1 GASKET SET; ENG OVERHAUL 1-87813-453-2 01 1 0909-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-324-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL 1-87814-793-0 01 1 1409- ●

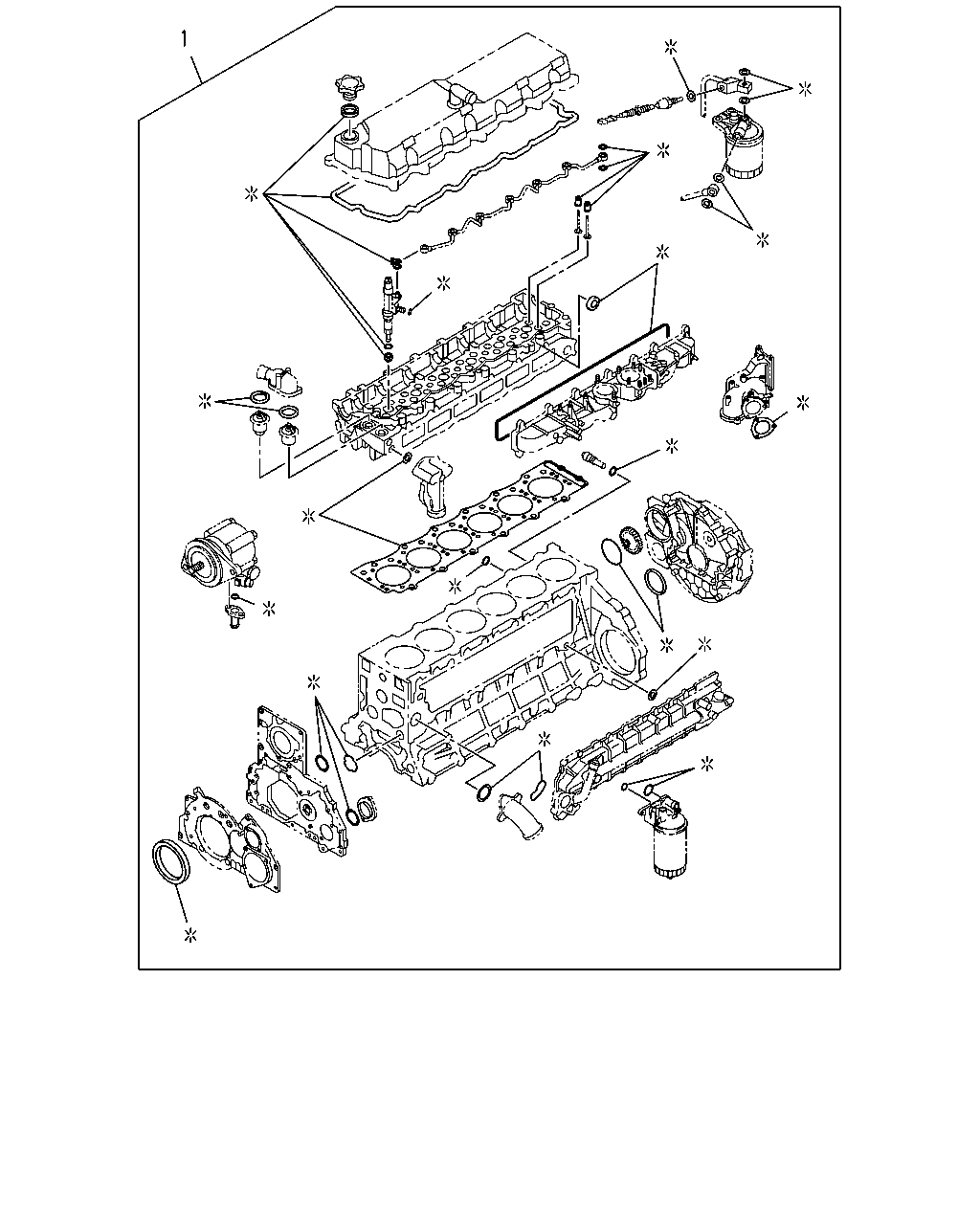

çizim 8590
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 0005-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-182-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL 1-87812-331-0 01 1 0201-0210 ●
1 GASKET SET; ENG OVERHAUL 1-87812-197-0 01 1 0005-0206 ●
1 GASKET SET; ENG OVERHAUL 1-87812-320-0 01 1 0207-0210 ●
1 GASKET SET; ENG OVERHAUL 1-87812-319-2 01 1 0211-0703 ●
1 GASKET SET; ENG OVERHAUL 1-87813-218-0 01 1 0704-0704 ●
1 GASKET SET; ENG OVERHAUL 1-87813-304-0 01 1 0705-0802 ●
1 GASKET SET; ENG OVERHAUL 1-87813-360-2 01 1 0803-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-271-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL 1-87812-354-1 01 1 0303-0410 ●
1 GASKET SET; ENG OVERHAUL 1-87812-913-1 01 1 0411-0606 ●
1 GASKET SET; ENG OVERHAUL 1-87813-110-0 01 1 0607-0707 ●
1 GASKET SET; ENG OVERHAUL 1-87813-289-0 01 1 0708-0908 ●
1 GASKET SET; ENG OVERHAUL 1-87813-453-2 01 1 0909-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-324-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL 1-87814-793-0 01 1 1409- ●

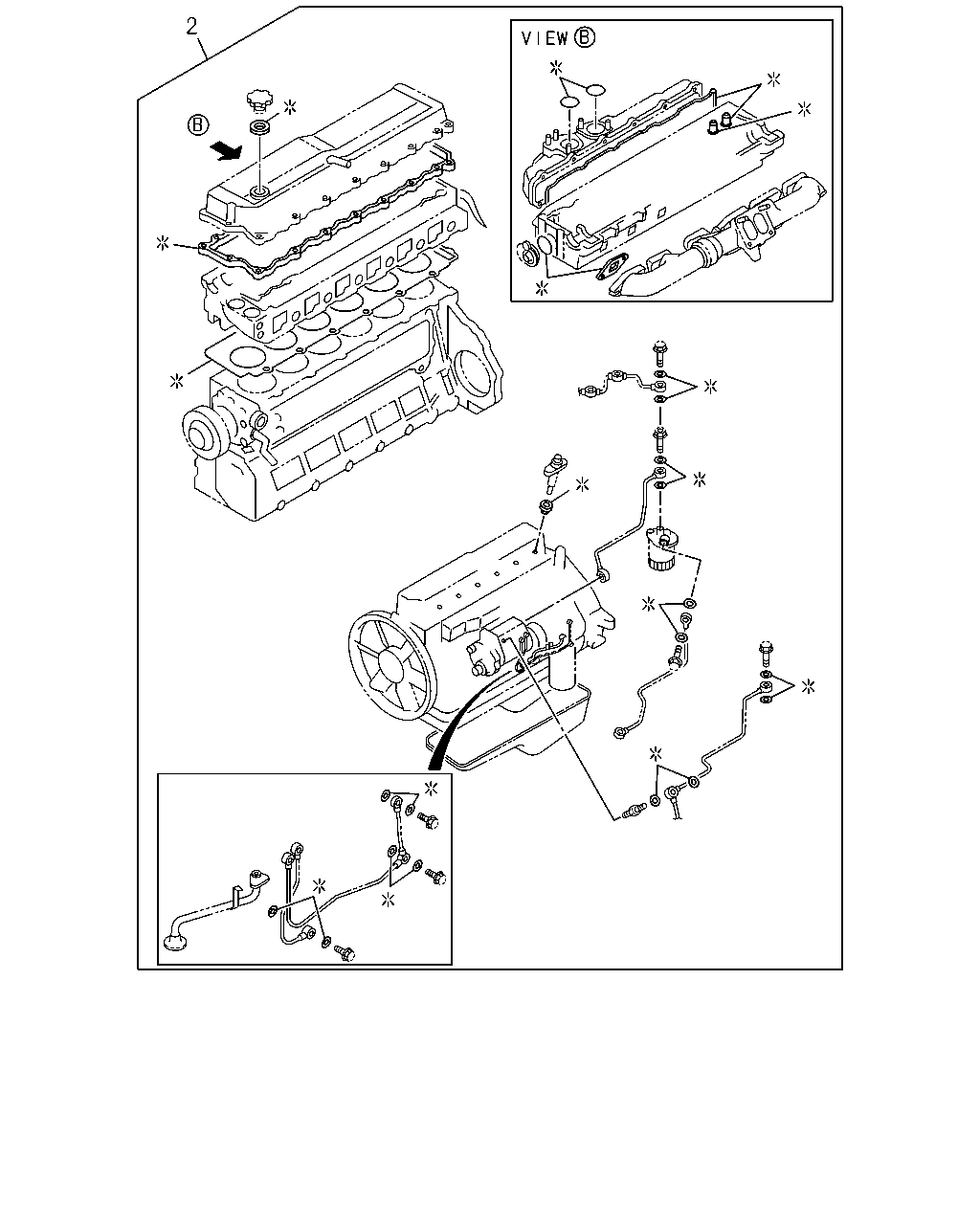

çizim 9040
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GASKET SET; ENG HD OVERHAUL 1-87811-626-0 01 1 0005-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-184-0 01 1 0106-0210 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-178-2 01 1 0005-0210 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-159-2 01 1 0211-0703 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-219-0 01 1 0704-0704 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-305-1 01 1 0705-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-260-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-356-1 01 1 0303-0410 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-916-2 01 1 0411-0707 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-268-0 01 1 0708-0908 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-454-3 01 1 0909-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-200-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-855-0 01 1 1409- ●

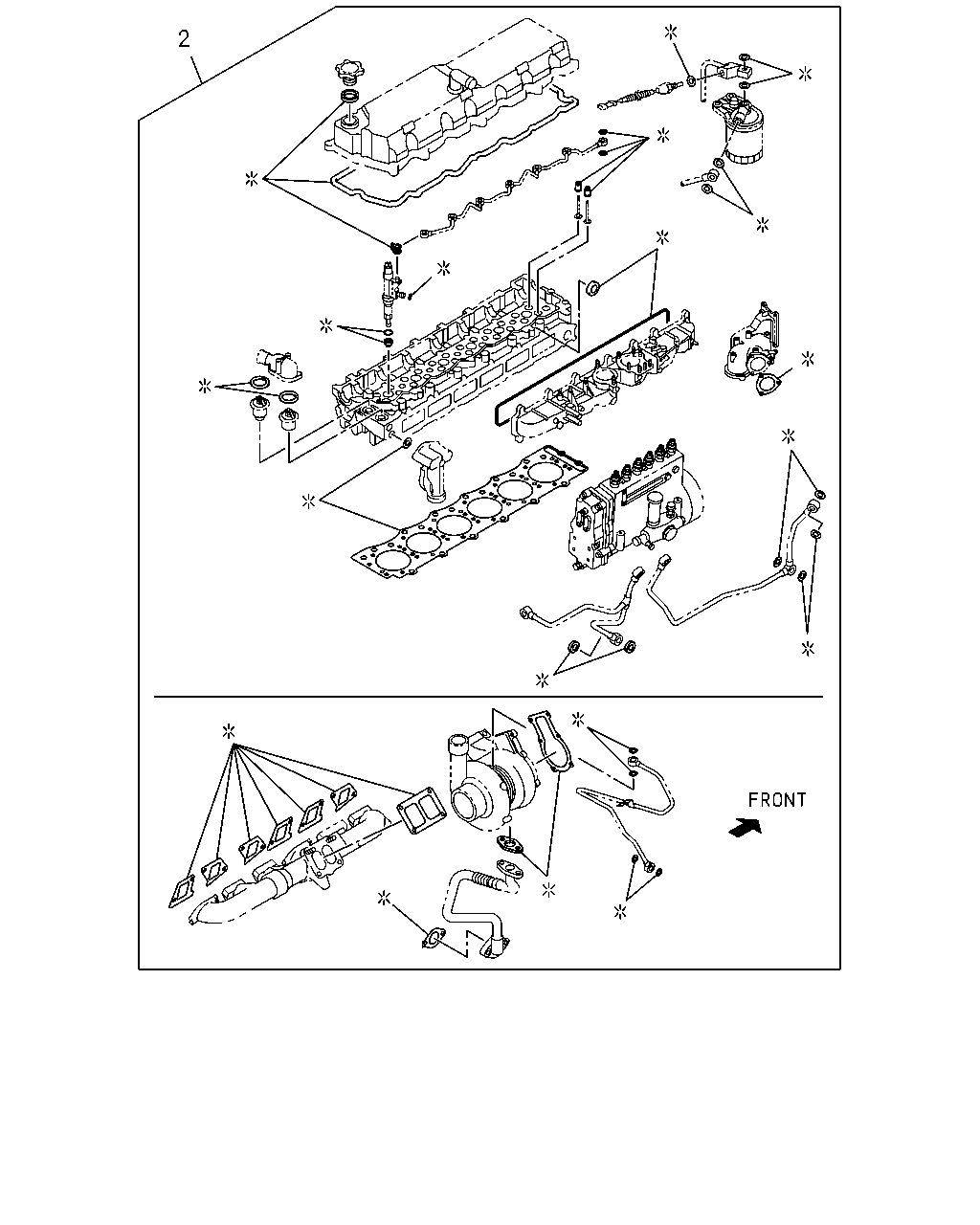

çizim 10748
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GASKET SET; ENG HD OVERHAUL 1-87811-626-0 01 1 0005-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-184-0 01 1 0106-0210 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-178-2 01 1 0005-0210 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-159-2 01 1 0211-0703 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-219-0 01 1 0704-0704 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-305-1 01 1 0705-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-260-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-356-1 01 1 0303-0410 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-916-2 01 1 0411-0707 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-268-0 01 1 0708-0908 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-454-3 01 1 0909-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-200-0 01 1 1401-1408 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-855-0 01 1 1409- ●

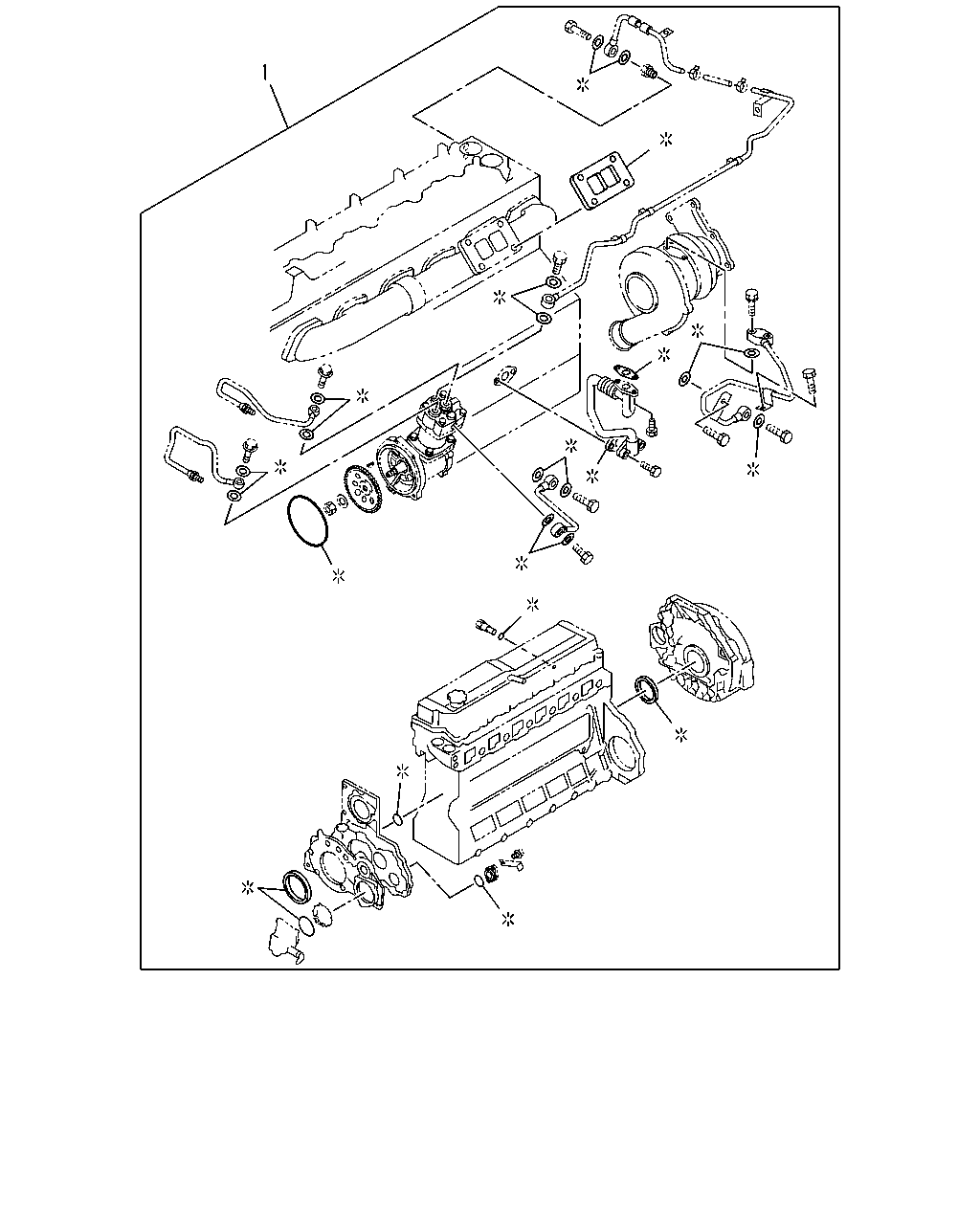

çizim 43308
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 0005-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-182-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL 1-87812-331-0 01 1 0201-0210 ●
1 GASKET SET; ENG OVERHAUL 1-87812-197-0 01 1 0005-0206 ●
1 GASKET SET; ENG OVERHAUL 1-87812-320-0 01 1 0207-0210 ●
1 GASKET SET; ENG OVERHAUL 1-87812-319-2 01 1 0211-0703 ●
1 GASKET SET; ENG OVERHAUL 1-87813-218-0 01 1 0704-0704 ●
1 GASKET SET; ENG OVERHAUL 1-87813-304-0 01 1 0705-0802 ●
1 GASKET SET; ENG OVERHAUL 1-87813-360-2 01 1 0803-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-271-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL 1-87812-354-1 01 1 0303-0410 ●
1 GASKET SET; ENG OVERHAUL 1-87812-913-1 01 1 0411-0606 ●
1 GASKET SET; ENG OVERHAUL 1-87813-110-0 01 1 0607-0707 ●
1 GASKET SET; ENG OVERHAUL 1-87813-289-0 01 1 0708-0908 ●
1 GASKET SET; ENG OVERHAUL 1-87813-453-2 01 1 0909-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-324-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL 1-87814-793-0 01 1 1409- ●

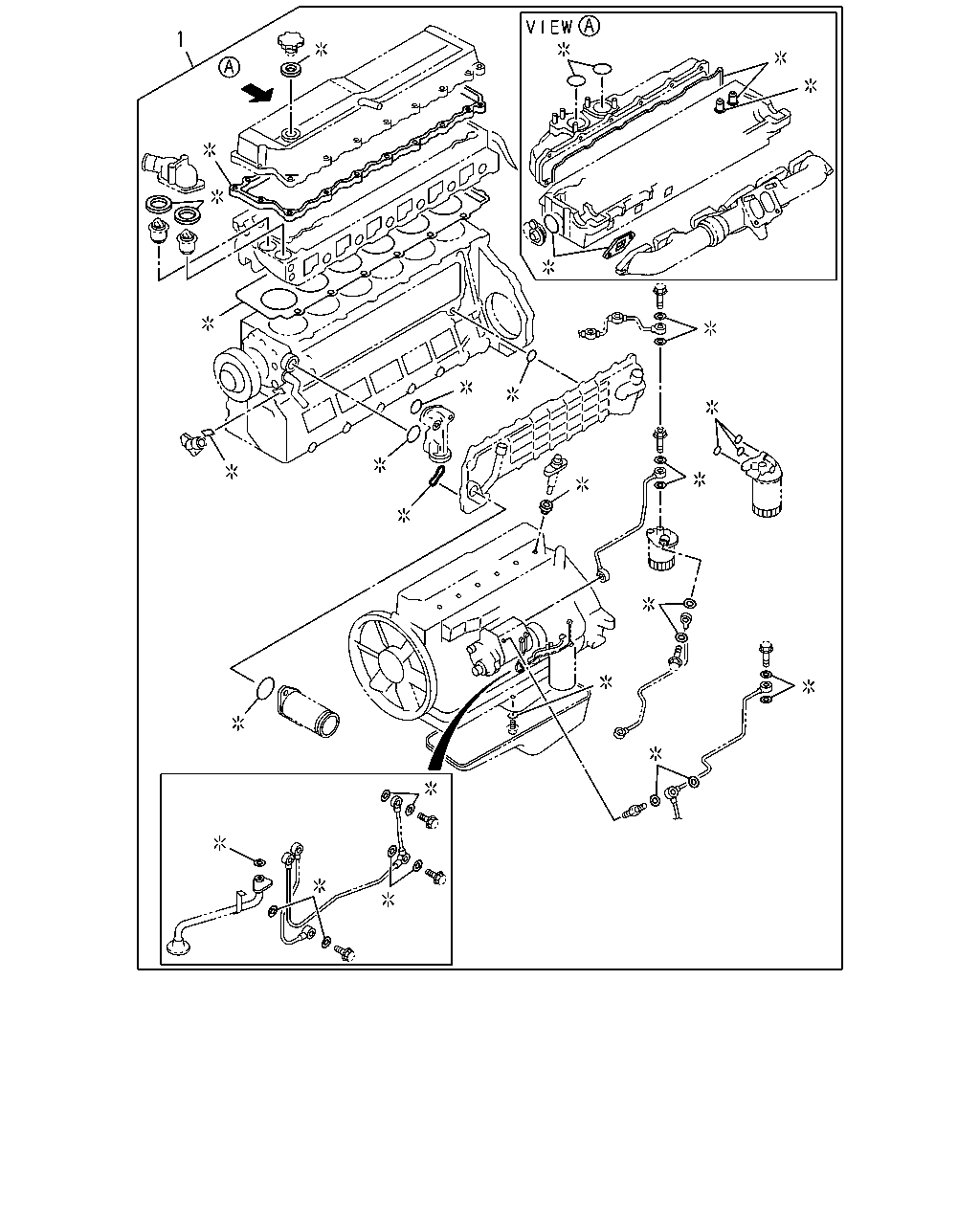

çizim 43416
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 0005-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-182-0 01 1 0106-0112 ●
1 GASKET SET; ENG OVERHAUL 1-87812-331-0 01 1 0201-0210 ●
1 GASKET SET; ENG OVERHAUL 1-87812-197-0 01 1 0005-0206 ●
1 GASKET SET; ENG OVERHAUL 1-87812-320-0 01 1 0207-0210 ●
1 GASKET SET; ENG OVERHAUL 1-87812-319-2 01 1 0211-0703 ●
1 GASKET SET; ENG OVERHAUL 1-87813-218-0 01 1 0704-0704 ●
1 GASKET SET; ENG OVERHAUL 1-87813-304-0 01 1 0705-0802 ●
1 GASKET SET; ENG OVERHAUL 1-87813-360-2 01 1 0803-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-271-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL 1-87812-354-1 01 1 0303-0410 ●
1 GASKET SET; ENG OVERHAUL 1-87812-913-1 01 1 0411-0606 ●
1 GASKET SET; ENG OVERHAUL 1-87813-110-0 01 1 0607-0707 ●
1 GASKET SET; ENG OVERHAUL 1-87813-289-0 01 1 0708-0908 ●
1 GASKET SET; ENG OVERHAUL 1-87813-453-2 01 1 0909-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-324-0 01 1 1401-1408 ●
1 GASKET SET; ENG OVERHAUL 1-87814-793-0 01 1 1409- ●
