Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#8250) — 203 parça

9 17 12 13 23 22 21 20 29 29 29 193 115 208 230 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	0005-	●	●	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0211-1502	●	●	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1503-	●	●	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0005-0210	●	●	●	●
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	0005-0208	●	●	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0209-0211	●	●	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	0212-1407	●	●	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-	●	●	●	●
17	HAMMER	9-85121-406-0	01	1	0005-0208	●	●	●	●
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0209-	●	●	●	●
20	WRENCH; 10X12	9-09592-110-0	01	1	0005-0208	●	●	●	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0209-0607	●	●	●	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0608-	●	●	●	●
21	WRENCH; 14X17	9-09592-114-0	01	1	0005-0208	●	●	●	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0209-0607	●	●	●	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0608-	●	●	●	●
22	WRENCH; 19X22	9-99592-119-0	01	1	0005-0208	●	●	●	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0209-0607	●	●	●	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0608-	●	●	●	●
23	WRENCH; 24X27	9-09592-124-0	01	1	0005-0208	●	●	●	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0209-0304	●	●	●	●
29	DRIVER; SCREW (B) <-> L=285	1-85151-004-0	01	1	0005-0208	●	●	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=285	1-85151-004-0	01	1	0209-	●	●	●	●
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	0005-	●	●	●	●
29	DRIVER; SCREW (A) <+> L=190	9-09595-522-0	01	1	0005-0208	●	●	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <+> L=190	9-09595-522-0	01	1	0209-	●	●	●	●
115	PLIER	5-85171-002-0	01	1	0005-0208	●	●	●	●
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0209-	●	●	●	●
193	JACK ASM 10TON	1-85510-013-1	01	1	0005-0504	●	●	●	●
193	JACK ASM 10TON	8-97607-599-0	01	1	0505-	●	●	●	●
208	HANDLE; JACK L=600	1-85515-008-0	01	1	0005-0105	●	●	●	●
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-1107	●	●	●	●
208	HANDLE; JACK L=600	8-98181-437-0	01	1	1108-	●	●	●	●
230	PUMP; GREASE	1-85556-007-2	01	1	0005-0208	●	●	●	●
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	0209-	●	●	●	●
237	BAG; TOOL	8-97130-902-1	01	1	0005-	●	●	●	●

274 271 268 209 285 280 282 284 263 281 283 446

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
209	CLIP; JACK HANDLE	1-73638-011-1	02	1	0005-0708	●	●	●	●
209	CLIP; JACK HANDLE	8-98053-799-0	02	1	0709-	●	●	●	●
263	BRACKET; TOOL	1-53459-665-2	02	1	0408-				●
268	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	0005-0604	●	●	●	●
268	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-	●	●	●	●
271	CLIP; TIRE HANGER	1-73638-012-1	02	1	0005-0708	●	●	●	●
271	CLIP; TIRE HANGER	8-98053-800-0	02	1	0709-	●	●	●	●
274	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	0005-0604	●	●	●	●
274	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-	●	●	●	●
280	BOX; TOOL	1-85561-006-3	01	1	0005-	●	●	●	●
281	BRACKET; TOOL BOX	1-53459-665-2	02	1	0005-0407	●	●	●	●
281	BRACKET; TOOL BOX	1-53459-665-2	02	1	0408-	●	●	●
282	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0005-0602	●	●	●	●
282	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●	●	●	●
283	WASHER; LK,BRKT ID=10.2	9-09150-510-0	04	1	0005-0407	●	●	●	●
283	WASHER; LK,BRKT ID=10.2	9-09150-510-0	04	1	0408-0603	●	●	●
283	WASHER; LK,BRKT ID=10.2	0-91510-510-0	04	1	0604-	●	●	●
284	BOLT; TOOL BOX M10X20 FLANGE	0-28681-020-0	04	1	0005-0512	●	●	●	●
284	BOLT; TOOL BOX M10X20 FLANGE	0-28651-020-0	04	1	0601-	●	●	●	●
285	NUT; TOOL BOX M10 FLANGE	0-91150-210-0	04	1	0005-0602	●	●	●	●
285	NUT; TOOL BOX M10 FLANGE	0-91180-210-0	04	1	0603-	●	●	●	●
446	WASHER; SPRING ID=10.2	9-09150-510-0	04	1	0408-0603				●
446	WASHER; SPRING ID=10.2	0-91510-510-0	04	1	0604-				●

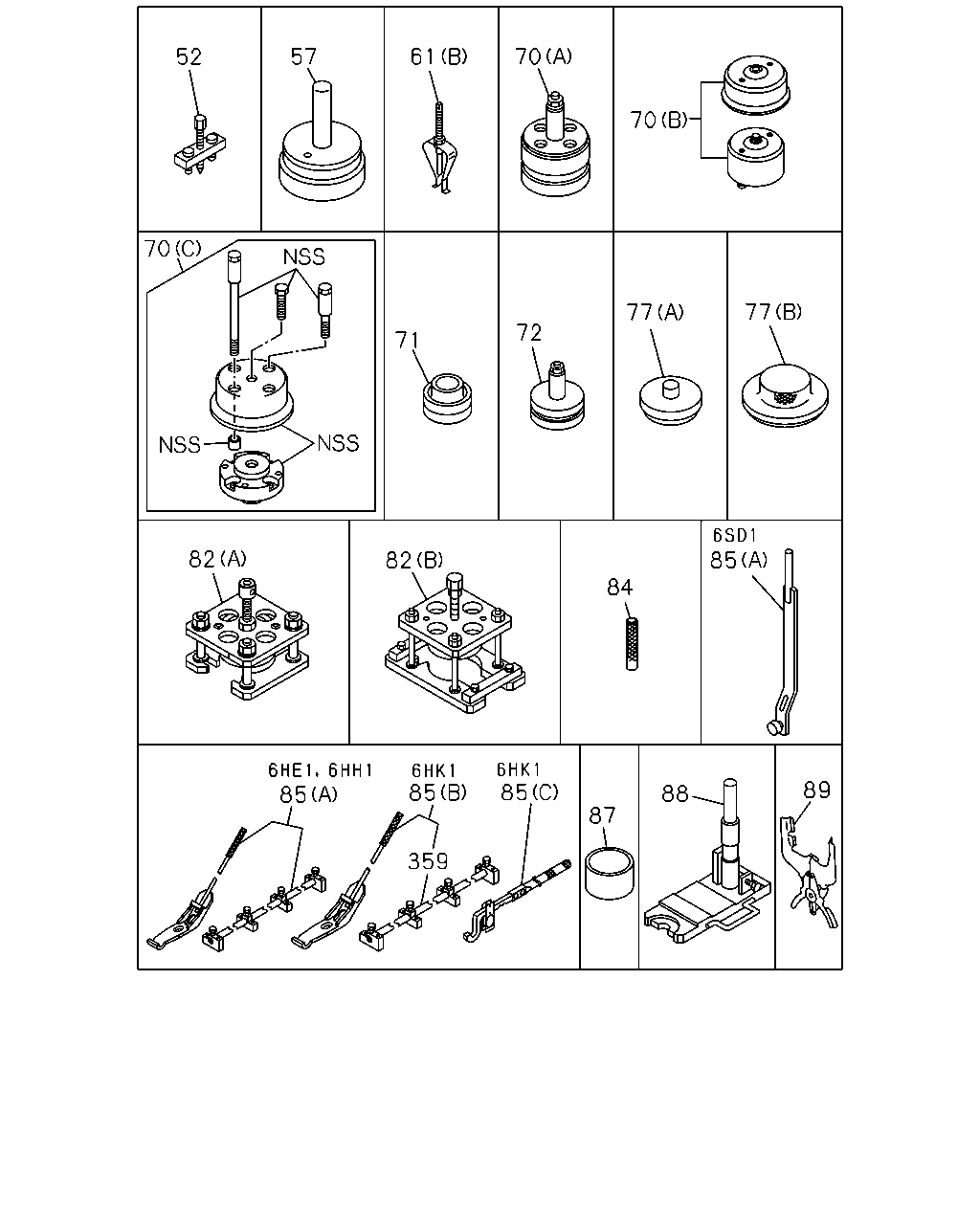

52 57 61 70 70 70 77 77 72 71 85 82 82 84 85 85 85 89 88 87 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
52	REMOVER; WATER PUMP	1-85210-047-0	01	1	0005-0210	●		●	●
52	REMOVER; WATER PUMP 6SD1 TCN ENG(31L)	1-85210-047-0	01	1	0005-0210		●
52	REMOVER; WATER PUMP	1-85210-047-0	01	1	0211-	●	●	●	●
57	TOOL; SETTING CRANK GEAR ID=144.5	1-85221-072-0	01	1	0005-0210	●		●	●
57	TOOL; SETTING CRANK GEAR 6SD1 TCN ENG(31L) ID=144.5	1-85221-072-0	01	1	0005-0210		●
57	TOOL; SETTING CRANK GEAR ID=144.5	1-85221-072-0	01	1	0211-	●	●	●	●
57	TOOL; SETTING CRANK GEAR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=134.5	8-94396-819-0	01	1	0005-0210		●
57	TOOL; SETTING CRANK GEAR ID=165.8	1-85221-075-0	01	1	0211-	●	●	●	●
61	PULLER ASM; PILOT BRG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-85210-050-0	01	1	0005-0210		●
61	PULLER ASM; PILOT BRG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B)	9-85210-157-0	01	1	0005-0210		●
61	PULLER ASM; PILOT BRG (B)	1-85220-028-0	01	1	0211-	●	●	●	●
70	TOOL; SETTING,OIL SEAL (C)	8-98194-607-0	01	1	1109-	●	●	●	●
70	TOOL; SETTING,OIL SEAL (A)	1-85220-025-1	01	1	0005-0210	●		●	●
70	TOOL; SETTING,OIL SEAL 6SD1 TCN ENG(31L) (A)	1-85220-025-1	01	1	0005-0210		●
70	TOOL; SETTING,OIL SEAL 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B)	8-94396-856-0	01	1	0005-0210		●
71	TOOL; SETTING,OIL SEAL,FRT	1-85220-029-0	01	1	0211-0302	●	●	●	●
71	TOOL; SETTING,OIL SEAL,FRT	1-85220-029-0	01	1	0303-1108	●		●	●
71	TOOL; SETTING,OIL SEAL,FRT 6SD1 TCN ENG(31L)	1-85220-029-0	01	1	0303-1108		●
72	TOOL; SETTING,OIL SEAL,RR	1-85220-030-0	01	1	0211-0302	●	●	●	●
72	TOOL; SETTING,OIL SEAL,RR	1-85220-030-0	01	1	0303-1108	●		●	●
72	TOOL; SETTING,OIL SEAL,RR 6SD1 TCN ENG(31L)	1-85220-030-0	01	1	0303-1108		●
77	TOOL; SETTING,CYL LINER (A)	1-85221-073-0	01	1	0005-0210	●		●	●
77	TOOL; SETTING,CYL LINER 6SD1 TCN ENG(31L) (A)	1-85221-073-0	01	1	0005-0210		●
77	TOOL; SETTING,CYL LINER (A)	1-85221-073-0	01	1	0211-	●	●	●	●
77	TOOL; SETTING,CYL LINER 6HE1 TC ENG(57L) (B)	8-94396-816-0	01	1	0005-0210		●
82	PULLER ASM; CR/SHF GEAR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	8-94396-818-0	01	1	0005-0210		●
82	PULLER ASM; CR/SHF GEAR (B)	1-85210-051-0	01	1	0211-	●	●	●	●
84	REPLACER; VALVE SEAL 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	8-94396-815-0	01	1	0005-0210		●
85	REPLACER ASM; VALVE SPR (A)	1-85235-007-0	01	1	0005-0210	●		●	●
85	REPLACER ASM; VALVE SPR 6SD1 TCN ENG(31L) (A)	1-85235-007-0	01	1	0005-0210		●
85	REPLACER ASM; VALVE SPR (A)	1-85235-007-0	01	1	0211-	●	●	●	●
85	REPLACER ASM; VALVE SPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B)	8-94396-861-0	01	1	0005-0210		●
85	REPLACER ASM; VALVE SPR 6HK1 TCS ENG(80L) (C)	8-94391-528-0	01	1	0303-		●
87	TOOL; PISTON	1-85221-082-0	01	1	0005-0210	●		●	●
87	TOOL; PISTON 6SD1 TCN ENG(31L)	1-85221-082-0	01	1	0005-0210		●
87	TOOL; PISTON	1-85221-082-0	01	1	0211-	●	●	●	●
88	TOOL; CONNROD BUSHING	1-85220-037-0	01	1	0005-0210	●		●	●
88	TOOL; CONNROD BUSHING 6SD1 TCN ENG(31L)	1-85220-037-0	01	1	0005-0210		●
88	TOOL; CONNROD BUSHING	1-85220-037-0	01	1	0211-	●	●	●	●
89	TOOL; PISTON RING	1-85221-029-0	01	1	0005-0210	●	●	●	●
359	PIVOT 6HK1 TCS ENG(80L)	8-94396-862-0	01	1	0303-		●

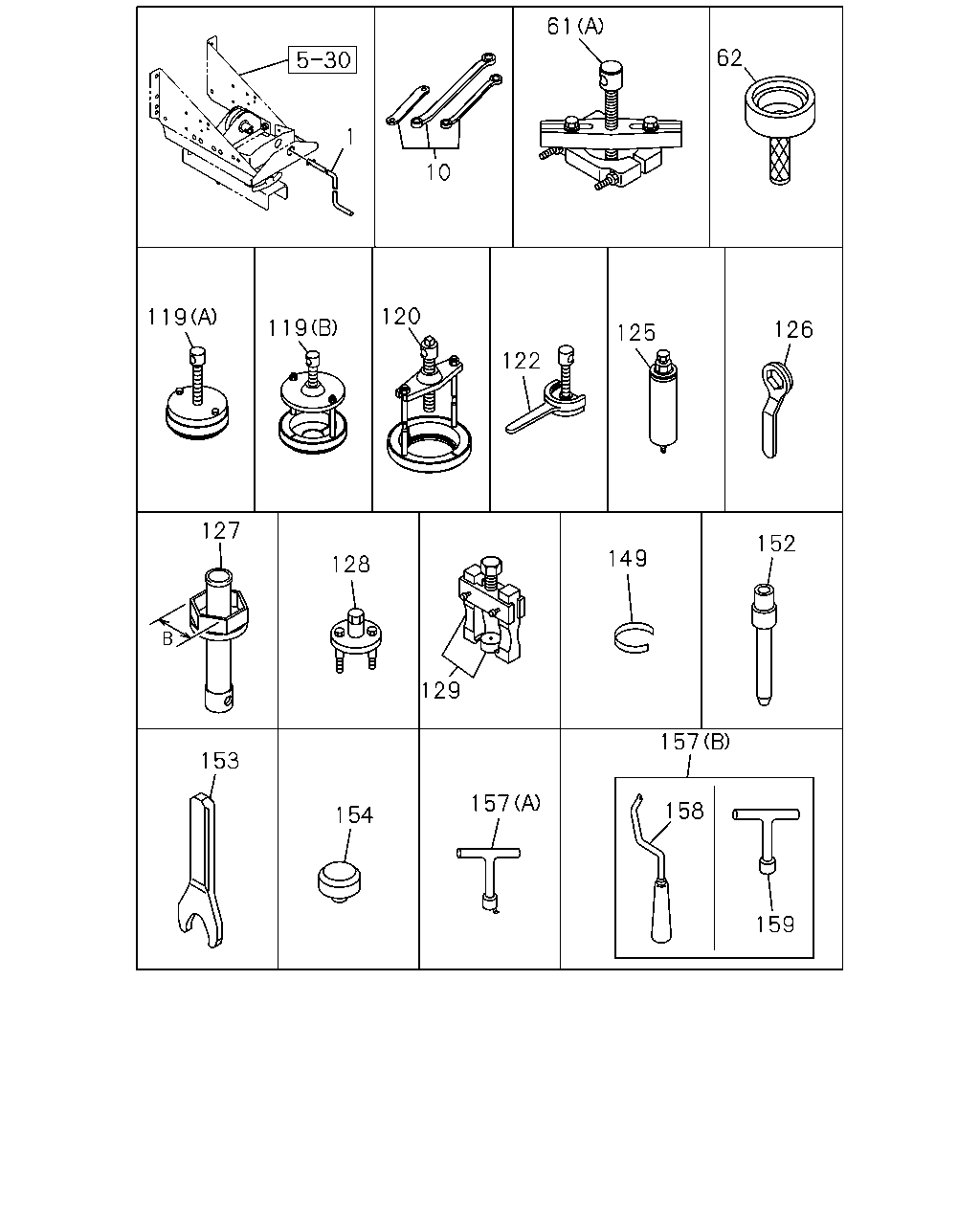

61 62 1 10 120 119 119 126 125 122 127 152 149 128 129 157 153 157 158 154 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HANDLE; SPARE TIRE CARRIER	9-23110-018-0	01	1	0005-0210	●	●	●
1	HANDLE; SPARE TIRE CARRIER	9-23110-018-0	01	1	0211-0302	●	●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	9-23110-018-0	01	1	0211-0302			●
1	HANDLE; SPARE TIRE CARRIER	9-23110-018-0	01	1	0303-	●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>	9-23110-018-0	01	1	0303-		●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	9-23110-018-0	01	1	0303-			●
10	WRENCH KIT; BRK ADJ	9-85110-013-0	01	1	0005-	●
61	PULLER ASM; PILOT BRG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-85210-050-0	01	1	0005-0210		●
61	PULLER ASM; PILOT BRG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B)	9-85210-157-0	01	1	0005-0210		●
61	PULLER ASM; PILOT BRG (B)	1-85220-028-0	01	1	0211-	●	●	●	●
62	TOOL ASM; SETTING WEAR RING	1-85221-079-0	01	1	0211-	●	●	●	●
119	PULLER ASM; TOP GEAR BRG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B)	9-85210-185-0	01	1	0005-0210		●
119	PULLER ASM; TOP GEAR BRG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	9-85210-186-0	01	1	0005-0210		●
120	PULLER ASM; MAIN REAR BRG 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	9-85210-192-0	01	1	0005-0210		●
122	PULLER ASM; COUNTER FRT 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	9-85210-129-1	01	1	0005-0210		●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0005-	●
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	0005-	●
127	WRENCH ASM; HUB BRG NUT B=98 L=305	9-85113-533-1	01	1	0005-	●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	0005-0111	●	●	●	●
128	PULLER ASM; STRG WHEEL 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	9-85210-099-0	01	1	0005-0111		●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	0112-0210	●	●	●	●
128	PULLER ASM; STRG WHEEL 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	9-85210-099-0	01	1	0112-0210		●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	0112-0210				●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	0211-	●	●	●	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0005-0111	●	●	●	●
129	PULLER ASM; PITMAN ARM 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-85210-011-0	01	1	0005-0111		●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0112-0210	●	●	●	●
129	PULLER ASM; PITMAN ARM 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-85210-011-0	01	1	0112-0210		●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0112-0210				●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0211-	●	●	●	●
149	PLATE; PILOT BRG PULLER	1-85219-009-0	01	1	0005-0210		●
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	0005-	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0005-	●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0005-	●
157	REPLACER KIT; RETURN SPR (A) ID=16	1-85237-002-0	01	1	0005-	●
157	REPLACER KIT; RETURN SPR (B)	9-85231-554-0	01	1	0005-0210	●
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0005-0210	●
159	REMOVER; RETURN SPR ID=12.5	9-85231-555-0	01	1	0005-0210	●

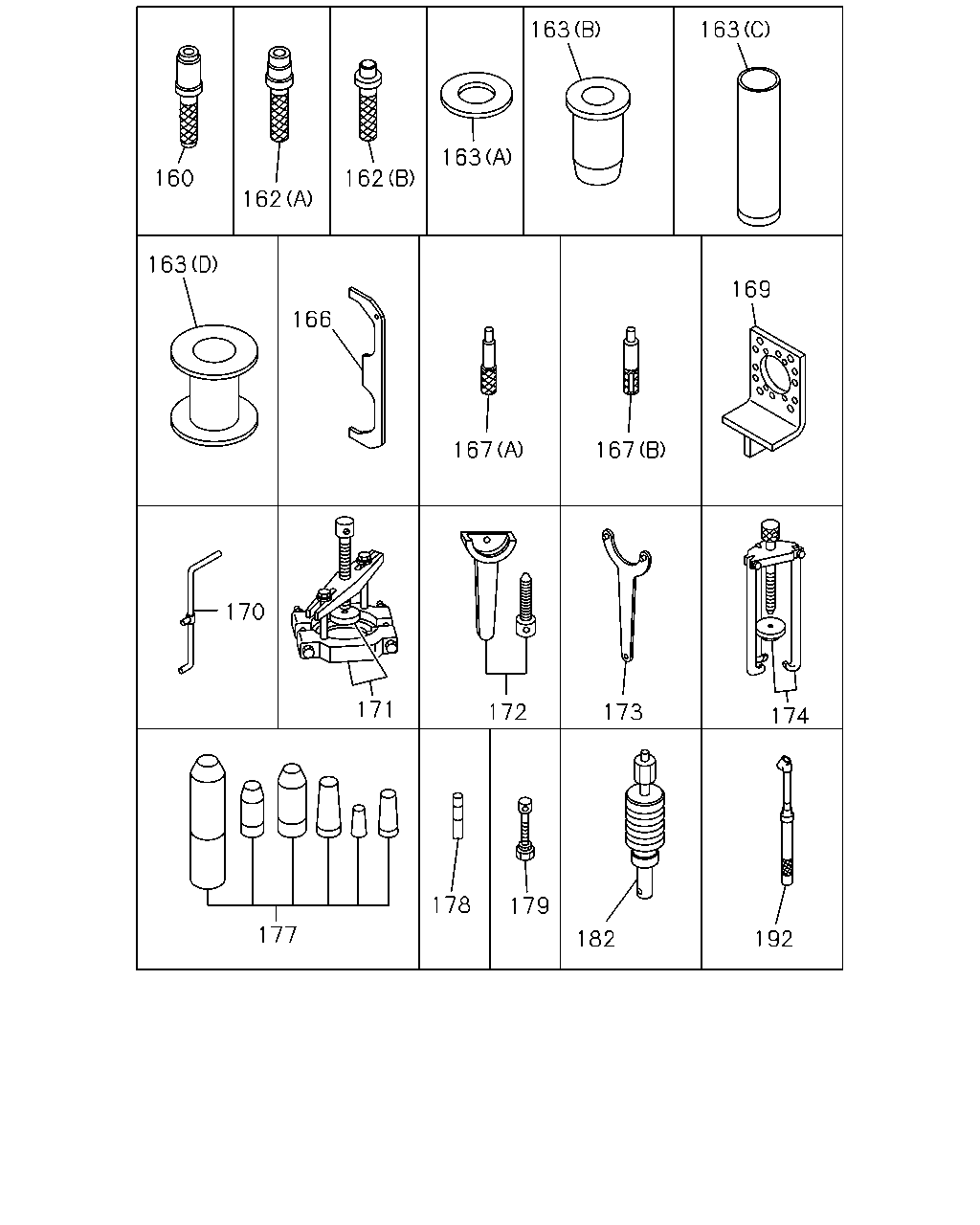

163 163 163 162 160 162 163 169 166 167 167 170 171 172 173 174 178 179 177 182 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	0005-0111	●	●	●	●
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	0005-0111		●	●
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	0005-0111		●
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	0112-0210	●	●	●	●
160	REMOVER; NEEDLE BRG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=220	1-85238-001-0	01	1	0112-0210		●
160	REMOVER; NEEDLE BRG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=220	1-85238-001-0	01	1	0112-0210		●
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	0211-	●
162	SETTING TOOL; NEEDLE BRG (A) L=200	1-85238-005-0	01	1	0005-0210	●
162	SETTING TOOL; NEEDLE BRG (B) L=175	1-85238-006-0	01	1	0005-0210	●
162	SETTING TOOL; NEEDLE BRG (B) L=181	1-85238-008-0	01	1	0005-	●
162	SETTING TOOL; NEEDLE BRG (A) L=213	1-85238-009-0	01	1	0005-	●
163	TOOL; SETTING 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=195	1-85221-162-1	01	1	0005-0210		●
163	TOOL; SETTING 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) L=150	1-85221-163-0	01	1	0005-0210		●
163	TOOL; SETTING 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) OD=120	1-85221-164-0	01	1	0005-0210		●
163	TOOL; SETTING 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=150	9-85221-248-0	01	1	0005-0210		●
163	TOOL; SETTING 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) L=350	9-85221-310-0	01	1	0005-0210		●
166	ALIGNER; CLU RELEASE LEVER 6SD1 TCN ENG(31L) L=480	1-85253-011-0	01	1	0005-0210		●
166	ALIGNER; CLU RELEASE LEVER WHEEL BASE 6300MM(63W) L=480	1-85253-011-0	01	1	0005-0210			●
166	ALIGNER; CLU RELEASE LEVER L=480	1-85253-011-0	01	1	0005-0210				●
167	ALIGNER; CLU PILOT FULLER FS8209 DD M/T(Y2S) (B) D=36 L=190	1-85253-022-0	01	1	0005-0210	●			●
167	ALIGNER; CLU PILOT 6SD1 TCN ENG(31L) (B) D=36 L=190	1-85253-022-0	01	1	0005-0210		●
167	ALIGNER; CLU PILOT FULLER RT7608LL M/T(X8P) (B) D=36 L=190	1-85253-022-0	01	1	0005-0210			●
167	ALIGNER; CLU PILOT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) D=30.6 L=185	1-85253-012-0	01	1	0005-0210		●
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	0005-0210	●	●	●	●
169	BRACKET; SPLINE YOKE P115 PROP SHAFT(C5X)	1-85221-317-0	01	1	0211-			●
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	0211-				●
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	0005-0210	●	●	●	●
171	PULLER ASM; PINION BRG	9-85210-172-0	01	1	0005-0210	●	●	●	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-173-0	01	1	0005-0210	●	●	●	●
173	WRENCH; COUPLING DRIVER	9-85111-942-0	01	1	0005-0210	●	●	●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	0005-0111	●	●	●	●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	0005-0111	●	●	●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	0112-0210	●	●	●	●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	0112-0210	●	●
174	PULLER ASM; MAIN CLU SHAFT FULLER RT7608LL M/T(X8P)	9-85210-148-0	01	1	0112-0210			●
174	PULLER ASM; MAIN CLU SHAFT FULLER FS8209HD DD M/T(Y3A)	9-85210-148-0	01	1	0211-0302	●	●		●
174	PULLER ASM; MAIN CLU SHAFT FULLER RT7608LL M/T(X8P)	9-85210-148-0	01	1	0211-0302			●
174	PULLER ASM; MAIN CLU SHAFT FULLER FS8209HD DD M/T(Y3A)	9-85210-148-0	01	1	0303-	●			●
174	PULLER ASM; MAIN CLU SHAFT FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V)	9-85210-148-0	01	1	0303-		●
174	PULLER ASM; MAIN CLU SHAFT FULLER RT7608LL M/T(X8P)	9-85210-148-0	01	1	0303-			●
177	SETTING TOOL KIT	9-85220-040-0	01	1	0005-0210		●
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	0005-0210	●	●	●	●
179	PULLER; SPD METER GEAR	9-85210-181-0	01	1	0005-0210	●	●	●	●
182	REMOVER ASM	9-85210-095-0	01	1	0005-0210	●	●	●	●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0005-0210	●

93 91 92 91 102 118 93 106 297 140 296 356 358 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
91	REPLACER ASM; CYL LINER (A)	1-85231-021-0	01	1	0005-0210	●		●	●
91	REPLACER ASM; CYL LINER 6SD1 TCN ENG(31L) (A)	1-85231-021-0	01	1	0005-0210		●
91	REPLACER ASM; CYL LINER (A)	1-85231-021-0	01	1	0211-	●	●	●	●
91	REPLACER ASM; CYL LINER 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B)	8-94396-849-0	01	1	0005-0210		●
92	ANKLE; REPLACER,CYL LINER 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	8-94396-821-0	01	1	0005-0210		●
93	SETTING KIT; VALVE GUIDE (B) L=260	9-85231-202-0	01	1	0005-0210	●		●	●
93	SETTING KIT; VALVE GUIDE 6SD1 TCN ENG(31L) (B) L=260	9-85231-202-0	01	1	0005-0210		●
93	SETTING KIT; VALVE GUIDE (B) L=260	9-85231-202-0	01	1	0211-	●	●	●	●
93	SETTING KIT; VALVE GUIDE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-85220-001-0	01	1	0005-0210		●
102	ADAPTER; COMP GAGE	5-85317-001-0	01	1	0005-0210	●		●	●
102	ADAPTER; COMP GAGE 6SD1 TCN ENG(31L)	5-85317-001-0	01	1	0005-0210		●
102	ADAPTER; COMP GAGE	5-85317-001-0	01	1	0211-	●	●	●	●
106	TOOL; SETTING PILOT BRG	1-85221-080-0	01	1	0211-	●	●	●	●
118	WRENCH; OIL FILTER 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-85221-097-0	01	1	0005-0210		●
140	REMOVER; WEAR RING	1-85210-053-0	01	1	0211-	●	●	●	●
296	REPLACER; SLINGER 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	8-94396-858-0	01	1	0005-0210		●
297	CUTTER; SEAL,OIL PAN 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	8-94393-112-0	01	1	0005-0210		●
356	TOOL; SETTING,OIL SEAL,CYL HEAD 6HK1 TCS ENG(80L)	8-94391-527-0	01	1	0303-		●
357	REPLACER; NOZZLE SLEEVE 6HK1 TCS ENG(80L)	8-94391-555-0	01	1	0303-		●
358	PLACER; NOZZLE SLEEVE 6HK1 TCS ENG(80L)	8-94391-556-0	01	1	0303-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
